24 Core Heavy Duty Connector HDC-HE-24 The Male Connector and the Female Connector 16A500V Aviation Plug Core
24pins Female
$16.40
Sale price
$16.40
Regular price
$0.00
Skip to product information
24 Core Heavy Duty Connector HDC-HE-24 The Male Connector and the Female Connector 16A500V Aviation Plug Core
$16.40
Sale price
$16.40
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: WZAZDQ
Certification: CE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: HDC-HE-24-M/F
Origin: Mainland China
Voltage: 415 V
product：insert of heavy duty connectors
Model: HDC-HE-24-M and HDC-HE-024-F
number of contacts:24
Rated current: 16A
Rated voltage: 500V
Rated impulse voltage: 6KV
pollution degree：3
material of inserts body:polycarbonate
material of contacts：copper alloy
surface for contacts：silver plated
contact resistancel≤1mΩ
terminal：shrapnel connection
wire gauge：1.0-2.5m㎡
screw terminal tightening：0.5NM
stripping length：7-9mm
mechanical working life（mating cycles）≥500
limiting temperatures：-40 - +125℃
Protection grade: IP65

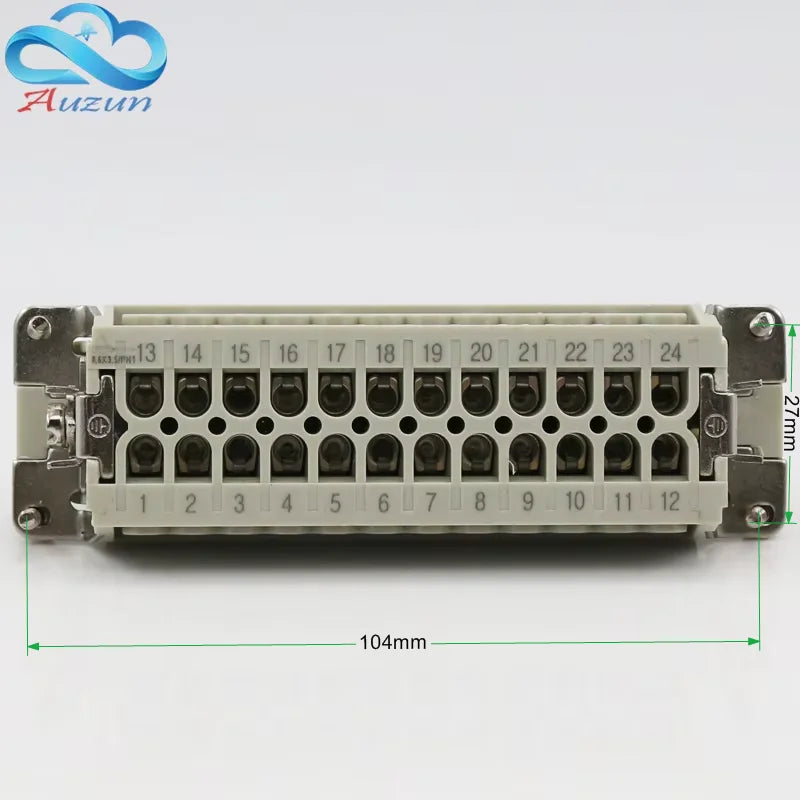

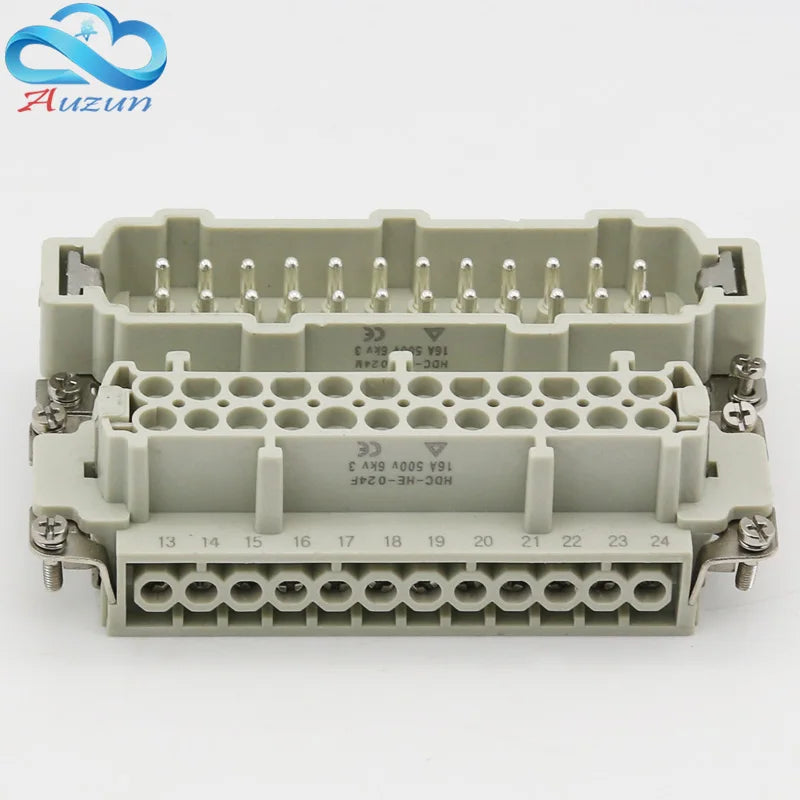

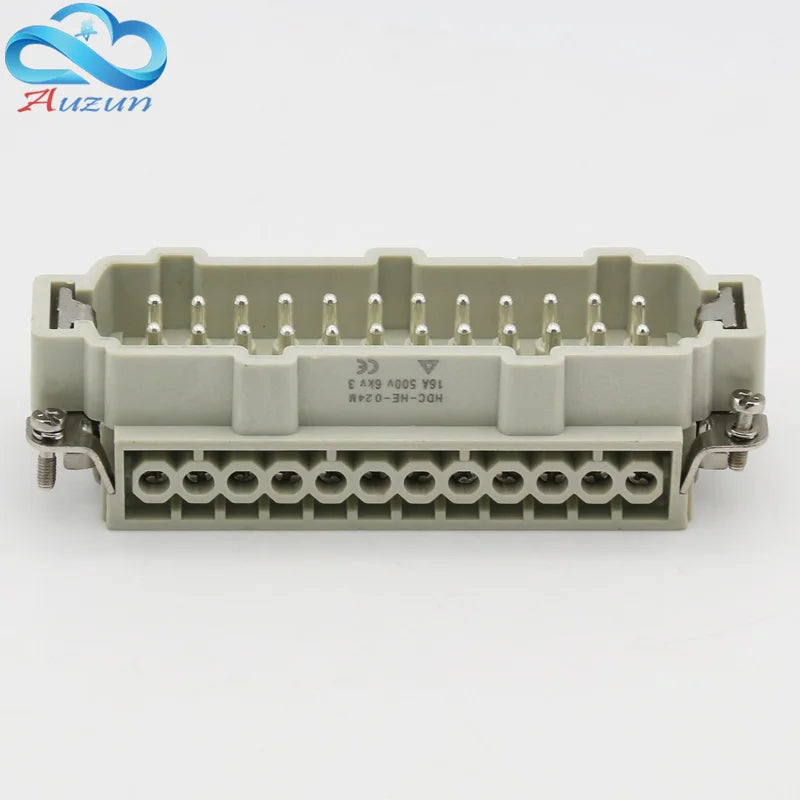

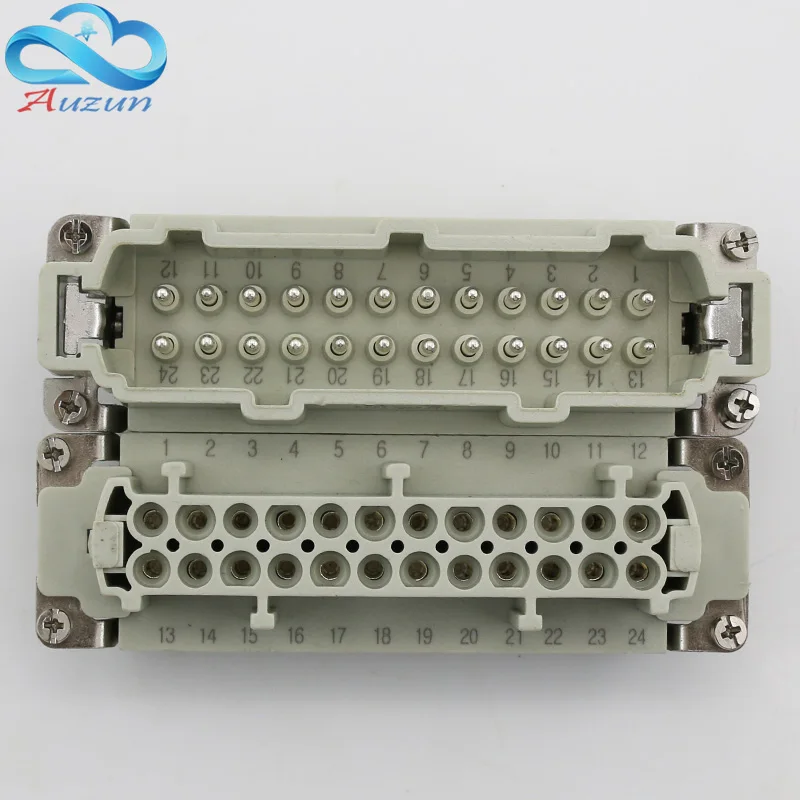

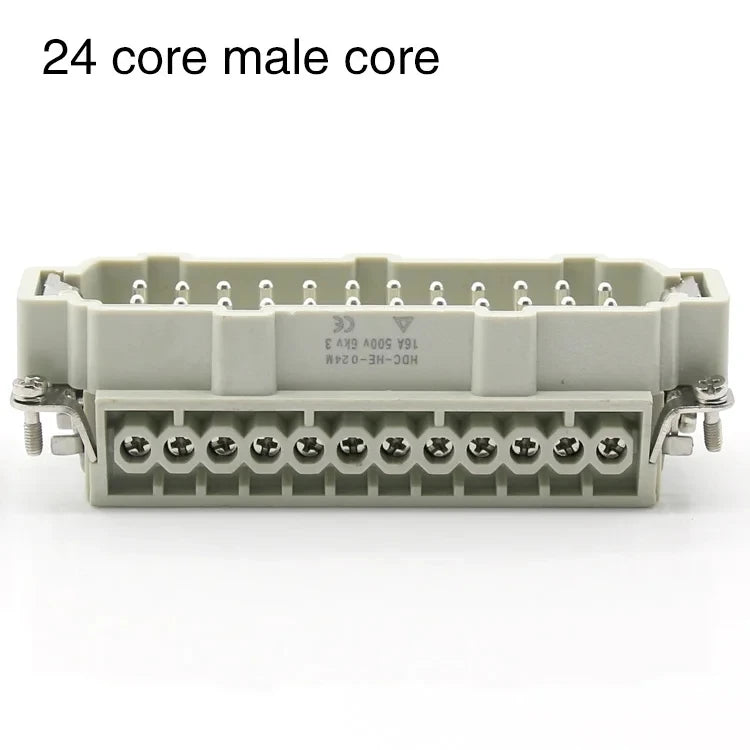

The male connector

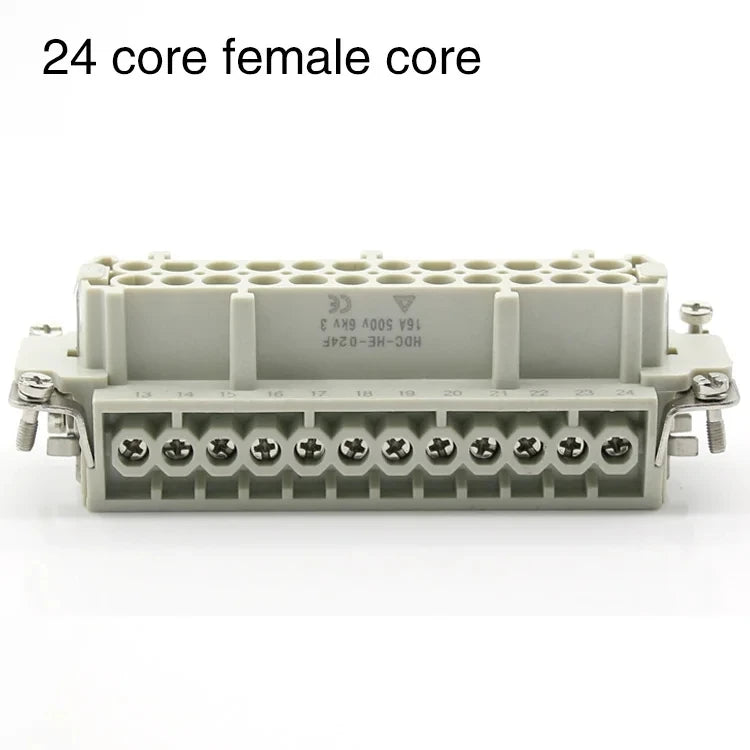

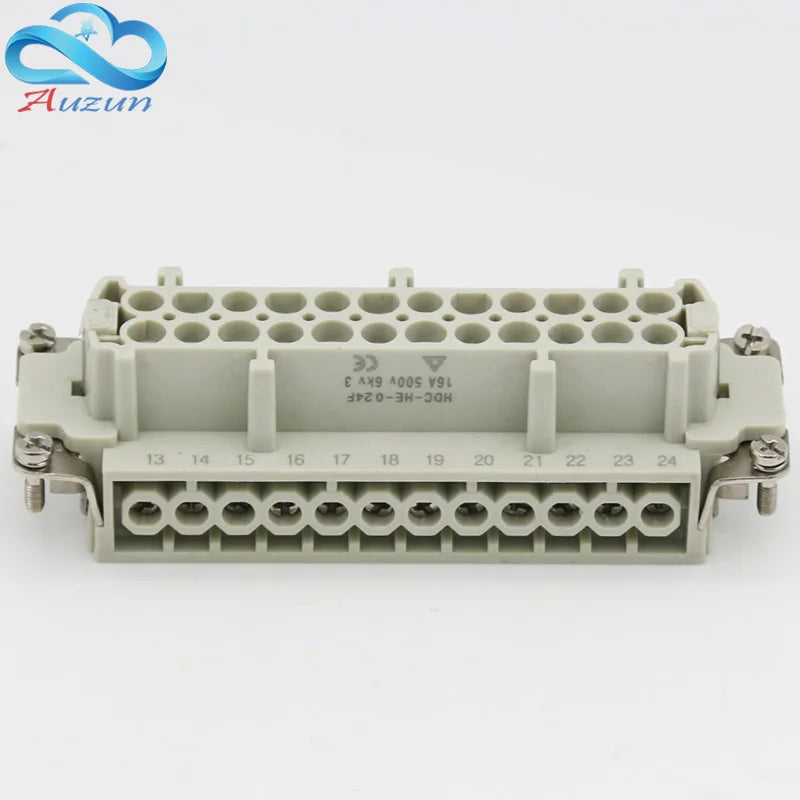

Female connector
