24 Volt to 12 Volt 24V to 12V 85A-300A Step Down Converter Voltage Regulator DC/DC Buck Transformer Power Supply CE Waterproof

24 Volt to 12 Volt 24V to 12V 85A-300A Step Down Converter Voltage Regulator DC/DC Buck Transformer Power Supply CE Waterproof

$3,598.48

$3,598.48 $0.00

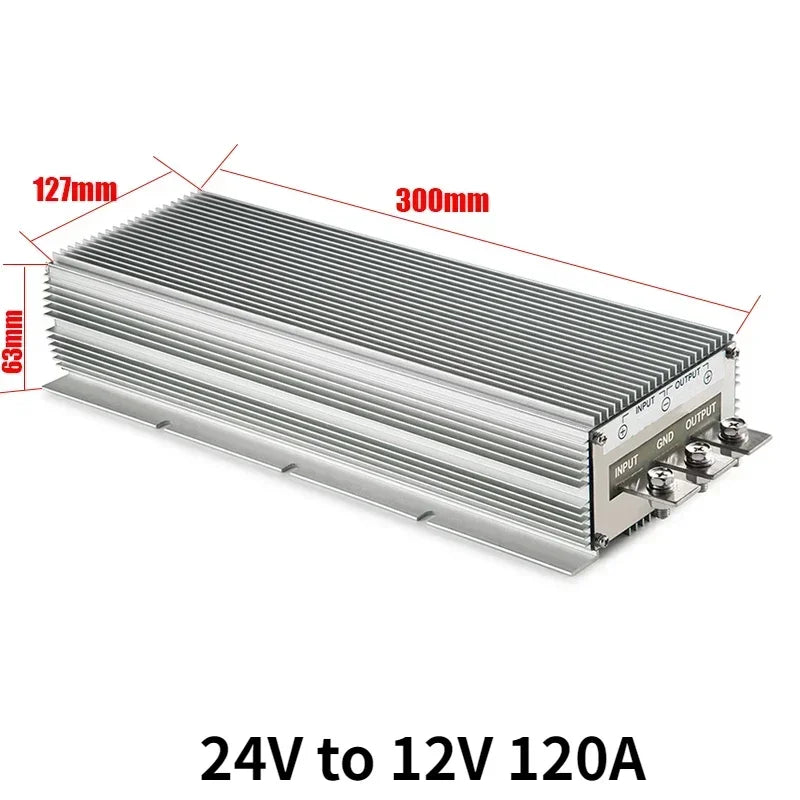

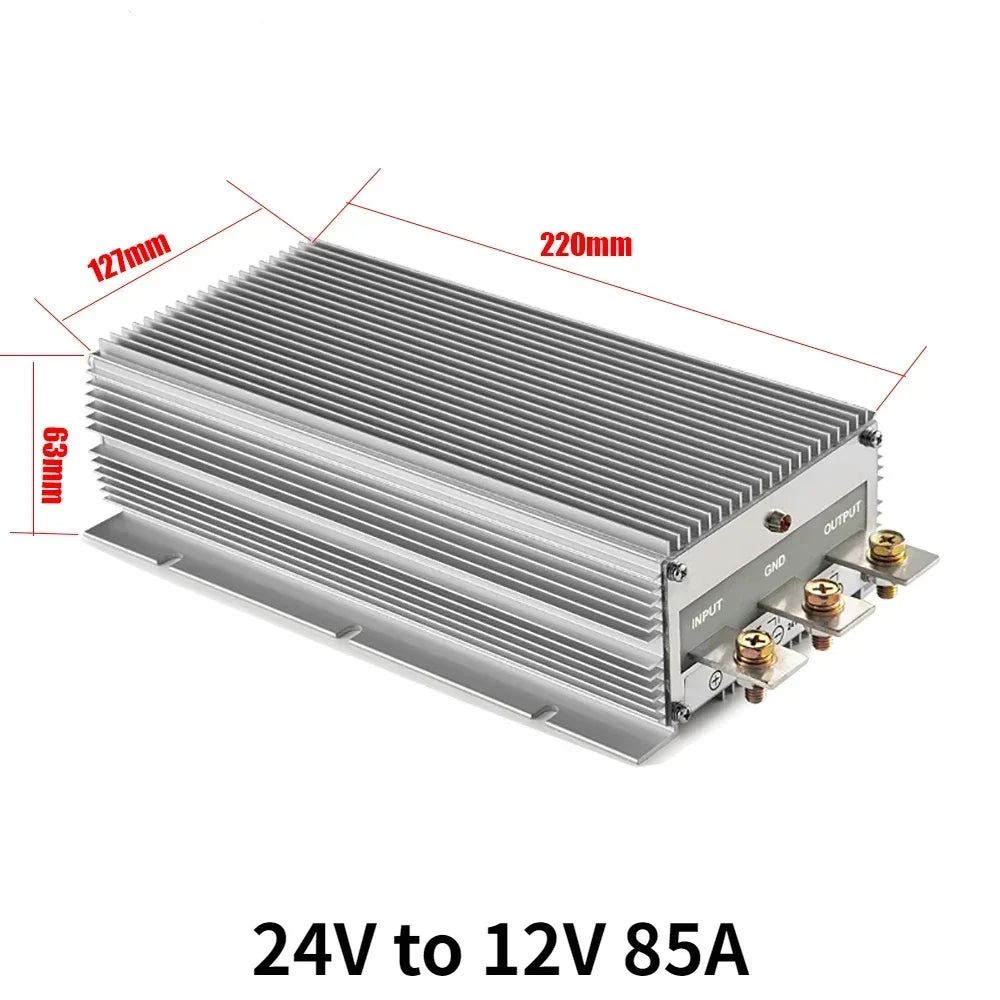

Color 24V to 12V 300A 24V to 12V 150A 24V to 12V 85A 24V to 12V 50A 24V to 12V 165A 24V to 12V 200A 24V to 12V 100A 24V to 12V 120A

Input Voltage24V

Output Voltage12V

Description

SPECIFICATIONS

Brand Name: kangwobei

Certification: CE,FCC,RoHS,UL

High-concerned chemical: none

Model Number: WH-12-24 ,WH-30-57

Origin: Mainland China

Output Current: 50A-200A

Output Frequency: 200kHZ

Output Power: >1000KW

Output Type: SINGLE

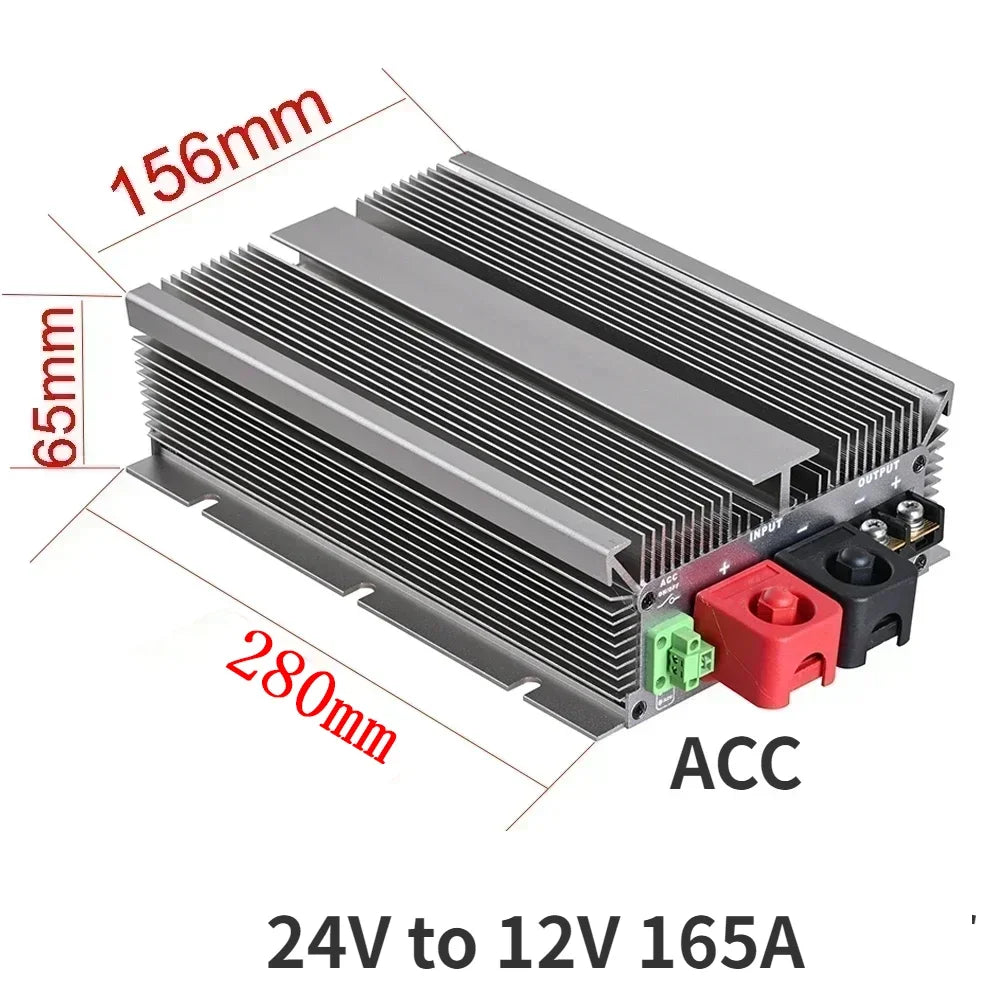

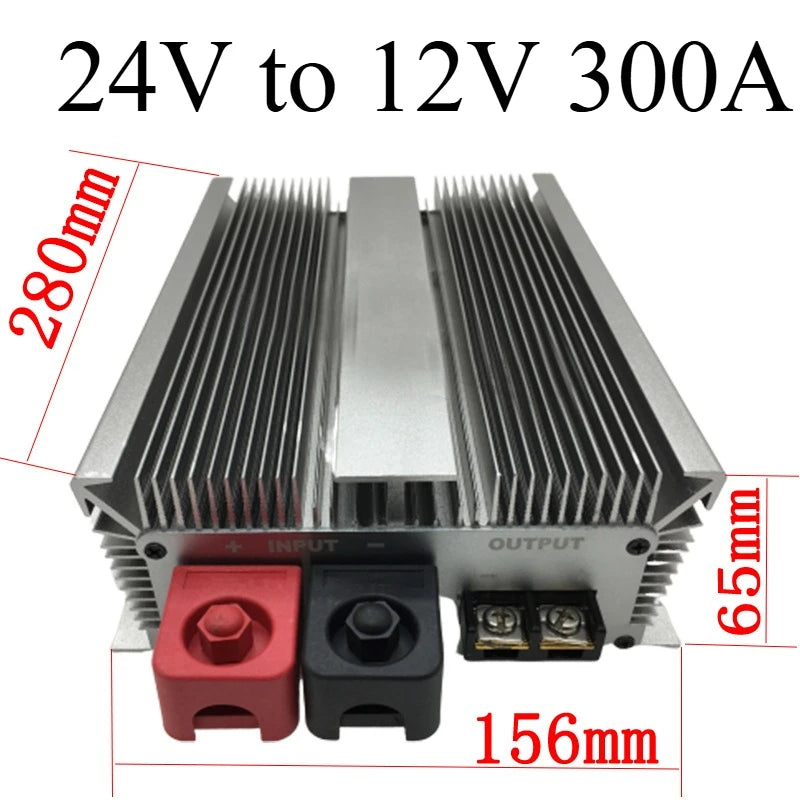

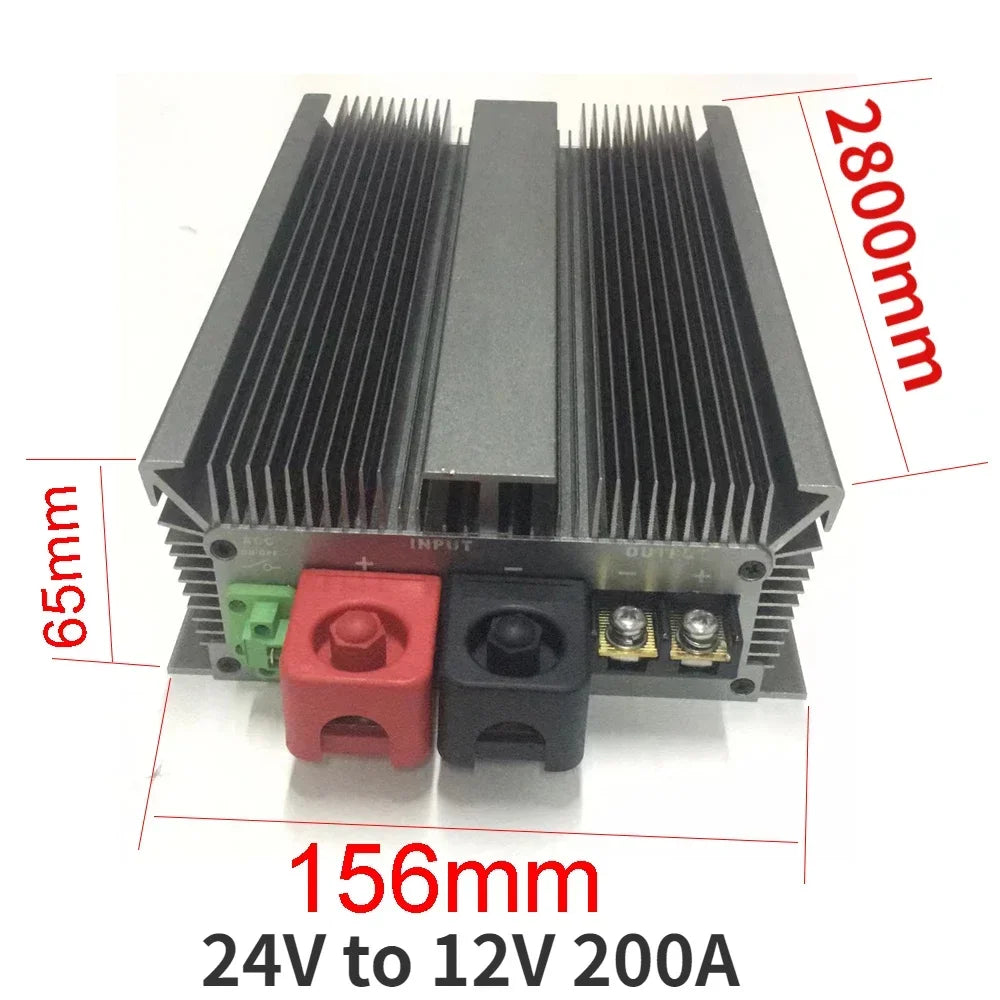

Size: 280*156*65MM

Type: DC/DC Converters

Weight: 4.5KG

is_customized: Yes

24V to 12V 50A-200A Step Down Converter Voltage Regulator DC/DC Buck Transformer Power Supply 24 Volt to 12 Volt CE Waterproof
Input voltage range: DC 18-35V; Output voltage: DC 12V(non-adjustable); Output current: 50A-200A; Output power 600W-2400W.
High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.

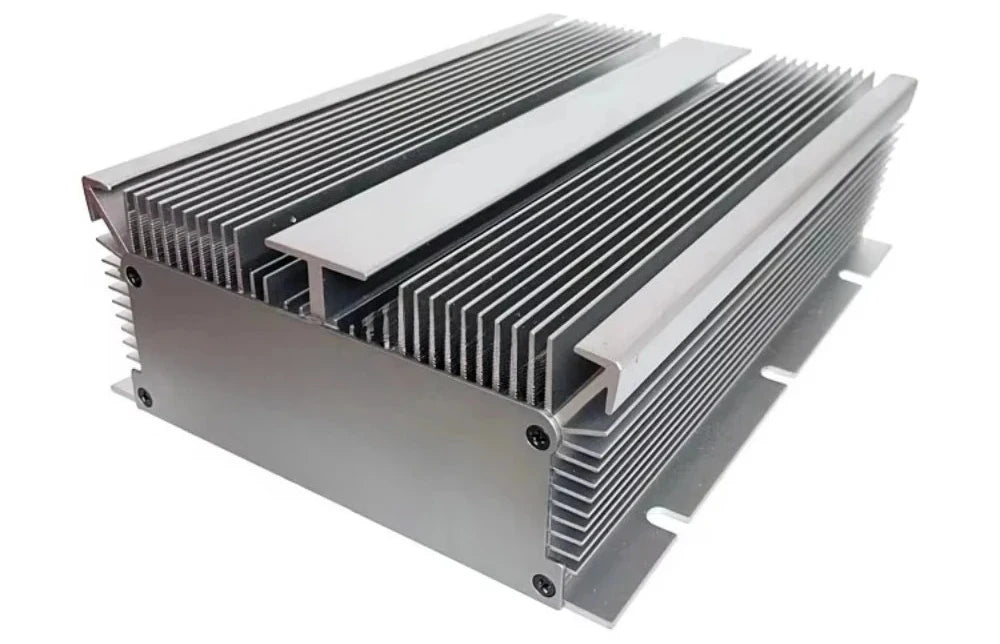

Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
Wide application: Large trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, electronic systems and DIY etc.

Application:

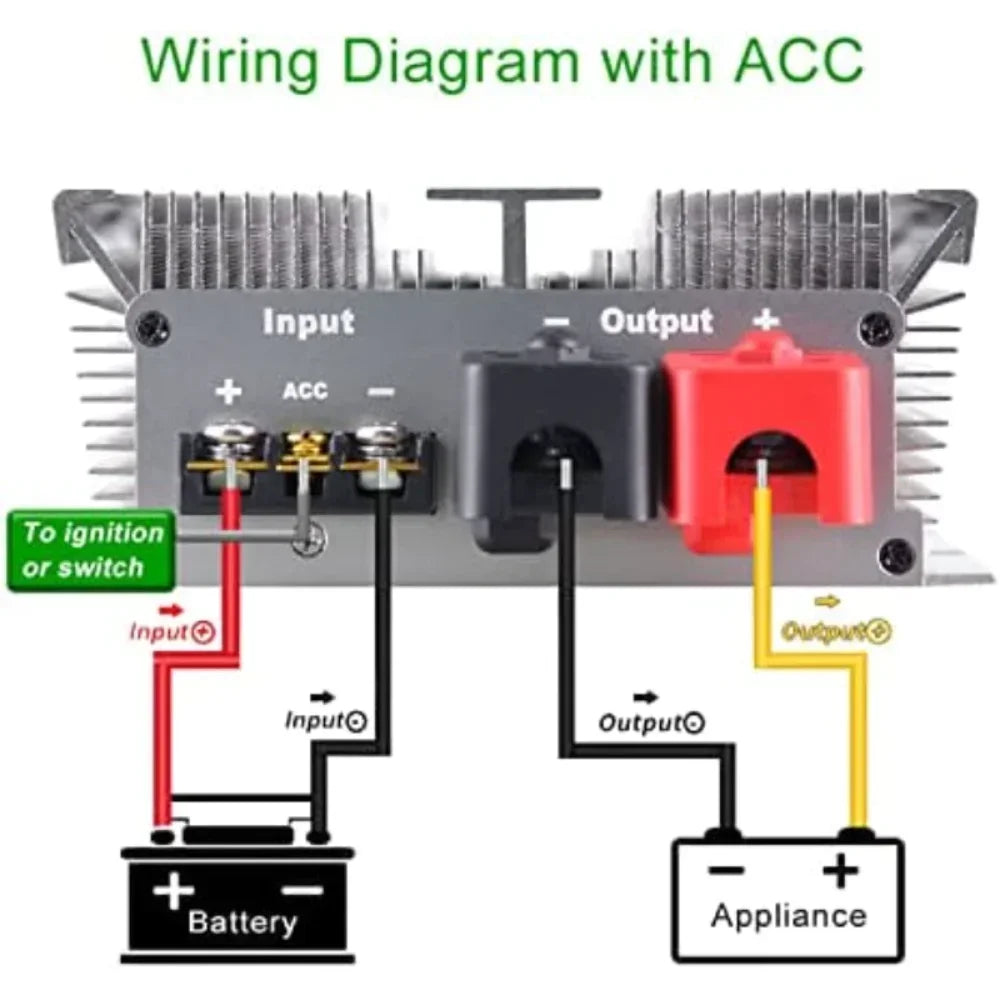

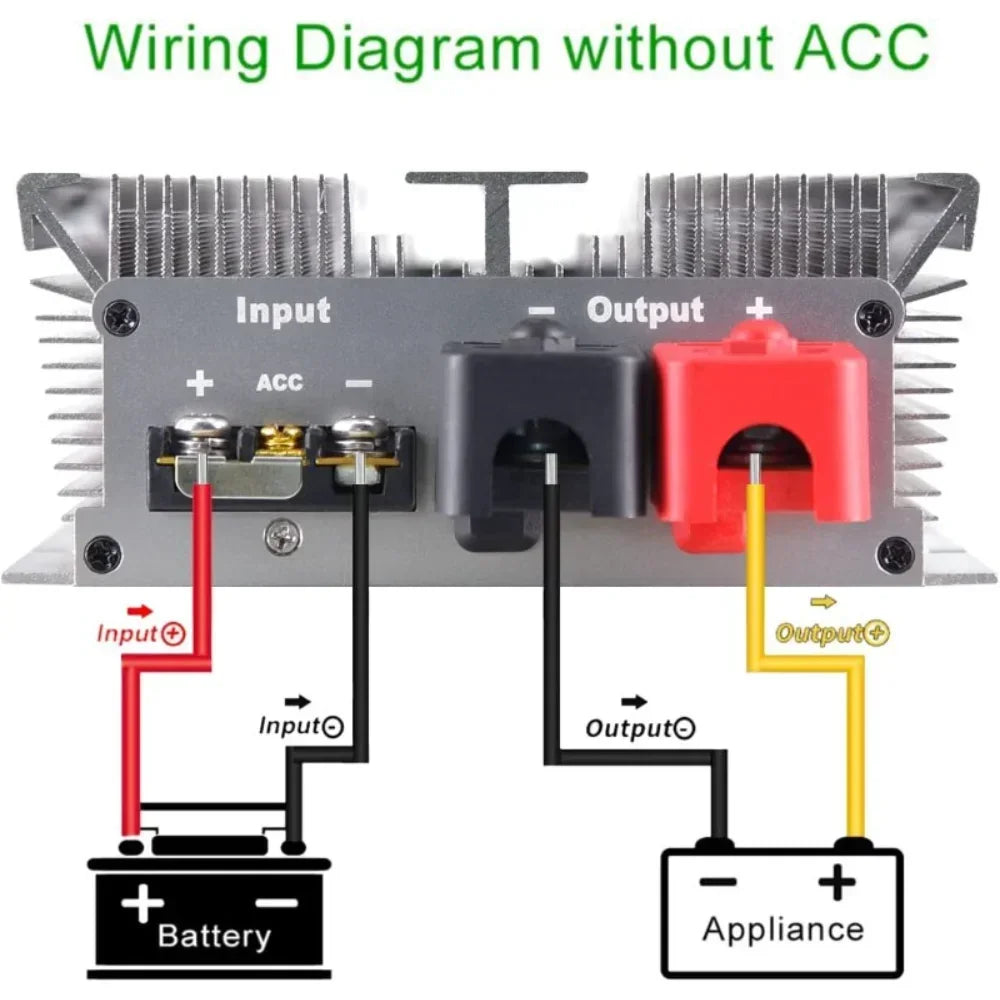

24V DC battery as input power to 12V DC appliances as output load.

Reminder:
* Keep good air convection.
* Input power should be lead acid battery or lithium battery.
* This converter can't charge the battery.
* Please install correct fuse in input cable.
* Don't connect Negative or GND to vehicle case or chassis.
* Never connect the converter to a solar panel or wind turbine. That will burn the converter.
* Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter.
* Please don't install any meters between converter to battery and converter to loads.
* When in doubt, the larger current converter is always a better choice.

Specifications:
Input Rated Voltage: 24V DC
Input Voltage Range: 18-35V DC
Output voltage: DC12V 50A-300A
Output Rated Power: 600W-3600W
Efficiency: 97% (half load); 95% (full load)
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 1.5-7kg

Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%.

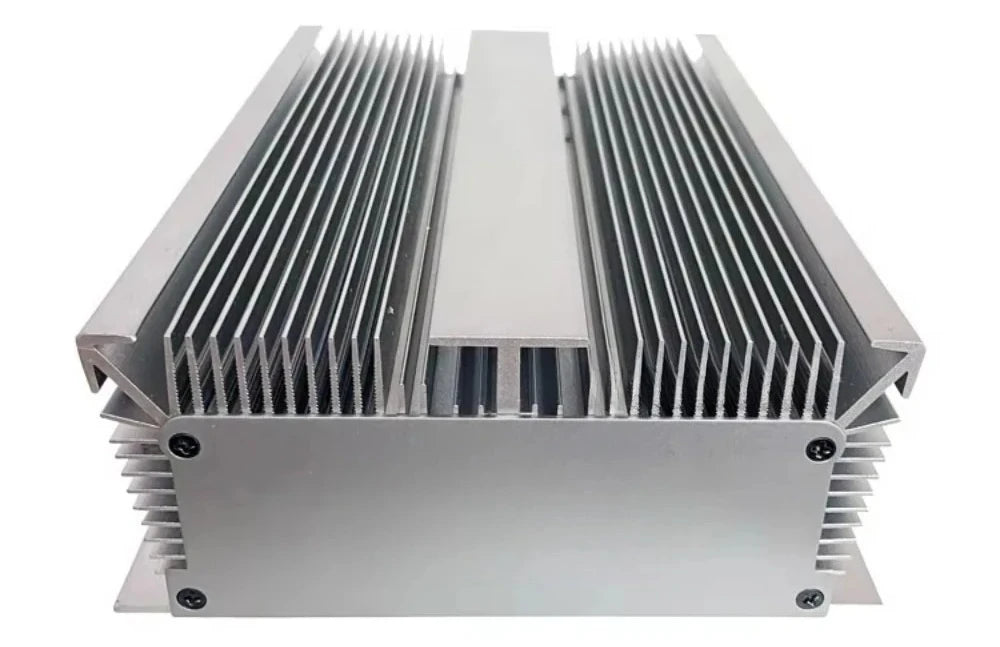

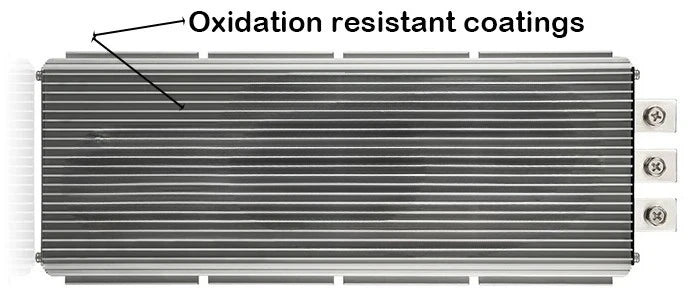

3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

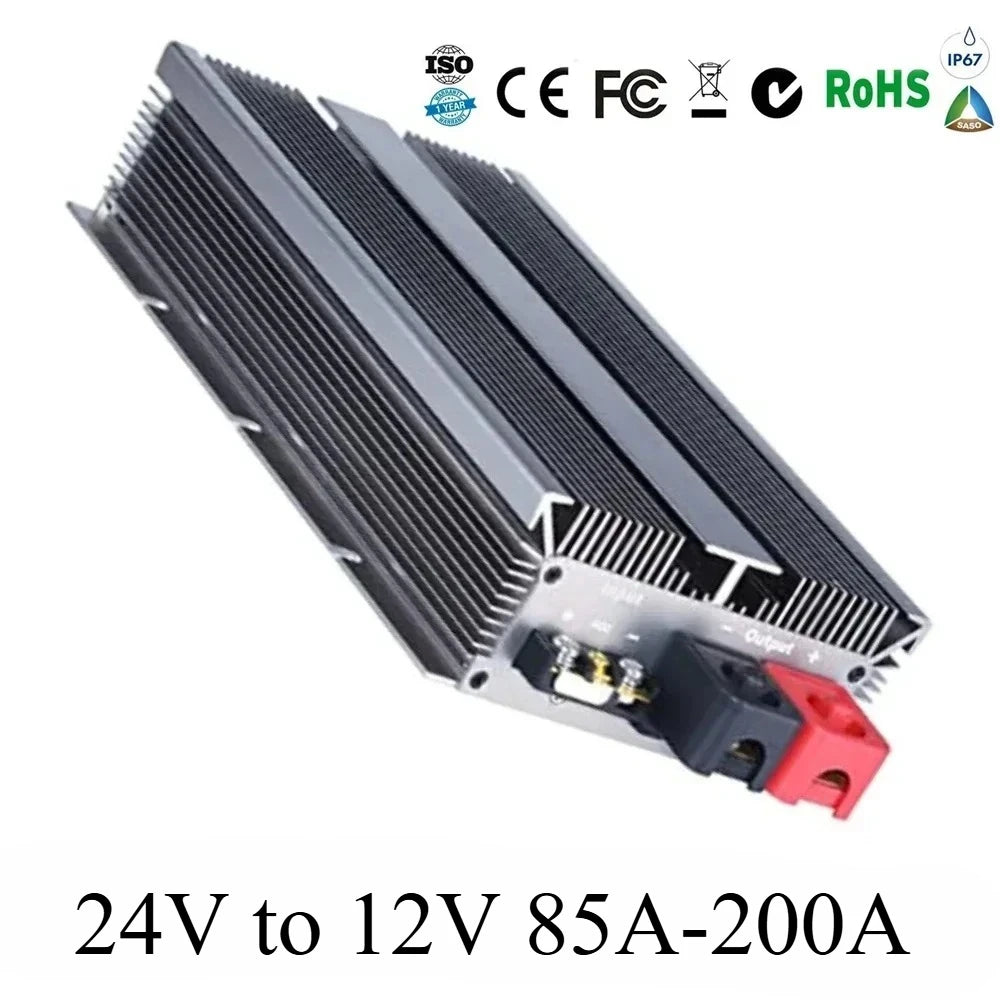

5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

Package included:
1 x DC 24-12V 50A-200A Voltage Converter

Notes:

Please connect the polarity correctly, or the converter will be burnt.

This DC/DC Converter can't work as solar controller or wind controller.
