24GHz Microwave Motion Sensor 200m Vehicle Human Detection TTL Long Range Presence Sensor for Traffic Security System
ZLYIR05 / ZLYIR05
$162.54
Sale price
$162.54
Regular price
$0.00
Skip to product information
24GHz Microwave Motion Sensor 200m Vehicle Human Detection TTL Long Range Presence Sensor for Traffic Security System
$162.54
Sale price
$162.54
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE

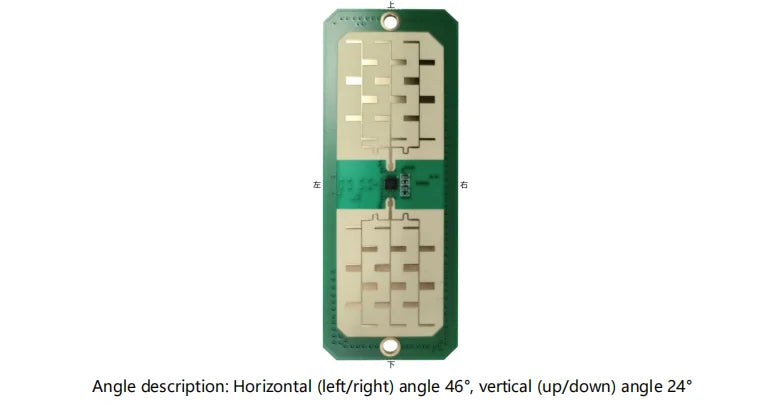

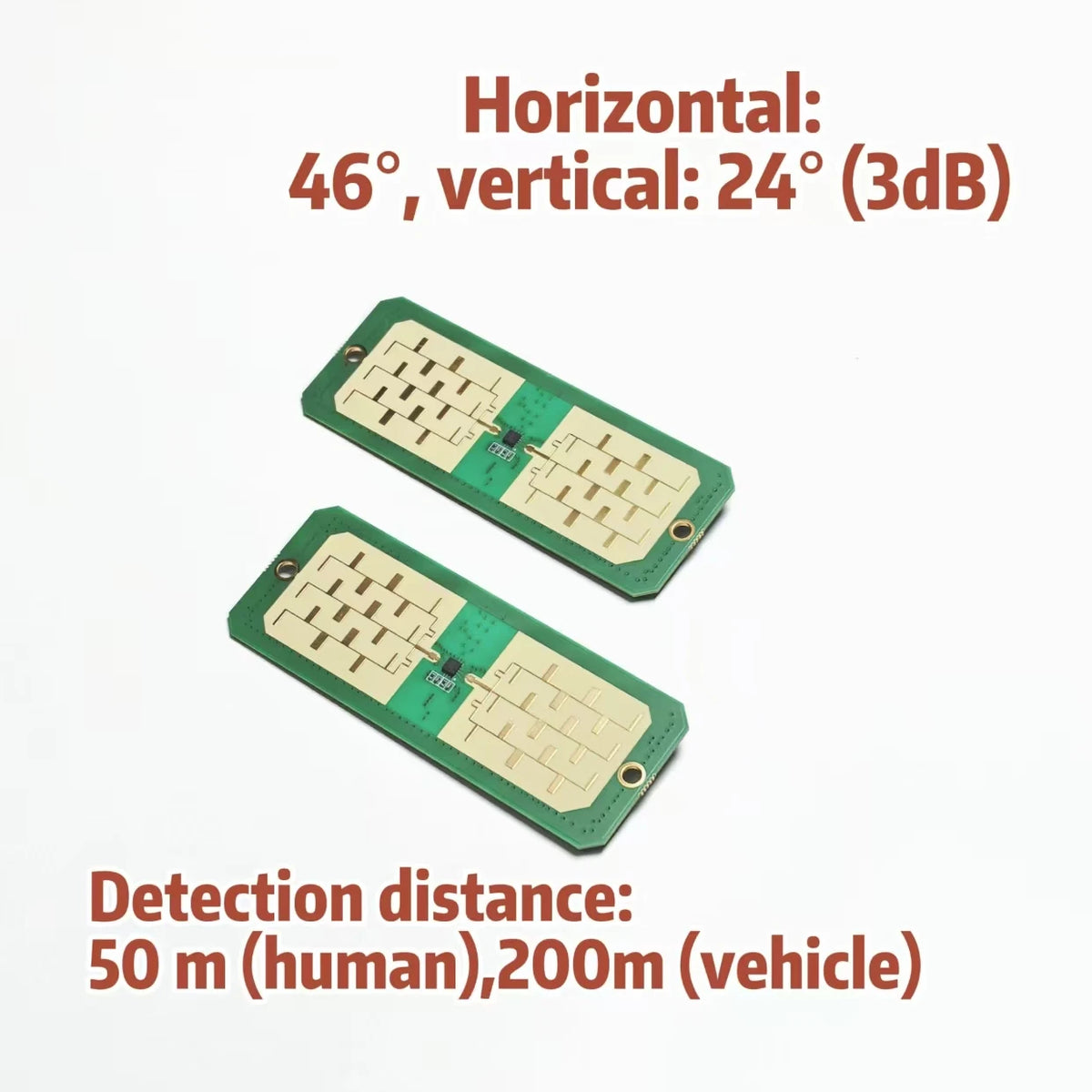

Detection Range: Horizontal plane 46°,vertical plane 24° (3dB)
Detection distance(human): less than or equal to 50 m
Detection distance(vehicle): less than or equal to 200 m
High-concerned chemical: none
Interface: TTL
Material: Mixture
Origin: Mainland China
Output: Digital Sensor
Power - Rated: 24GHZ
Series: Microwave Sensor radar
Use: Motion & Position Sensor
Voltage - Supply: DC 12V
Working Temperature: -40℃~+80℃
is_customized: Yes
24hours Online Contact
Contact : Jessica Lan
Email :Jessica@zlyradar.com
WhatsApp:+86-151-7256-1123
Wechat:+86-151-7256-1123
24GHz Microwave sensitive radar
1、Product Description
ZLYIR05 microwave sensing radar can be used to detect targets moving at speeds in the range of 1 km/h to 250 km/h and outputs approach, distance or presence signals (or commands) with an adjustable detection range.
2、Feature Description
★24GHz (ISM standard band) motion detector based on the radar principle of operation
★Maximum detection distance up to 200 meters (vehicle)
★Detection distance can be configured by sensitivity

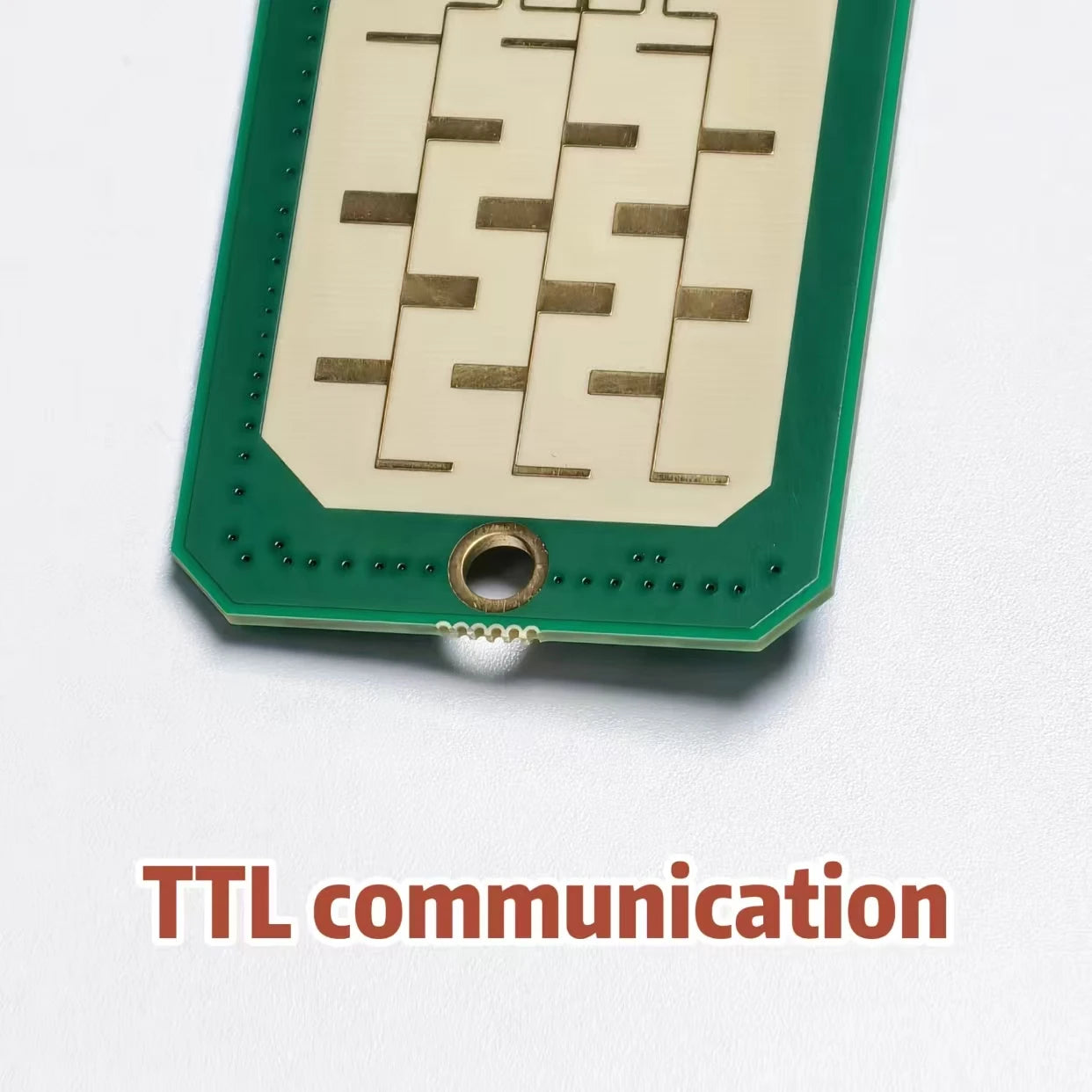

★Serial TTL communication
★Strong anti-interference ability, and not affected by temperature, humidity, dust, etc.

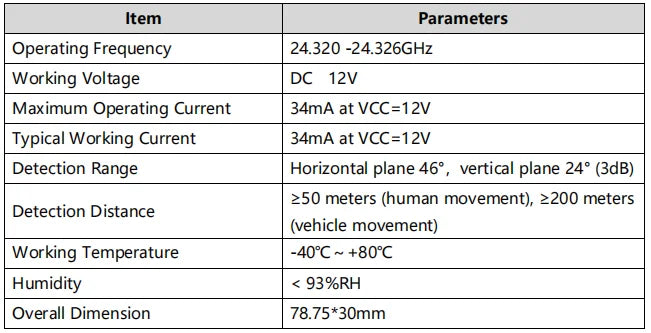

3、Technical Parameters

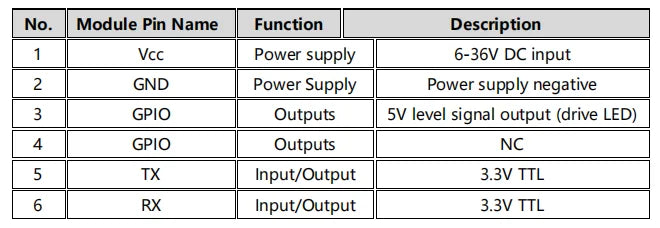

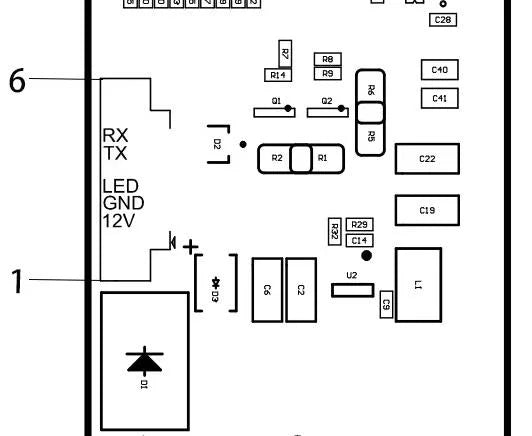

4、Interface Definitions

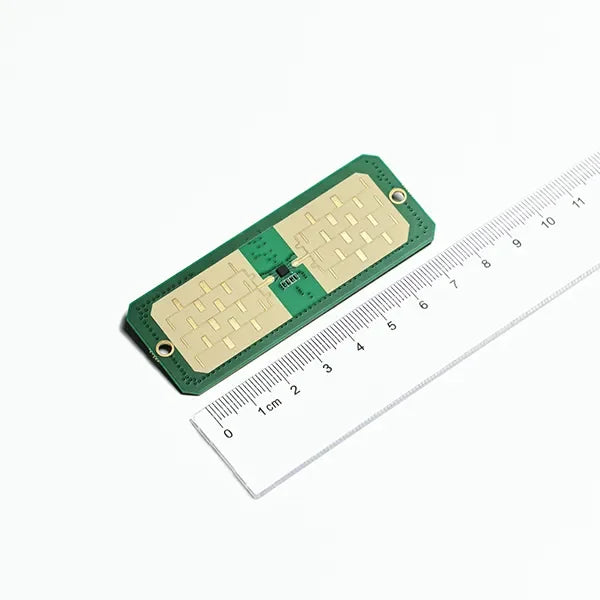

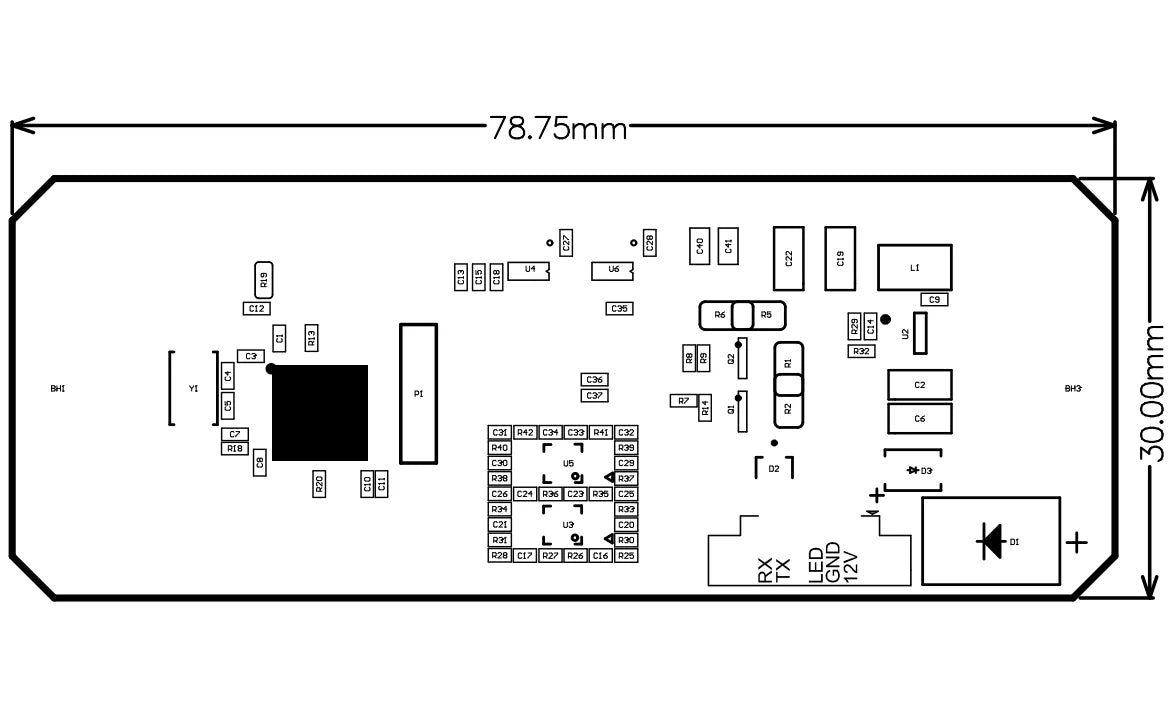

5、Mechanical Dimension

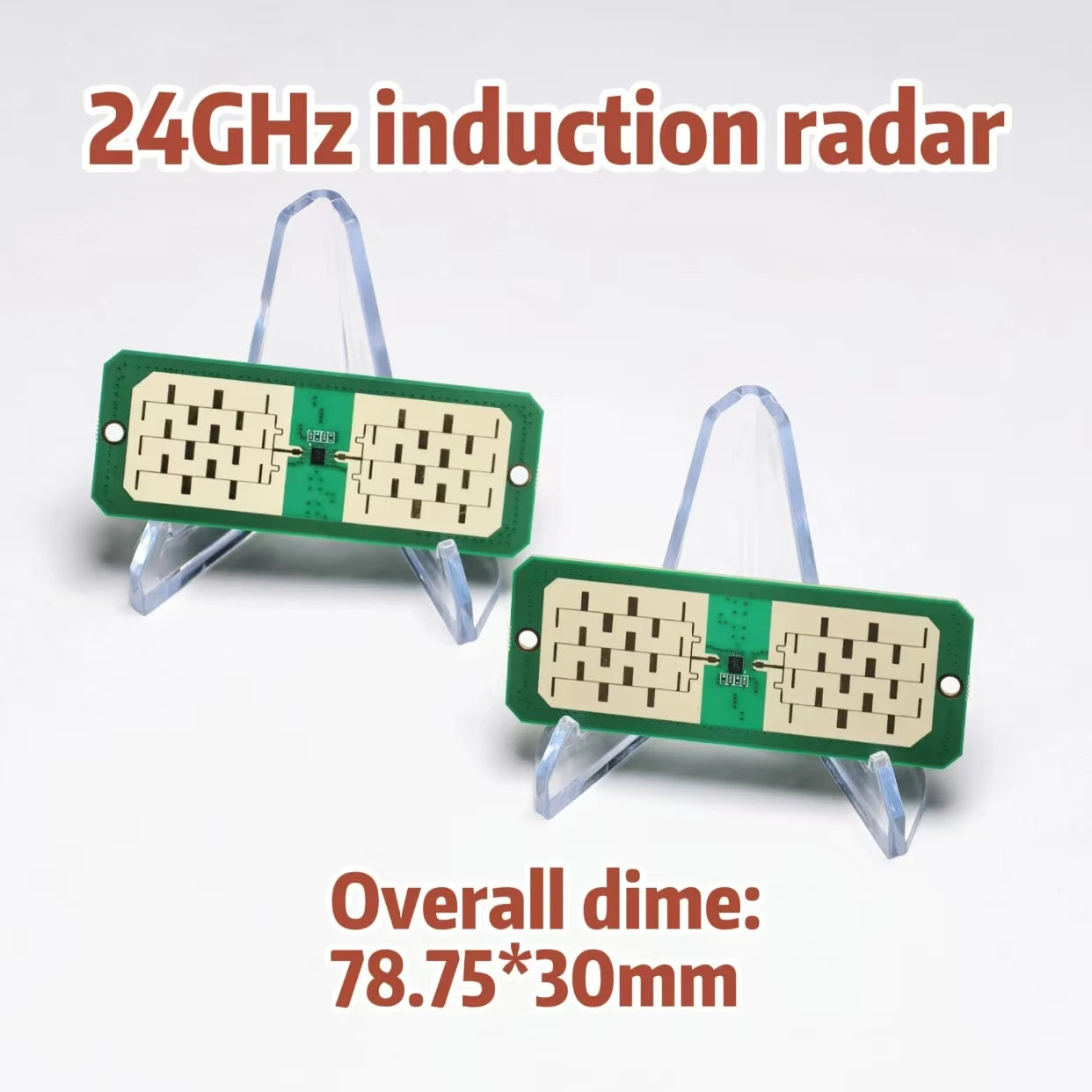

PCB Size:
