24M Logic Analyzer Portable Logic Analyzer LA1002 Mini Portable USB 5MHz 24M 8 Channel Logic Analyzer Device Set with Cables

24M Logic Analyzer Portable Logic Analyzer LA1002 Mini Portable USB 5MHz 24M 8 Channel Logic Analyzer Device Set with Cables

$30.72

$30.72 $0.00

Description

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

semi_Choice: yes

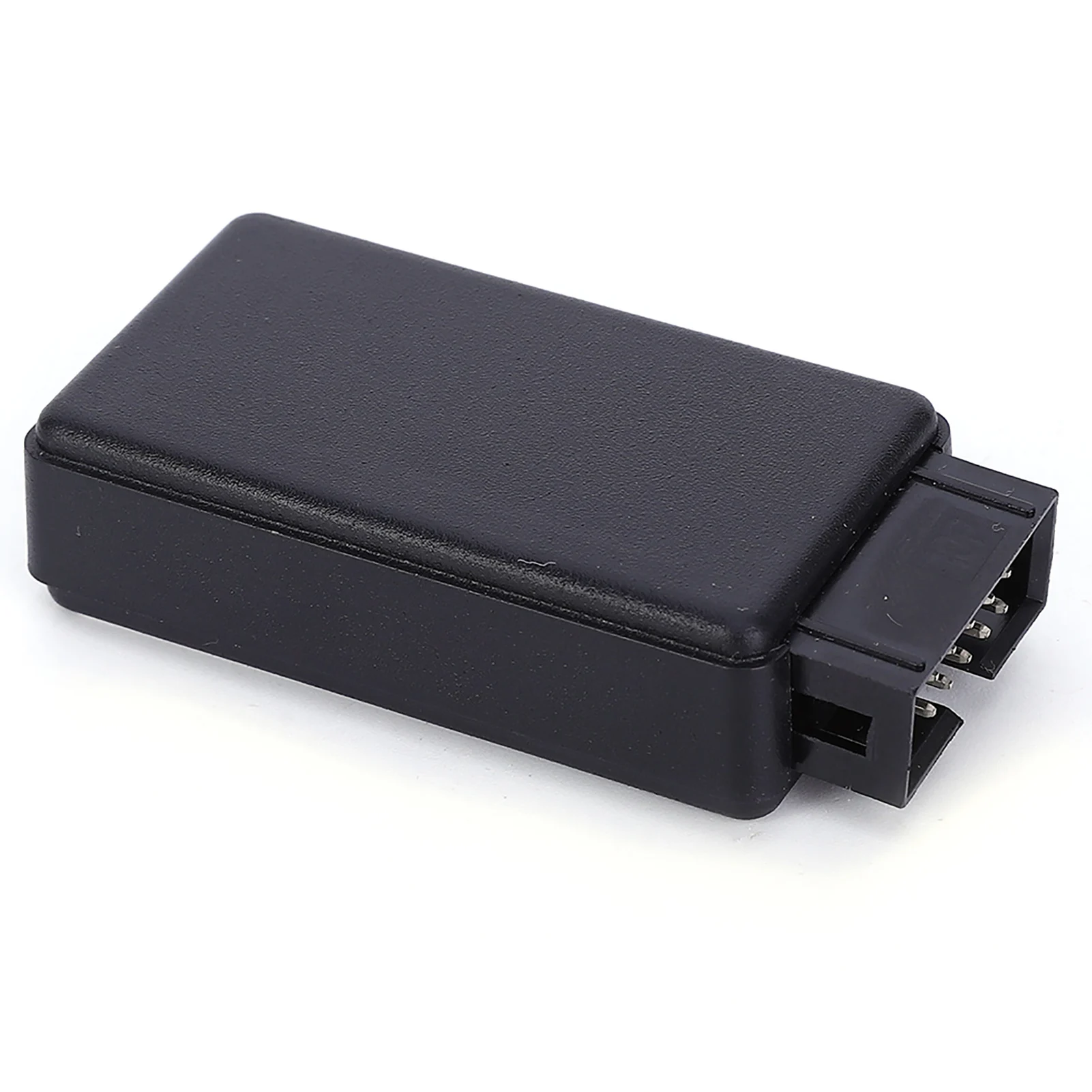

LA1002 Mini Portable USB 5MHz 24M 8 Channel Logic Analyzer Device Set with Cables

Feature:

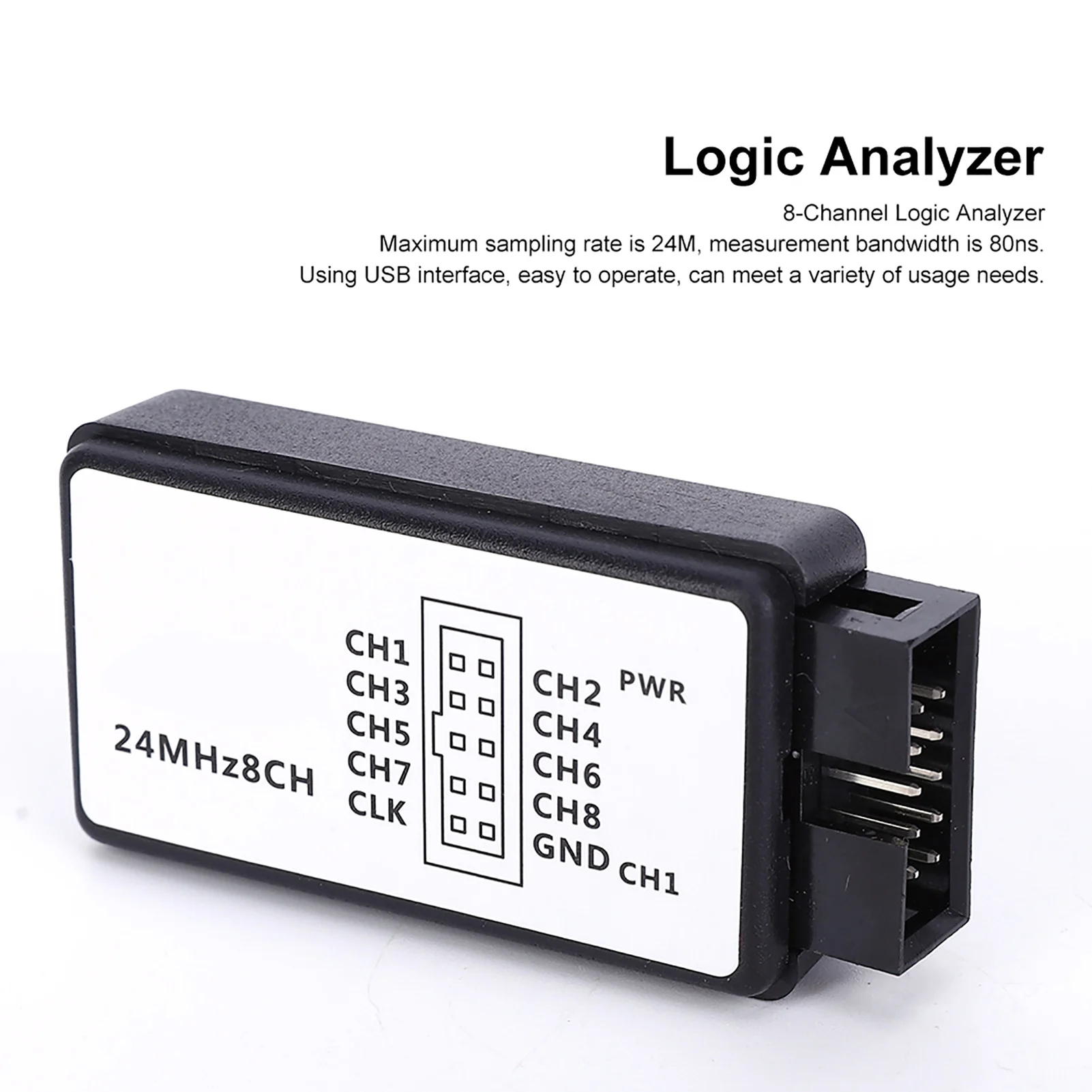

1. 8‑channel logic analyzer with a maximum sampling rate of 24M and a measurement bandwidth of 80ns.
2. Using USB interface, the installation and use method is simple, the operation is convenient, and it can meet a variety of usage needs.
3. Mini logic analyzer, made of high‑quality materials, has good durability and stability.
4. Small size, widely used in automotive electronics, communications, power, computers and other industries.
5. Professional manufacturing, stable performance, can provide convenient, intuitive and powerful analysis functions.

Specification:

Condition: Brand New
Item Type: Logic Analyzer
Material: ABS
Weight: Approx. 43g / 1.5oz
Product Number LA1002
Measurement Input Parameters Number of Channels 8
Maximum Sampling Rate 24M at 8CH
Measurement Bandwidth 5MHz
Minimum Captureable Pulse Width 80ns
Maximum Sampling Depth 10G/Channel
Input Voltage Range 0V - +5V
Equivalent Input Impedance 12kΩ, 12PF
Threshold Voltage ≤S1.0V Low Level, ≥22.0V High Level
PWM Output Parameters Number of Channels No
Output Frequency Range No
Cycle Adjustment Step No
Pulse Adjustment Step No
The Output Voltage No
Output Impedance No
Power Supply Parameters Power Supply Interface USB2.0/3.0
Stand-By Current 50mA
Maximum Working Current 80mA
Computer Software Supporting Agreement Support for UART/RS-232/485, for I2C, for SPI, for CAN, for DMX512, for HDMI CEC,for 12S/PCM, for JTAG, for LIN, for Manchester, for Midi, for Modbus, 1-Wirefor UNI/O, for SDIO, for SMBuS, for SWD, USB1.1, for PS/2 mouse and keyboard,for NEC infrared, parallel port
Support Operating System Support for Windows XP(32bit), for Window Vista/7 (32bit/64bit), for OS, for Linux

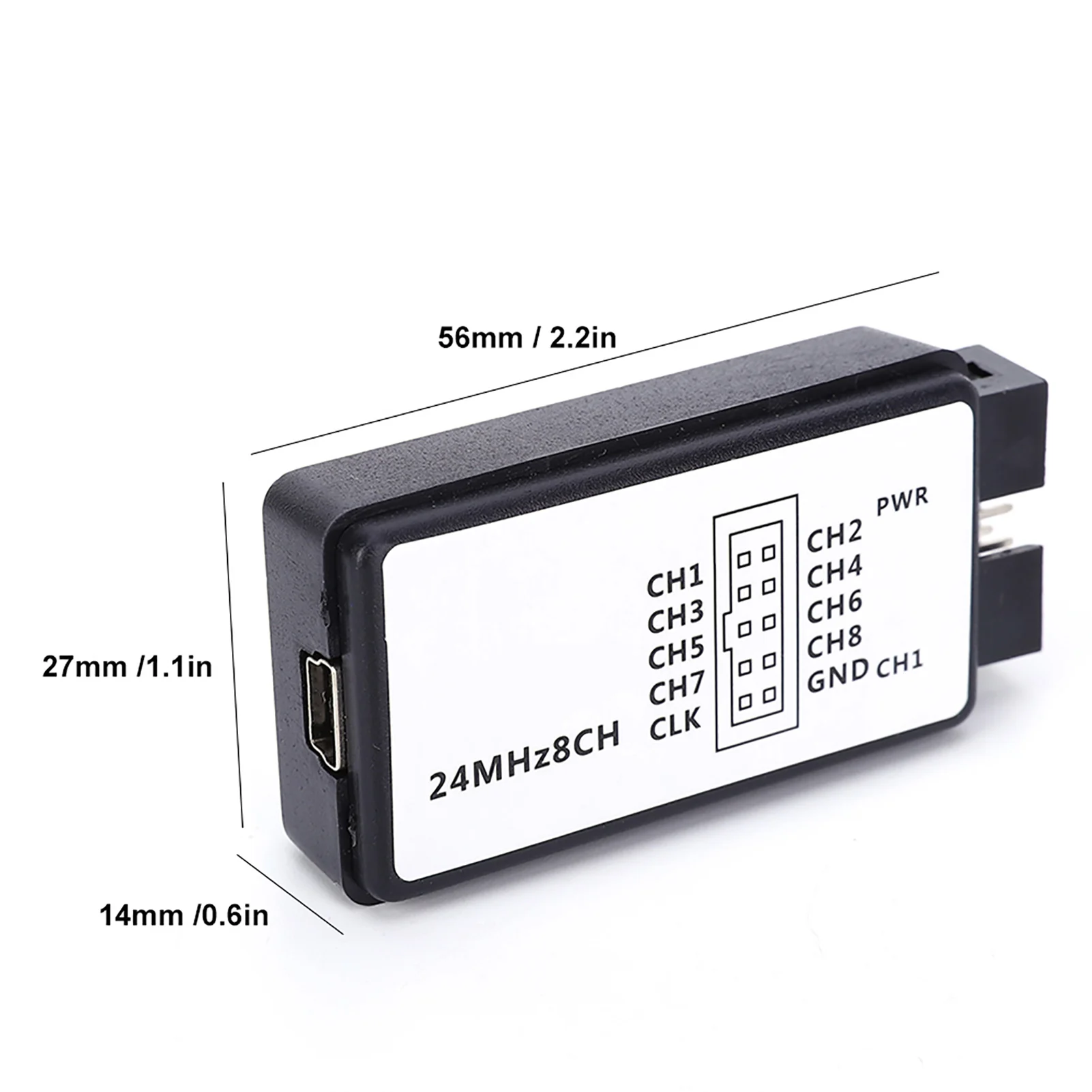

Product Size Approx. 56x27x14mm / 2.2x1.1x0.6in

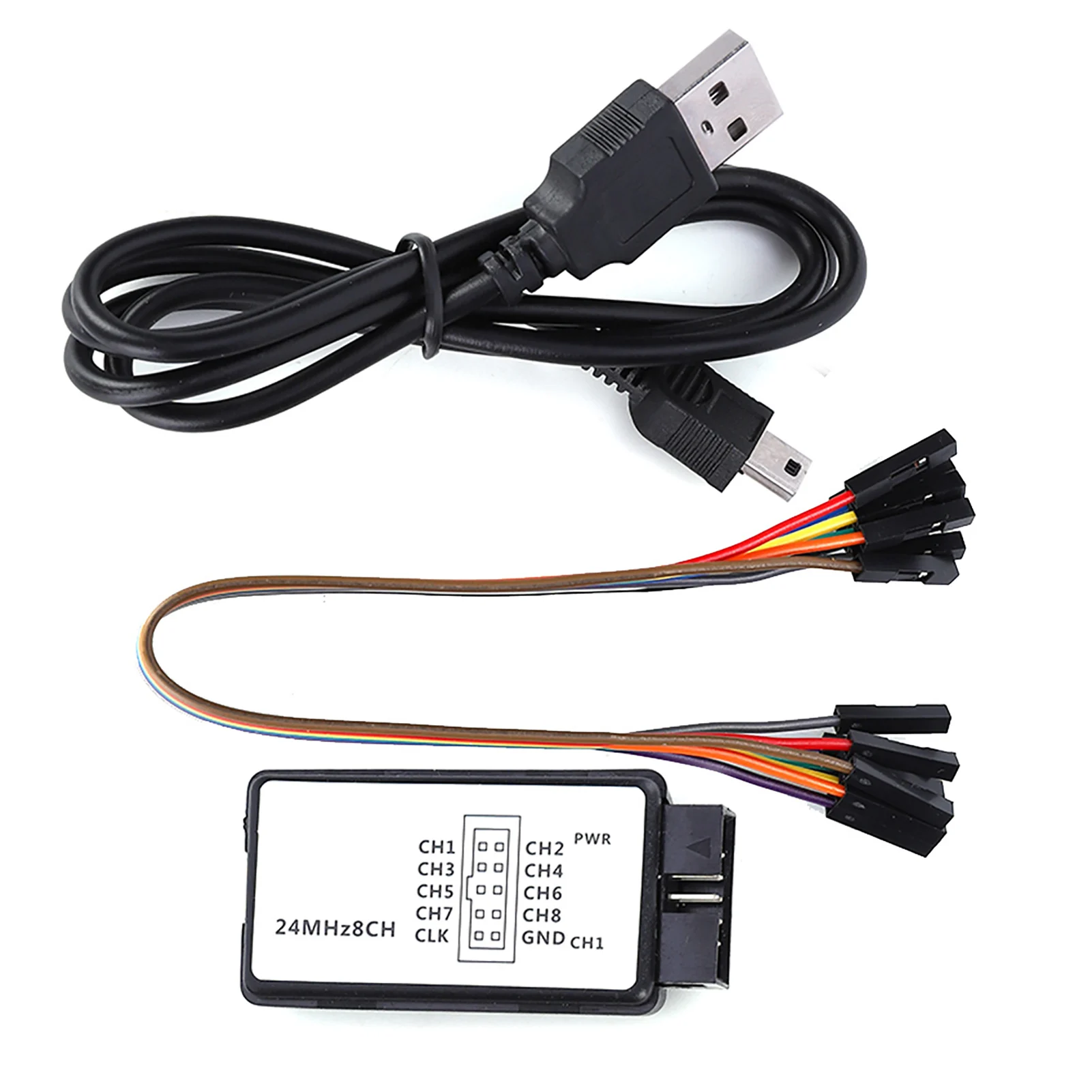

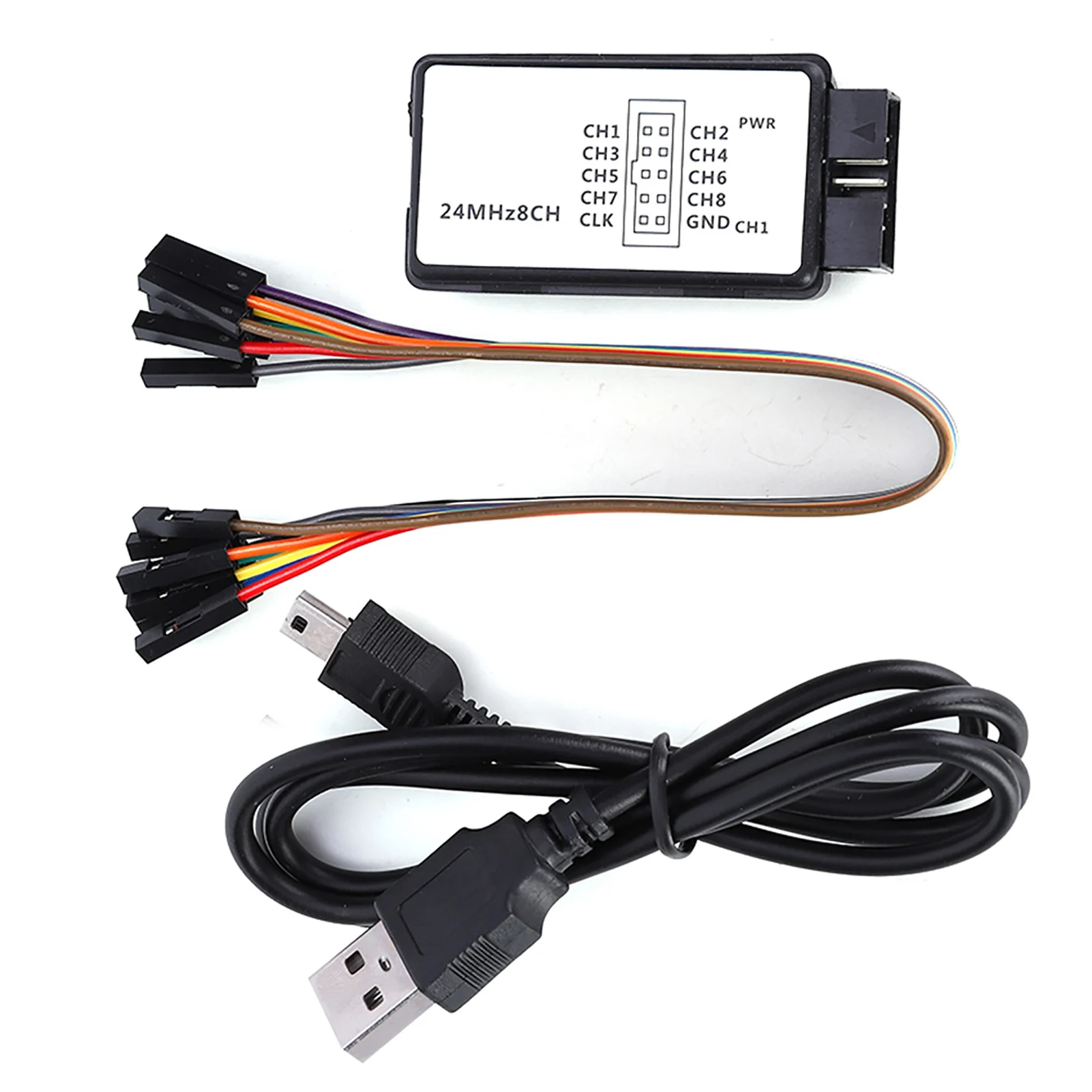

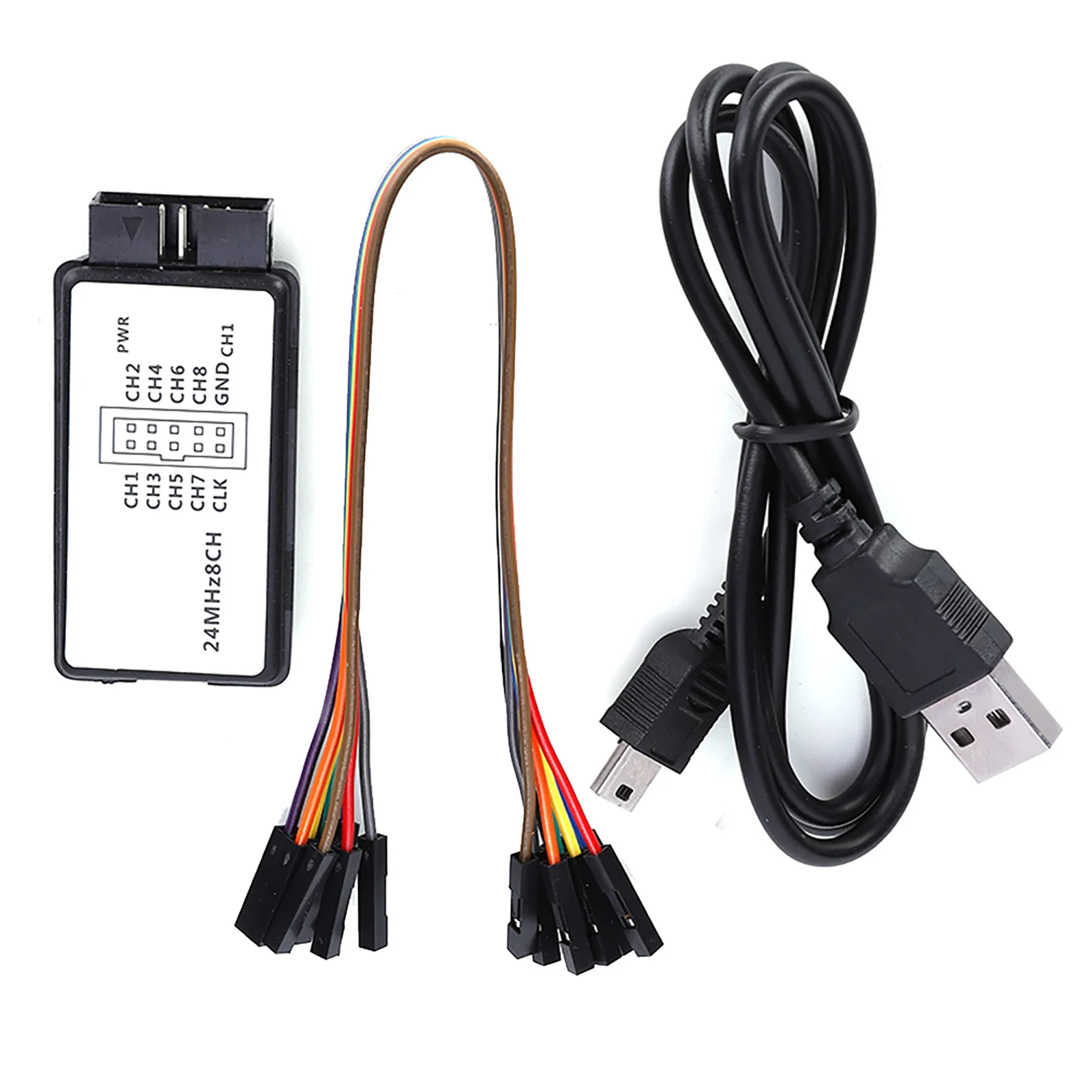

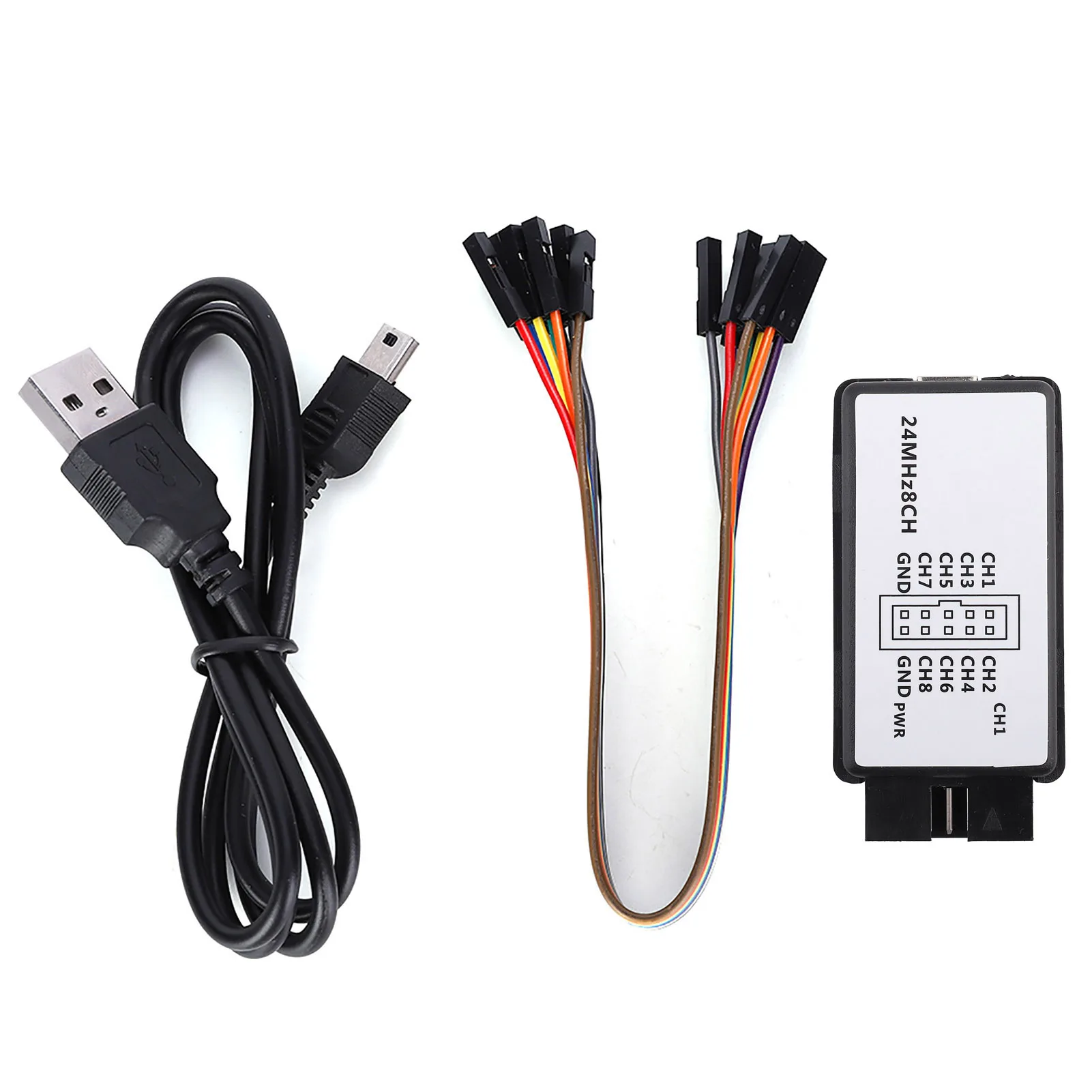

Package List:

1 x Logic Analyzer

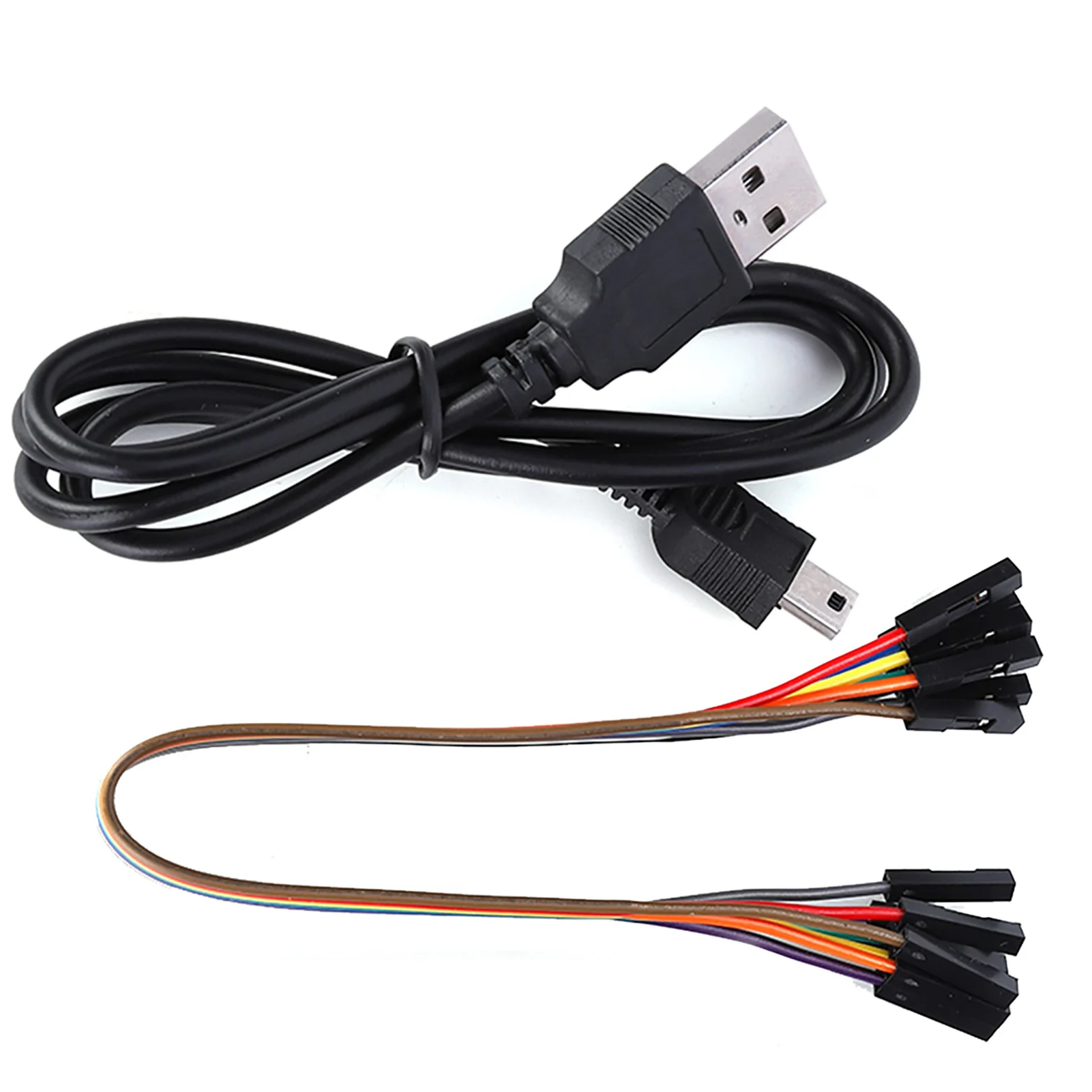

1 x USB Cable

1 x Jumper Wire

Note:

1.Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.

2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

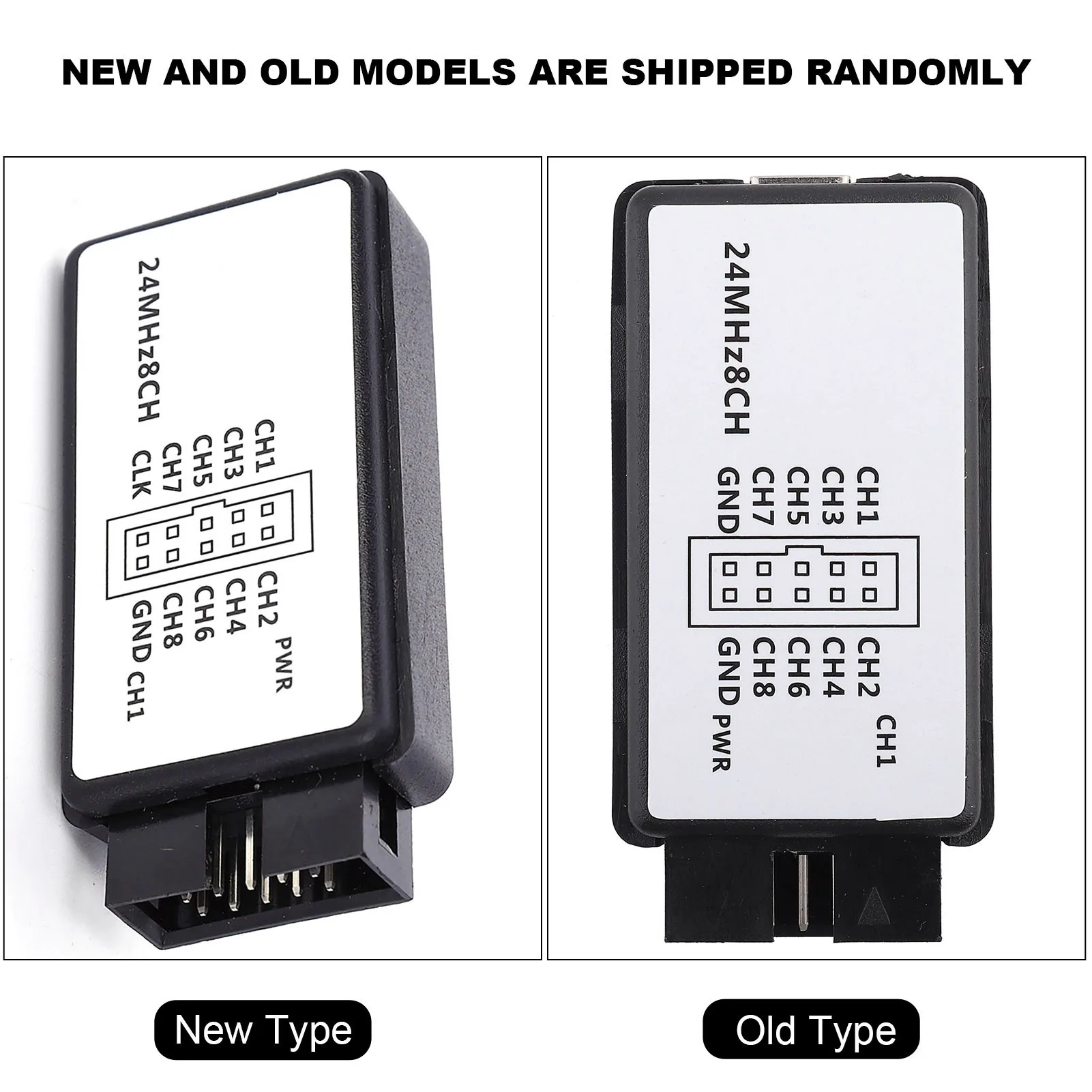

3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
