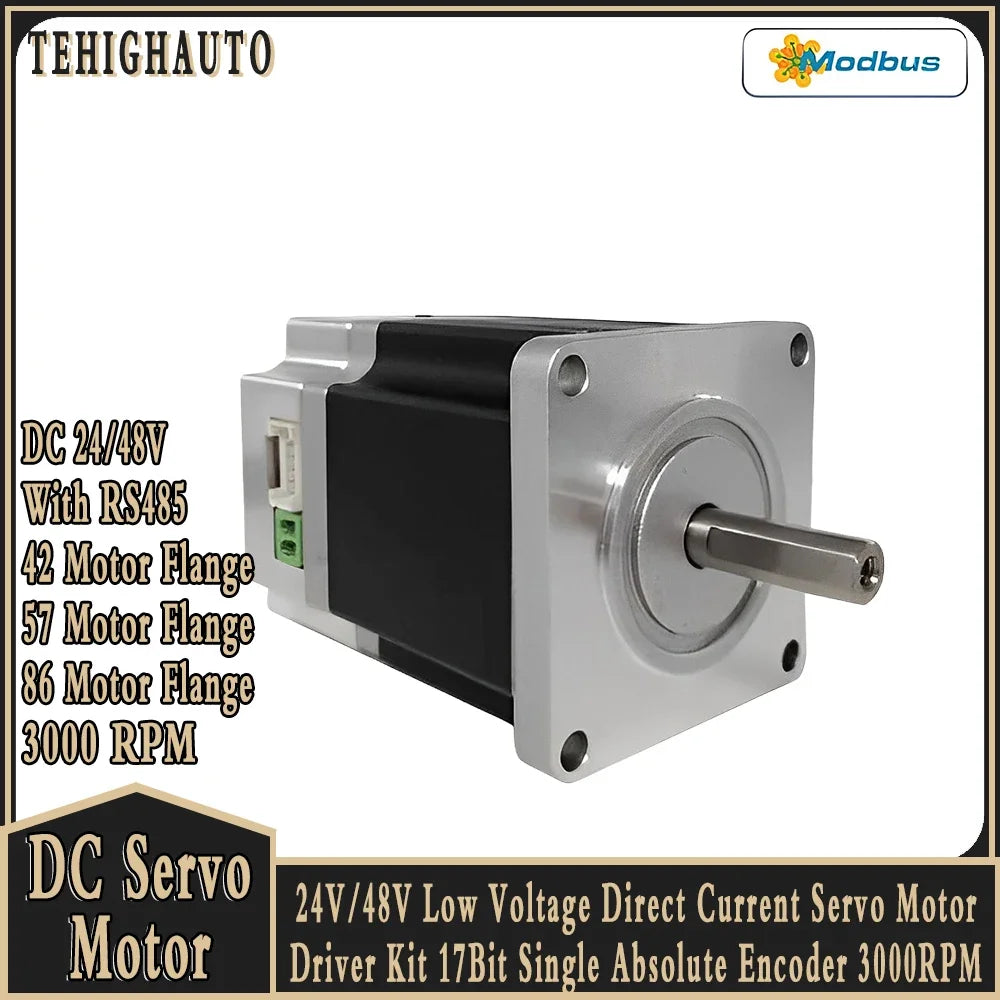

24V 48V DC Servo Motor All-in-one Integrated In Drive Low Voltage 42/57/86mm Motor 3000RPM 17Bit Absolute Encoder With RS485
1.4Nm-86 Flange
$985.28
Sale price
$985.28
Regular price
$0.00
Skip to product information
24V 48V DC Servo Motor All-in-one Integrated In Drive Low Voltage 42/57/86mm Motor 3000RPM 17Bit Absolute Encoder With RS485
$985.28
Sale price
$985.28
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: TEHIGHAUTO
Certification: CE
High-concerned chemical: none
Model Number: 57AIS61-24V
Origin: Mainland China
Rated speed (rpm): 3000
Rated voltage (V): 24V
Torque 1: 0.1Nm
Torque 2: 0.2Nm
Torque 3: 0.3Nm
Type 1: 57 Motor
Type 2: Encoder motor
Type 3: Servo Motor
Type 4: DC motor
Type 5: Motor driver kit
Type 6: Integrated Motor drive
applications 1: Industrial Production
applications 2: Transportation
applications 3: Power Systems
applications 4: Wastewater Treatment
applications 5: Medical Equipment
applications 6: Home Appliances and Office Equipment
applications 7: Electronics

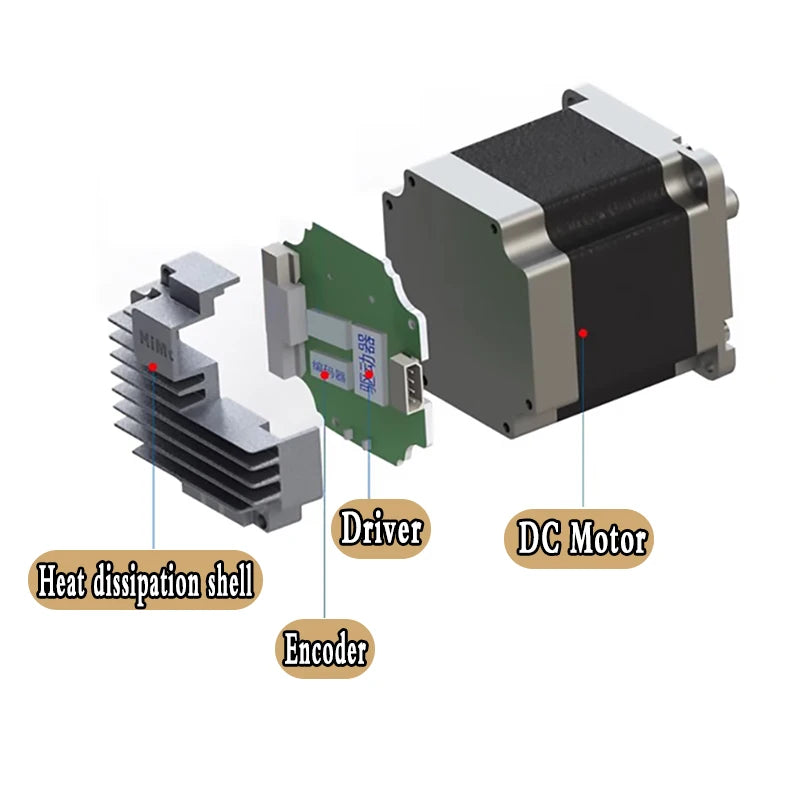

1 X DC Servo Motor All-in-one Integrated Drive
1 X 2M Encoder Cable
1 X 2M Power Cable

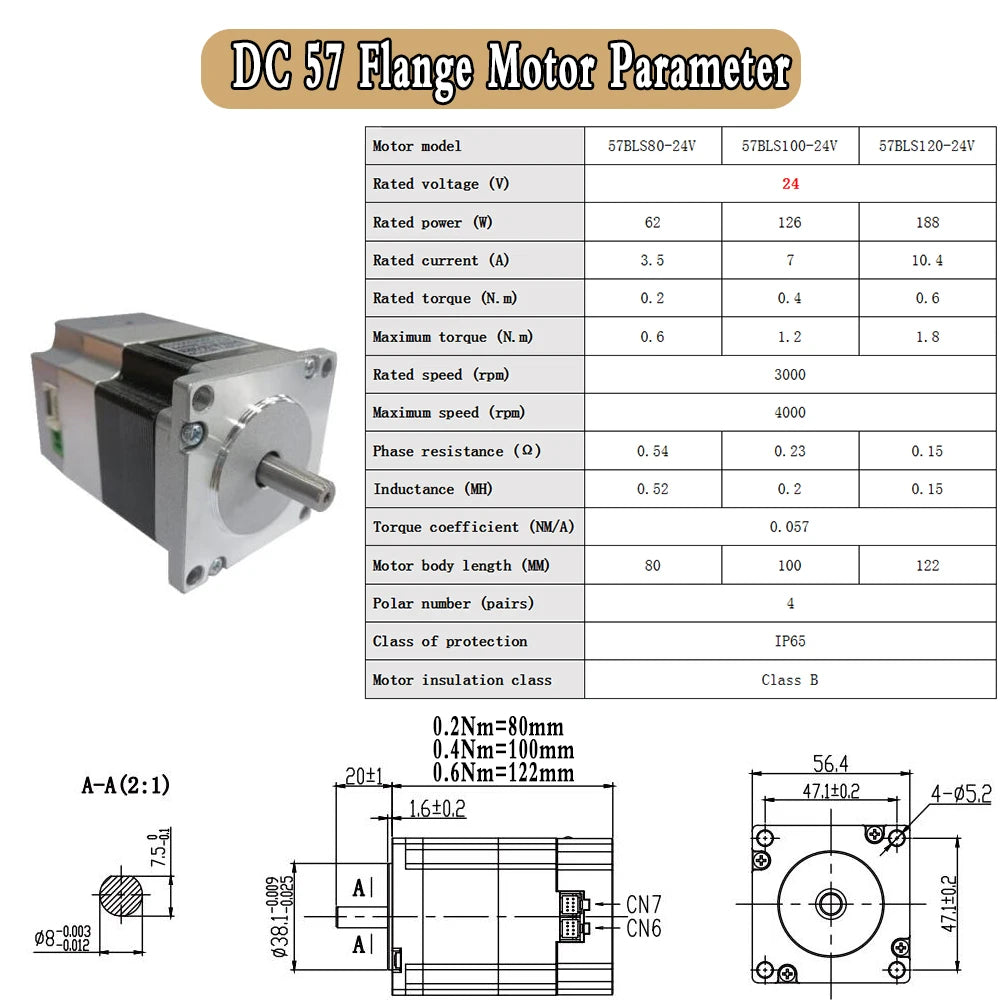

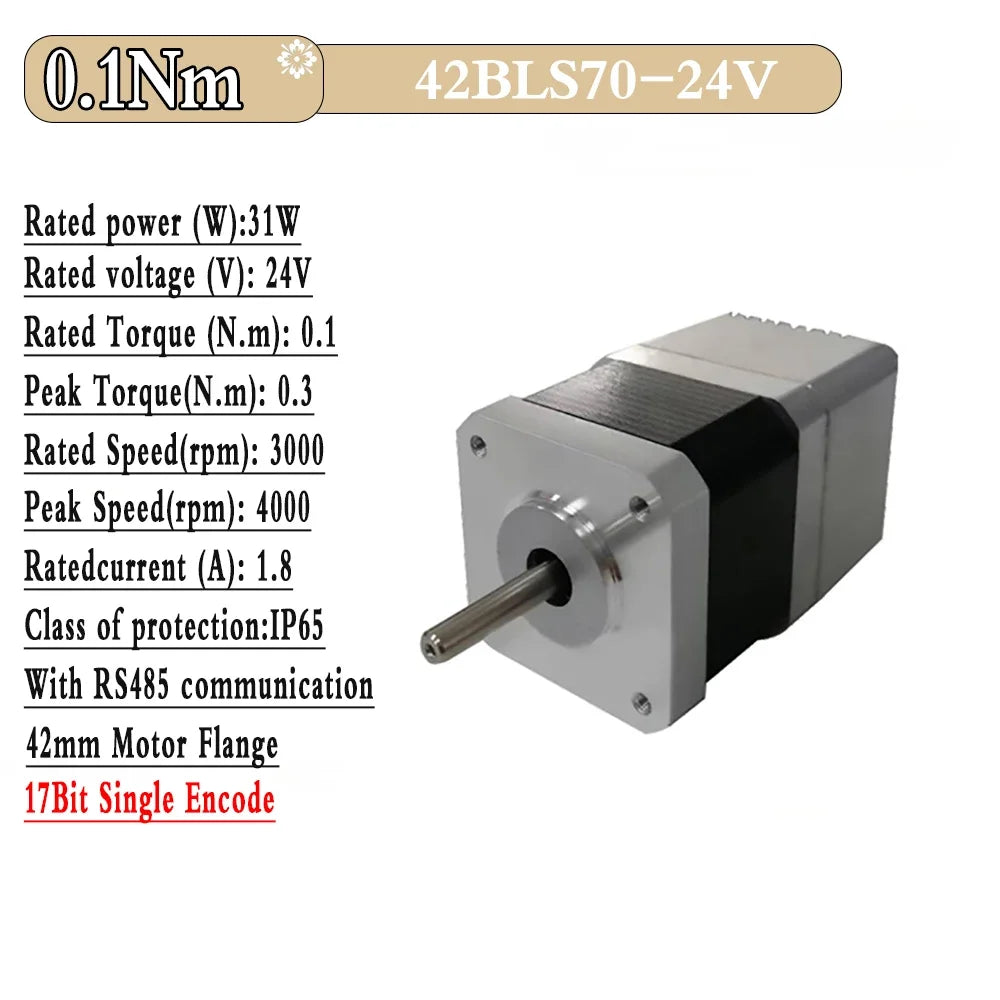

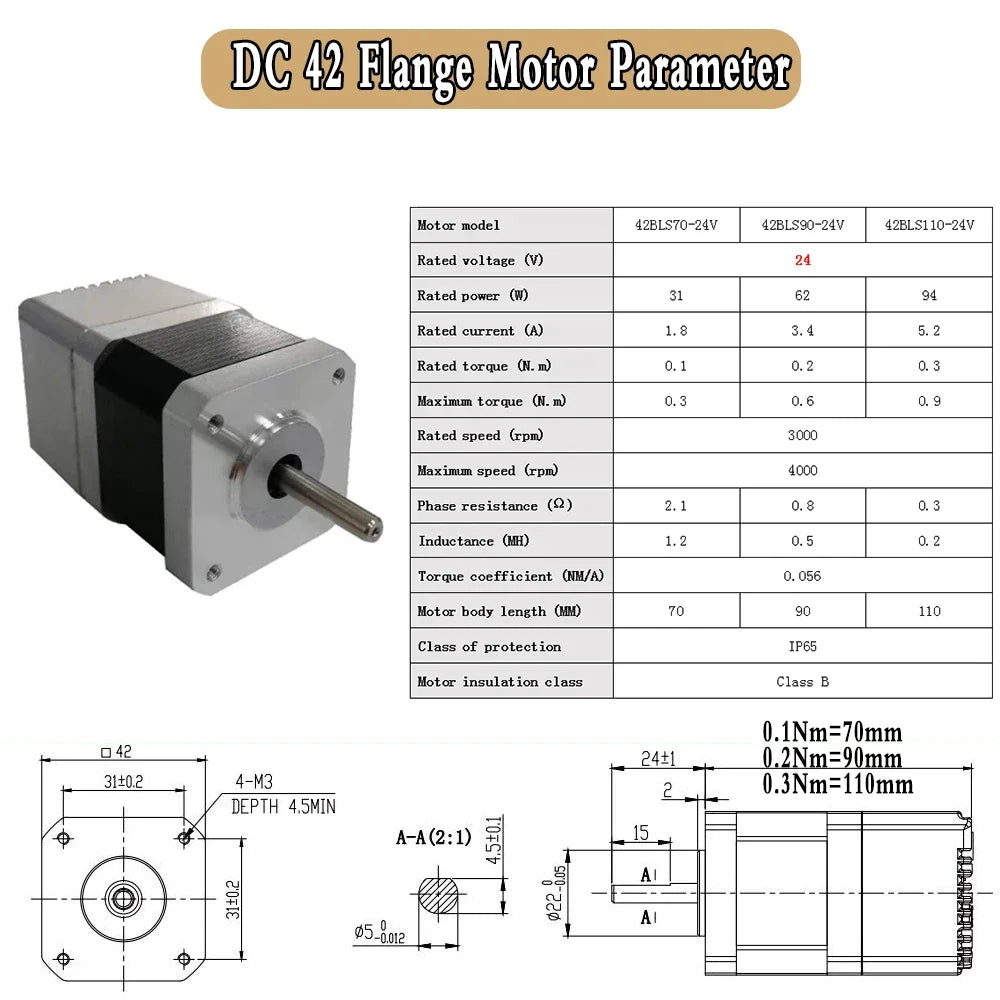

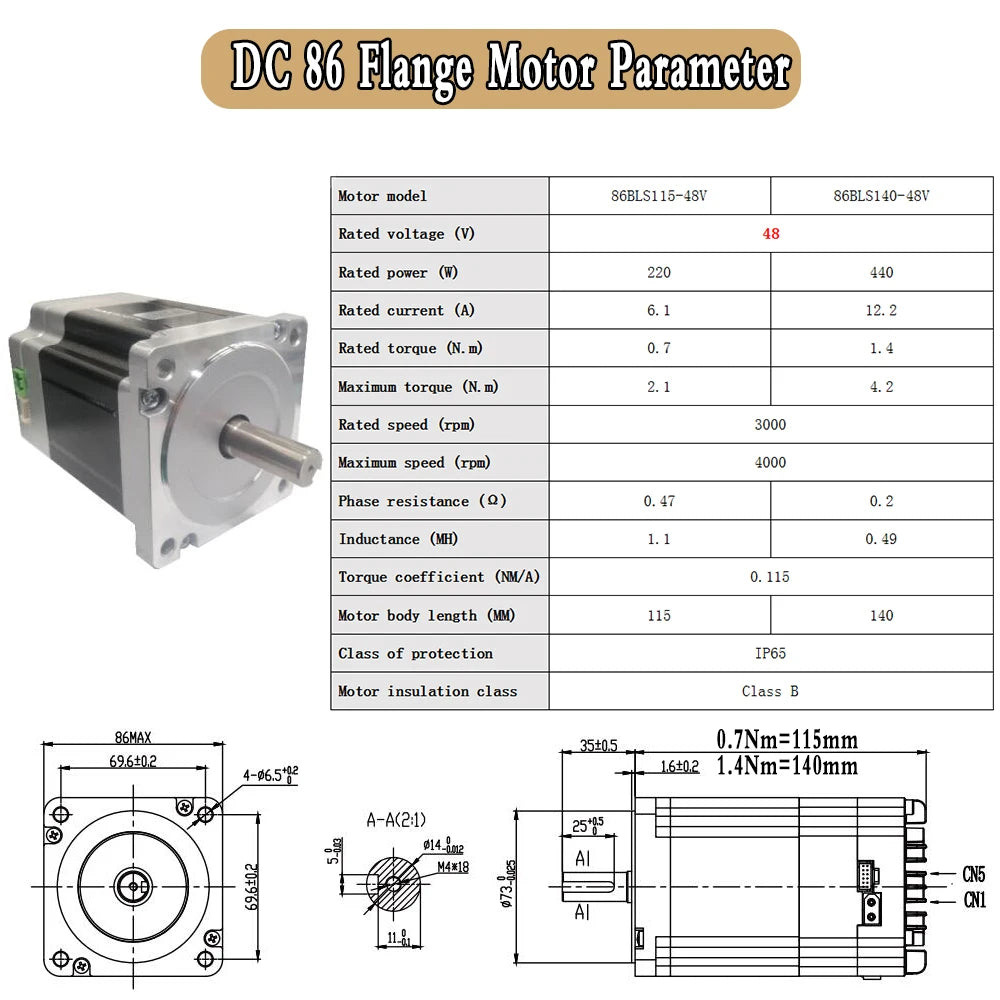

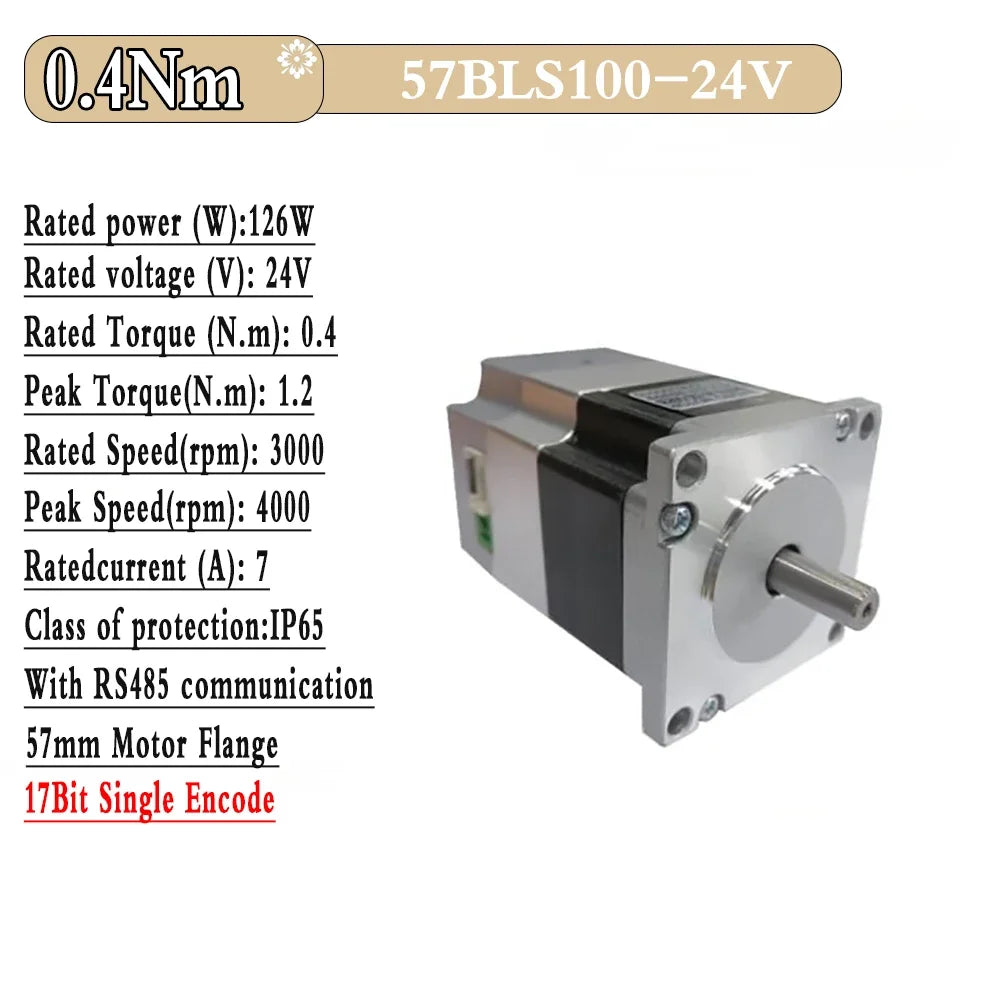

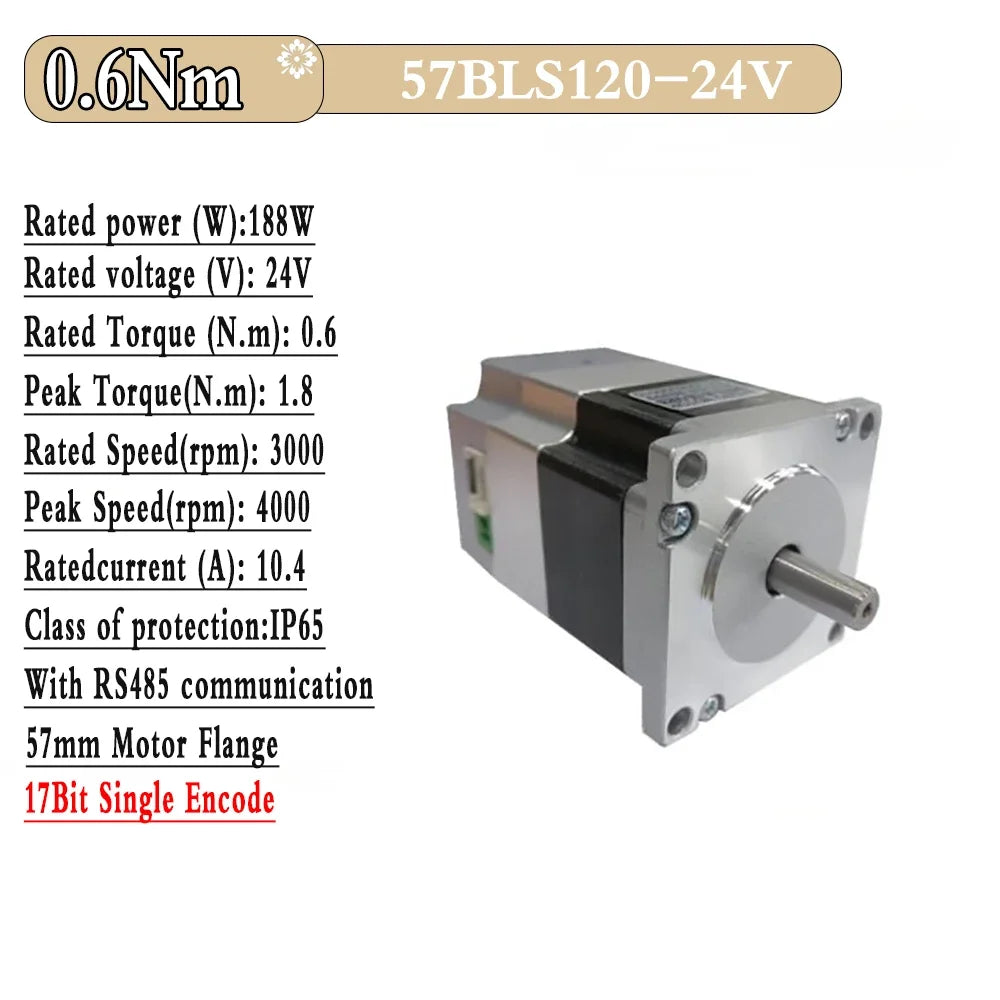

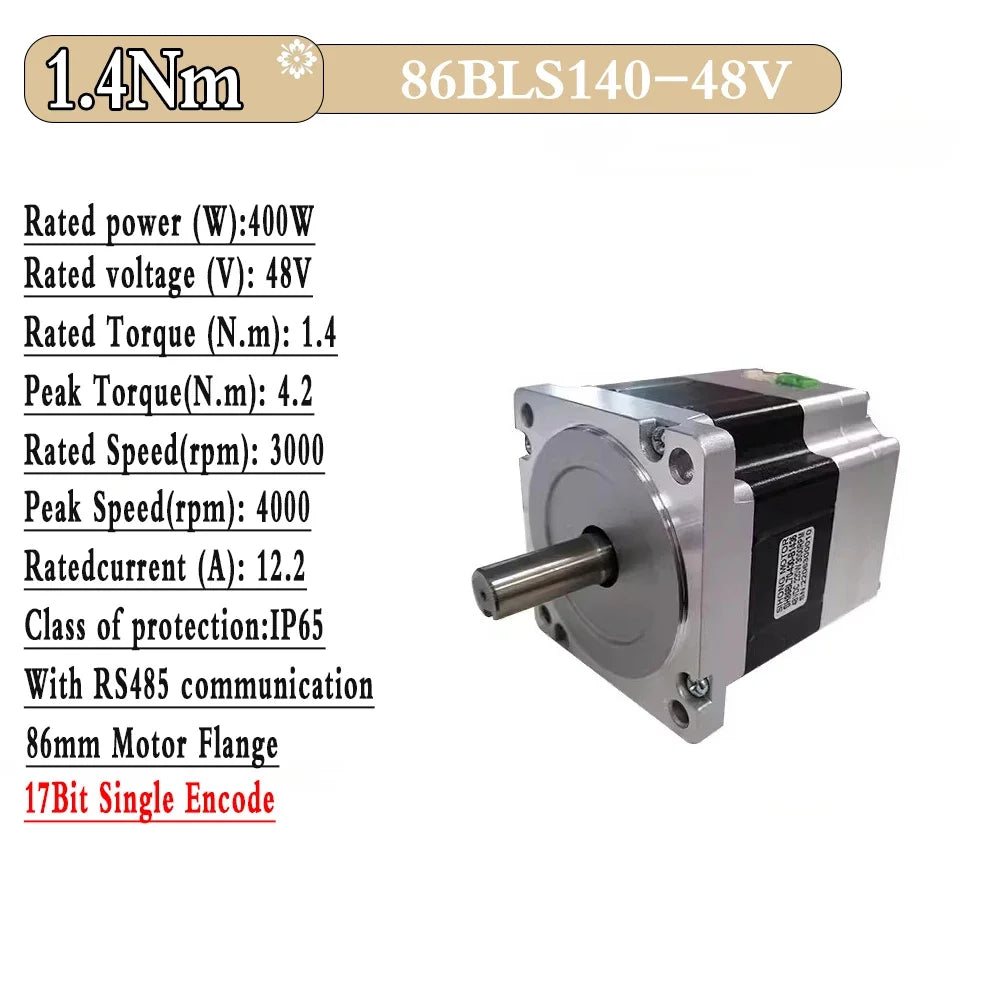

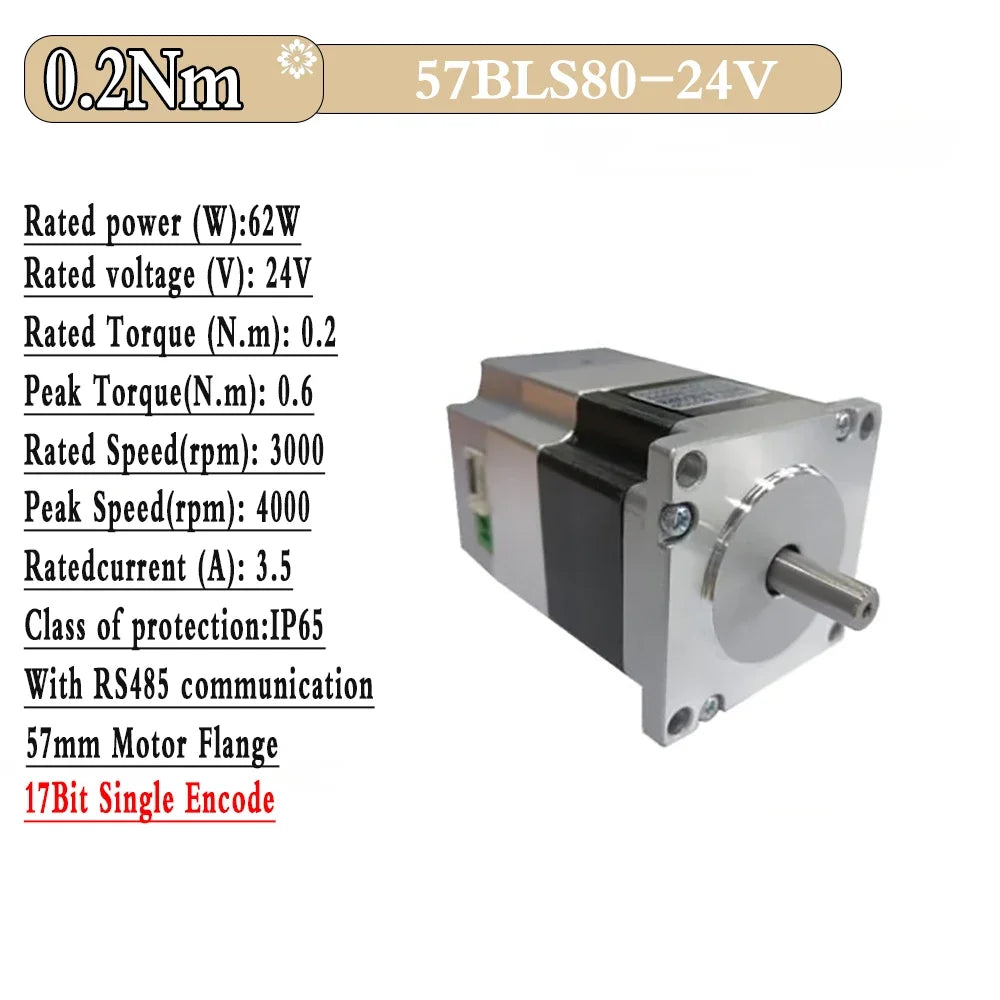

| Motor model | 42BLS70 | 42BLS90 | 42BLS110 | 57BLS80 | 57BLS100 | 57BLS120 | 86BLS115 | 86BLS140 |
| Encoder type | 17 bit absolute encoder | |||||||
| Rated voltage (V) | 24 | 48 | ||||||
| Rated power (W) | 31 | 62 | 94 | 62 | 126 | 188 | 220 | 440 |
| Rated current (A) | 1.8 | 3.4 | 5.2 | 3.5 | 7 | 10.4 | 6.1 | 12.2 |
| Rated torque (N.m) | 0.1 | 0.2 | 0.3 | 0.2 | 0.4 | 0.6 | 0.7 | 1.4 |
| Maximum torque (N.m) | 0.3 | 0.6 | 0.9 | 0.6 | 1.2 | 1.8 | 2.1 | 4.2 |
| Rated speed (rpm) | 3000 | |||||||
| Maximum speed (rpm) | 4000 | |||||||
| Phase resistance (Ω) | 2.1 | 0.8 | 0.3 | 0.54 | 0.23 | 0.15 | 0.47 | 0.2 |
| Inductance (MH) | 1.2 | 0.5 | 0.2 | 0.52 | 0.2 | 0.15 | 1.1 | 0.49 |
| Torque coefficient (NM/A) | 0.056 | 0.057 | 0.115 | |||||
| Class of protection | IP65 | |||||||
| Motor insulation class | Class B | |||||||
