SPECIFICATIONS

Application: 24V vehicles

Brand Name: waohei,waohei

Categories: DC DC Converter Regulator Waterproof Step Down 24V to 12V 50 AMP

Certification: CE,RoHS

Cooling: free air convection

Enclosures: IP68

From: waohei

High-concerned chemical: none

Line regulation: ±0.2%

Load regulation: ±0.2%

Model Number: WH-24-12

Origin: Mainland China

Output Current: 100A/ 165A/ 200A /300A

Output Frequency: 100KHZ

Output Type: SINGLE

Safety approvals: ISO 7637-2:2004

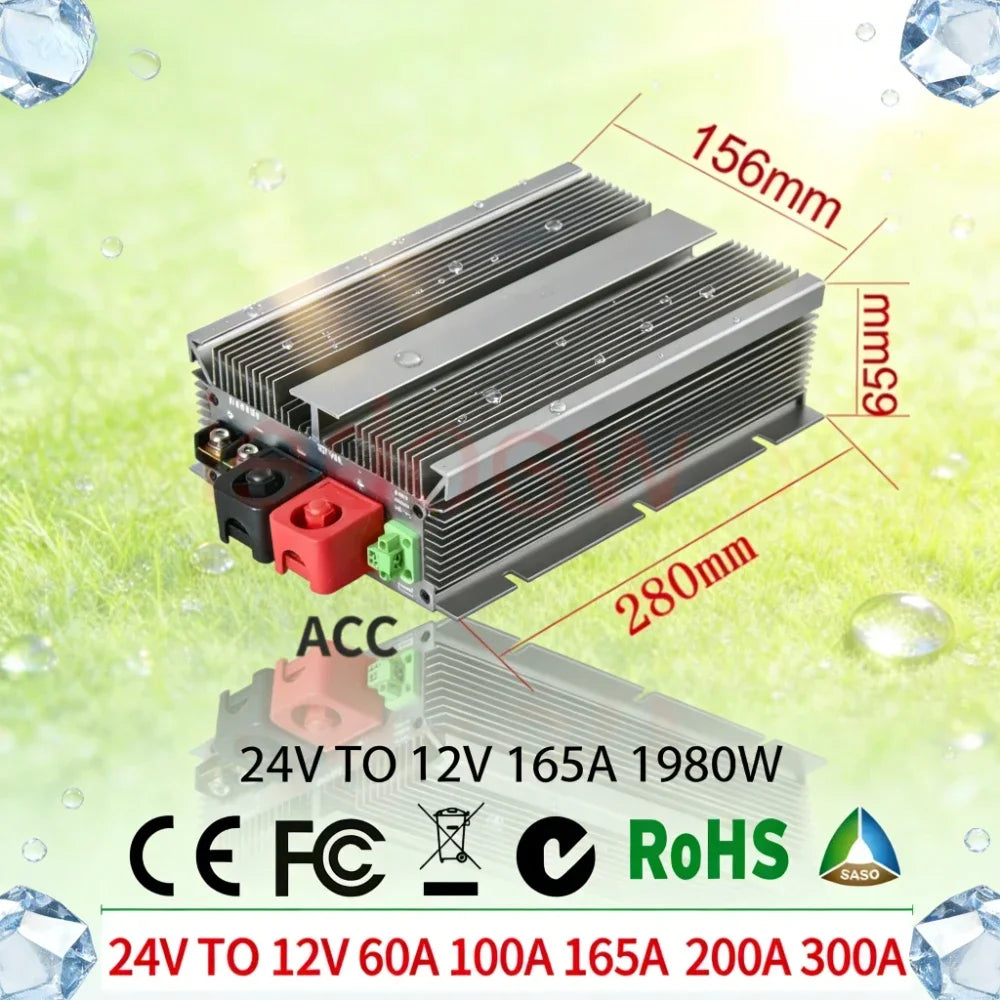

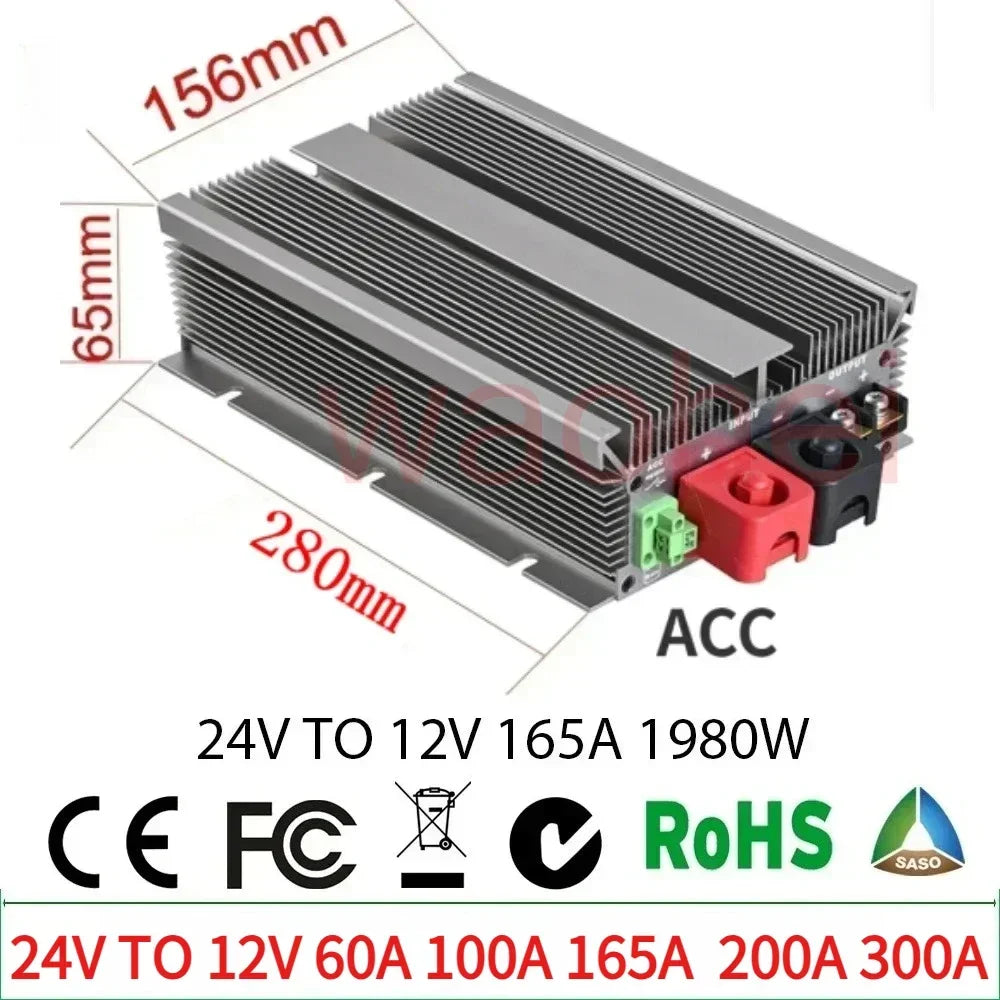

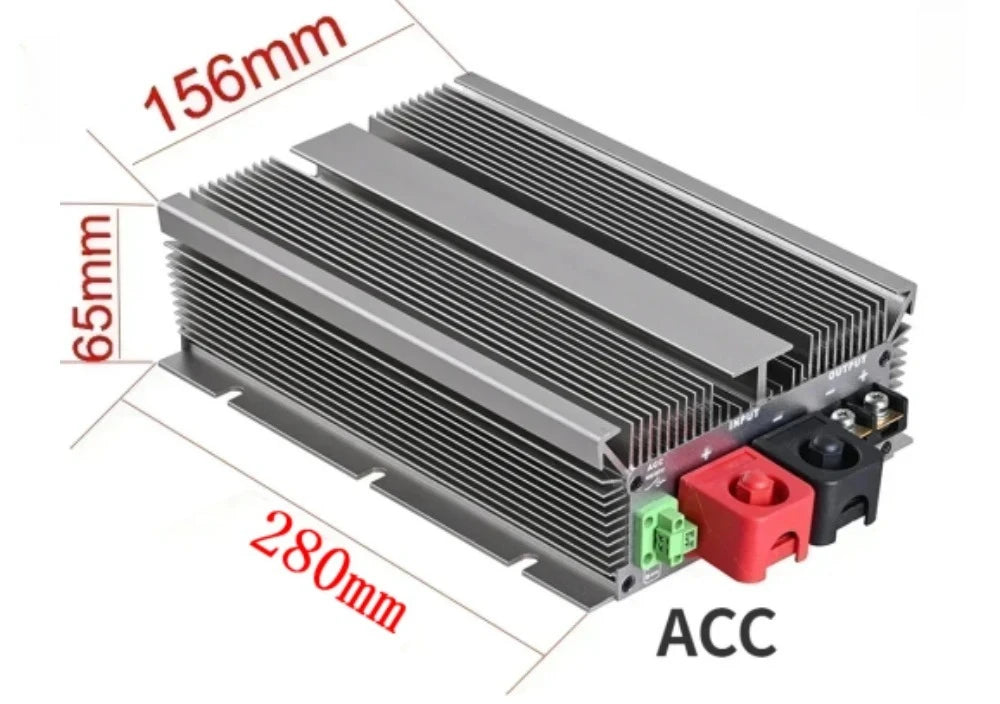

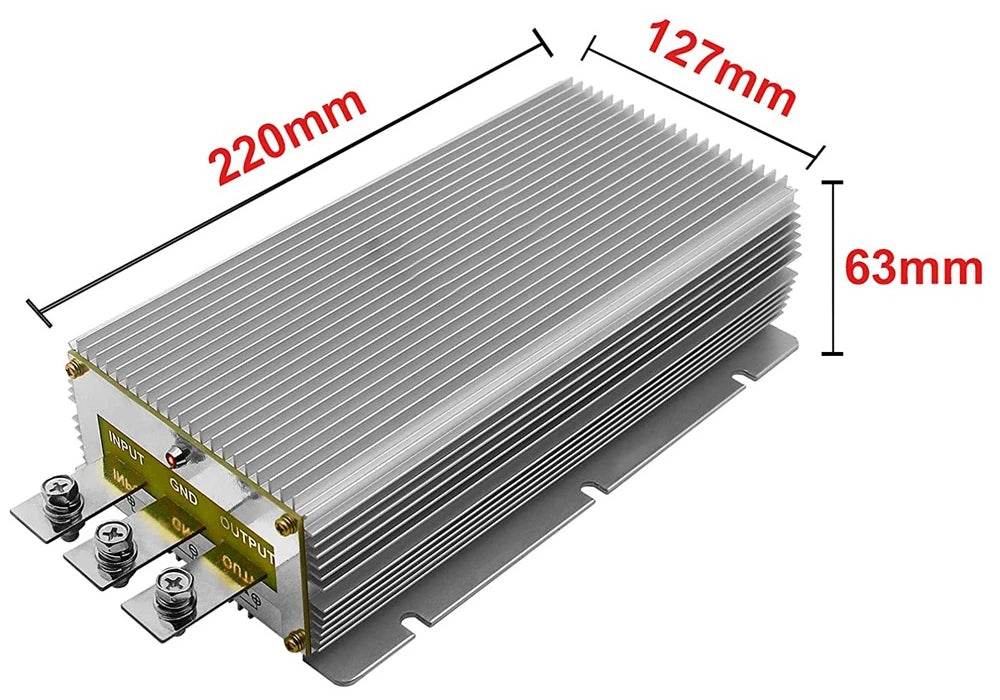

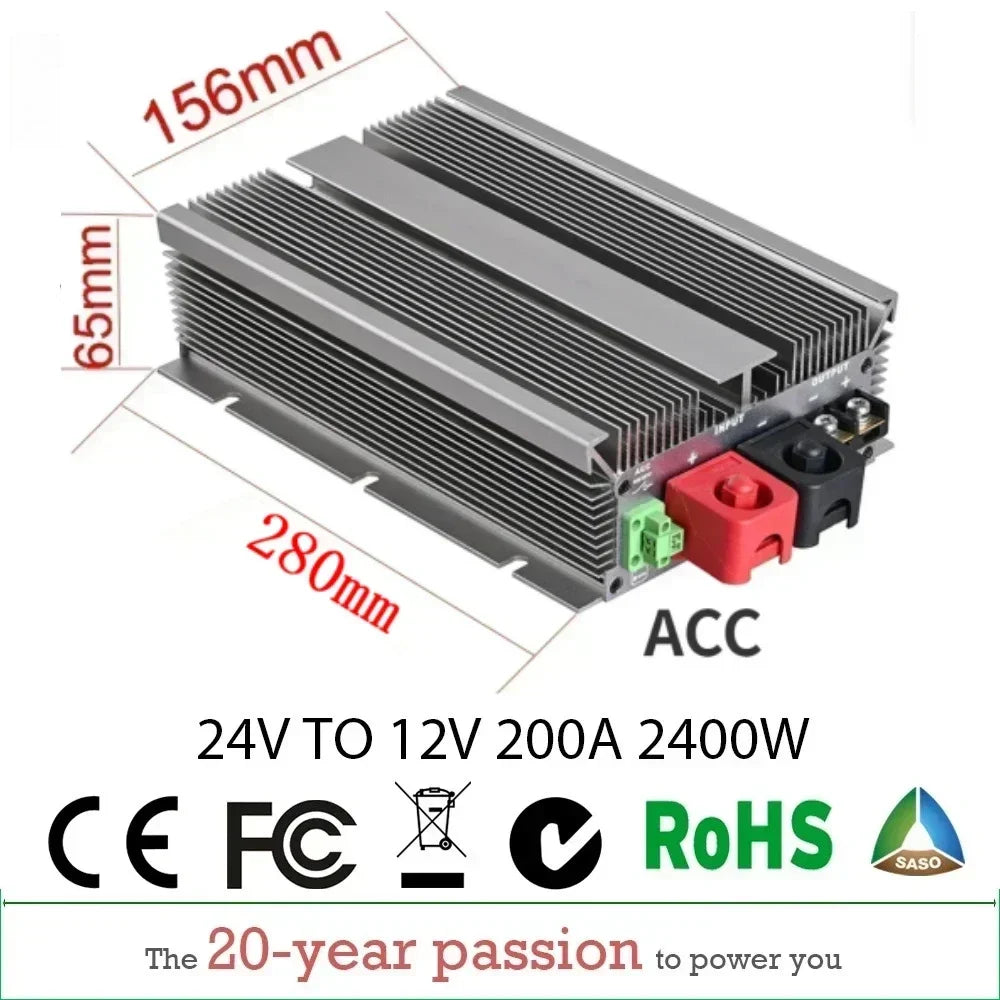

Size: 220*167*63mm/280*156*65mm

Temperature coefficient: ±0.03%/°C

Type: DC/DC Converters

Warranty: 3 years

Weight: 1kg

is_customized: Yes

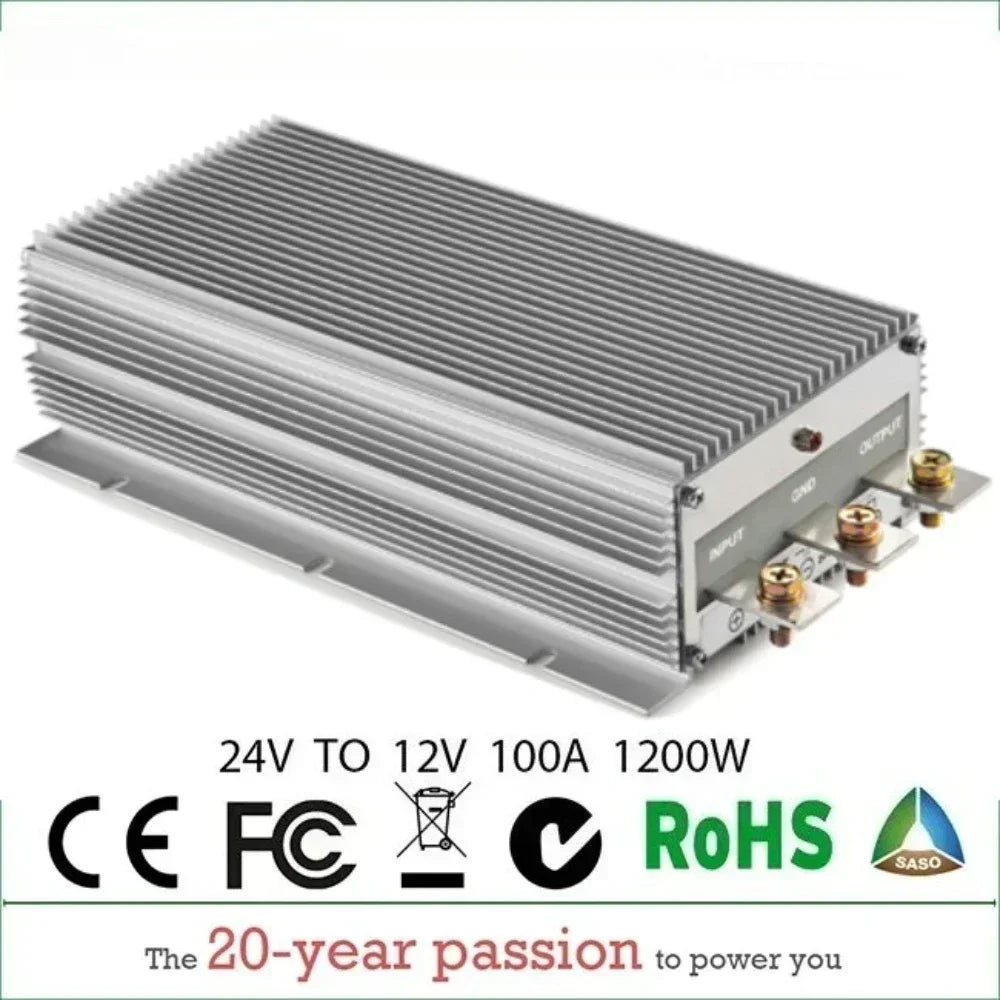

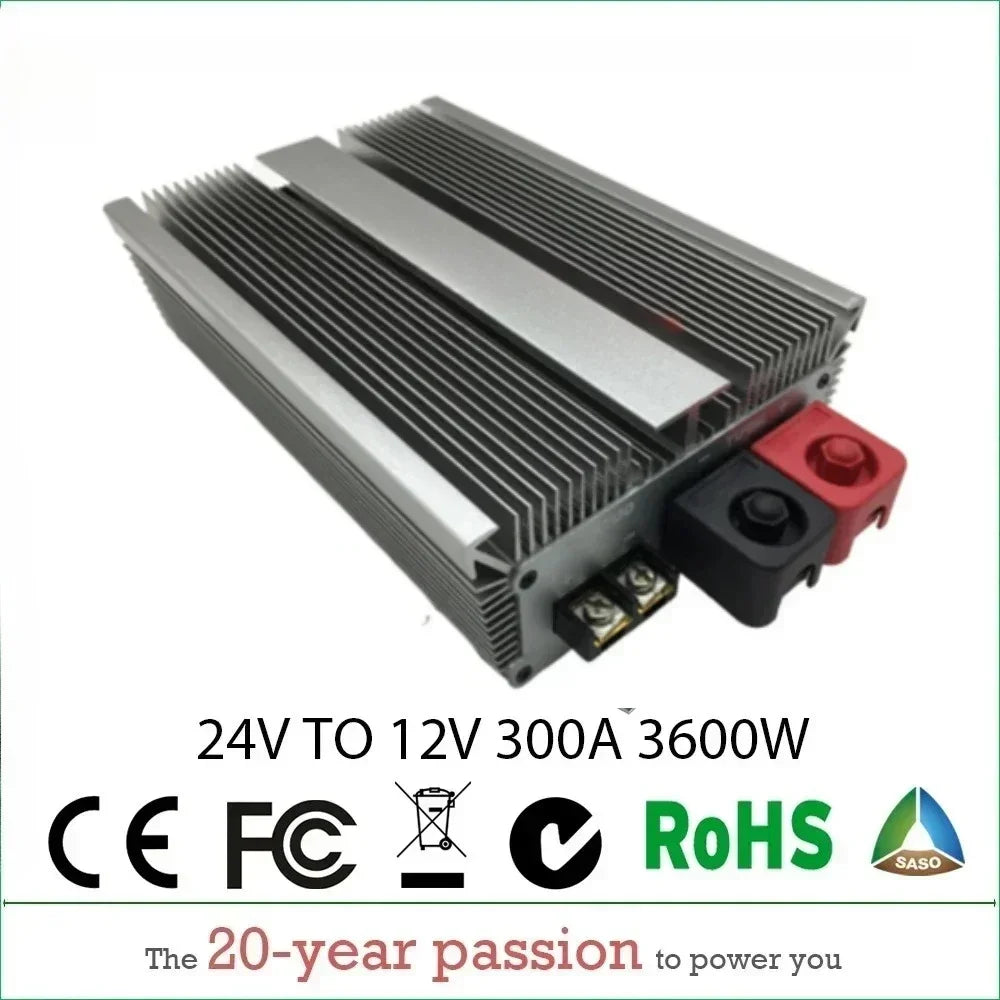

24V TO 12V 100A -300A DC DC Step Down Converter Voltage Regulator Module Output Power Supply Module for Cars Solar Reducer ce
Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery.

Wide input voltage from 18 to 35V
Stable output voltage is 12V
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 94%

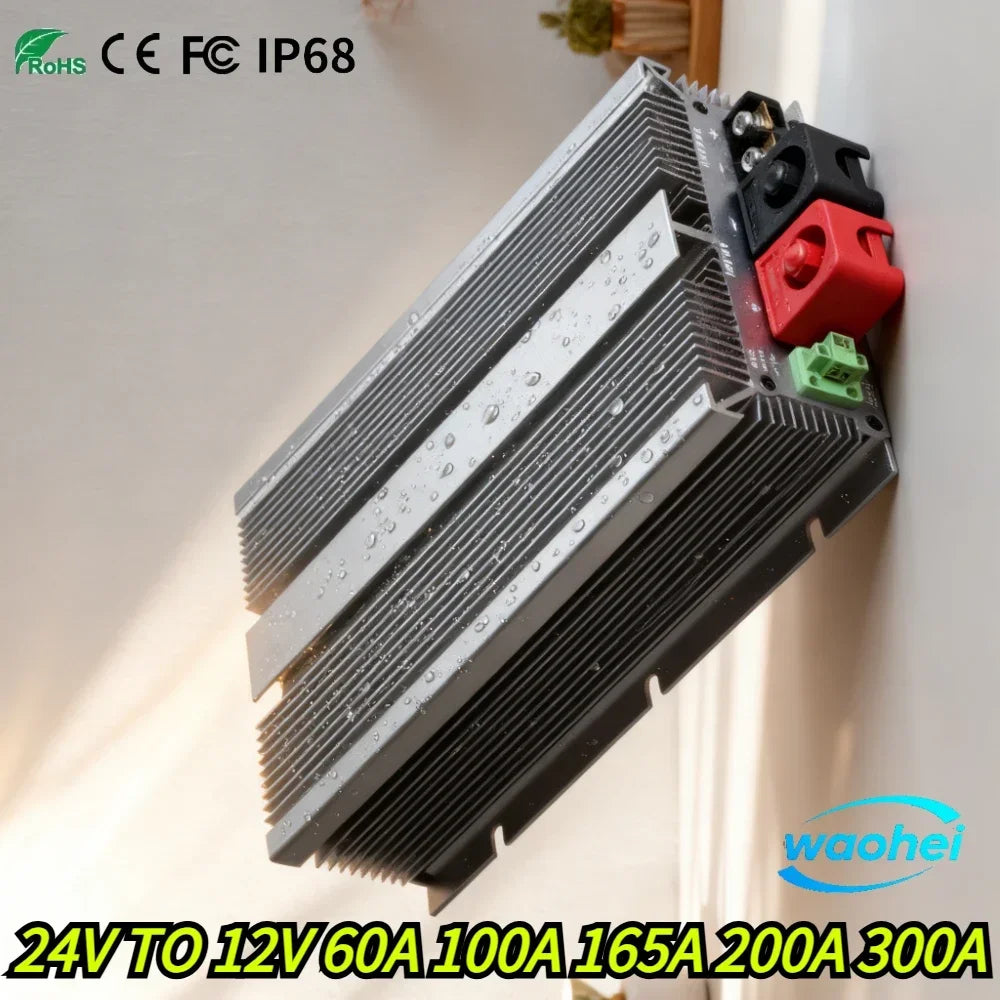

Waterproof sealed
Cooling by free air convection
Surface mountable
3 years warranty
15 years lifetime
Over-current, over-voltage protections
Over-temperature protection
Fuse protection
According to: EN 50498:2010 IP68

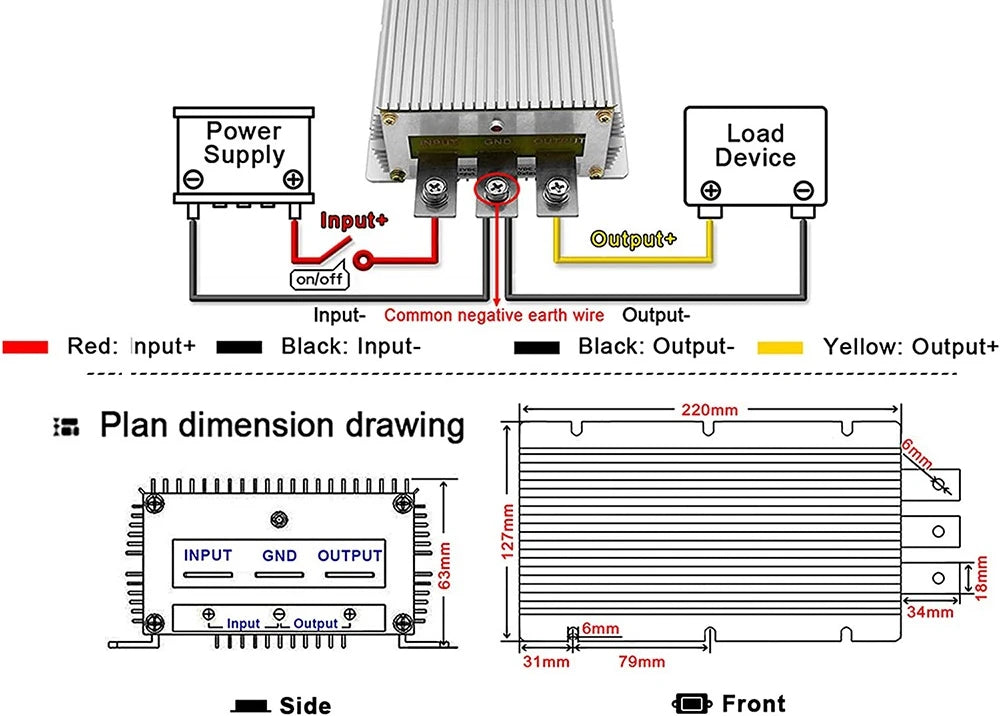

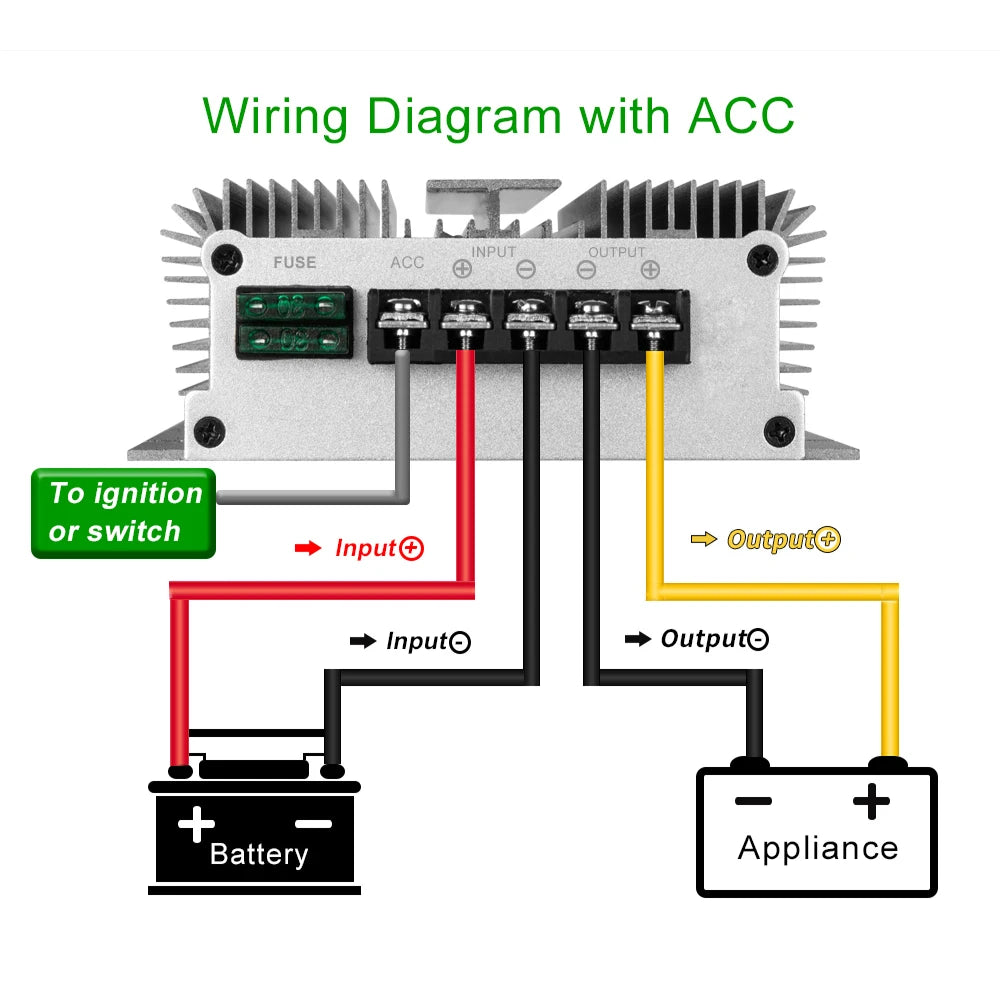

INSTALLATION STEPS
ACC to Switch/Ignition.

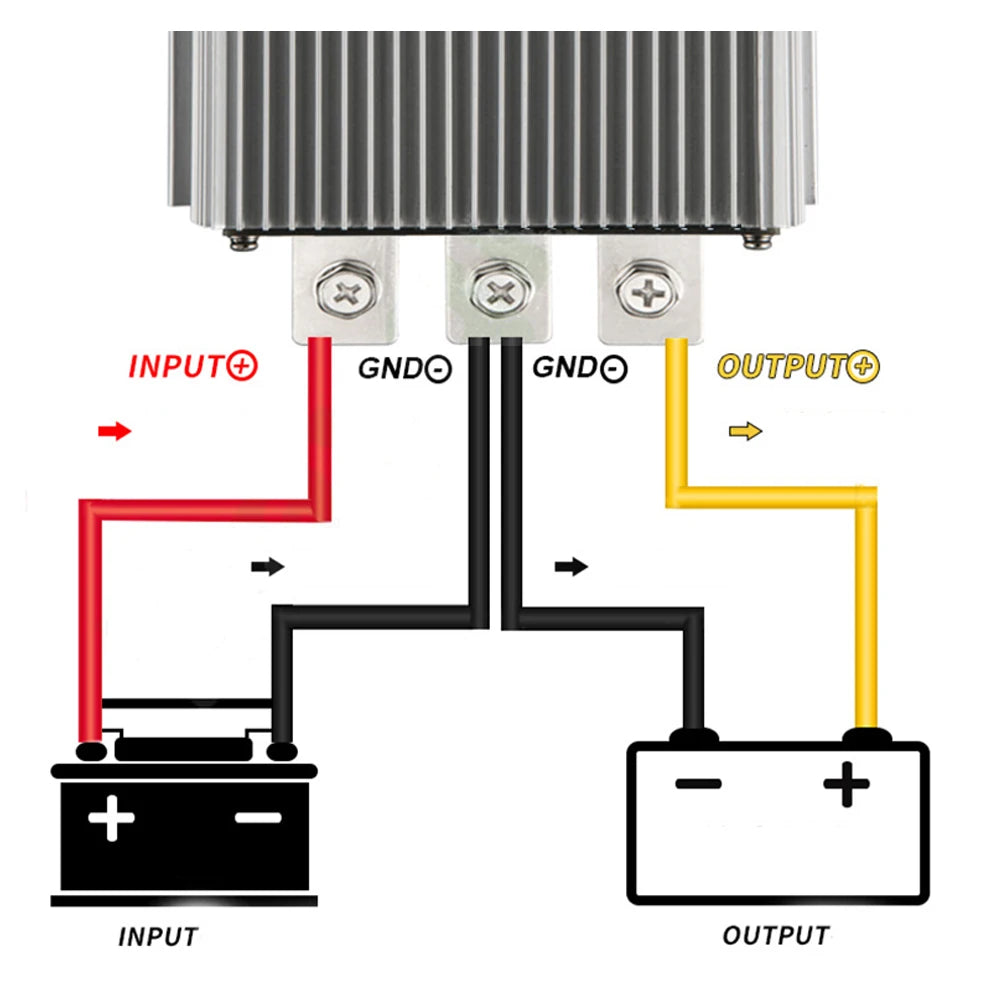

Input + to Battery +, Input- to Battery-.
Output + to Load +, Output- to  Load-.

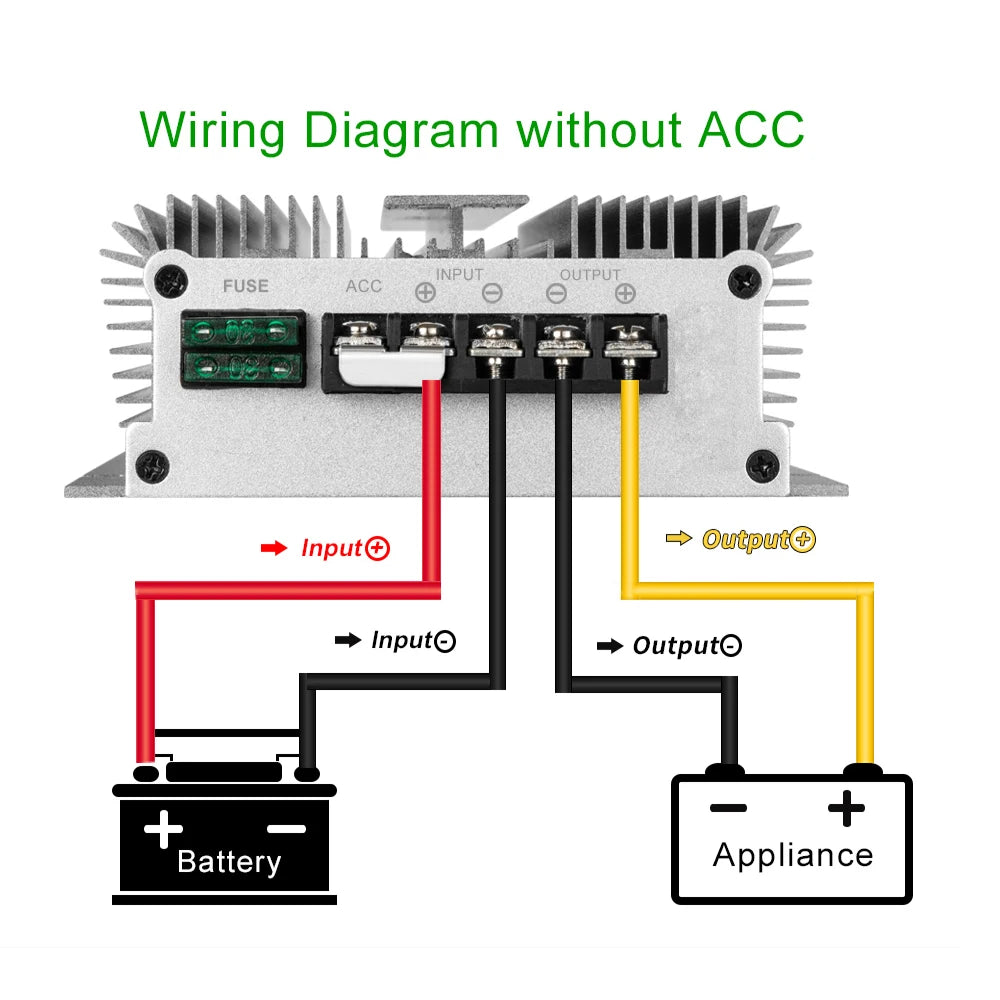

If no need the ACC function, then use clamp insert ACC and INPUT+.
