SPECIFICATIONS

Features:

1.WS2811 horse running led strip is Low power consumption, Super-bright but running with low temperature
2.All the light spread and completely smooth, luminous very even
3.LED Type: 2835LED Strip Light with IC Control 15 LED Chip,
4.Long Lifespan >50,000 hours
5.Certified by both RoHS / CE / UL588 tested approved.
6."BanlanX" APP control and 2.4G remote control.
7. Sync and 4-Zone control independently.
8. With Timer ON/oFF function.

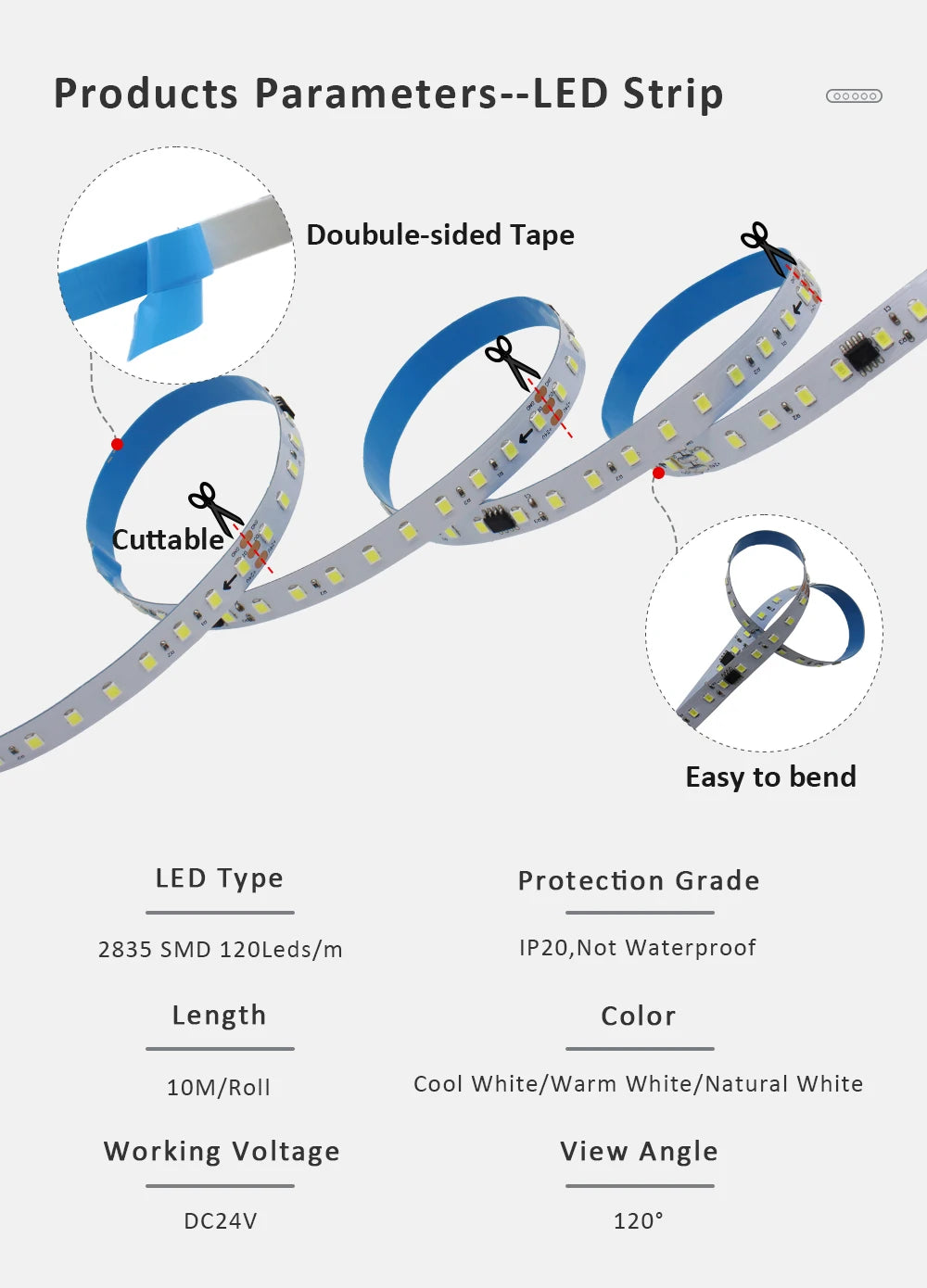

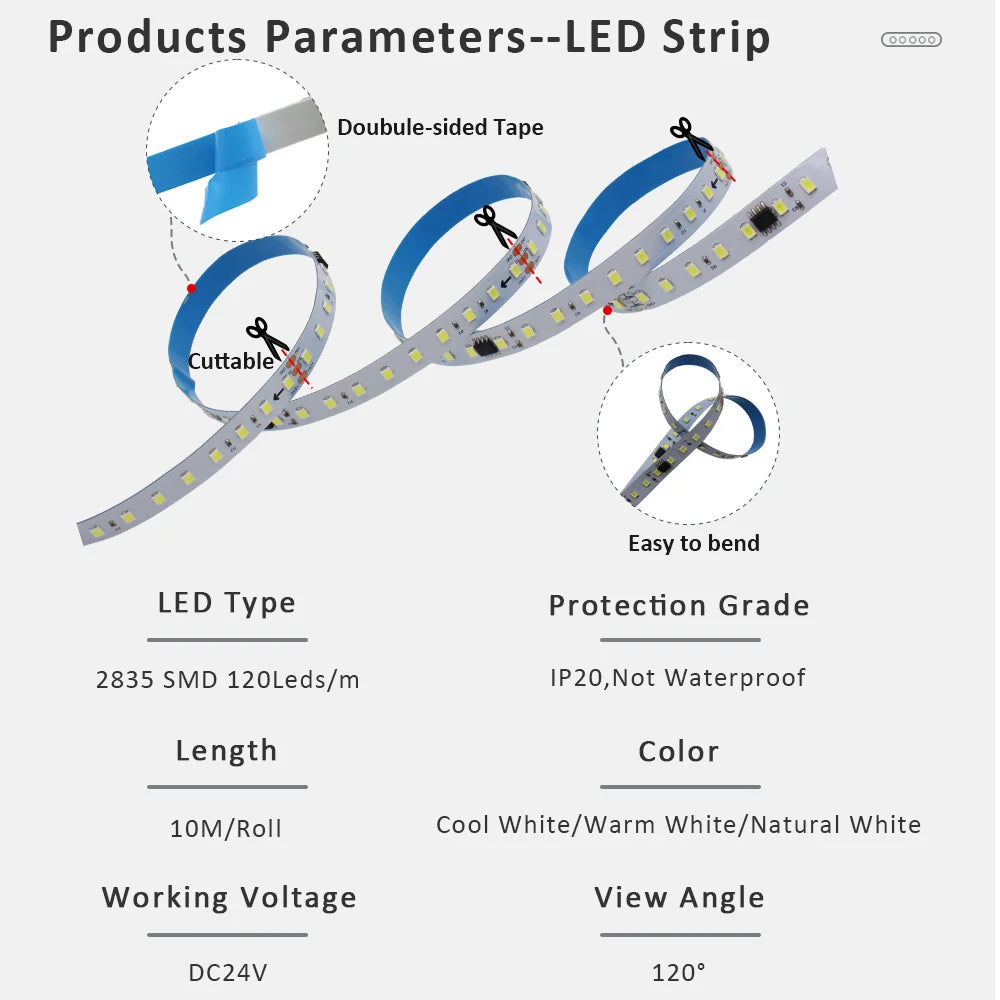

LED Strip Specifications:

LED Type: SMD2835
LED Qty per Meter: 120Leds/m
Power: 6-8W/M
PCB Width: 10MM (We use better quality 10MM PCB, Others use cheaper 8mm PCB)
Working Voltage: 24V DC
Protection Grade: IP20,Not Waterproof

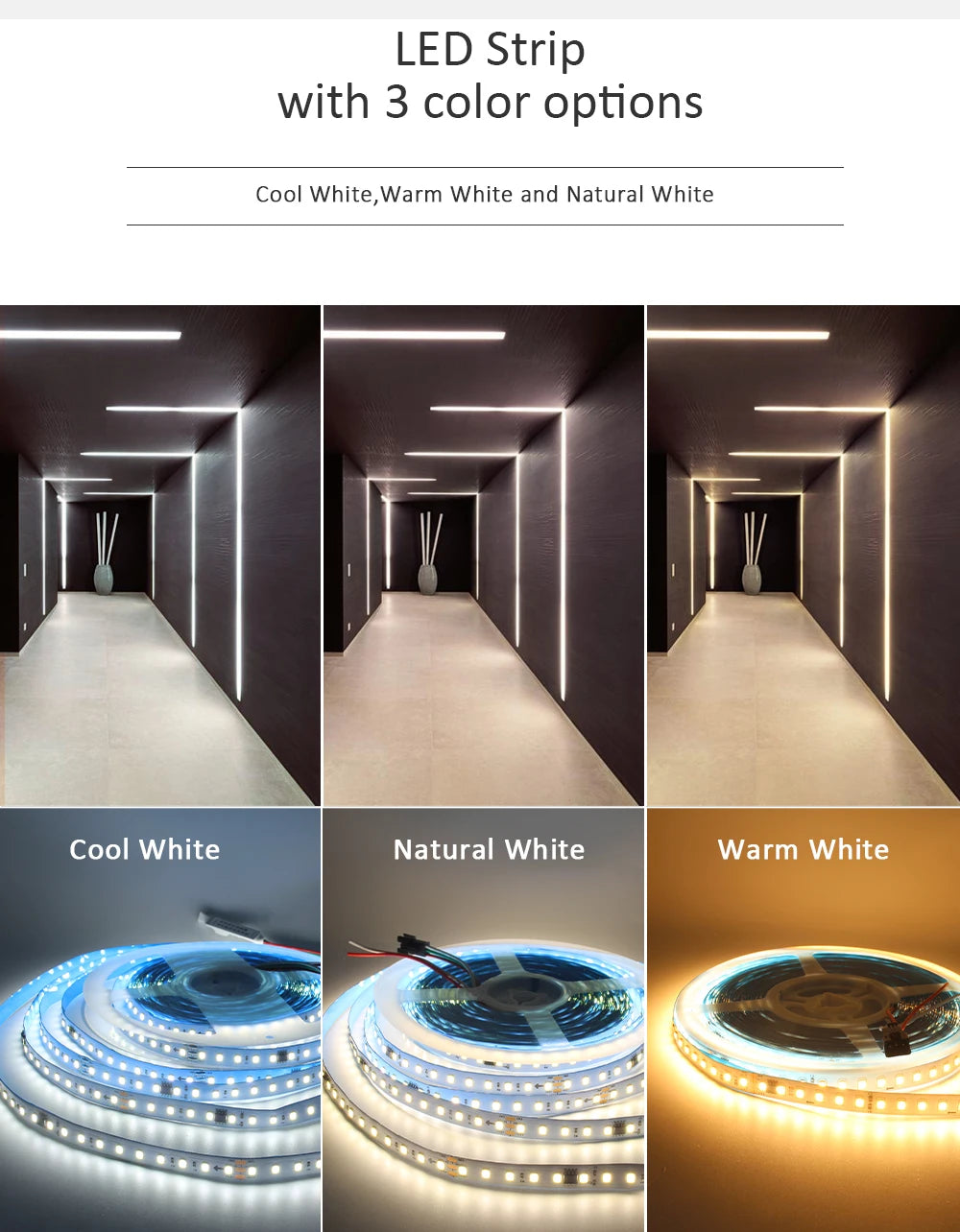

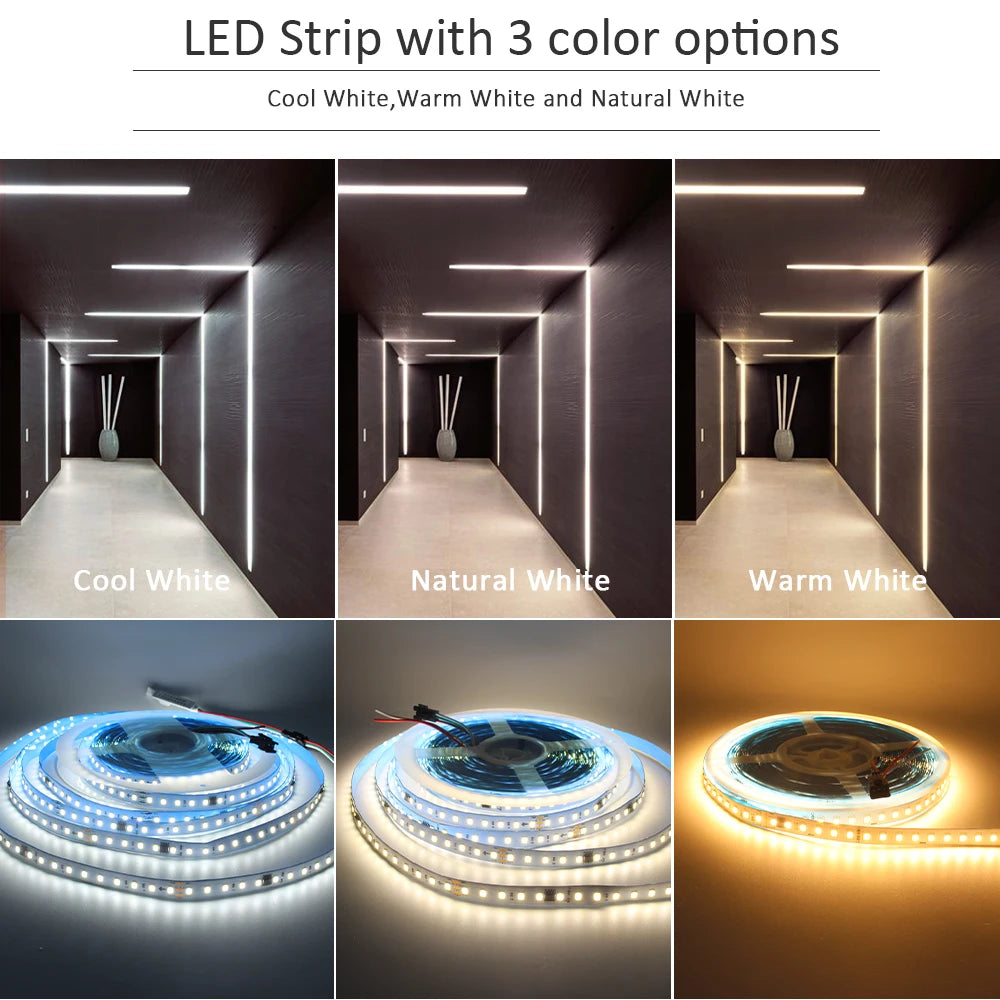

Color: Cool White 6000-6500K/Warm White 3000-3200K/Natrual White(4000K)
Control IC: WS2811, 80 IC for 10M
Viewing Angle: 120°
Storage Temperature: -20°to 50°
Size ( L X W X H ): 5000/10000 x 10 x 2.5 mm

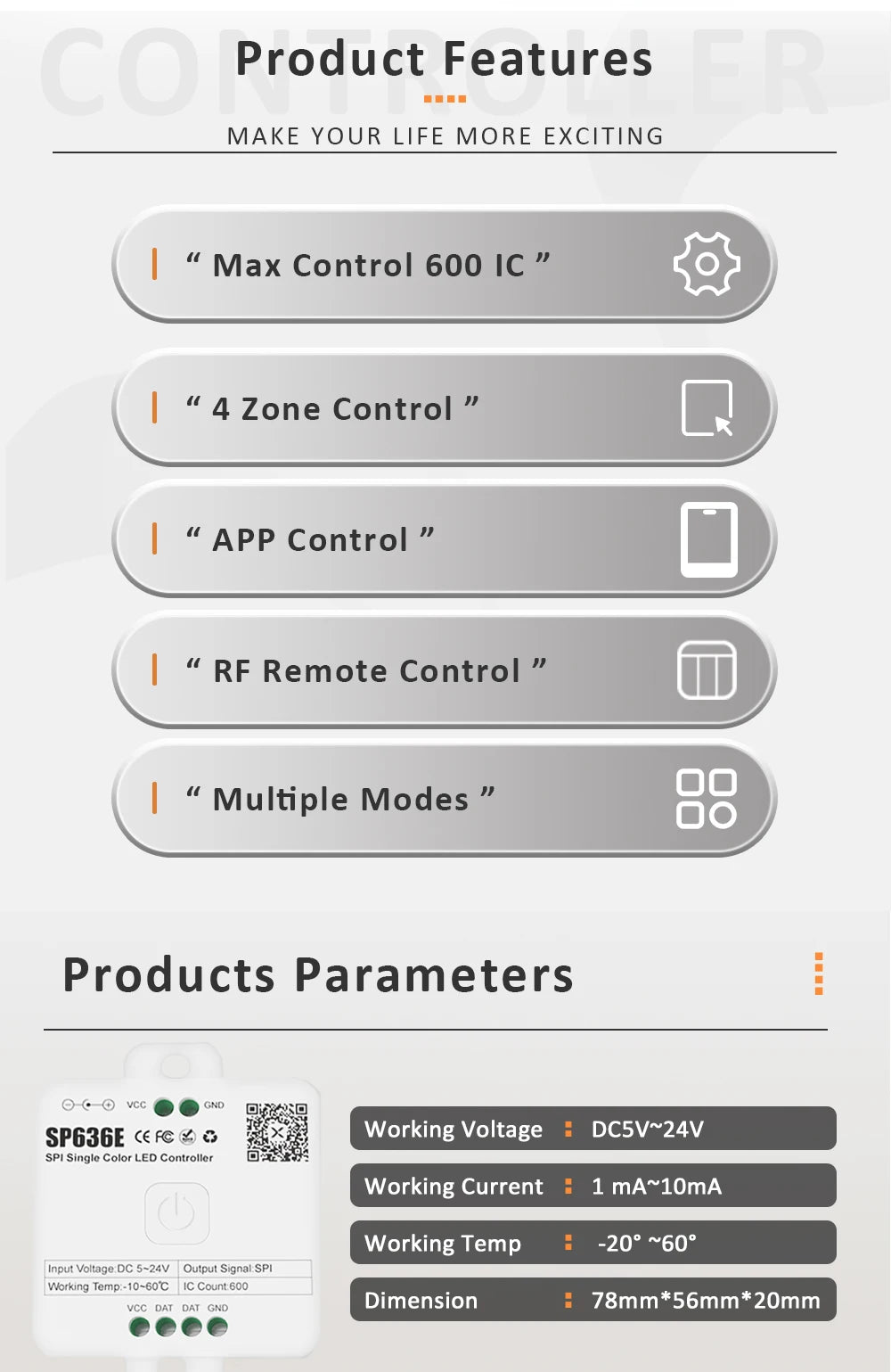

SP636E LED Pixel Controller with RB1/RC1 Remote:

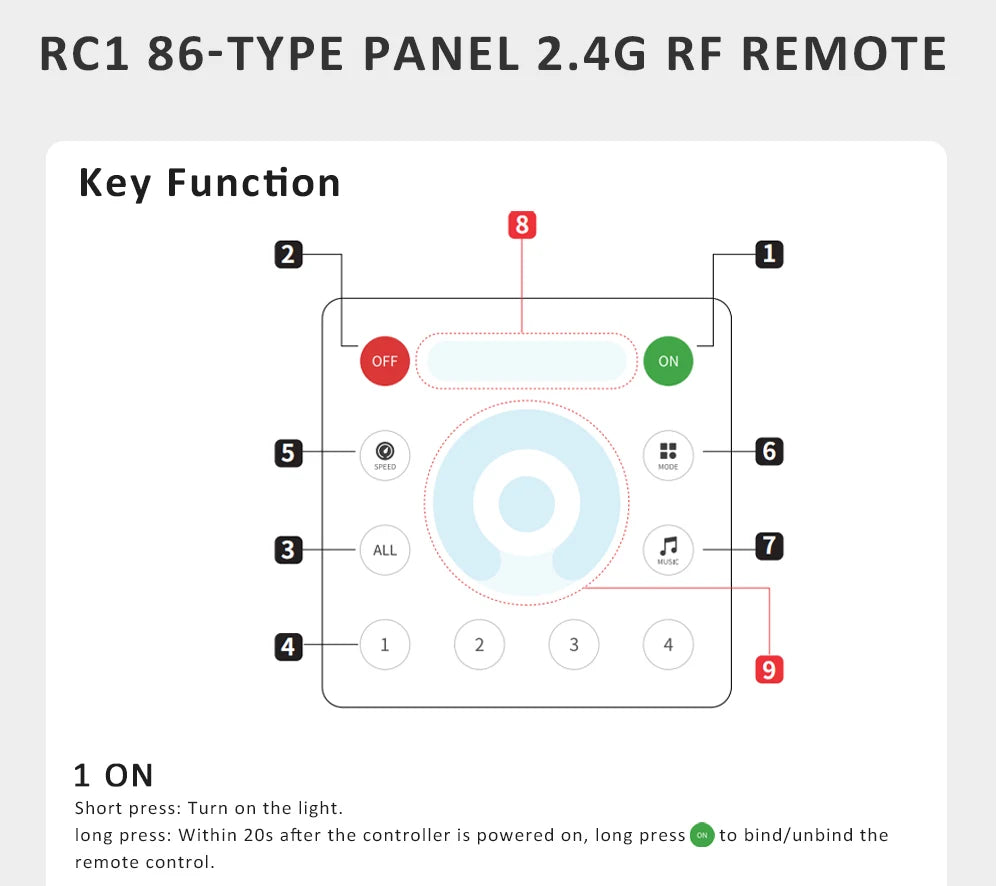

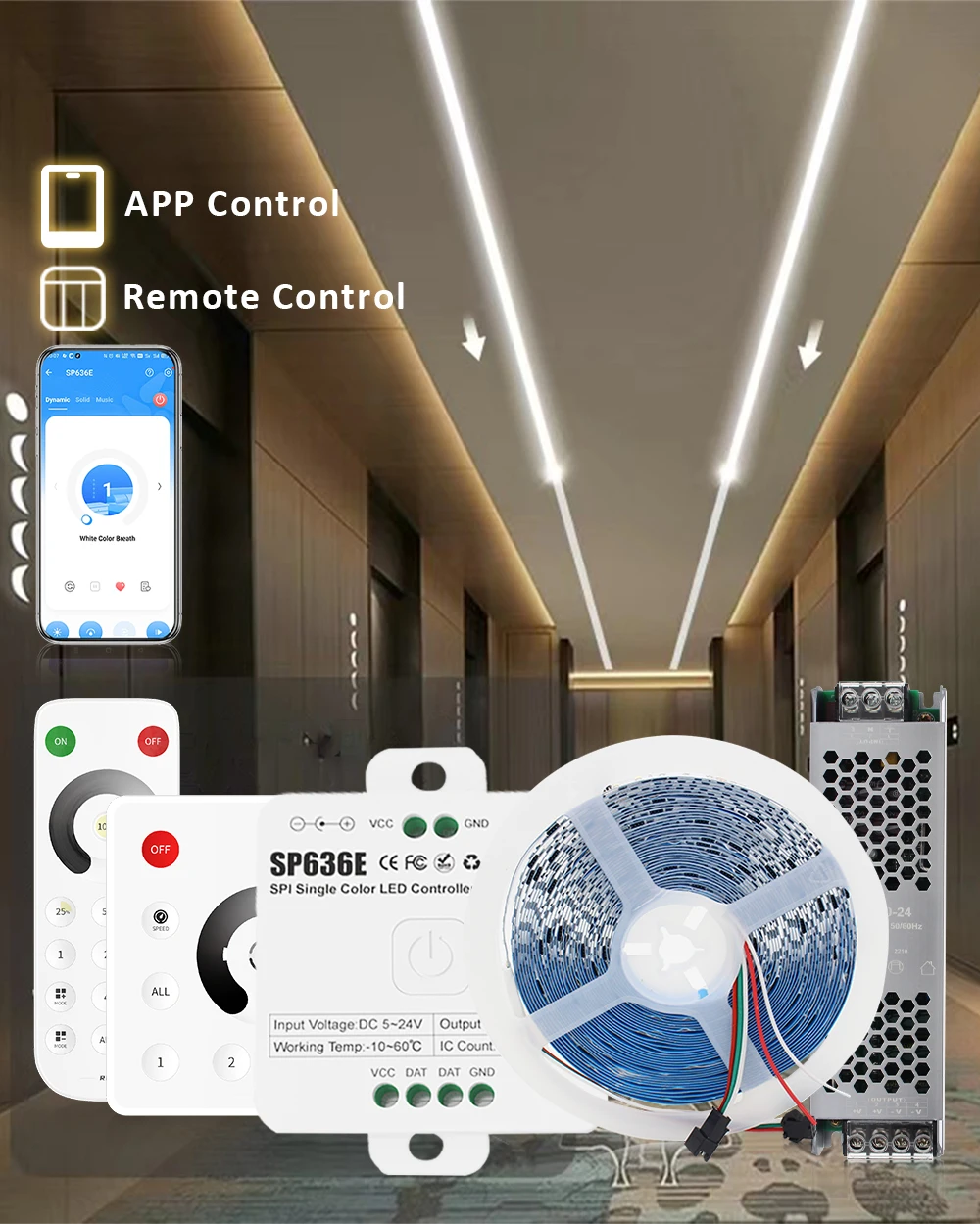

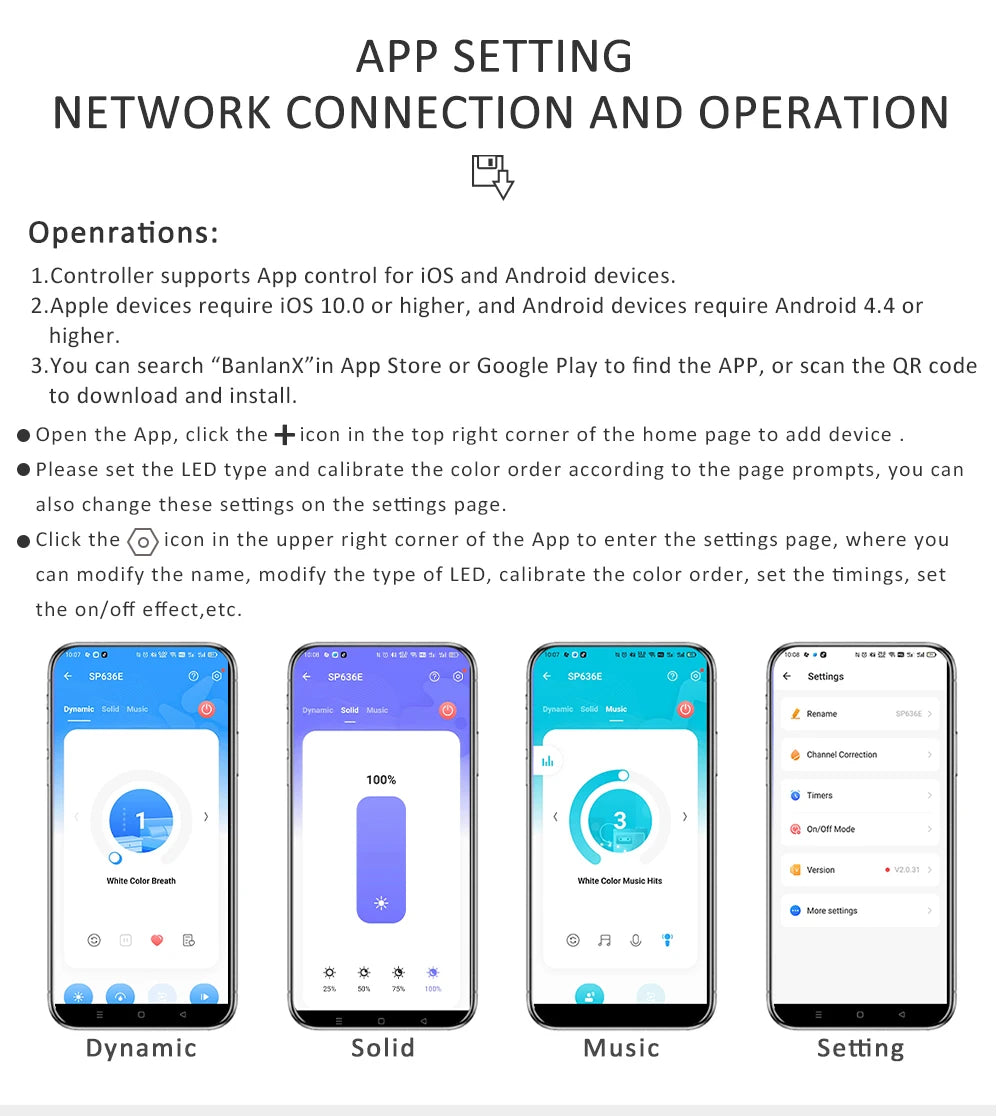

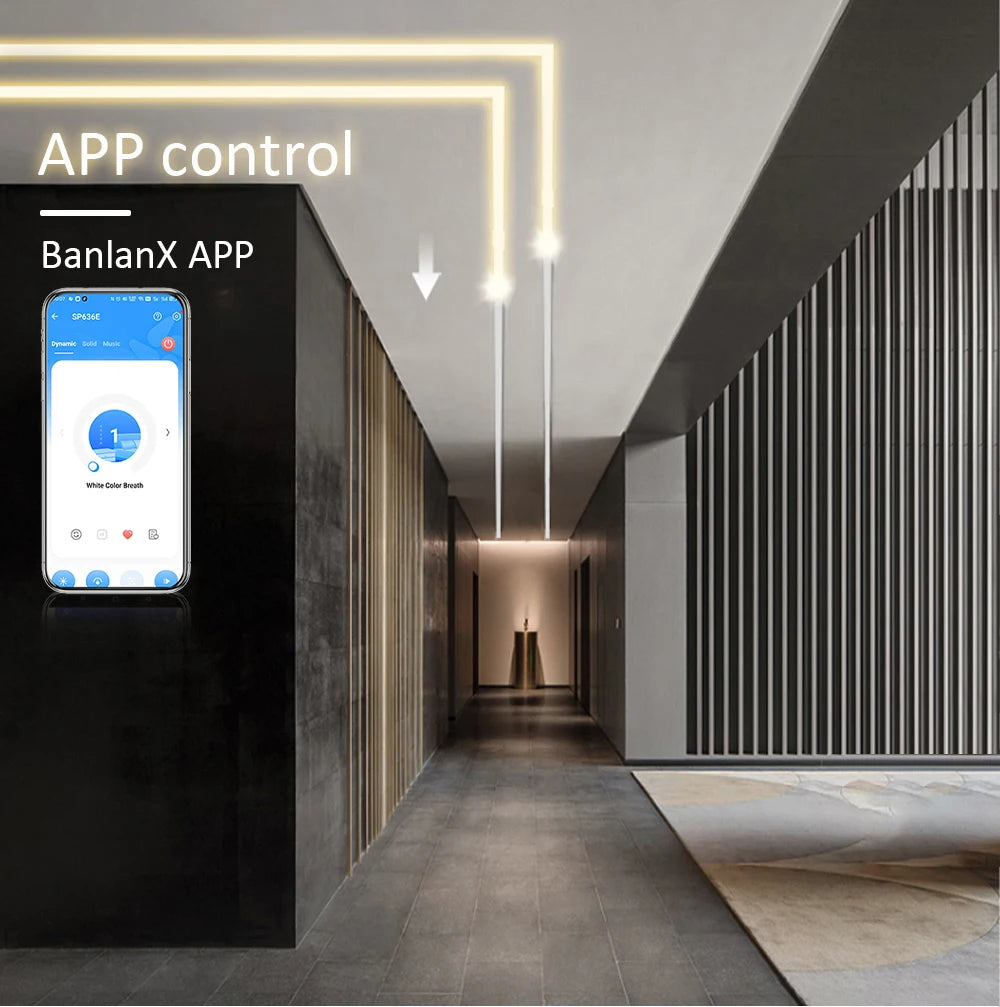

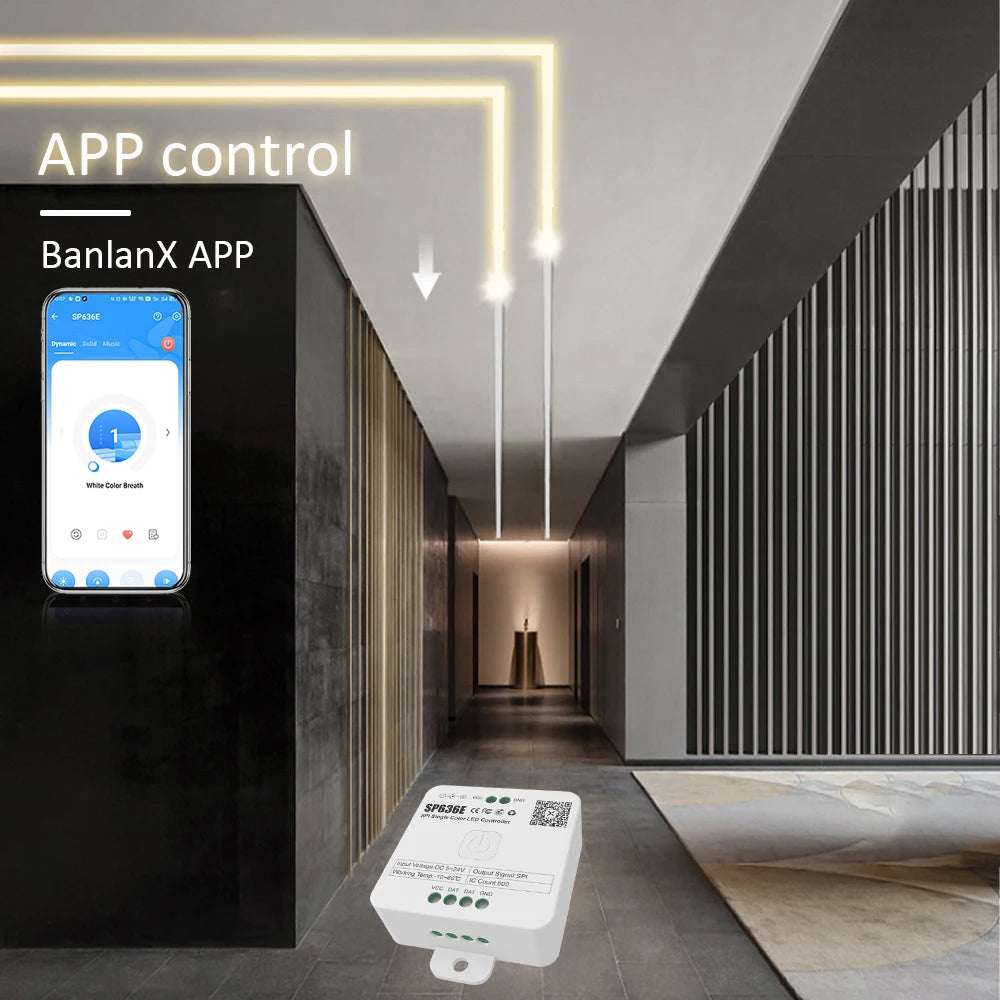

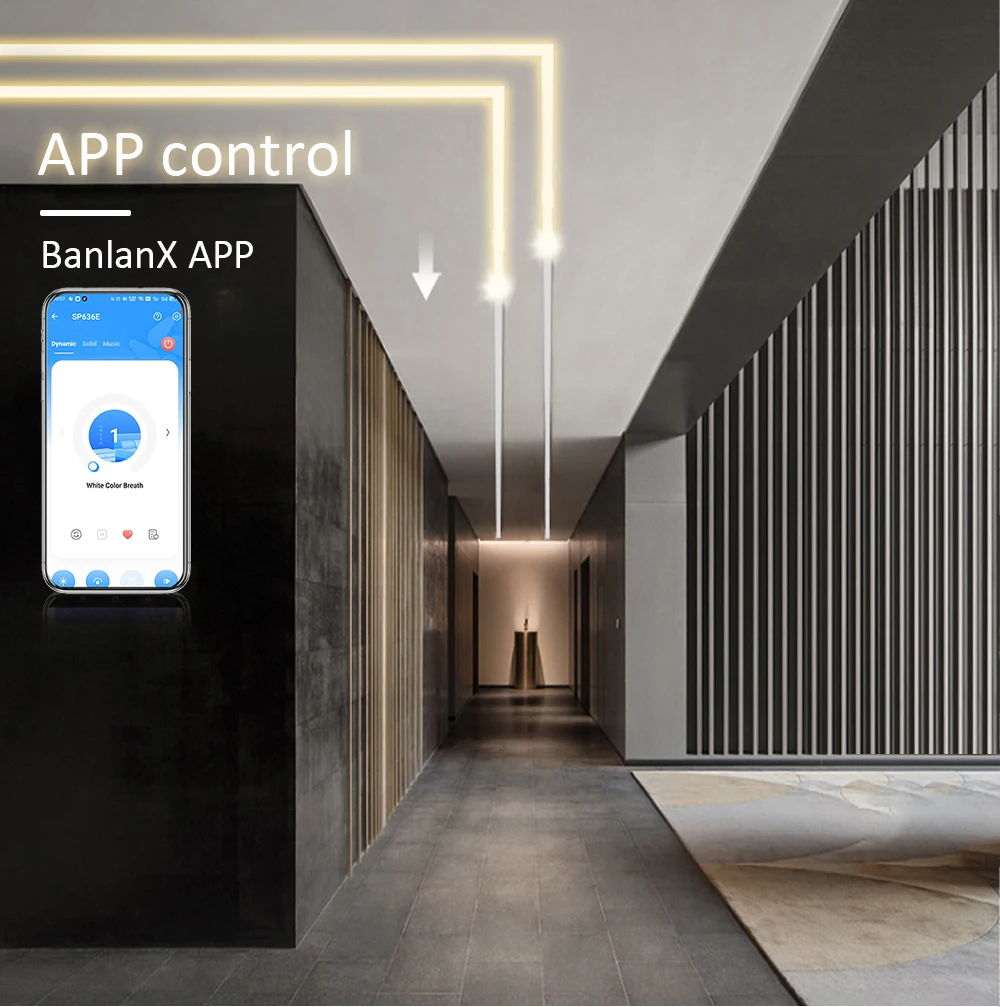

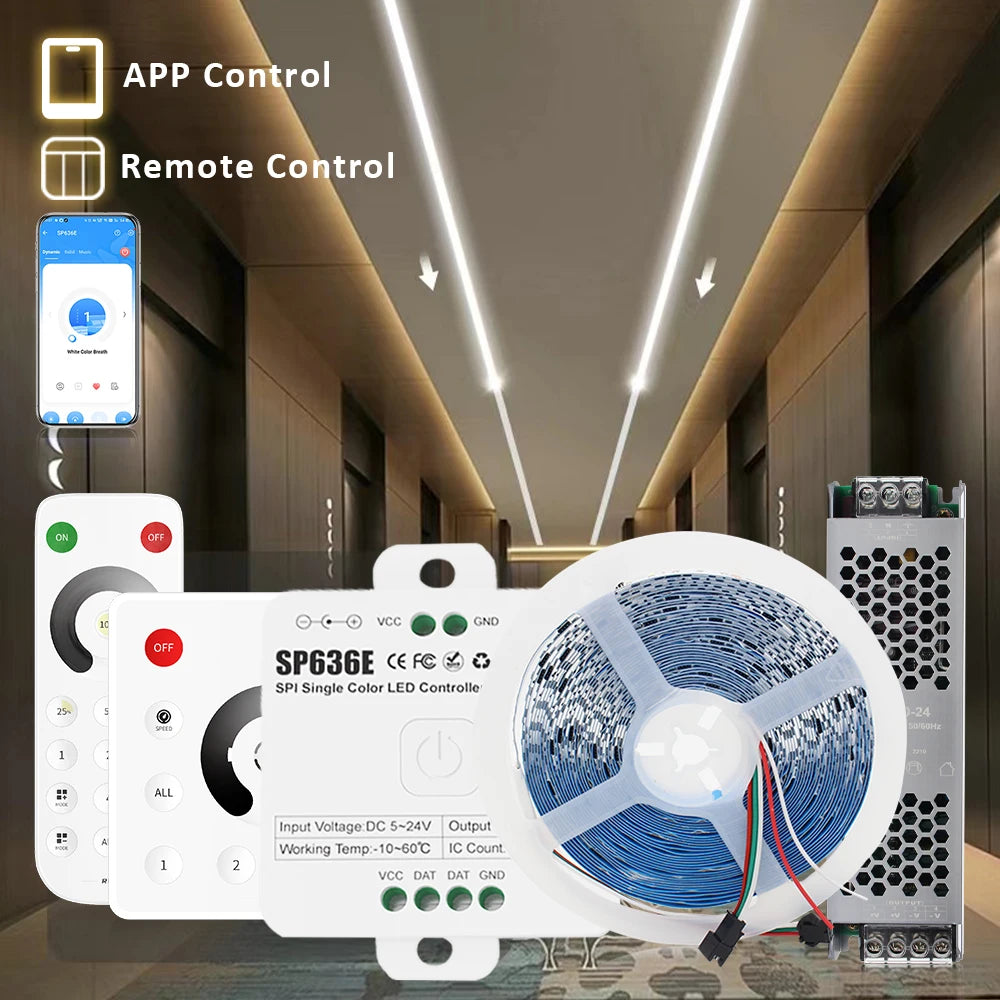

1. Support "BanlanX" APP control,2.4G touch remote control(RB1) and 2.4G touch 86-type control panel(RC1).
2. Max control 600 Pixels(IC)
3. Speed/Brightness is adjustable

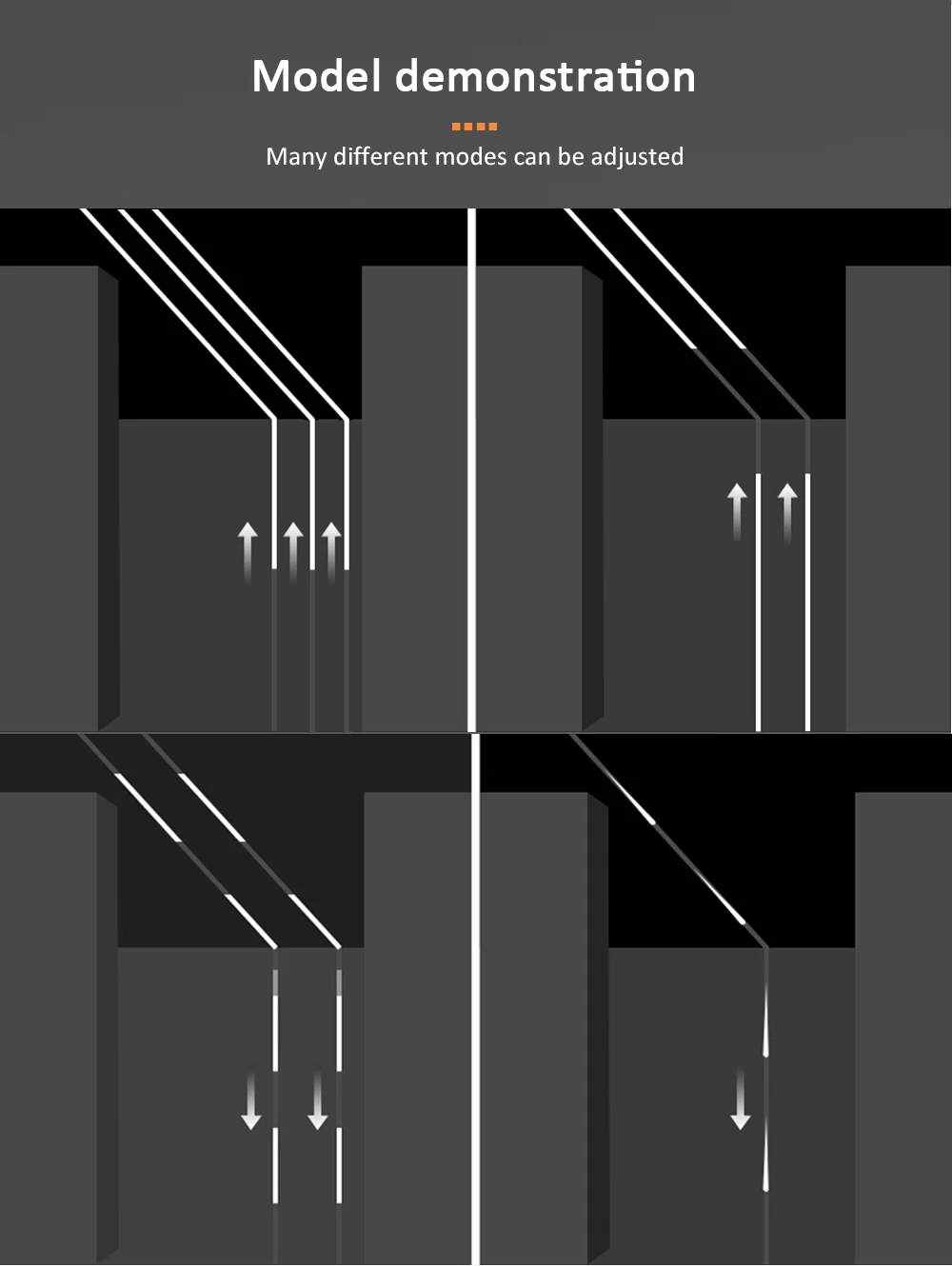

4. Built-in a variety of pure white light dynamic effects and music effects,with multiple adjustable parameters.
5. Capture music through the phone microphone, player streamer and on-board microphone.
6. Support effect collection
7. With a variety of ON/OFF animation effects
8. With ON/OFF timer function
9. Support OTA firmware upgrade.
10.Mini size: 78*56*20mm,with colorful wholesale package.

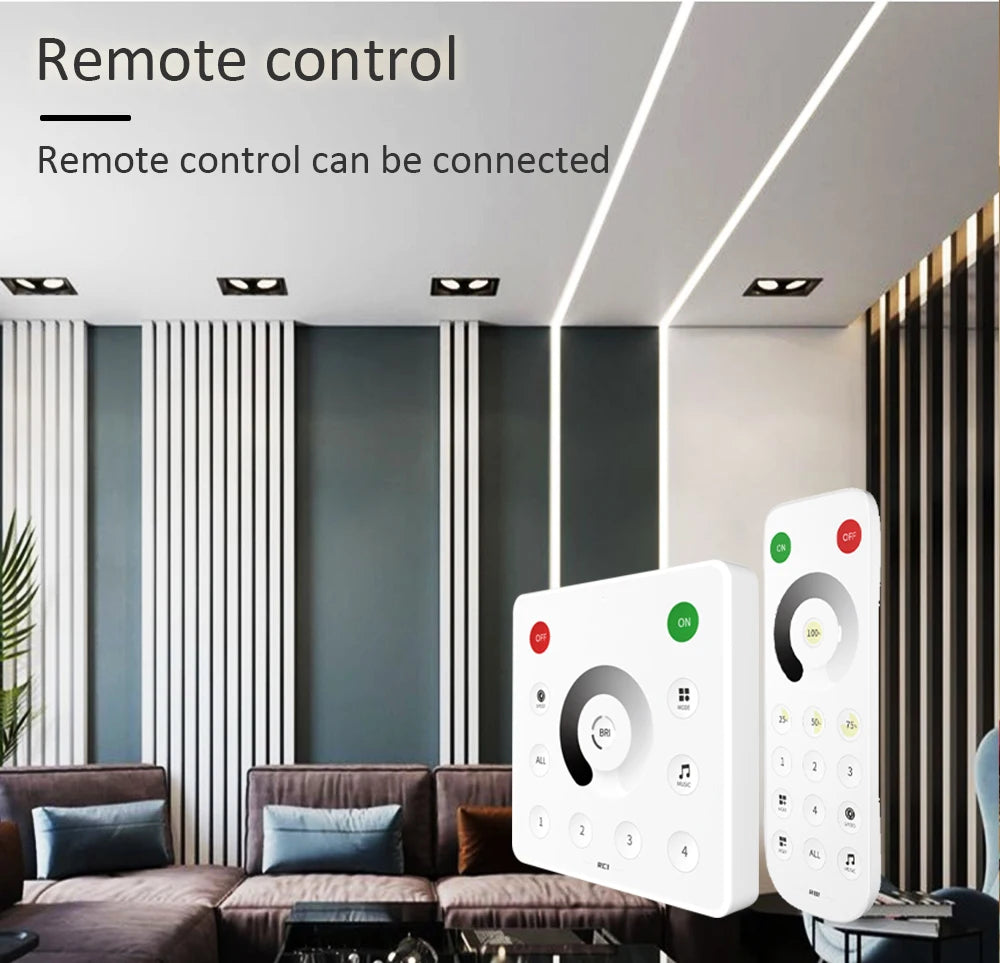

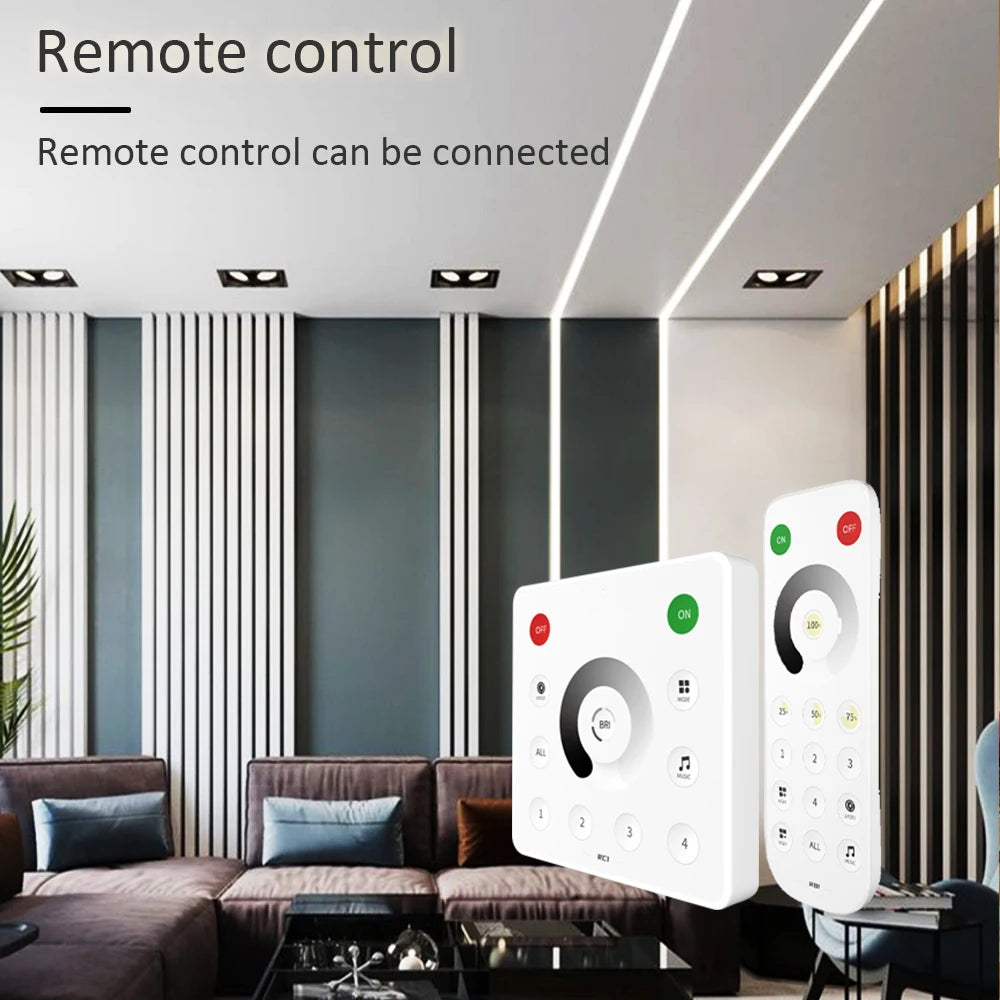

Work with 2.4G Touch Remote Control:

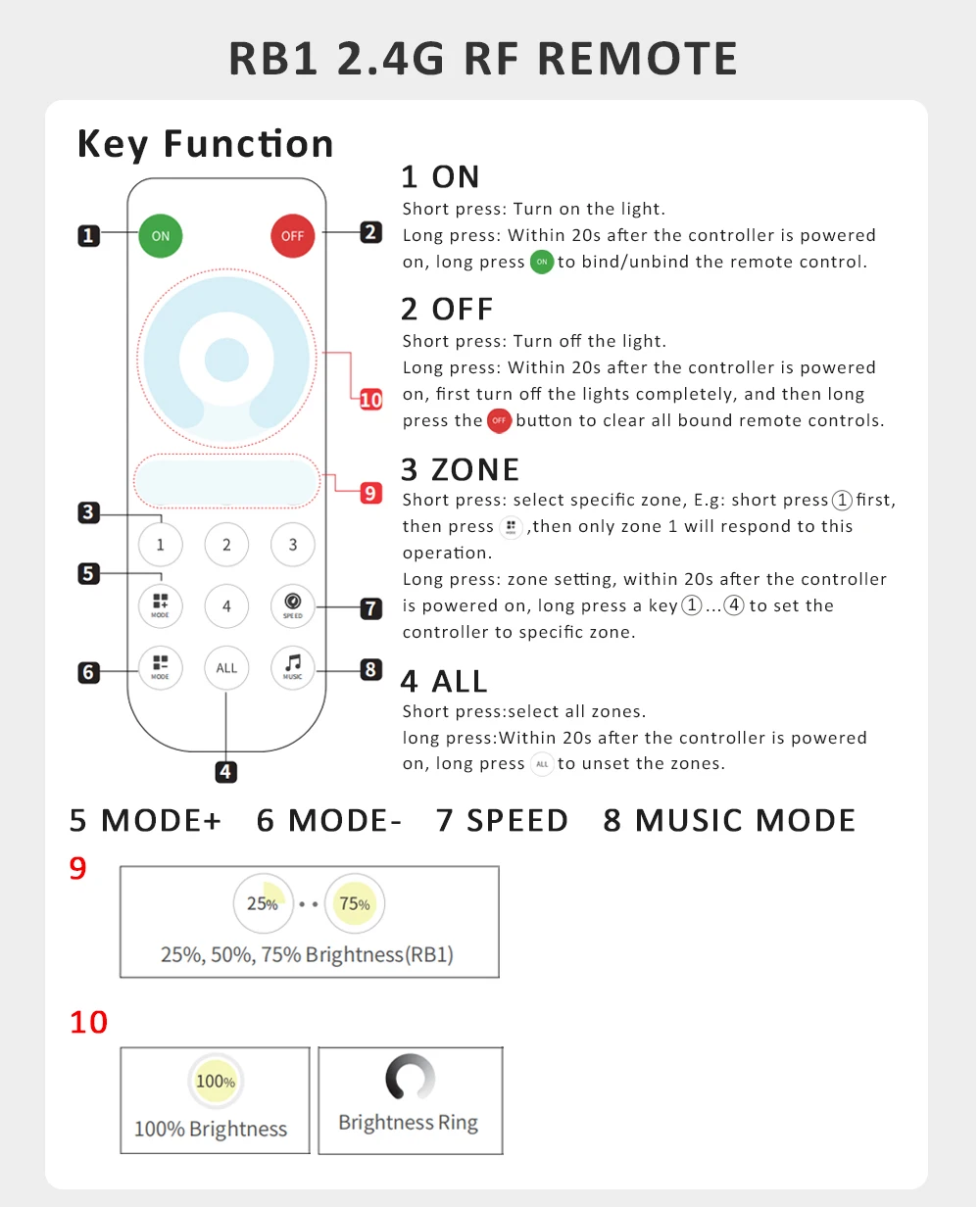

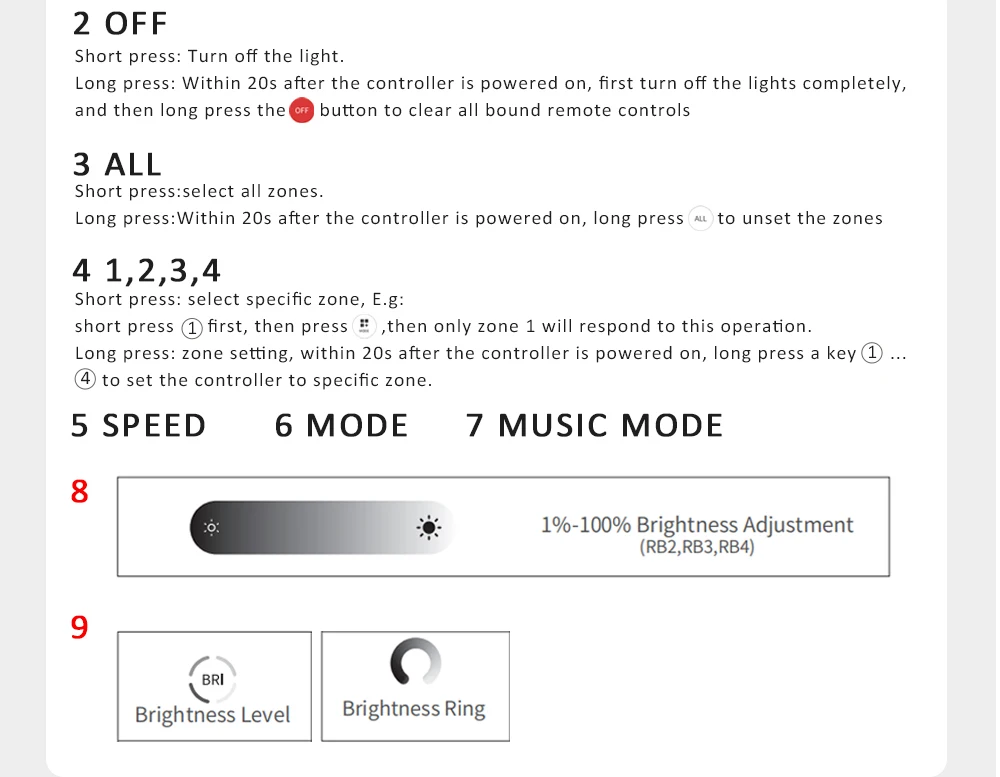

The SP636E controller work with RB1 and RC1 2.4G touch remote control
1. Support one-to-many control, one remote control can control multiple controllers,sync or independently.

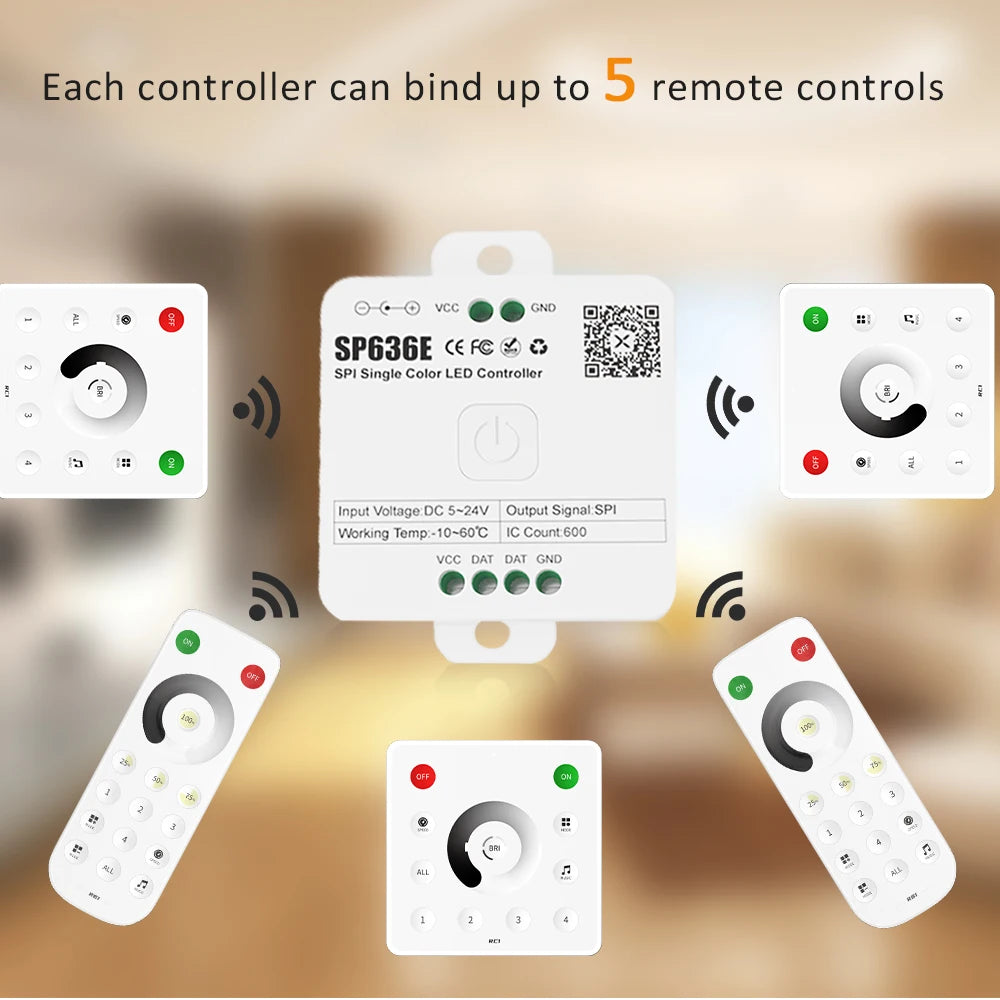

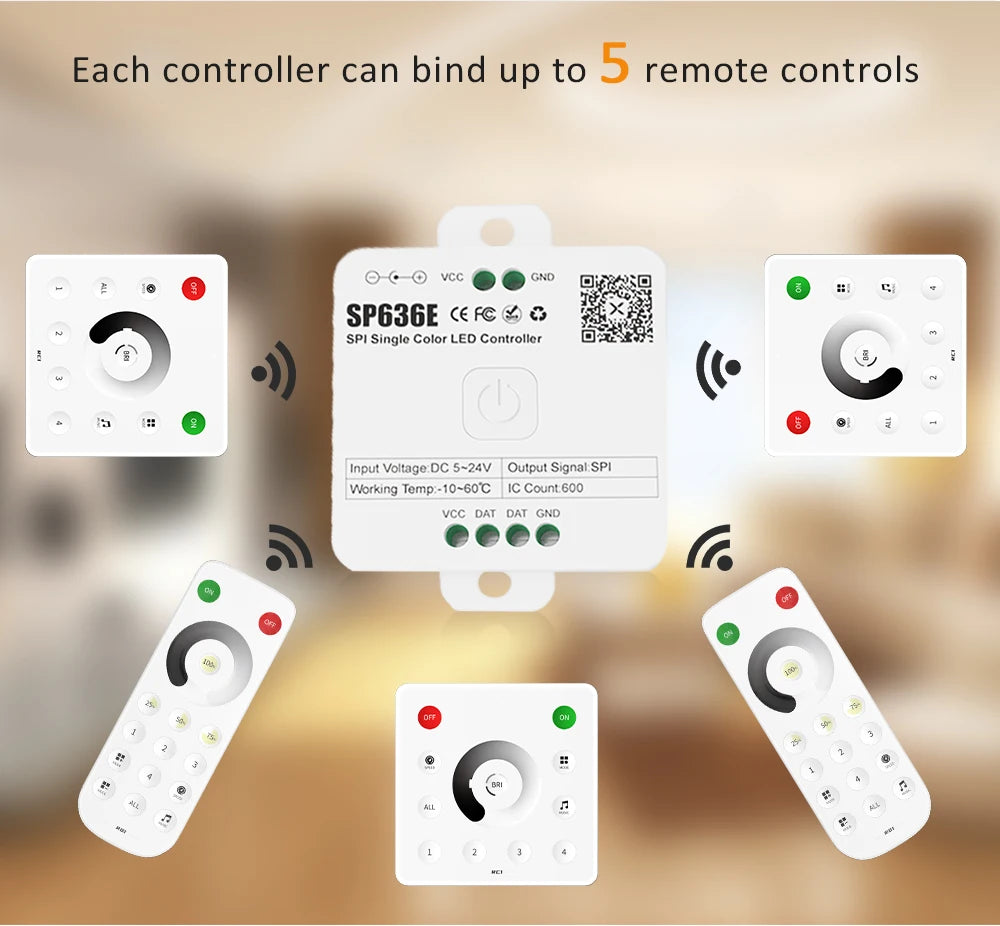

2. Support many-to-one control,each Sp636E controller can be set up to max 5 remote controls.

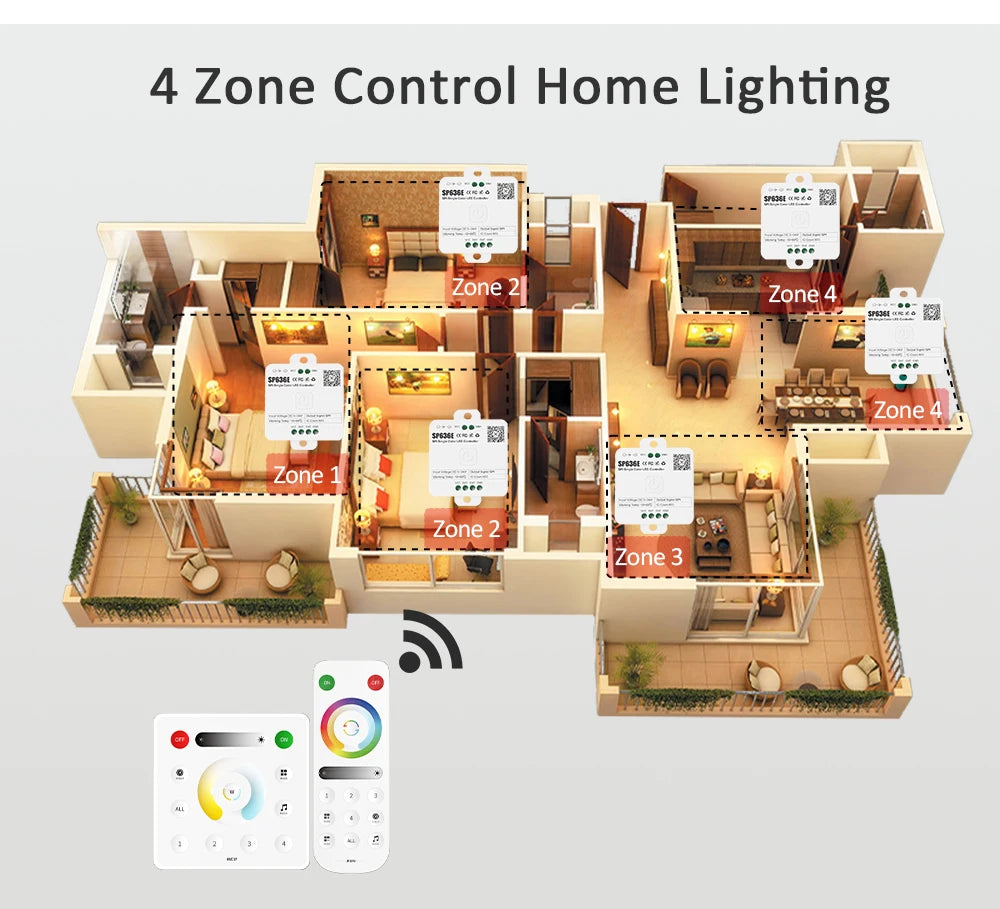

3. Support Sync control and 4-Zones control independently. (such as 4 rooms, 4 different effects)
4. With Double-side tape on the back,easy to install at anywhere

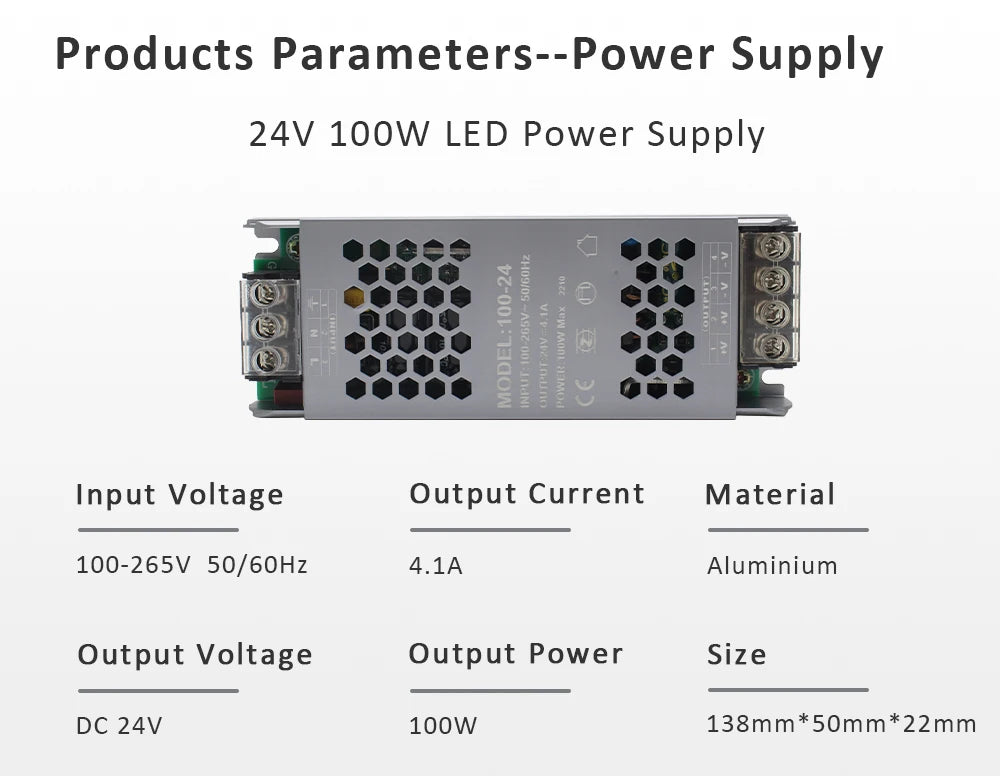

Power Supply:

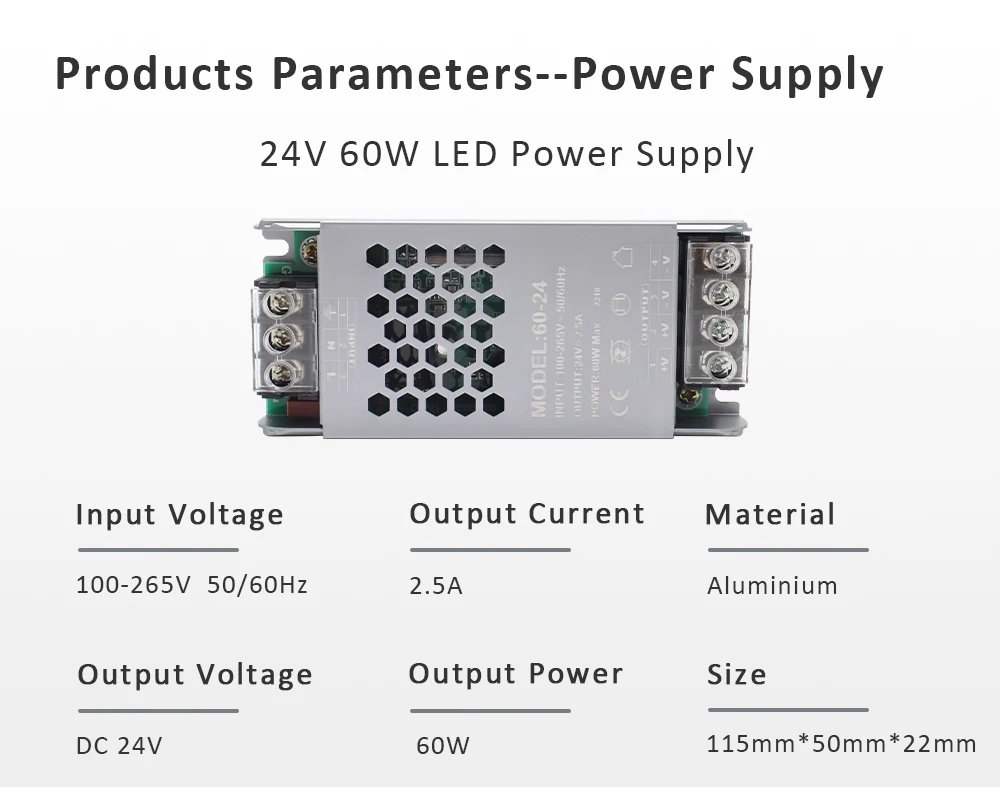

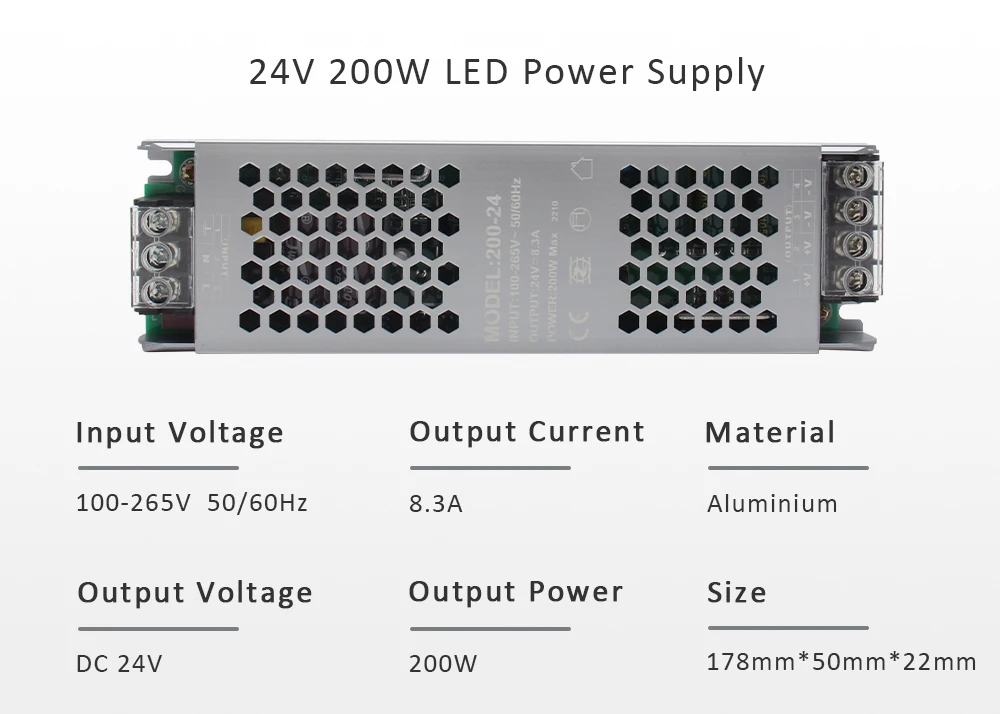

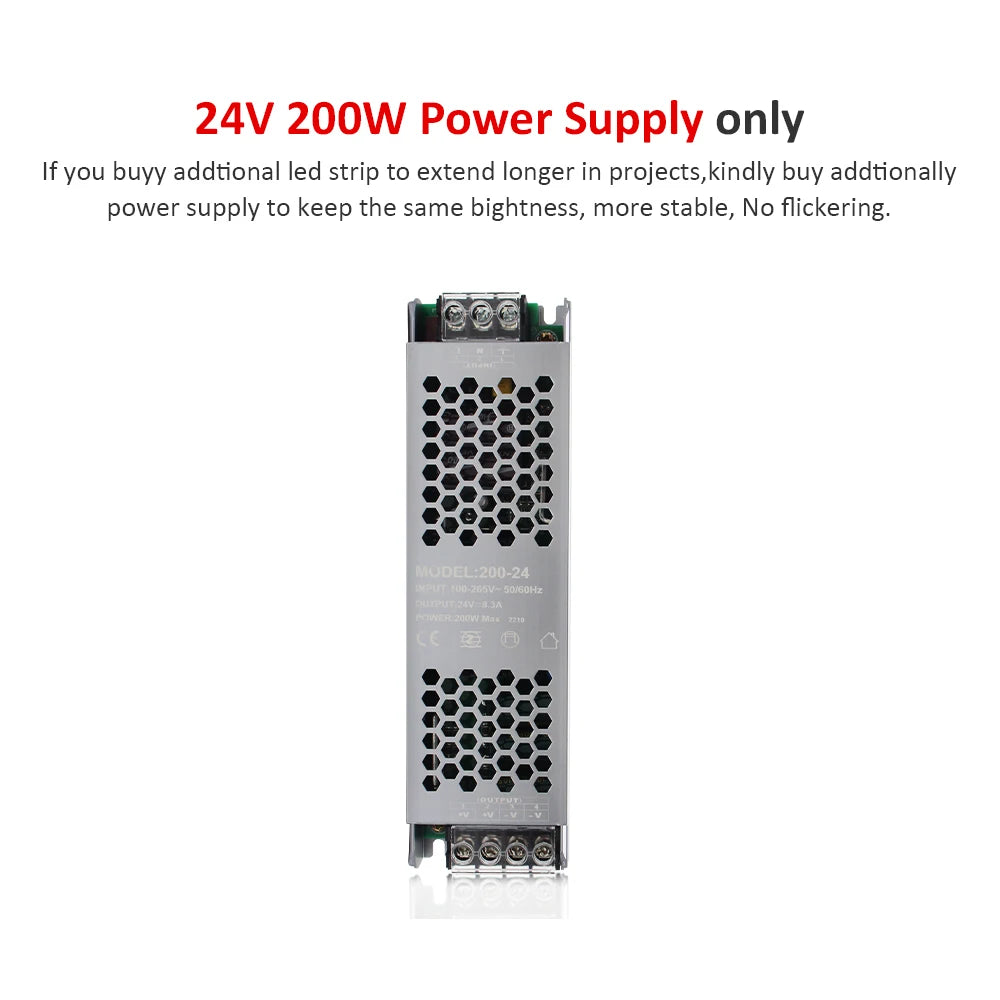

We used high quality DC 24V 60W -200W LED power supply,100% real power output. 1pc DC24V power supply can drive max 20 meters WS2811 horse running pixel led strip.

Application:

Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.

Package Including:

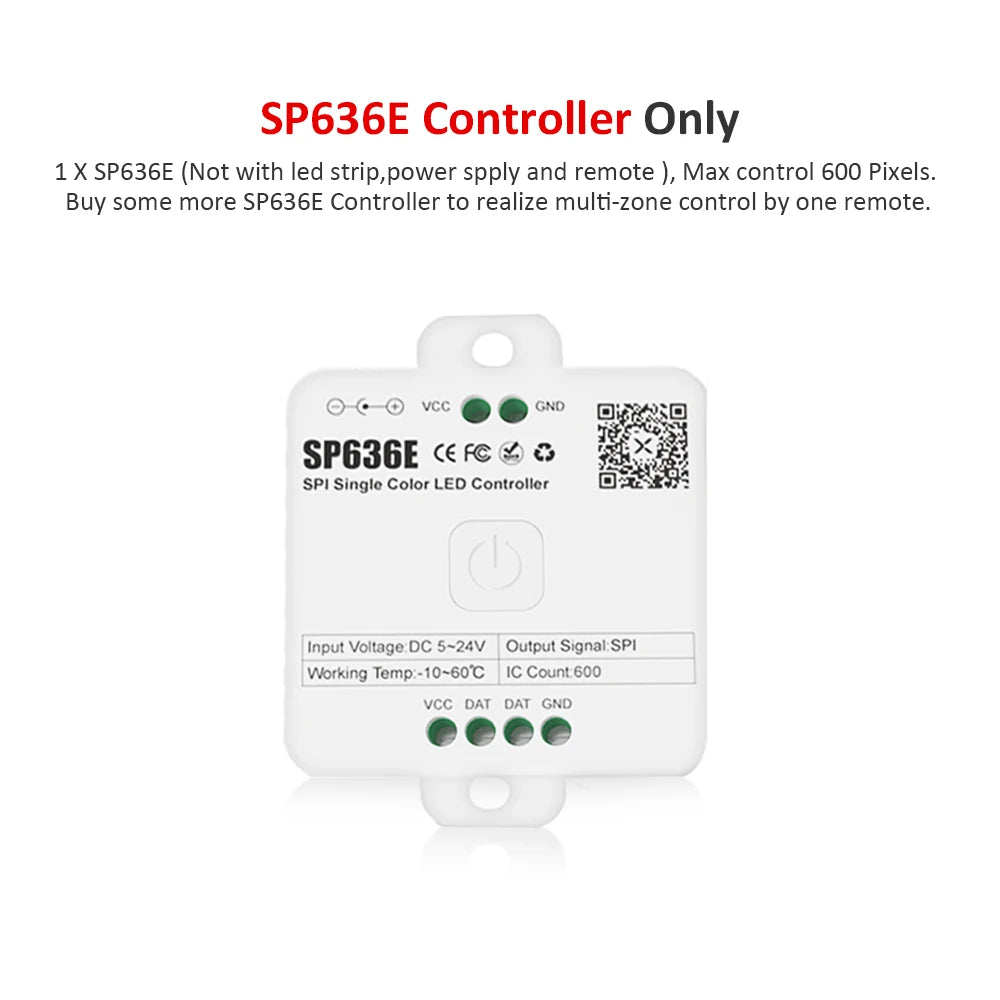

SP636E Controller Only = 1 X SP636E controller (Not with led strip,remote and power supply)

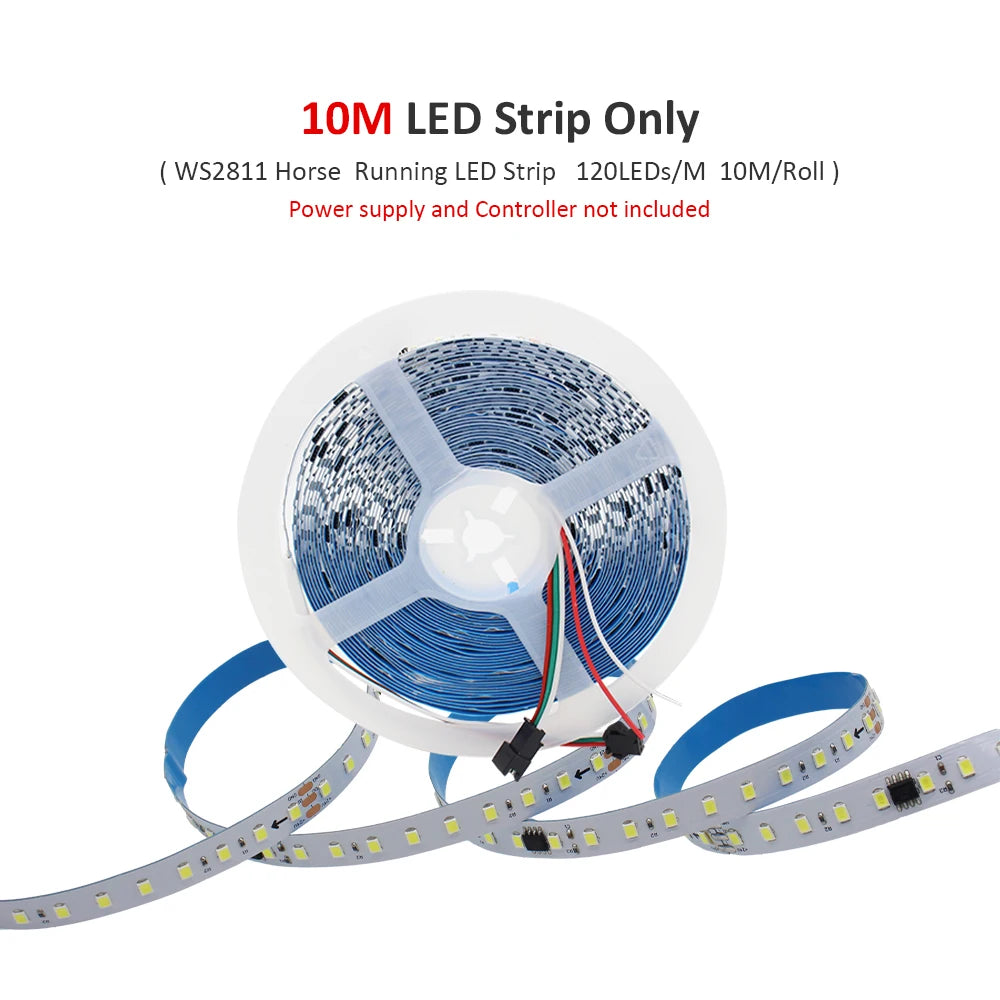

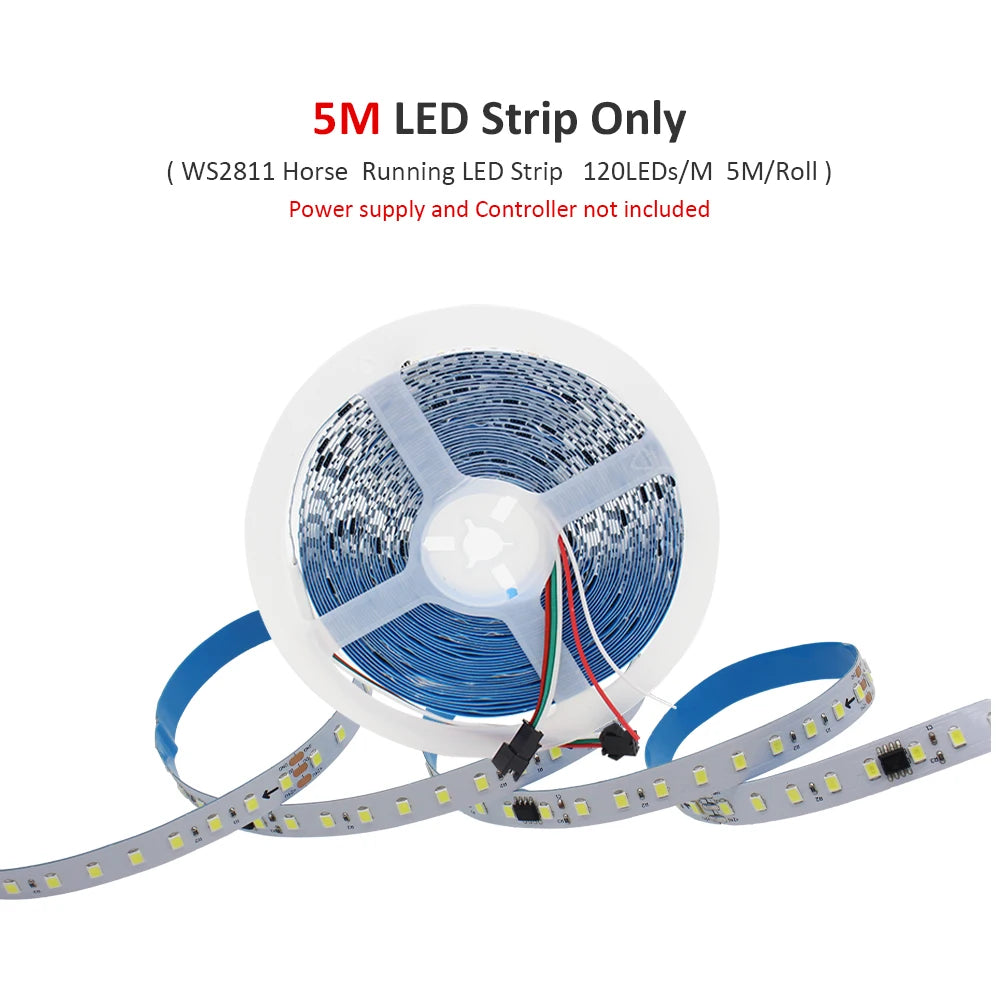

LED strip Only = 24V 2811 led strip (Not with controller,remote and power supply)

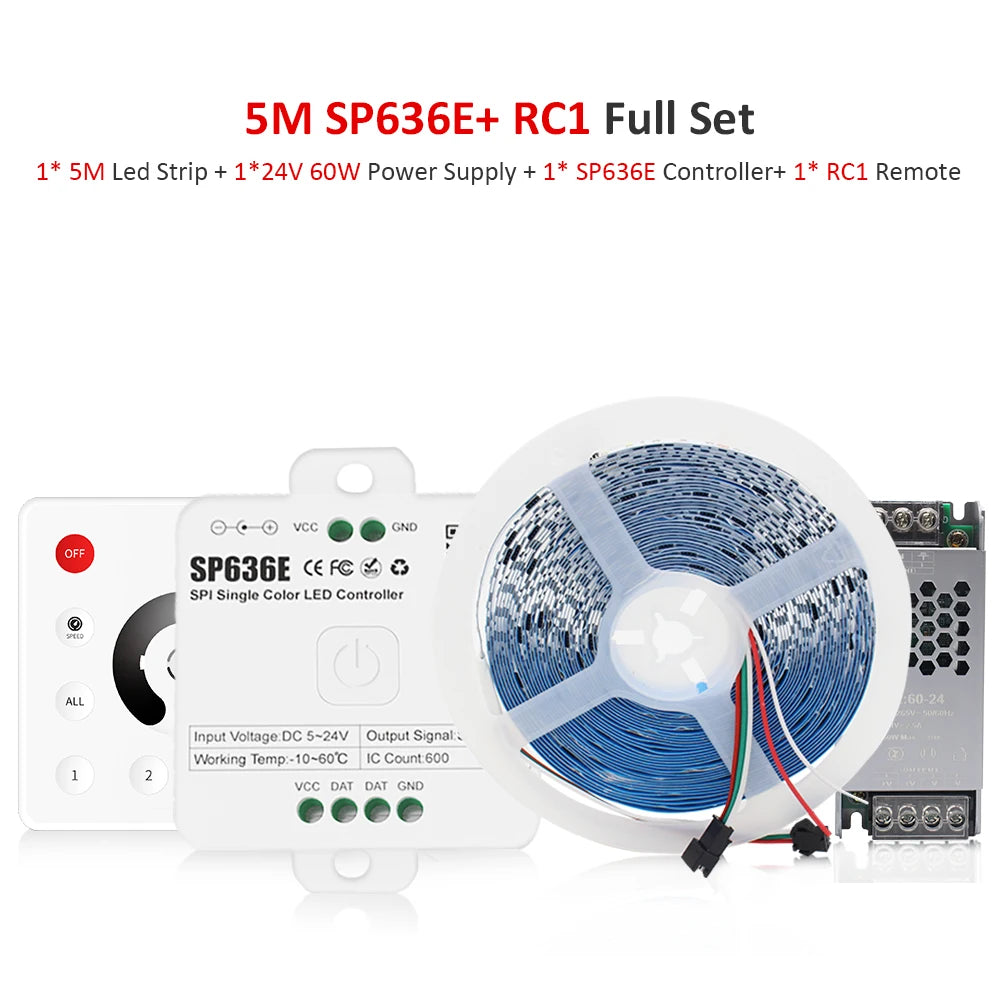

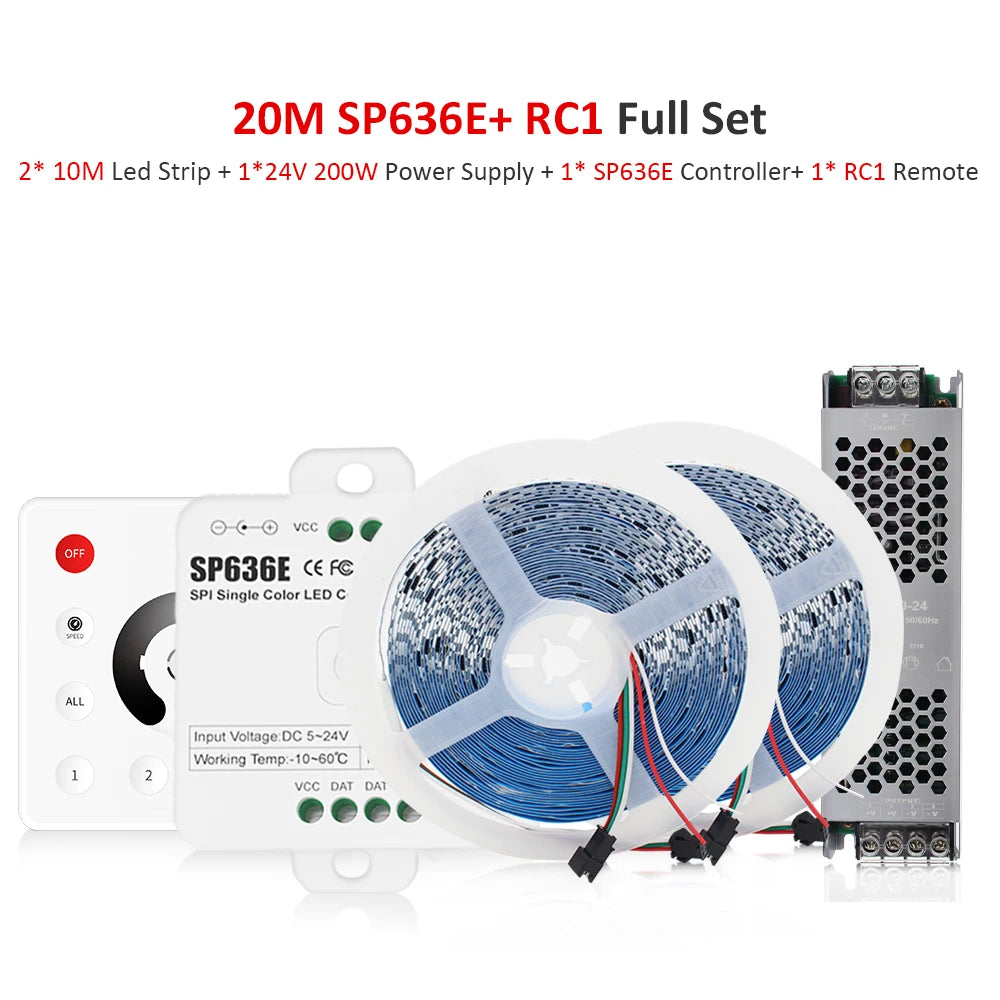

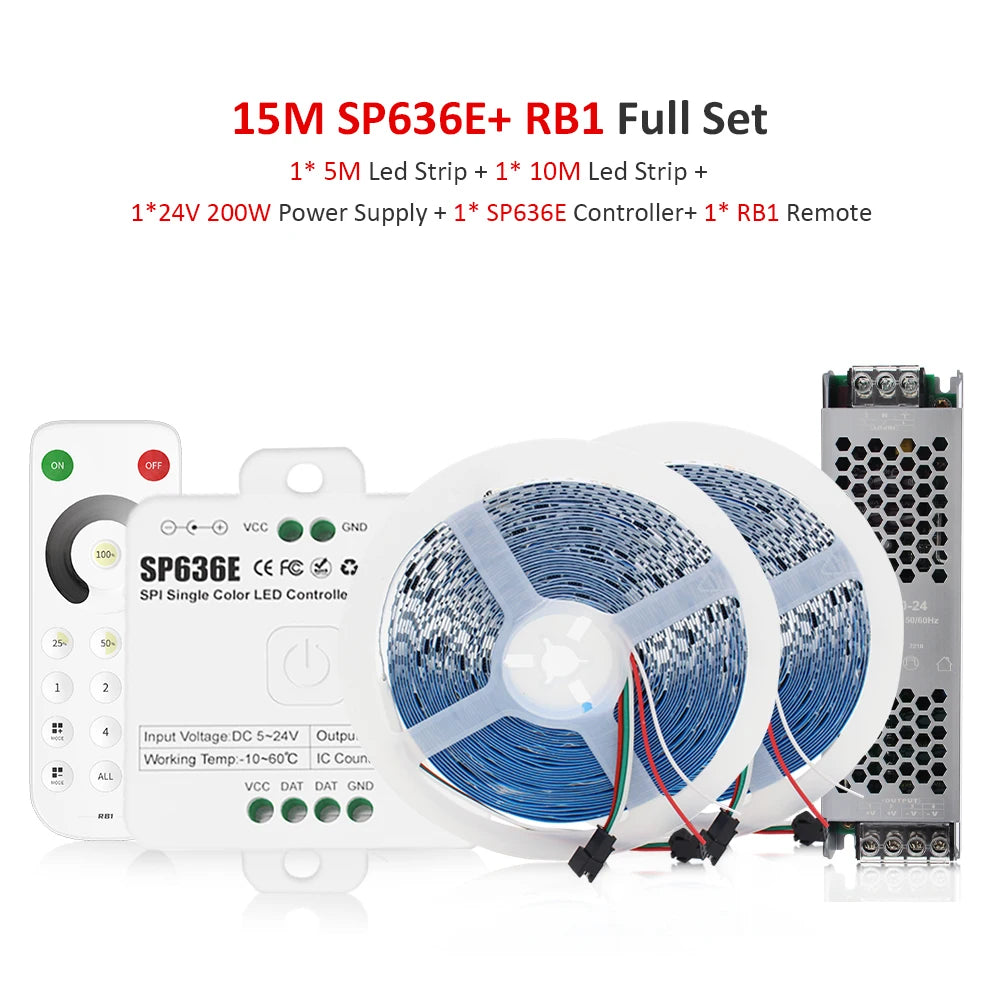

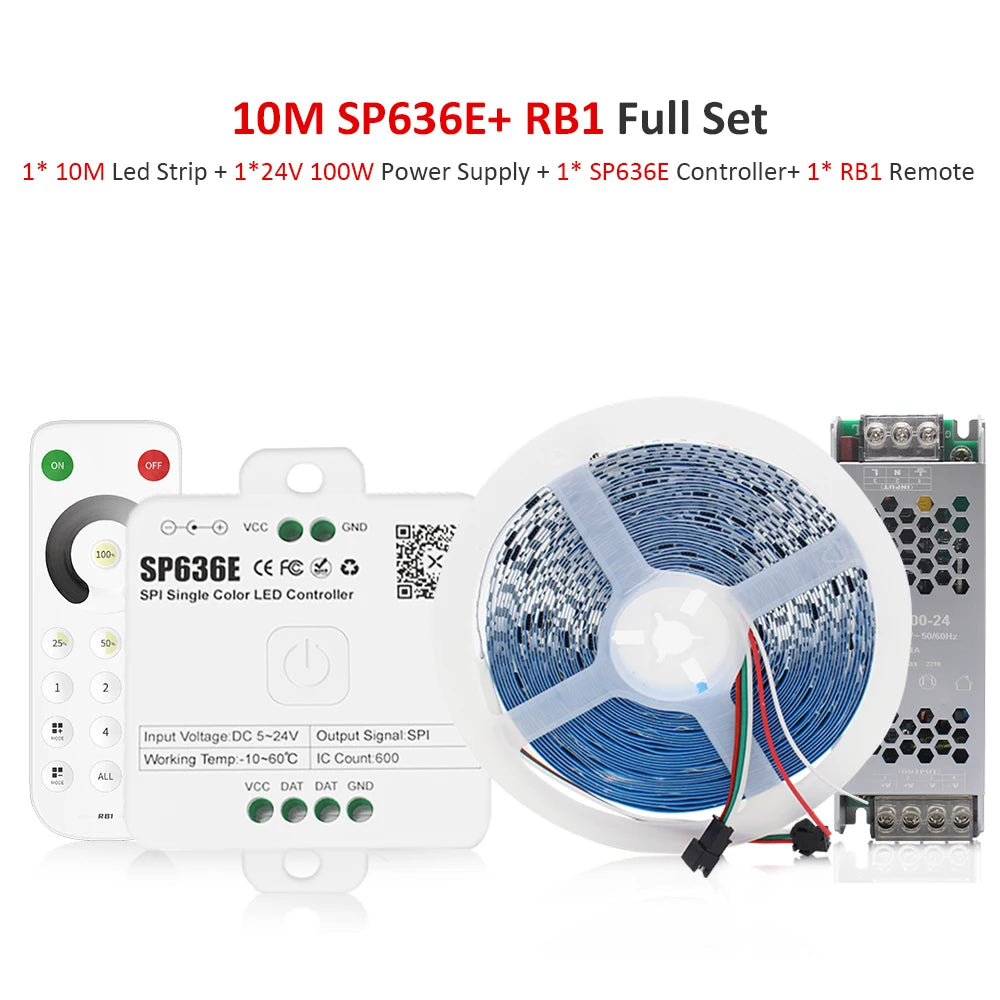

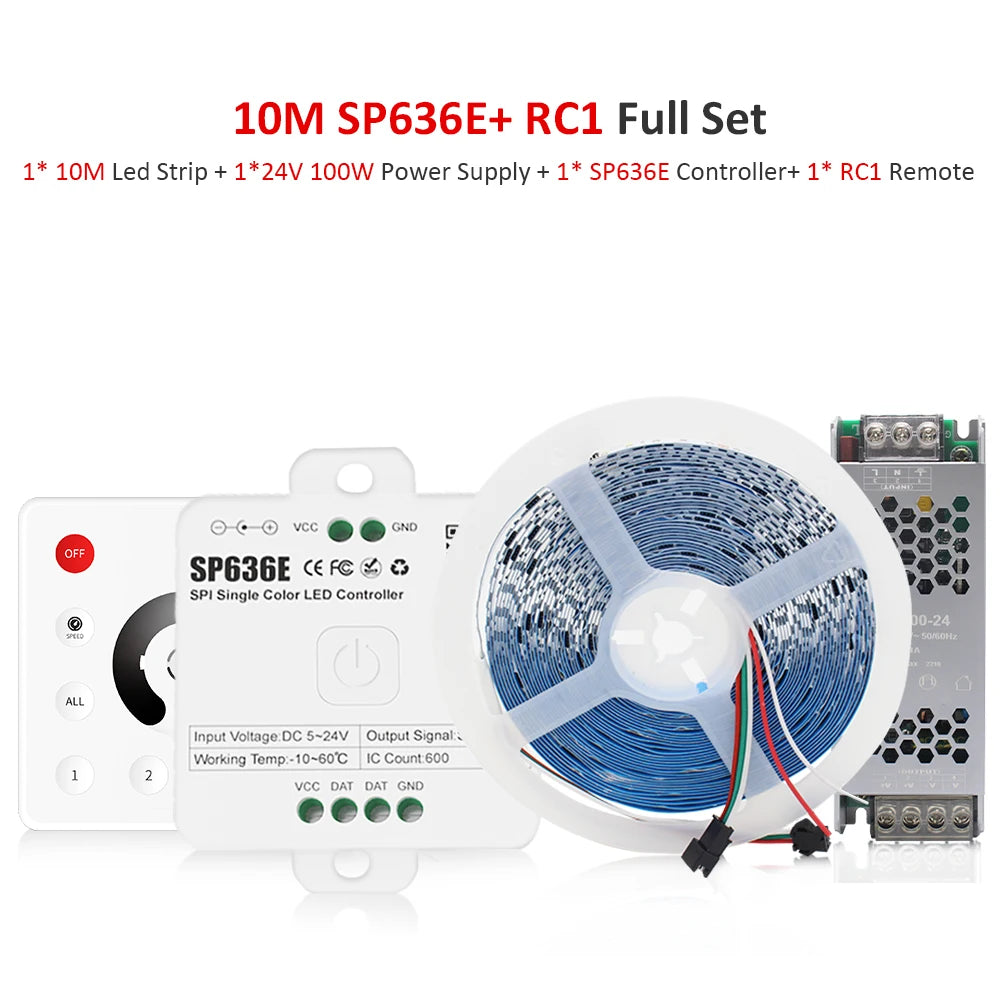

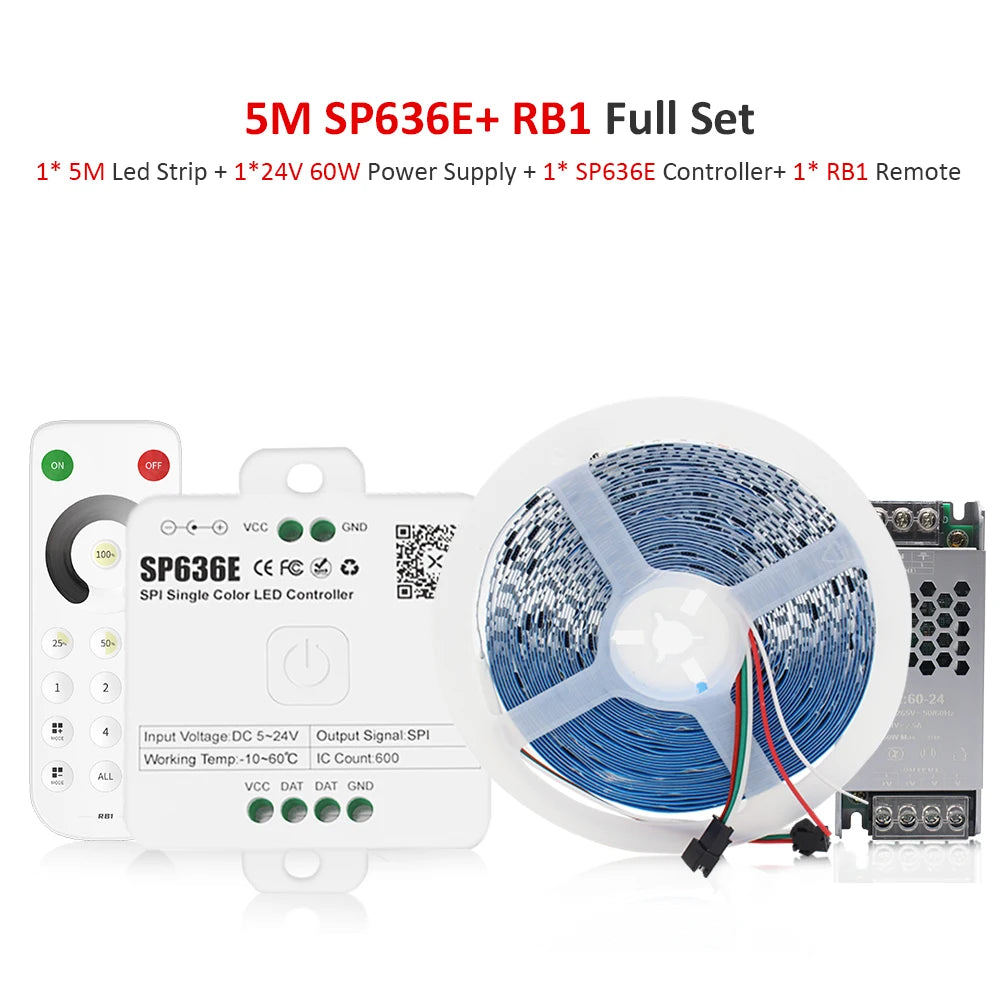

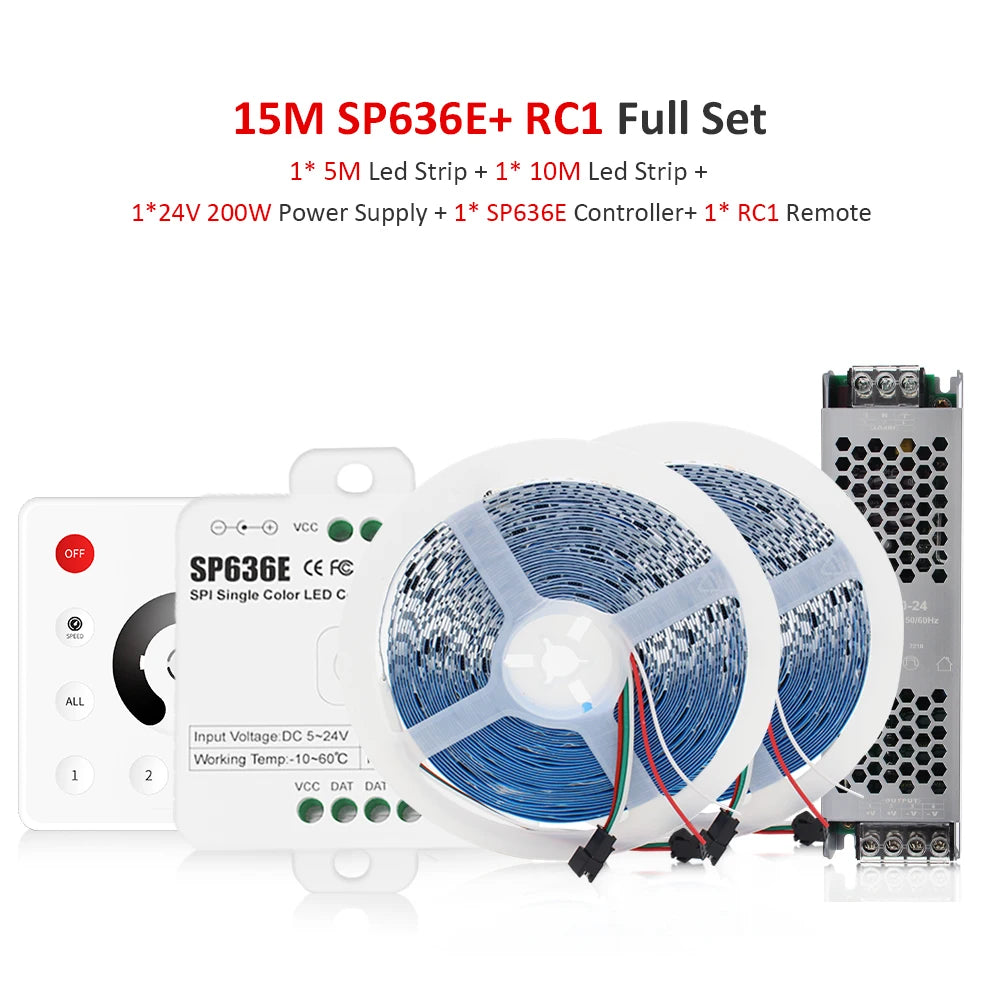

SP636E RB1/RC1 Full Set = SP636E Controller +RB1/RC1 Remote + 24V Led Strip + 24V Power Supply
SP636E RB1/RC1 Half Set = SP636E Controller +RB1/RC1 Remote + 24V Led Strip （Not with power supply)
SP636E Strip Power Set = SP636E Controller + 24V Led Strip + 24V Power Supply (Not with Remote)
The RB1/RC1 Remote is not with battery.
