SPECIFICATIONS

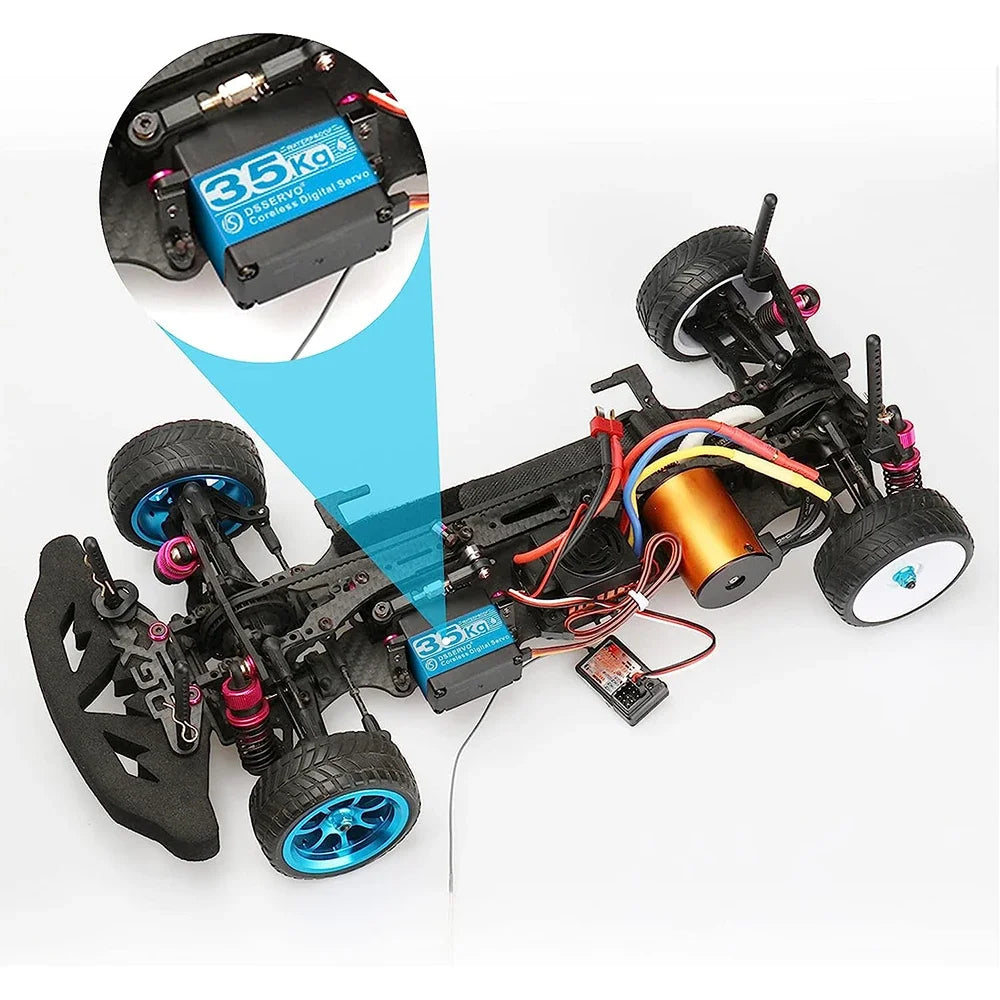

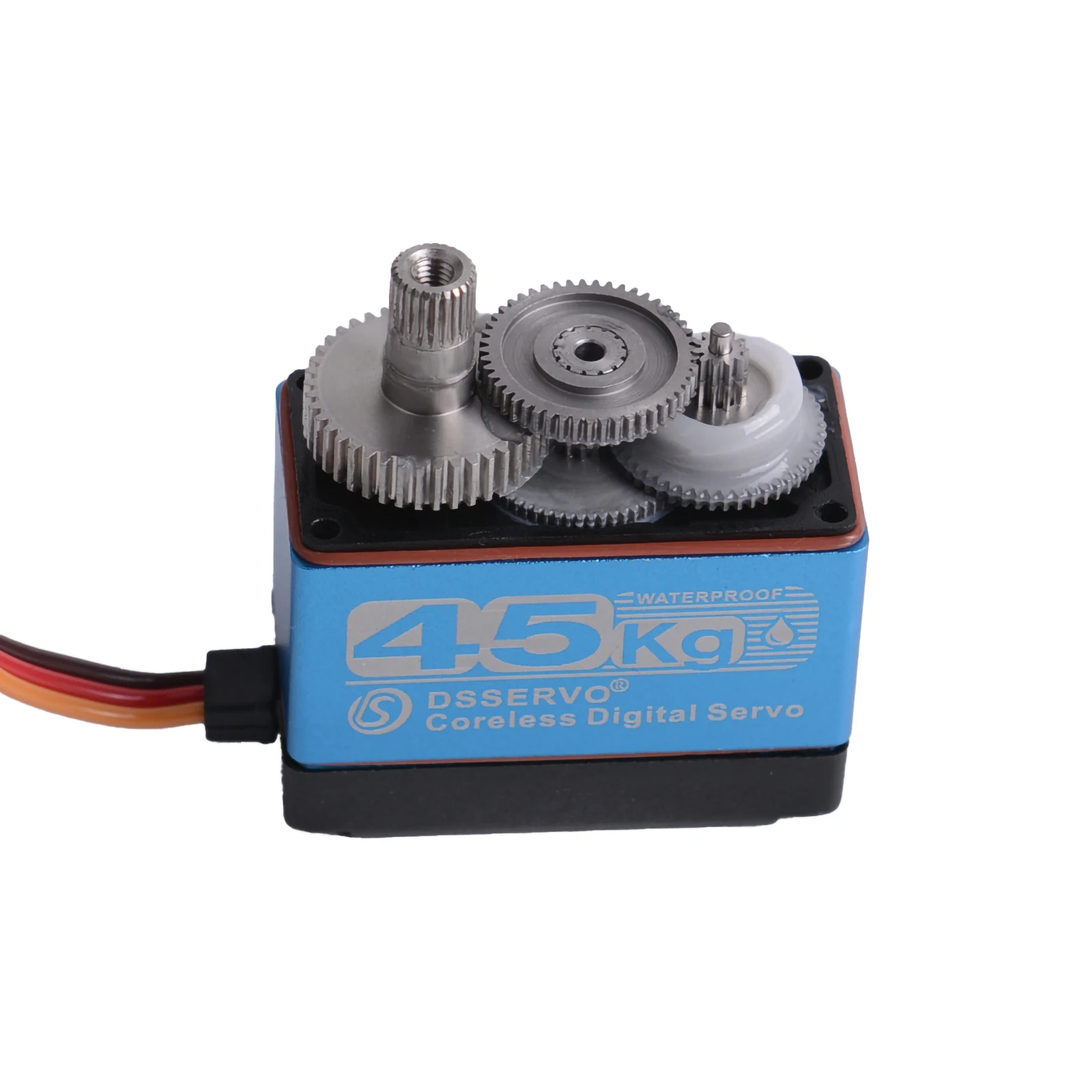

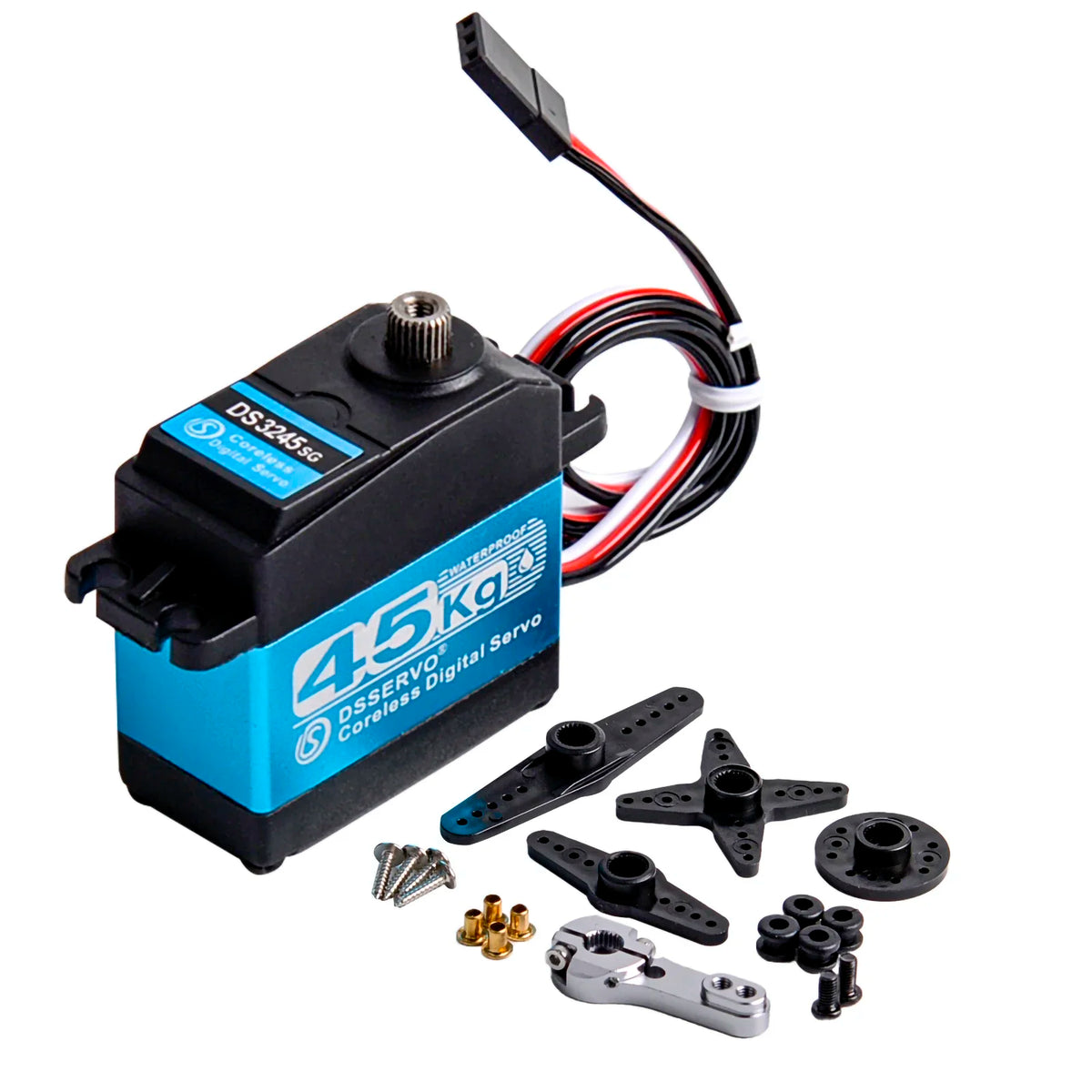

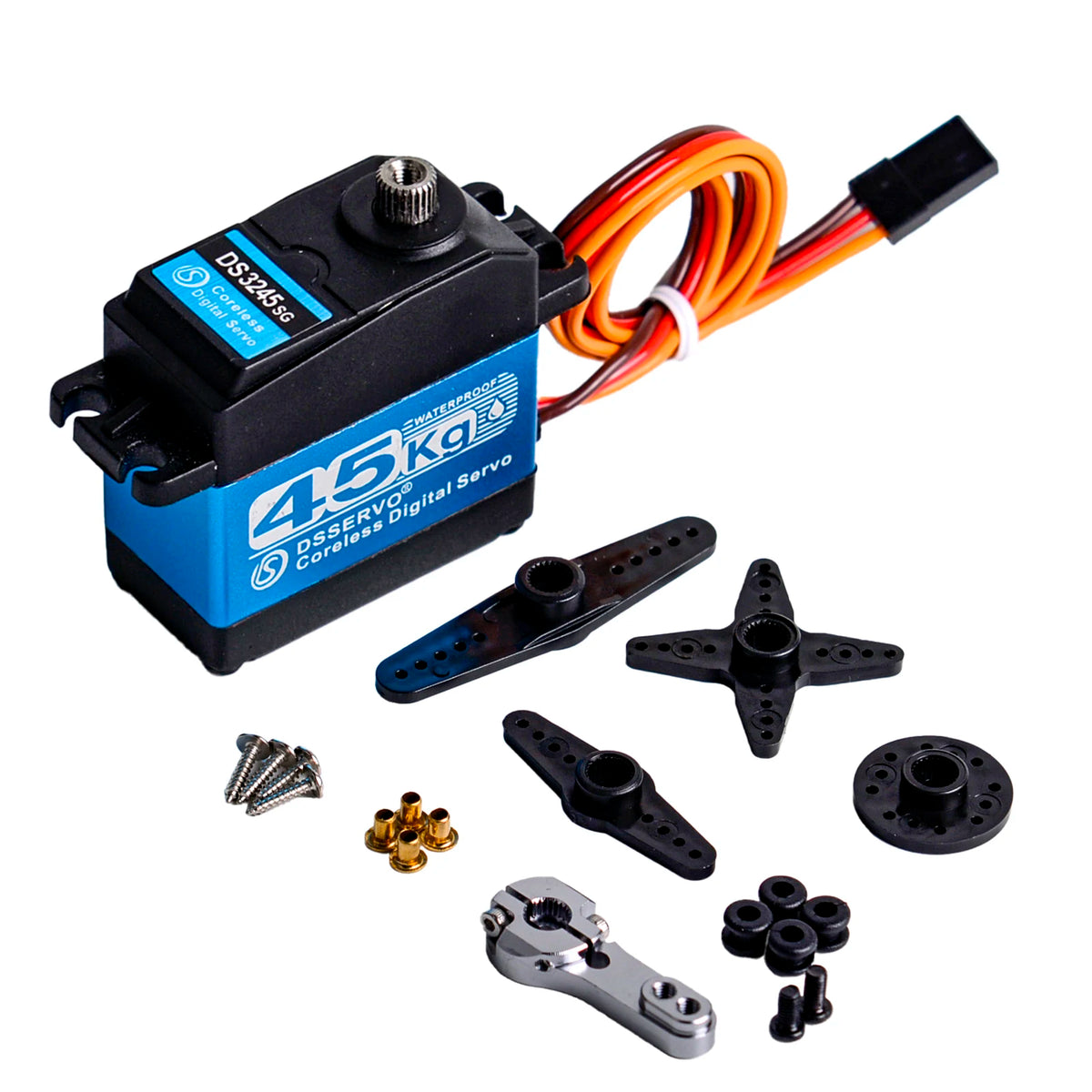

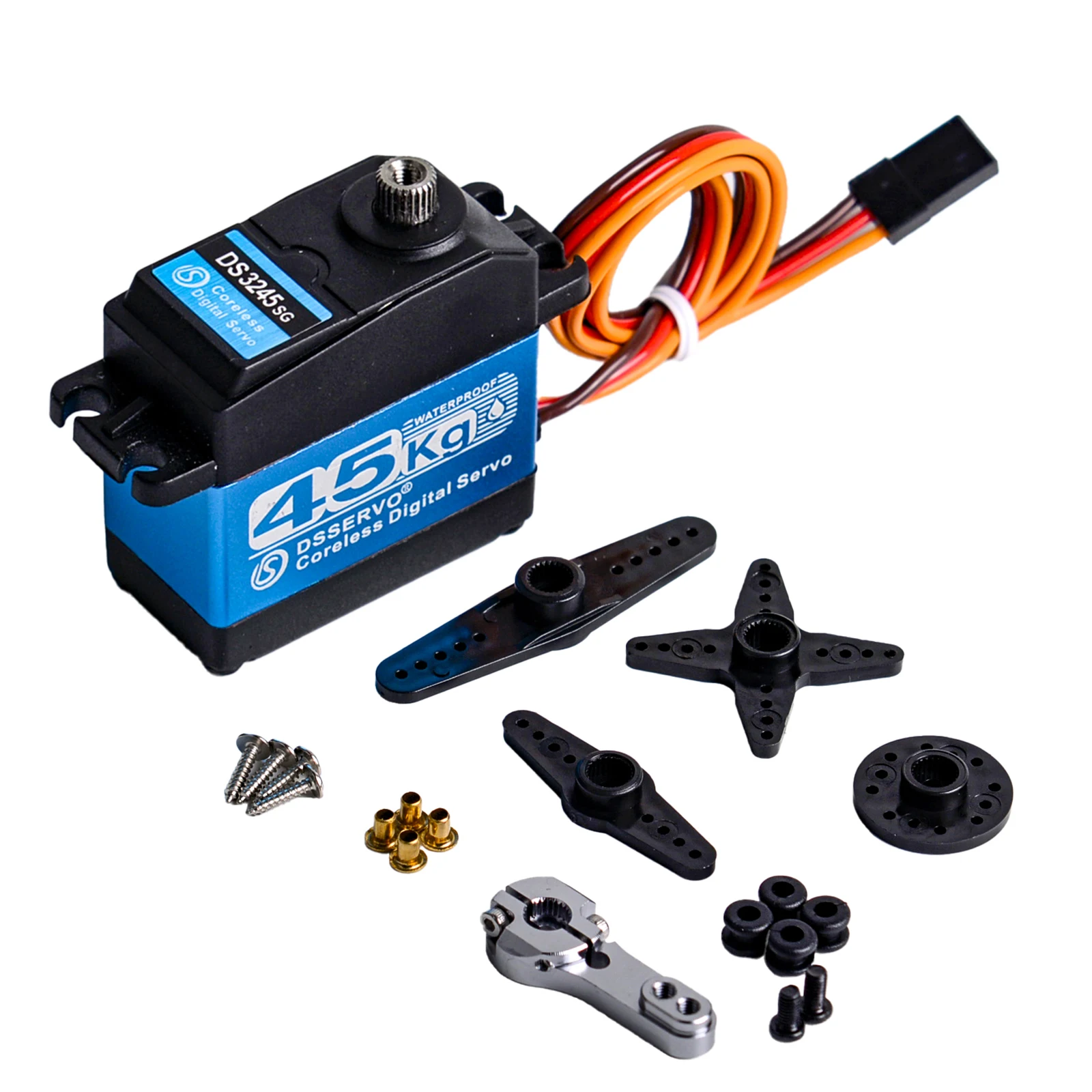

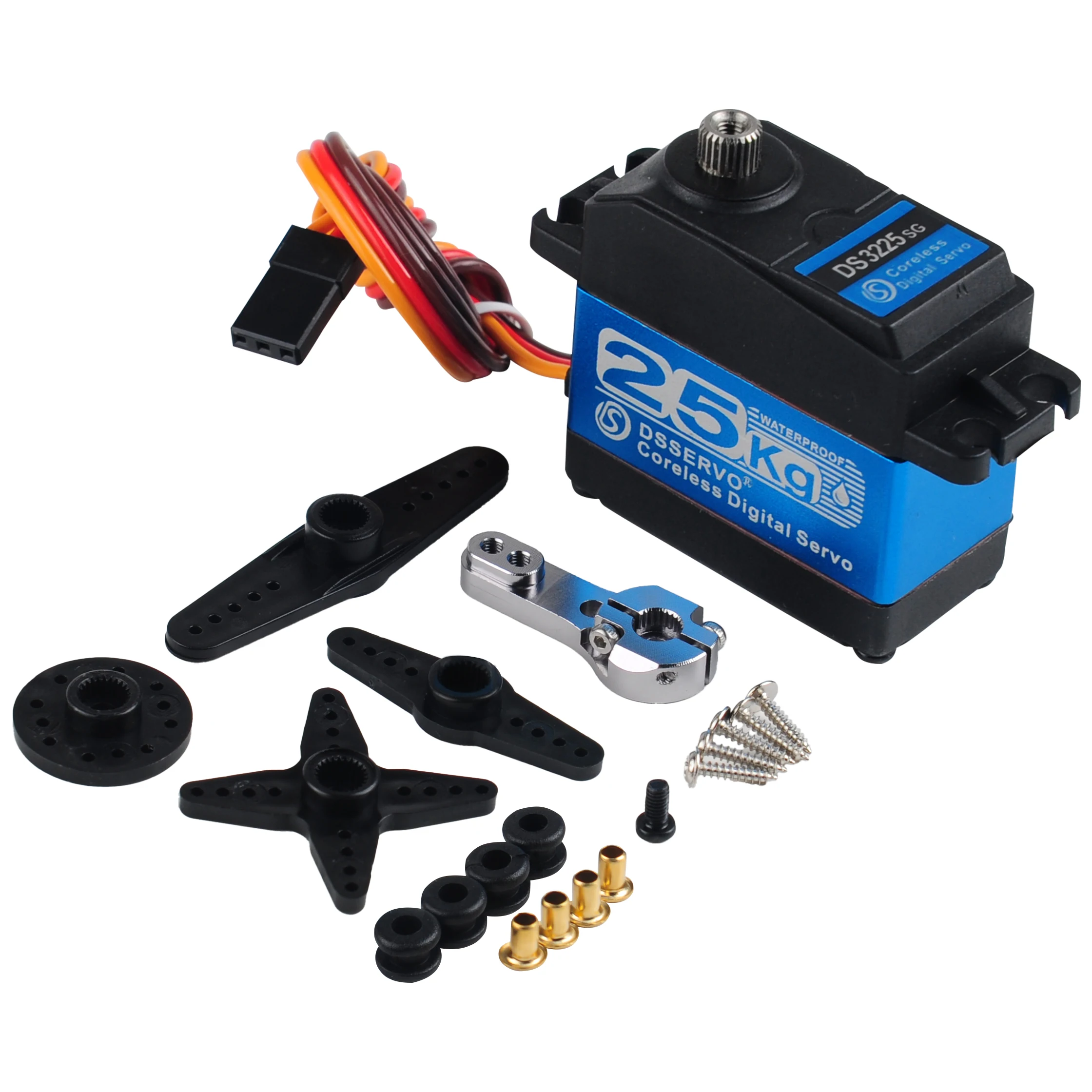

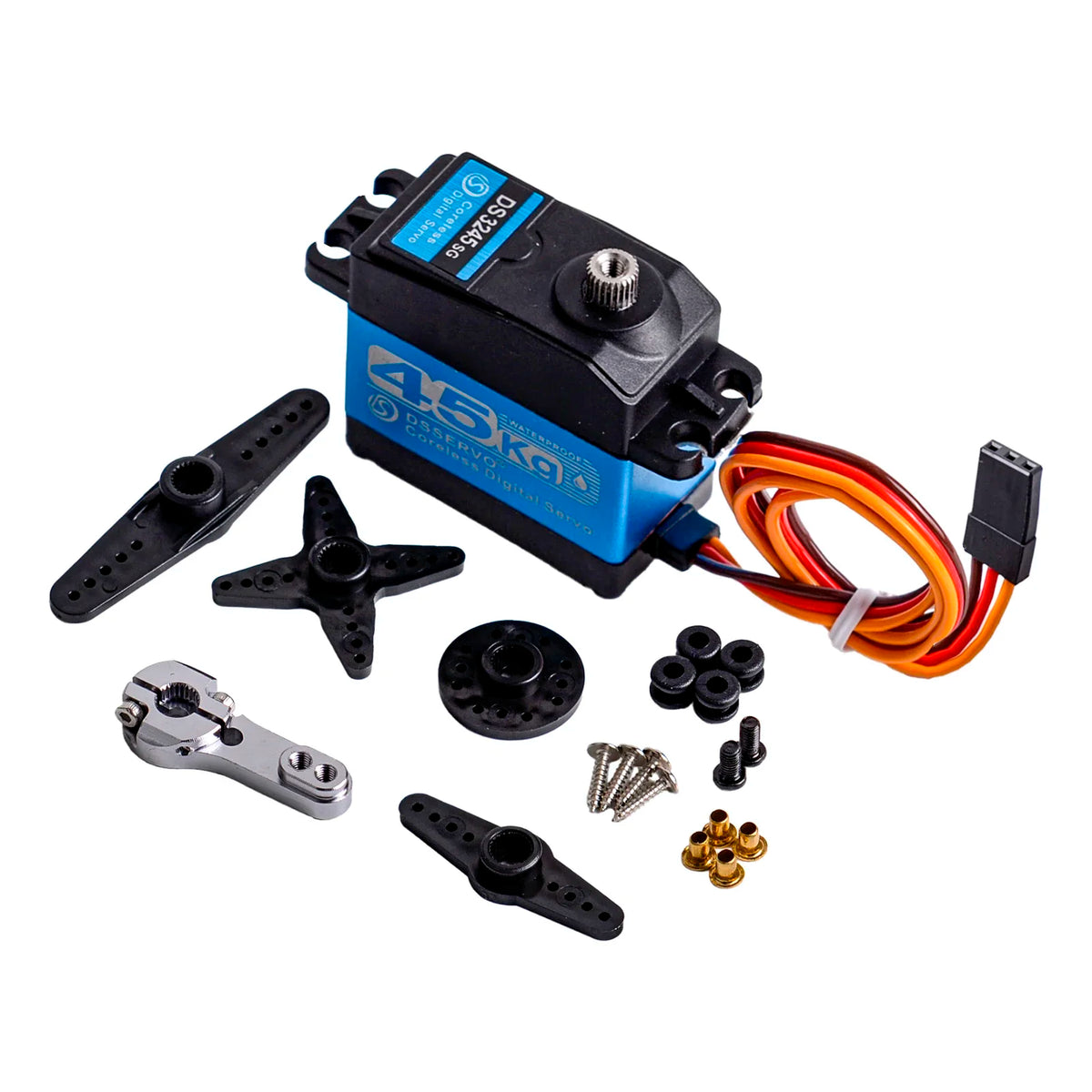

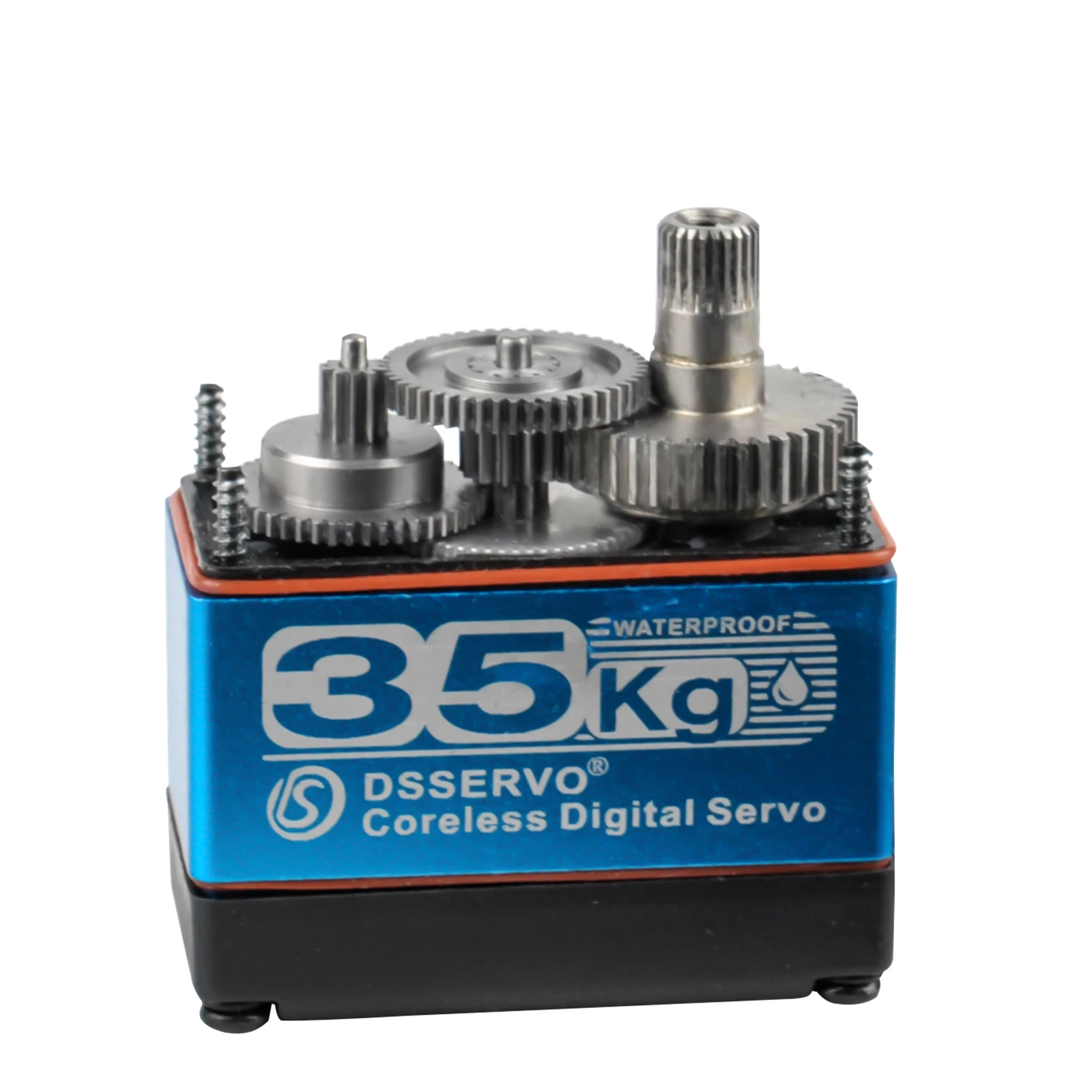

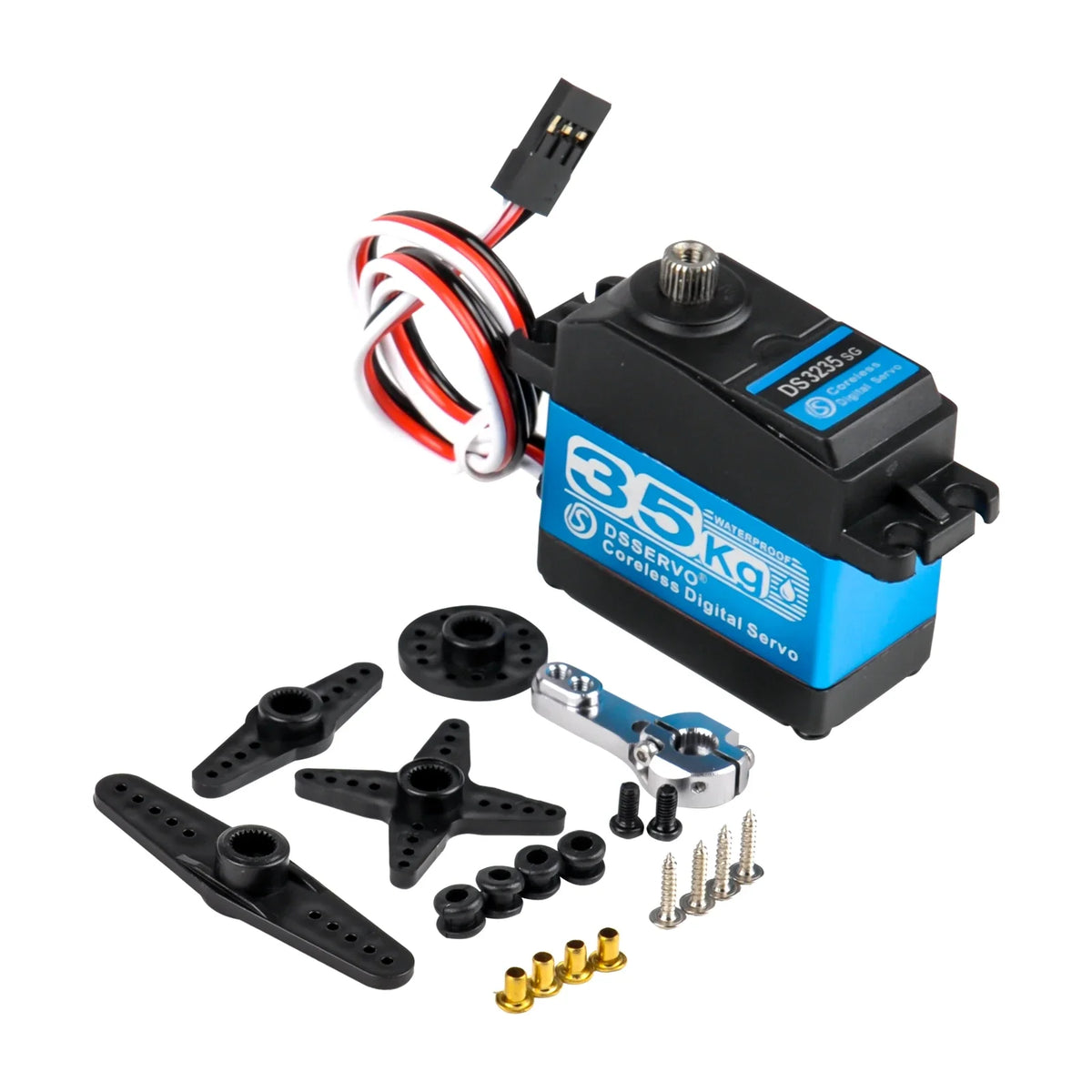

25kg 35kg 45kg High Torque Coreless Digital Servo Motor DS3225 DS3235 DS3245 Stainless 180/270 Degree for Baja Car RC Robot

Description:
Brand:Dsservo

DS3225 Torque:
21kg.cm@5v
25kg.cm@7.4v
30kg.cm@8.4v

DS3235 Torque:
23kg.cm@5v
30kg.cm@7.4v
35kg.cm@8.4v

DS3225 Speed:
0.14sec/60°@5V
0.09sec/60°@7.4V
0.08sec/60°@8.4V

DS3235 Speed:
0.18sec/60°@5V
0.13sec/60°@7.4V
0.11sec/60°@8.4V

Waterproof: IP66

Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C

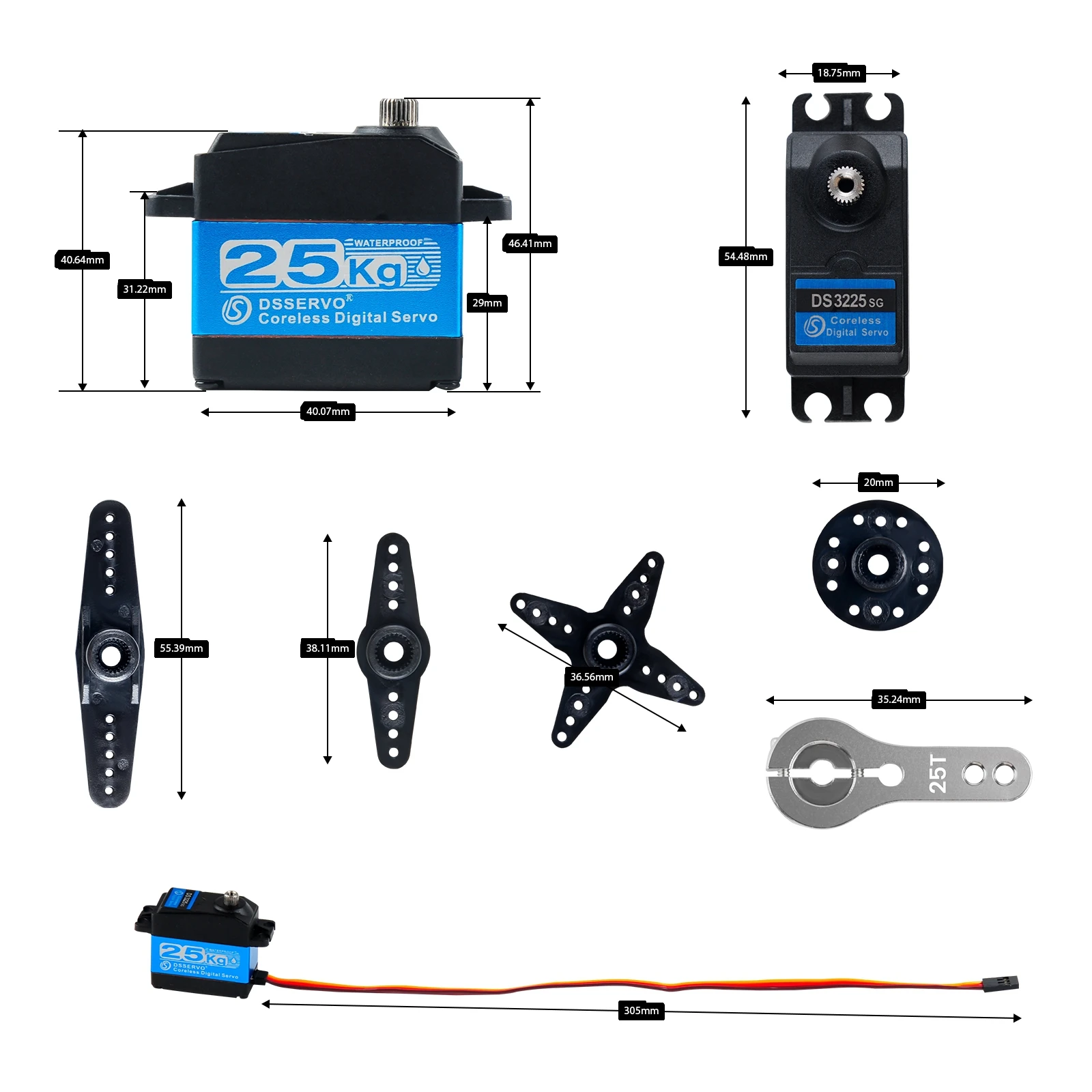

Mechanical Specification:

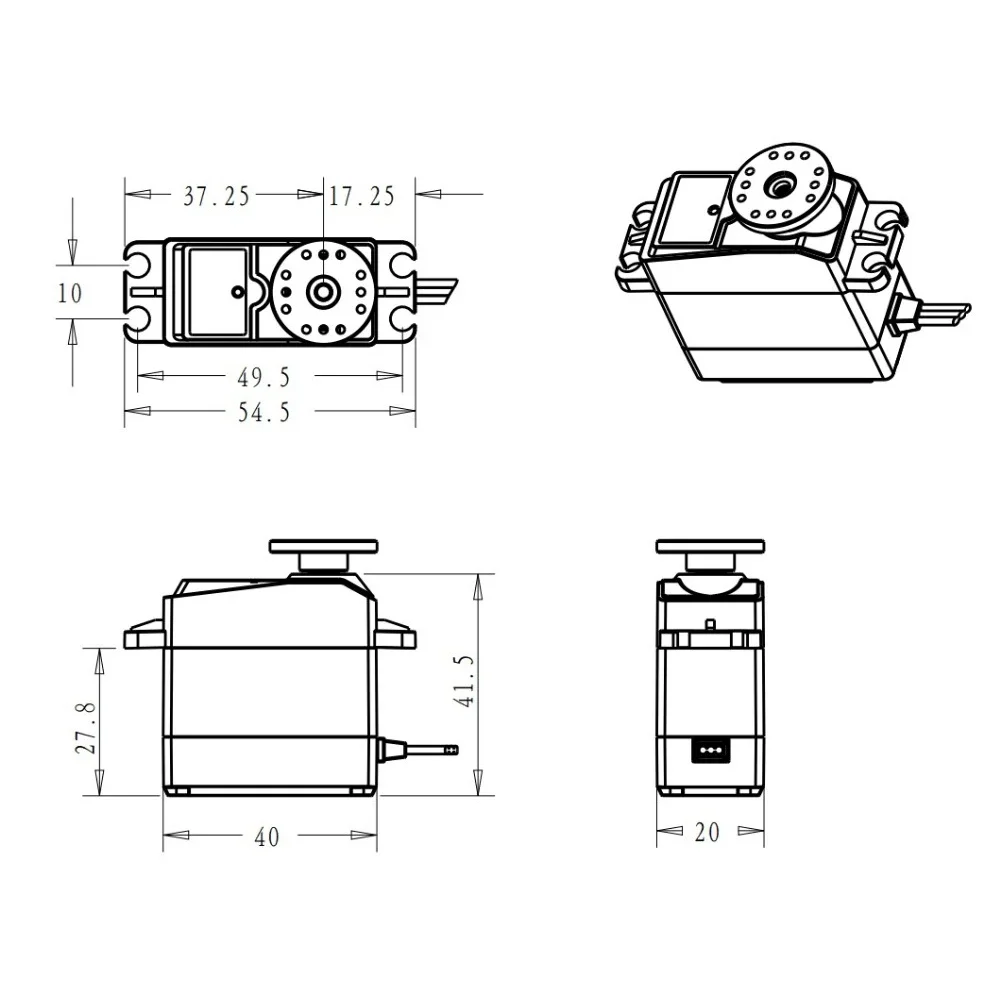

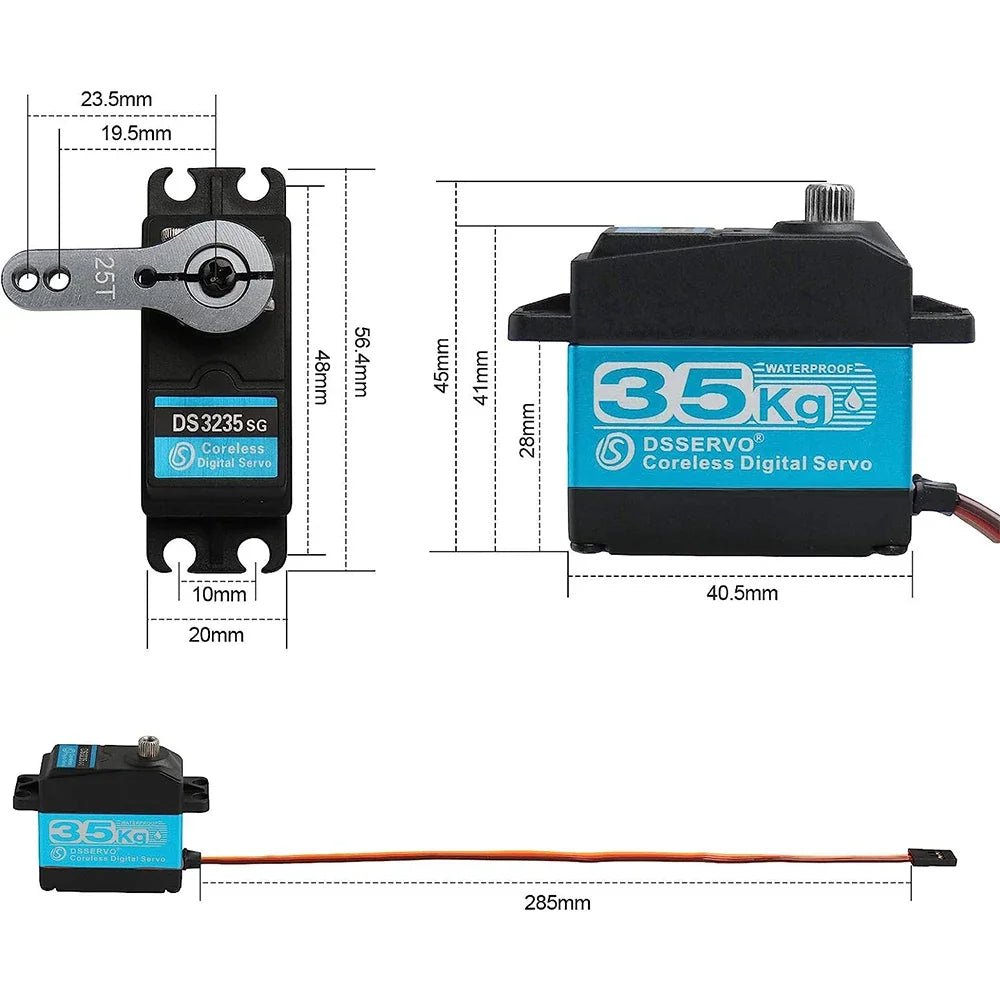

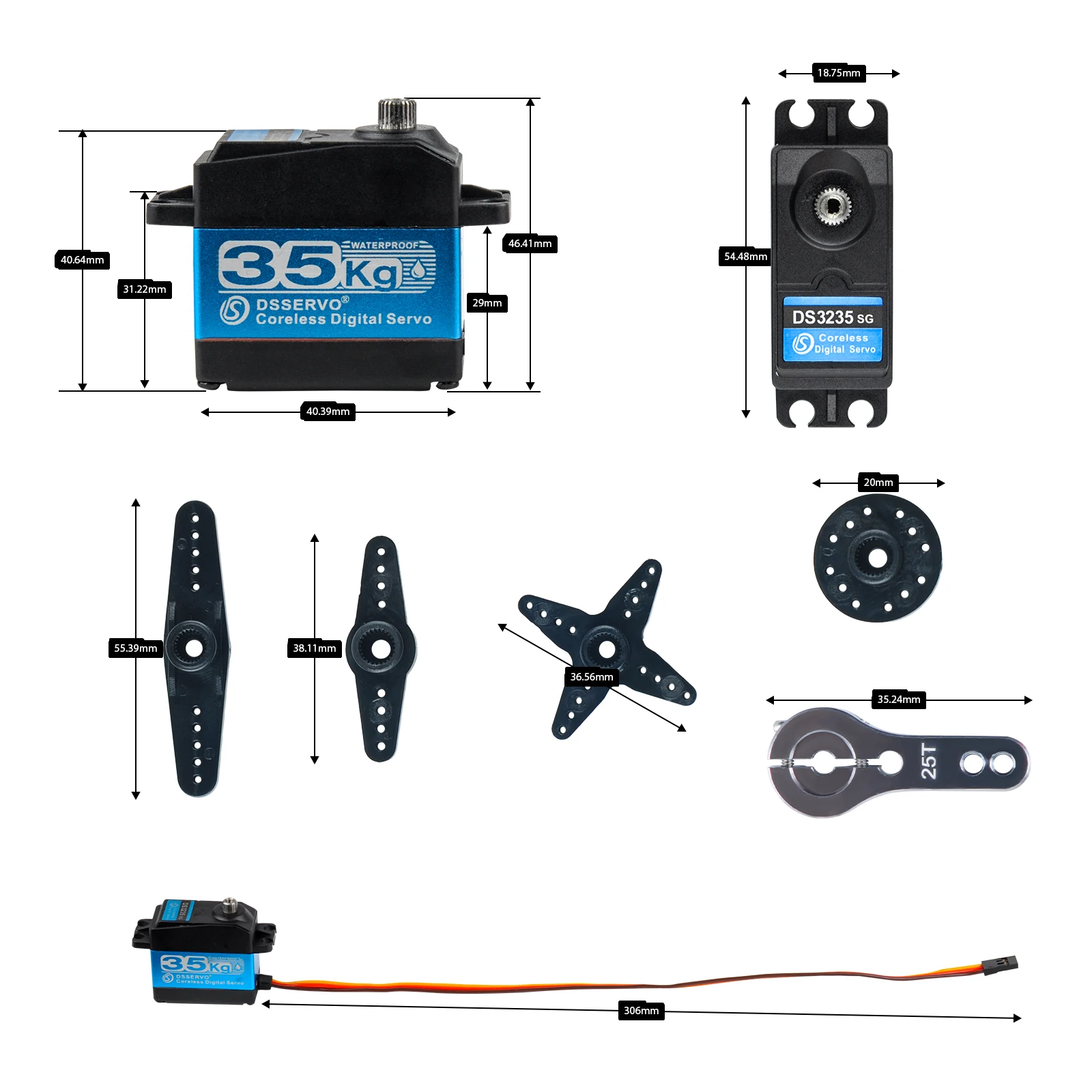

1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB

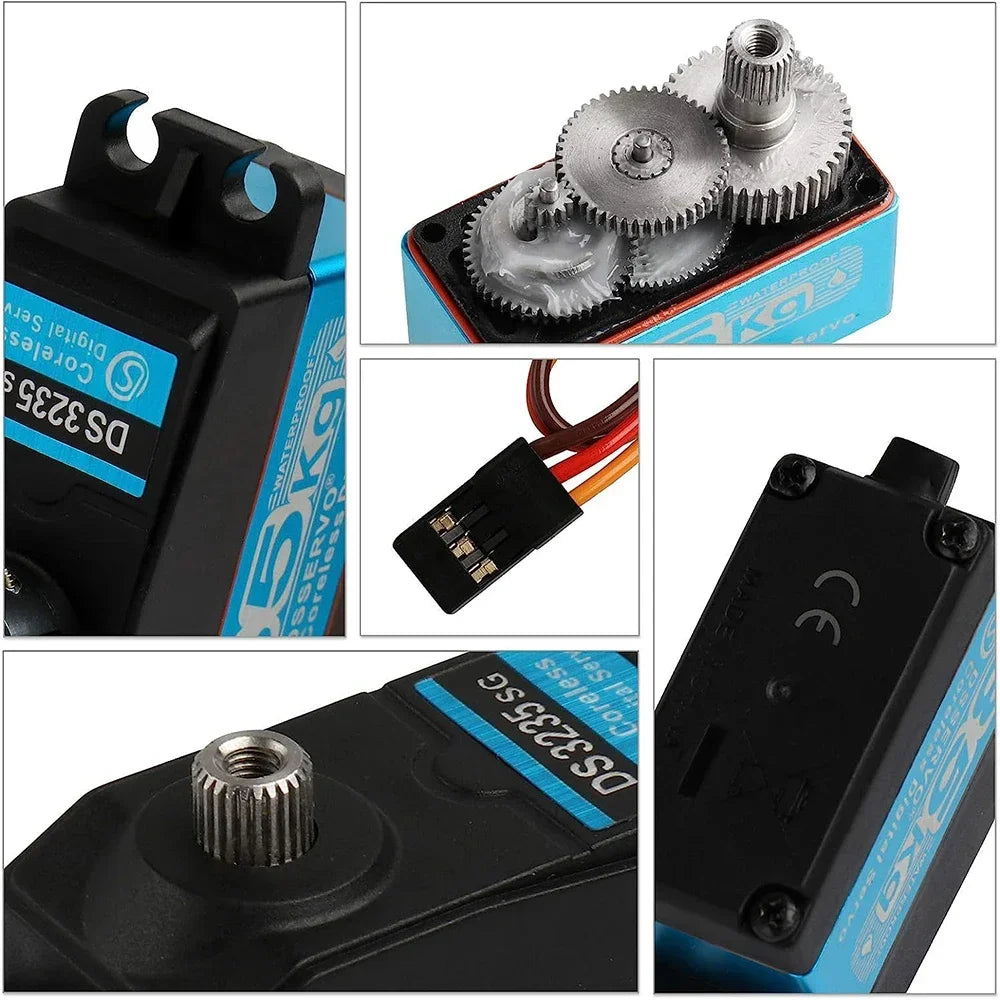

5.Horn gear spline: 25T   Diameter:5.9mm

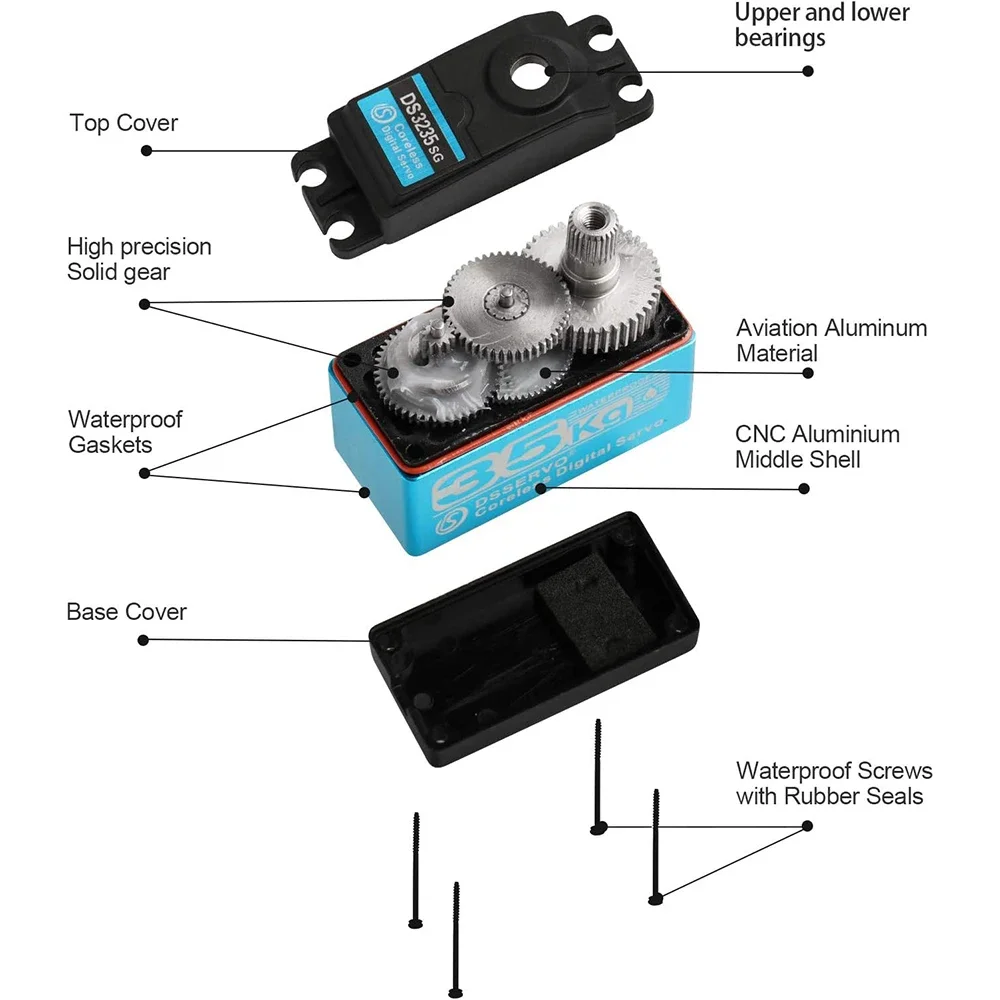

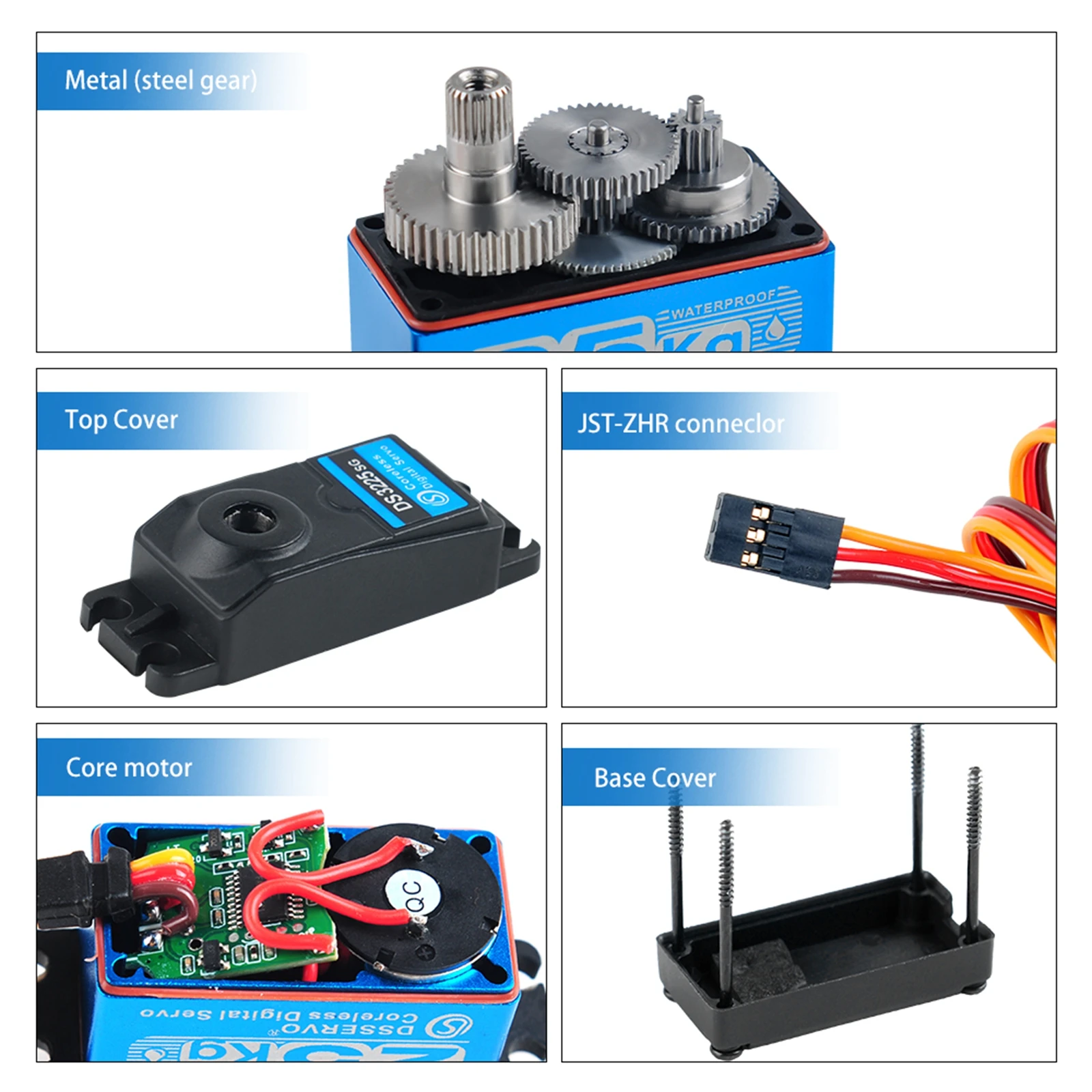

6.Case : Engineering plastics+Aluminum alloy

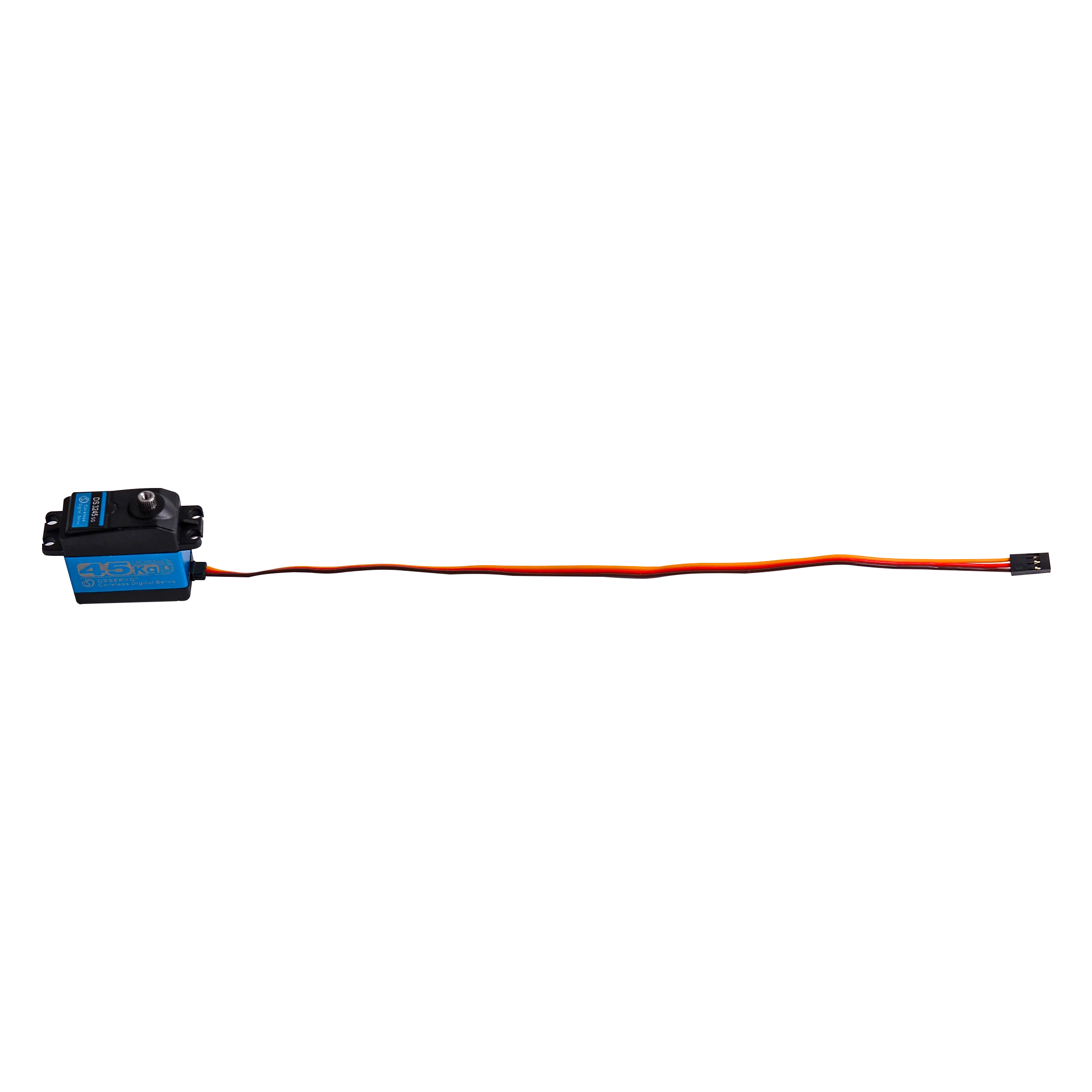

7.Connector wire: 320mm±5mm

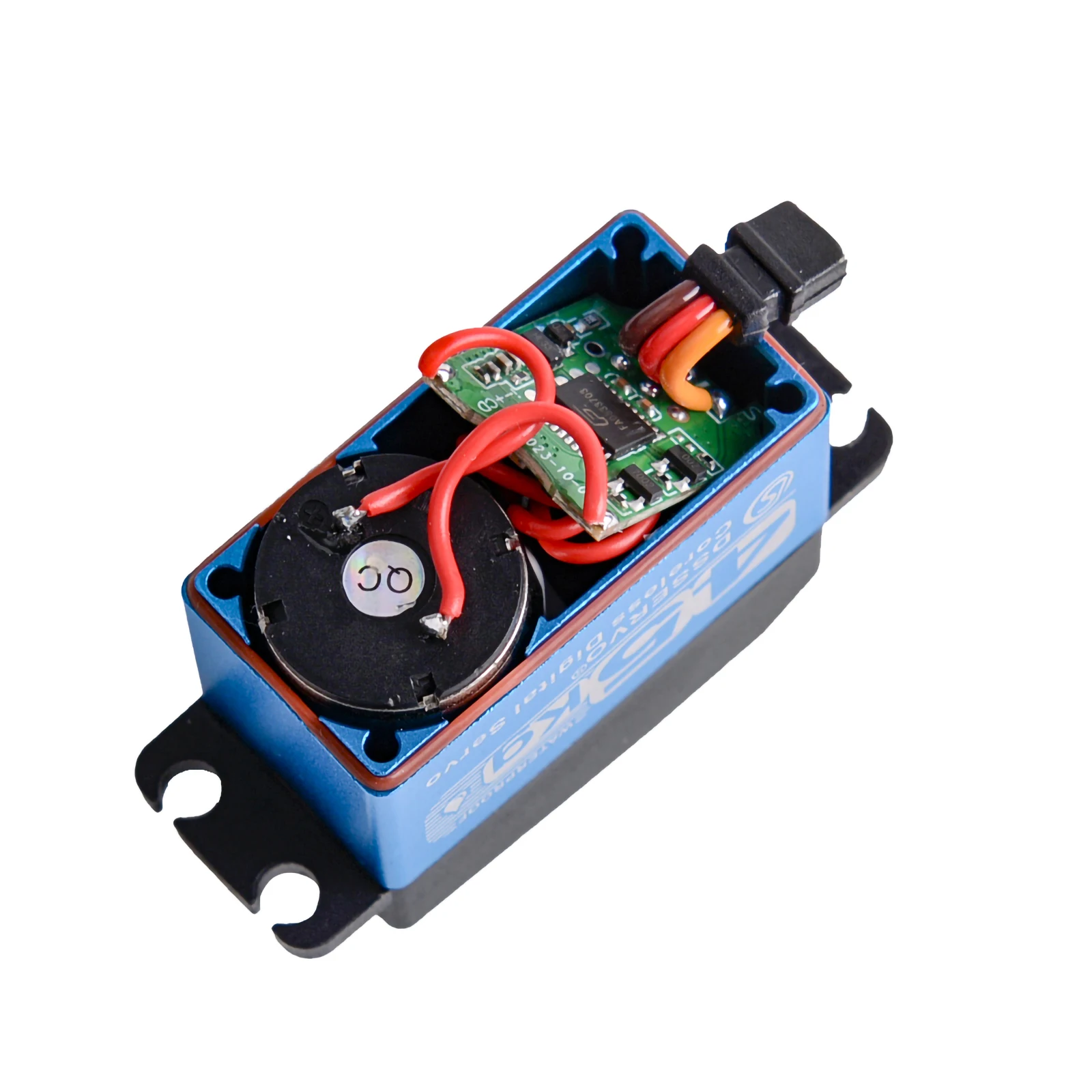

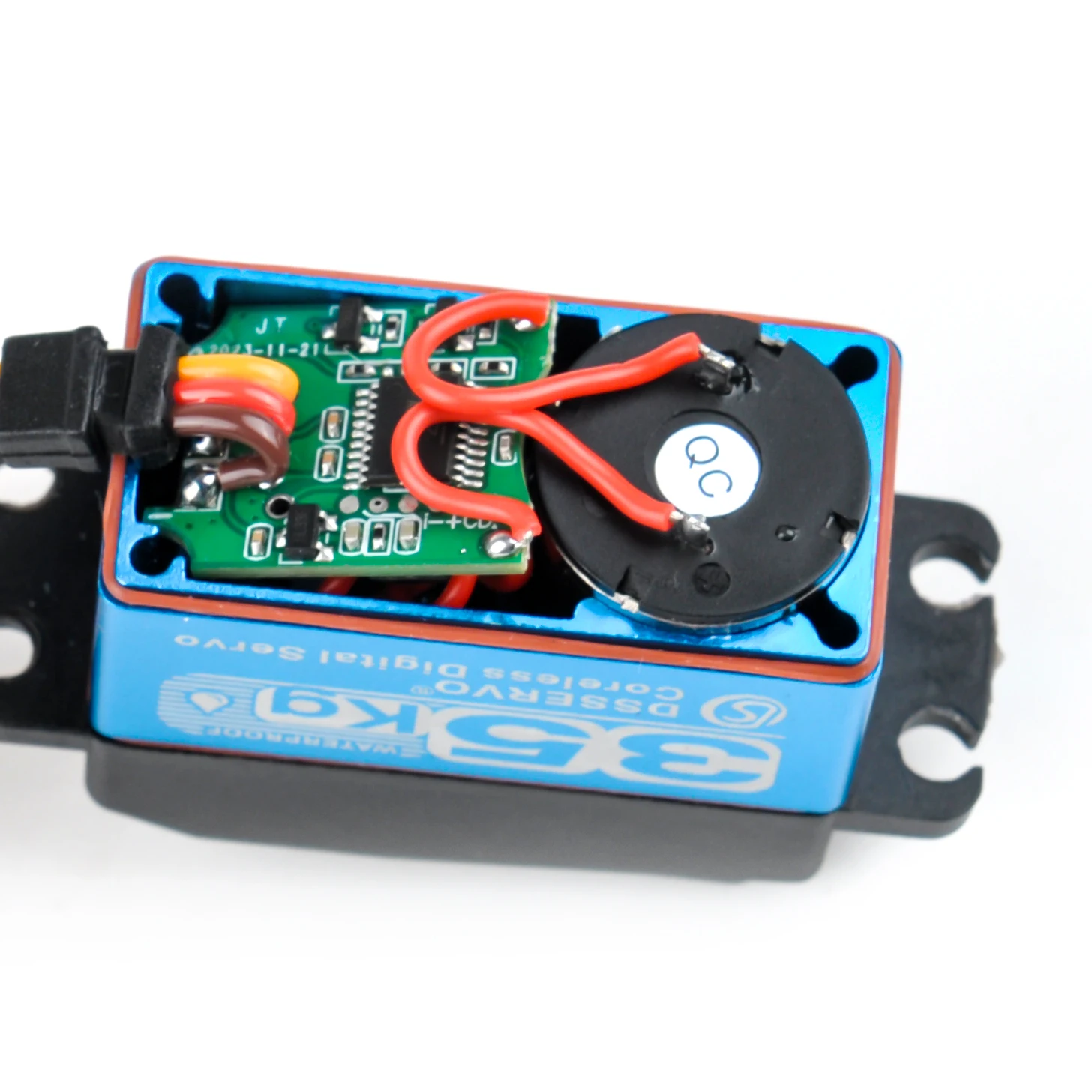

8.Motor: Coreless brush motor

Electrical Specification:
1.Working voltage range:  5 - 8.4V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec

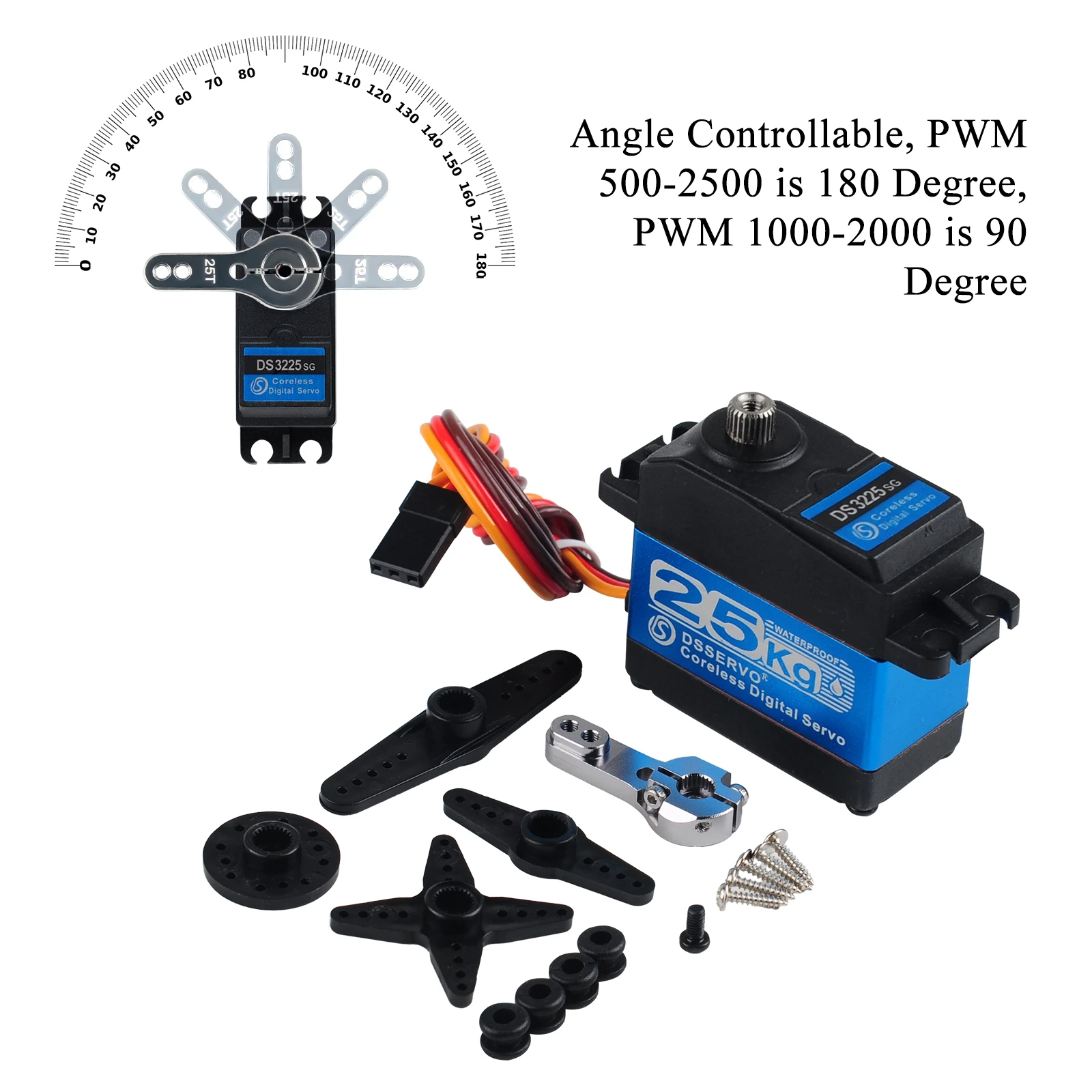

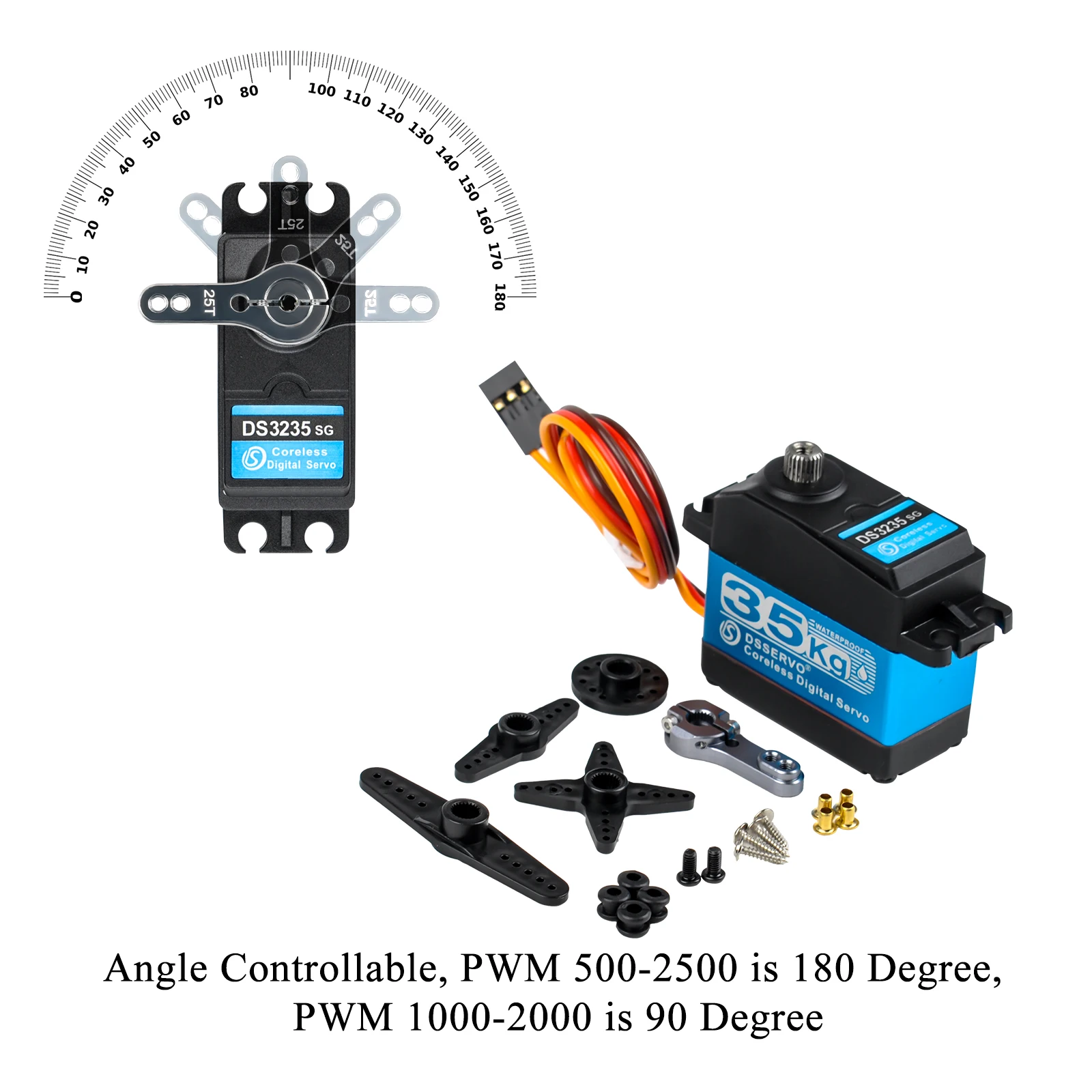

6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)

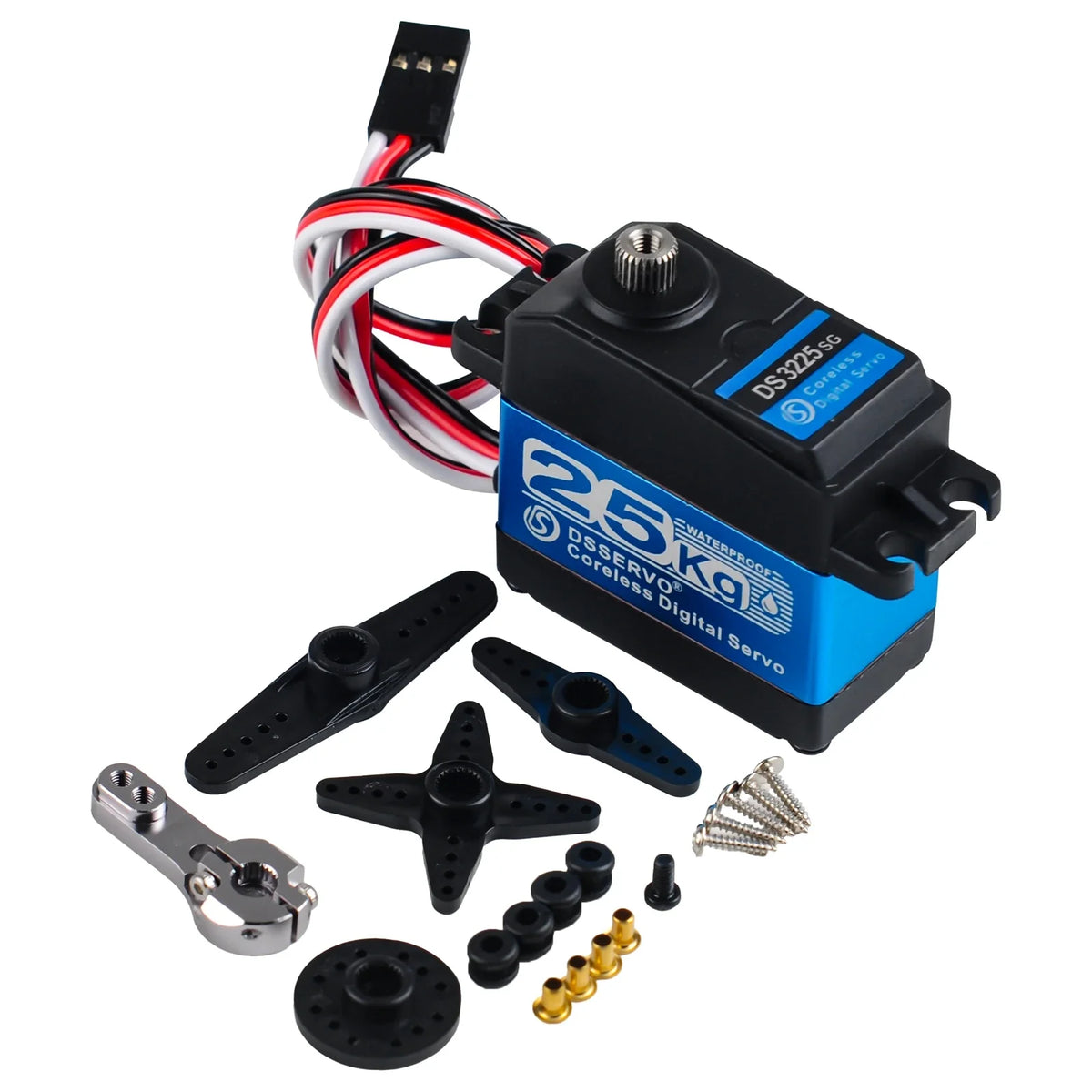

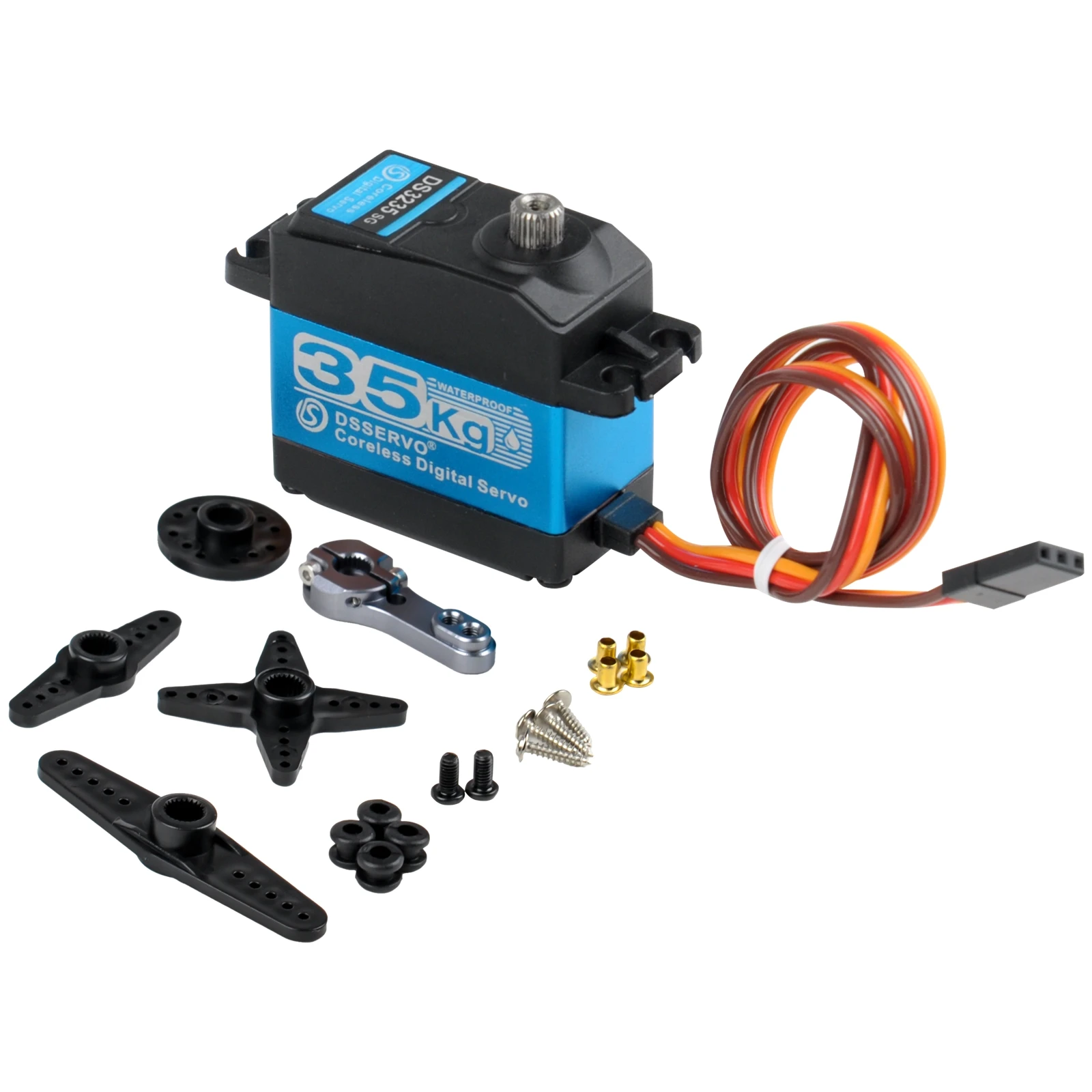

Packing List:
1x digital servo
1x 25T adjustable metal servo arm
1x accessory bag
