25KG Digital Servo 7.4V 180/270 Degree High Torque Coreless Motor RC Servos Rock Climbing Car Model Robot DIY Industrial Servo
270 Degree
$147.40
Sale price
$147.40
Regular price
$0.00
Skip to product information

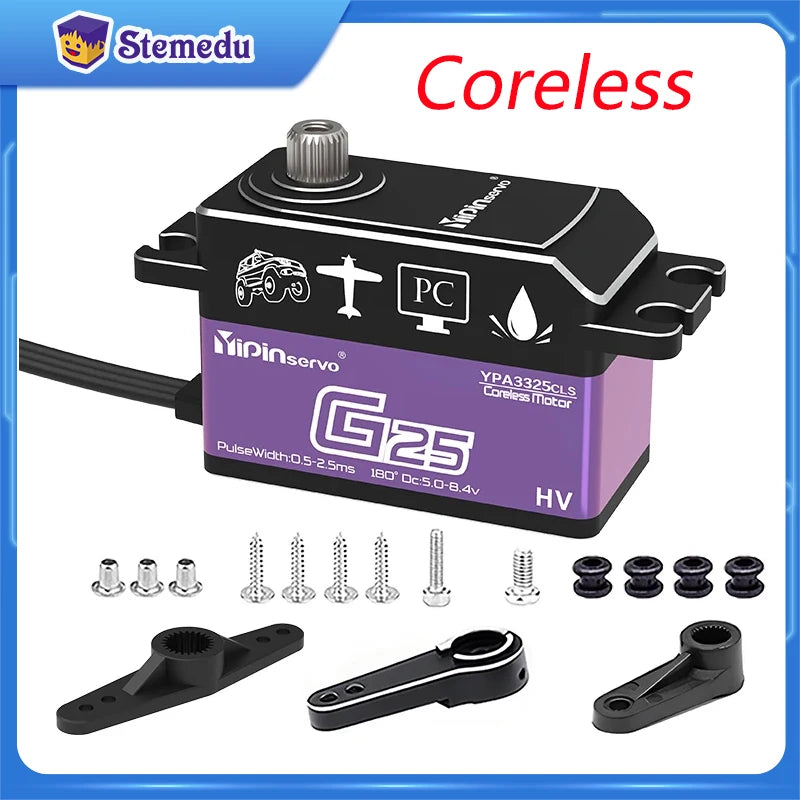

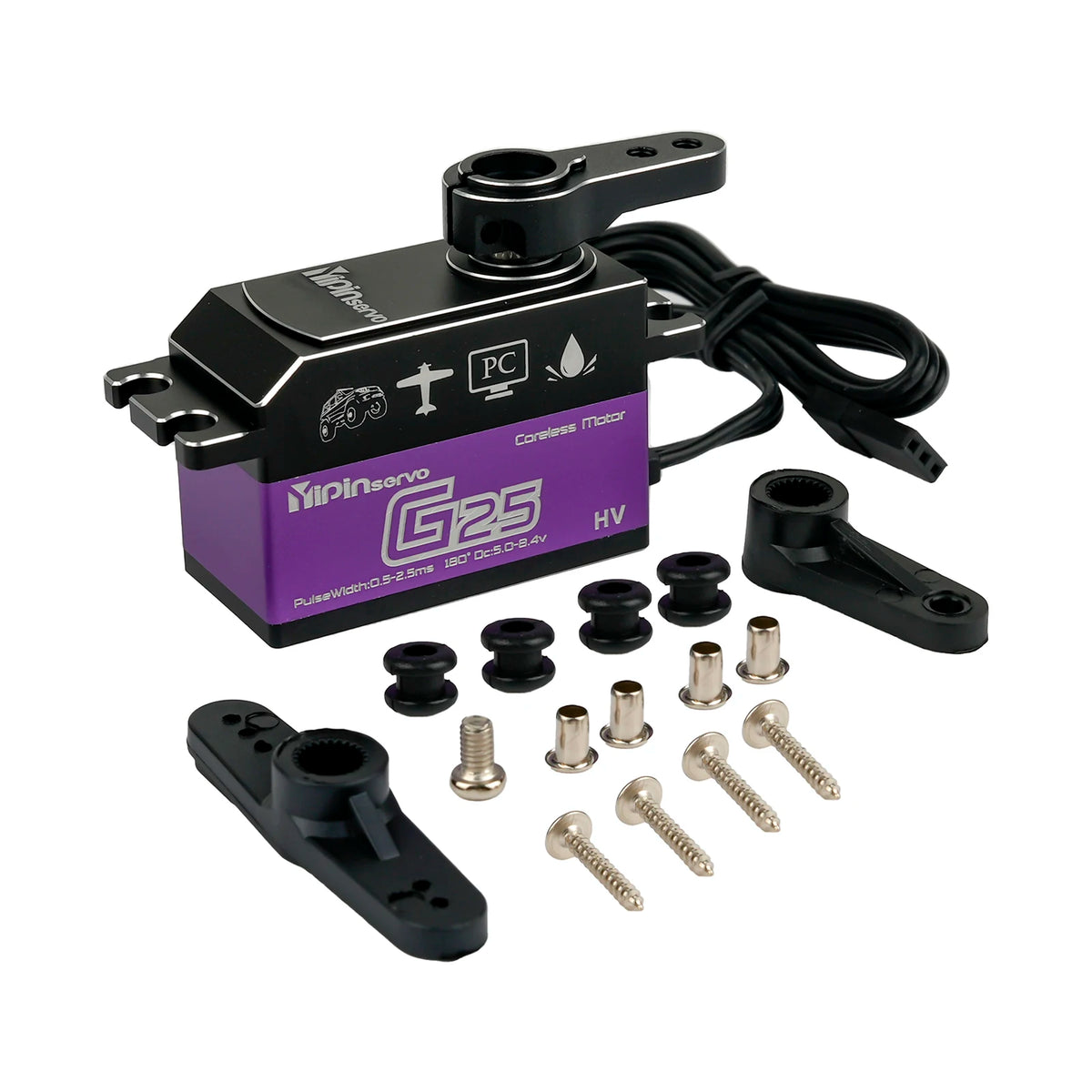

Package includes:
1 X servo with 25T servo arm
25KG Digital Servo 7.4V 180/270 Degree High Torque Coreless Motor RC Servos Rock Climbing Car Model Robot DIY Industrial Servo
$147.40
Sale price
$147.40
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: stemedu
Certification: CE
High-concerned chemical: none
Model Number: GXservo 25kg
Origin: Mainland China
25KG Digital Servo 7.4V 180 Degree High Torque Coreless Motor RC Servo Rock Climbing Car Model Robot DIY Industrial Servo
Specification |
||
Operating Voltage |
6.0V-8.4V |
|
Standby Current |
≤20mA |
|
Stall Current |
6.0V |
≤8A |
7.4V |
≤9A |
|
8.4V |
≤10A |
|
No Load Speed |
6.0V |
≤0.08sec/60° |
7.4V |
≤0.07sec/60° |
|
8.4V |
≤0.06sec/60° |
|
Max.Torque |
6.0V |
≥22 kgf.cm |
7.4V |
≥25 kgf.cm |
|
8.4V |
≥28 kgf.cm |
|
Rotating Direction |
CCW(500-2500us) |
|
Pulse Width Range |
500-2500us |
|
Neutral Position |
1500us |
|
Operating Travel Angle |
180±10'(500-2500us) |
|
Max,Operating Travel Angle |
358°+10*(500-2500us) |
|
Mechanical timit Angle |
360° |
|
Dead Band Width |
≤ 3 us |
|
Oporating Temparature Range |
-20℃-+80℃ |
|
Storage Temperature Range |
-20℃-+60℃ |
|

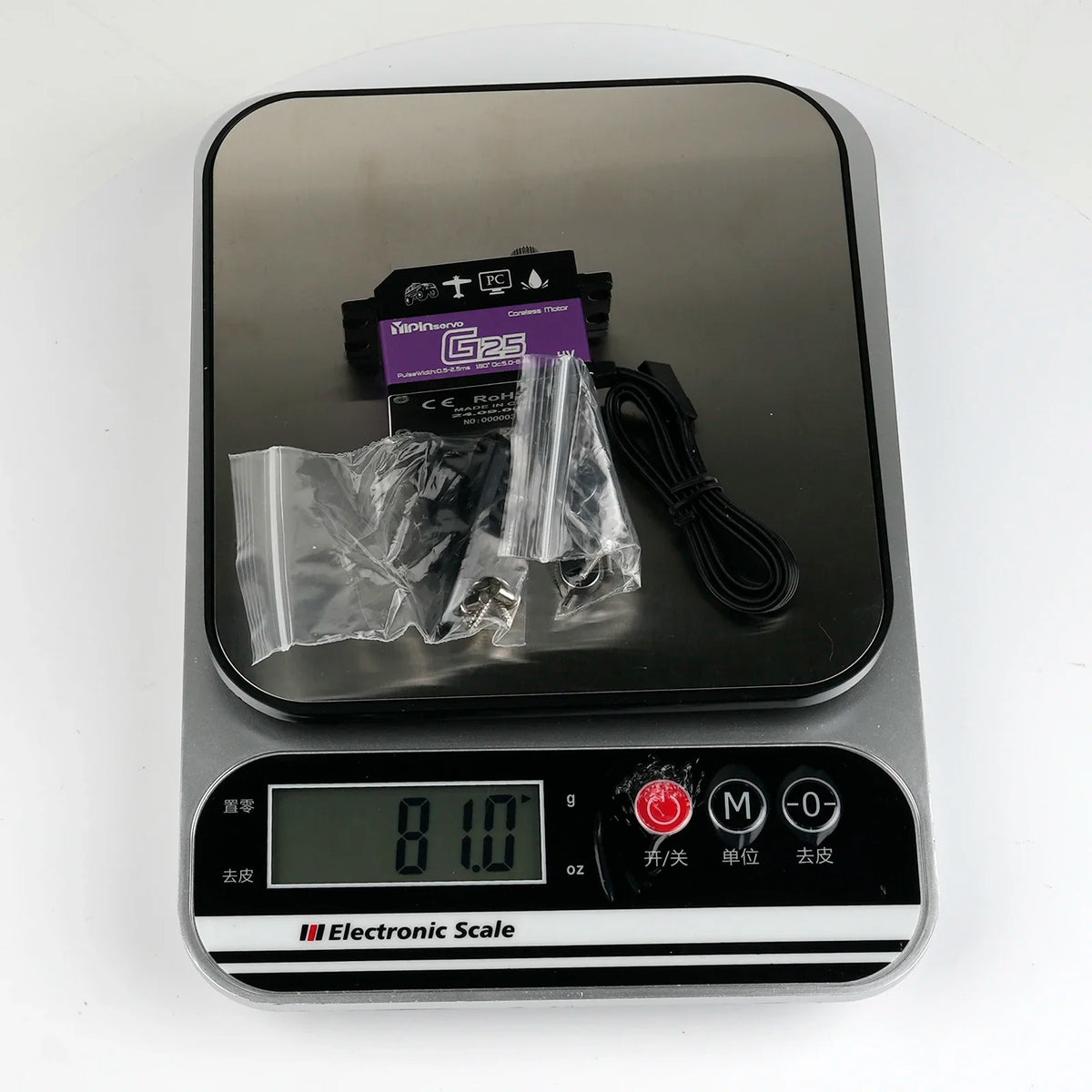

Weight |
70g |
|

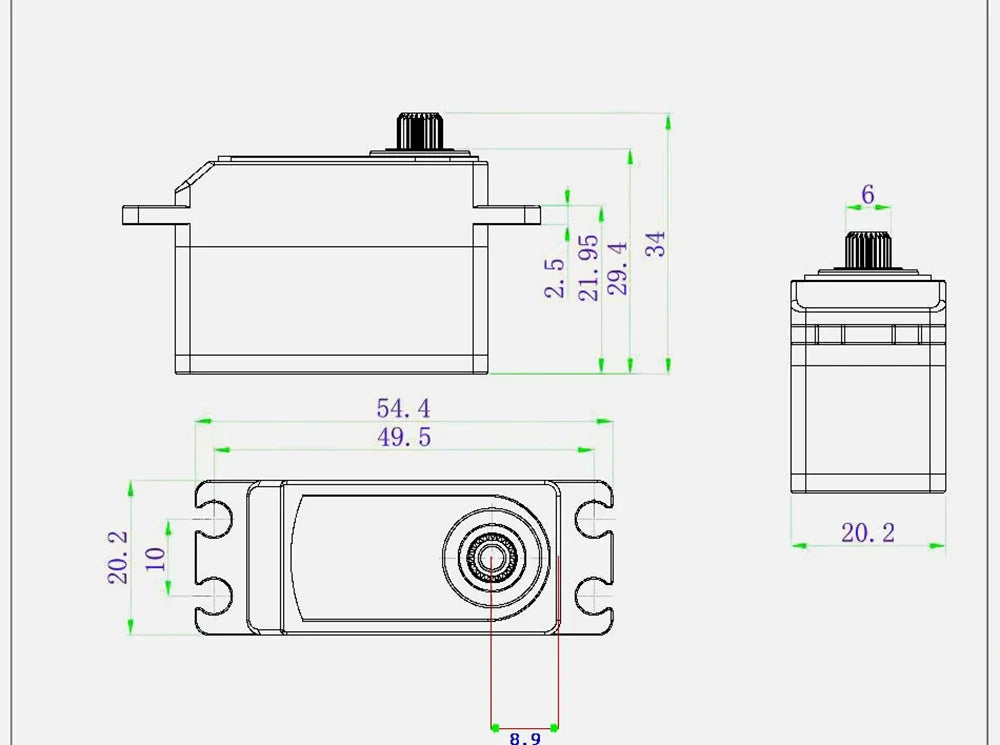

sizes |
41x20x28.5mm |
|
Case Material |
Aluminium Alloy |
|
Gear Set Material |
Metal gear |
|
Motor Type |
Coreless motor |
Package includes:
1 X servo with 25T servo arm
