25mm/58mm Mini Compression Load Cell Sensor, 10kg-5t Optional,mV/V Output with Digital Force Display Indicator Meter 220V Supply

25mm/58mm Mini Compression Load Cell Sensor, 10kg-5t Optional,mV/V Output with Digital Force Display Indicator Meter 220V Supply

$557.37

$557.37 $0.00

Color 5T 3T 2T 100KG 50KG 1T 500KG 300KG 200KG

Model Number220V Meter

Description

SPECIFICATIONS

0perating temperature: -20℃~+70℃

Brand Name: BENGBUZZYQ

Creep: 0.1%F.S.

High-concerned chemical: none

Impedance: 350Ω

Incentive voltage: 5V~12V

Input resistance: 380±30Ω

Insulation resistance: ≥2000MΩ/100VDC

Lag error: 0.3%F.S.

Material: Metal

Non-linearity: ±0.3~±0.5 %F.S

Origin: Mainland China

Output: Analog Sensor

Protection class: IP66

Rated load: 0kg~5T

Repeatability: 0.3%F.S.

Safe overload: 120 %F.S

Sensitivity: 1.0-2.0±0.05 mV/V

Sensitivity temperature coefficient: 0.1%F.S./10℃

Theory: Resistance Sensor

Type: Optical-Electronics Sensor

Use: Pressure Sensor

Zero temperature coefficient: 0.1%F.S./10℃

is_customized: Yes

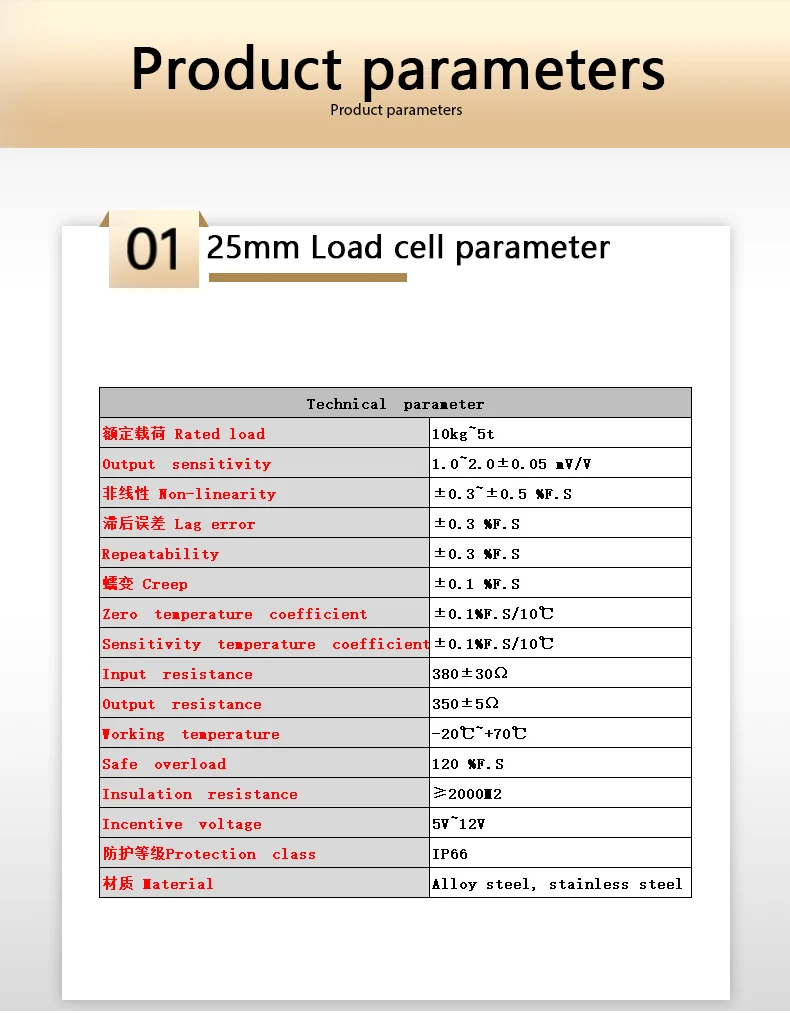

Technicalparameter
Rated load	10kg~5t
0utputsensitivity	1.0~2.0±0.05 mV/V
Non-linearity	±0.3~±0.5 %F.S
Lag error	±0.3 %F.S
Repeatability	±0.3 %F.S
Creep	±0.1 %F.S
Zerotemperaturecoefficient	±0.1%F.S/10℃
Sensitivitytemperaturecoefficient	±0.1%F.S/10℃
Inputresistance	380±30Ω
0utputresistance	350±5Ω
Workingtemperature	-20℃~+70℃
Safeoverload	120 %F.S
Insulationresistance	≥2000M2
Incentivevoltage	5V~12V
Protectionclass	IP66
Material	Alloy steel, stainless steel

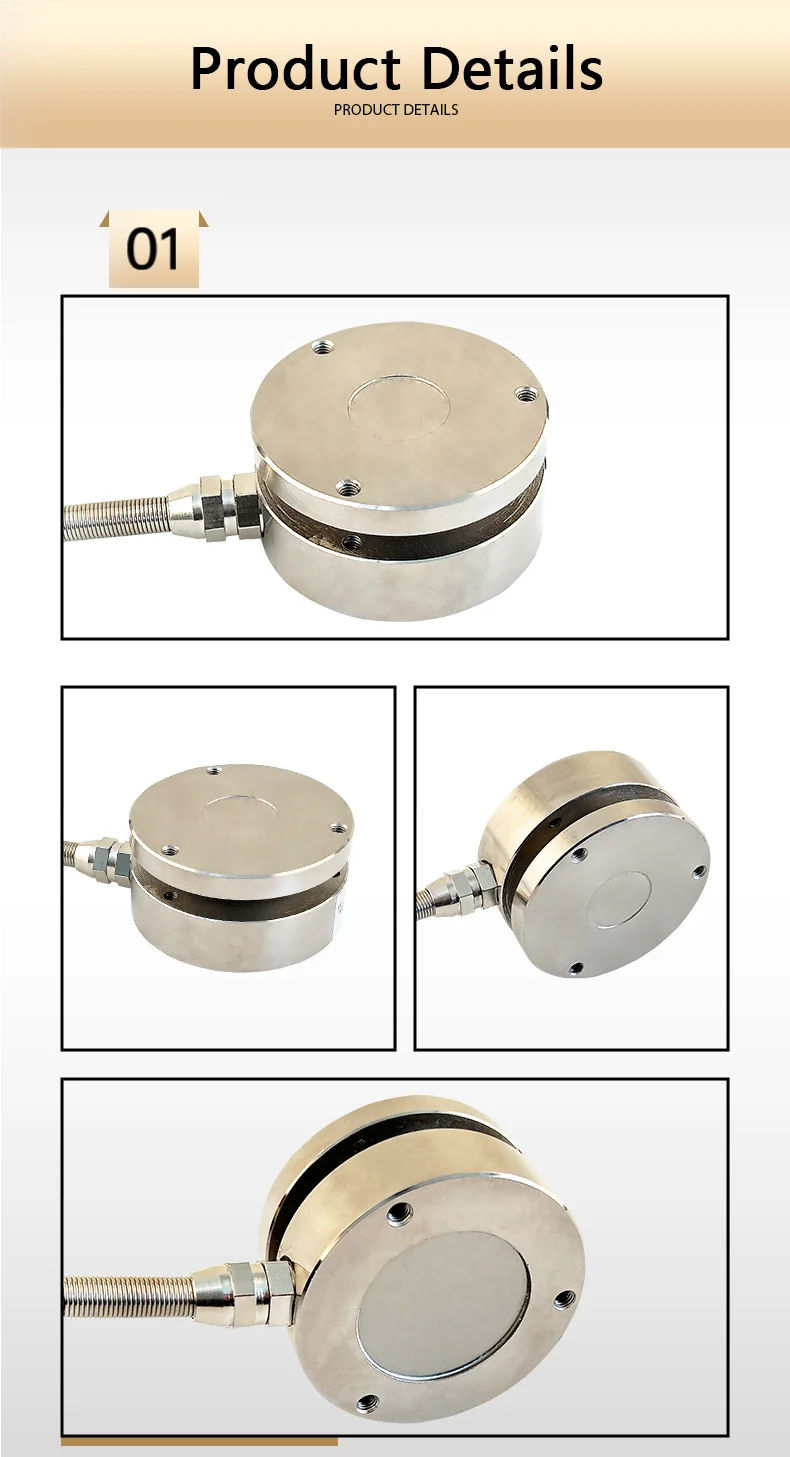

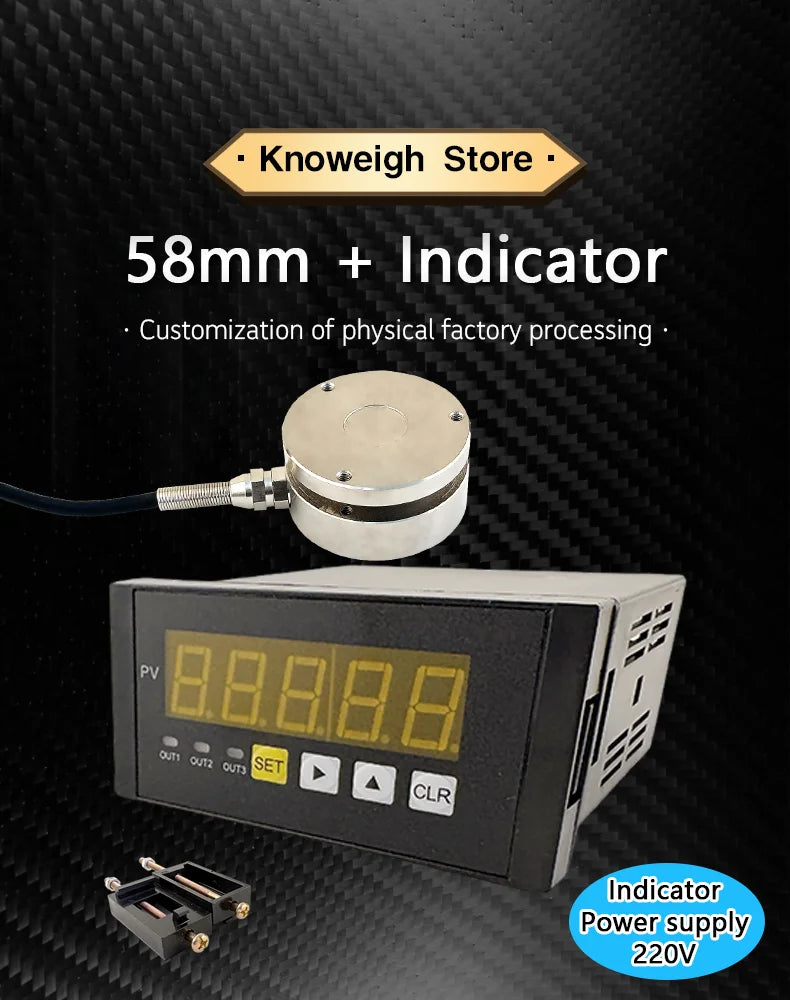

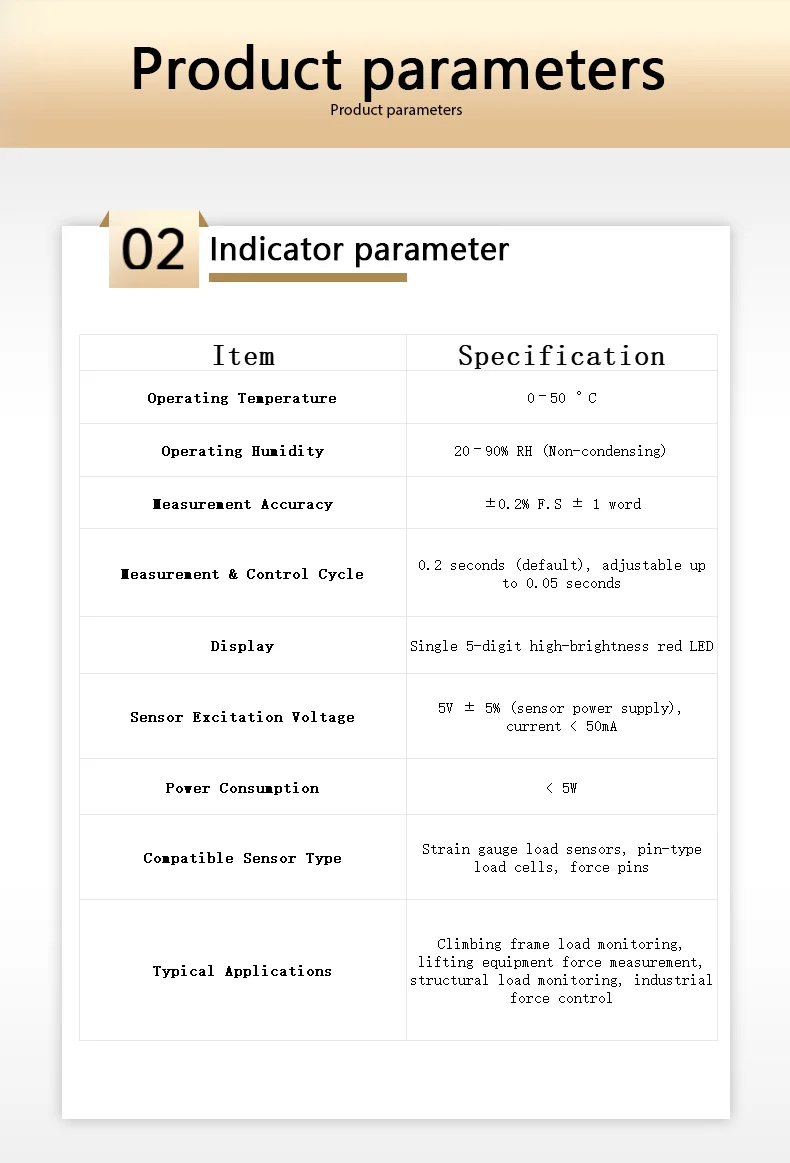

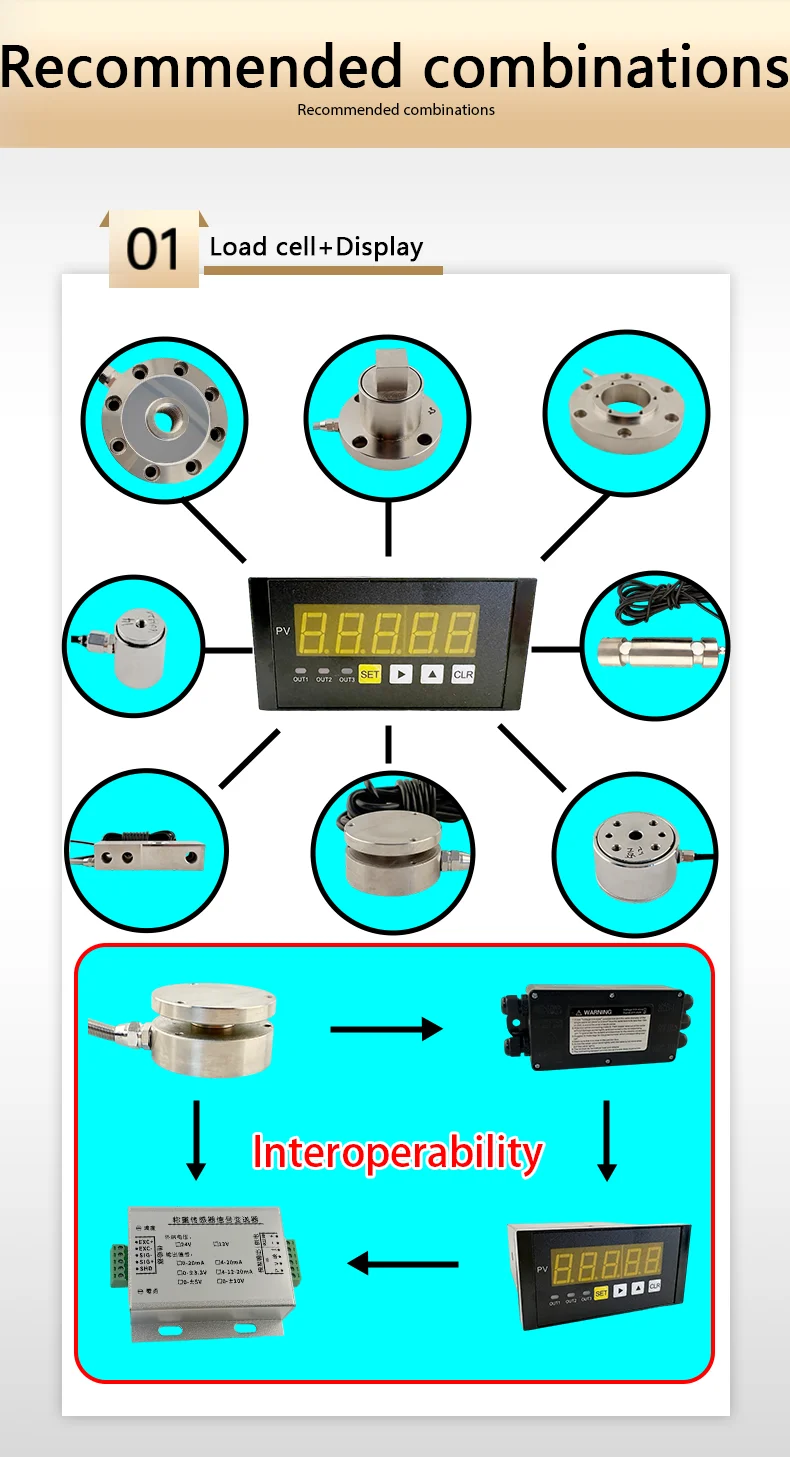

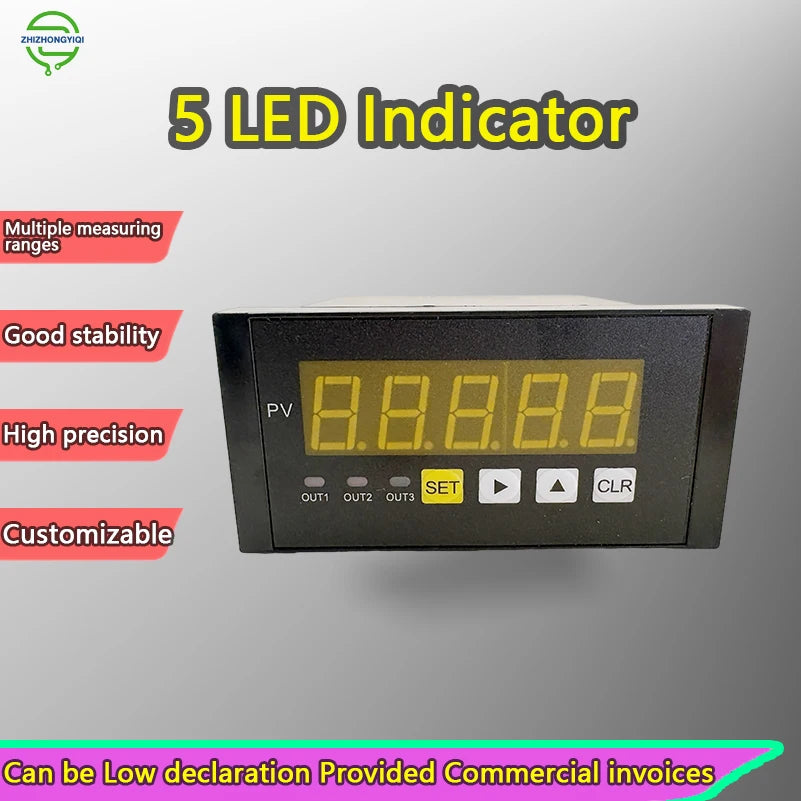

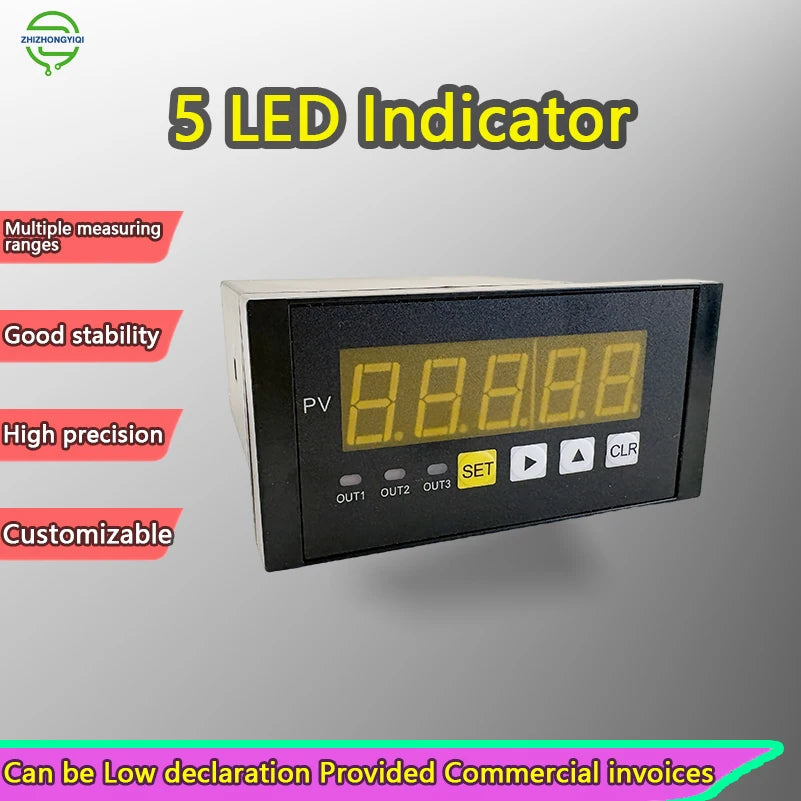

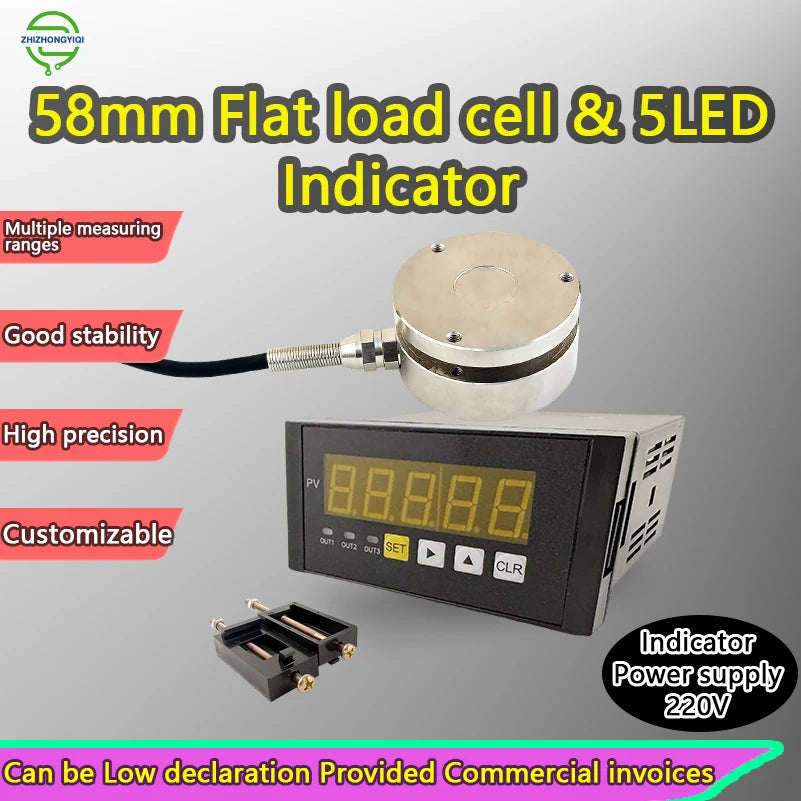

This product is an industrial button compression load cell + digital force indicator solution for force measurement, weighing, press monitoring, and structural load supervision. The sensor provides a strain-gauge mV/V output, with 25mm / 58mm size options and 10kg–5t capacity selections to fit various fixtures and press structures. The matching 5-digit high-bright panel meter offers fast update speed, clear readings, and built-in 5V sensor excitation, making it easy to build a reliable force monitoring system on-site.

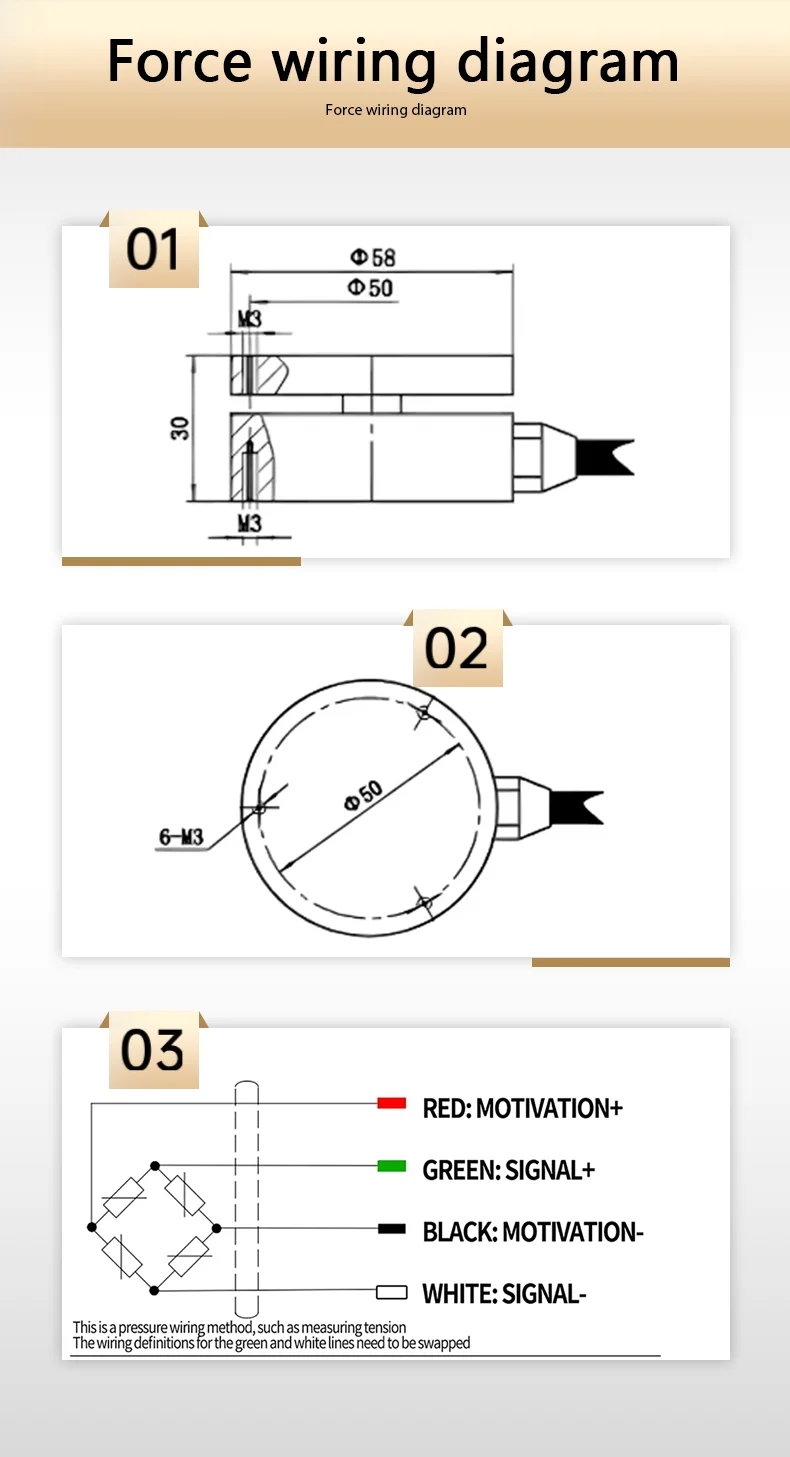

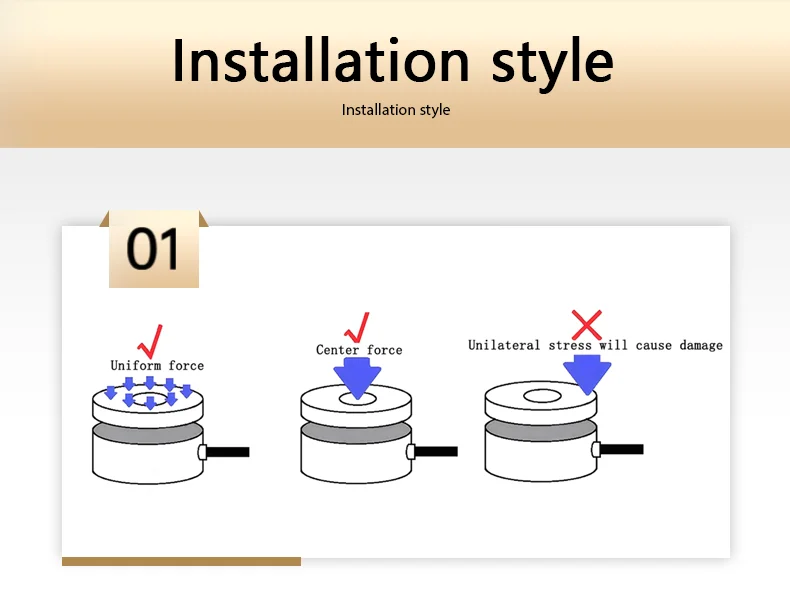

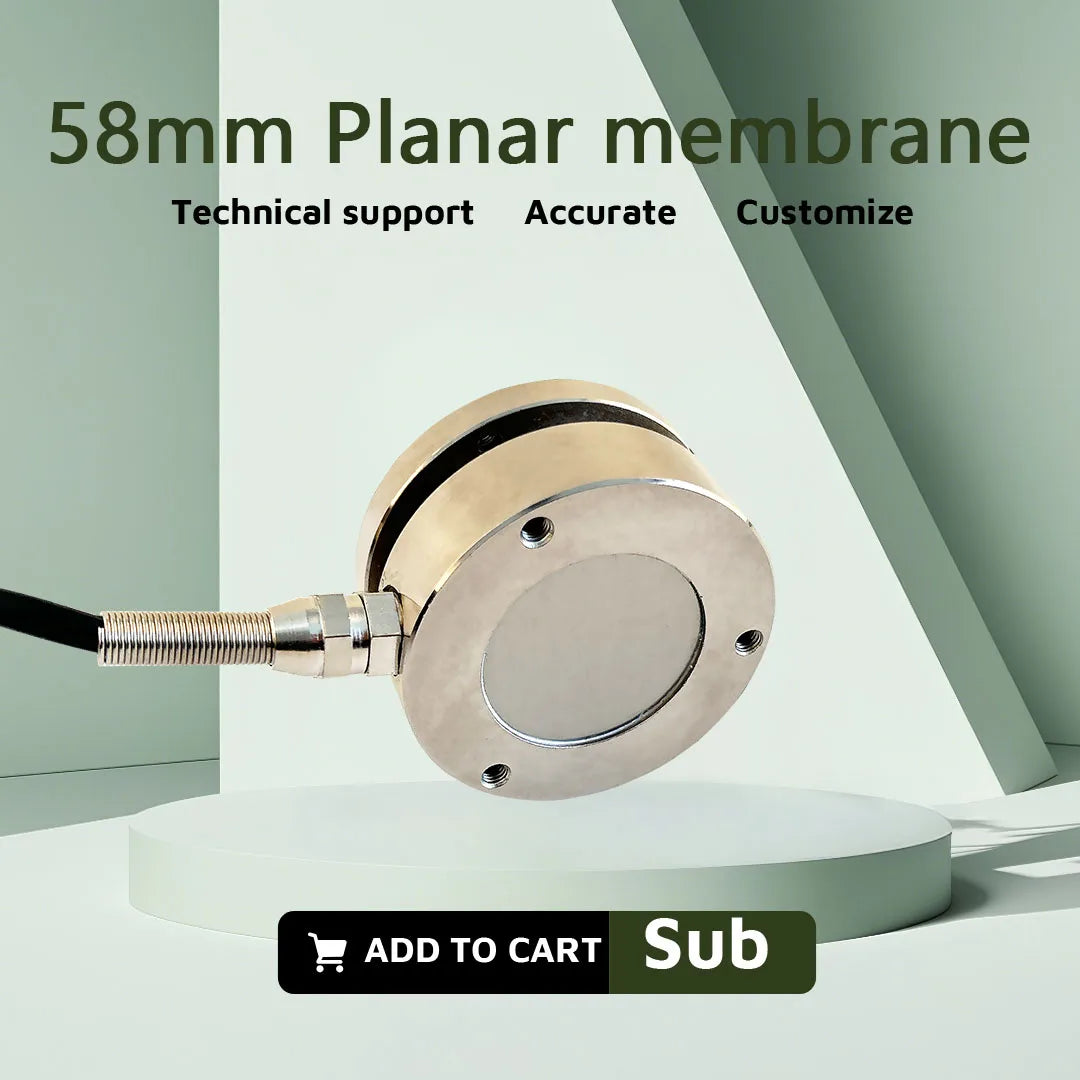

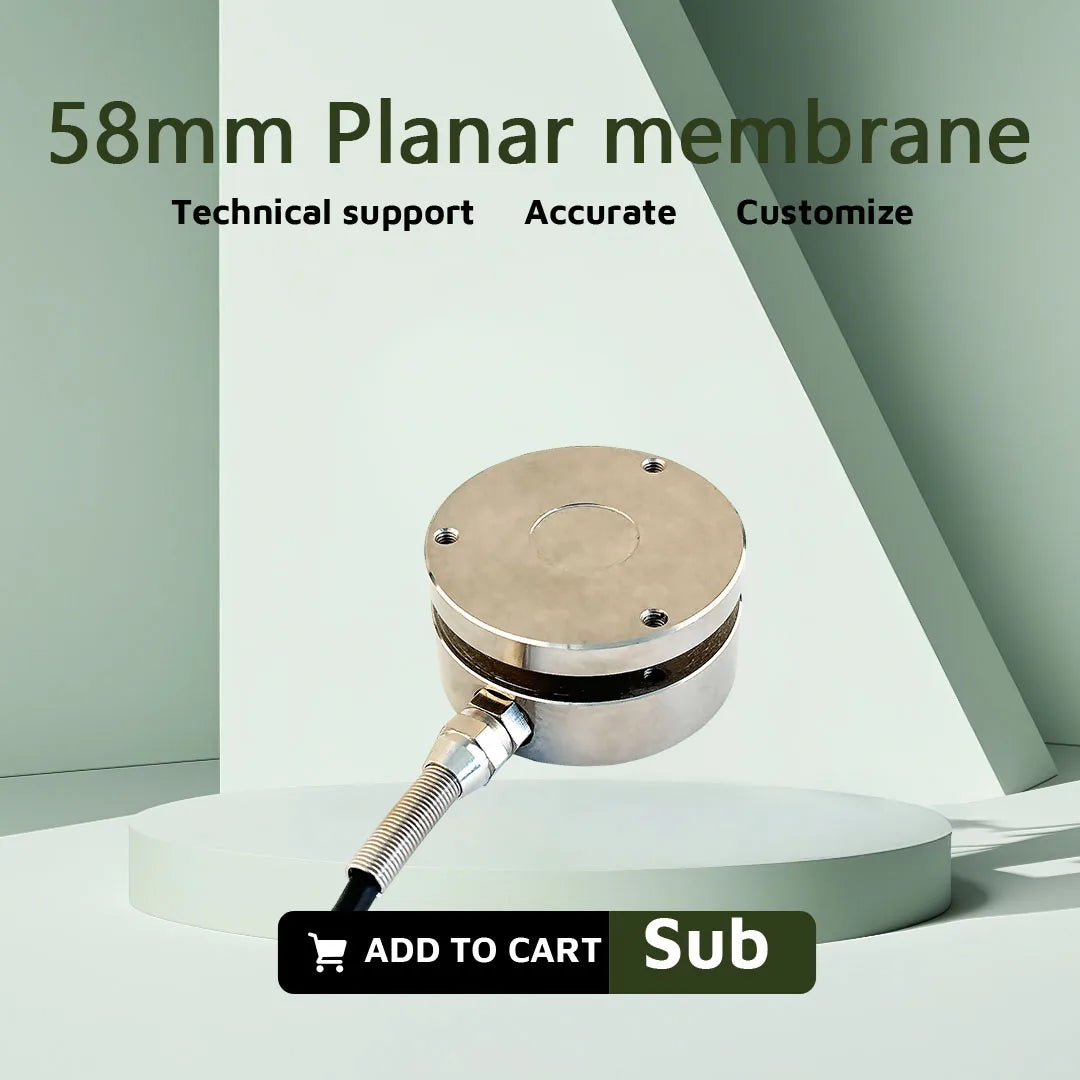

Load cell size: Φ58 (step Φ50), approx. 18mm height, 3×M3 mounting holes (top & bottom).

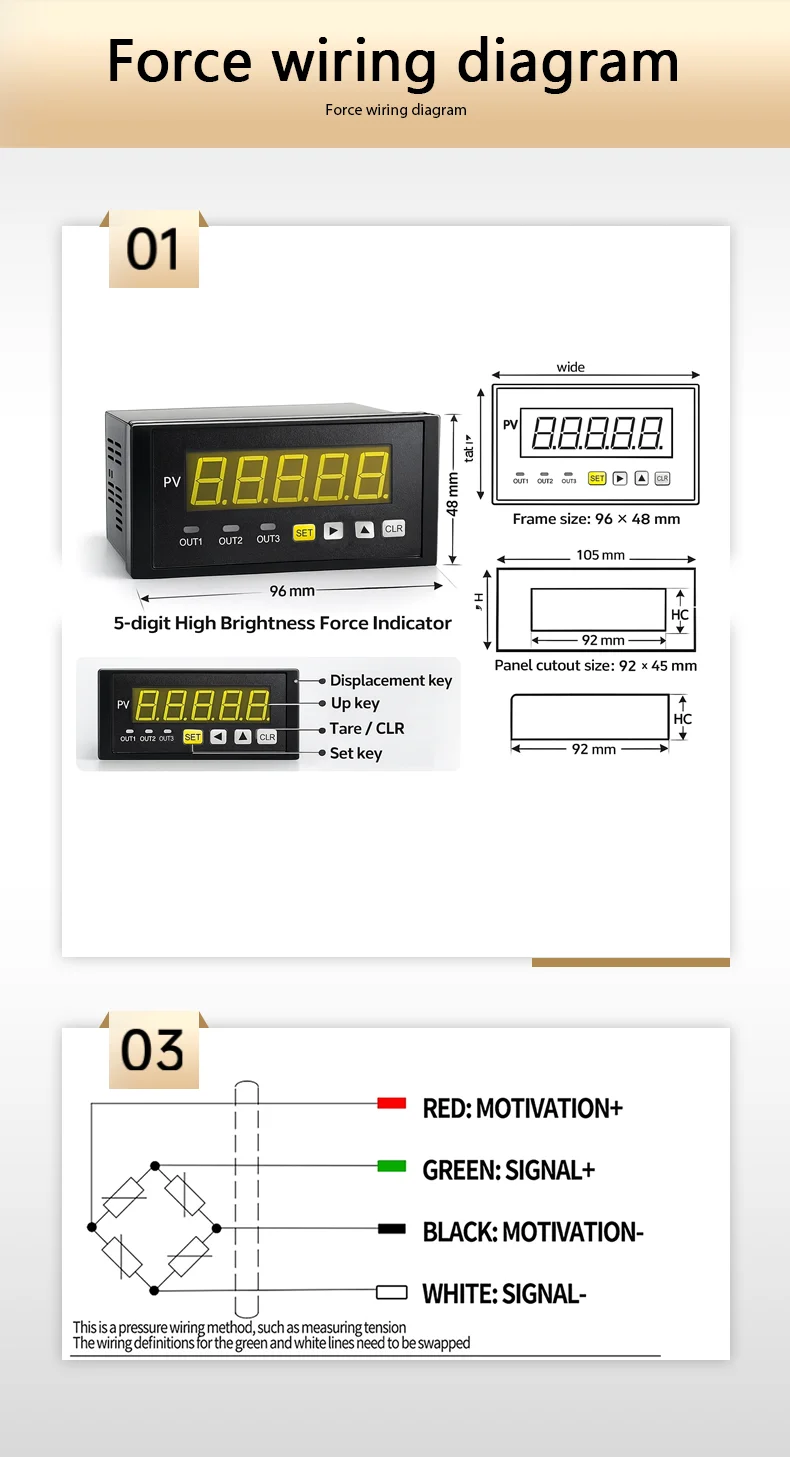

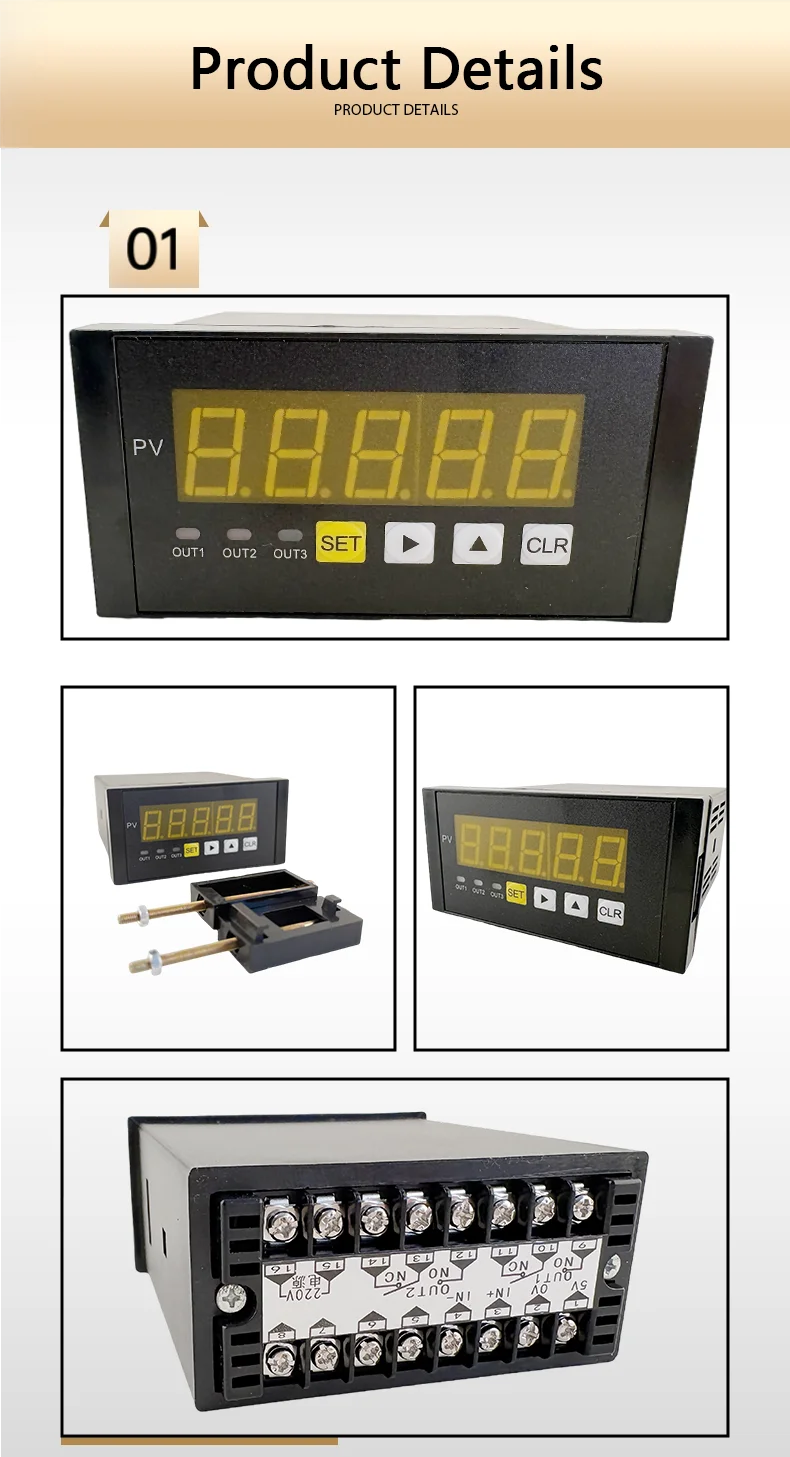

Indicator mounting: 96×48mm front frame, 92×45mm panel cutout for easy installation.

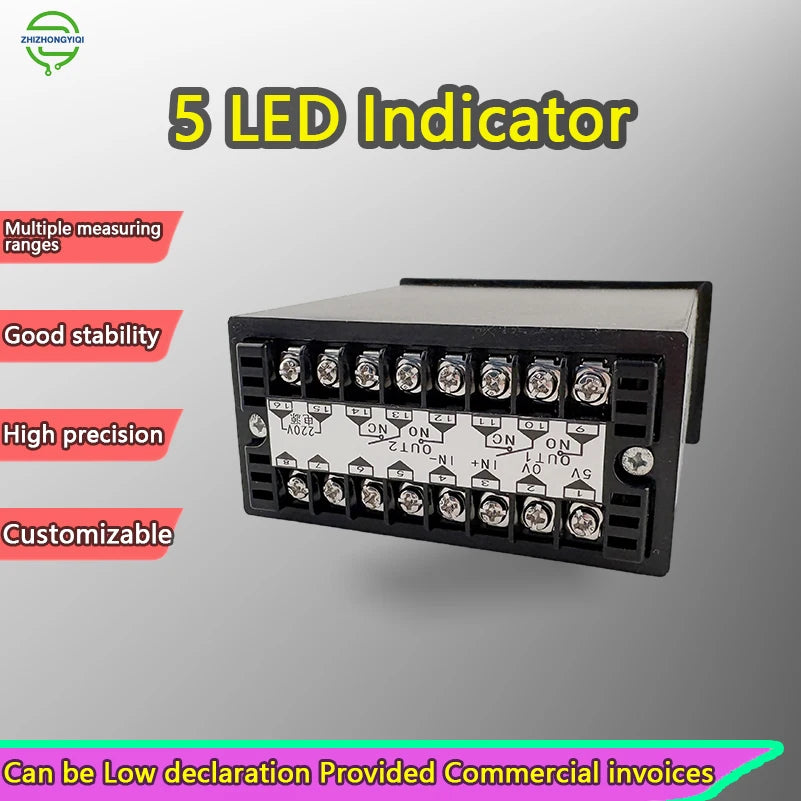

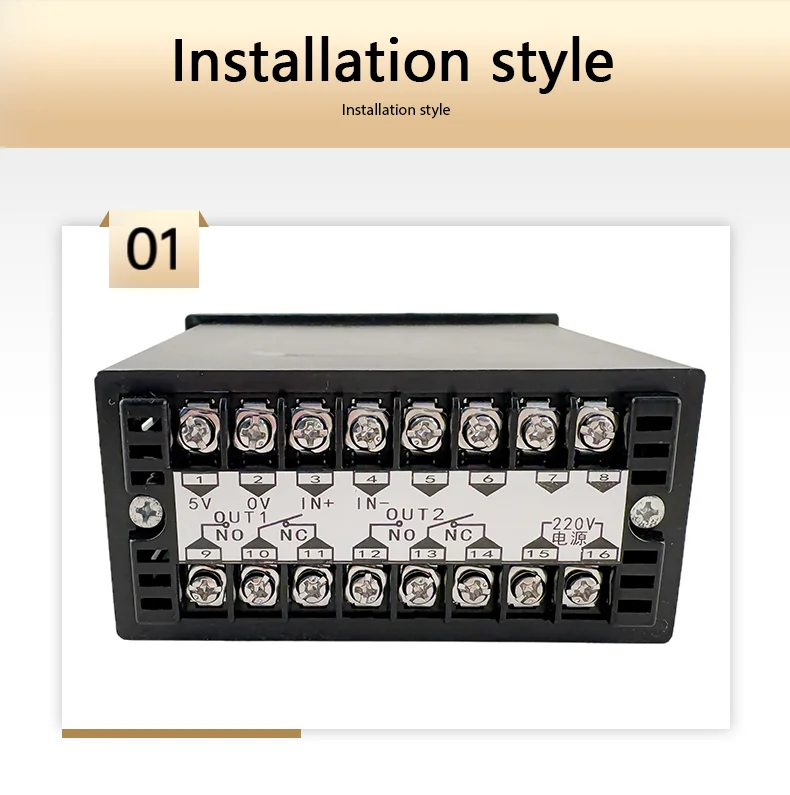

Power: AC 220V (per terminal label).
