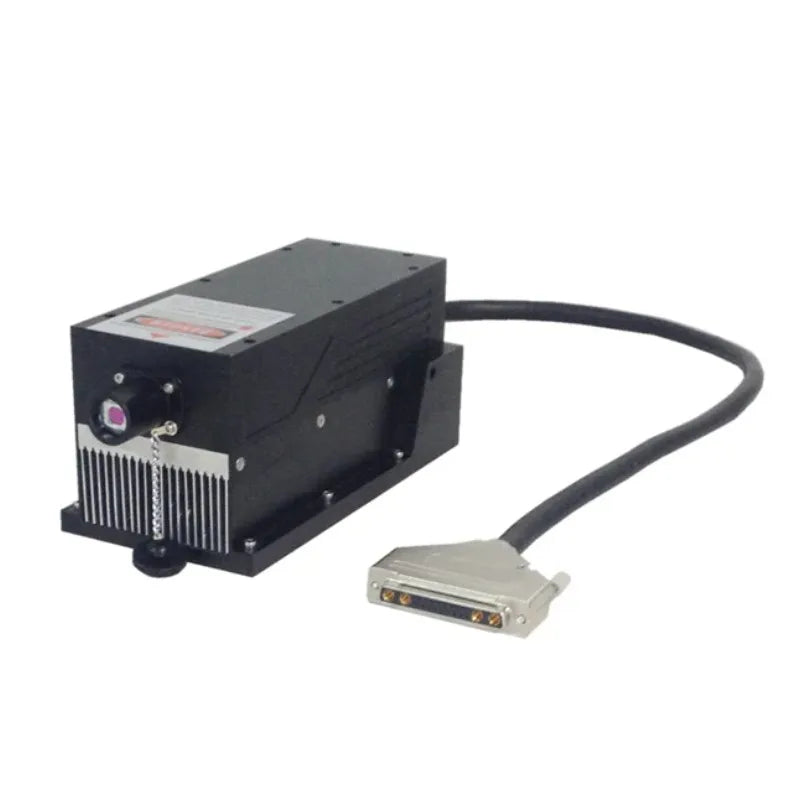

266nm 30uJ Passively Q Switch Laser Nanosecond Dpss Uv Laser

266nm 30uJ Passively Q Switch Laser Nanosecond Dpss Uv Laser

$72,618.93

$72,618.93 $0.00

Description

SPECIFICATIONS

After-sales Service Provided: Free spare parts, Field maintenance and repair service, Online support

Brand Name: NONE,XMSJ

Frame Material: Metal

General Use: Commercial Furniture

High-concerned chemical: none

Installation Method: Assembly

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Origin: Mainland China

Pulse duration: 1.3-5

Showroom Location: None

Type: Laboratory Furniture

Video outgoing-inspection: Provided

brand name: CNI

condition: New

key selling points: Competitive Price

output power: 600mW

place of origin: Jilin, China

single pulse energy: 30uJ

spare parts type: power cord

warranty: 1 Year

wavelength: 266±1nm

weight (kg): 10 KG

Product Description

Product Application

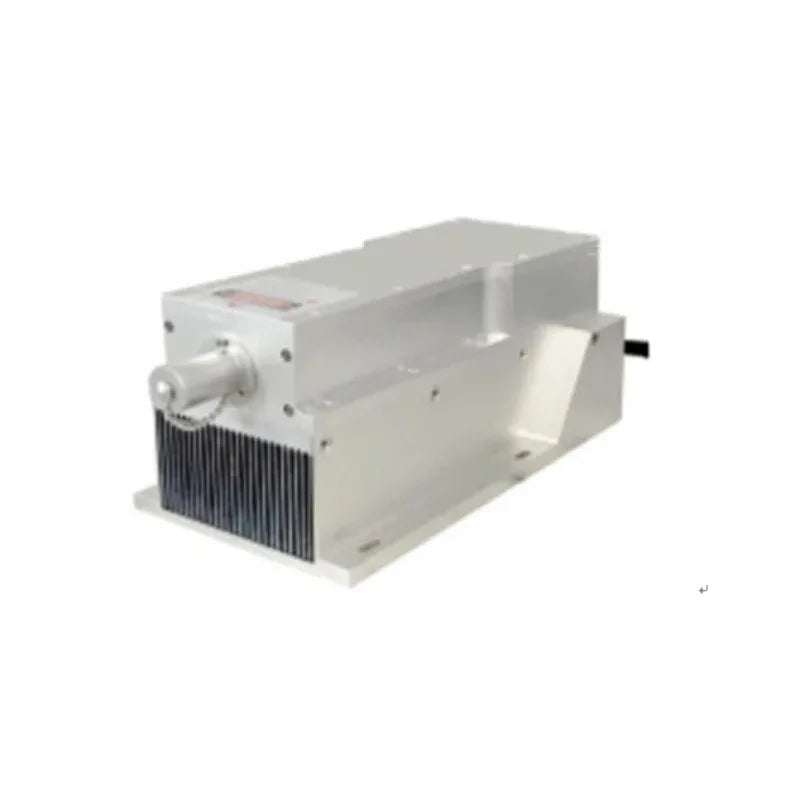

All solid state 261 nm UV laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc

SPECIFICATIONS

Model	MPL-F-266	MPL-N-266	MPL-W-266
Central wavelength (nm)	266±1
Output average power (mW)	1-10	1-120	50-600
Transverse mode	Near TEM00
Single pulse energy (µJ)	0.1-3	0.1-10	5-30
Pulse duration (ns)	~5	~1.3-6	~5
Peak power	20-600W	80-2300W	1-6KW
Rep. rate (kHz)	1-4KHz	3-5KHz	1-4KHz
Ave power stability (over 4 hours)	<5%, <10%
M 2 factor	<1.5
Spectral purity	>99%
Polarization ratio	>100:1
Warm-up time (minutes)	<10
Beam height from base plate (mm)	45	70	93.5
Operating temperature (鈩�)	10-35
Power supply (90-264VAC)	PSU-H-AF	PSU-N-LED /AF	PSU-W-AF/LED
Expected lifetime (hours)	5000
Warranty period	1 YEAR
Remarks	Please Note: because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.

Certifications

Packing & Delivery

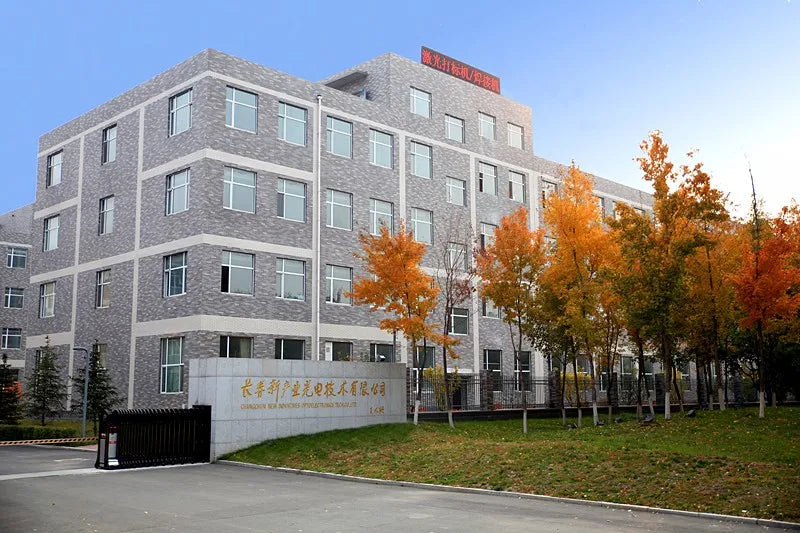

Company Information

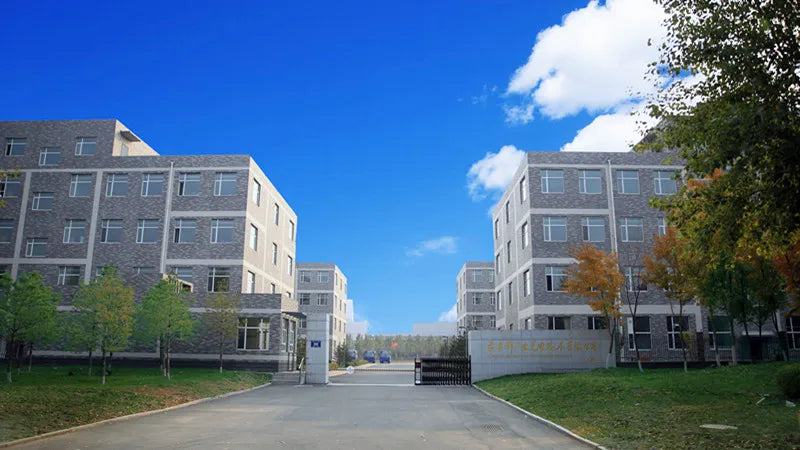

Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, CE and JQA certified.

CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our convenient and rapid service.
