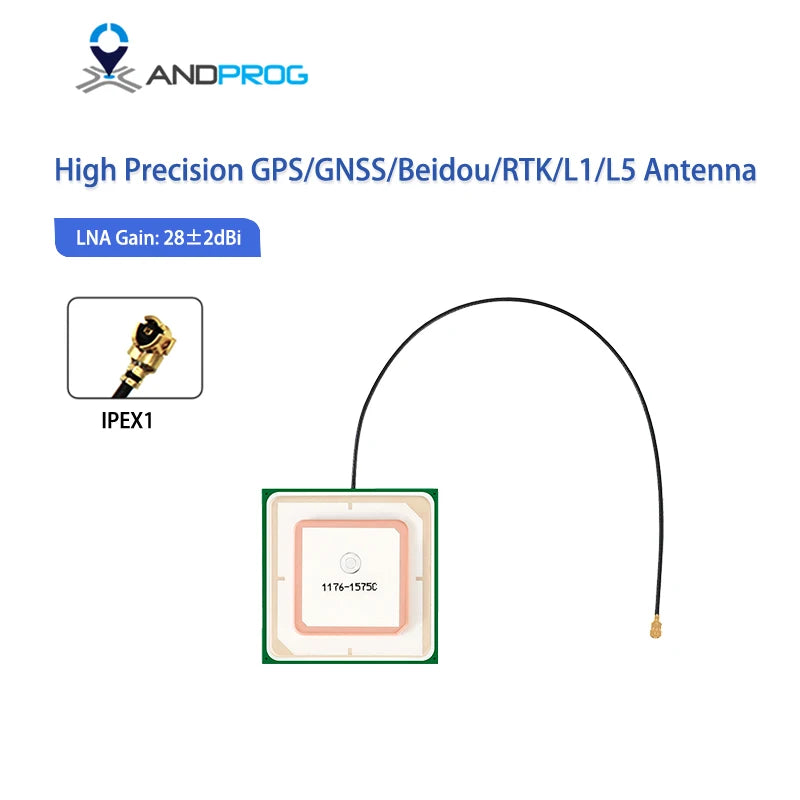

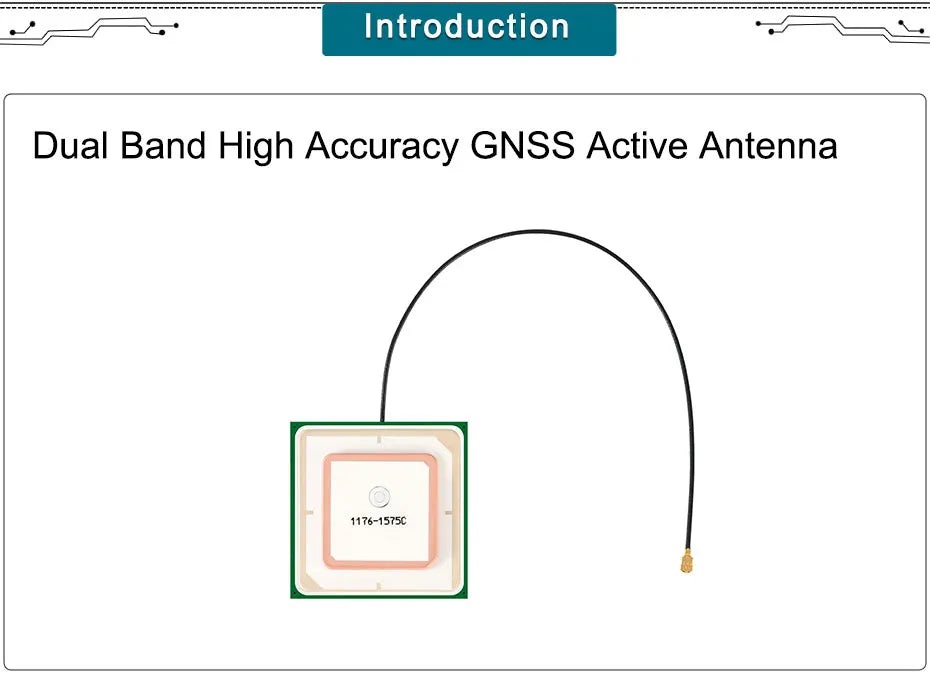

28dbi Dual Band High Accuracy RTK Active GPS GNSS B1 L1 L5 G1 Navigation Antenna for Car GPS Navigation Module Truck GPS Tracker

28dbi Dual Band High Accuracy RTK Active GPS GNSS B1 L1 L5 G1 Navigation Antenna for Car GPS Navigation Module Truck GPS Tracker

15cm IPEX 1
$90.08
Sale price  $90.08 Regular price  $0.00
Skip to product information
28dbi Dual Band High Accuracy RTK Active GPS GNSS B1 L1 L5 G1 Navigation Antenna for Car GPS Navigation Module Truck GPS Tracker
28dbi Dual Band High Accuracy RTK Active GPS GNSS B1 L1 L5 G1 Navigation Antenna for Car GPS Navigation Module Truck GPS Tracker
$90.08
Sale price  $90.08 Regular price  $0.00
Color15cm IPEX 1
Description

SPECIFICATIONS

Brand Name: ANDPROG

Choice: yes

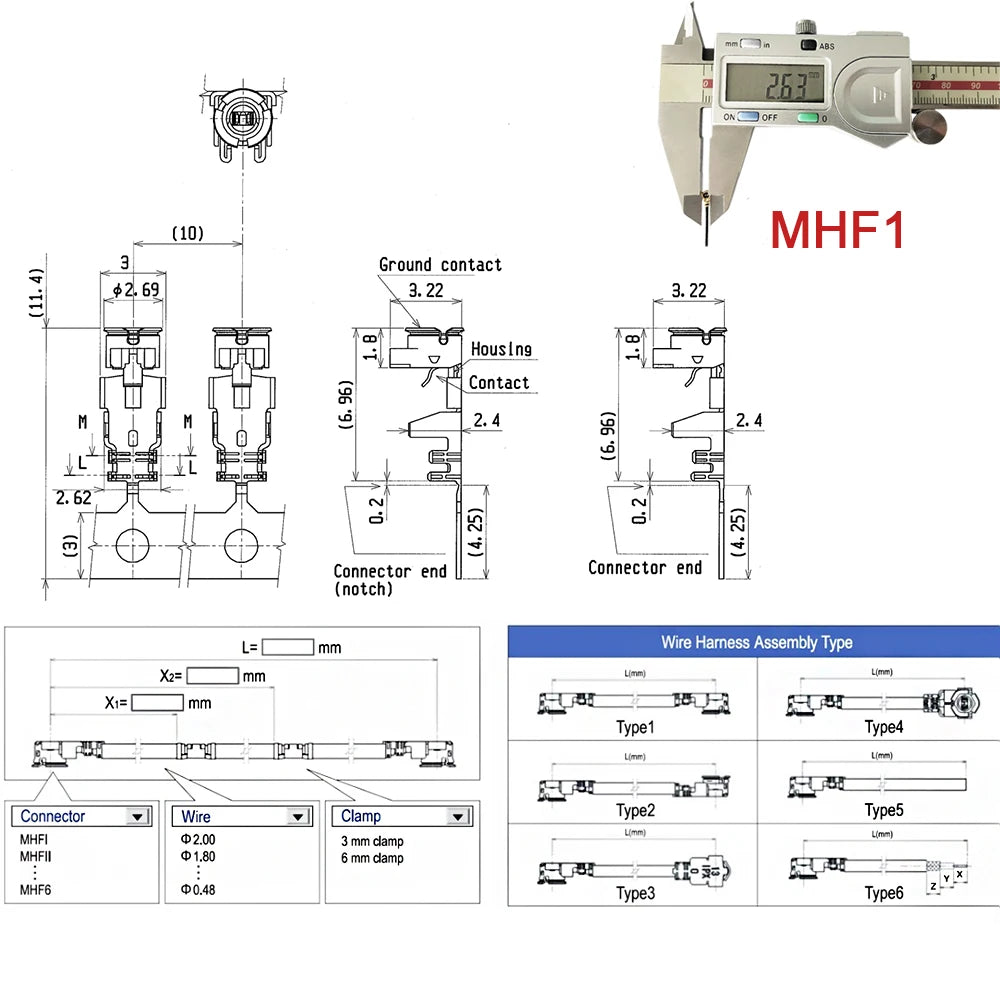

Connector: MHF 1

Frequency: GPS-L5:1176MHz

Frequency Range: BDS-B1/GPS-L1/GLONASS-G1:1561.098~1602MHz

GPS type: Receiver & Antenna

Gain: 28±2dB

High-concerned chemical: none

IS It With PCB: Yes

Model Name: BGG-236

Origin: Mainland China

Polarization: RHCP

Supply Voltage: 3-5V

Wireless Function: Yes

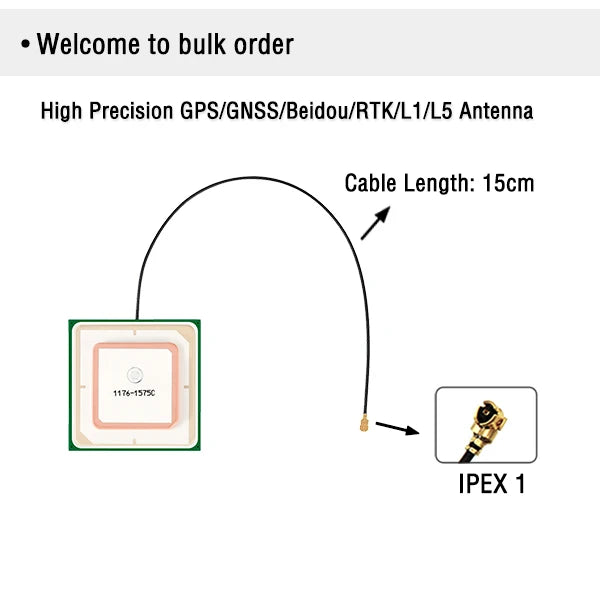

length: 15cm or OEM

semi_Choice: yes


 FAQ
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
     If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.
Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.
GPS is for SMA Male/Fakra C(blue), which are normal.
Fakra C has straight and right angle(90 degree).
Wellcome to tell us of your requirements.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).

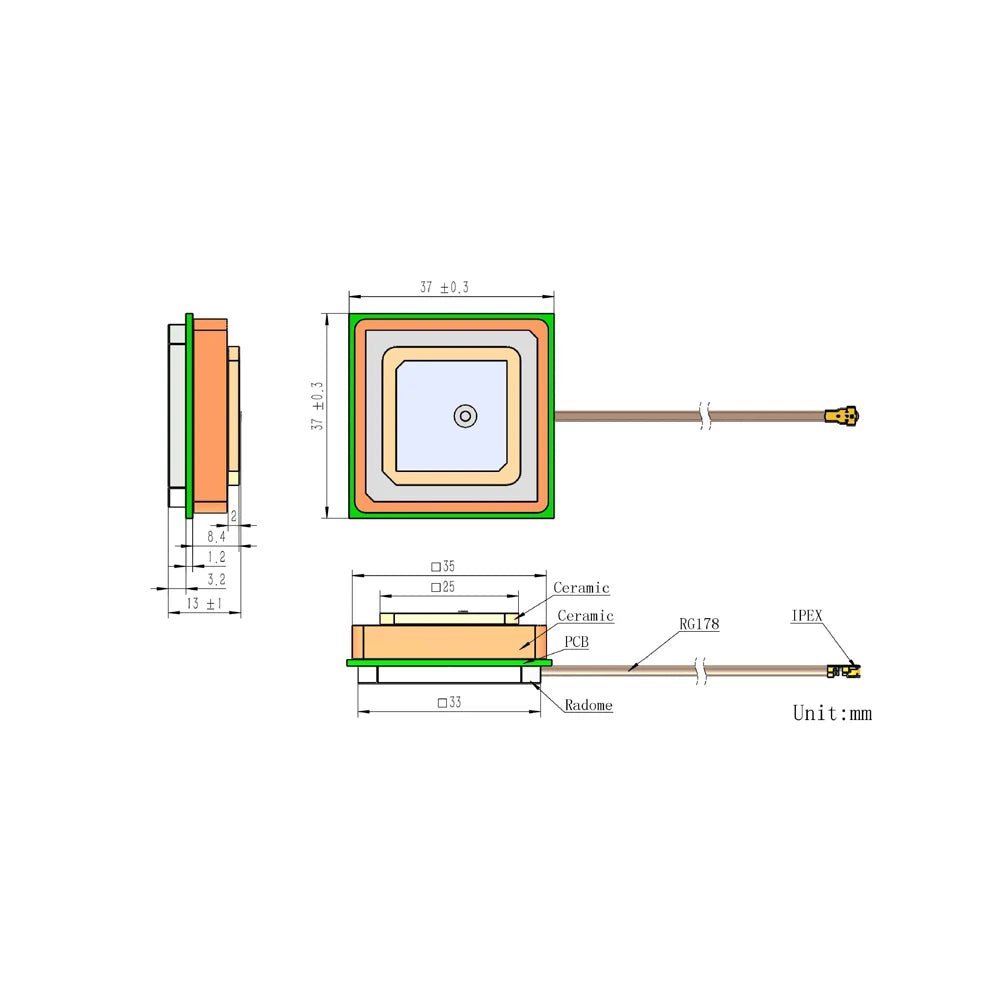

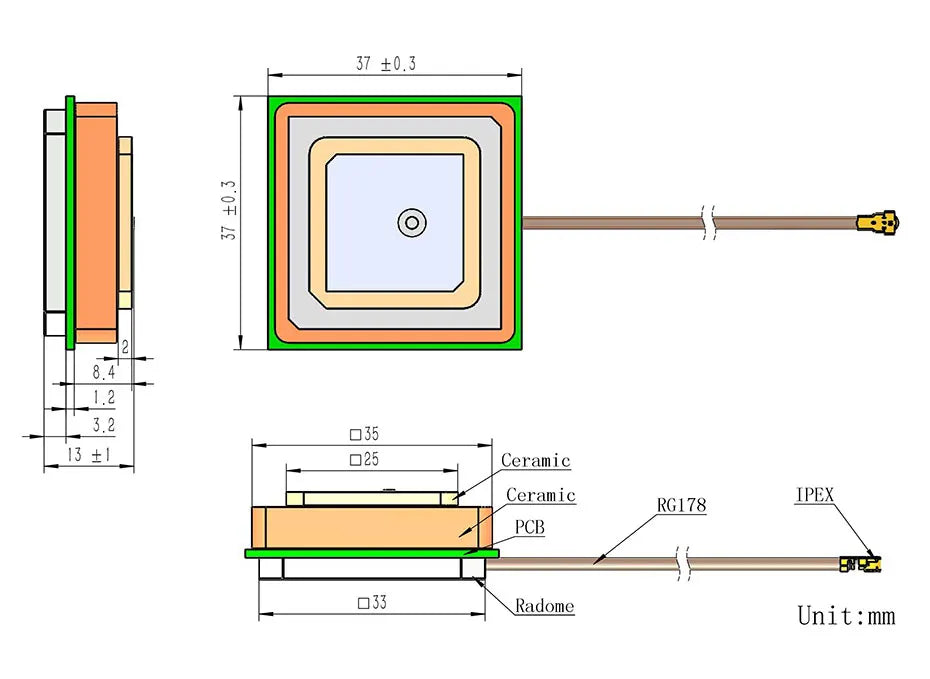

DIMENSIONS&SPECIFICATIONS




Item


Antenna(2 layers)

Frequency Range

High Band
BDS-B1/GPS-L1/GLONASS-G1:1561.098~1602MHz
Low Band
GPS-L5:1176MHz

Polarization

RHCP

Gain

3dBic@PCB(Zenith)

V.S.W.R

<1.5

Impedance

50Ω

LNA

Gain

28±2dB

Noise Figure

≤1.0dB

Supply Voltage

3~5V DC

Current Consumption

<45mA

V.S.W.R

<2.0

Mechanical

Cable

RG178 or others

Connector

IPEX or others

Mounting Method

Embedded

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

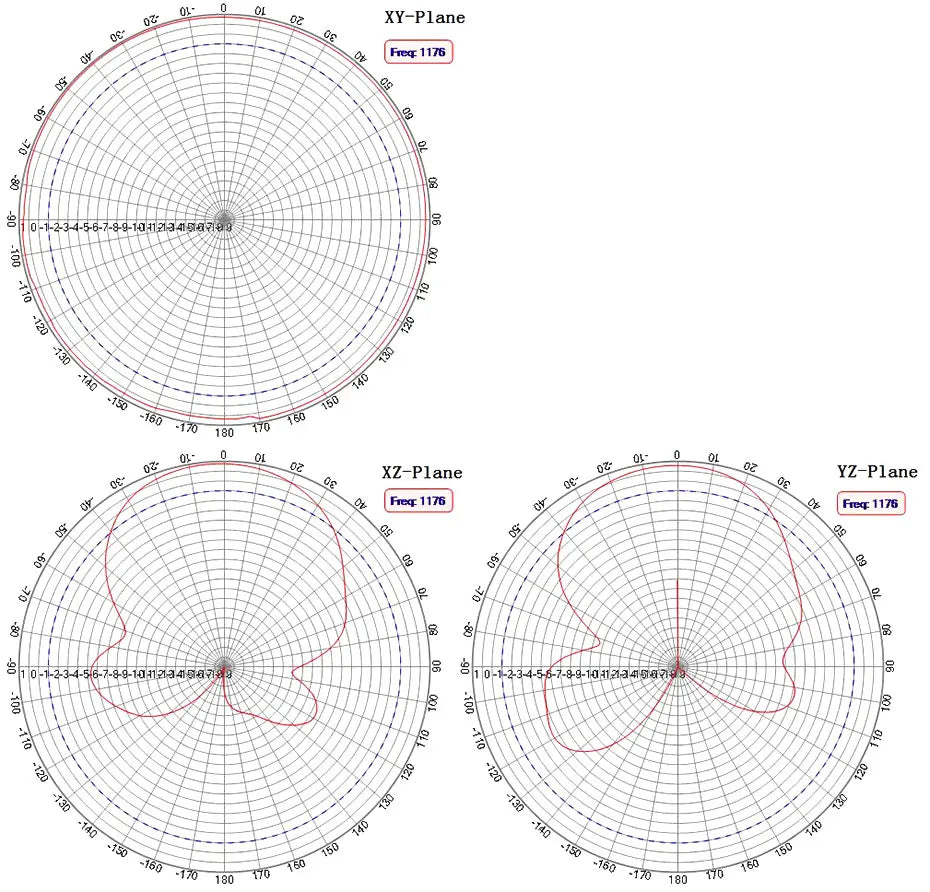

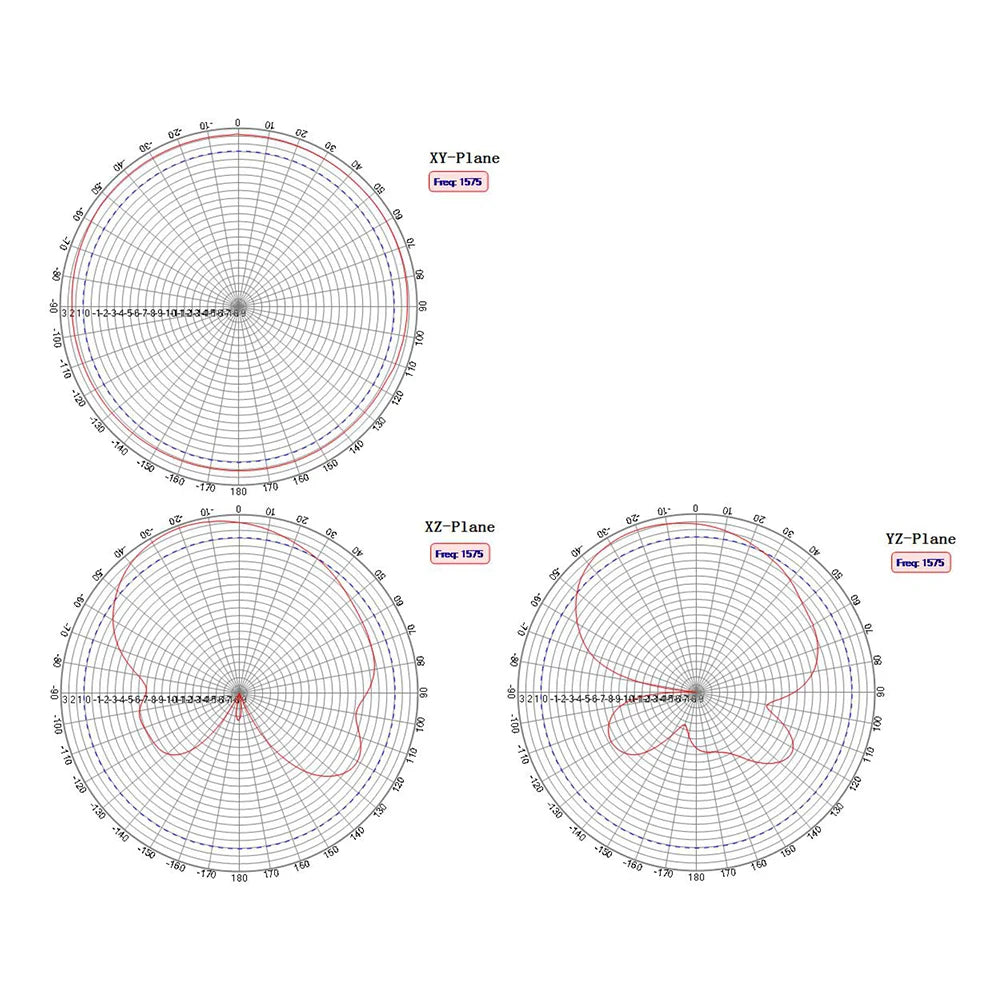

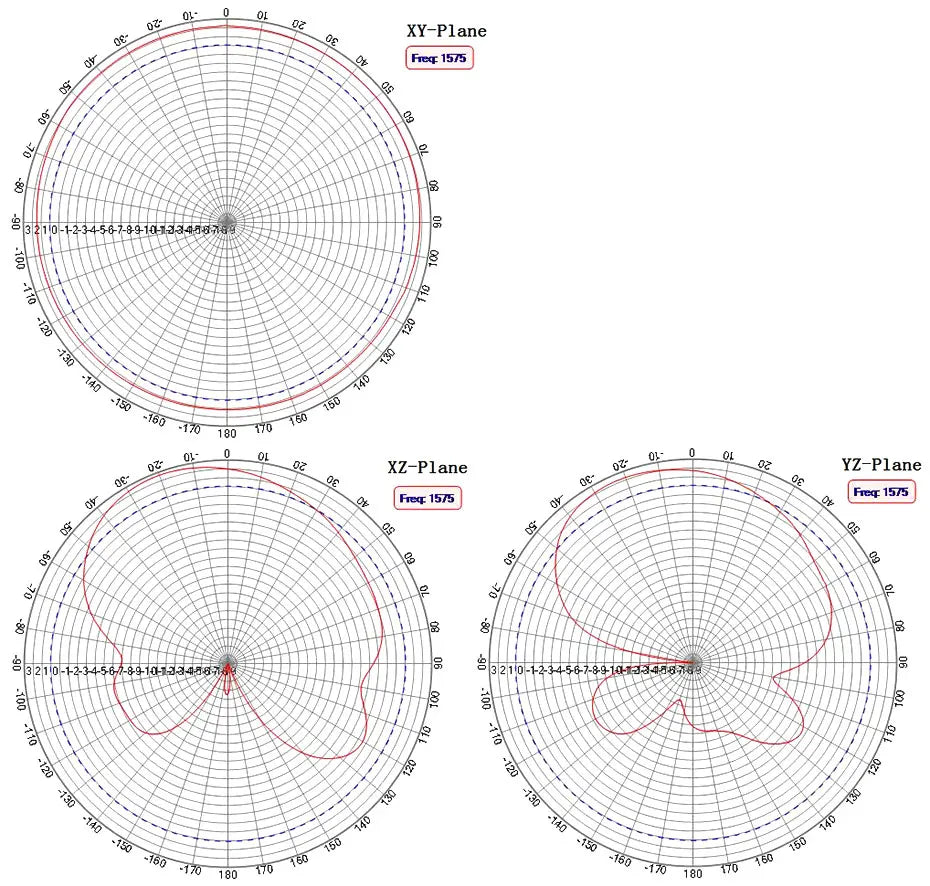

  Radiation Pattern
