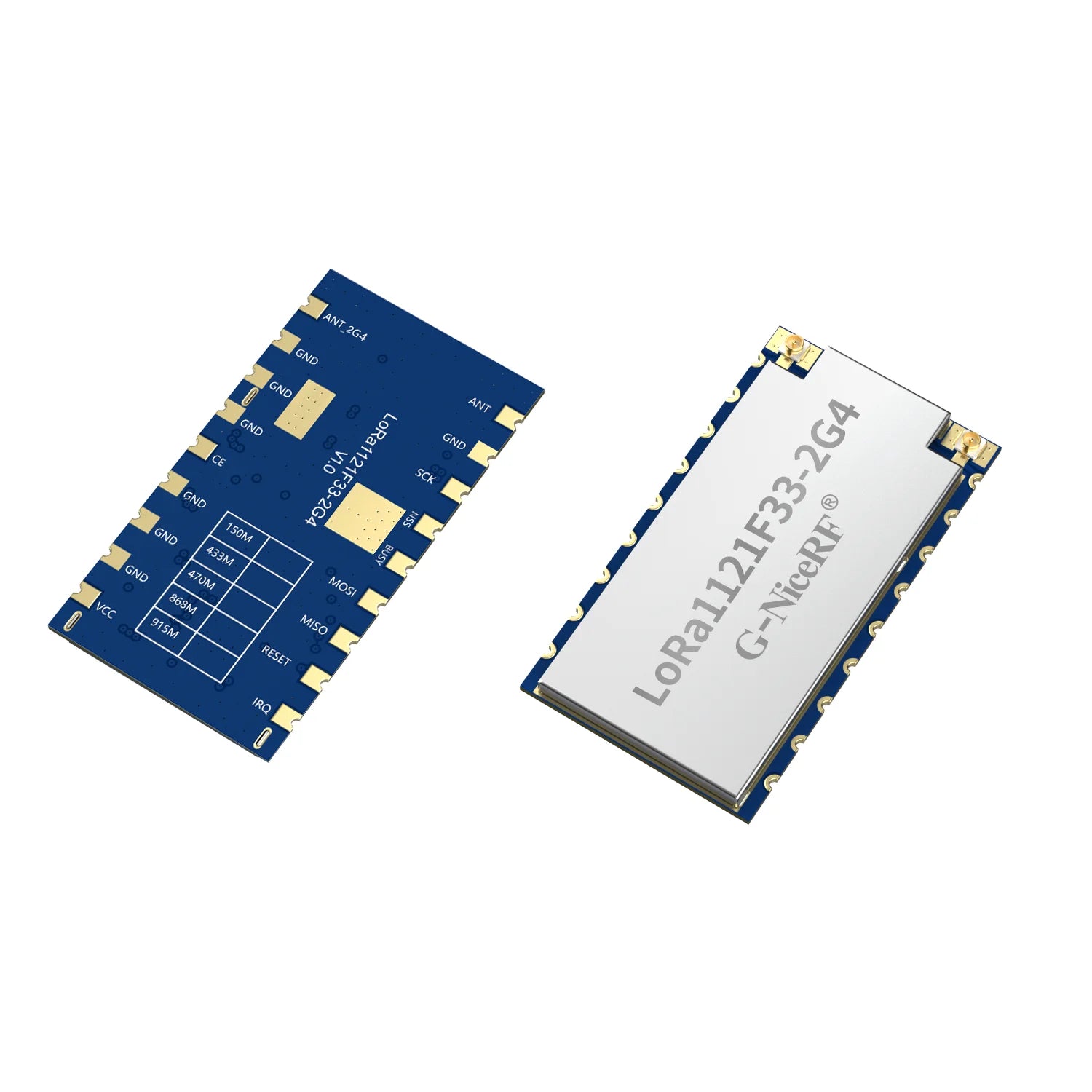

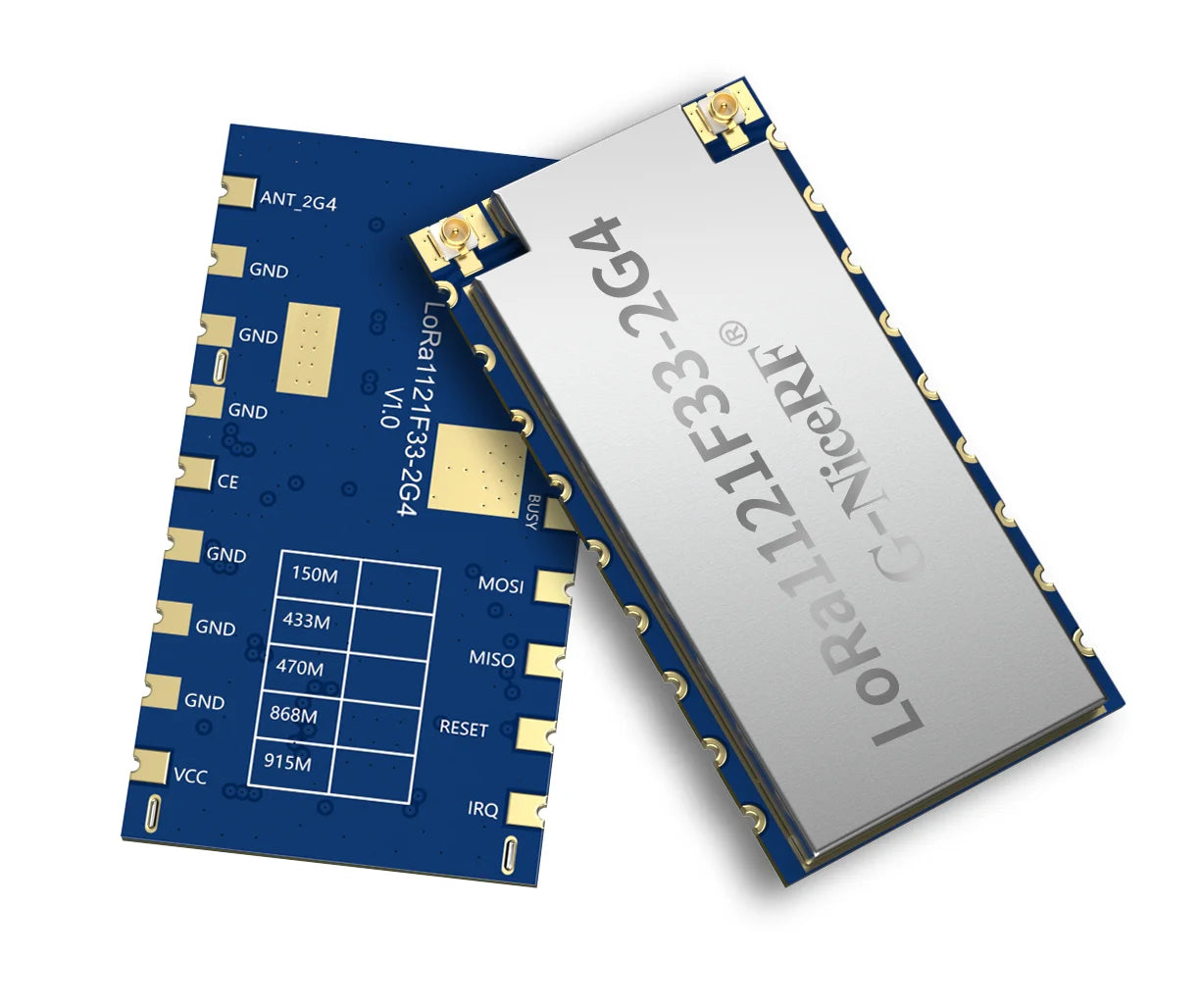

2pc/lot LoRa1121F33-2G4 2W Long Distance Sub-GHz 2.4GHz S-band (Satellite Band) Multi-band SPI Port LR1121 Module
315MHz and S
$291.32
Sale price
$291.32
Regular price
$0.00
Skip to product information

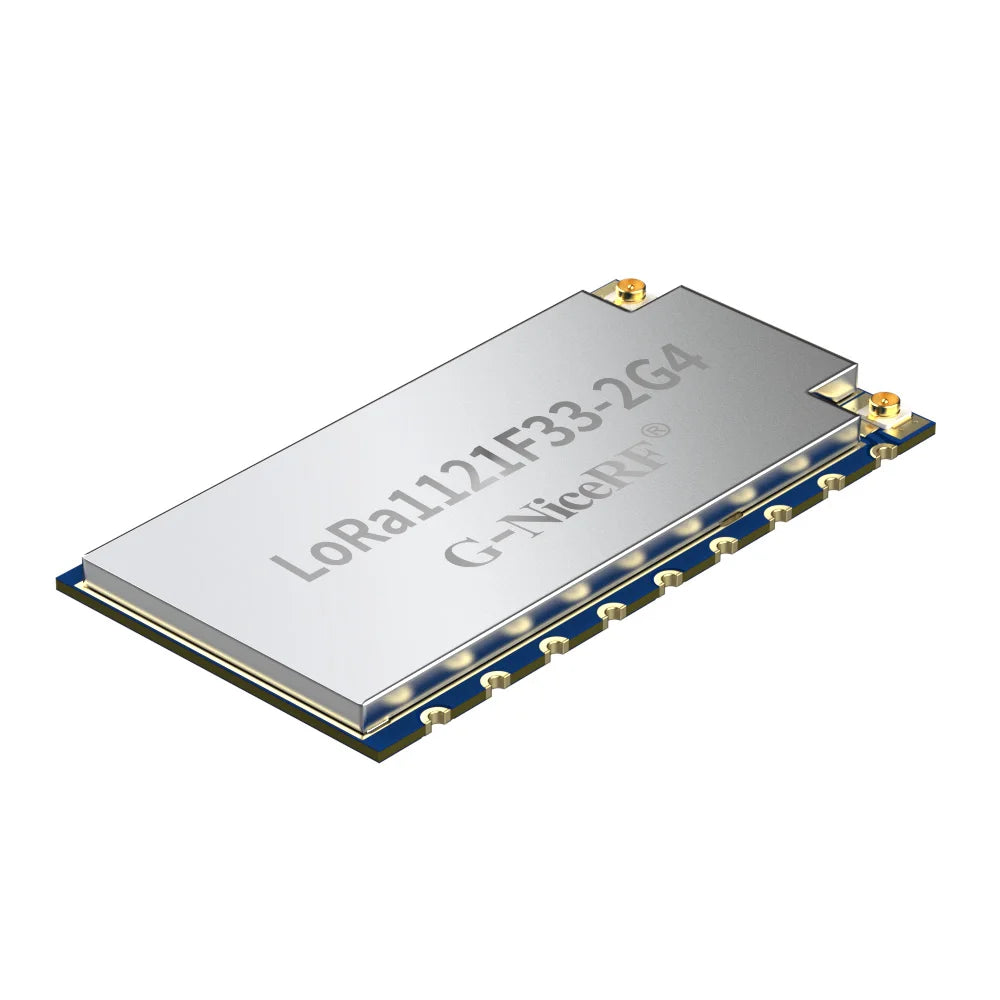

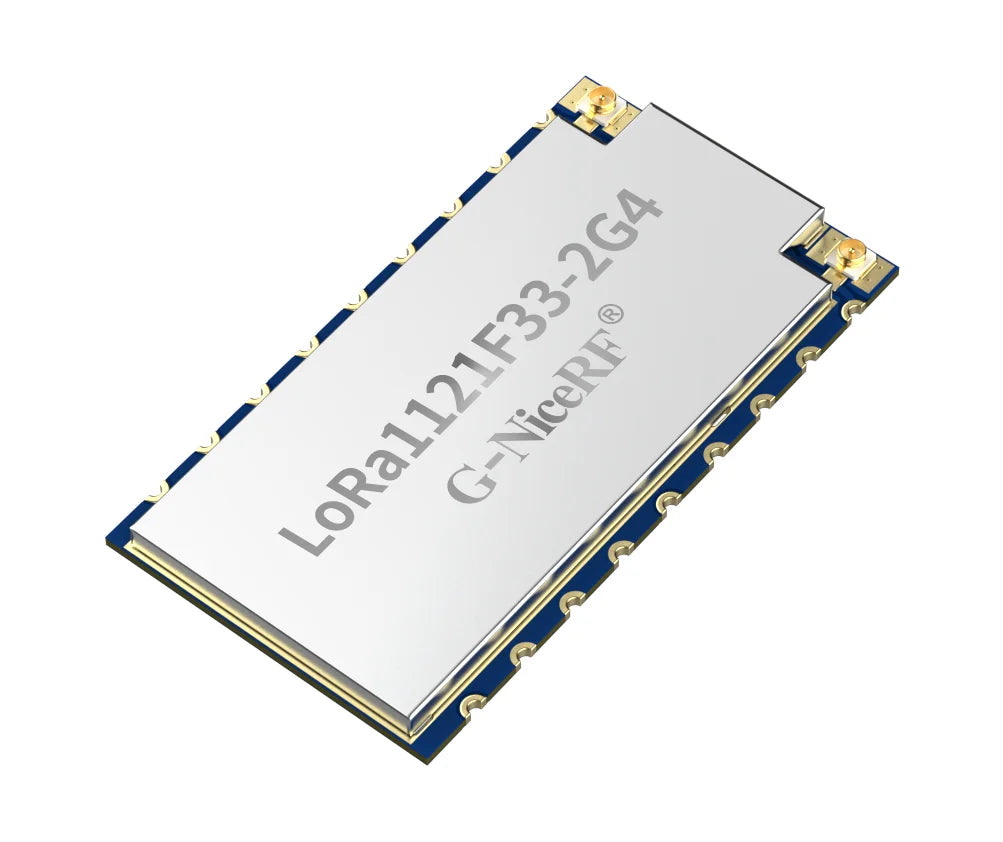

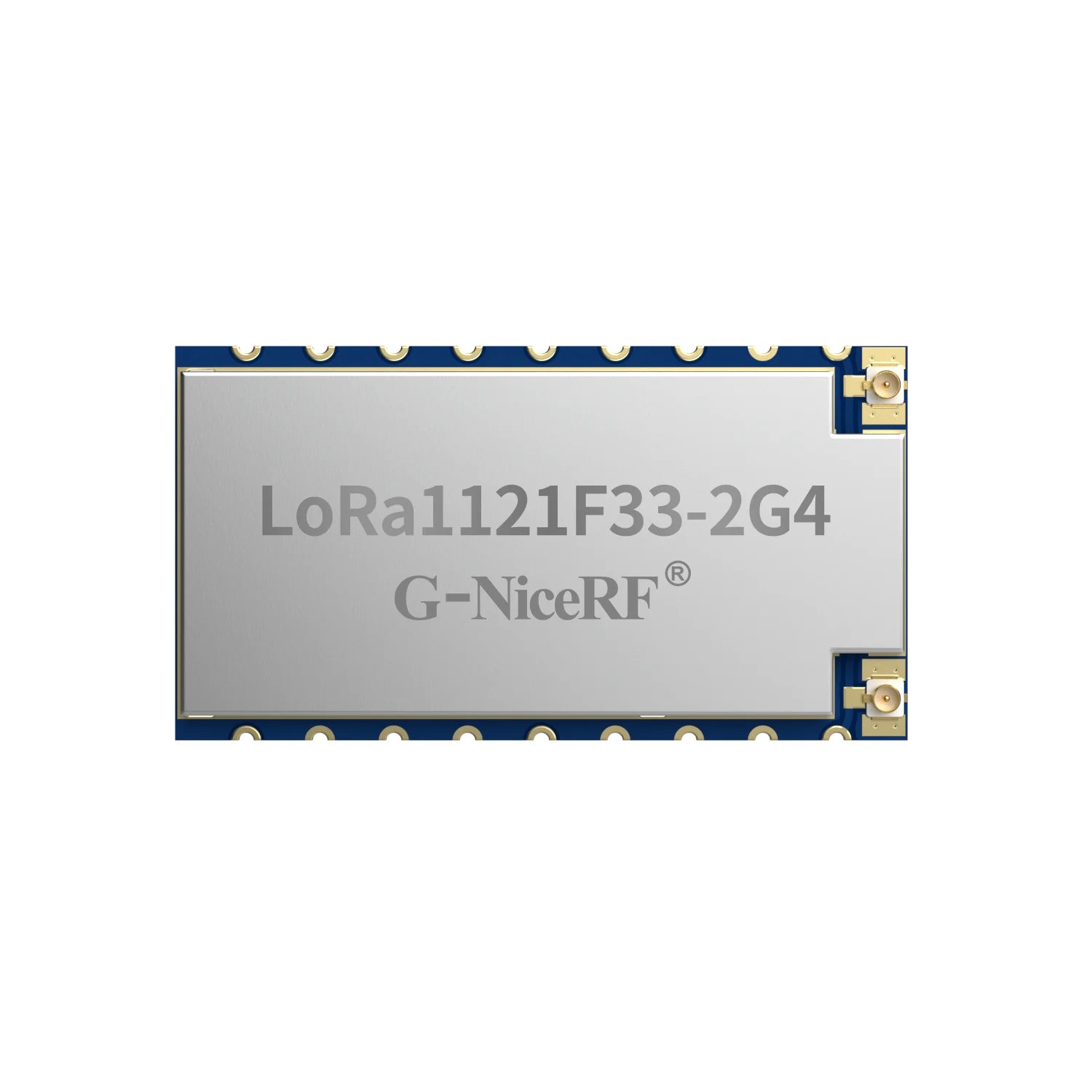

2pc/lot LoRa1121F33-2G4 2W Long Distance Sub-GHz 2.4GHz S-band (Satellite Band) Multi-band SPI Port LR1121 Module
$291.32
Sale price
$291.32
Regular price
$0.00
Description
SPECIFICATIONS
150/315/433/470MHz: Max 2W
2.4GHz reception sensitivity: -129@BW=406KHz,SF=7
868/915MHz: Max 1W
Antenna Connection Method: soldering
Audio Interface Type: none
Brand Name: G-NiceRF
Communication Interface Type: SPI
Frequency Band: Sub-GHz; 2.4GHz; S band
High-concerned chemical: none
Information Delivery Content: Data
Model number: LoRa1121F33-2G4
Network Support: No
Operating Temperature Range: -40 ~ + 85 °
Origin: Mainland China
Receive current: <9mA
S band 1900MHz-2000MHz: Max 0.8W
S band sensitivity: up to -132 dBm @ BW=125 KHz, SF=12
Sleep current: <15uA
Sub-GHz reception sensitivity: up to-144dBm @ BW=62.5 KHz, SF=12
Transmit Power: 22dBm
Type: Lora Module
Voltage: 1.8-3.6V
Working voltage: 1.8-3.6V
chip: LR1121
frequency band: 150/433/470MHz/868 /915MHz
interface: SPI
2pc/lot LoRa1121F33-2G4 2W long distance Sub-GHz 2.4GHz S-band (satellite band) multi-band SPI port LR1121 module
Sub-GHz ( 2W:150/315/433/470 ; 1W:868/915MHz)
2.4G:2400-2500MHz 1W
Two-band in one module,
LR1121 chip SPI module
- 2PCS * LoRa1121F33-2G4
- 2PCS * Antenna.
- 2PCS * SMA to IPX1 with 10cm Cable (U.FL to SMA Female )
LoRa1121F33-2G4 module is built on SEMTECH's LR1121 chip, an ultra-low power, long-range LoRa transceiver supporting Sub-GHz and 2.4G band.supports LoRa, (G)FSK modulation, Sigfox protocol, and LR-FHSS. It is compatible with the LoRaWAN communication protocol and can function as a LoRaWAN node. Additionally, it offers flexible configuration options to meet the requirements of various applications and proprietary protocols.
Features
Sub-GHz Bands: 433/470/MHz 2W
Sub-GHz Bands: 868/915MHz 1W (Customizable : 150~960 MHz)
2.4 G Bands : 2400MHz～2500MHz 1W
2.4 GHz sensitivity : up to -129 dBm @ BW=406 KHz, SF=7
Sub-GHz sensitivity : up to -144dBm @BW=62.5KHz,SF=12
Electrostatic Protection (ESD)
Supports LR-FHSS
Supports LoRaWAN and Sigfox protocol
Supports AES-128 encryption and decryption
Sub-GHz transmission exceeds 10 km in open areas
Sleep current < 20µA
Small size, stamp hole design
Applications
Drones
Smart home
Smart agriculture
Remote irrigation
Industrial manufacturing

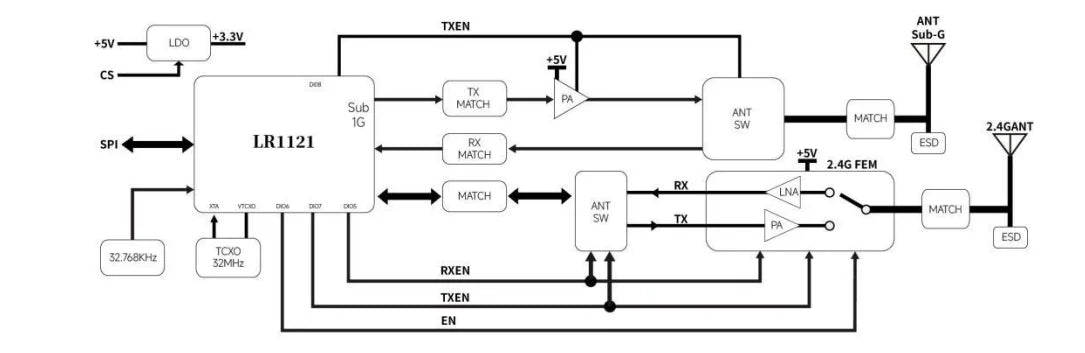

Block diagram:

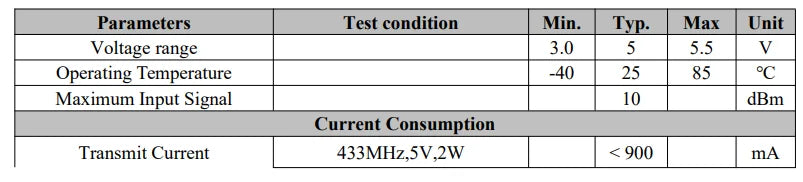

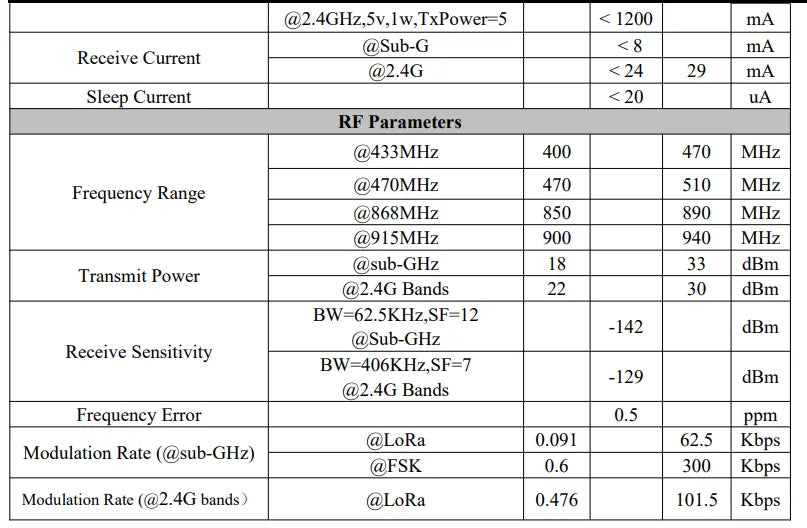

Specifications:

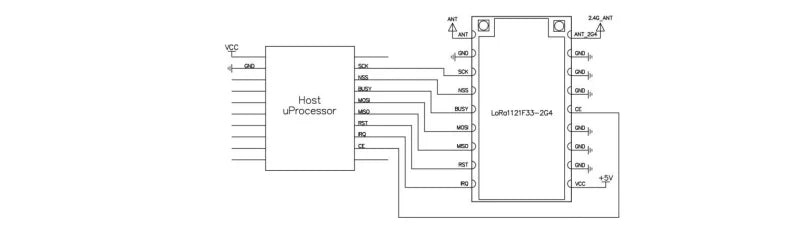

Schematic:

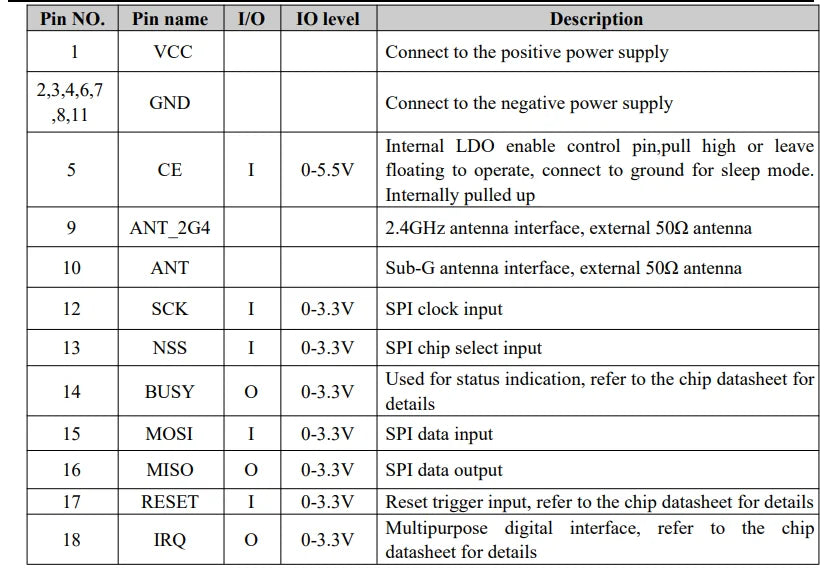

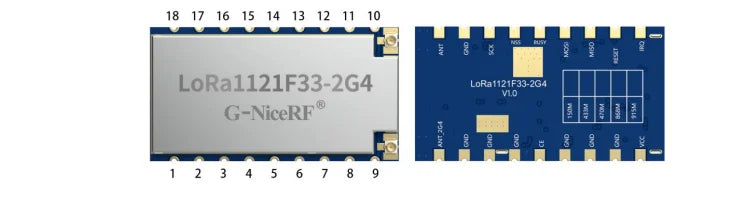

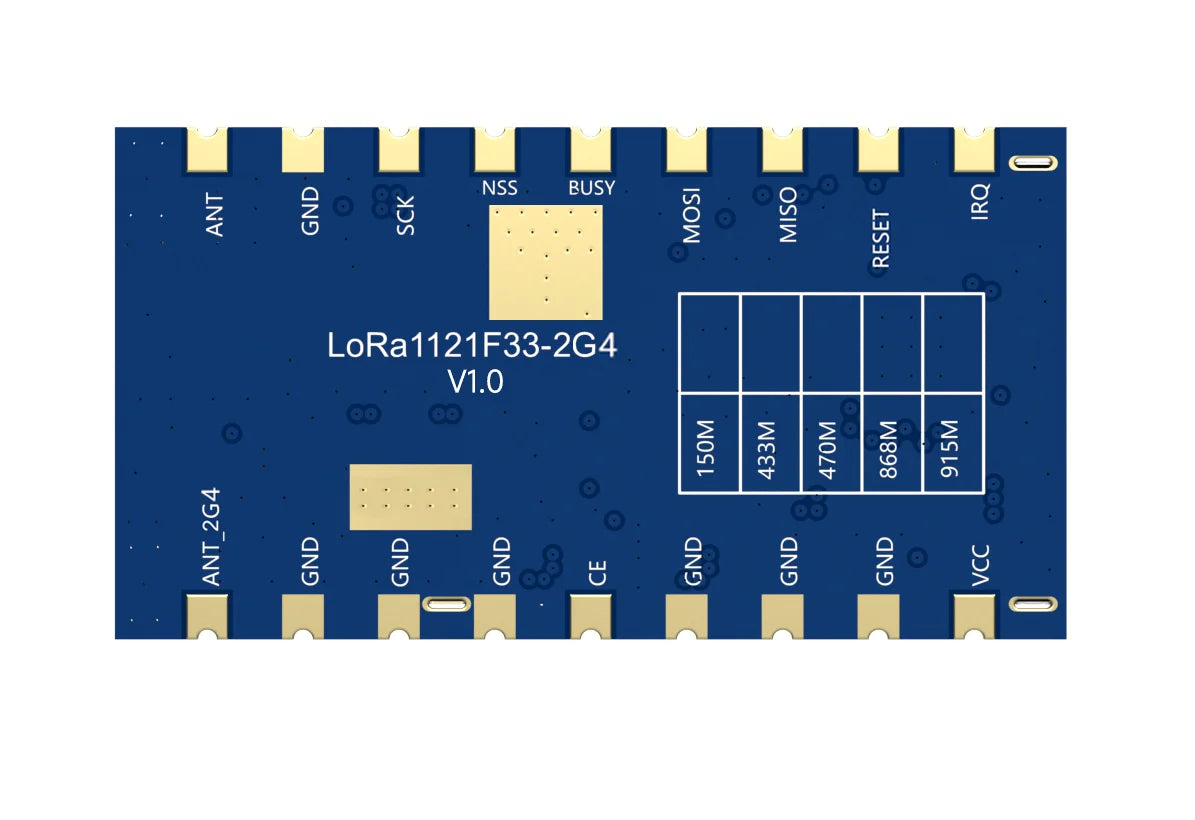

Pin configuration:

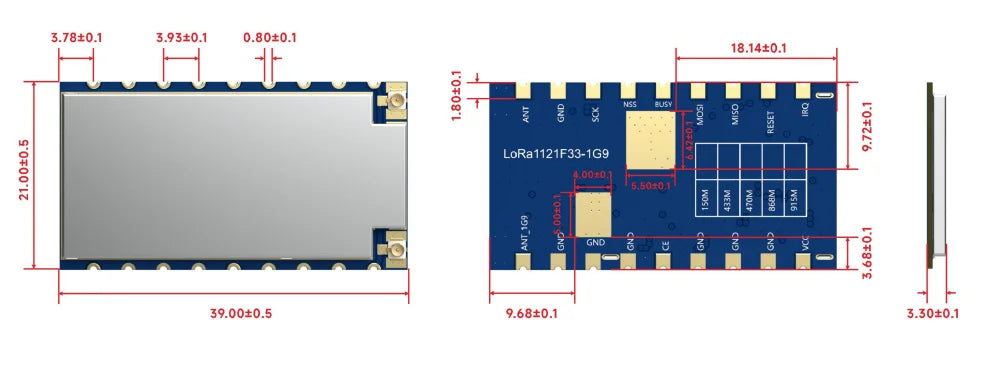

Machanism dimensions(mm):
