SPECIFICATIONS

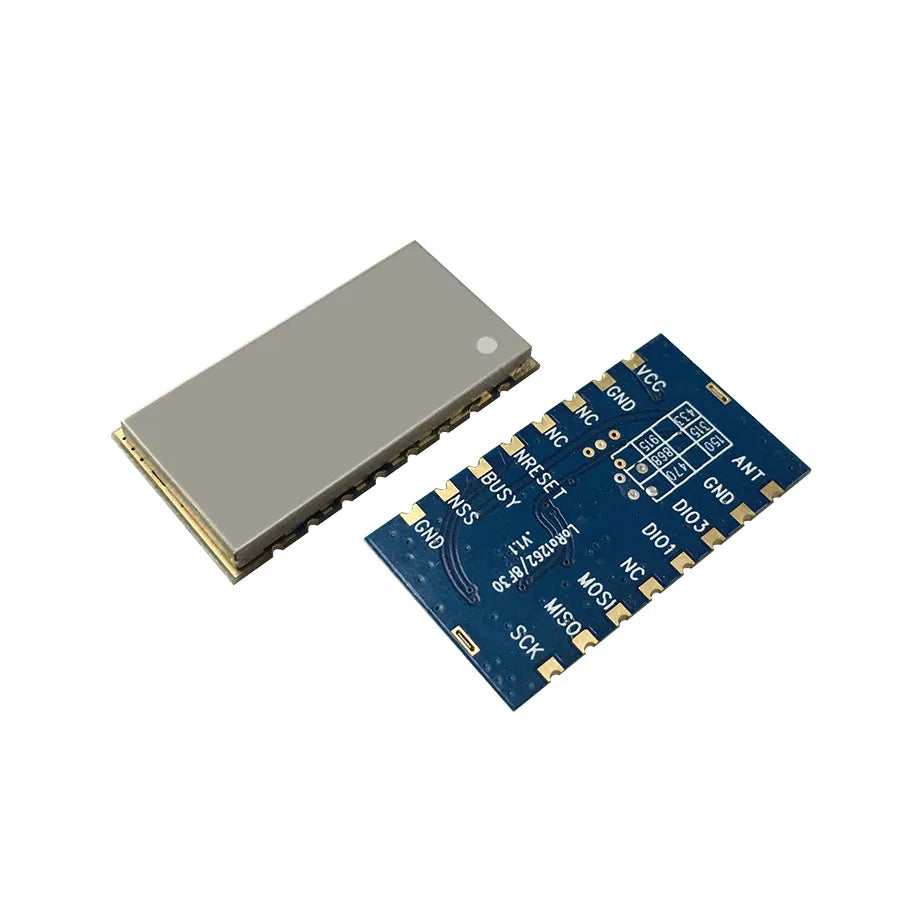

2pc/lot lora1262F30 315MHz SX1262 33dBm -148dBm TCXO High Sensitivity low current 2W SPI port Lora Module

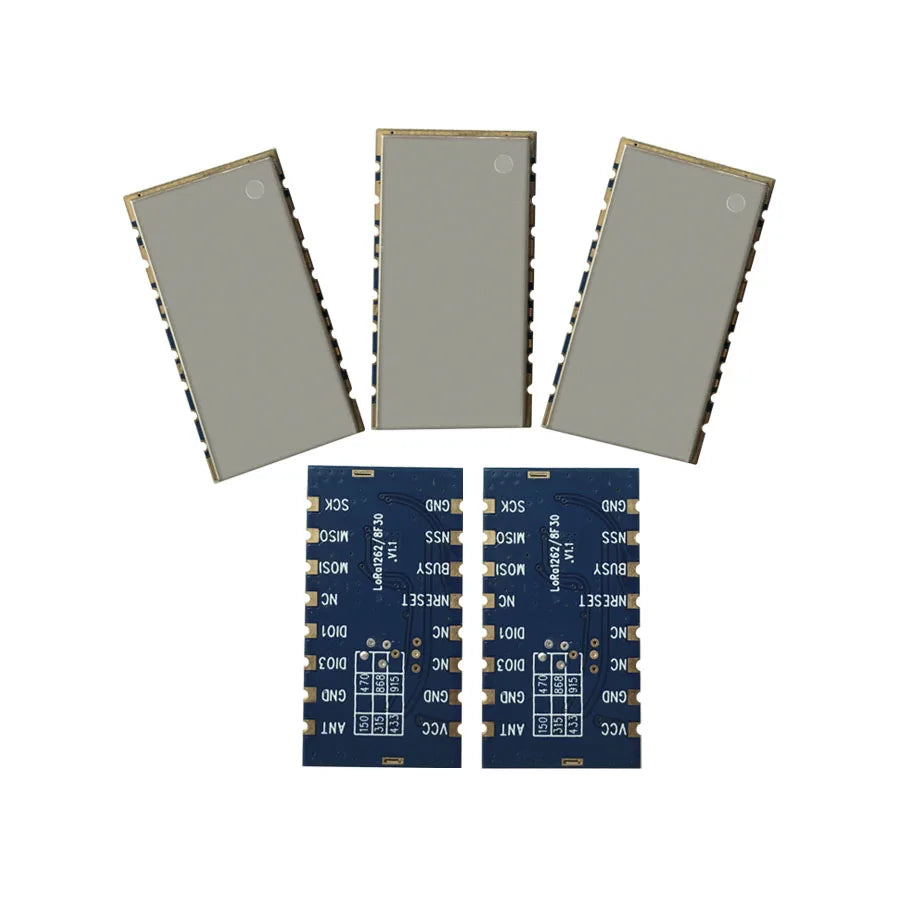

• 2pc 2W 315MHz sx1262 chip Wireless LoRa Module LoRa1262F30

• 2pc 315MHz spring antenna

(If you need 433,470,868 or 915MHz, just leave message please)

Related products:

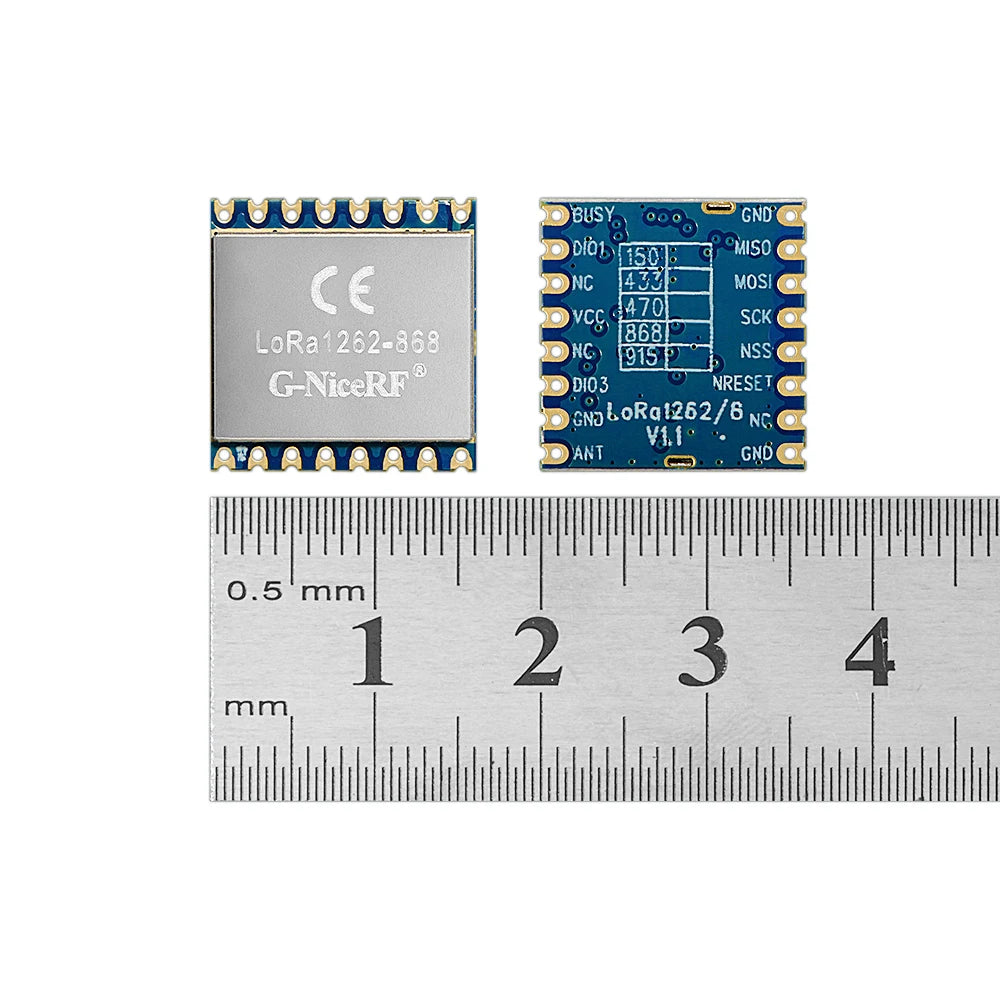

1pc/lot CE-RED certified Lora1262 868MHz SX1262 22dBm -148dBm TCXO High Sensitivity low current 160mW SPI port Lora Module USD 14.5 / piece /lot 1

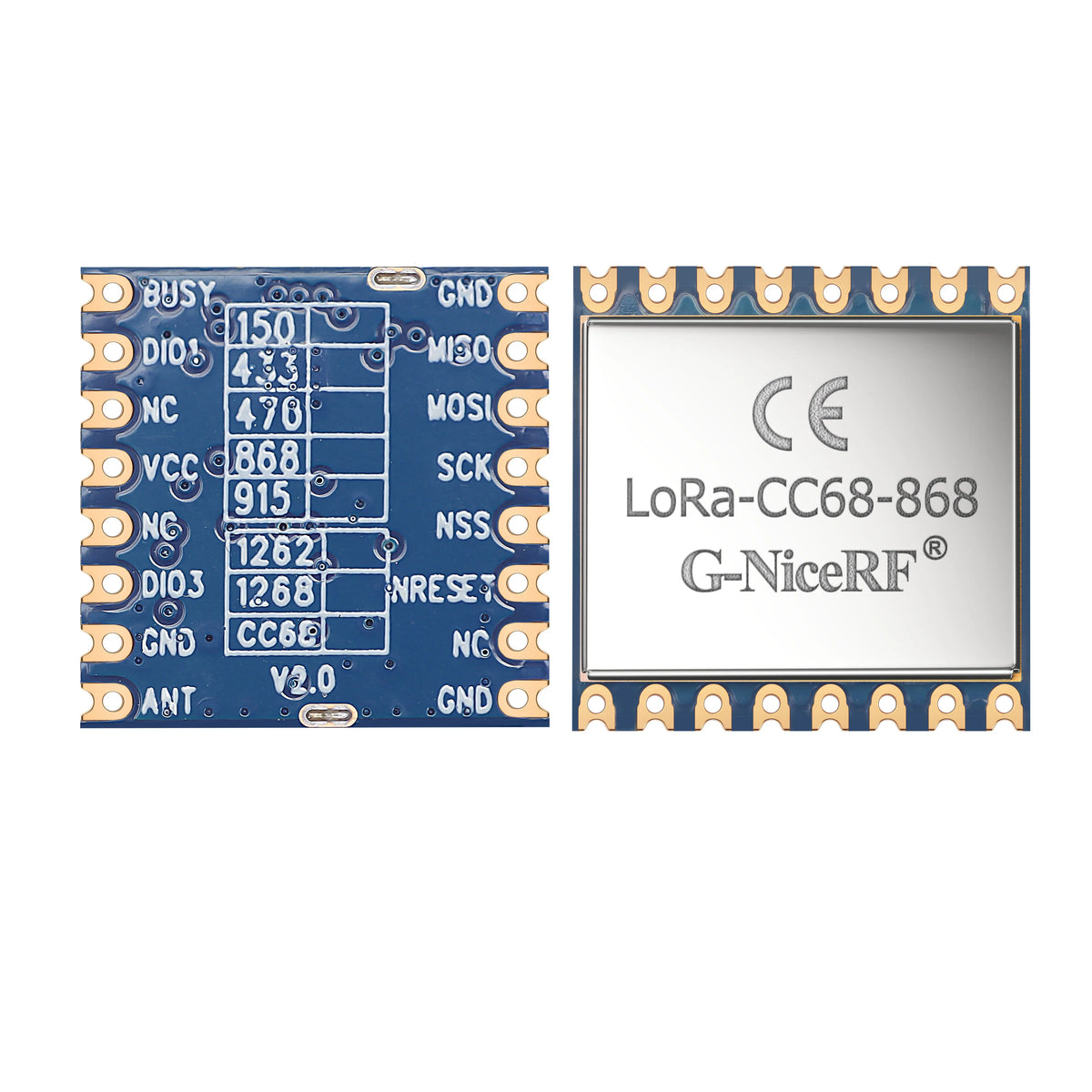

1pcs/lot LoRa-CC68 - CE / FCC certified 868MHz 915MHz LLCC68 LoRa Module, 160mW 5Km low cost version of Lora1262 USD 4.23 / piece /lot 1

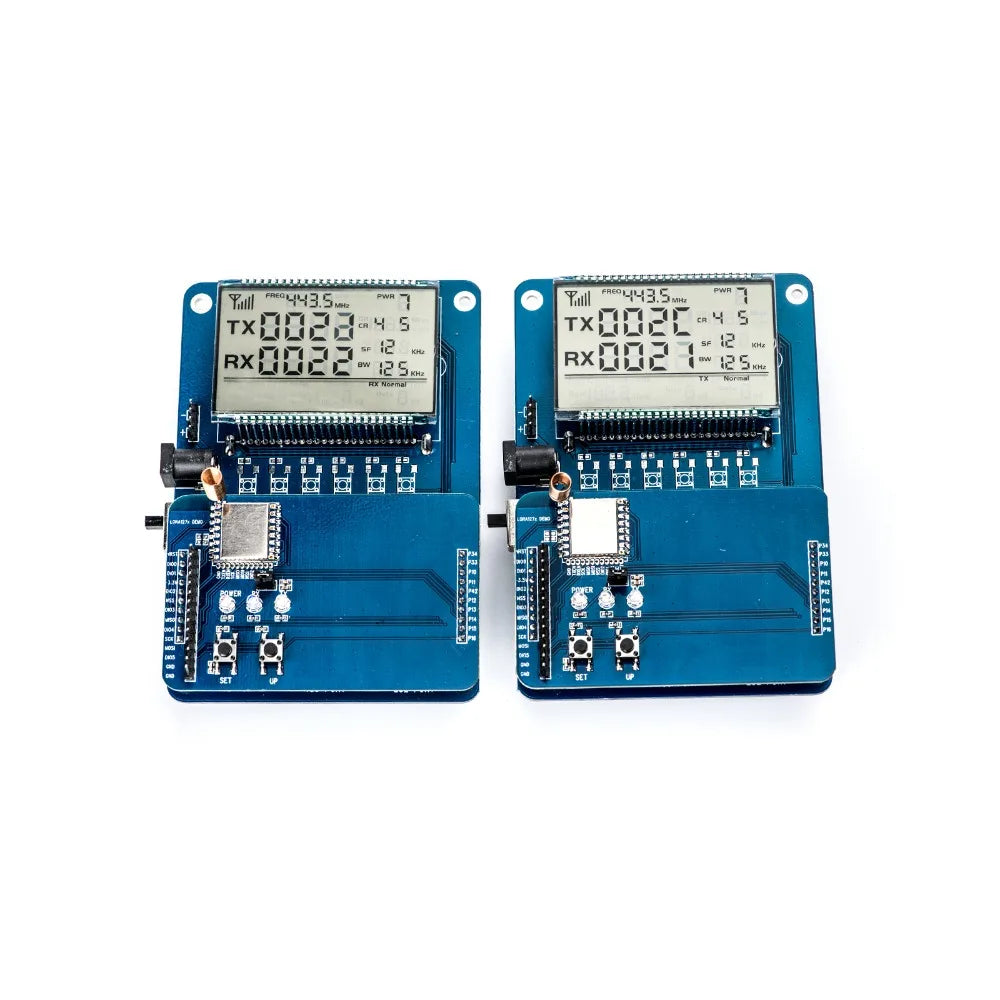

1pair/lot NiceRF LCD Display Testing Demo Board for LoRa1262 Transceiver Module SX1262 LoRa RF Module 22dBm 160mW 1.5ppm TCXO USD 115 / piece /lot 2

LoRa1262F30 wireless module uses Semtech's SX1262 chip, which uses a high-precision TCXO crystal oscillator, ultra-low receive current and sleep current, and sensitivity of -148dBm. Built-in 64KHz crystal oscillator can wake up the microcontroller periodically under low power consumption. The module antenna switch is integrated and controlled by the chip, which saves the resources of the external MCU. The compact size and 33dBm (2W) output power have great advantages in IoT and battery-powered applications.

Features:

• Frequency Range: 315/ 433/ 470/ 868 / 915 MHz for optional

• Sensitivity up to -148dBm @Lora

• Maximum output power: 33dBm（2W）

• Receive power consumption < 7 mA

• Data transfer rate:0.018-62.5 Kbps

• Packet engine up to 256 bytes with FIFO and CRC

• Modulation mode：Lora TM、（G）FSK

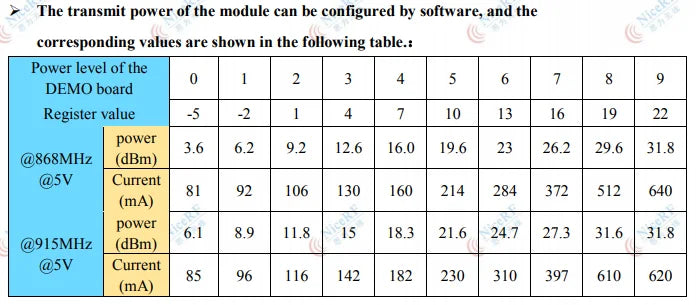

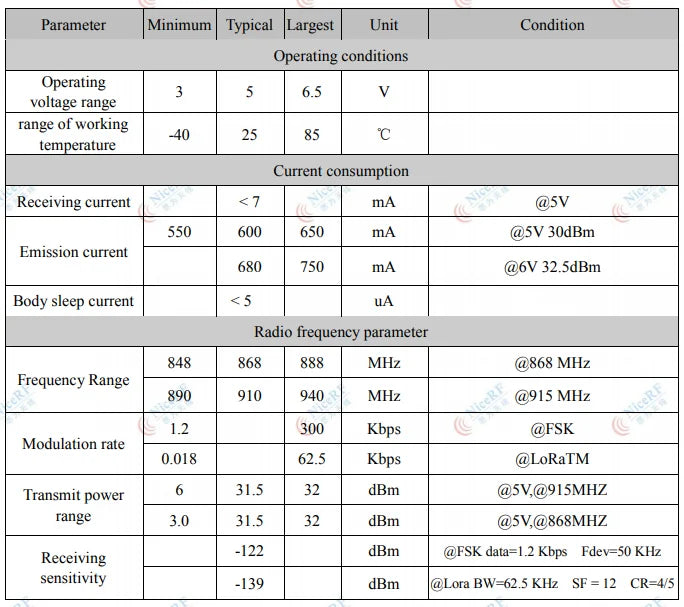

Specifications:

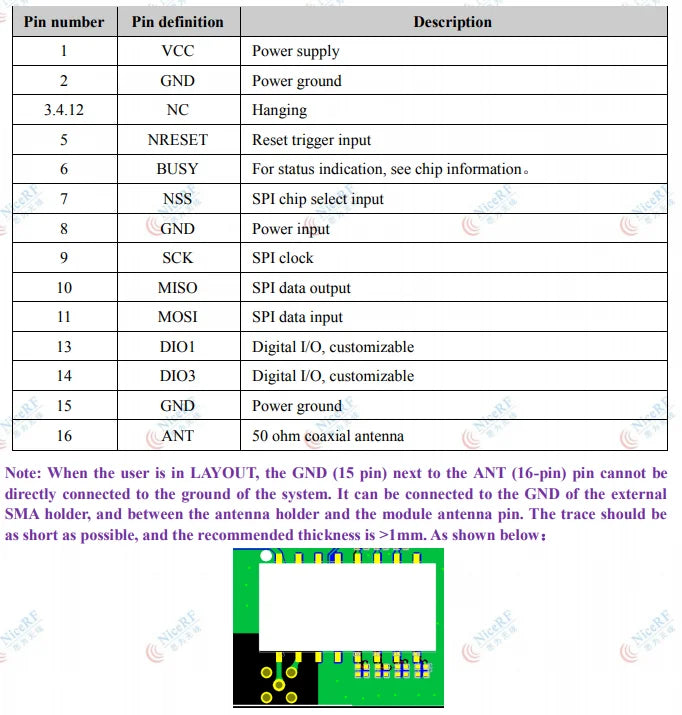

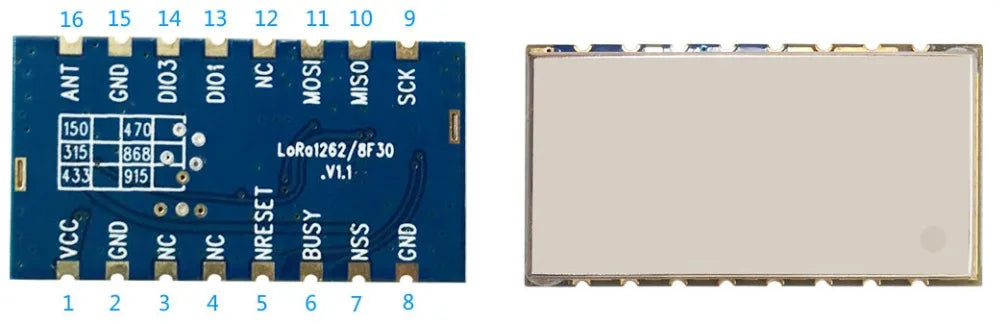

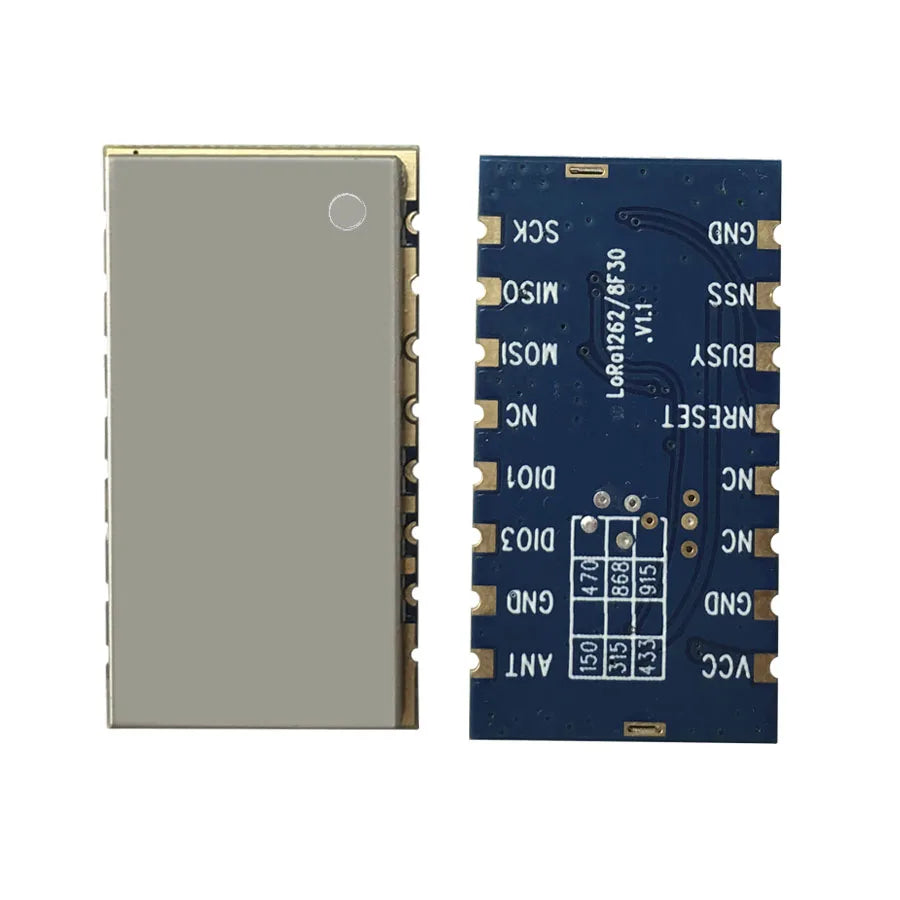

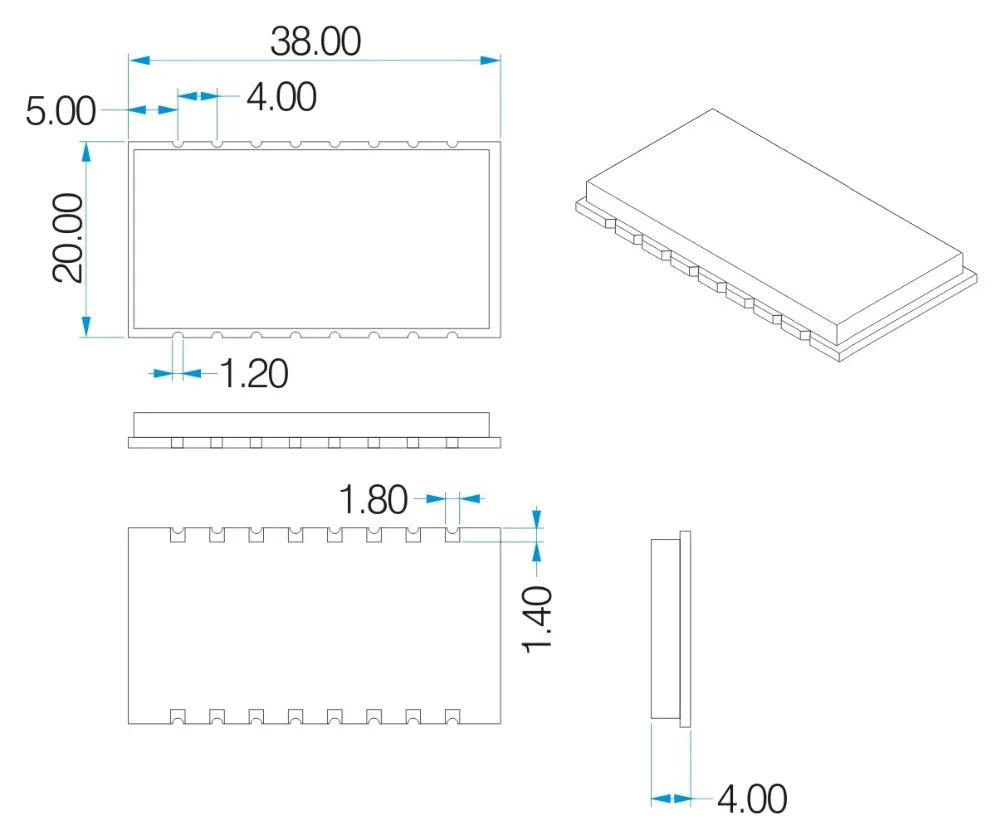

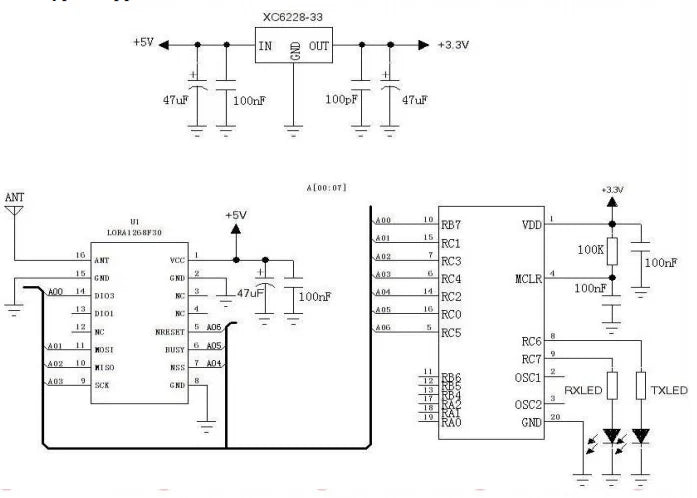

Schematic:Pin configuration:Machanism dimensions(mm):
