2pc/lot lora1268F30 1.5W 433MHz SX1268 High Sensitivity -148dBm low current SPI port Lora Module
433MHz
$188.00
Sale price
$188.00
Regular price
$0.00
Skip to product information
2pc/lot lora1268F30 1.5W 433MHz SX1268 High Sensitivity -148dBm low current SPI port Lora Module
$188.00
Sale price
$188.00
Regular price
$0.00
Description
SPECIFICATIONS
Antenna Connection Method: soldering
Audio Interface Type: none
Brand Name: G-NiceRF
Communication Interface Type: SPI
Frequency Band: 433 / 470MHz
High-concerned chemical: none
Information Delivery Content: Data
Network Support: No
Operating Temperature Range: -40 ~ + 85 °
Origin: Mainland China
Power: 33dBm (2w) @6V
Range: >8km
Sleep Current: <5uA
Transmit Power: 2W
Type: Lora Module
Voltage: 3-6.5 V
Working voltage: 3-6.5 V
chip: sx1268
frequency band: 433 / 470MHz
interface: SPI
modulation: Lora TM ,FSK,GFSK Modulation mode
sensitivity: -148 dBm
2pc/lot lora1268F30 433MHz SX1268 33dBm High Sensitivity -148dBm low current 2W SPI port Lora Module

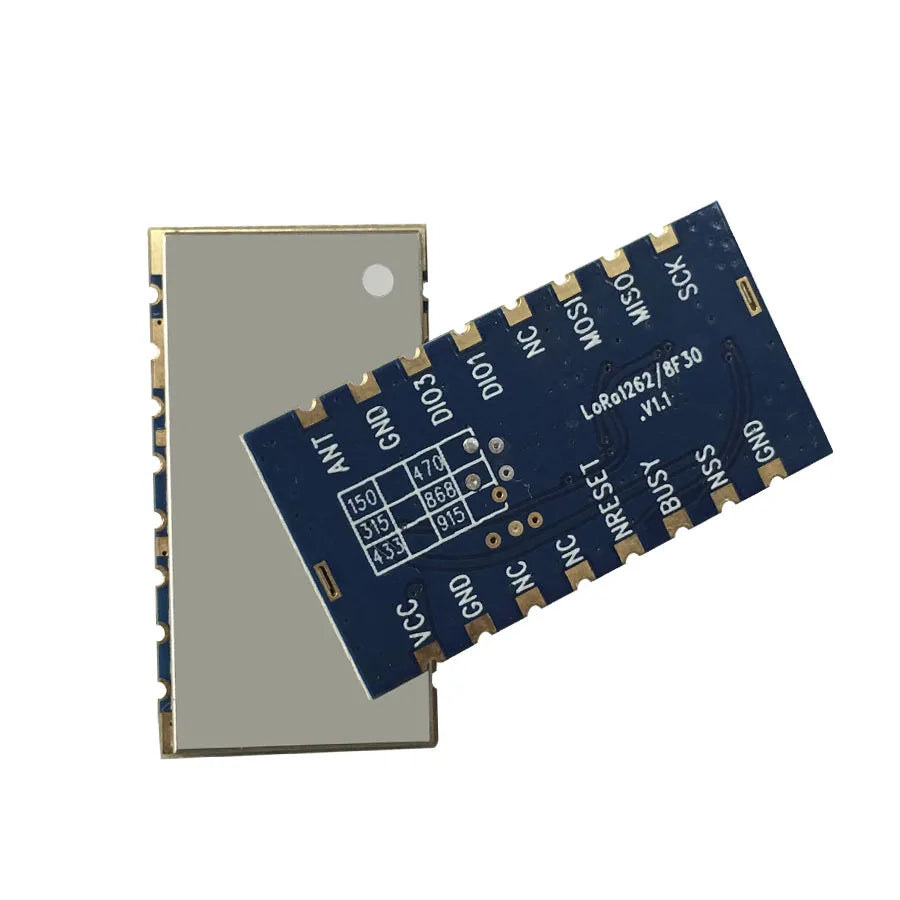

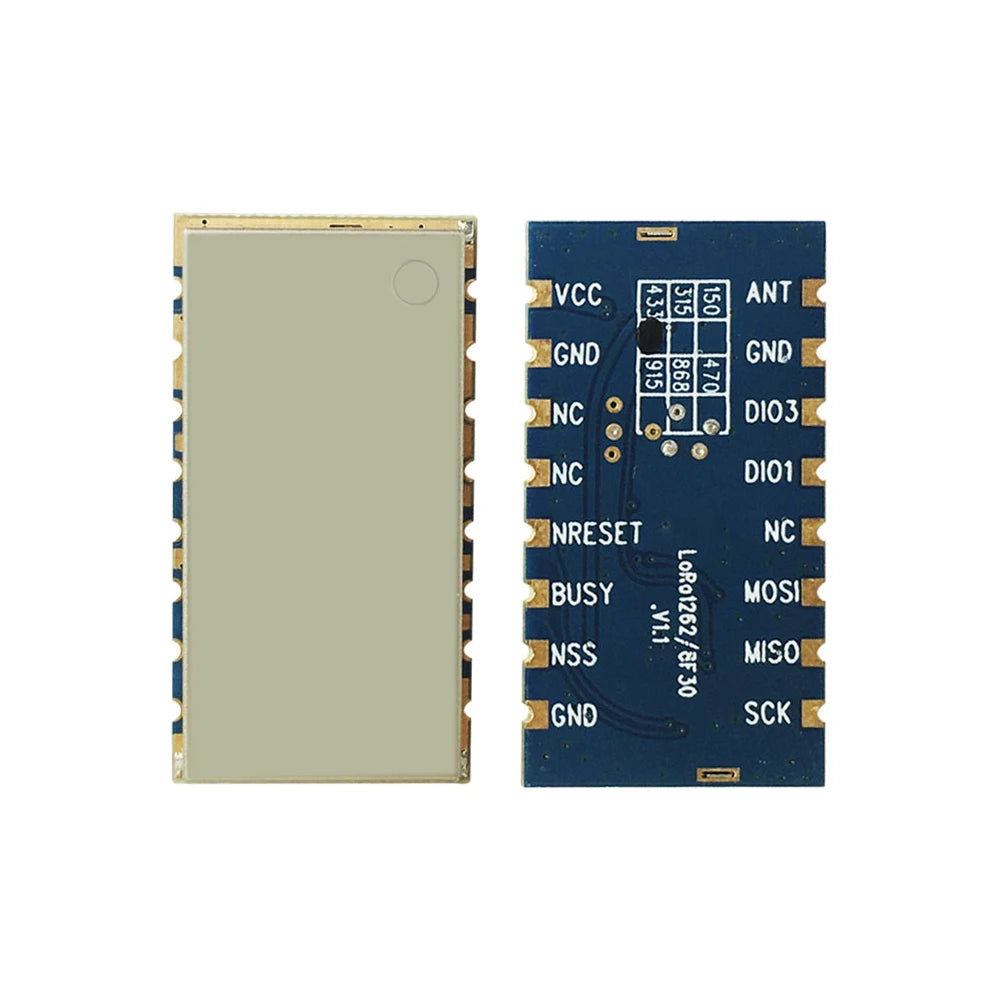

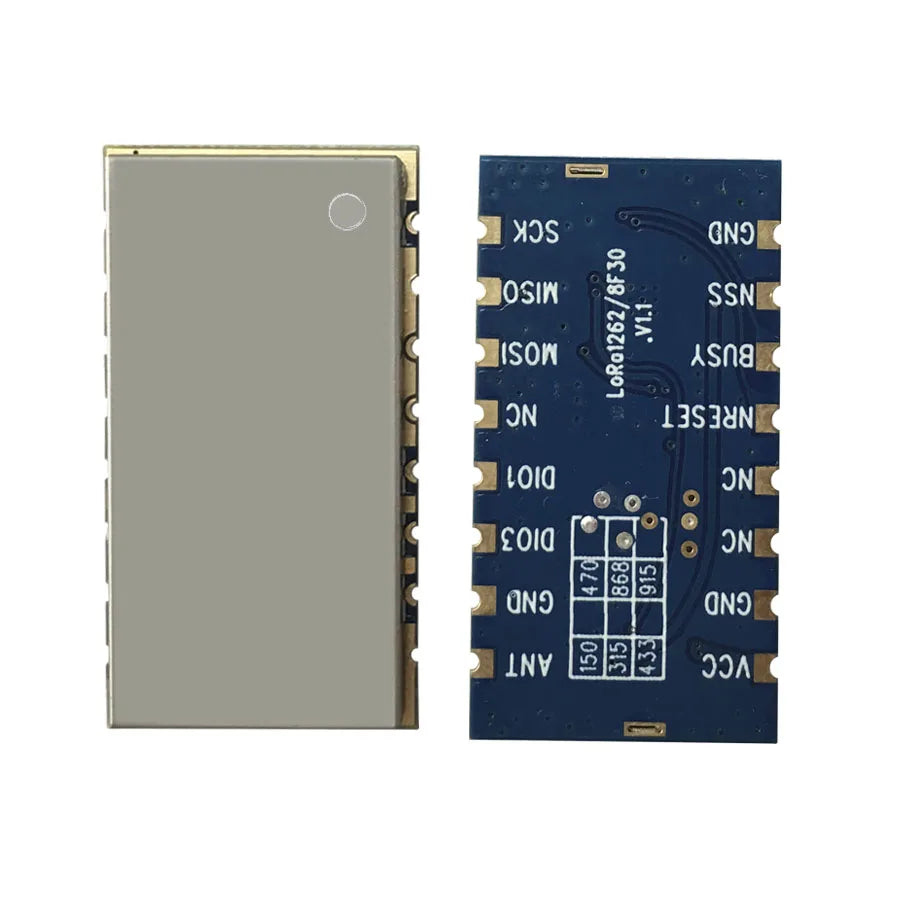

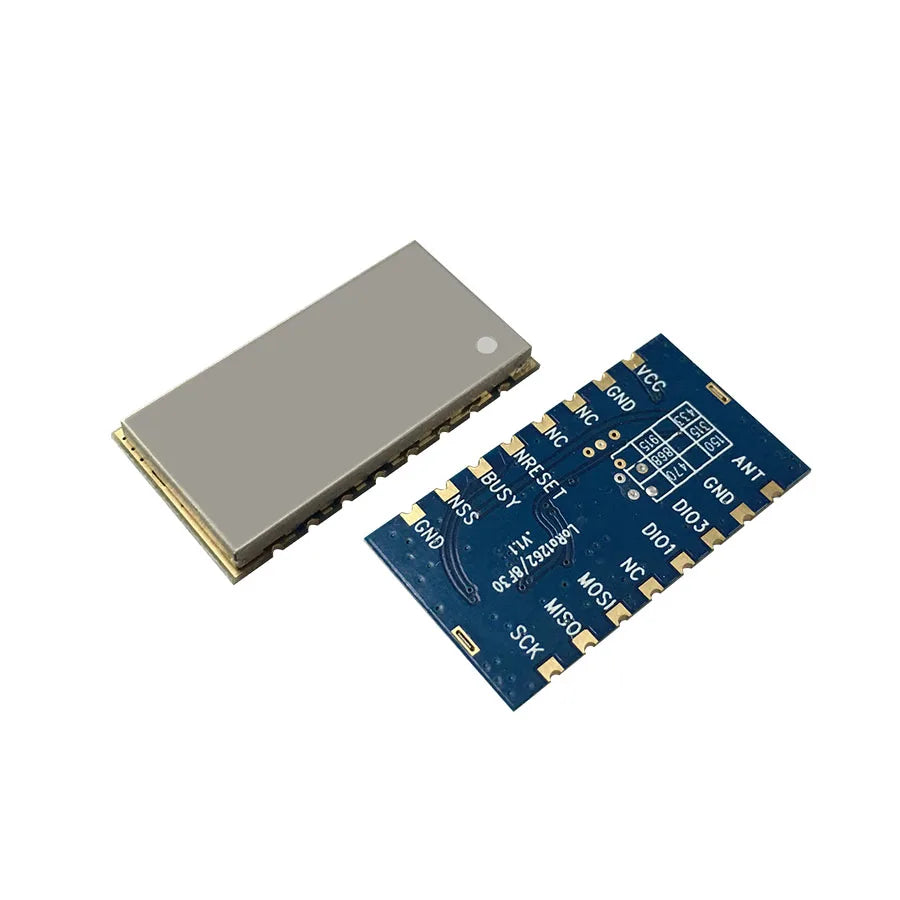

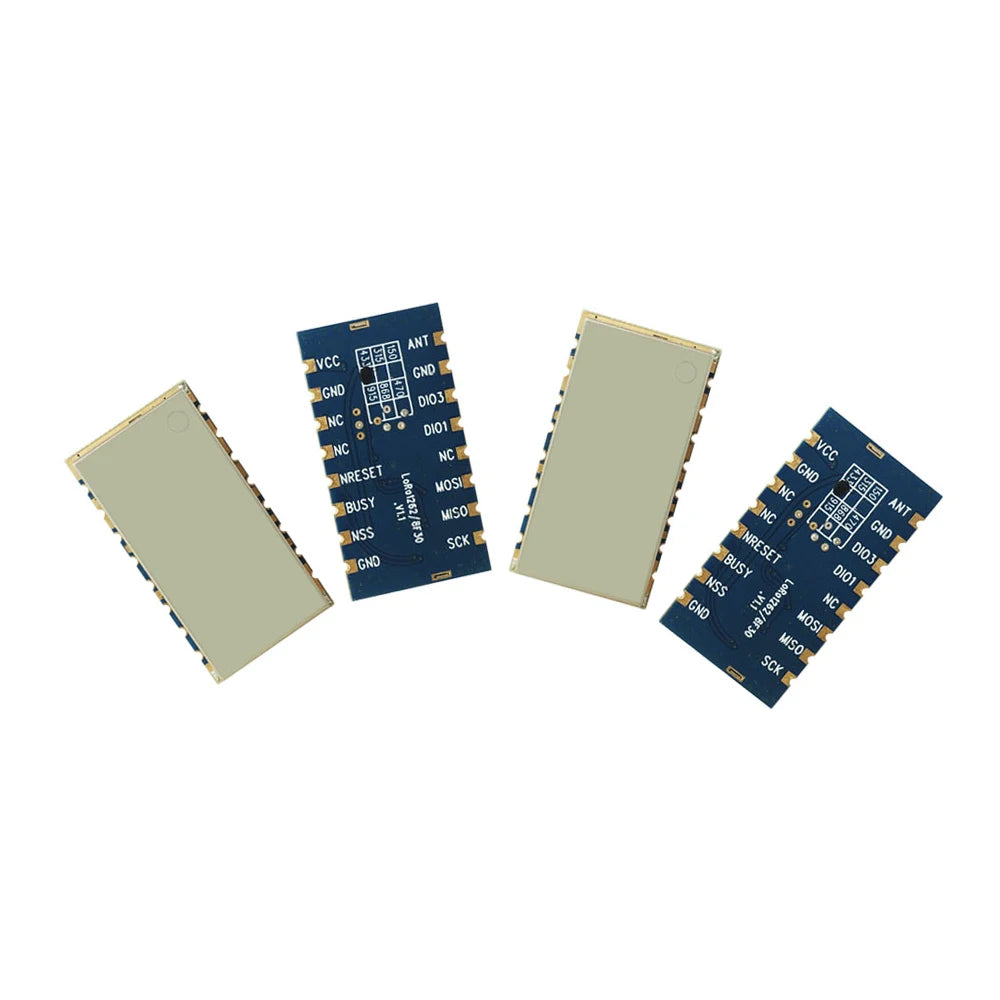

2pc 2W 433MHz sx1268 chip Wireless LoRa Module LoRa1268F30
2pc 433MHz spring antenna
(If you need 470MHz, just leave message please)
LoRa1268F30 wireless module uses Semtech's SX1268 chip, which uses a high-precision TCXO crystal oscillator, ultra-low receive current and sleep current, and sensitivity of -148dBm. Built-in 64KHz crystal oscillator can wake up the microcontroller periodically under low power consumption. The module antenna switch is integrated and controlled by the chip, which saves the resources of the external MCU. The compact size and 33dBm (2W) output power have great advantages in IoT and battery-powered applications.
Features:
Frequency Range: 433/ 470 MHz
Sensitivity up to -148dBm @Lora
Maximum output power: 33dBm（2W）
Receive power consumption < 5 mA
Data transfer rate: @FSK 0.6-300 Kbps
Packet engine up to 256 bytes with FIFO and CRC
Modulation mode：Lora TM、（G）FSK
Applications:
Smart meters
Supply chain and logistics
Building automation
Agricultural sensor
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications

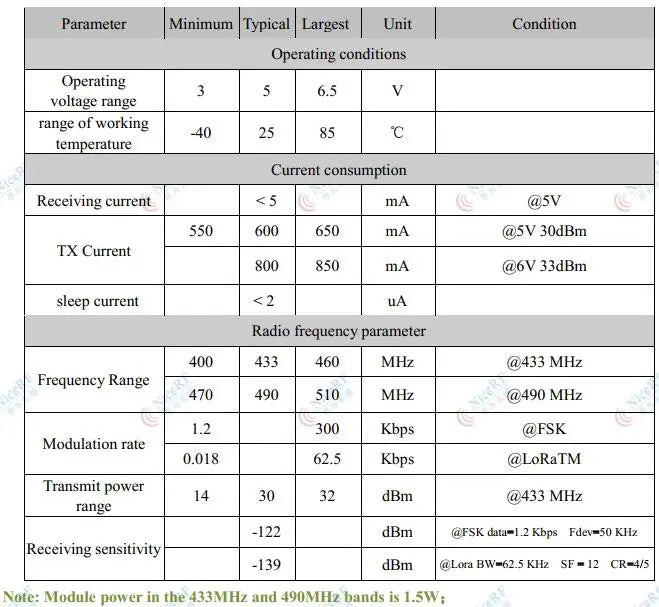

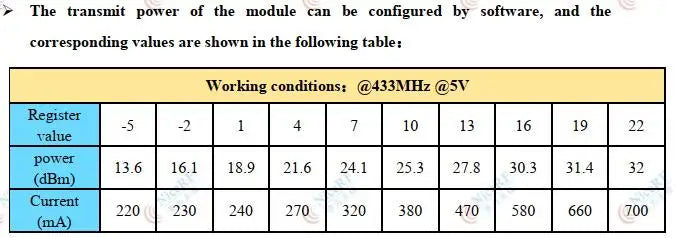

Specifications:

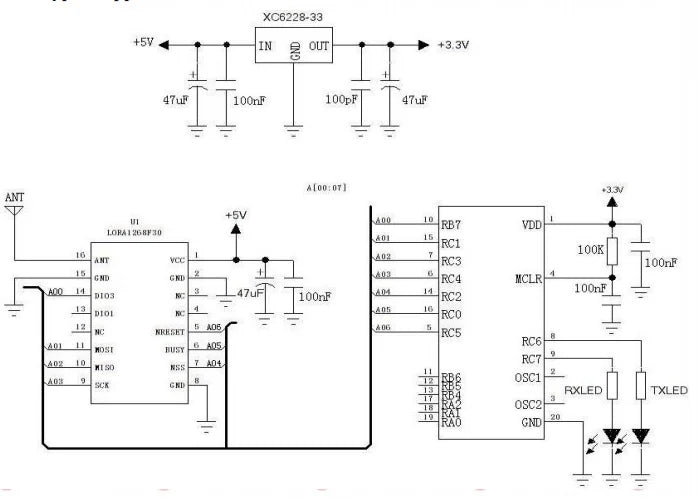

Schematic:

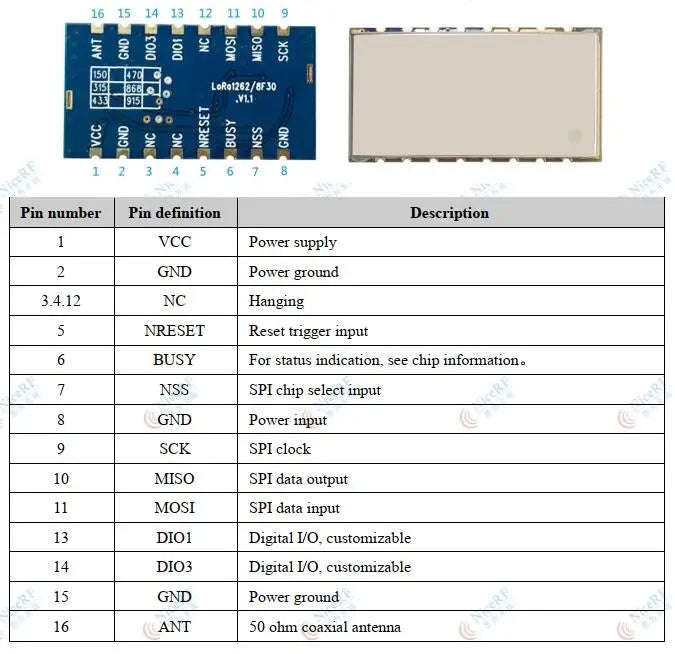

Pin configuration:

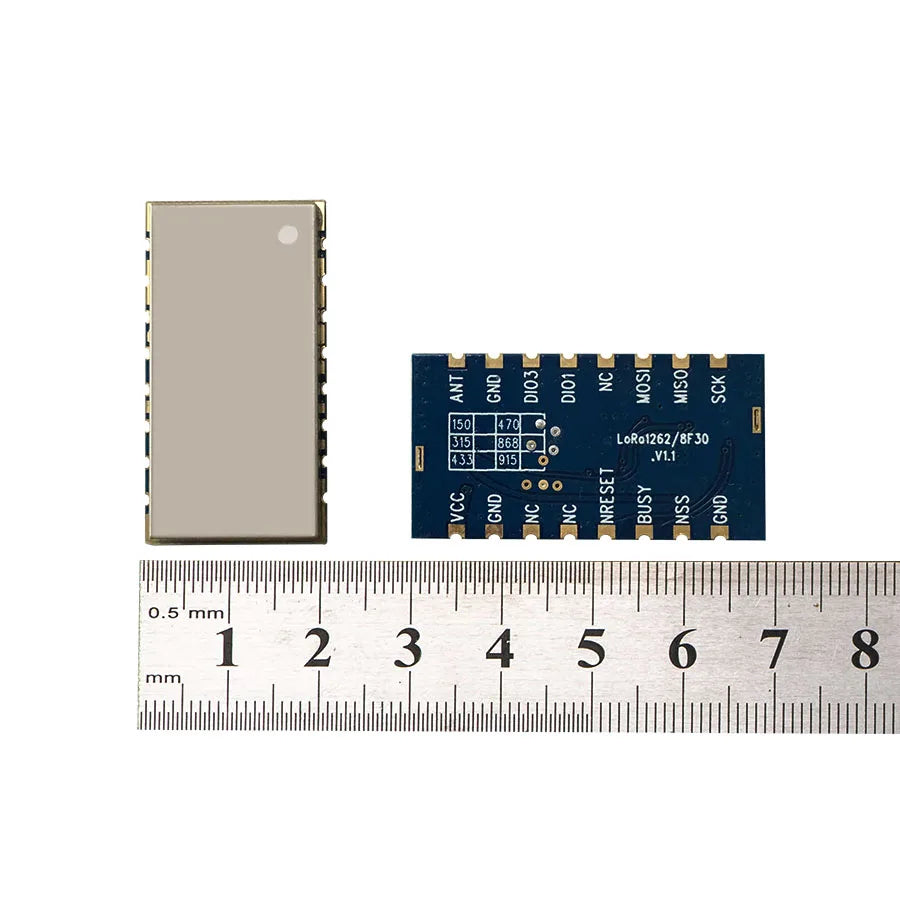

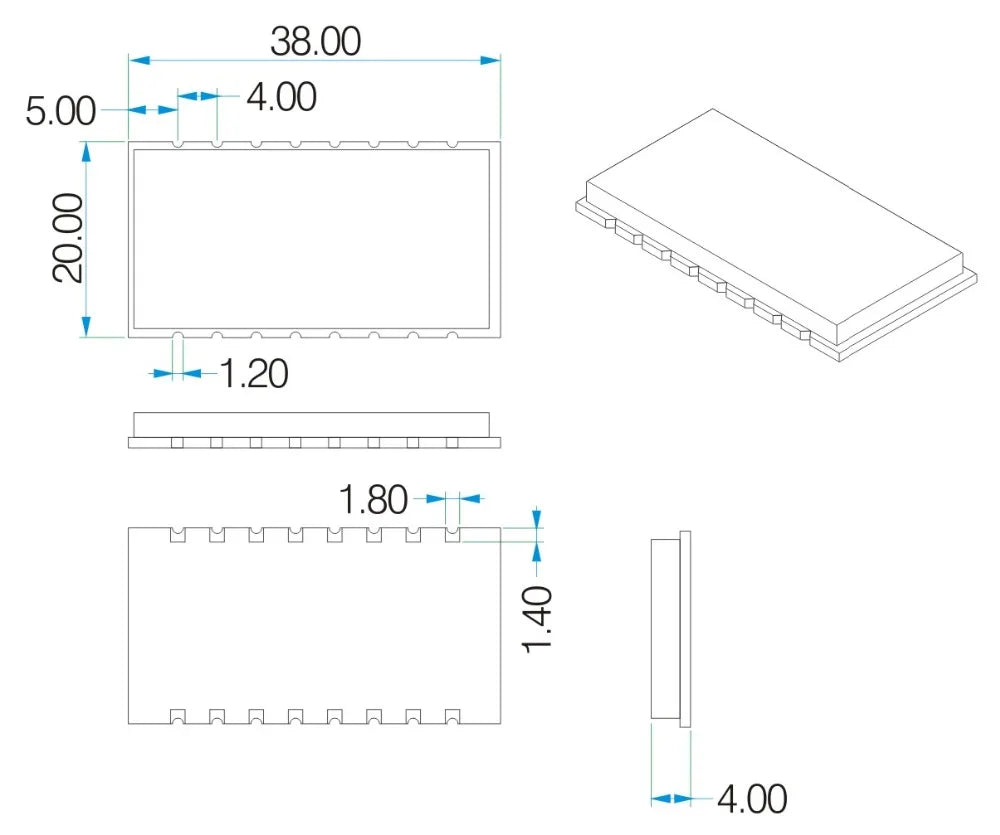

Machanism dimensions(mm):
