Description

SPECIFICATIONS

20g~2kg High Resistance Type Thin Film Pressure: Sensor Force Sensor Force Sensor Pressure Sensor Pressure Resistor

Brand Name: EC Buying

FSR400 FSR402 FSR406 Force Sensitive Resistor: 0.5 inch For Arduino compatible Force Sensing Resistor

High-concerned chemical: none

Load Cell Resistive Membrane Pressure Sensor: Flexible Force Sensitive Analog FSR402 4mm 5mm 7mm 110mm For Arduino

Material: Mixture

Origin: Mainland China

Output: Digital Sensor

Resistive Thin Film Pressure Sensor Flexible Force Sensitive: Resistor Load Cell Converter Module 4/5/7/18/110mm For Arduino

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Theory: Resistance Sensor

Type: Magnetic Sensor

Use: Pressure Sensor

is_customized: Yes

Load Cell Resistive Membrane Pressure Sensor Module Flexible Force Sensitive Analog FSR402 4mm 5mm 7mm 110mm For Arduino

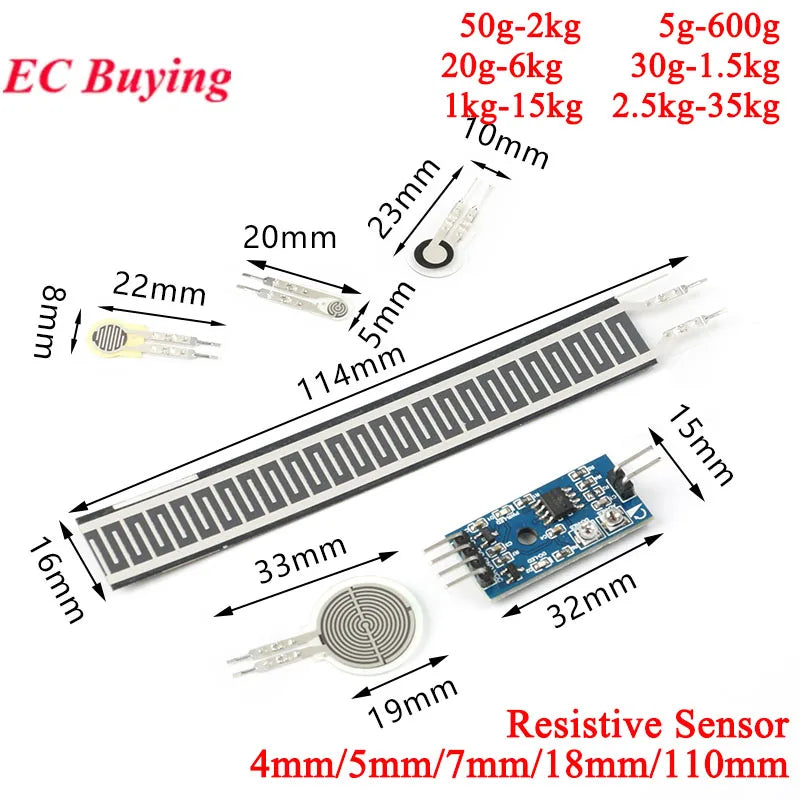

Product parameters:

The greater the pressure, the lower the resistance

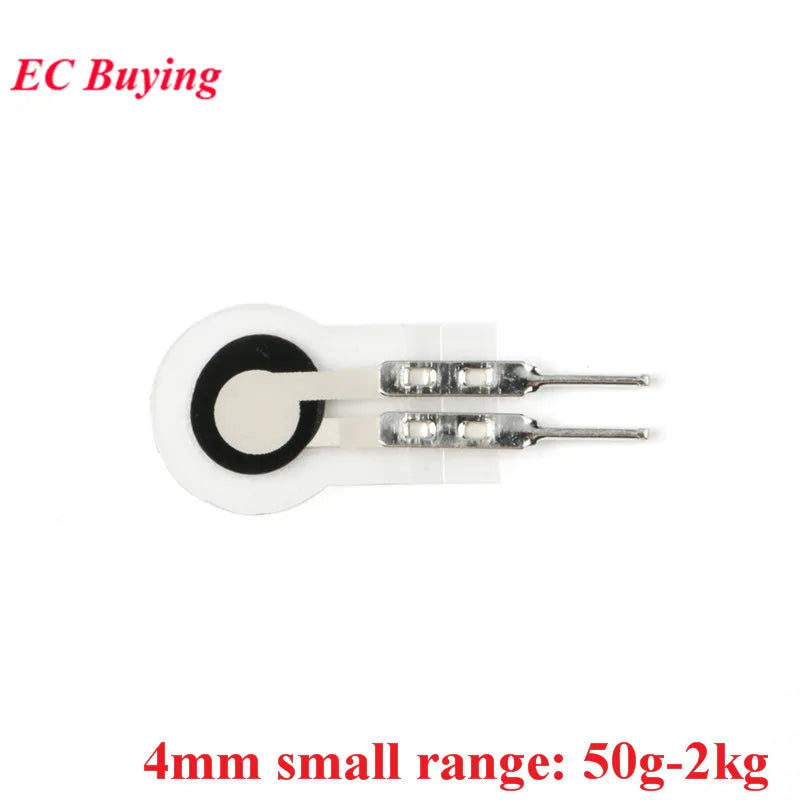

4mm small range: 50g-2kg

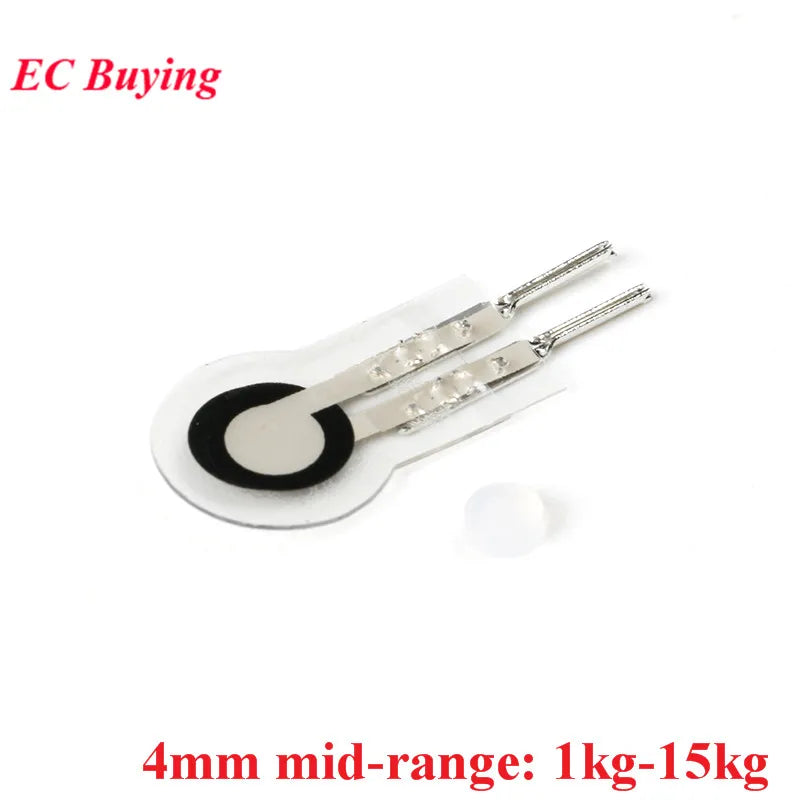

4mm mid-range: 1kg-15kg

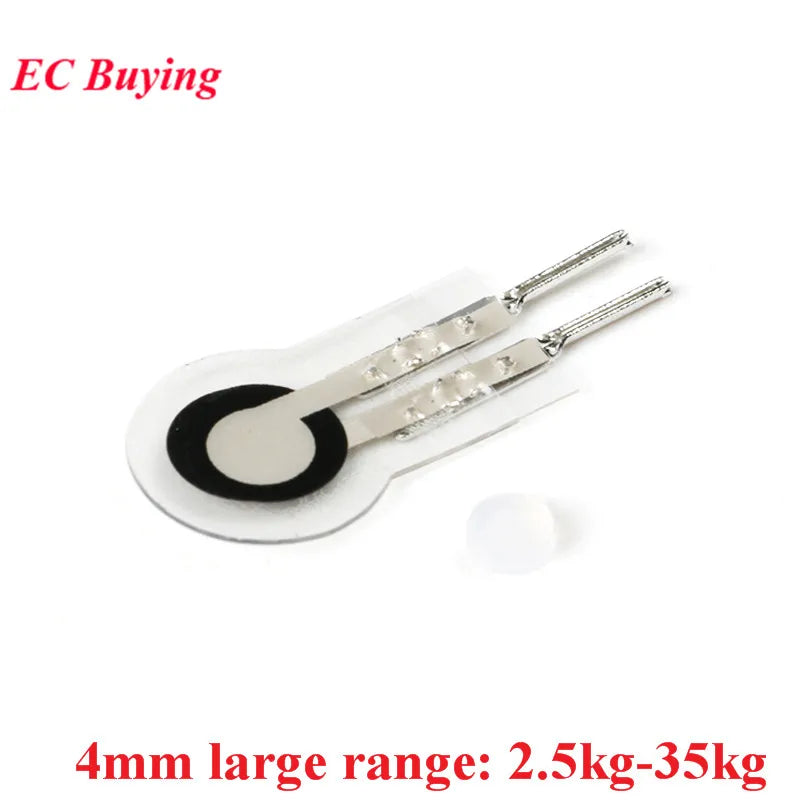

4mm large range: 2.5kg-35kg

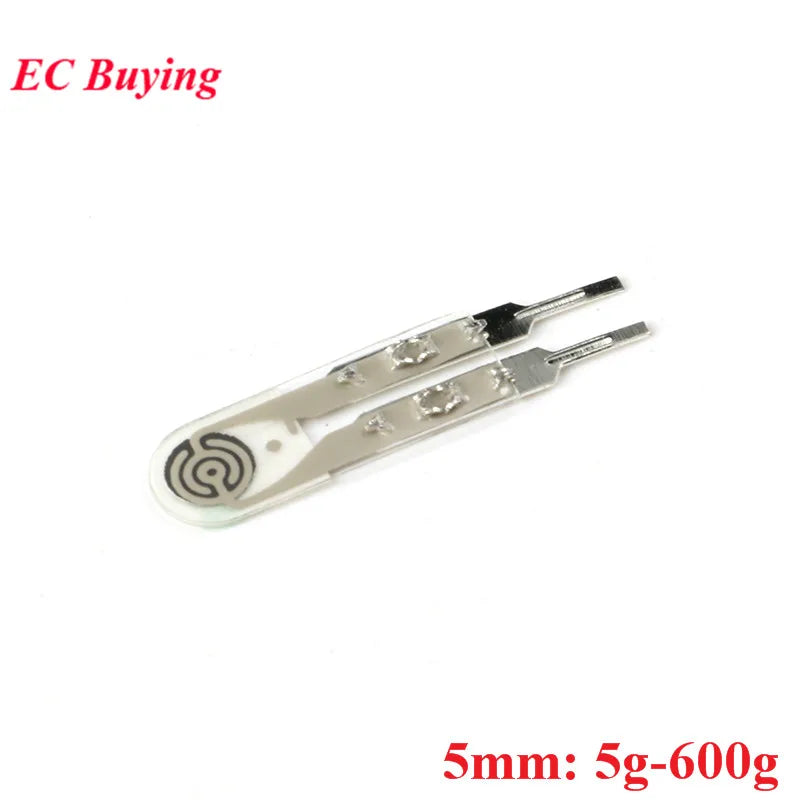

5mm: 5g-600g

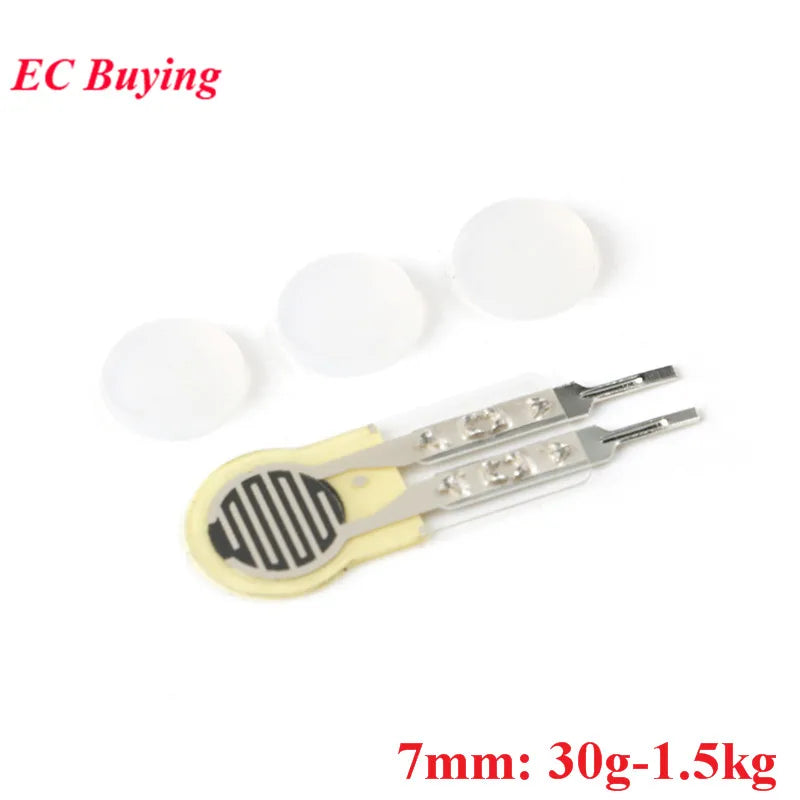

7mm: 30g-1.5kg

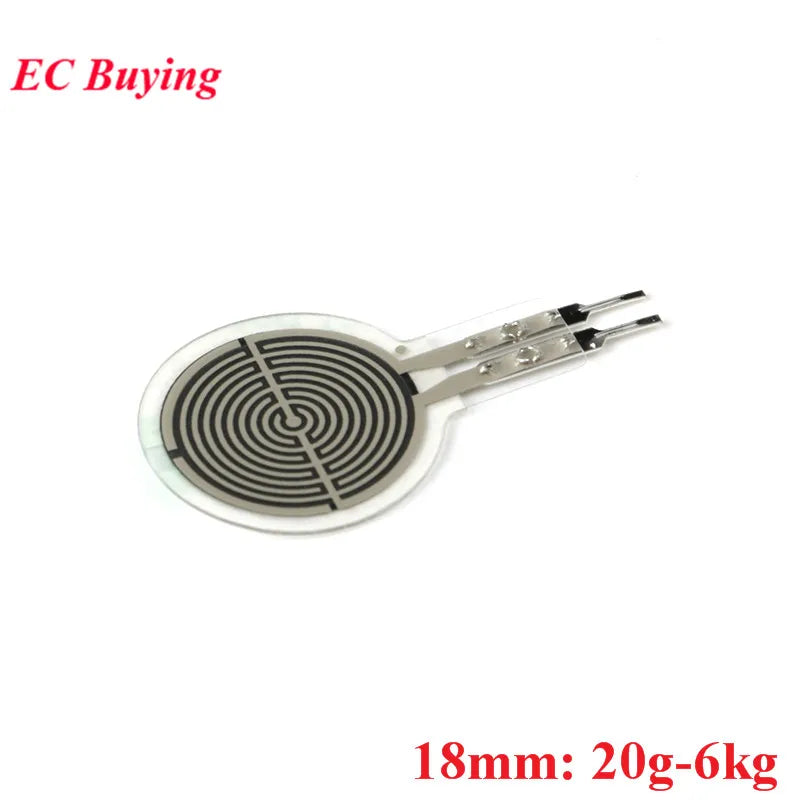

18mm: 20g-6kg

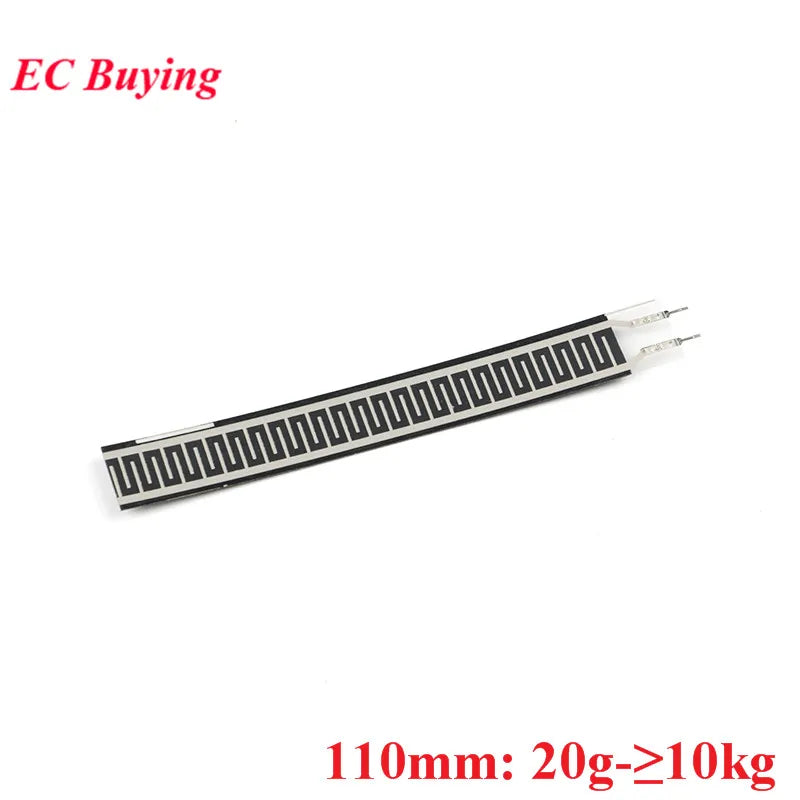

110mm: 20g-≥10kg

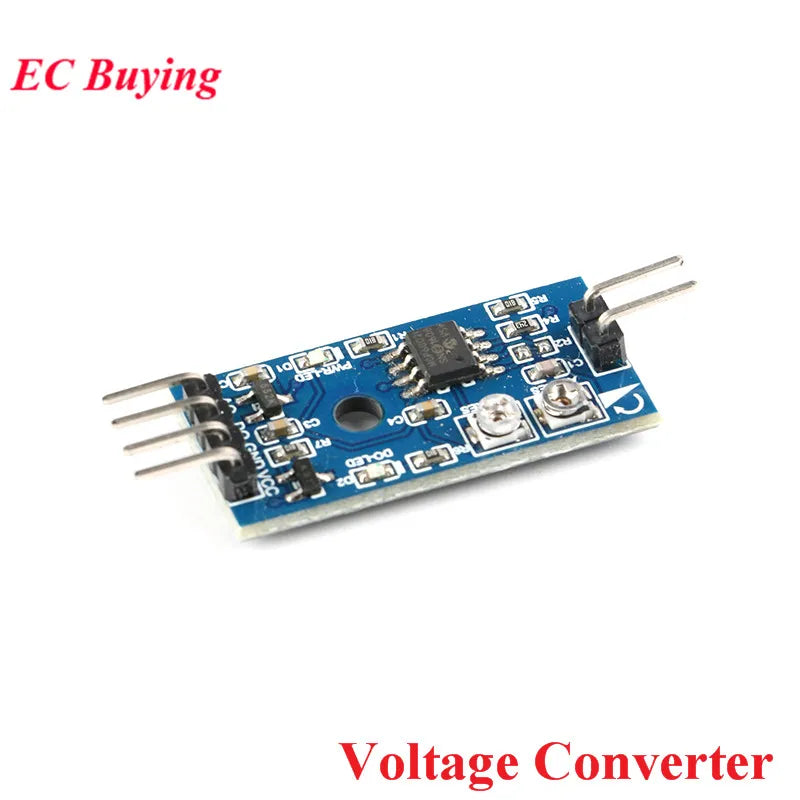

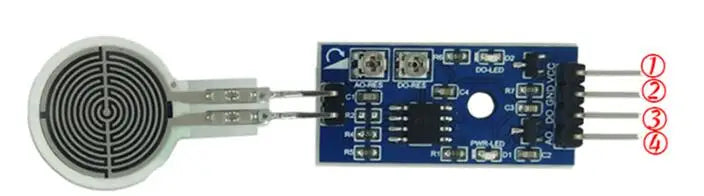

Pin description:

VCC: positive supply voltage (5V)

GND: negative supply voltage

DO: High point level signal output

AO: analog voltage signal output (0-3.3V)

AO-RES: magnification adjustment potentiometer

DO-RES: comparison threshold adjustment potentiometer

Instructions for use:

Gasket installation

Place the green surface of the gasket on the sensor, in the center of the sensor sensing area, and then apply the tested object vertically to the gasket, so that the effective contact and force of the sensor and the tested object all act on the sensor sensing area.

Precautions when installing and using the sensor

1. Try to choose a stable, smooth and flat installation surface;

When your mounting surface is curved, you must bend it when you install the sensor, so that-the sensor sensing area will be stressed, which will affect the accuracy of the sensor to a certain extent, so be careful not to make the sensor effective The surface is installed on a curved surface with a large curvature (Note: the round effective surface cannot be bent, and the long tail can be bent);

2. It is recommended to use a flexible gasket with a relatively stable elasticity between the sensor and the measured object to ensure effective contact between the sensor and the measured object;

3. Keep the contact surface of the sensing area clean;

4. The force should not exceed its rated range;

5. Try not to solder it directly to the universal board or the circuit board without the specific package belonging to it, so as to avoid the thermal deformation of the tail and poor contact. The metal terminal of the sensor can be connected to the wire by fast welding.
