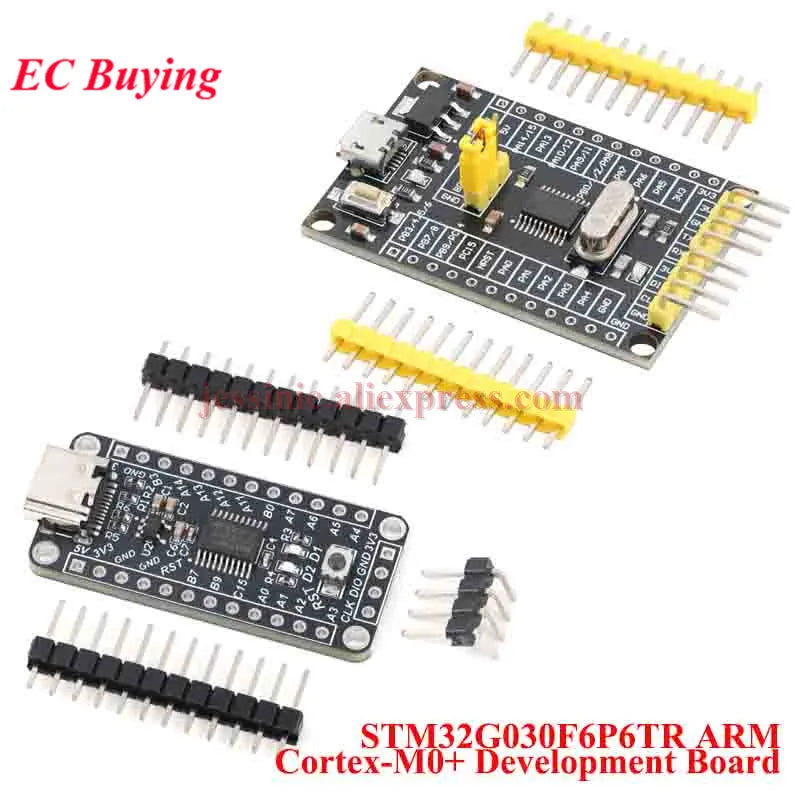

2Pcs/1pc STM32G030F6P6 STM32G030 Development Board G030 MCU M0 Core STM32 G030F6P6 ARM Mini System Learning Module STM32G030F6

2Pcs/1pc STM32G030F6P6 STM32G030 Development Board G030 MCU M0 Core STM32 G030F6P6 ARM Mini System Learning Module STM32G030F6

$5.36

$5.36 $0.00

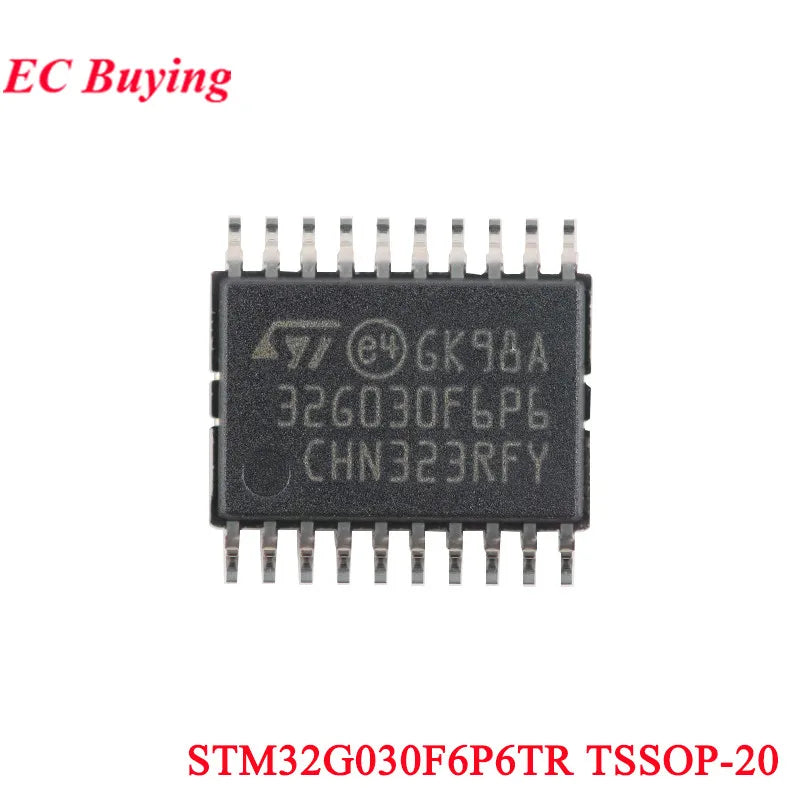

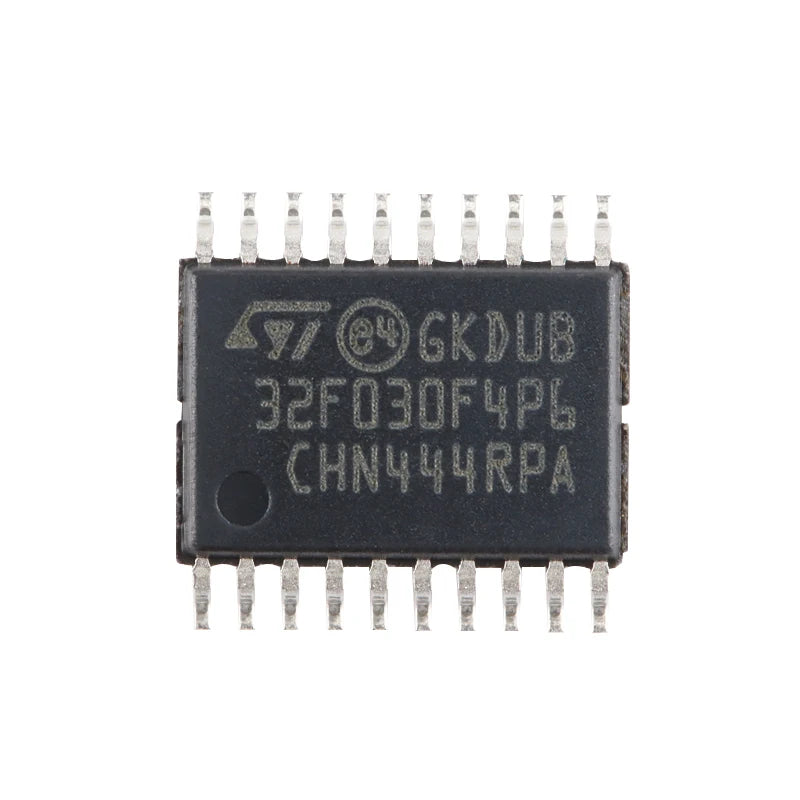

Color STM32F030F4P6TR Chip STM32G030F6P6 STM32G030F6P6 1 STM32G030F6P6 Chip

Model Number 1pc 2pcs

Description

SPECIFICATIONS

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: low

Frequency: 64mhz

High-concerned chemical: none

Operating Temperature: normal

Origin: Mainland China

Package: module

Power supply interface: Micro USB MicroUSB

STM32G030F6P6 STM32G030C8T6 Mini: Development System Board Module STM32G030 STM32 Microcontroller Core Learning Board

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Storage: 8KB RAM 32KB Flash

Supply Voltage: 3.3V 5V

Type: Voltage Regulator

is_customized: Yes

STM32G030F6P6

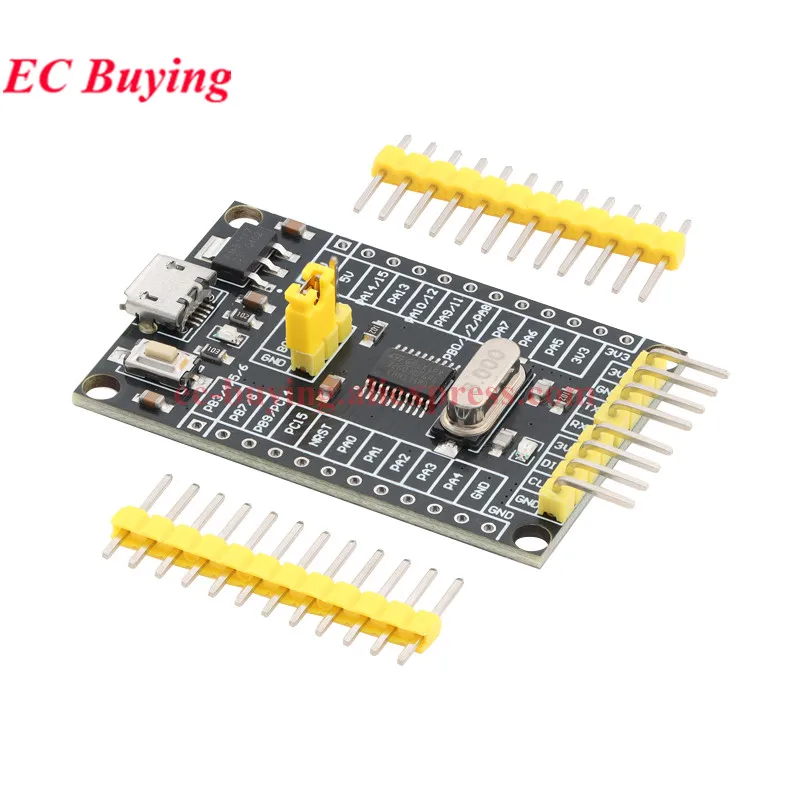

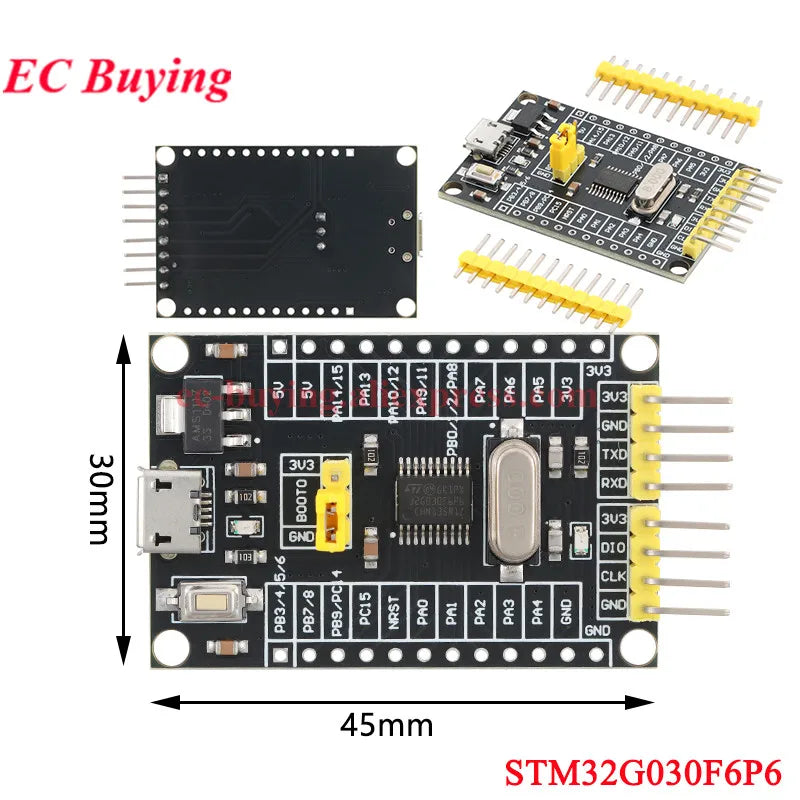

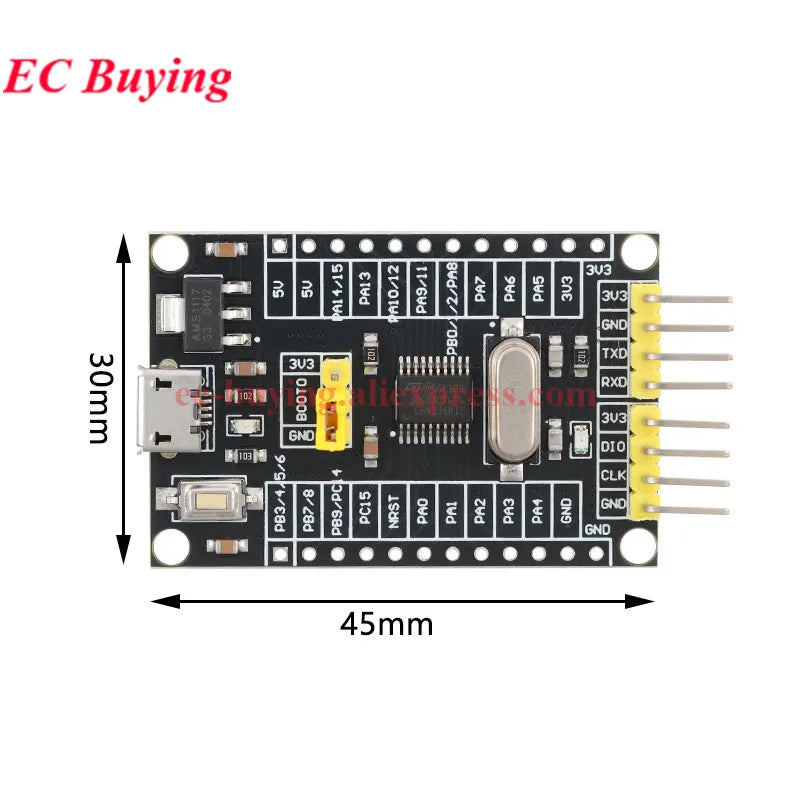

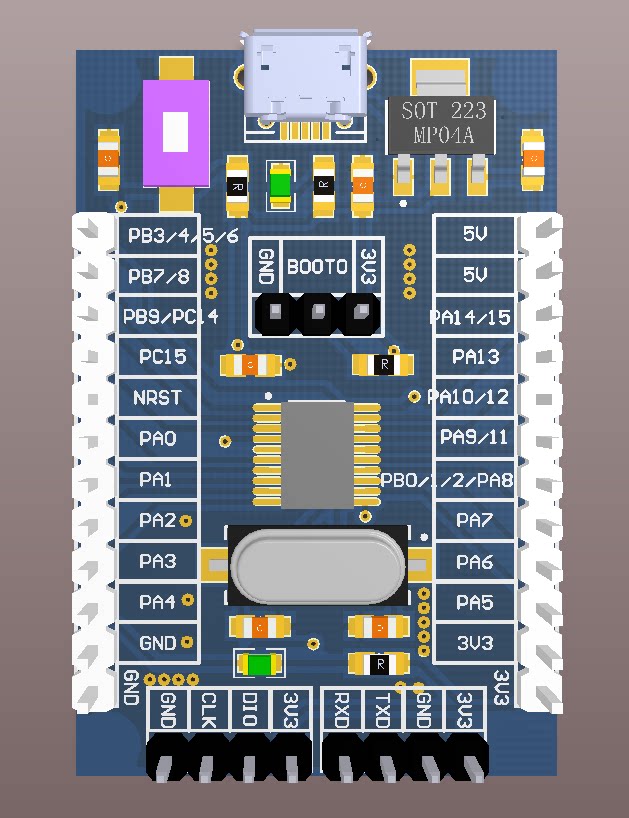

1. The core board provides the most basic circuitry for the normal operation of the STM32G030F6P6 chip, including an external high-speed crystal oscillator (8MHz), a power management circuit (AMS1117-3.3), a debug interface (SWD mode), and a BOOT selection circuit.

2. This core board provides nearly all available I/O port resources, reset I/O port resources, and boot selection port resources.

3. The core board provides a power monitoring LED (PWR_ LED) and a chip operation indicator (controlled by the PC6 pin in the STM32G030F6P6. If pins are limited and PC6 is needed, disconnect the PA15_ LED).

4. Power Supply Methods:

1. Power can be supplied via the core board's onboard USB-Micro port;

2. Power a debugger connected to the SWD port (2.7V-3.6V);

3. Power an external power supply connected to the port marked 5V (5V-12V).

4. Using multiple power supply methods simultaneously is not recommended. Cross-powering can cause short circuits and burnout of the core board or debugger.
