SPECIFICATIONS

Application: Electric Toy

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: 2W

High-concerned chemical: none

Input Voltage: DC 3.2~6V

Maximum output current: 300MA

Operating Temperature: -25~85

Origin: Mainland China

Output Voltage: DC 3V +-2%

Short time maximum output current: 390MA

Supply Voltage: dc 3.2-6V

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

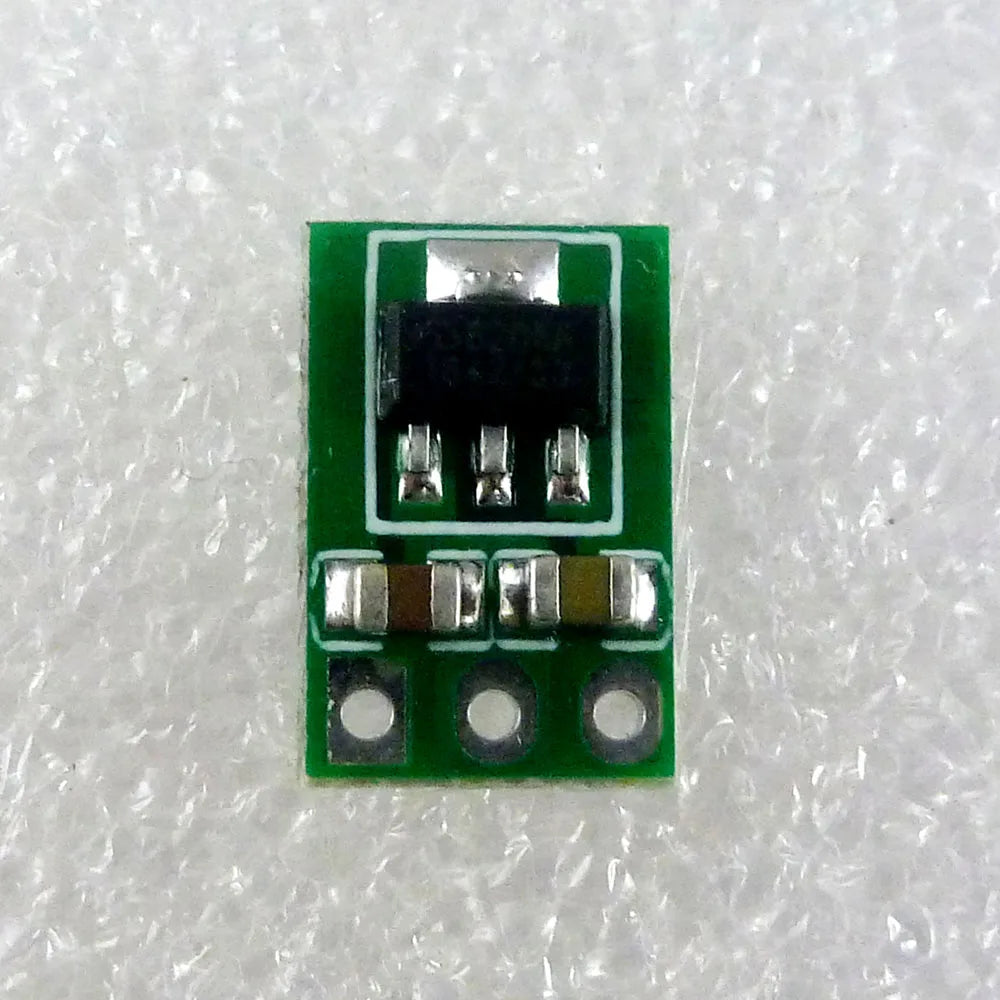

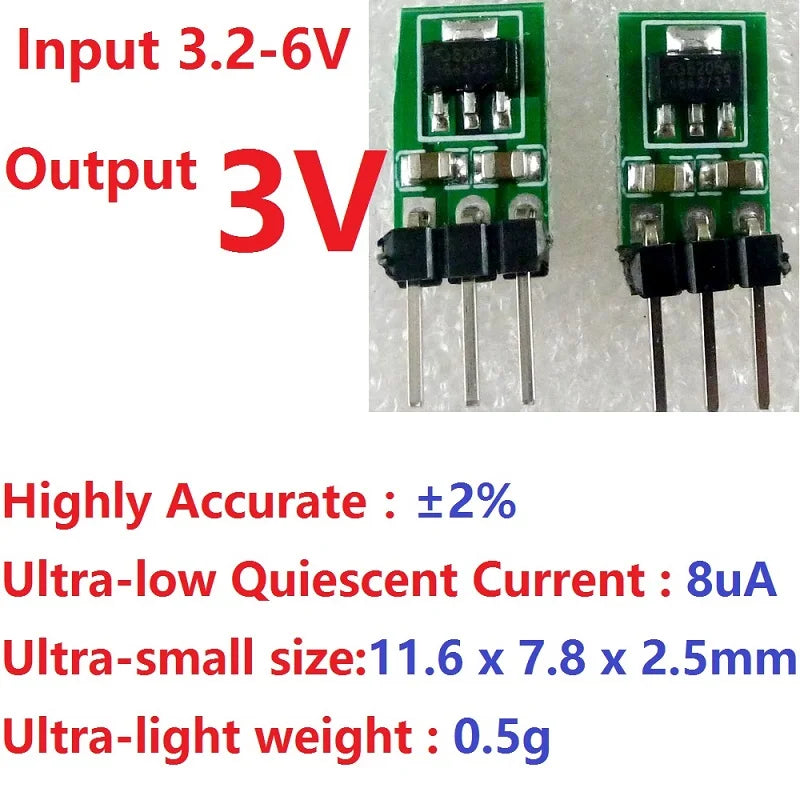

Product Name: 2PCS 3.3-6V to 3V DC-DC Step-Down Power Supply Buck LDO Module Voltage regulator Board for 18650 li-ion AAA Dry cell batteries

Module No.: DD0403MB_3V*2

Packing list:

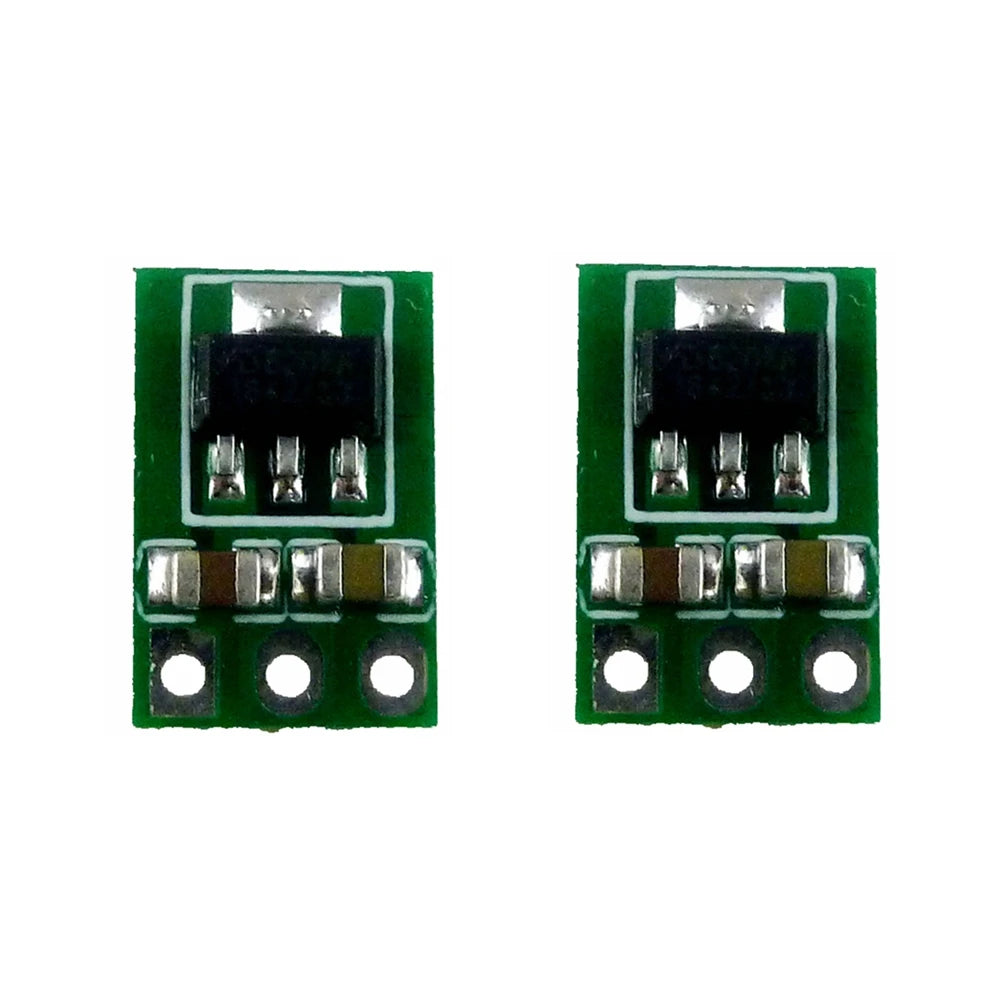

2 PCSDD0403MB_3V 3.2V-6V to 3V DC DC Step Down Converter LDO Module
(Specific according to the version and quantity you choose)









Description:

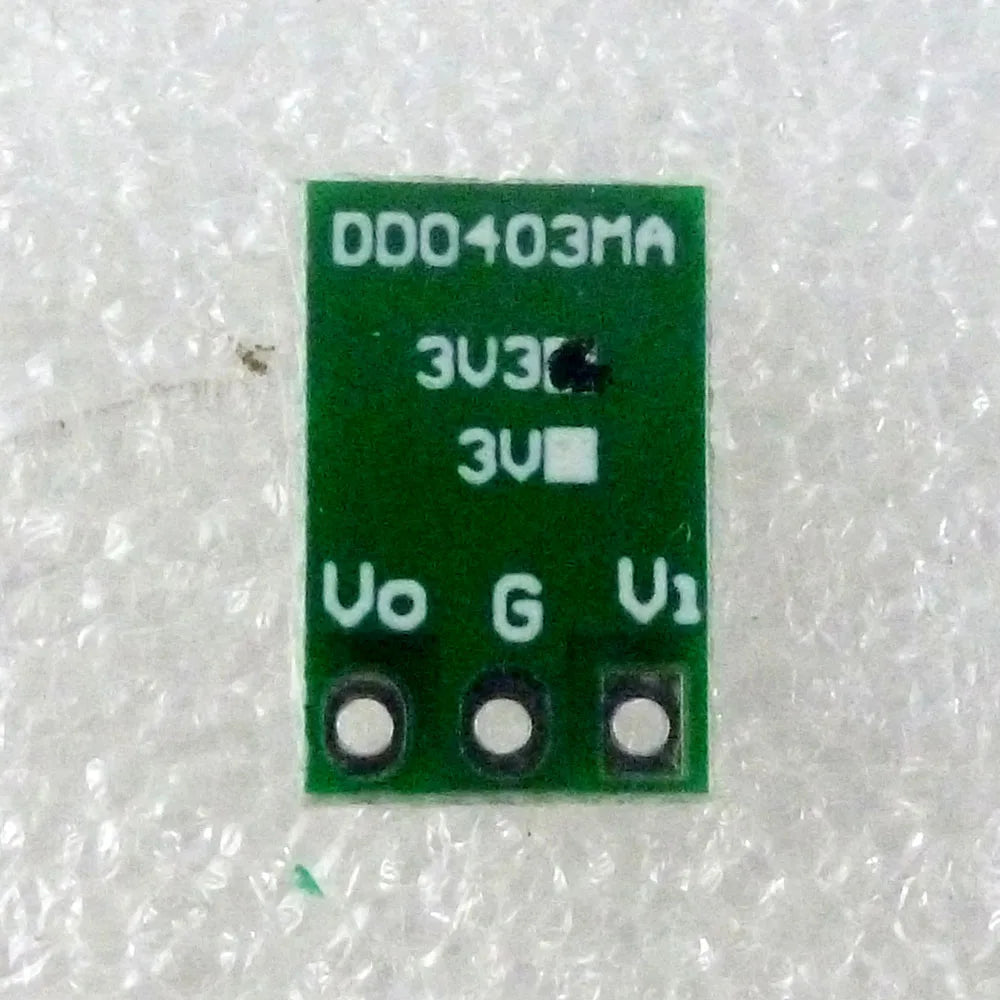

Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered

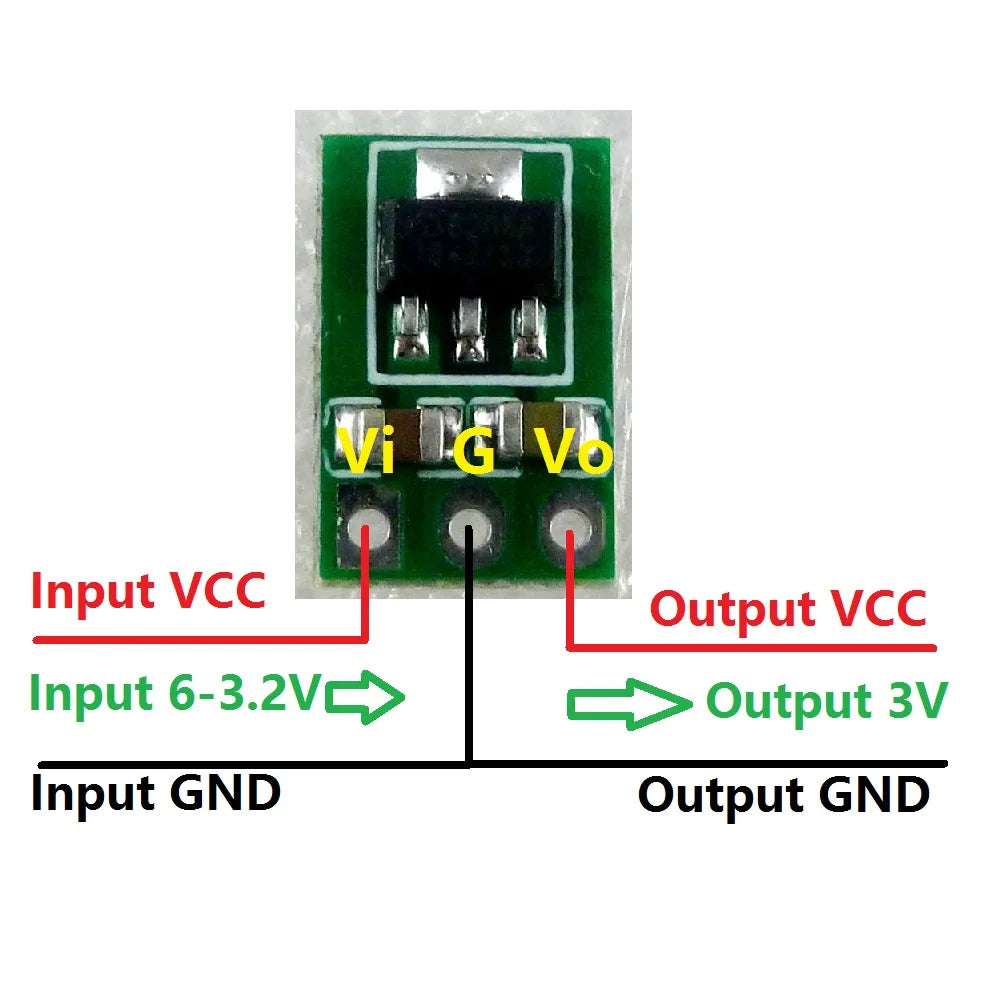

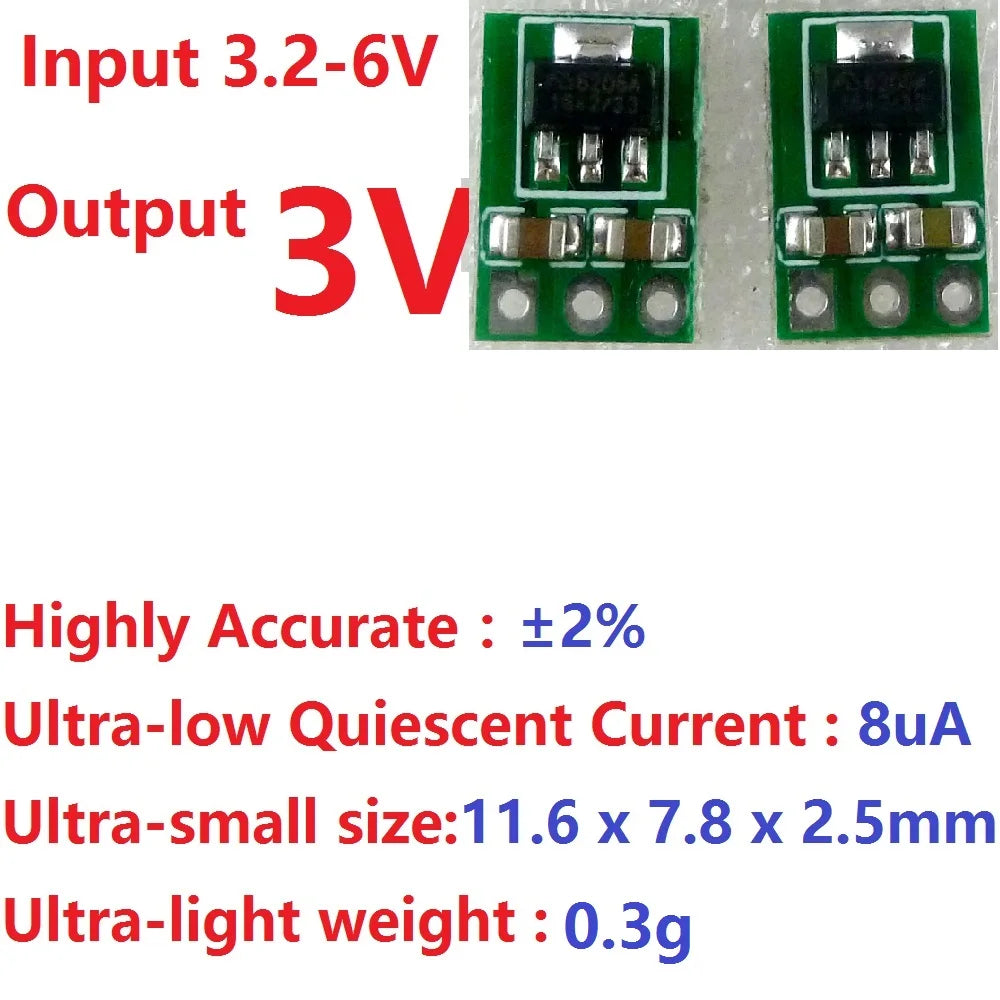

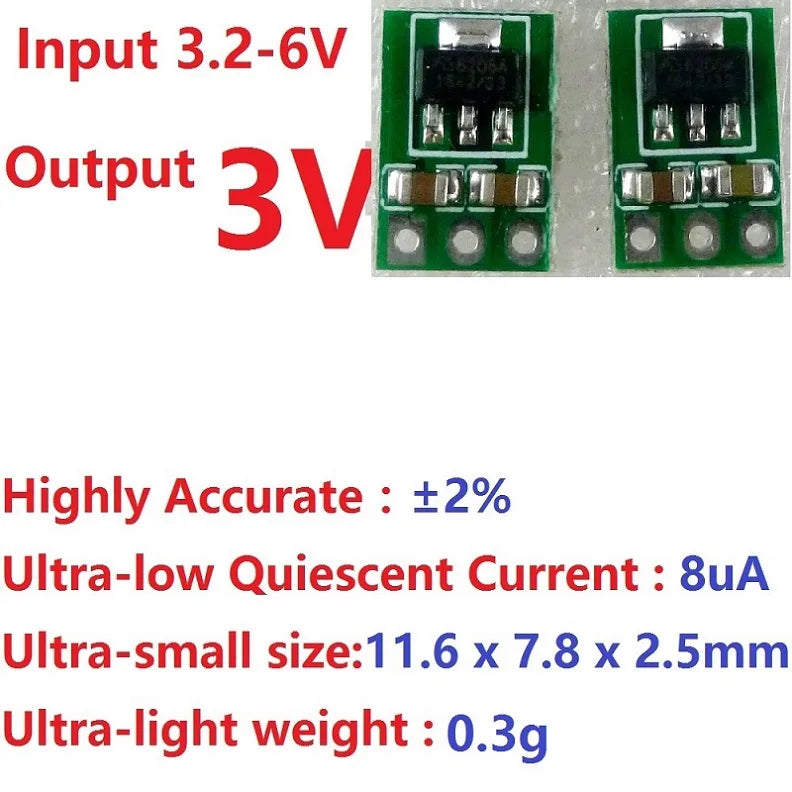

Input voltage: DC 3.2-6V

Output voltage: DC 3V

Long time maximum output current 300mA

Short time maximum output current 400mA

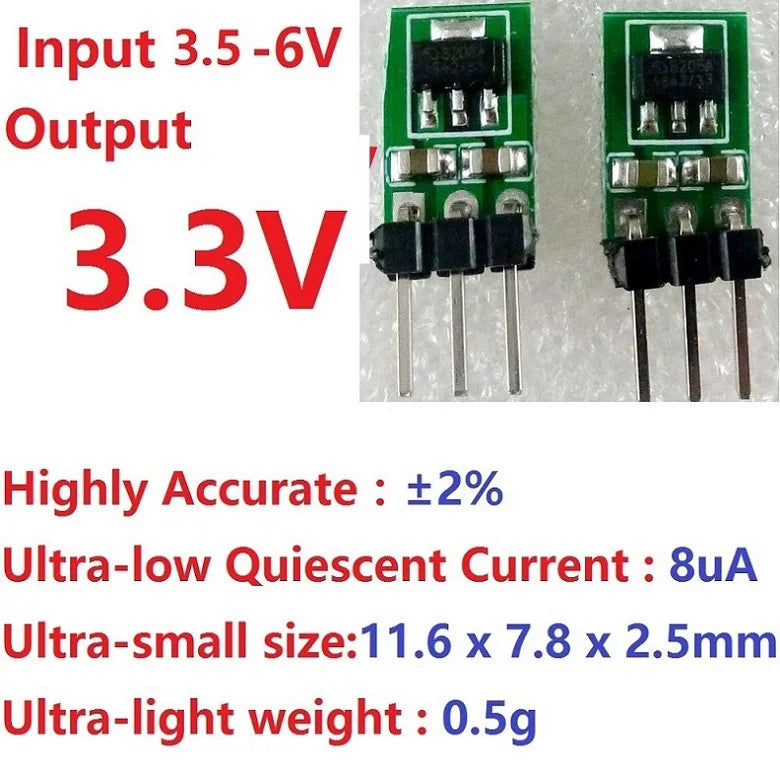

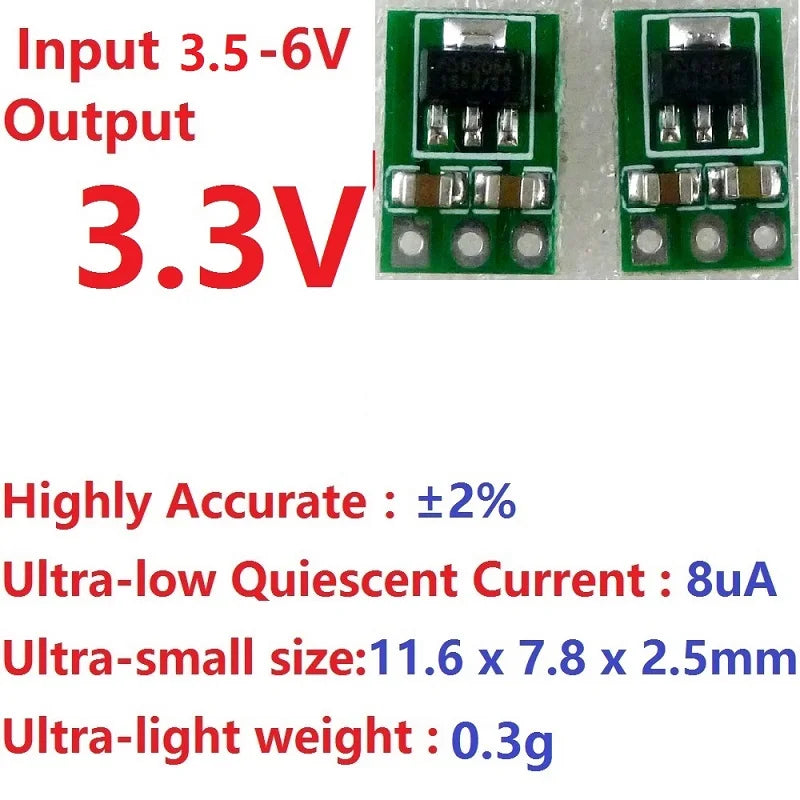

Highly Accurate:±2%

Quiescent Current : 8uA

Short Circuit Current : 30mA

Over Current Protection : 500mA

Operating Temperature: -25℃ ~ +85℃

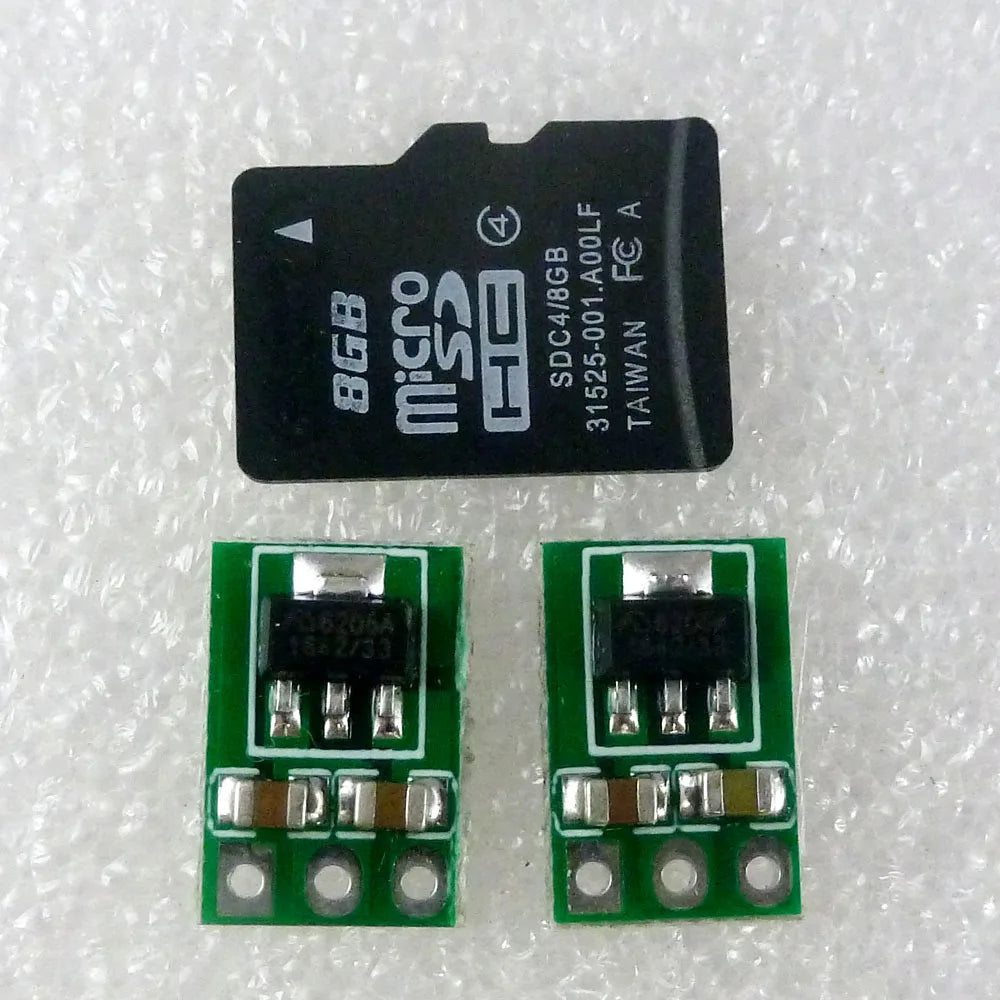

Size : 11.6 x 7.8 x 2.5mm

Weight : 0.3g





Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself





Applications:

3V MCU ARM CPU FPGA/CPLD

5V 3.7V TO 3V lithium battery-powered systems

3V Motor Toy

WIFI esp8266 Module

CCTV camera

Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee

Smart home / home automation

Distributed Power Systems

Battery Charger

Pre-Regulator for Linear Regulators

18650 li-ion AAA Dry cell batteries

Battery powered equipment

Audio amplifier
