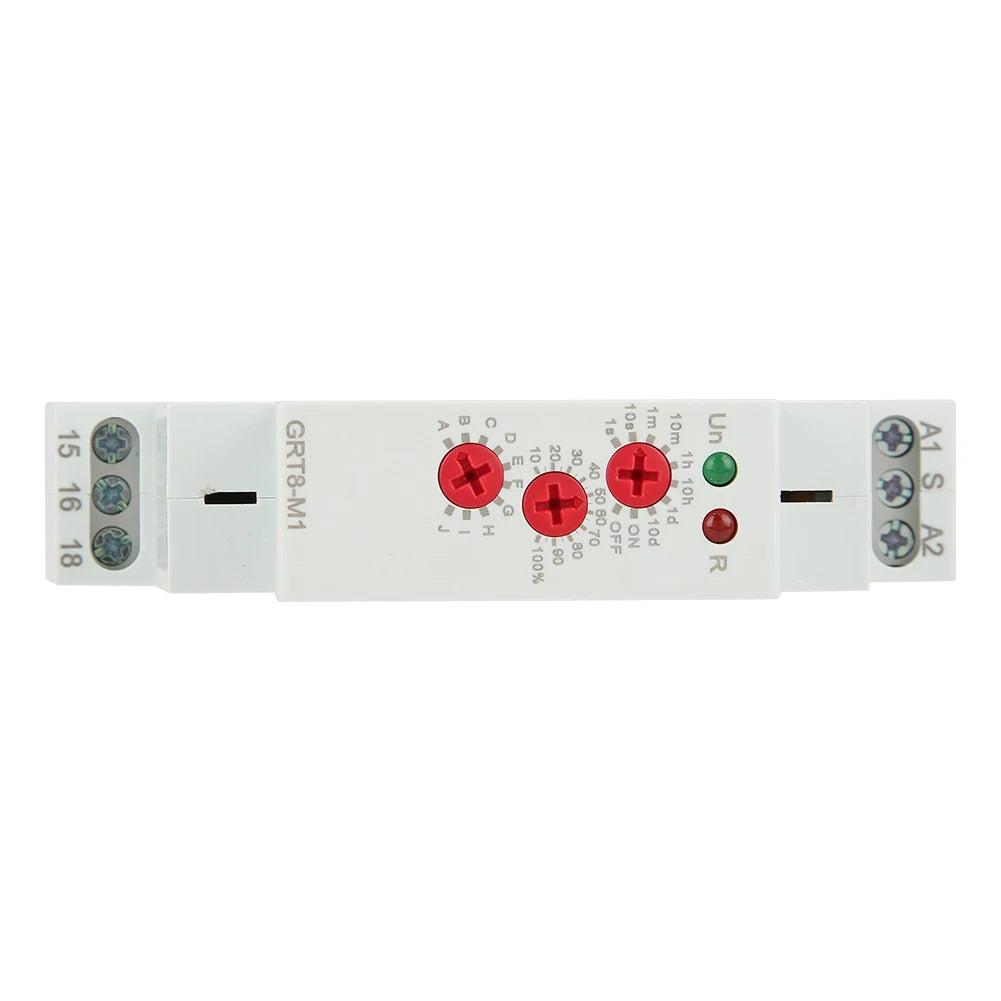

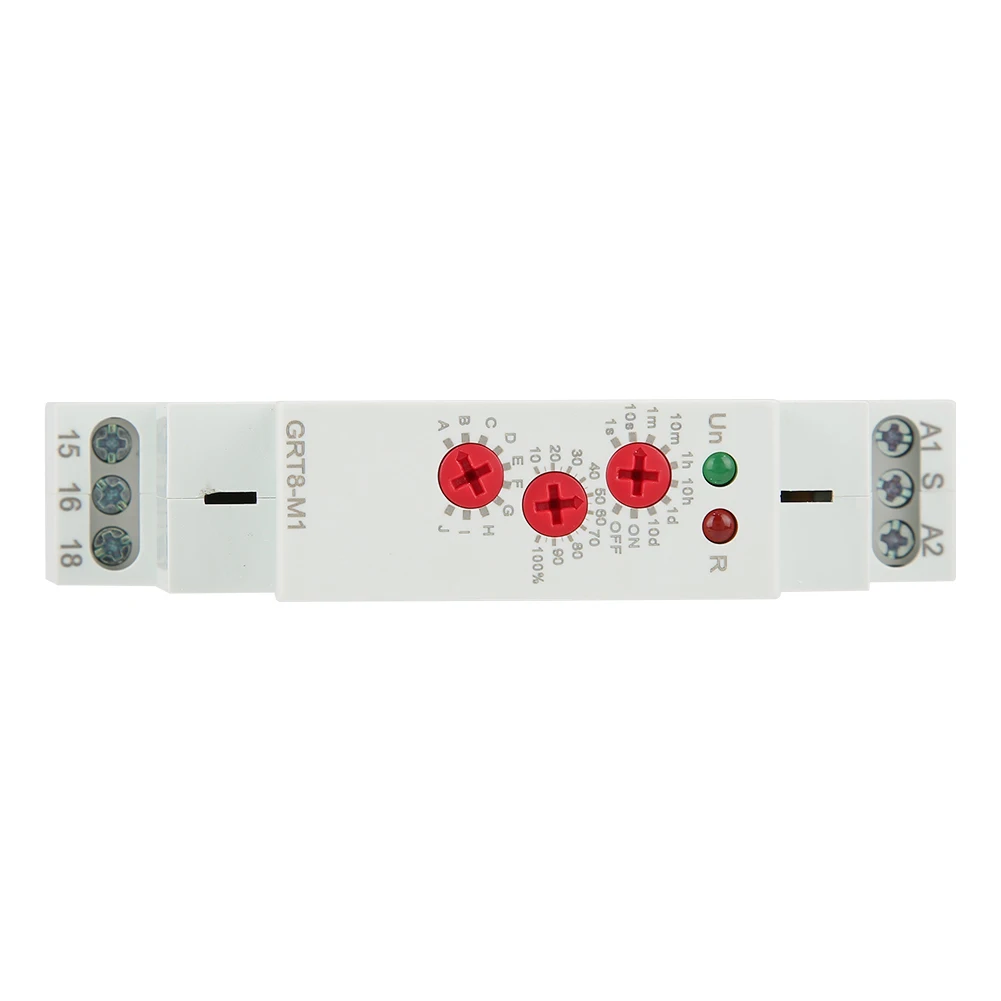

2Pcs GRT8-M1 Multifunctional Delay Time Relay with 10 Functions DIN Rail Mount AC/ 12V~240V Multifunctional Delay Time Relay

2Pcs GRT8-M1 Multifunctional Delay Time Relay with 10 Functions DIN Rail Mount AC/ 12V~240V Multifunctional Delay Time Relay

$106.88

$106.88 $0.00

Description

SPECIFICATIONS

Applicable Object: Contactor

Brand Name: NONE

Certification: CE

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Power Source: Ac,Ac

Theory: Time Relay

Use: General Purpose

Voltage: 240V

is_customized: no

Features:

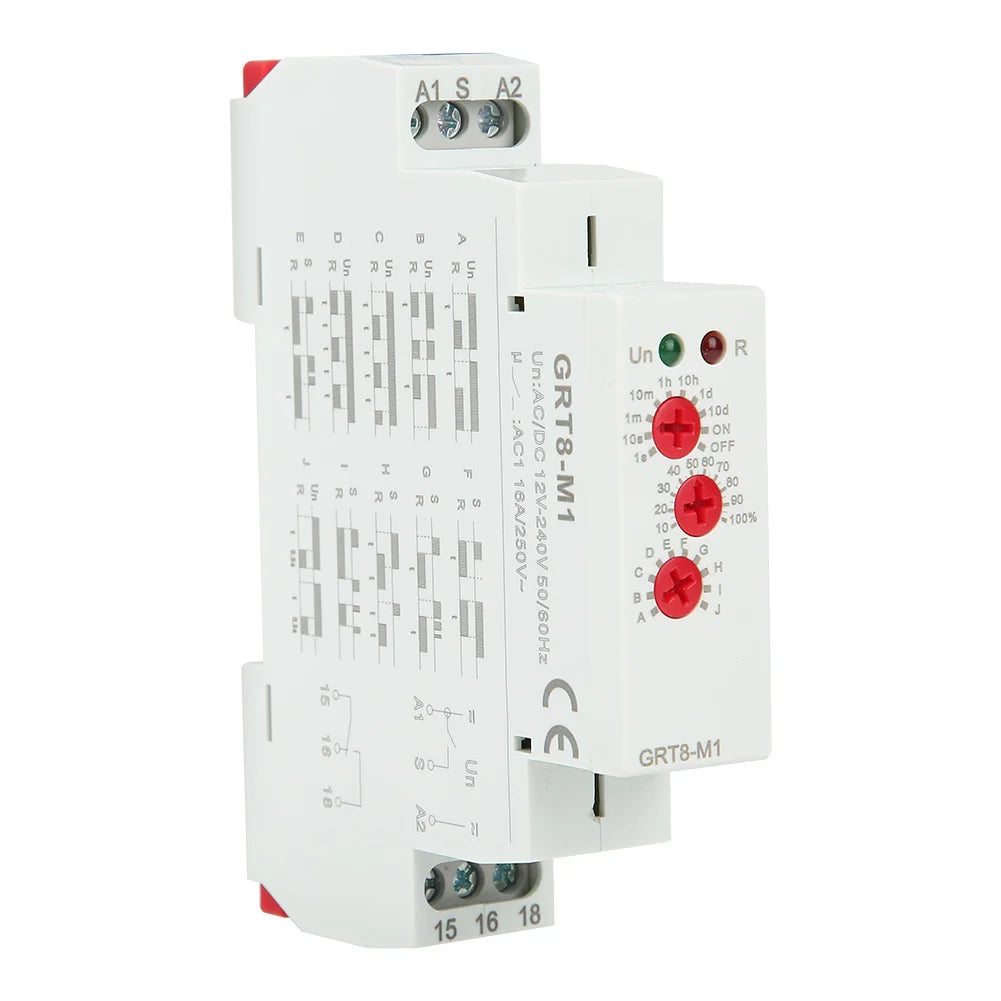

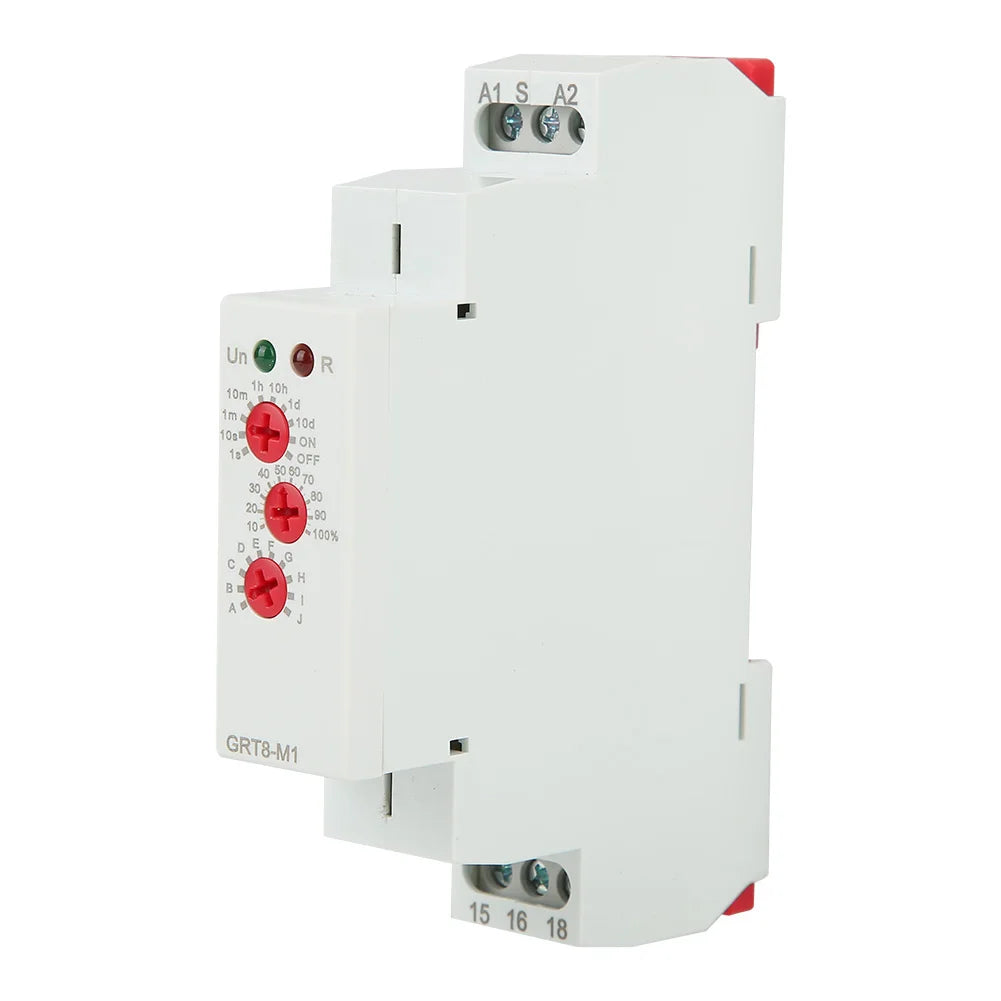

1. This is a multifunctional time relay and time delay can be set by panel knob.

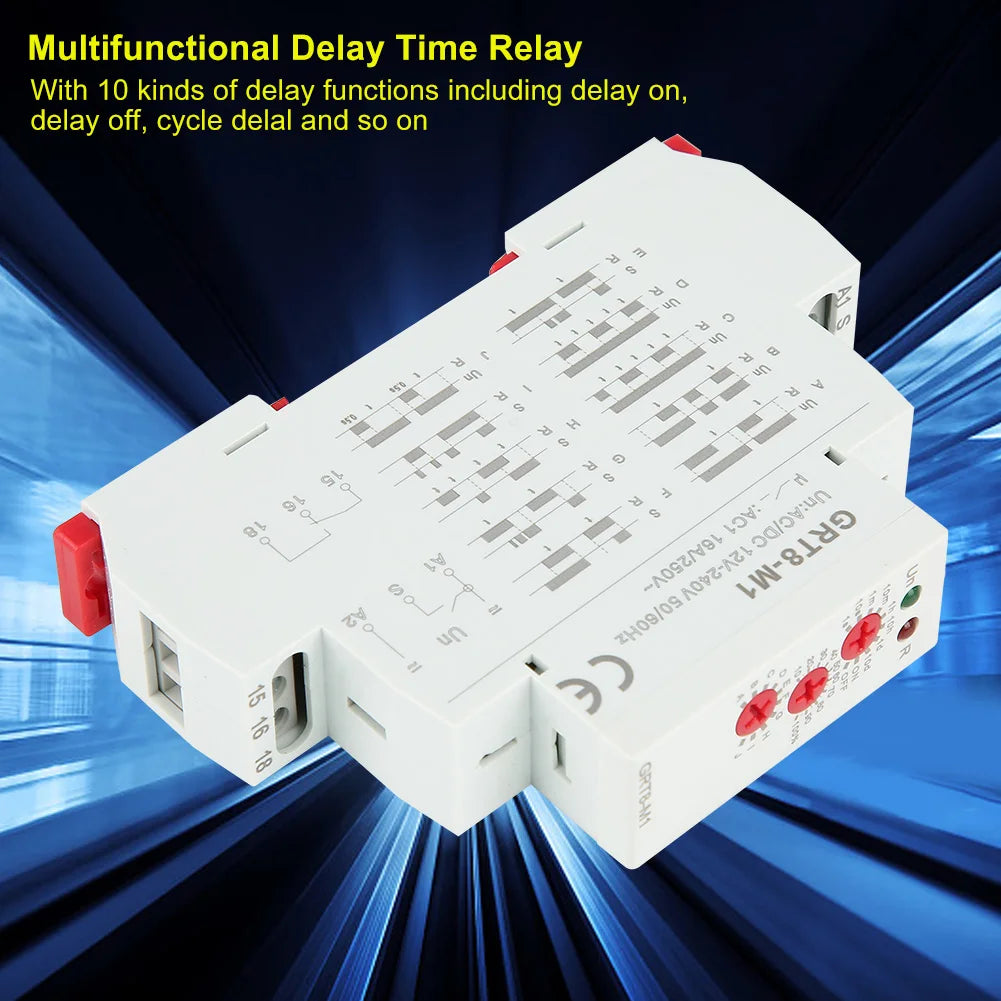

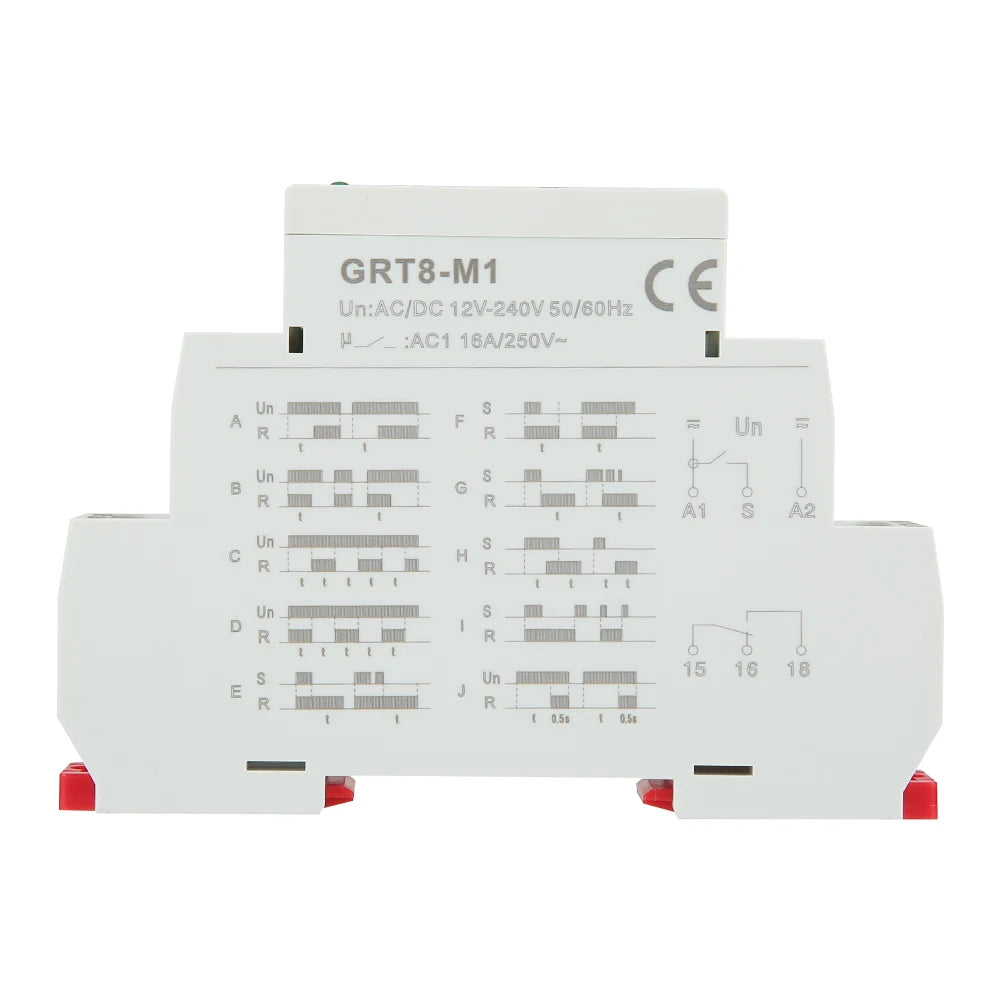

2. With 10 kinds of delay functions including delay on, delay off, cycle delay and so on.
3. Super wide time delay setting range of 0.1s - 10days.

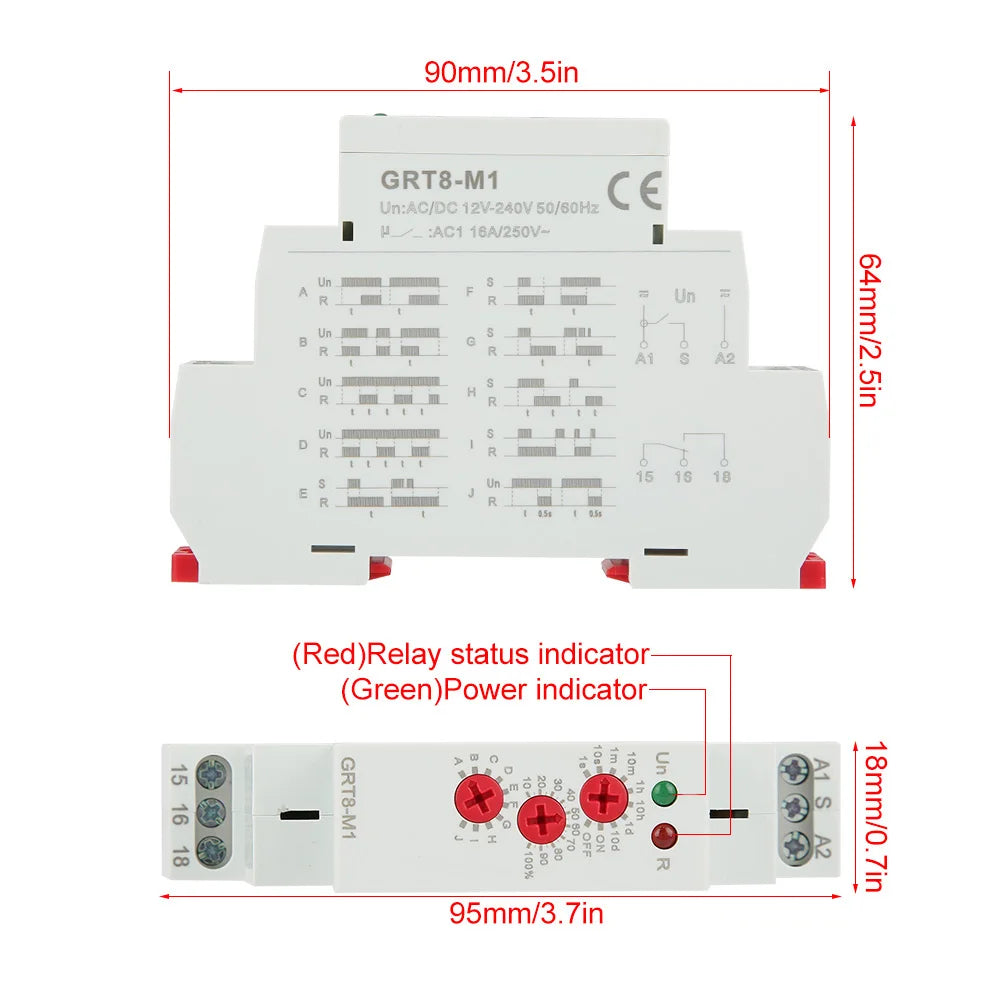

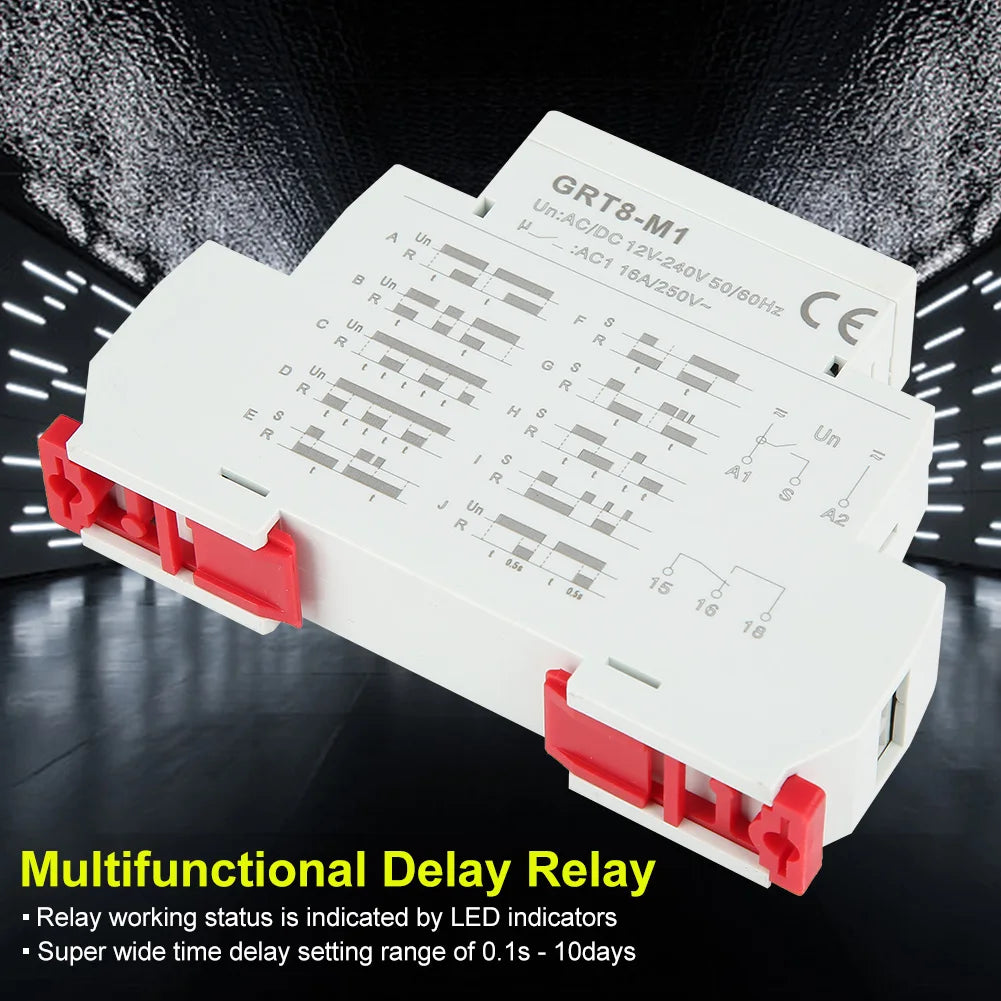

4. Relay working status is indicated by LED indicators.

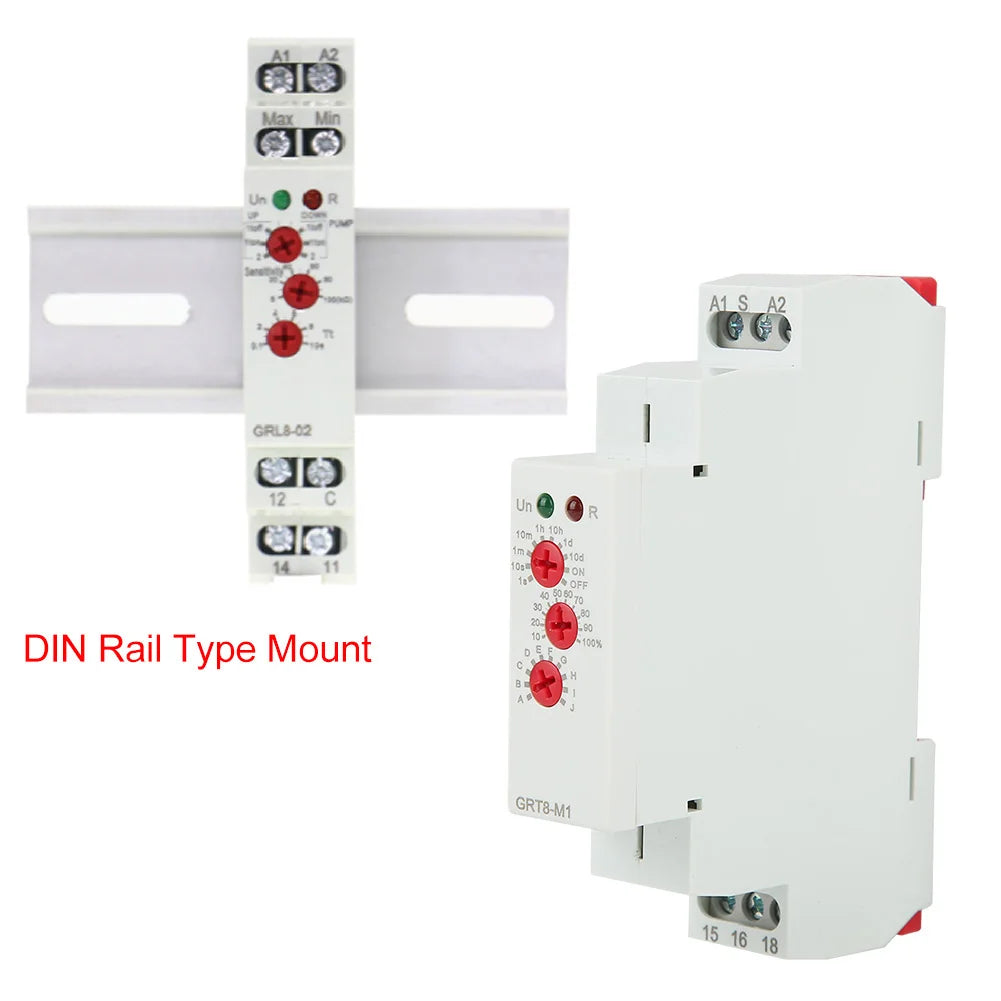

5. With super small volume, this relay can be mounted on 35mm DIN rail.
6. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.

Specification:
Rated power supply voltage: AC/DC 12V~240V (50-60Hz)

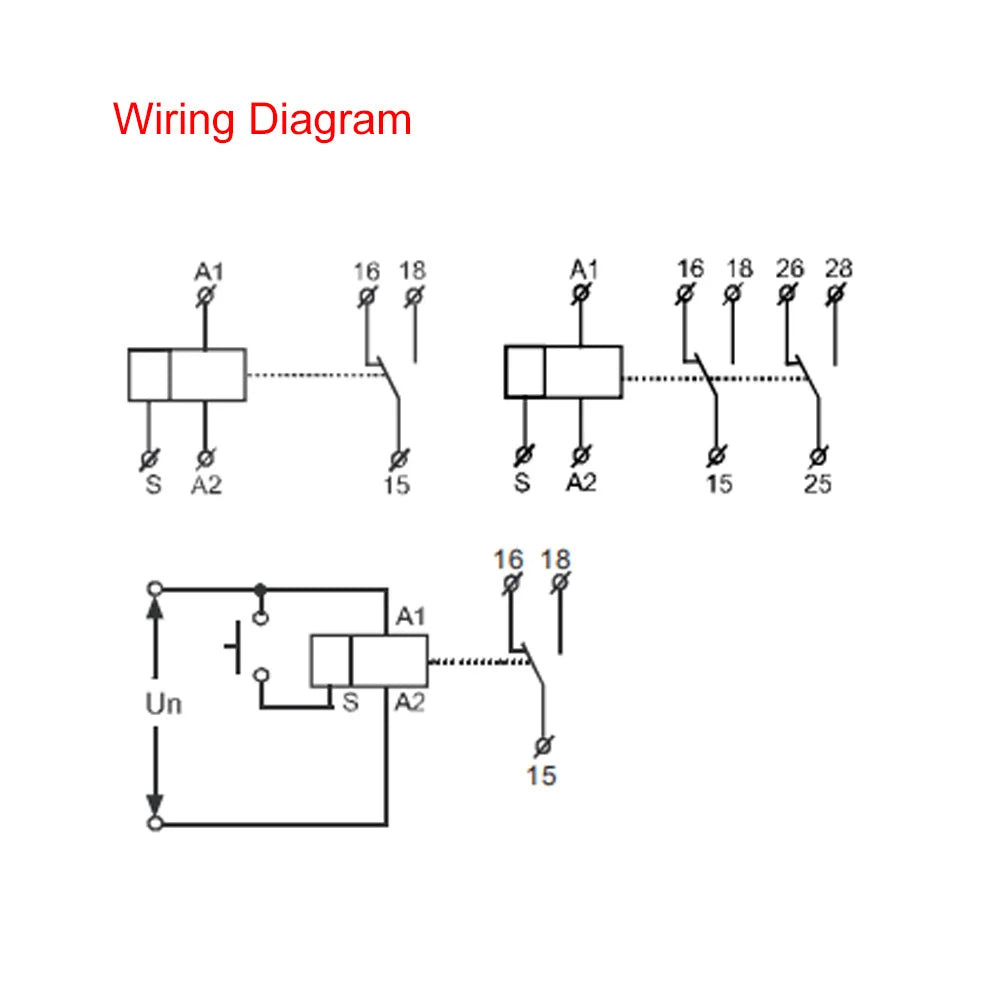

Power terminal: A1-A2
Power consumption: AC0.09-3VA/DC0.05-1.7W
Setting method: knob
Setting accuracy: 10%
Power indicator: Green LED
Delay range: 0.1s-10 days, normally open, normally closed
Repeated accuracy: 0.2%
Temperature fluctuation error: 0.05%/℃, at = 20℃
Output contact: 1 x SPDT, 250VAC/24VDC
Minimum switching power: 500mW
Output relay indication: red LED
Mechanical life: 1x107
Reset time: Max 200ms
Working temperature: -20℃~55℃
Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Weight: Approx. 75g/2.6oz

Package list:
2 * Multifunctional Delay Time Relay
