SPECIFICATIONS

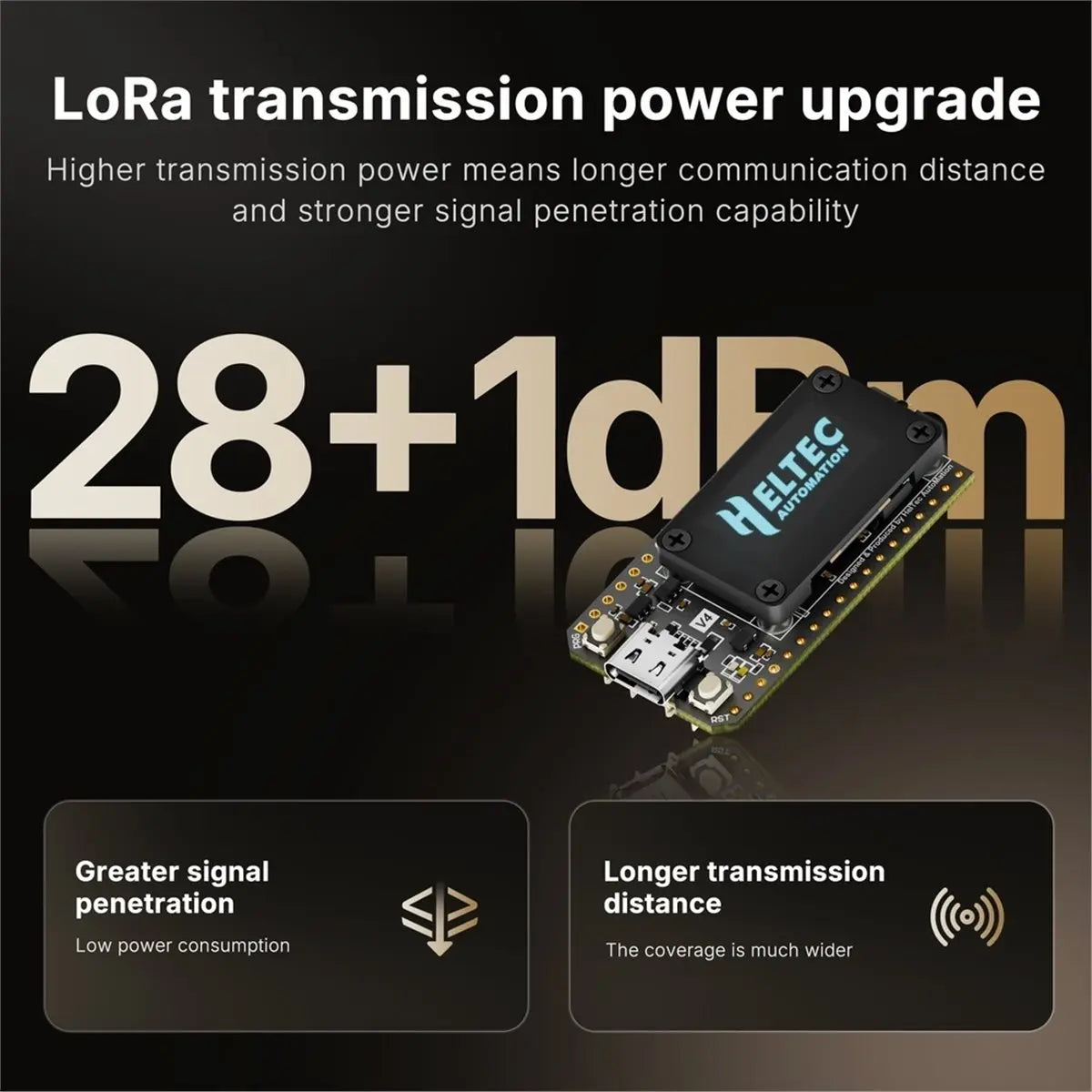

The all-new V4 version of the classic +LoRa development board WiFi LoRa 32., is a powerful, high-efficiency IoT maker board featuring latest -S3R8 MCU and SX1262 LoRa Node chip. Retaining the V3's size and identical pinout, it integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28±1dBm LoRa output power, and a protected OLED display. Its superior and stable system design it's ready-to-use and highly beginner-friendly, supporting development via , PlatformIO, , and MicroPython. Making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN, and Meshcore in applications such as cities and industrial control, with custom hardware available on the Heltec platform. Features The WiFi LoRa 32 now comes with the latest -S3R8 version. Base on -S3R8 & SX-1262, supports Wi-Fi b/g, BLE, and LoRa communication. LoRa Transmit Power: 28 dBm Form factor and pin compatibility with WiFi LoRa 32 V3. Casing protects the screen and integrates FPC 2.4G antenna. Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface. Optimized lithium battery management. Low power consumption is less than 20μA. Specifications Version: WiFi LoRa 32 V4-R8 MCU: -S3R8 LoRa Chip: SX1262 Frequency: 863-928MHz Wi-Fi: 802.11 b/g, up to 150Mbps Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*; 2*SPI; etc. Memory 384KB ROM; 512KB ; 16KB RTC ; 8MB PSRAM; 16MB Flash Interface Type-C USB; 1.25*2 Pin lithium battery interface; 1.25*2 Pin Solar interface; 1.25*8 Pin interface; LoRa ANT(.0); 2.4G ANT(.0) Battery applicable: 3.3-4.4V lithium battery (not included) Operating Temperature: -20 ~ 70 ℃ Color: Black Material: PCB+Plastic+Metal Package Contents: 2 * Development board with Accessories 2 * Antenna Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
