SPECIFICATIONS

Active Area: 21.744 x 10.864 mm

Application: Display, Raspberry Pi Status Screen, ESP32 Debug Monitor, STM32 HMI, Wearable Device Display, Sensor Data Display, Smart Home Panel

Brand Name: diymore

Color Options: Blue

Driver IC: SSD1306

Feature: 0.96-inch OLED Display Module, SSD1306 Driver IC, 128x64 Resolution, I2C Interface (Only 2 IO Pins Required), Color Options: Blue , Ultra-Low Power Consumption: Wide Viewing Angle >160°, Wide Voltage 3.0-5.0V (Compatible with 3.3V & 5V Logic Levels - No Level Shifter Needed), Industrial Grade -20℃ to 70℃ Operating Temperature, Active Area: 21.744x10.864mm, Module Size: 27.3x27.8mm, Pinout: VCC/GND/SCL/SDA, Ideal for /Raspberry Pi/ESP32/STM32 Projects

High-concerned chemical: none

Interface: I2C (4-Pin: VCC/GND/SCL/SDA)

Label: OLED Display Module,0.96 inch OLED,SSD1306 OLED,128x64 OLED,I2C OLED Module,Blue OLED Display,,3.3V 5V OLED,,Low Power 25mA OLED,Wide Angle >160° OLED,3-5V I2C OLED,OLED Display,,SSD1306 I2C Module,Industrial Grade OLED

Lens Shape: Rectangular

Model: 0.96 Inch

Module Size: 27.3 x 27.8 mm

Origin: Mainland China

Resolution: 128 x 64

Temperature: -20℃ ~ 70℃ (Industrial Grade)

Type: LCD Display Modules,OLED Display Module / I2C Screen

Viewing Angle: >160°

Voltage: DC 3.0-5.0V (3.3V & 5V Compatible)

Product Features:

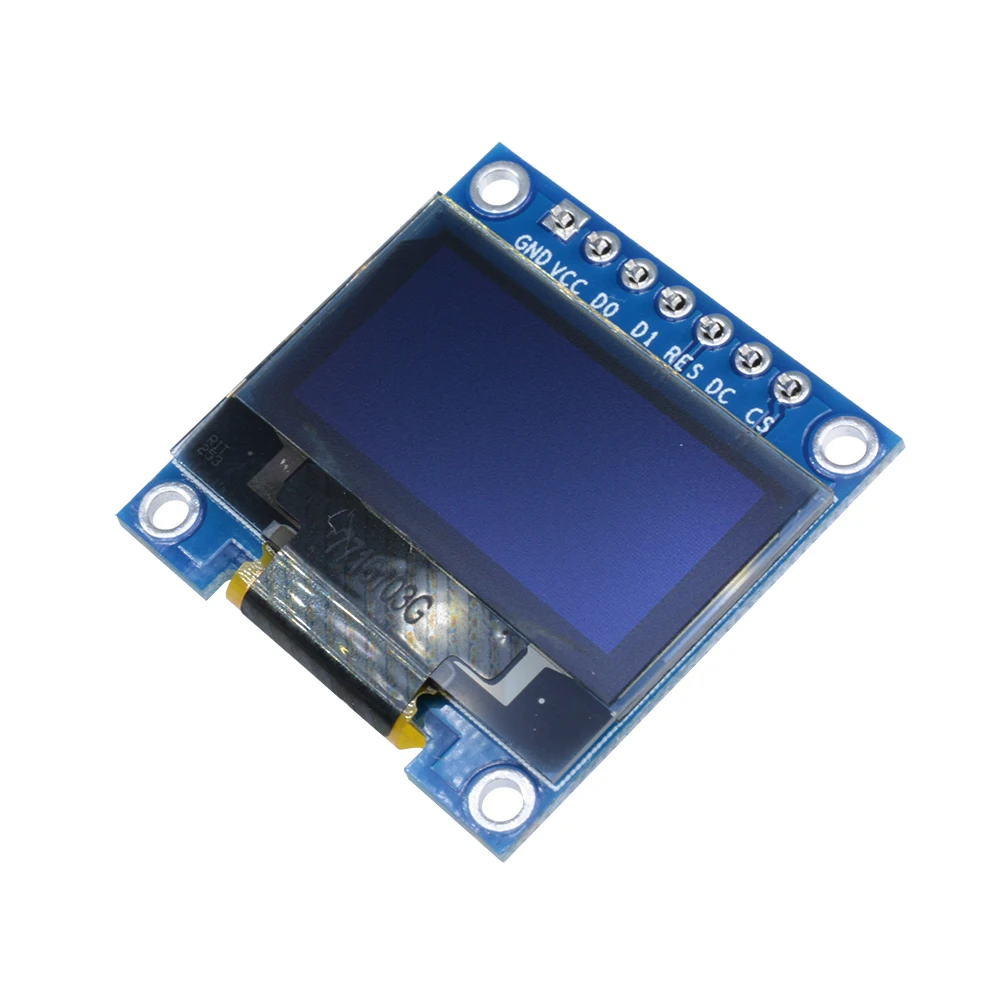

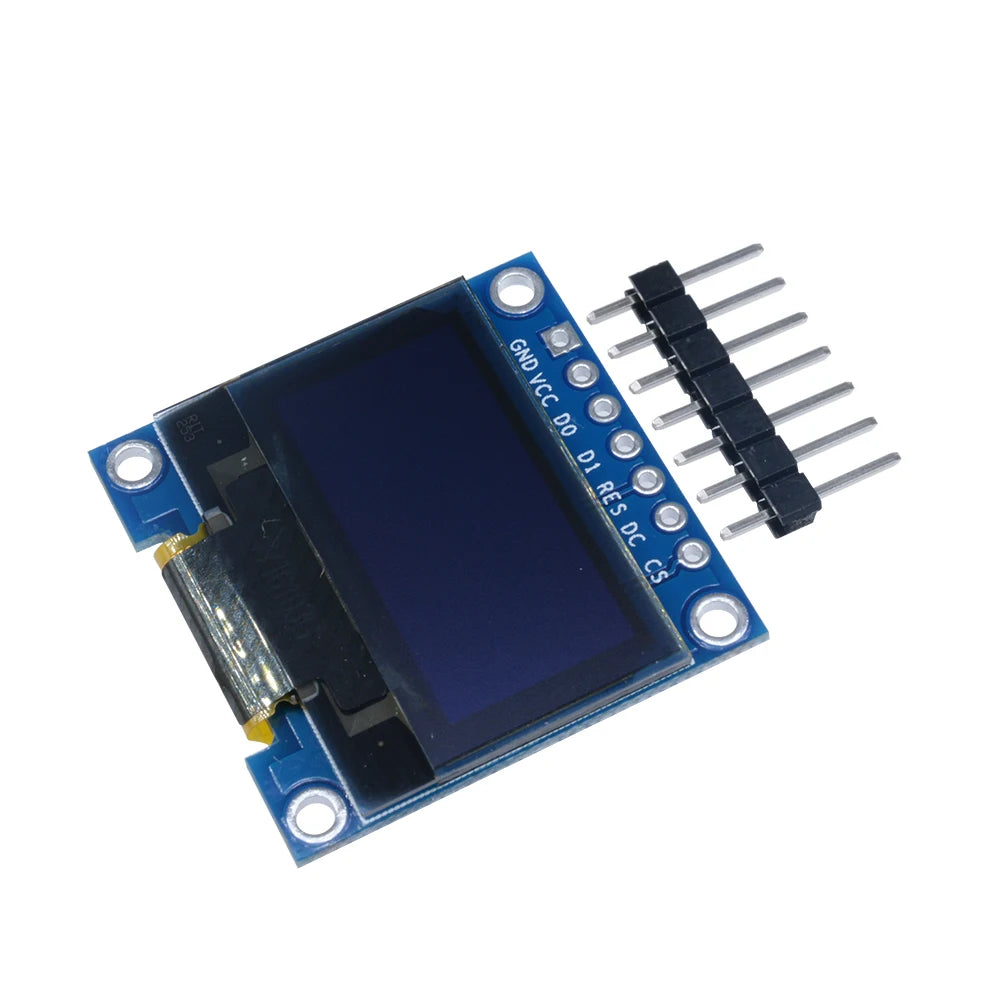

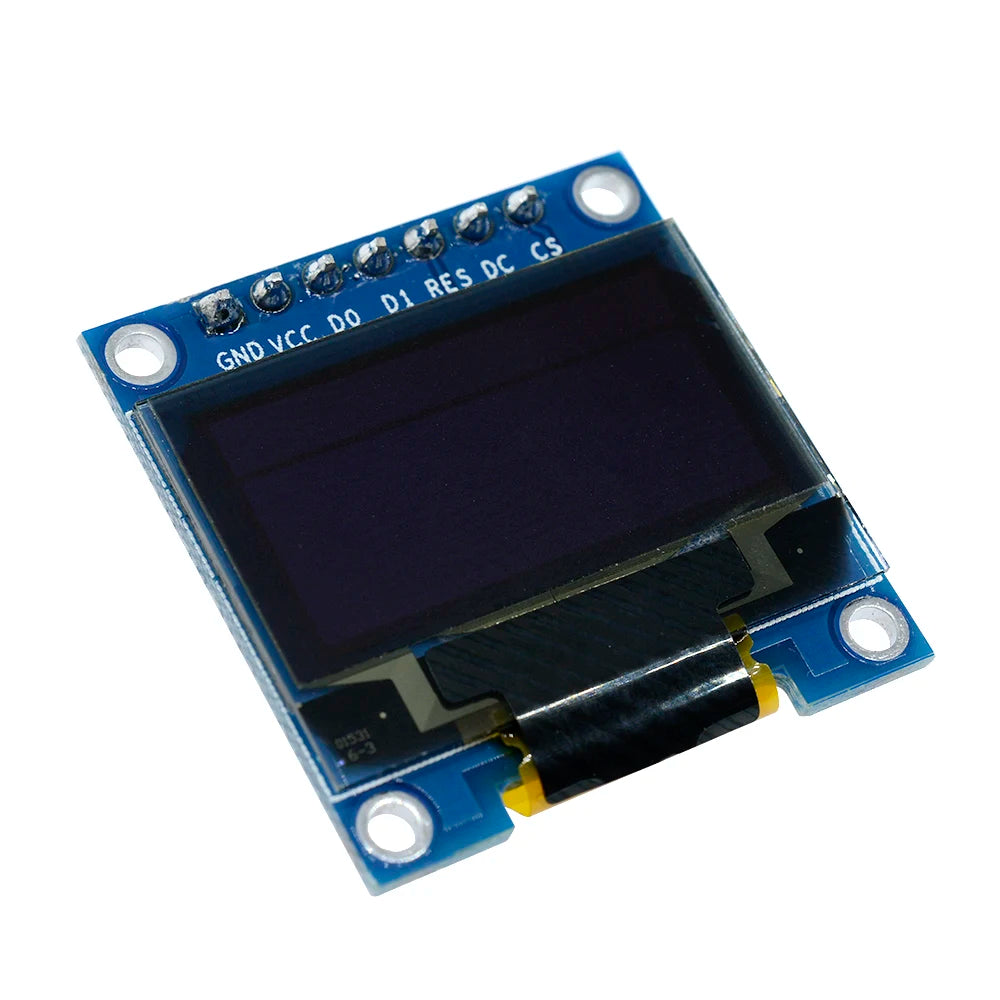

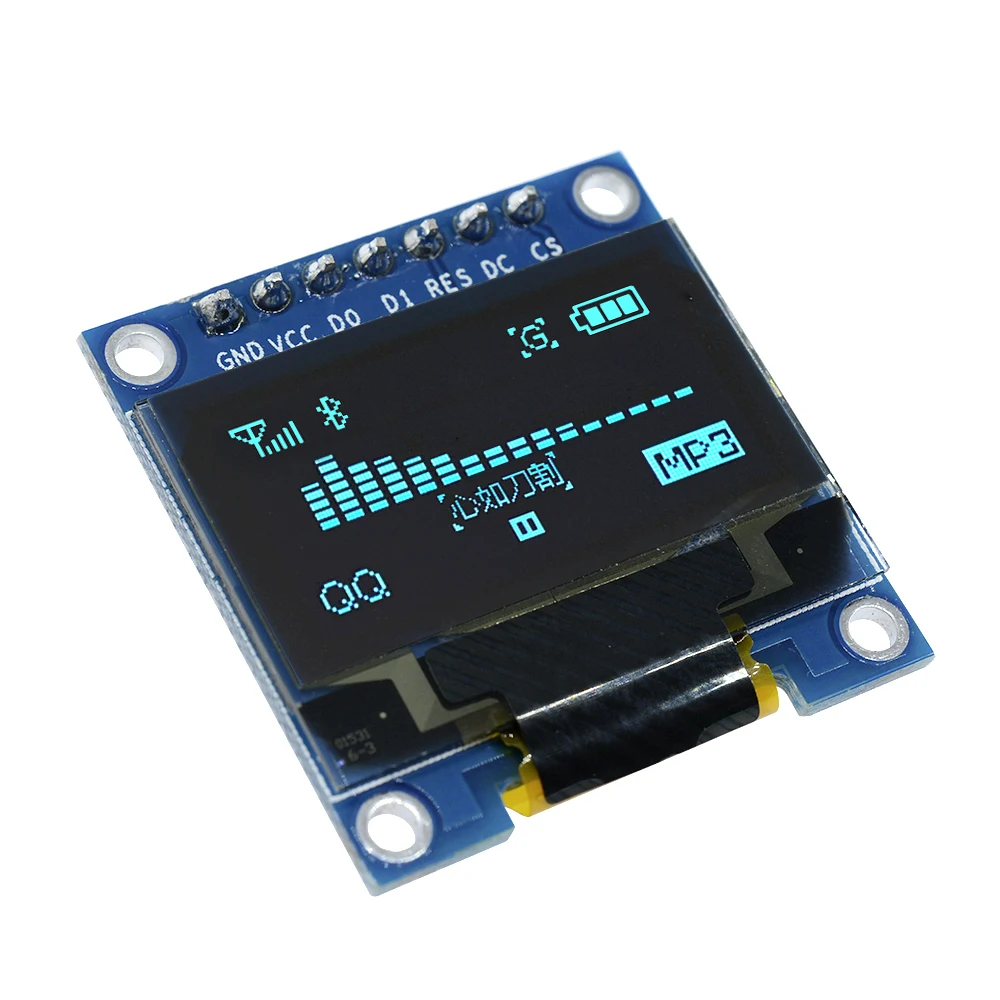

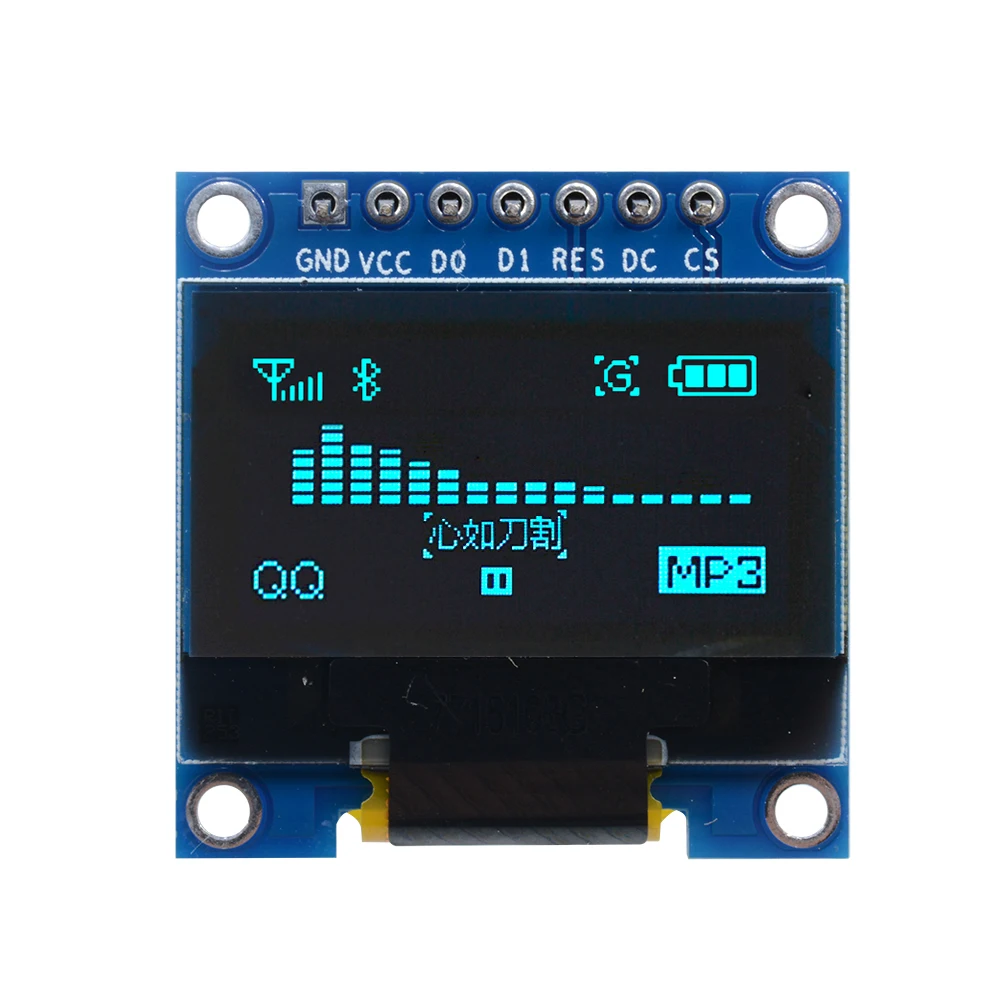

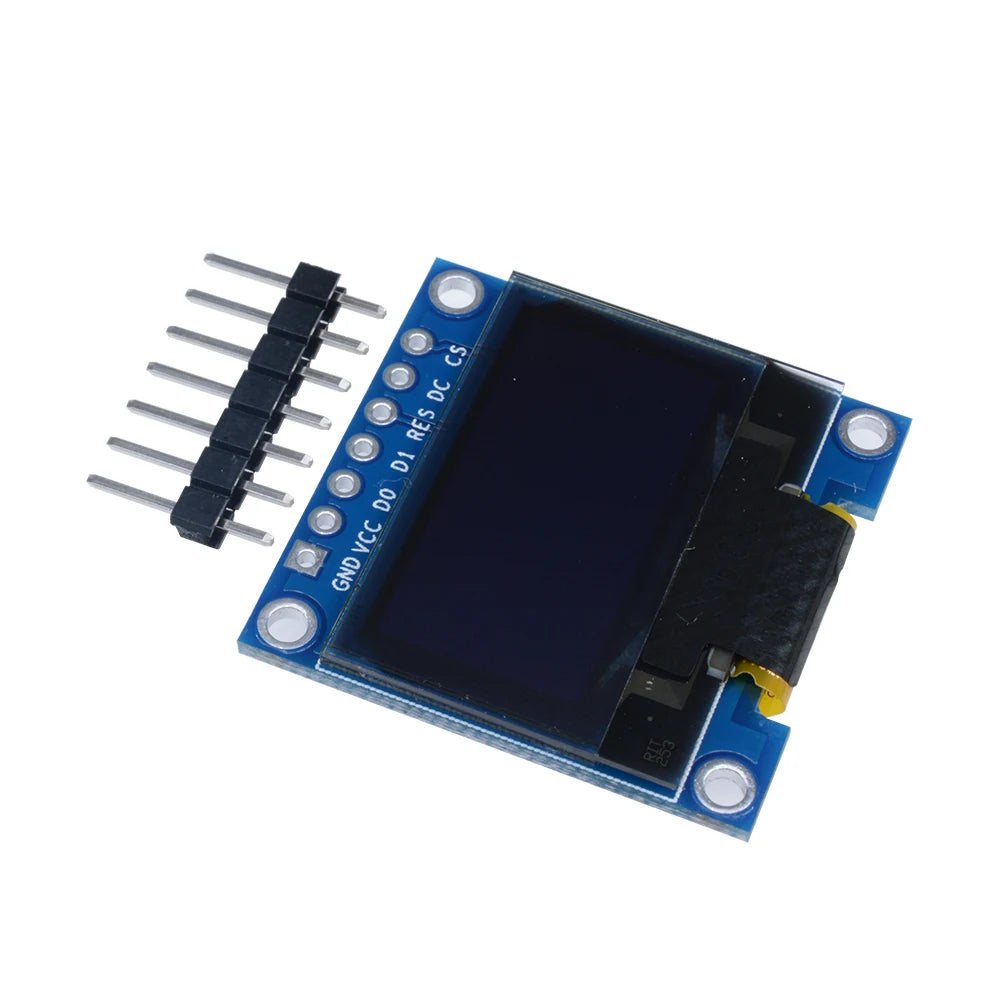

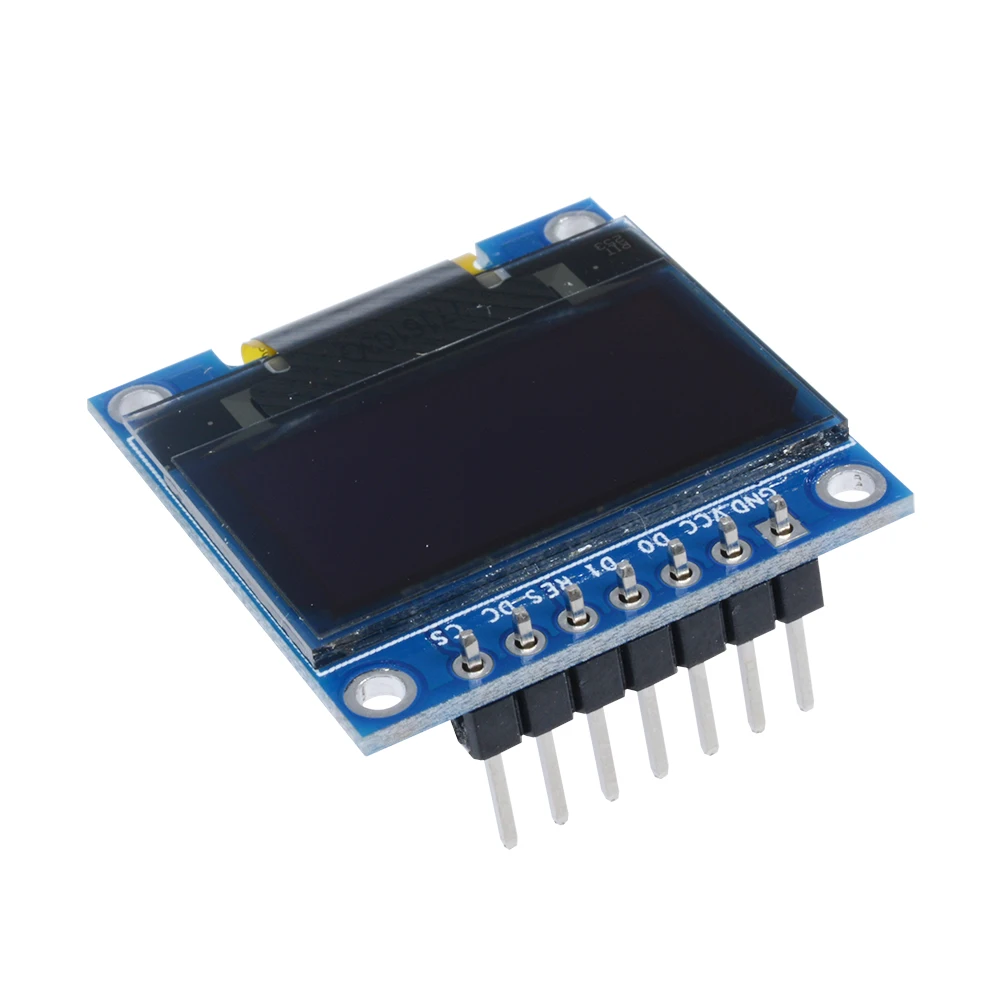

0.96-inch OLED display module; high resolution: 128x64 (same resolution as 12864 displays, but with higher PPI)
Ultra-wide viewing angle: >160° (one of the widest viewing angles among display screens)
Ultra-low power consumption: 0.06W during normal operation (significantly lower than TFT displays)
Wide operating voltage (3V–5V); compatible with both 3.3V and 5V logic levels—no level-shifting chip required
I2C interface: requires only 2 I/O pins to operate
Industrial-grade operating temperature range (-20°C to 70°C); manufactured to military-grade standards for long-term stability
Comprehensive multi-platform sample code and low-level driver technical support provided

Product Specifications:
Display Color: Blue
Size: 0.96 inch
Type: OLED
OLED Driver IC: SSD1306
Resolution: 128 x 64 pixels
Module Interface: I2C (①-VCC, ②-GND, ③-SCL, ④-SDA)
Active Display Area: 21.744 x 10.864 mm
Module Dimensions: 27.3 x 27.8 mm
Viewing Angle: >160°
Operating Temperature: -20°C to 70°C
Storage Temperature: -30°C to 80°C
Operating Voltage: 3.3V / 5V
Power Consumption: Approx. 25mA (all pixels on) / 1.5mA (all pixels off)

Pin Definitions:
Pin Label | Pin Description
1 | VCC | OLED Power Positive (3.3V–5V)
2 | GND | OLED Power Ground
3 | SCL | OLED I2C Bus Clock Signal
4 | SDA | OLED I2C Bus Data Signal

Product List:

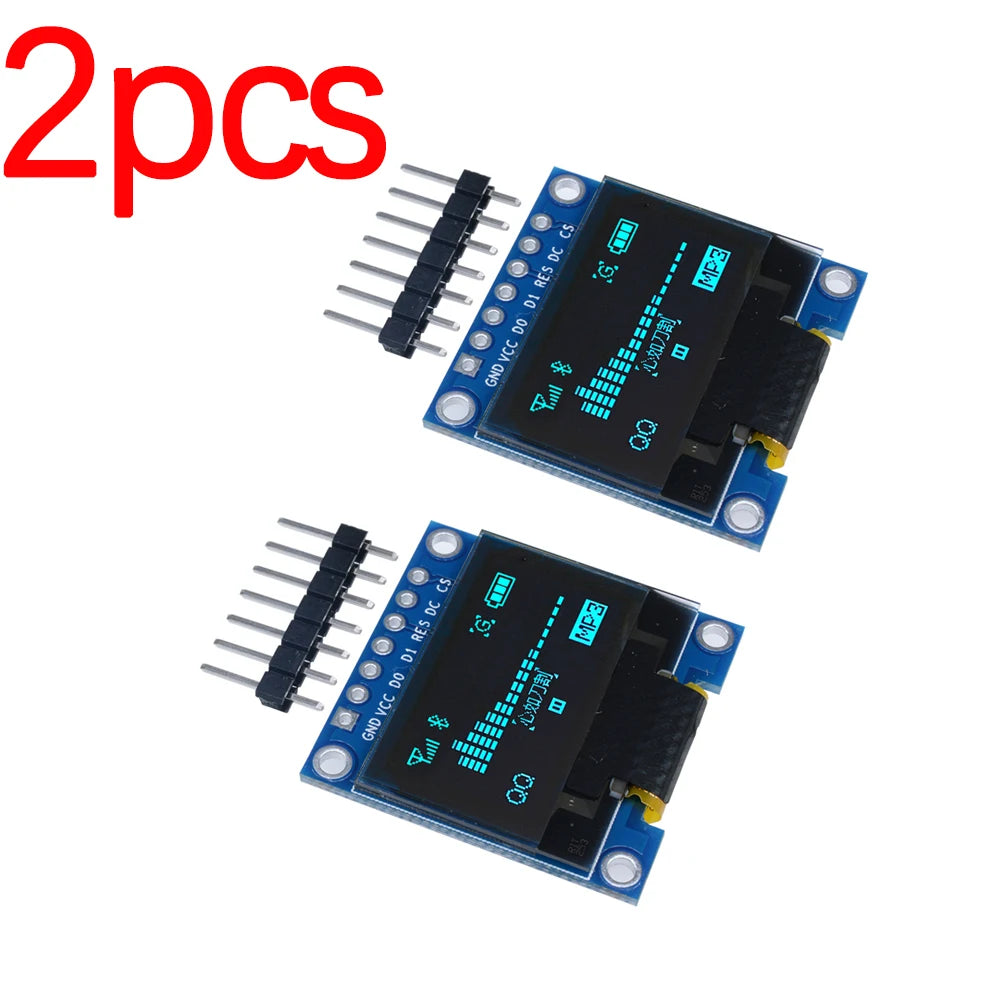

2 x OLED Display Module

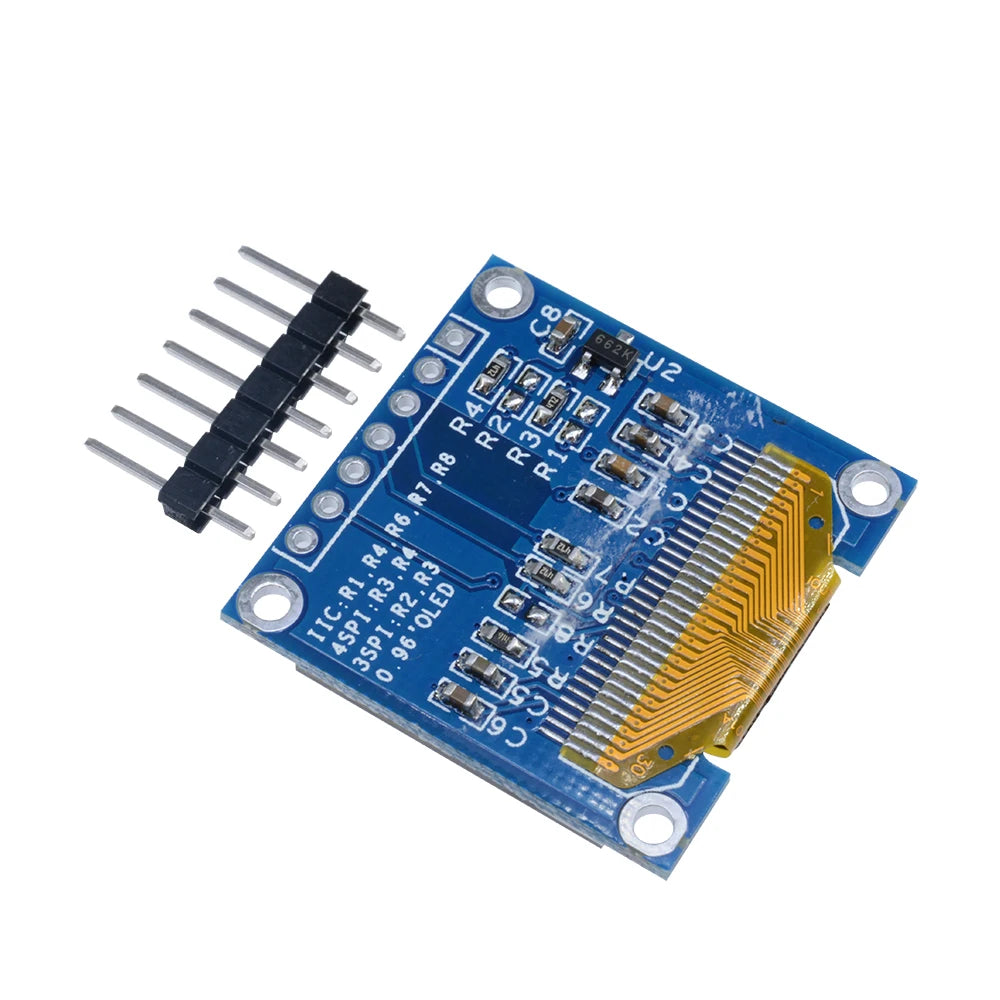

2 x Pin Header
