Description

SPECIFICATIONS

Brand Name: G-NiceRF

Certification: CE,FCC

Frequency: 2400-2525MHz

High-concerned chemical: none

Item Type: 2.4GHz LoRa

Model Number: Lora1280F27

Modulation mode: LoRa

Origin: Mainland China

Output power: 27dBm

Packet mode FIFO: 256 Bytes

Sensitivity: -132dBm /LoRa

Sleep Current: <1 uA

Wireless Function: Yes

Working temperature: -40 ~ +85 °C

Working voltage: 2.0 ~ 5.5 V

data rate: LoRa=0.476-202Kbps

rf chip: sx1280


2pcs/lot FCC / CE certified LoRa1280F27 - 500mW Long range 2.4G LoRa module SX1280 chip 2.4GHz RF wireless transceiver


  • 2pcs 500mW 2.4GHz sx1280 Lora Module Lora1280F27




79377

2.4GHz LoRa

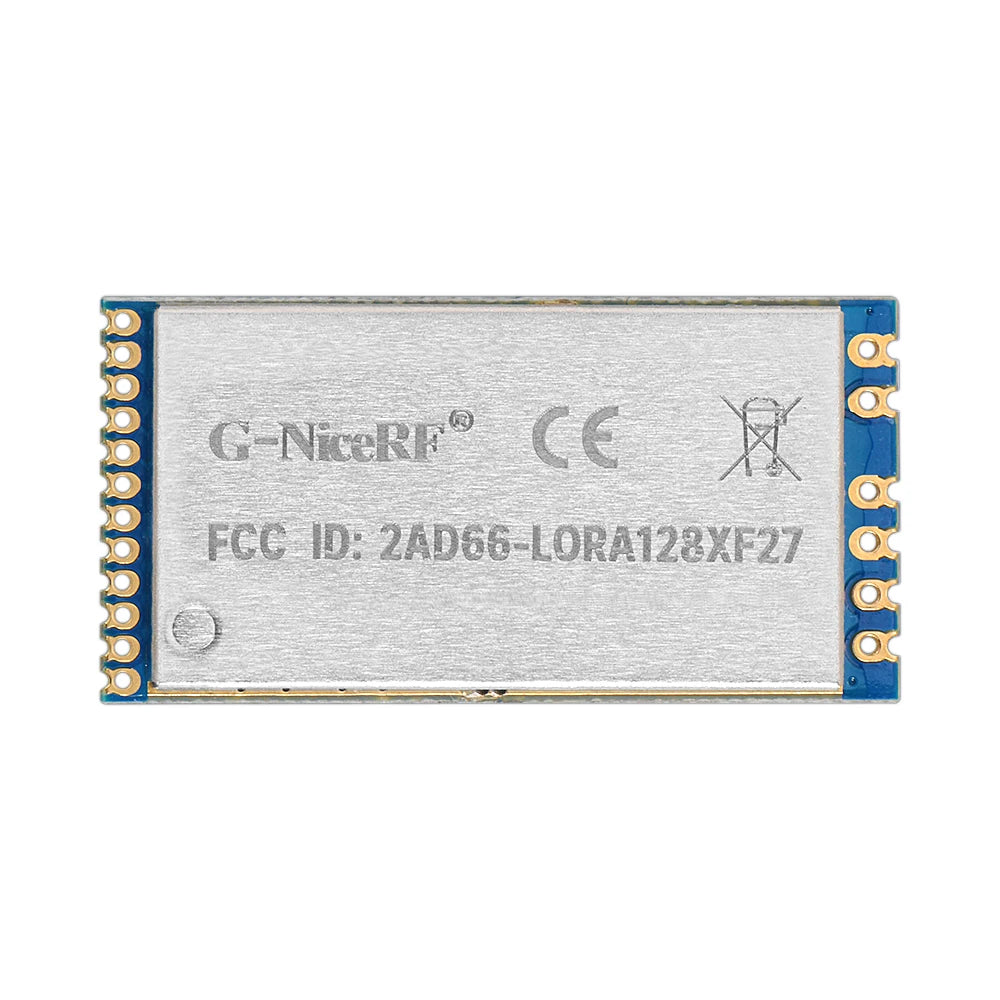

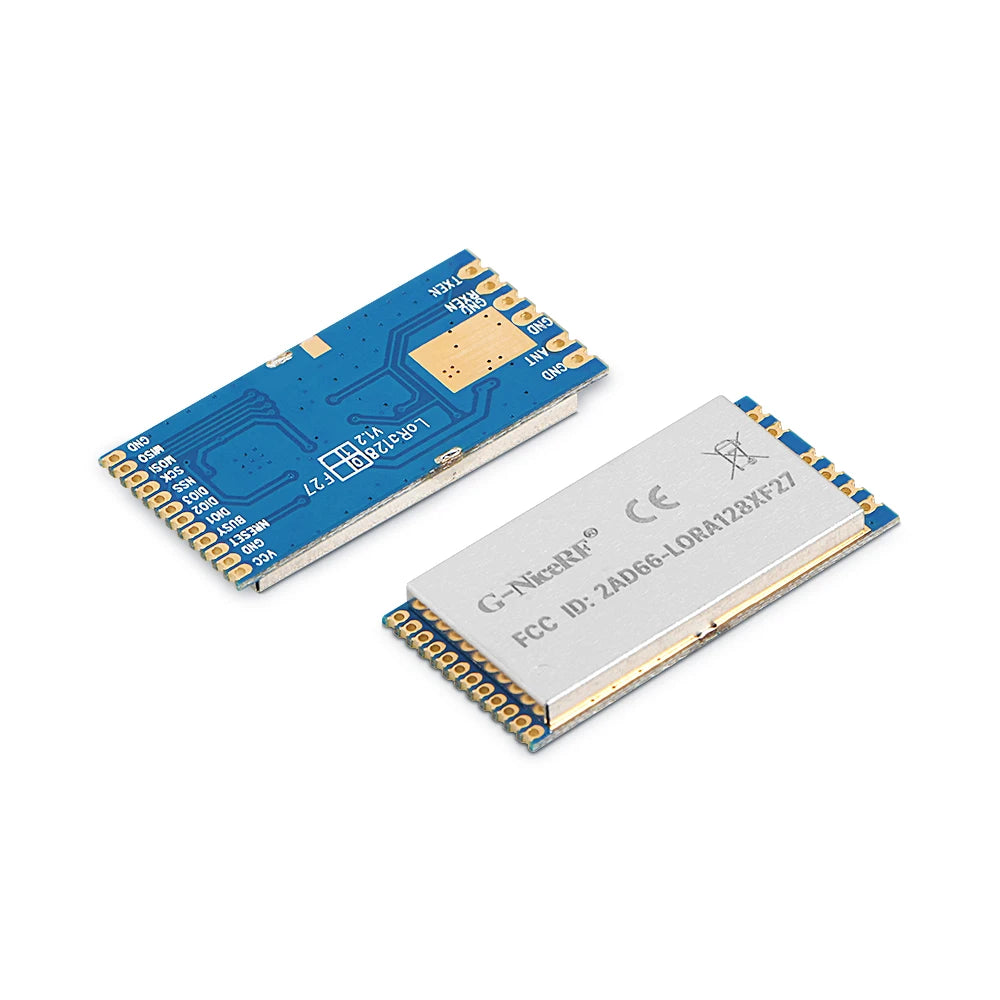

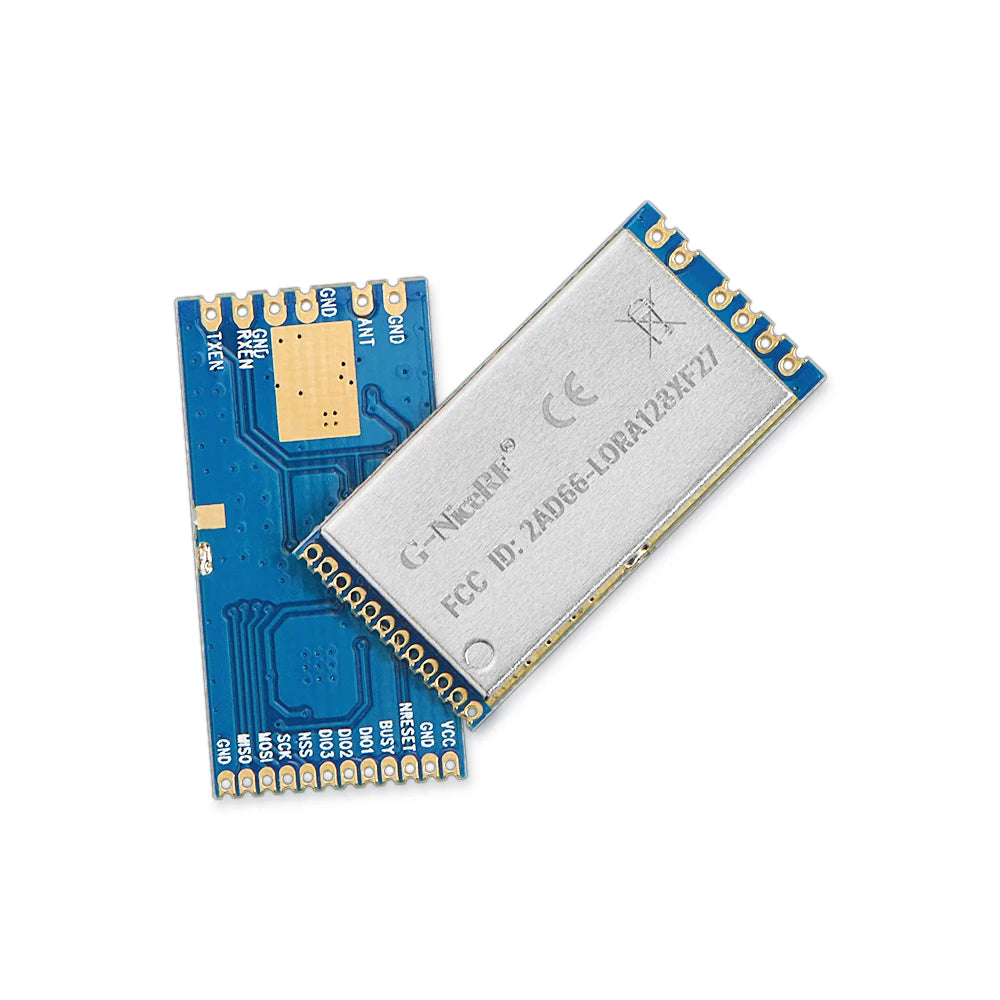

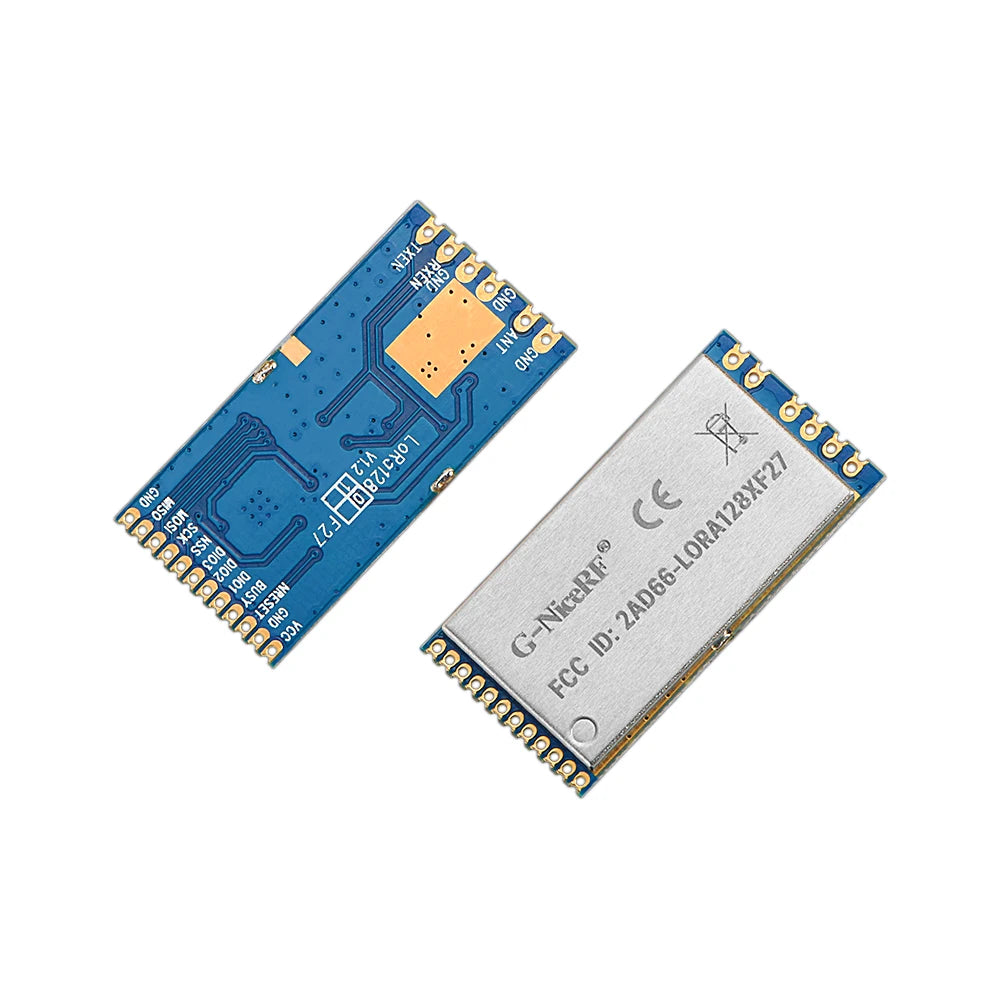

LoRa1280F27 is 2.4G wireless transceiver module. This module use SX1280 from Semtech. And we add RF amplifier to get higher output power and longer range. It is LoRa modulation with maximum 500mW ( 27dBm ) output power. This wireless module has good sensitivity and good ant-interference. Also Lora1280F27 can measure the range between the transmitter and receiver.


FCC ID:  2AD66-LORA128XF27





Features:

  • Frequency Range：2400-2500MHz

  • Maximum power output: 27.0dBm (500mW)

  • Data rate: @LoRa=0.476-202Kbps

  • Sensitivity up to: -132dBm@LoRa

  • LoRa Modulation

  • Packet communication mode (receiving FIFO: 256 Bytes)

  • Operating voltage range:2.0-5.5 V

  • Operating temperature range: -40 ~ +85 °C




Application:

  • Wireless remote control

  •   Toy control

  • Remote meter reading

  •   Tire Pressure Monitoring

  • Smart Home

  •   health monitoring

  • Personal data records

  •   Tag reader

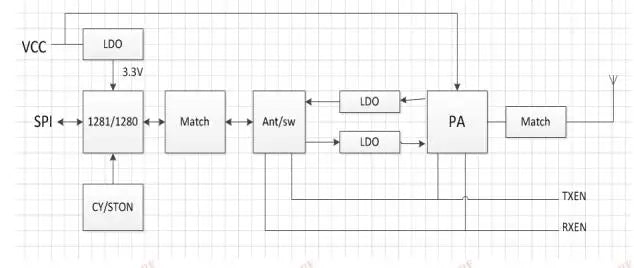

Block diagram:

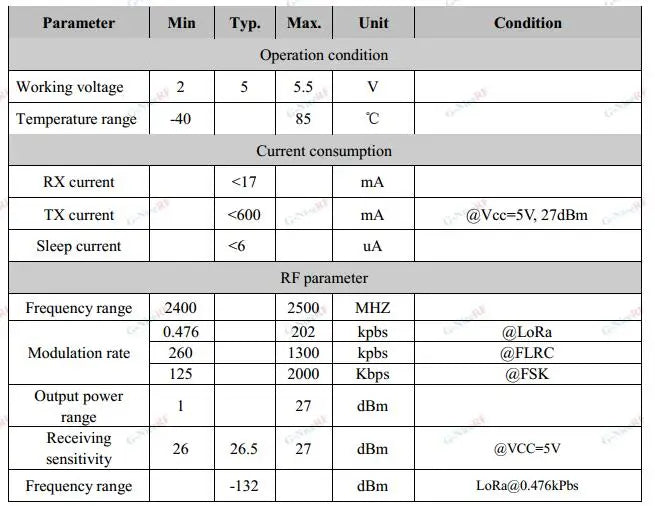

Specification:

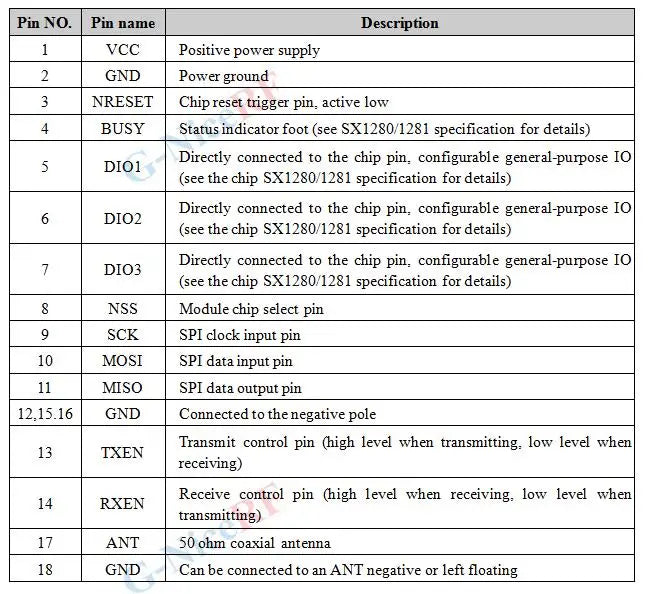

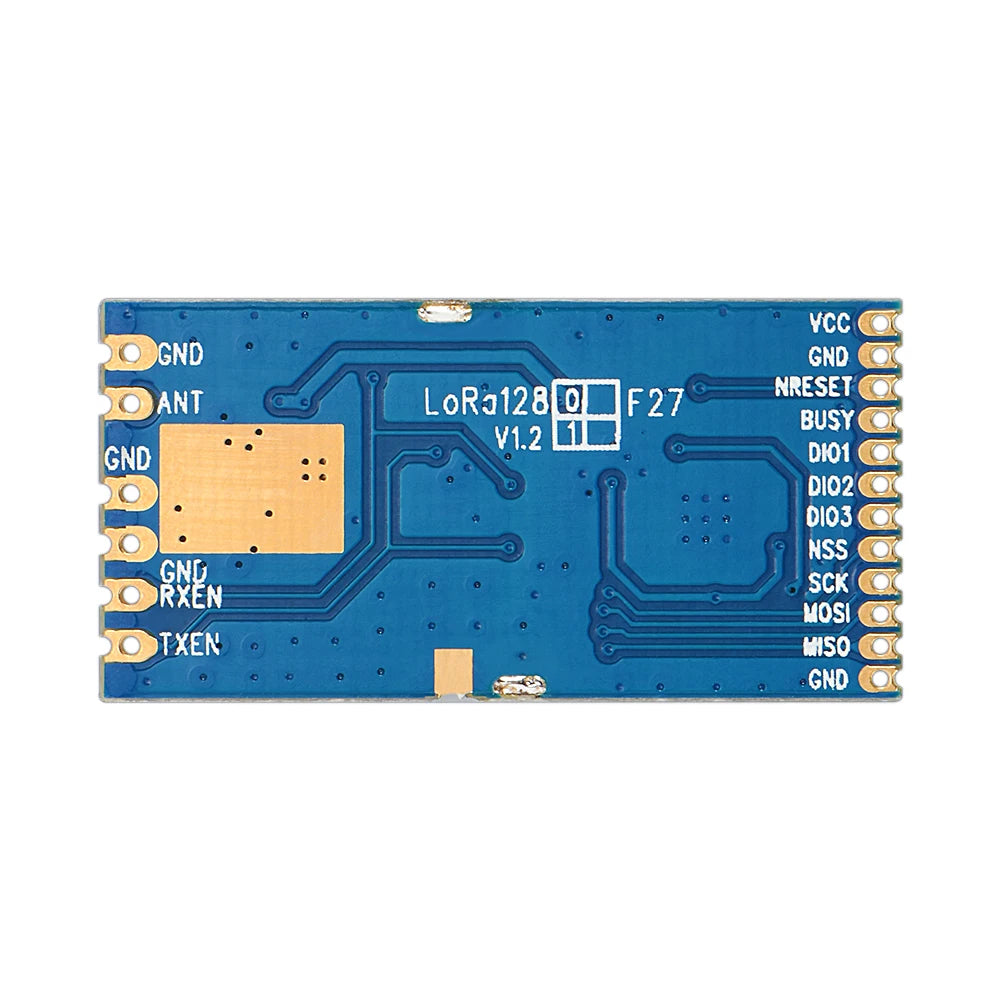

Pinout:

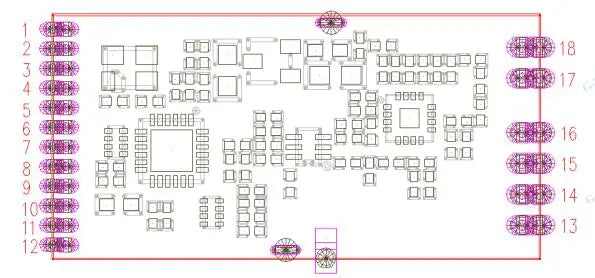

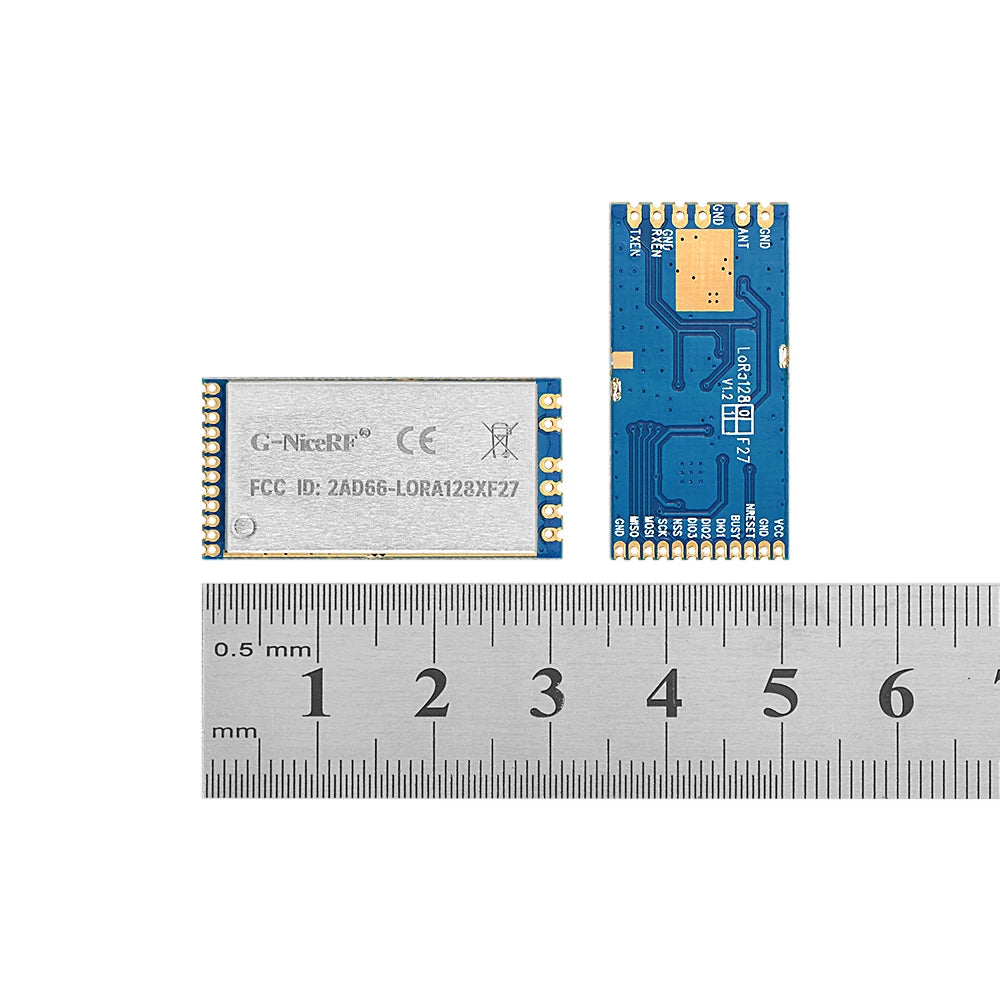

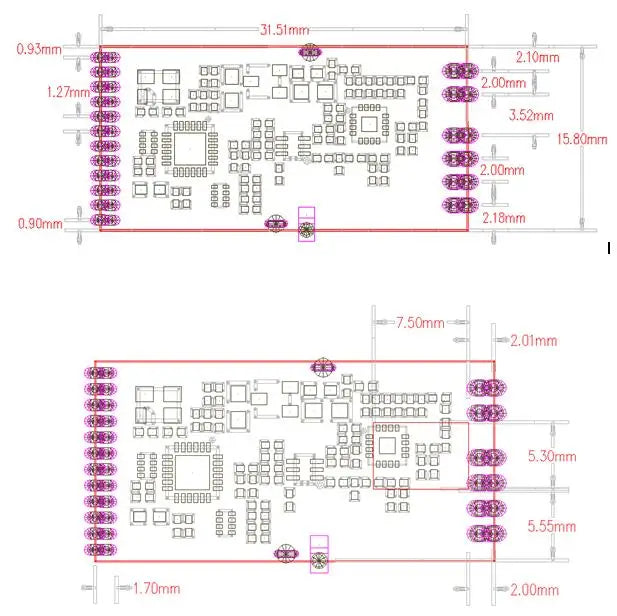

Machanism Dimension:
