New Launched 2pcs/lot Lora1278F30 - Long range 6~8Km high power 1W 433MHz | 470MHz SPI port RF Wireless Lora Module

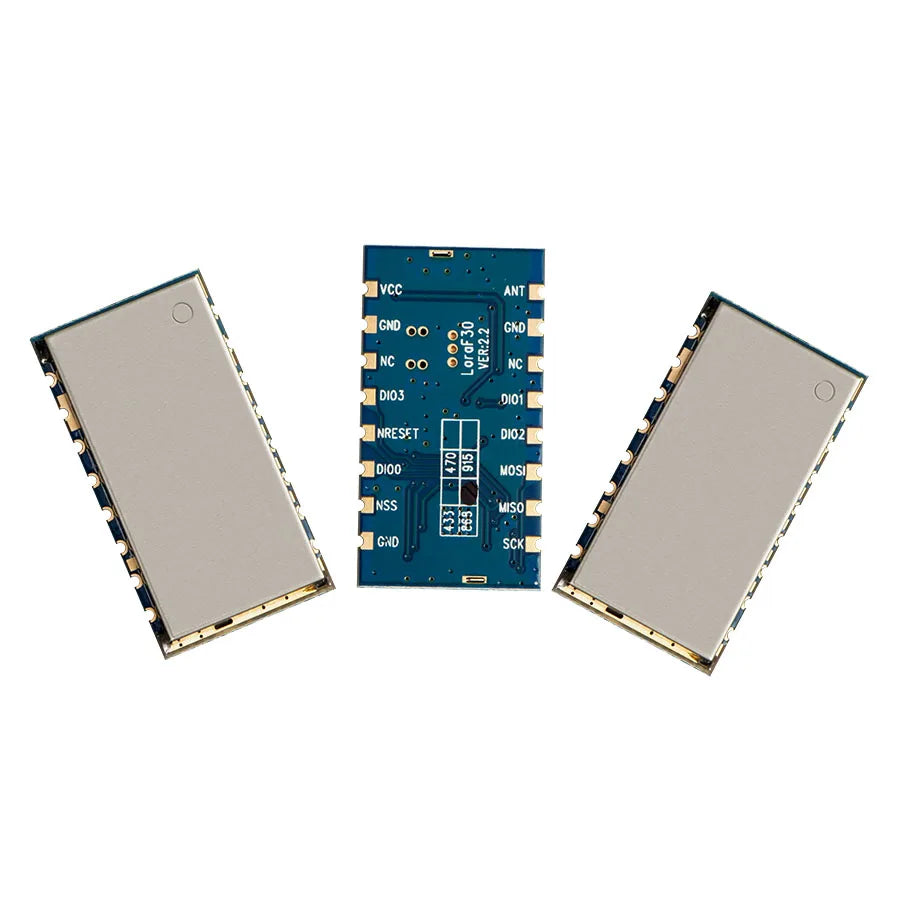

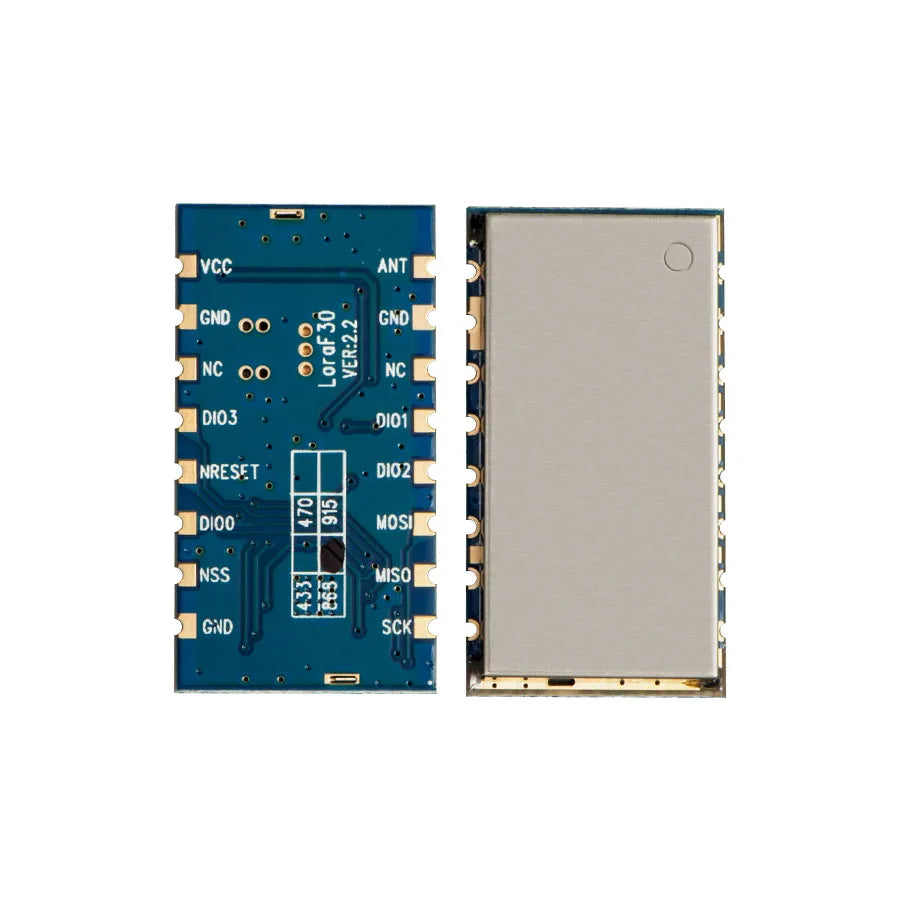

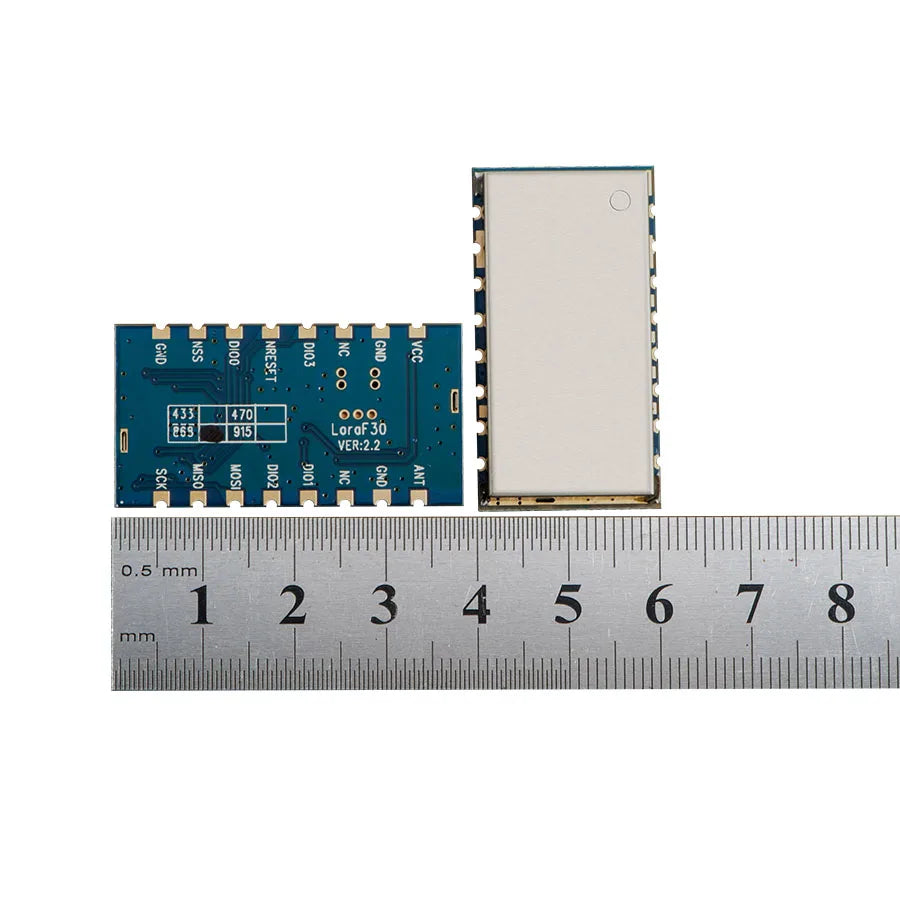

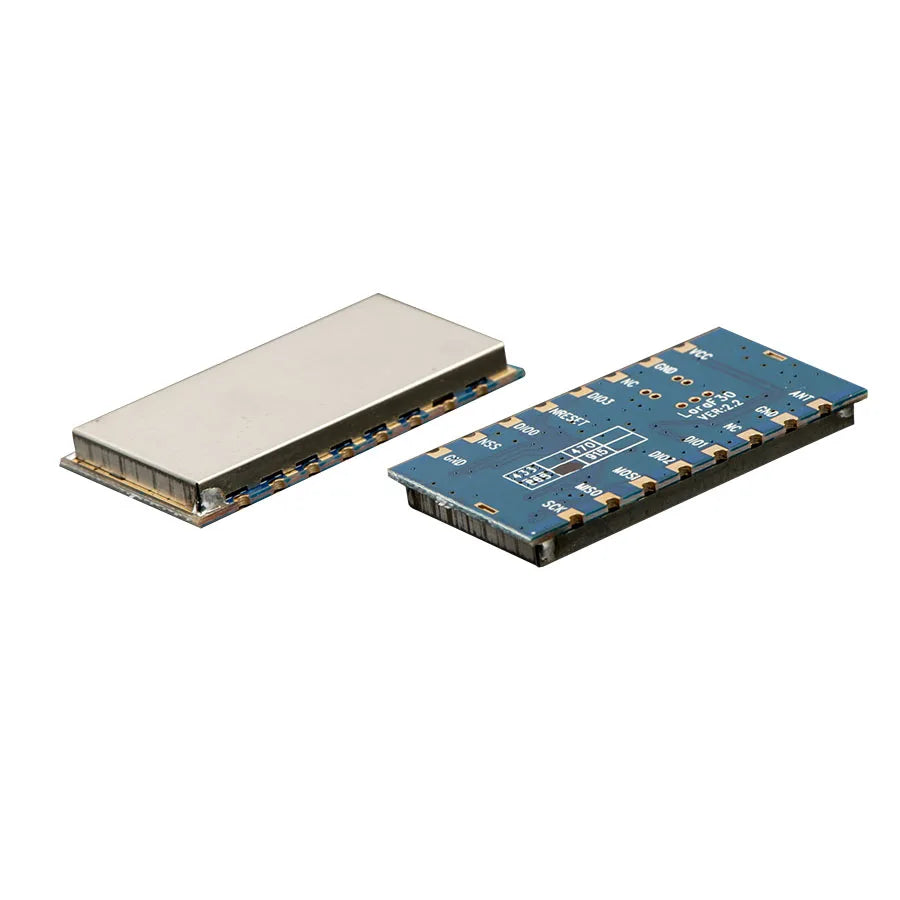

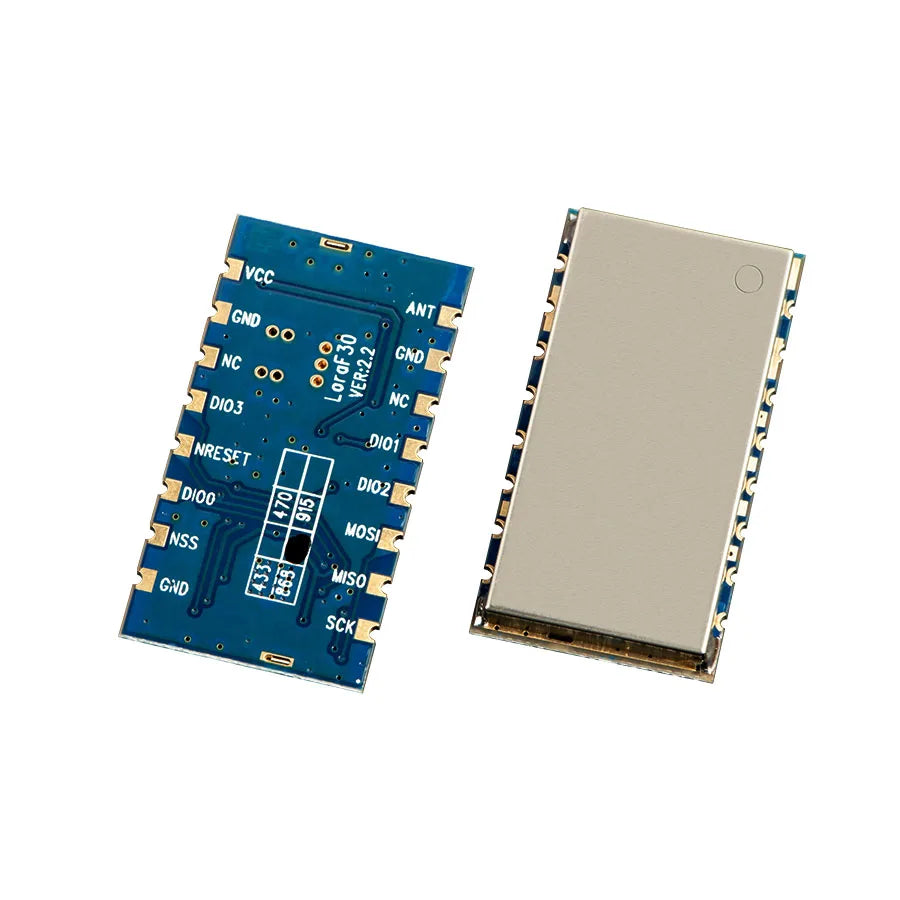

2pcs high power 30dBm(1W) 433MHz wireless SPI port LoRa module Lora1278F30

DEMO Board is not included, If you need DEMO board or another frequency band 470MHz(1W), just leave message please!

Lora1278F30 is 1W RF Wireless Front end transceiver module. It embedded Semtech SX1278 RF chip(433/470MHz), which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of high sensitivity (-120 dBm @FSK, -130dBm @ LoRa), +30 dBm output power make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.

Product Details:

Specifications:

Item number: 433MHz 1W high power wireless Radio transceiver LoRa module LoRa1278F30

Parameter	Min	Typ	Max	Unit	Condition

Working condition
Working voltage range	3	3.3	6	V
Temperature voltage	-40		85	°C
Current consumption
Receiving current		10.8		mA
Transmitting current		500		mA	@ 30dBm
Sleep current		<3		uA
Parameter
Frequency range	400.5	430.5	440.5	MHz	@ 430.5MHz
Modulation rate	1.2		300	Kbps	FSK
Modulation rate	0.018		37.5	Kbps	LoraTM
Output power range	27.5		30.5	dBm
Receiving sensitivity		-120		dBm	@ FSK data=1.2kbps,Fdev=10kHz
Receiving sensitivity		-130		dBm	@ Lora BW=125KHz_SF = 12_CR=4/5

Features:

Frequency Range: 400.5-440.5MHz(Customizable 400-440MHz)
Sensitivity up to -120 dBm
Maximum output power: +30dBm
10.8mA @receiver status
sleep current <3uA
Data transfer rate: @FSK 1.2-300 kbps ; @LoRa TM, 0.018-37.5kbps
3.3-6.0 V Power supply
127db dynamic range RSSI
No signal blocked
256byte FIFO
CRC Frequency hopping
Low-power detection
Built-in Temperature sensor
Operating Temperature Range: -40~+85 °C

Application:

Remote control
Remote meter reading
Industrial control
home automation remote sensing
Individual data records
Toy remote control
sensor network
tire pressure monitoring
health monitoring
wireless PC peripherals
tag reading and writing

Schematic:

Pin definition:

Pin NO.	Pin name	Description
1	VCC	Power supply 3.3V
2	GND	power ground
3	NC	No Connection
4	NC	No Connection
5	NRESET	Reset input
6	DIO0	Digital I/O
7	NSS	SPI enable
8	GND	power ground
9	SCK	Serial clock for SPI interface
10	MISO	Serial MISO for SPI interface
11	MOSI	Serial MOSI for SPI interface
12	DIO2	Digital I/O
13	DIO1	Digital I/O
14	NC	No Connection
15	GND	power ground
16	ANT	Connect with 50 ohm coaxial antenna

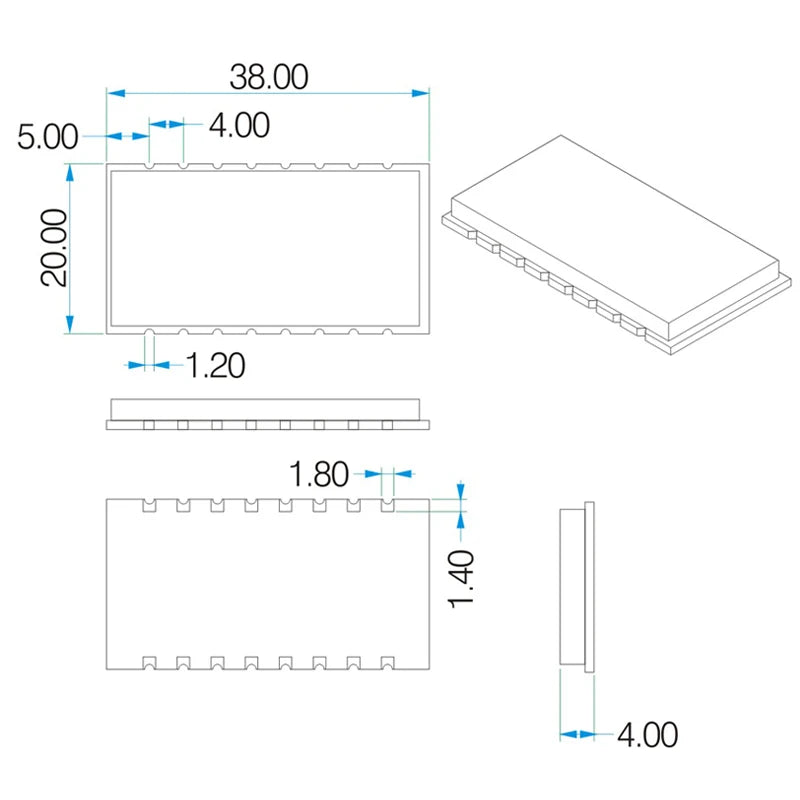

Mechanic dimension:

Appendix:
The module is possible to be equipped with a standard DEMO board for customer to debug the program and test distance. It shows as below:
