2pcs/lot Lora611PRO 915MHz 5Km sx1276/sx1278 AES encrypted MESH network Smart Repeater Node Wireless Lora RF Module

915MHz RS485

$162.20

Sale price $162.20 Regular price $0.00

Skip to product information

2pcs/lot Lora611PRO 915MHz 5Km sx1276/sx1278 AES encrypted MESH network Smart Repeater Node Wireless Lora RF Module

2pcs/lot Lora611PRO 915MHz 5Km sx1276/sx1278 AES encrypted MESH network Smart Repeater Node Wireless Lora RF Module

$162.20

Sale price $162.20 Regular price $0.00

Color 915MHz RS485 868MHz TTL 915MHz TTL 915MHz RS232 470MHz TTL 470MHz RS232 868MHz RS232 868MHz RS485 433MHz RS232 433MHz RS485 470MHz RS485 433MHz TTL

Description

SPECIFICATIONS

Antenna Connection Method: SMA

Audio Interface Type: none

Brand Name: G-NiceRF

Communication Interface Type: TTL/RS232/RS485 for option

Encryption: AES 128

Frequency: 433/470/868/915MHz for option

Frequency Band: 433/470/868/915MHz

High-concerned chemical: none

Information Delivery Content: Data

MESH network: Yes

Maximum output power: +20dBm (100mW)

Modulation: LoRa

Network Support: Yes

Operating Temperature: -40 ~ + 85 °C

Origin: Mainland China

Sensitivity: -139dBm

Sleep current: <3uA

Transmit Power: 100mW

Type: Lora Module

Voltage: 3.3-6.5 V

Working voltage: 3.3-6.5 V

interface: TTL/RS232/RS485 for option

We are an original manufacturer with more than 10 years experience of researching, developing, producing and selling IOT(internet of things) products such as RF modules, walkie talkie modules and integrated digital sensor modules.Meanwhile,ODM and OEM projects are welcomed.

2pcs/lot Lora611PRO 915MHz/868MHz 4~5Km sx1276/sx1278 data transceiver AES encrypted MESH network Smart Repeater Node Wireless Lora RF Module

2pcs 100mW 915MHz TTL AES encrypted & MESH network RF data transceiver module Lora611PRO

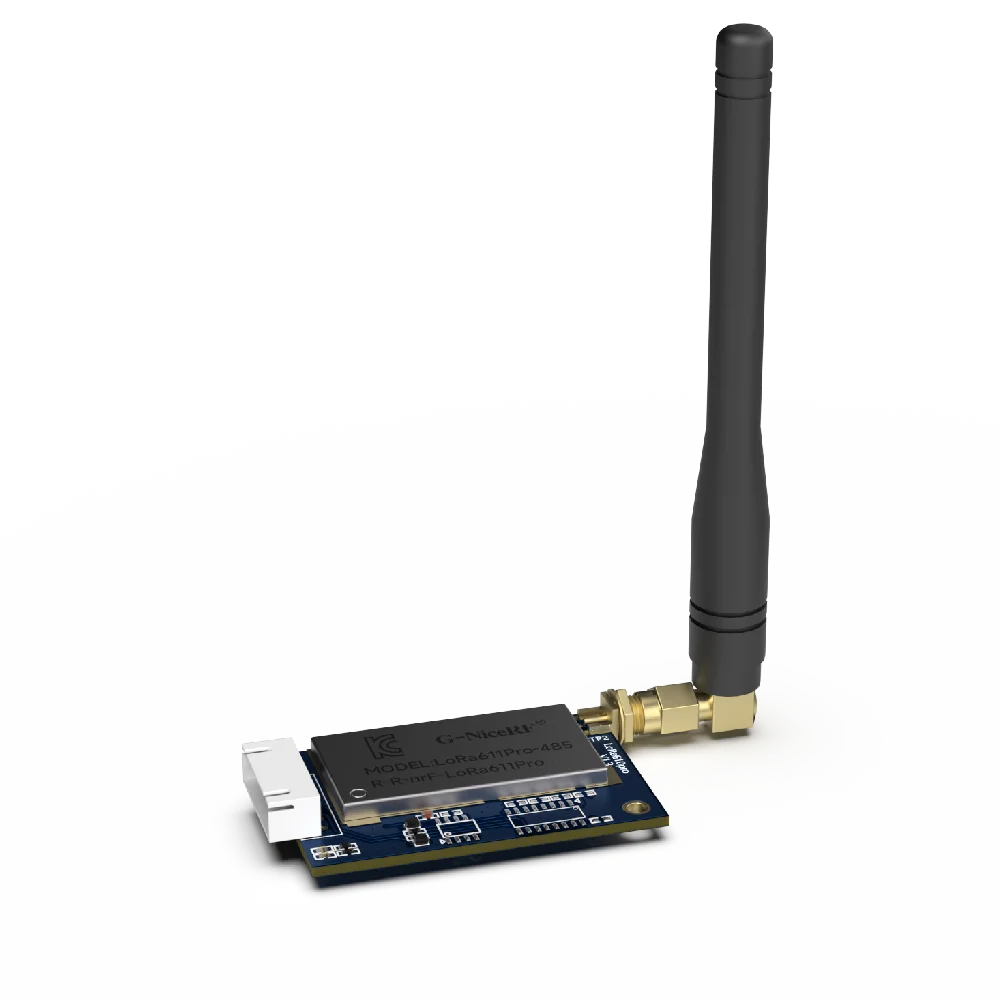

2pcs rod antenna SW433-WT100
1pc USB Bridge board SU108-TTL
2pcs connecting cables

If you need another frequency band 433MHz/470MHz/868MHz or RS232 /RS485 interface, just leave message please!

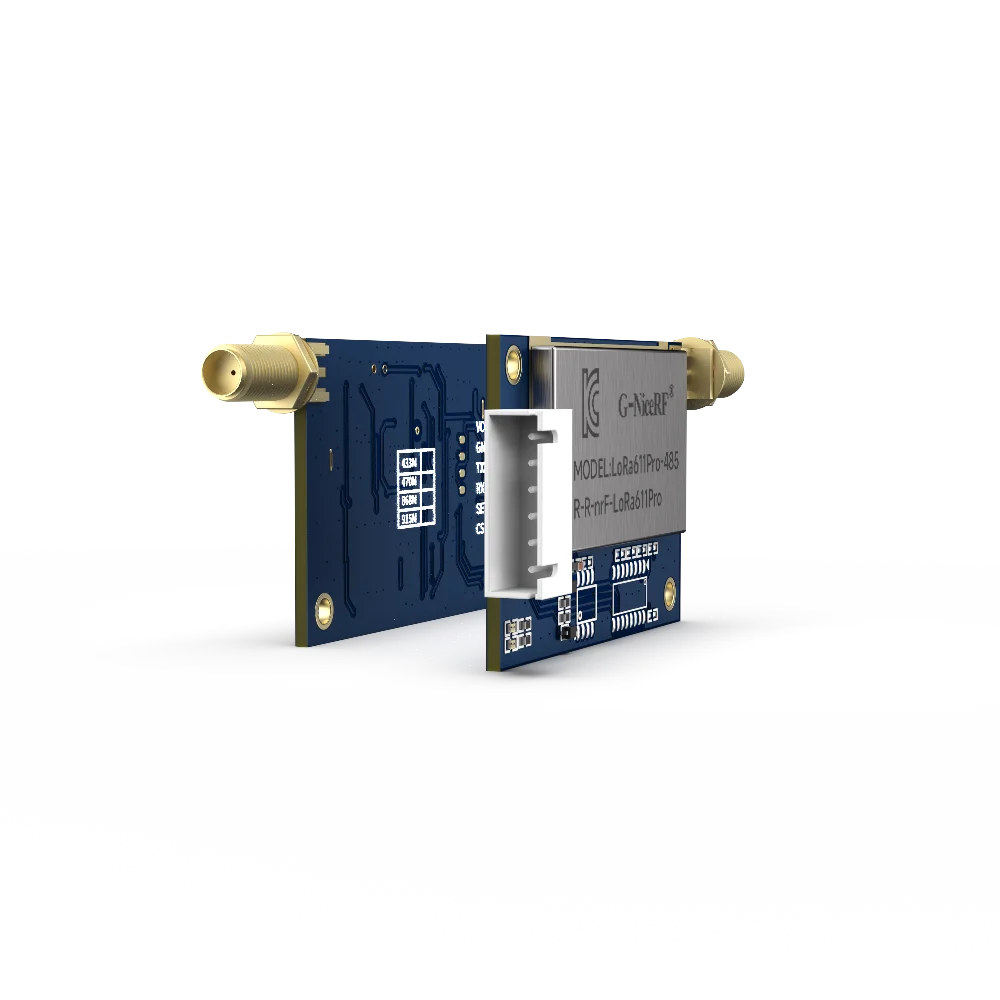

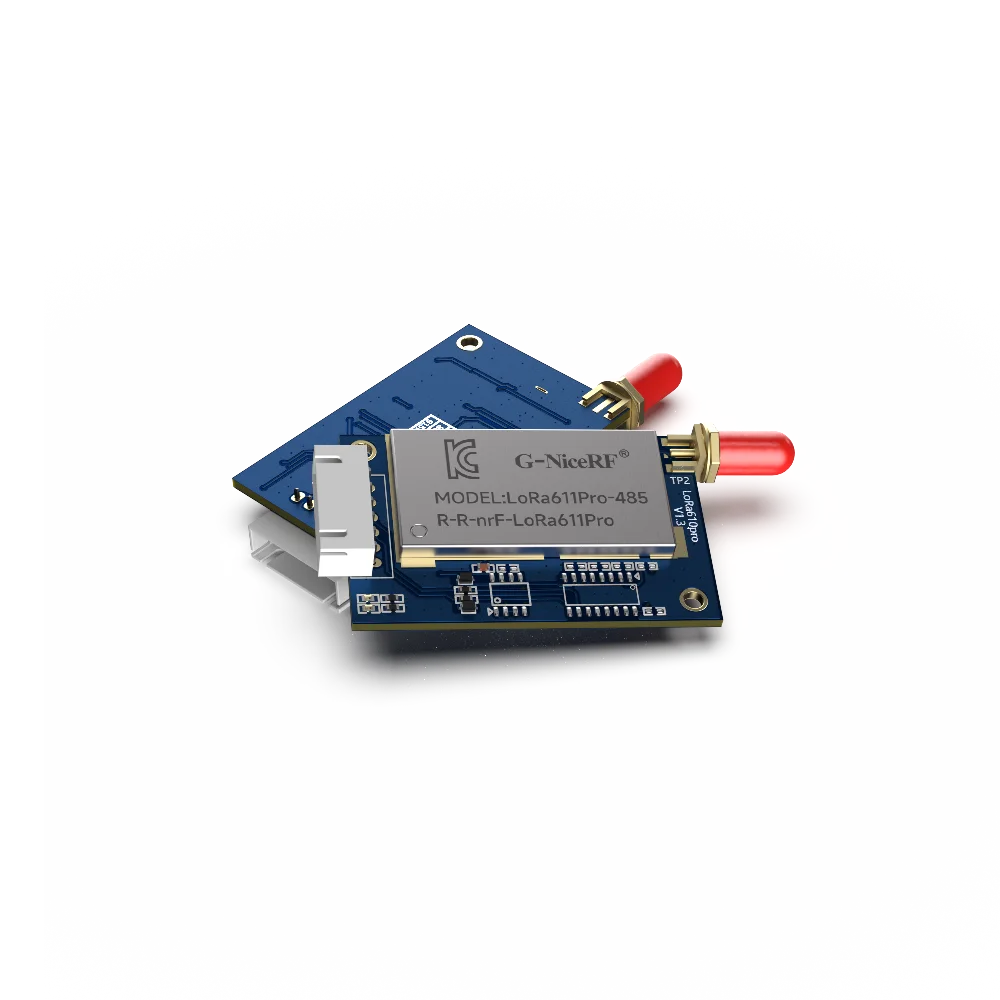

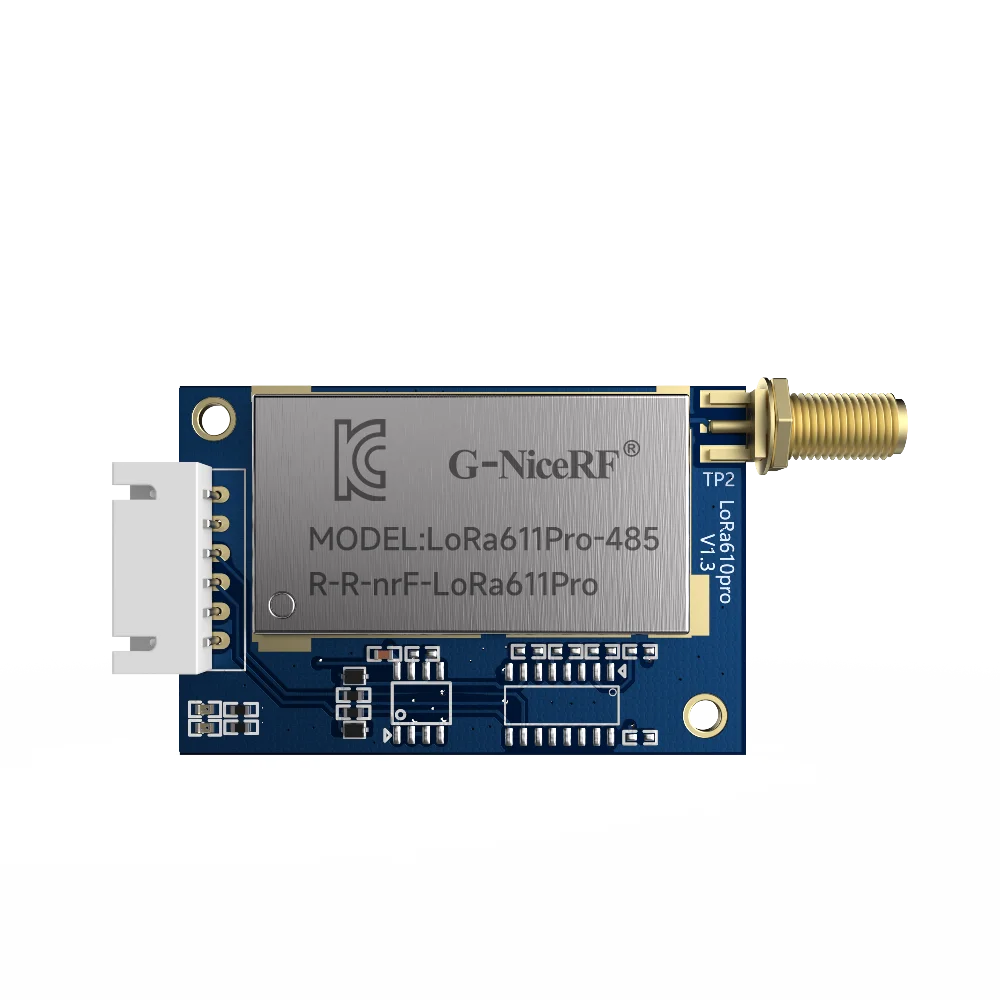

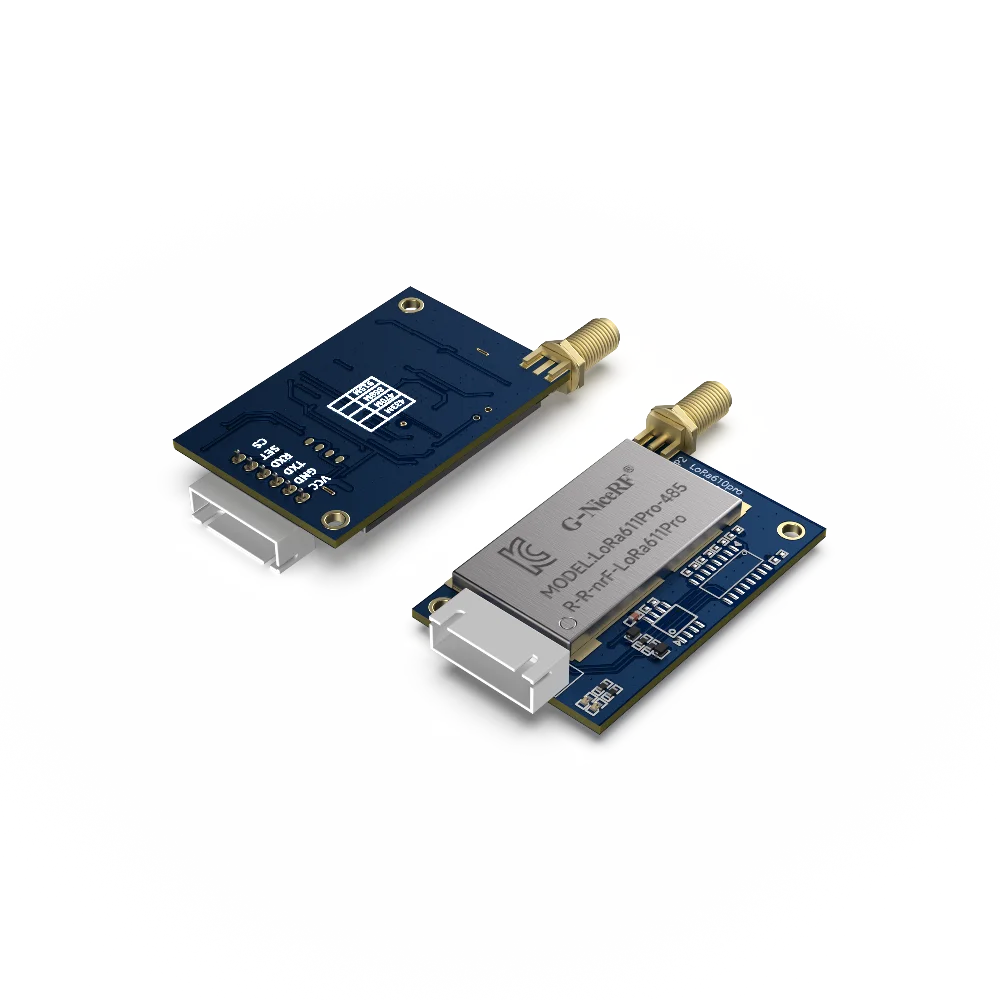

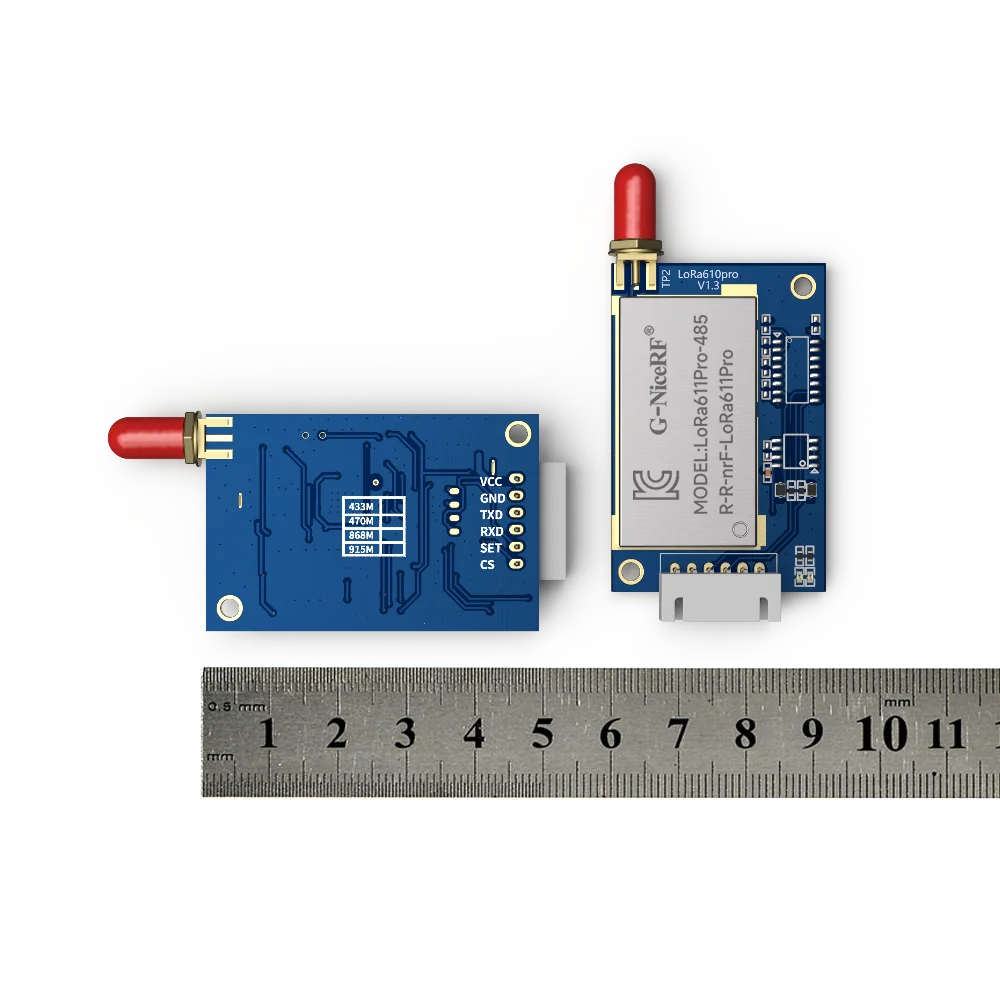

LoRa611Pro is a wireless transceiver data transmission module, based on SX1276/1278 chips from Semtech. This module adopts LoRa technology to achieve high effective sensitivity and superior anti-interference. The communication distance and receiver sensitivity are far exceeds the FSK, GFSK modulation. For better security, the module uses AES128 encryption. LoRa611Pro has 100mW output power and TTL/RS232/RS485 interface available. It is widely applied in meter reading, remote industrial control, etc

Note: The LoRaPro series can be work on different mode s(according to the PC software settings), and they can communicate with NiceRF old version LoRa modules each other.

Product Details:

Specifications:

Features:

* Transmission distance in open area up to 5000 meters @ 91bps
* 433/470/868/915 MHz(Customizable)
* AES128 Data encryption
* MESH & Node working mode
* 40 channels
* LoRa modulation
* Interface: TTL/RS232/RS485
* Sensitivity: -139 dBm
* Max output power: 100mW(+20dBm)
* Working voltage: 3.3 ~ 6.5 V
* Working temperature: -40 ~ +85 °C

Application:

* Remote control telemetry
* Remote meter reading
* Security system
* Industrial data acquisition
* Home automation
* Wireless data communication
* Access system
* Robot control

Operation

1) Power on Reset

Standard supply voltage of 5V (ordinary lithium battery of 4.2V is also applicable),After powered on reset, the TX LED (Red) and RX LED (Blue) will blink 3 times,(If no lights, module may damaged),The total reset time is around 2s.

2) Working Mode

The CS and SET Pin is internally pulled up. Pull CS pin high or leave it open will make the module enter into working mode.

In working mode, LoRa611 stay in receiving mode and wait for the series signal and RF signal.

Module can connect with any device which is standard TTL/RS232/RS485 interface.

When series signal comes, module will check the input series signal if there is any error, and then transmit the received data out via RF automatically if no errors found.

When RF signal comes, module will check the input RF signals if there is any error, and then transmit the received data out via series port automatically if no errors found.

When one packet is transmitted successfully, the Red LED will blink once.

When one packet is received and verified with no problem, the Blue LED will blink once.

The upgraded LoraPro series can be compatible with all versions of our LORA data before. The user can use PC software to configure the module to work mode according to his application needs. Now the comparison between several versions is as follows:
