2pcs/lot lora6500pro - Long range 15Km 5W AES128 encrypted MESH network UART port 433 / 868 / 915MHz LoRa data module

915MHz RS232

$866.92

Sale price $866.92 Regular price $0.00

Skip to product information

2pcs/lot lora6500pro - Long range 15Km 5W AES128 encrypted MESH network UART port 433 / 868 / 915MHz LoRa data module

2pcs/lot lora6500pro - Long range 15Km 5W AES128 encrypted MESH network UART port 433 / 868 / 915MHz LoRa data module

$866.92

Sale price $866.92 Regular price $0.00

Color 915MHz RS232 915MHz RS485 470MHz TTL 470MHz RS232 868MHz TTL 868MHz RS232 868MHz RS485 915MHz TTL 470MHz RS485 433MHz TTL 433MHz RS232 433MHz RS485

Description

SPECIFICATIONS

Antenna Connection Method: SMA-J

Audio Interface Type: none

Brand Name: G-NiceRF

Communication Interface Type: TTL, RS232, RS485

Compatible: Handheld Player, Game Console, Kinect, PlayStation Move

Frequency Band: 433MHz,470mhz,868mhz,915mhz

High-concerned chemical: none

Information Delivery Content: Data

Interface: TTL/RS232/RS485

LBT: Listen before talk

Network Support: Yes

Operating Frequency: 433MHz/ 470mhz / 868mhz / 915mhz

Operating Temperature: -40 ~ +85 °C

Operating Voltage: 9-30 V

Origin: Mainland China

Power: 5W 37dBm

Receiving Sensitivity: -139dBm

Router: as node and router at same time

Sleep Current: <7mA

Transceiver distance: 15Km in open area

Transmit Power: 5W (37dBm)

Type: Lora Module,Industrial Class Reliable Data Acquisition Transceiver Module

Voltage: 9-30 V

2pcs/lot lora6500pro - Long range 15Km 5W AES128 encrypted MESH network RS232/RS485/TTL interface 433 / 868 / 915MHz LoRa data modem

2pcs * 868MHz 5W AES128 encrypted TTL port MESH Network Repeater LoRa module LoRa6500pro-TTL-868
2pcs * 868MHz 1m extension cable Sucker Antenna SW868-XP1M
1pc * TTL interface USB bridge board SU109-TTL

If you need 433/ 470 /915MHz , or RS232 / RS485 interface, please leave us massage!

LoRa6500Pro is a small wireless transceiver data transmission module, based on SX1276/1278 chips from Semtech. This module adopts LoRa technology to achieve high effective sensitivity and superior anti-interference. The communication distance and receiver sensitivity are far exceeds the FSK, GFSK modulation. For better security, the module uses AES128 encryption. LoRa6500Pro has 5W output power and TTL/RS232/RS485 interface available. It is widely applied in meter reading, remote industrial control, etc

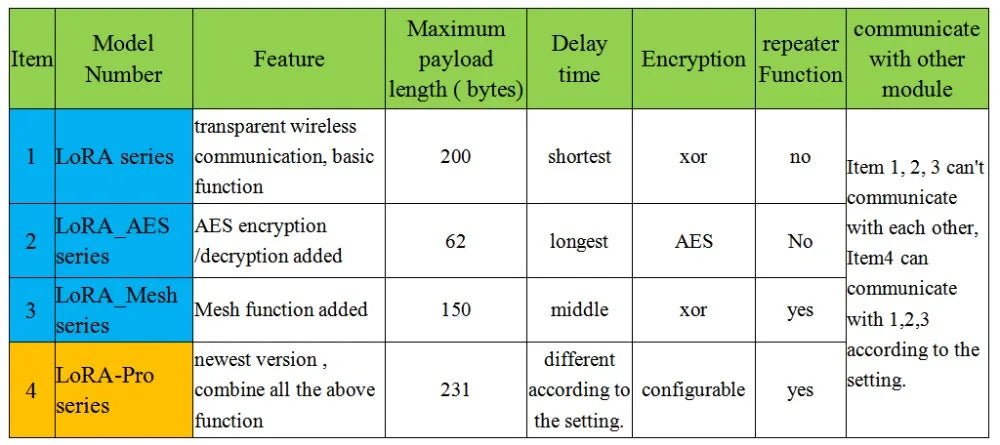

Note: The LoRaPro series can be work on different modes(according to the PC software settings), and they can communicate with NiceRF old version LoRa modules each other

Feature

Transmission distance in open area up to 15000meters @ 91bps
433/470/868/915 MHz(Customizable)
AES128 Data encryption
MESH & Node working mode
40 channels
LoRa modulation
Interface: TTL/RS232/RS485
Sensitivity: -139 dBm
Max output power: 5W（+37dBm）
Working voltage: 3.3 ~ 6.5 V
Working temperature: -40 ~ +85 °C
LBT(Listen before talk)
Module can be as node and repeater at same time.

Application

Remote control telemetry
Remote meter reading
Security system
Industrial data acquisition
Home automation
Wireless data communication
Access system
Robot control

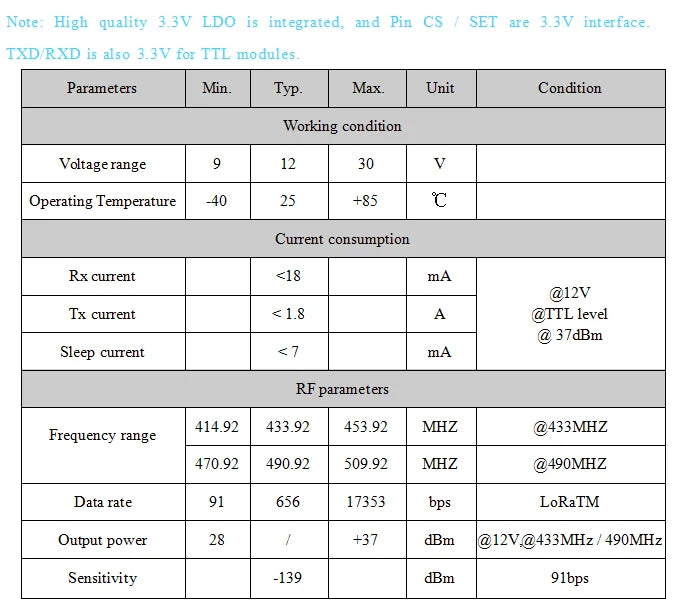

Specifications:

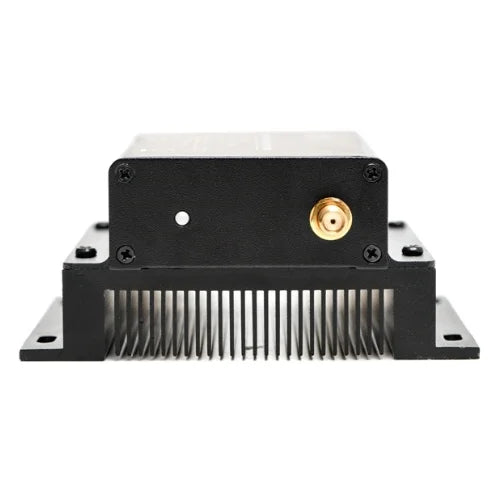

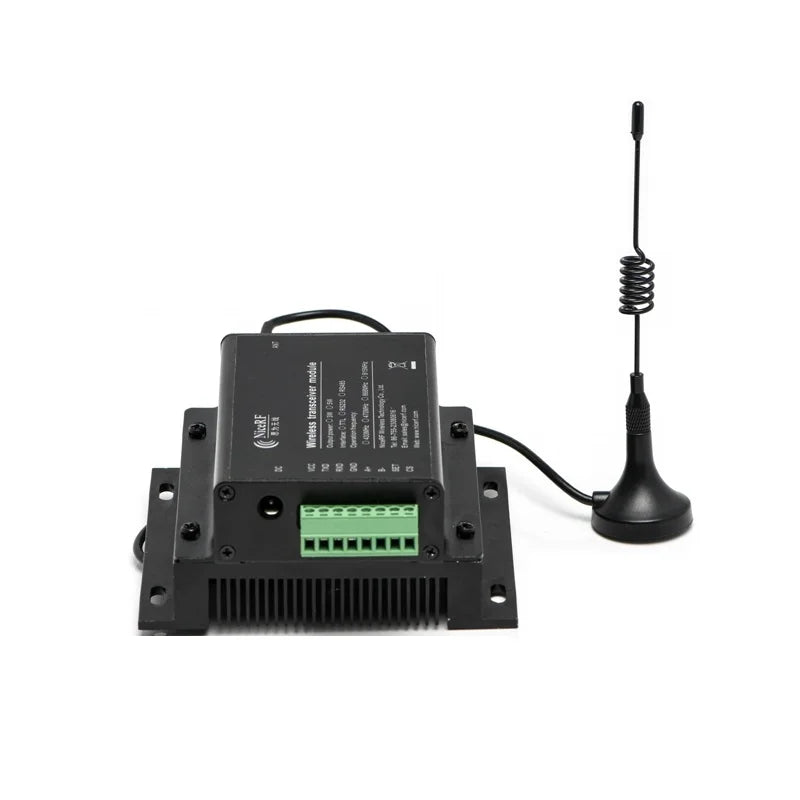

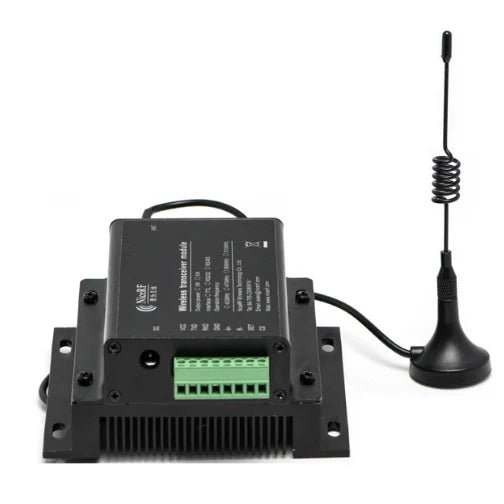

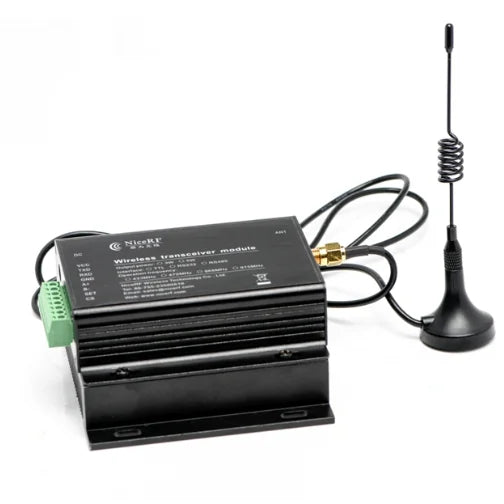

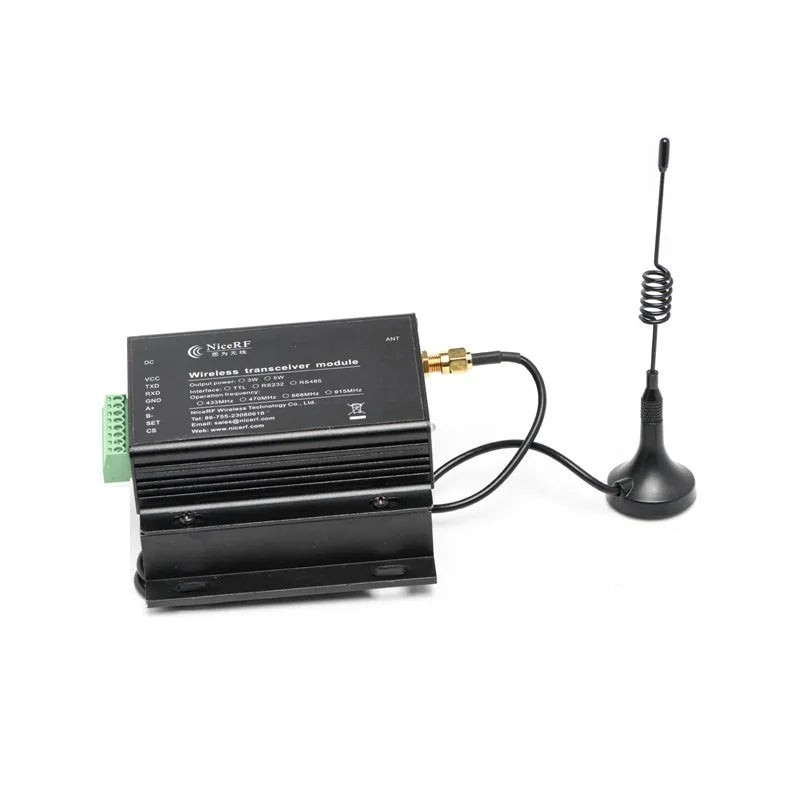

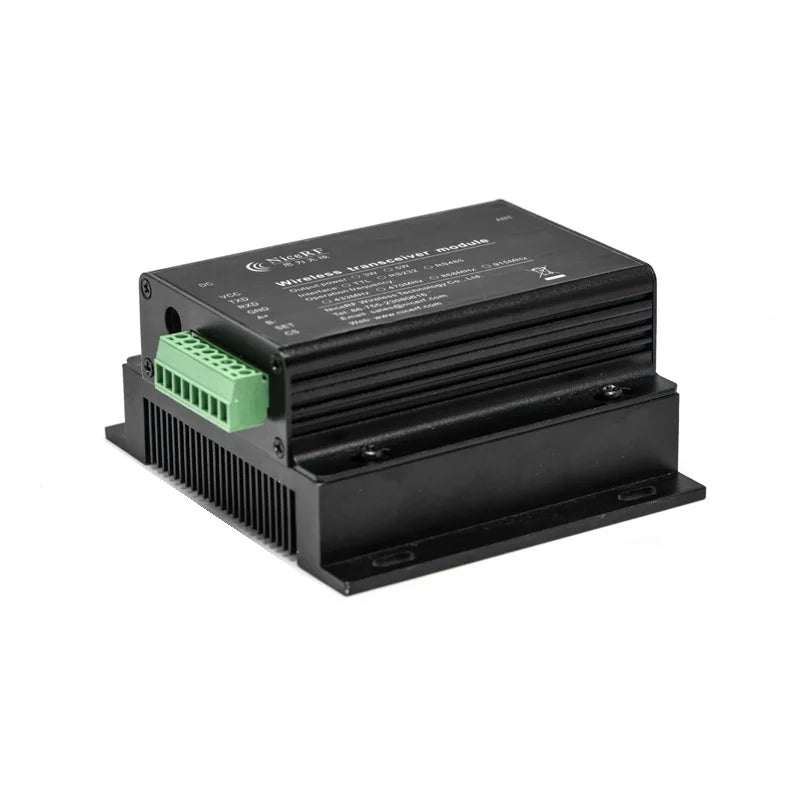

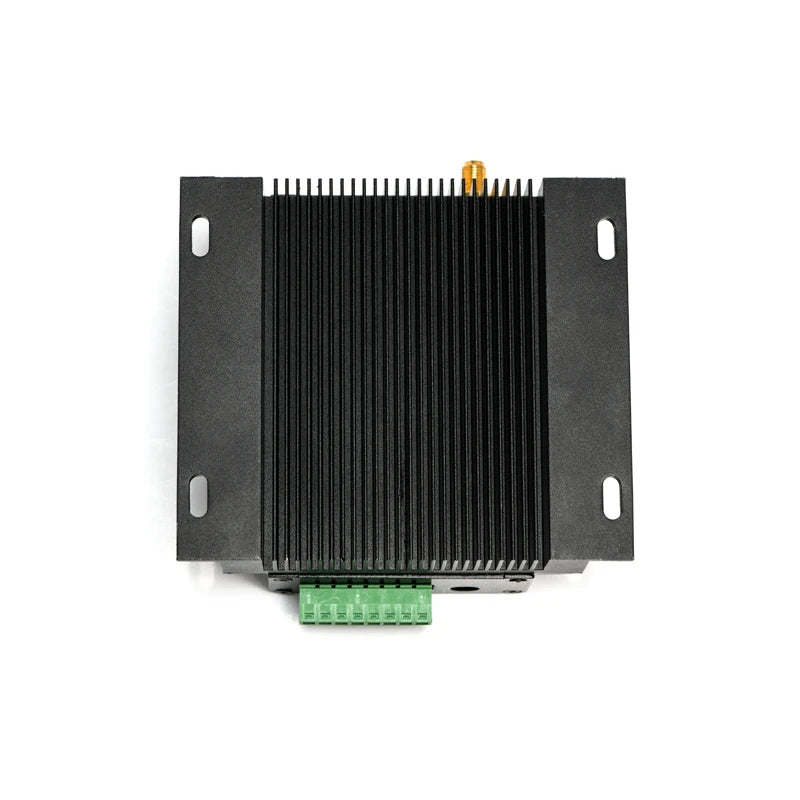

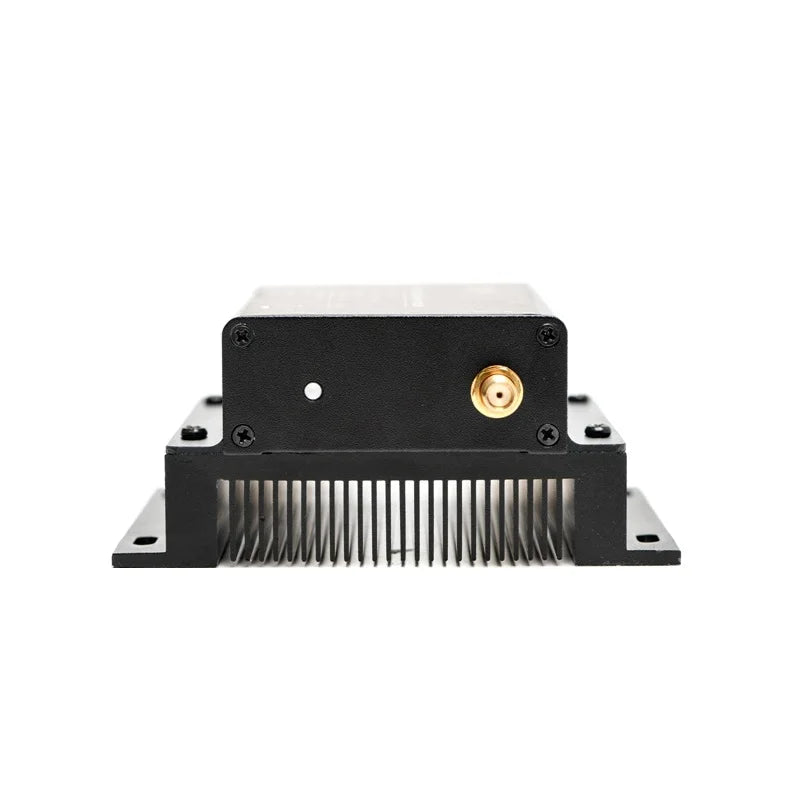

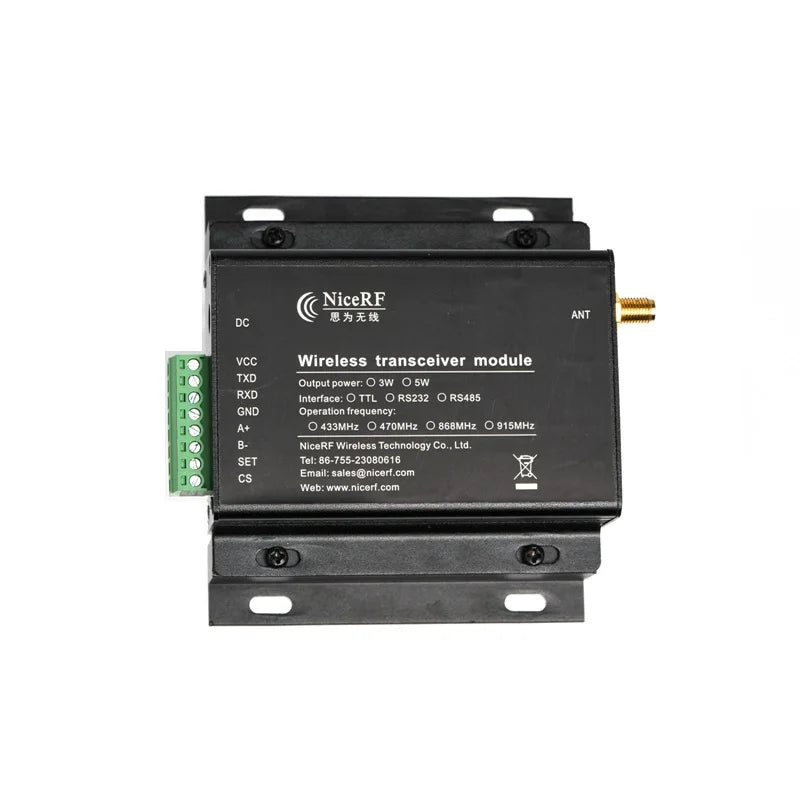

Product show

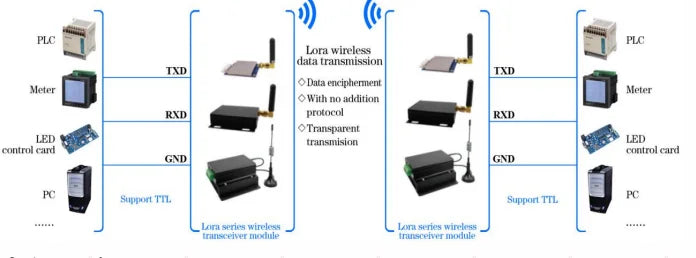

Application

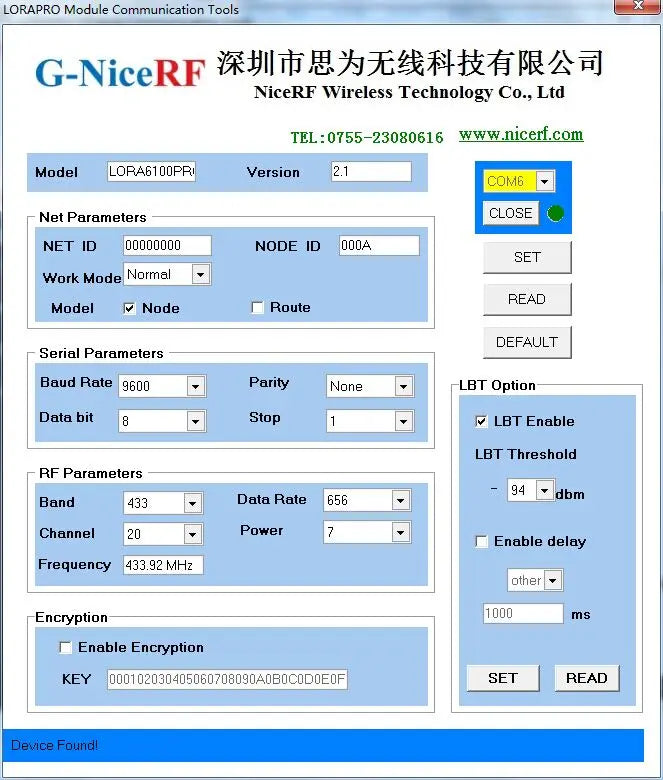

Operation

Normal mode PC settings——( Work Mode = Normal + disable Encryption )
AES mode PC settings——( Work Mode = Normal + Enable Encryption )

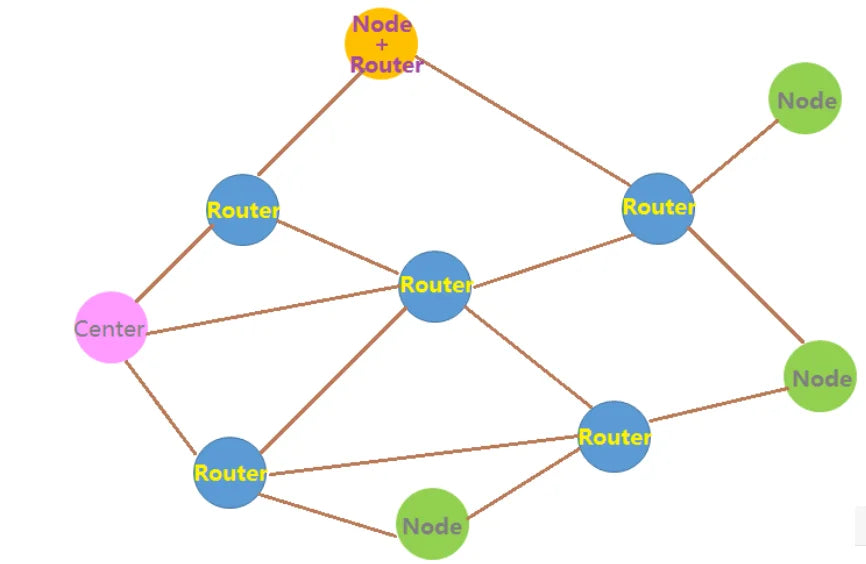

MESH mode PC settings——( Work Mode = MESH ；Mode = Router or Node)

--To ensure the stability and correctness of communication, the node should send the data with minimal time interval between adjacent packets. The time interval is different from the data length, RF data rate and baud rate

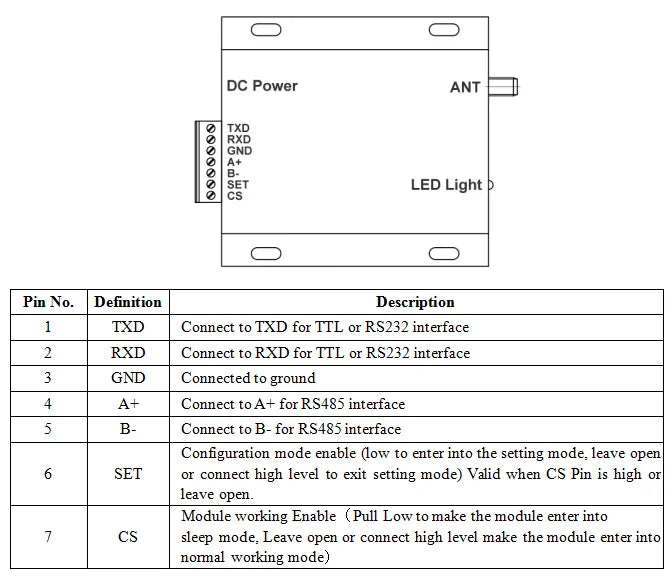

Pin Definition:

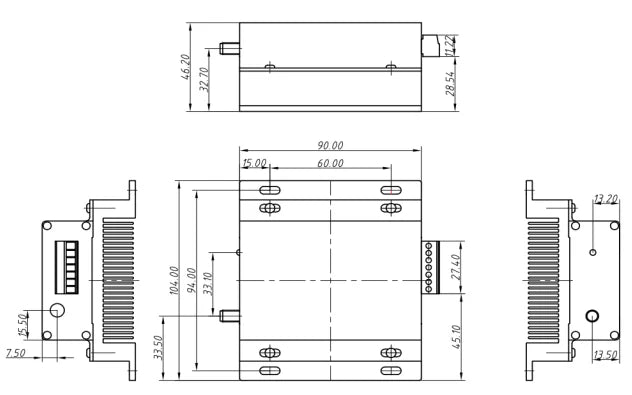

Machinism Dimensions:

Accessories:

How to connect Antenna: The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

Tips for antenna:

*Don’t close to the ground, metal, magnet, big current;

*If you are using the sucker antenna, pull the wire as straight as possible, the sucker foundation should stick with metal

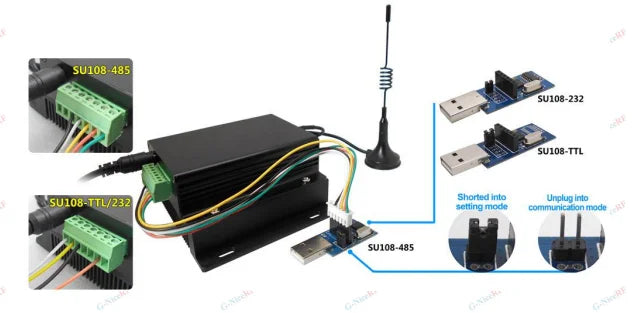

How to use USB Bridge Board:

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 3 type of USB bridge, which is SU108-TTL/ SU108-232 / SU108-485.SU108 -TTL is for TTL Interface, SU108-232 is for 232 Interface, SU108 - 485 is for 485 Interface. User should select the right USB bridge corresponding to the RF module.SU108 -TTL is for TTL Interface module .
