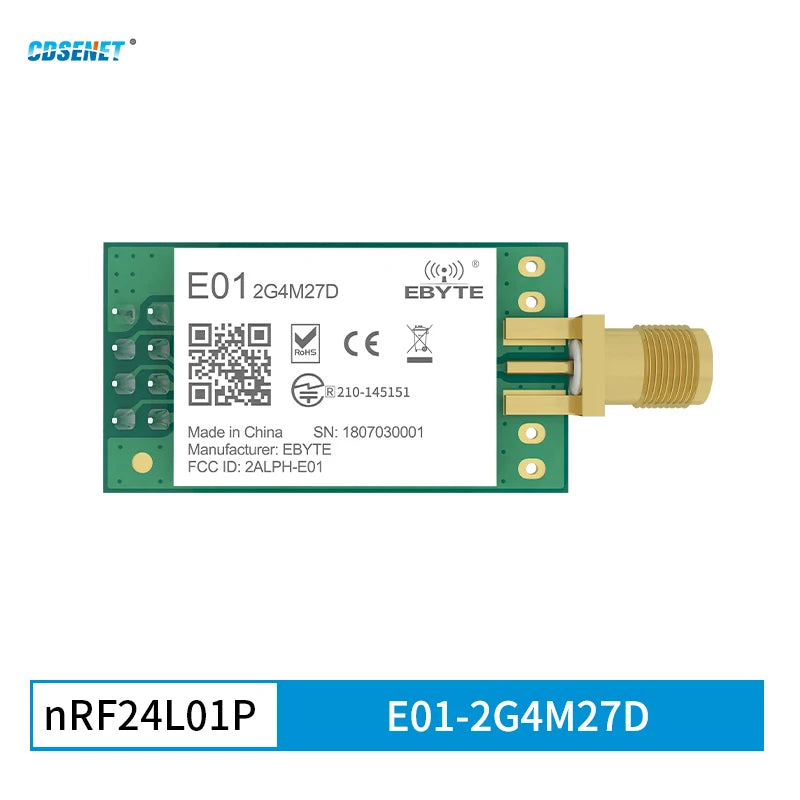

2PCS nRF24L01P 2.4GHz 500mW E01-2G4M27D SPI Transceiver E01-2G4M27D 27dBm SMA Long Range nRF24L01 PA LNA Transmitter Receiver
$44.51
Sale price
$44.51
Regular price
$0.00
Description
SPECIFICATIONS
Application: computer, other
Brand Name: CDSENET
Certification: CE,FCC,RoHS
Chip: nRF24L01 PA LNA
Communication Interface: SPI
Distance: 5000m
High-concerned chemical: none
Model Number: E01-2G4M27D
Origin: Mainland China
Port Number: 1
Power: Maximum 27dBm
RF IC: nRF24L01P
Suppy Voltage: 2.5-5.5V
Type: Wireless Module
Working Frequency: 2.4GHz,2.4G
Download Files:
PCB:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111351244254.zip
DEMO:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111351291797.zip
User Manual:https://www.cdebyte.com/pdf-down.aspx?id=1712

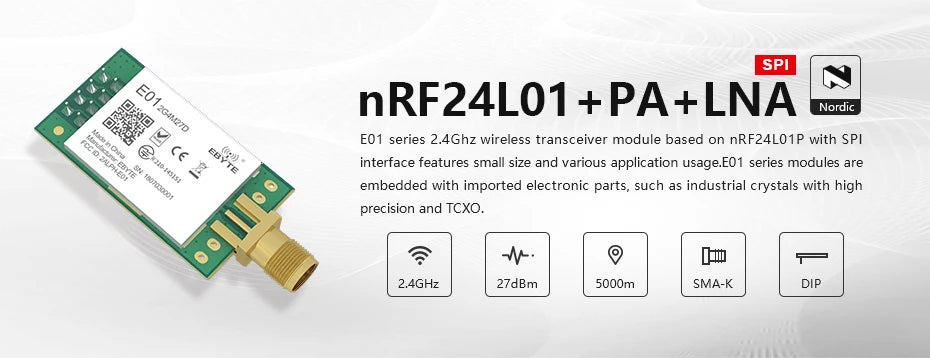

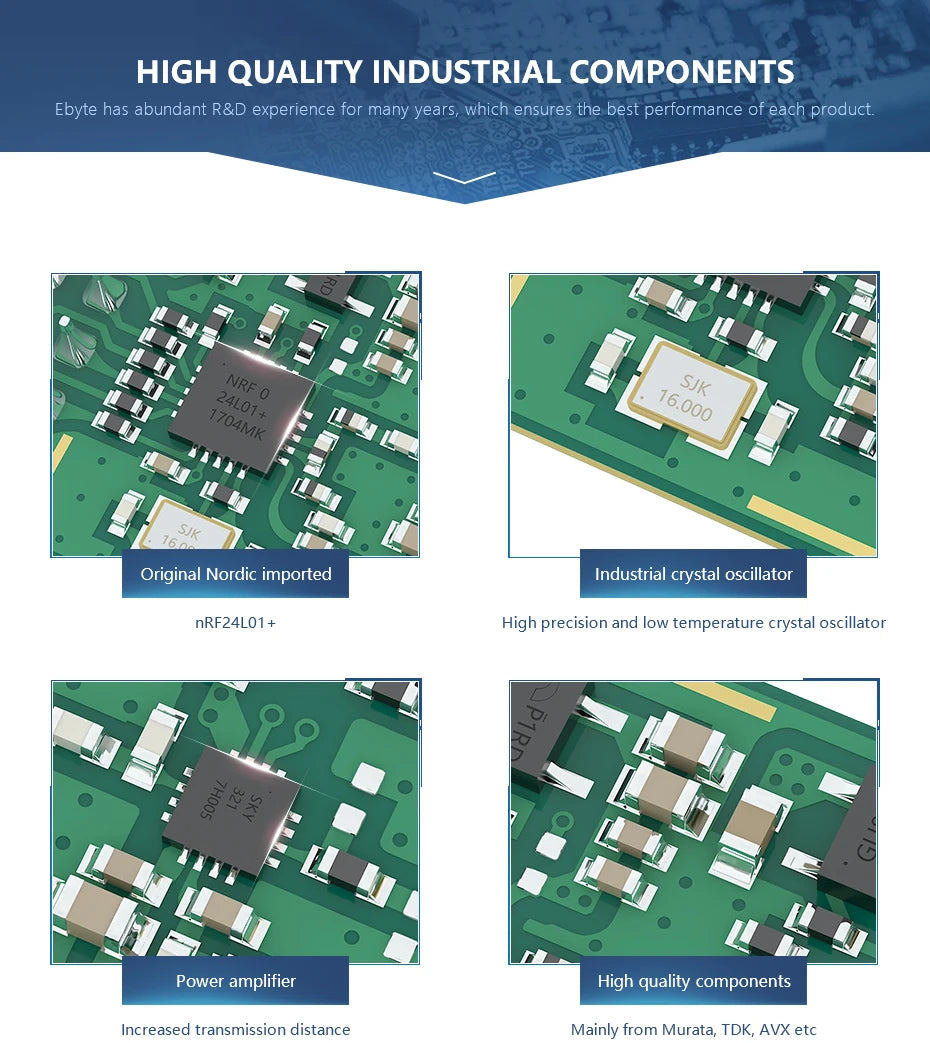

nRF24L01P 2.4GHz 500mW E01-2G4M27D SPI Transceiver E01-2G4M27D 27dBm SMA Long Range nRF24L01 PA LNA Transmitter Receiver
RF Parameter |
Value |
Remark |
Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
Transmitting power |
27 dBm |
Max. Power (500mW) |
Receiving sensitivity |
-99 dBm |
Air data rate: 250kbps |
Air data rate |
250k~2Mbps |
Default: 250kbps |
Test distance |
5000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |

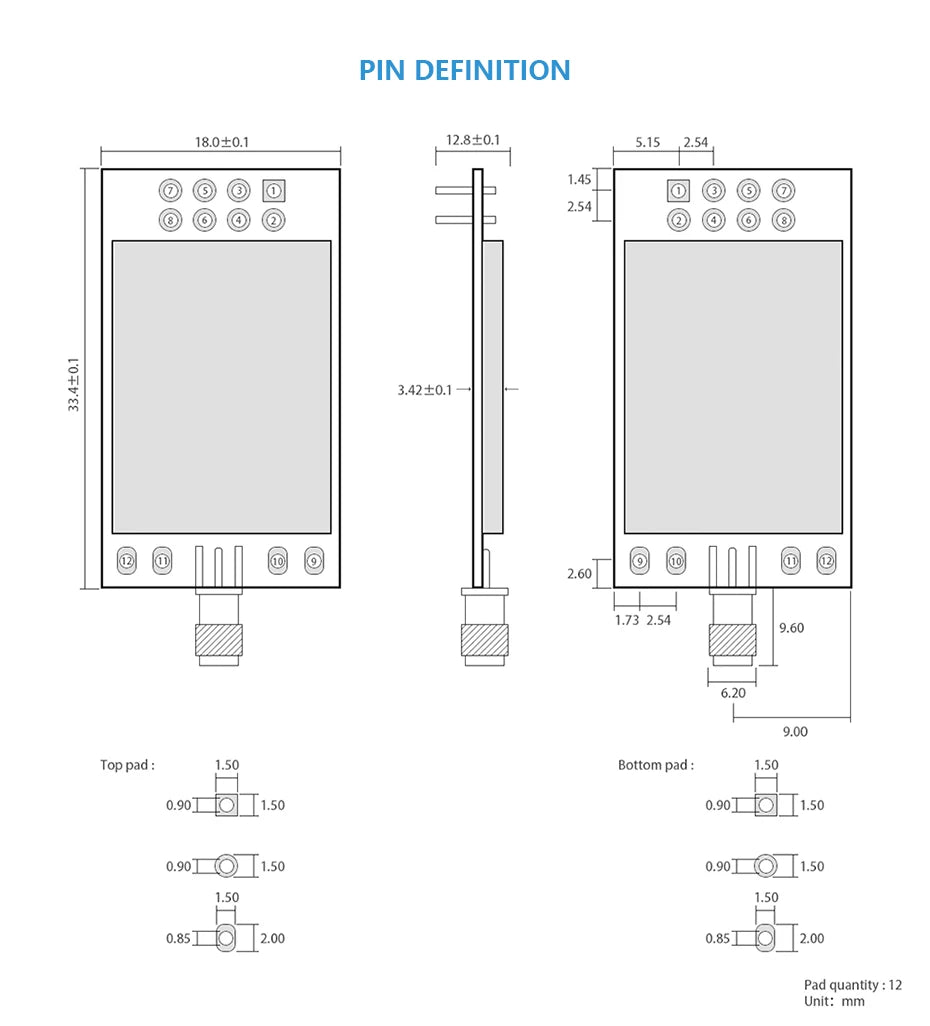

Hardware Parameter |
Value |
Remark |

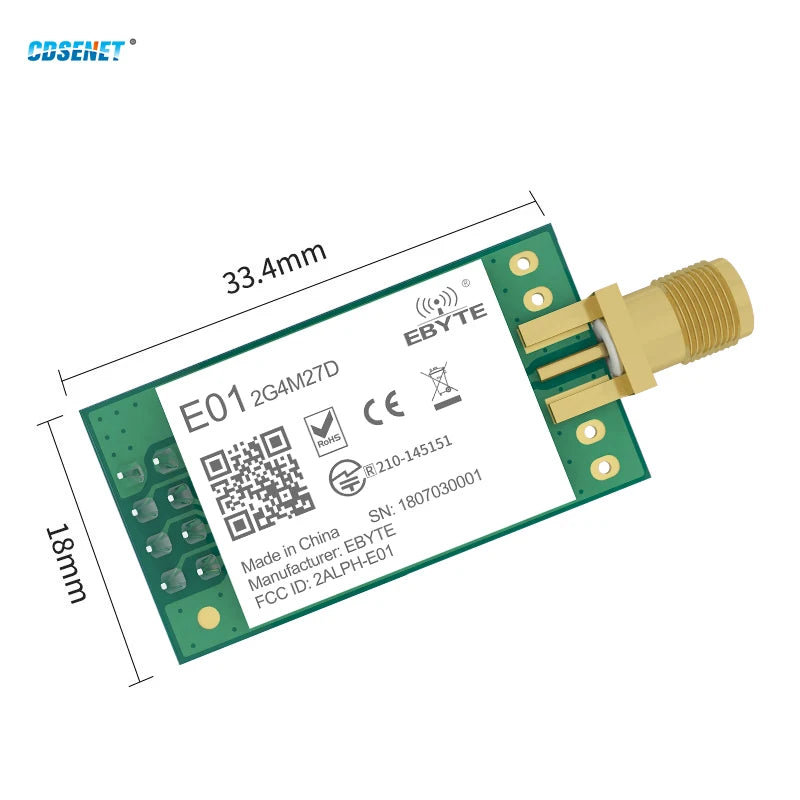

Size |
18 * 33.4 mm |
Without SMA |
Antenna type |
SMA-K |
|
Communication interface |
SPI |
|
Package |
DIP |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
2.5 |
3.3 |
5.5 |
V |
|
Communication level |
2.0 |
3.3 |
3.6 |
V |
|
Transmitting current |
480 |
490 |
500 |
mA |
3.3V |
Transmitting current |
380 |
390 |
400 |
mA |
5.0V |
Receiving current |
22 |
23 |
24 |
mA |
3.3V |
Receiving current |
21 |
22 |
23 |
mA |
5.0V |
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
Operating humidity |
10 |
60 |
90 |
% |
|
Storage temperature |
-40 |
20 |
+125 |
℃ |

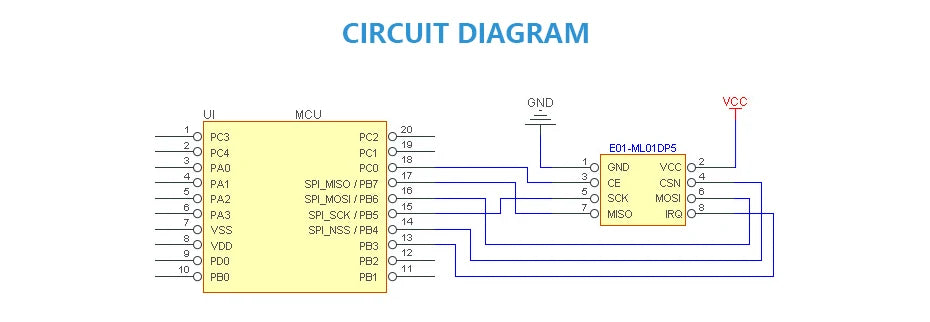

Pin No |
Pin item |
Pin direction |
Pin application |
1 |
GND |
- |
Ground |
2 |
VCC |
- |
Powersupply 2.5V~5.5V DC, it's recommended to use 3.3V. |
3 |
CE |
Input |
Chip enable |
4 |
CSN |
Input |
SPI chip select |
5 |
SCK |
Input |
SPI clock |
6 |
MOSI |
Input |
SPI master output slave input |
7 |
MISO |
Output |
SPI master input slave output |
8 |
IRQ |
Output |
Interrupt request, valid in low communication level |
