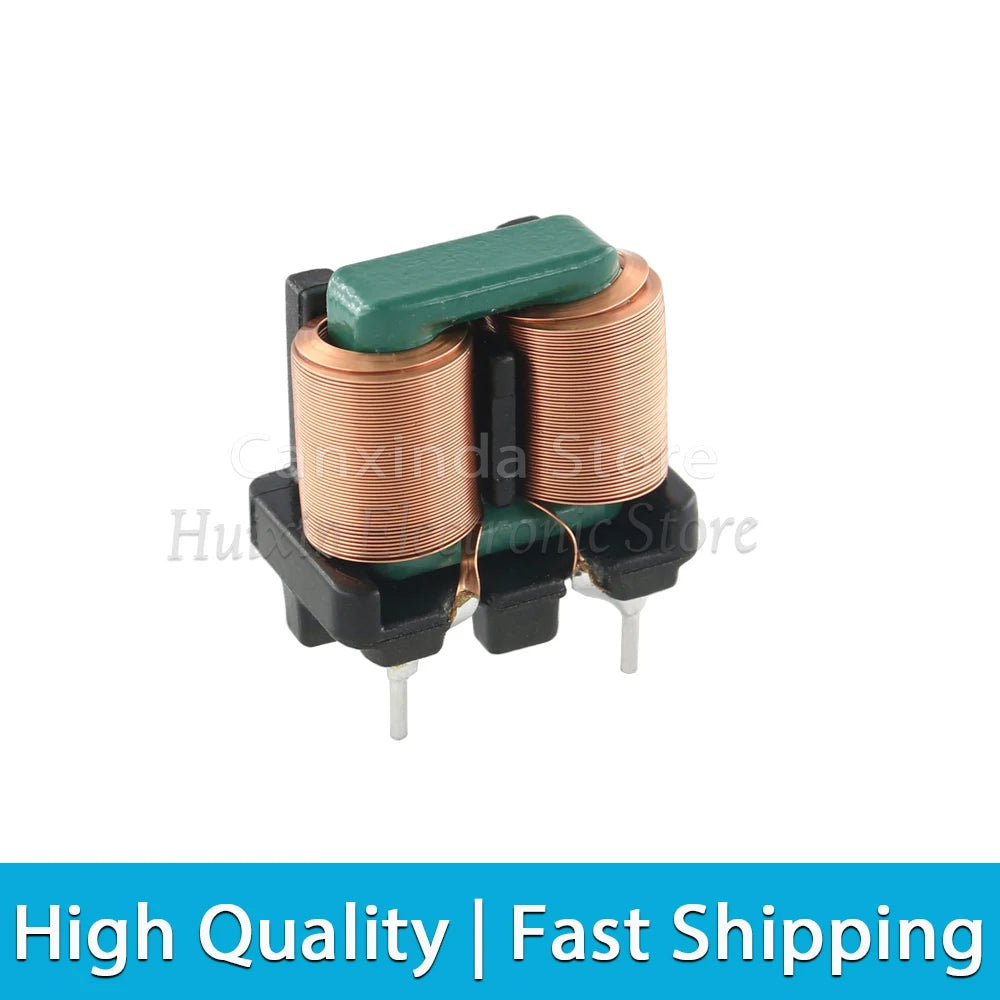

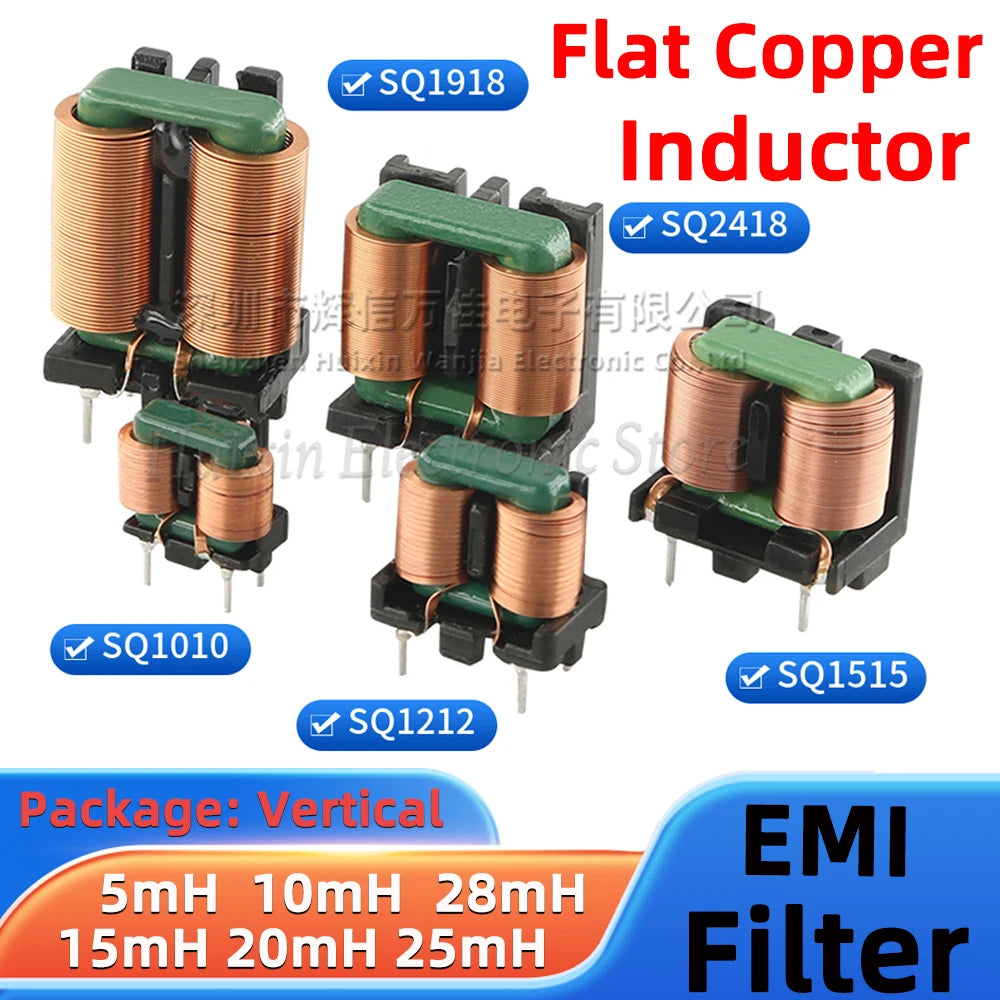

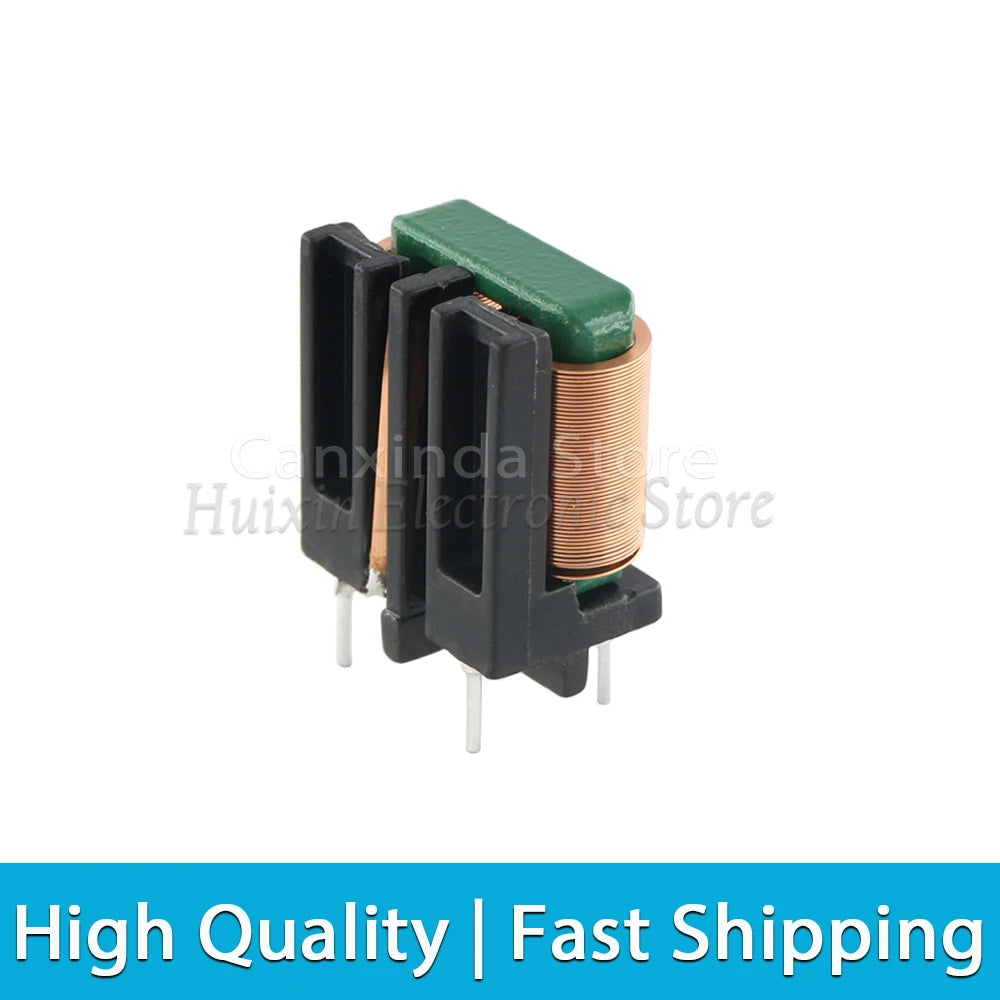

SPECIFICATIONS

Application

Switching power supply, AC Adapter, EMI filter, Monitor, TVs, VCR’s and Audio equipment, OA equipment, communications equipment and other electronic devices, DC - DC Converters, NC machine, office equipment, Charger, UPS, Household equipment, Consumer electronic product, Car Amp, measurement equipment, Server, Medical equipment, Solar energy converter, Electric Vehicle, Pool Light, etc.

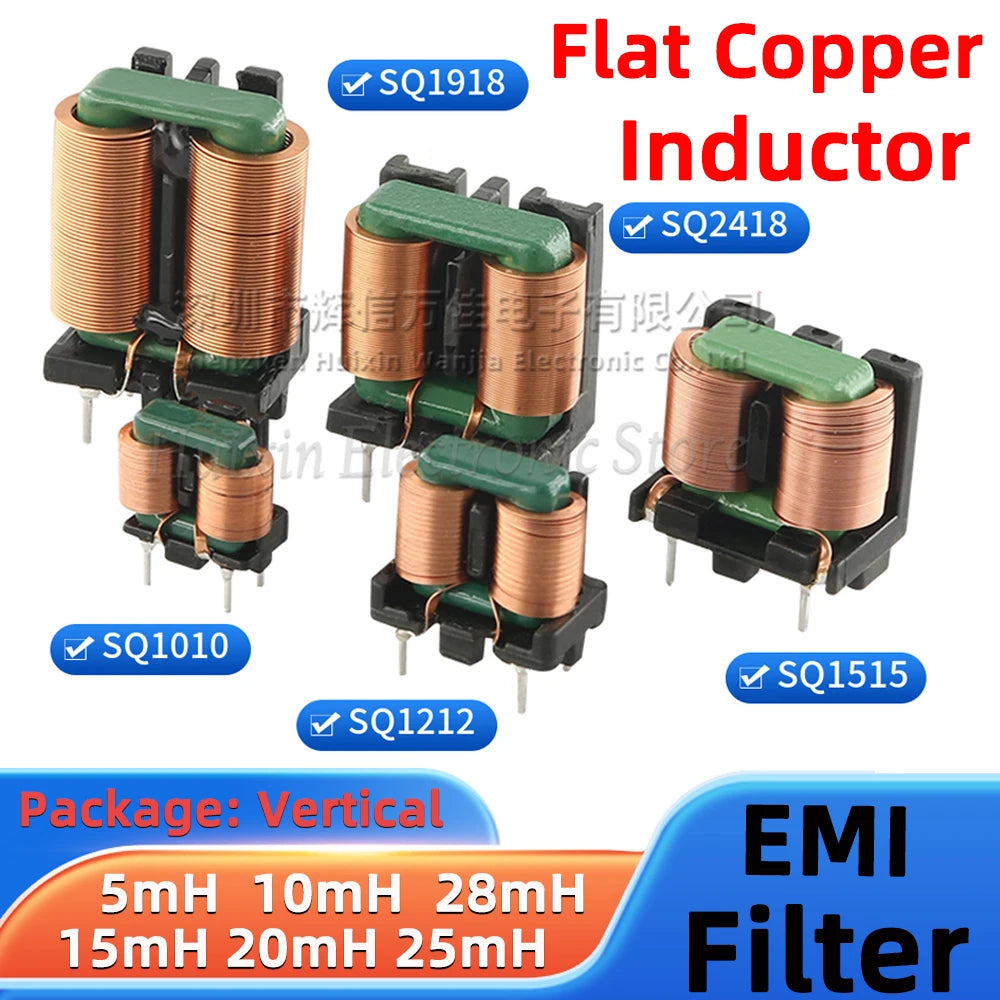

Descriptions

EMI line filters SQ series common mode choke coils are used in various switching power supplies to filter radio frequency interference (RFI) and electromagnetic interference (EMI) from power supply lines and for prevention of multifunctioning of products such as measuring equipment and system equipment. Solutions for use in a wide array of power line circuits.

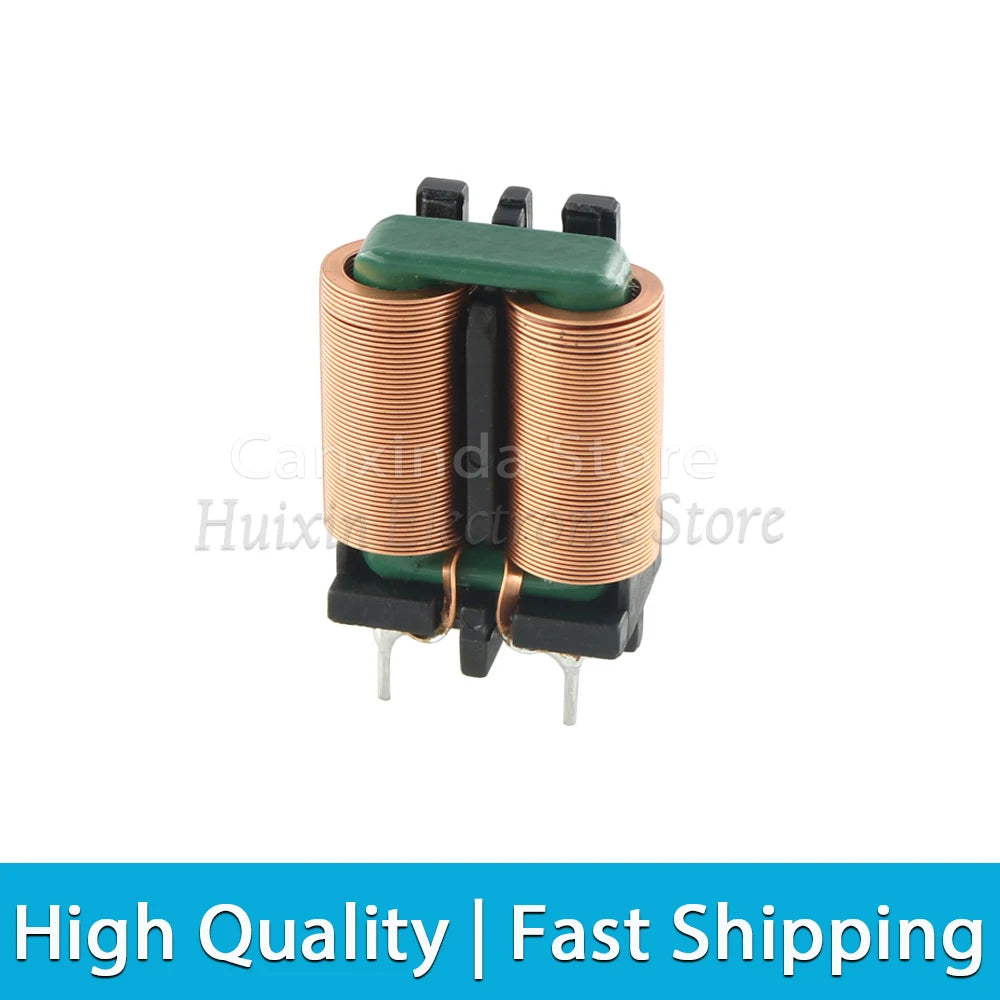

Feature

Small size, large current, high power and long life.

Closed magnetic circuit with frame construction made of ferrite, Use the flat wire, improving the space factor.

Achieve a high inductance in both common mode and normal mode

Compact size, low DCR, low leakage flux due to Square core construction

Using high permeability material, High impedance at low frequency band

There is no danger of the layer short for the single-layer rolling

High attenuation to the normal mode noise, due to low stray capacitance

Low cost, high consistency due to automated production

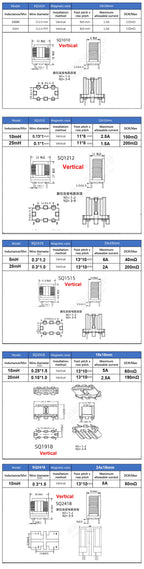

Specifications

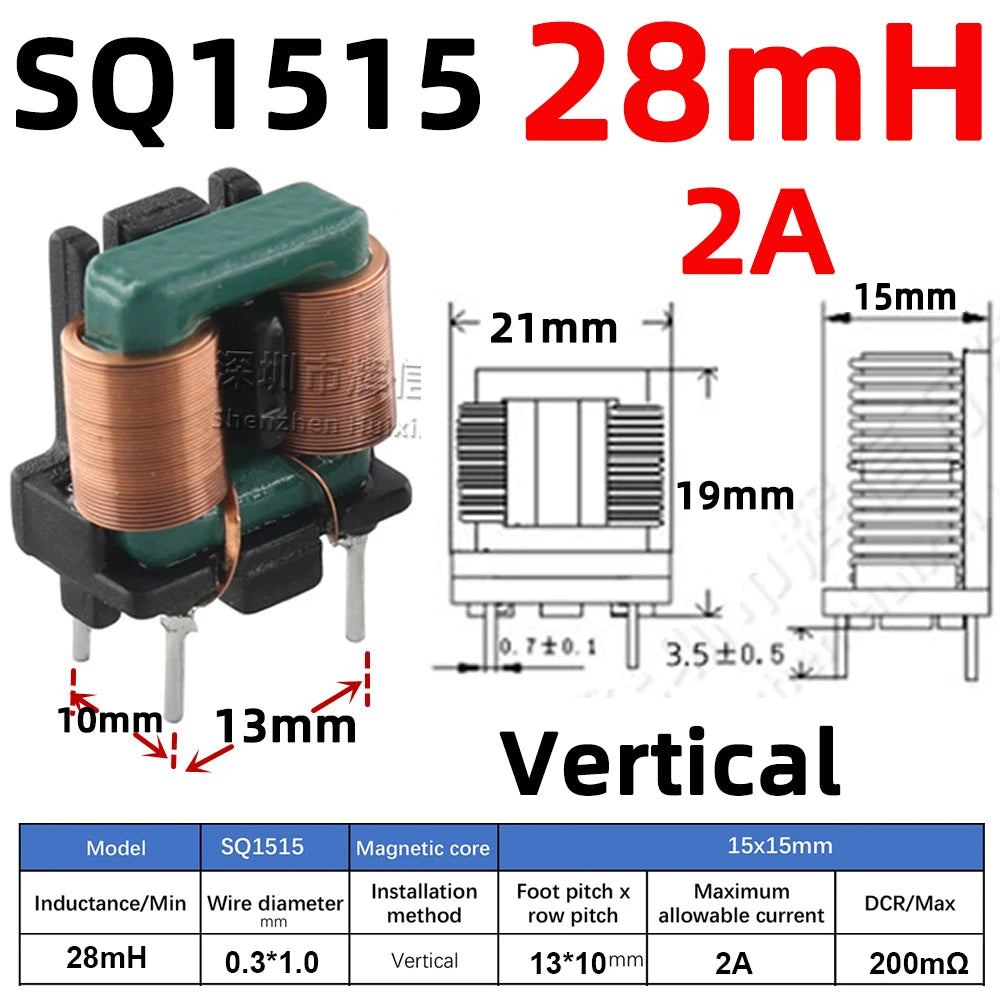

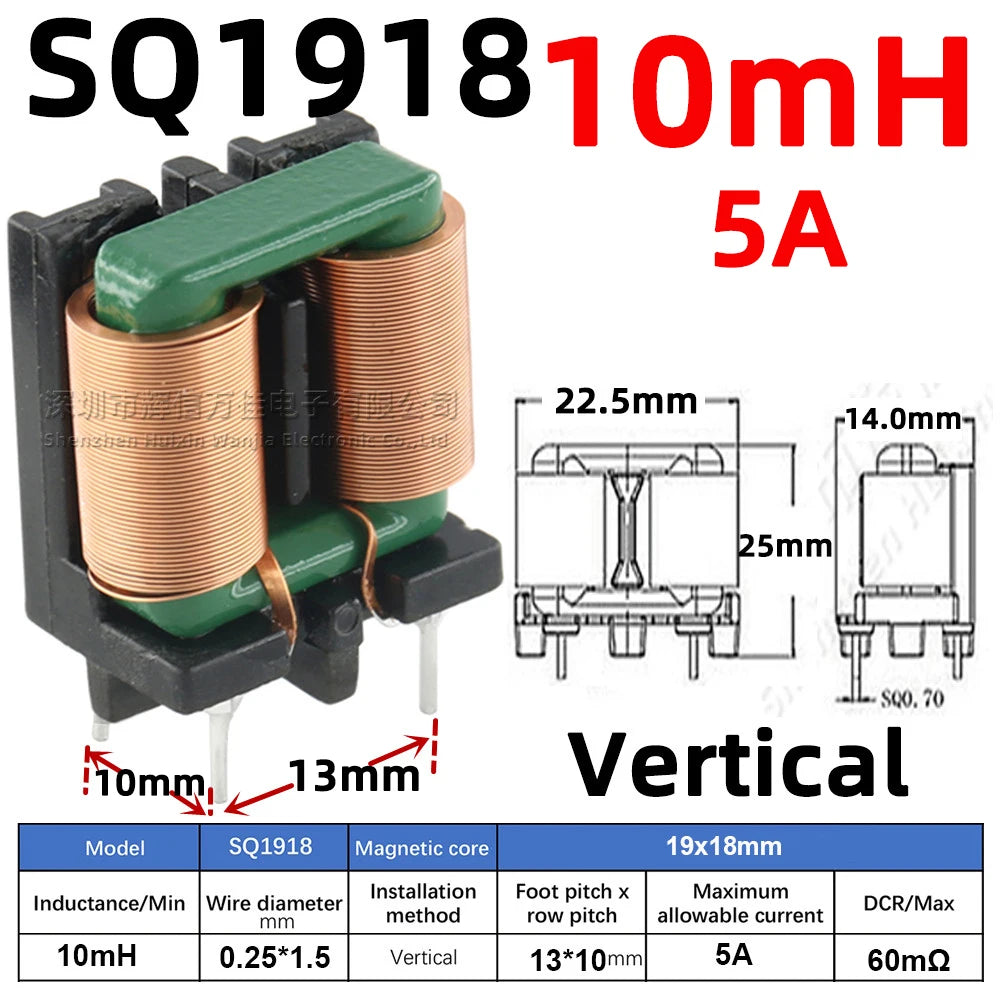

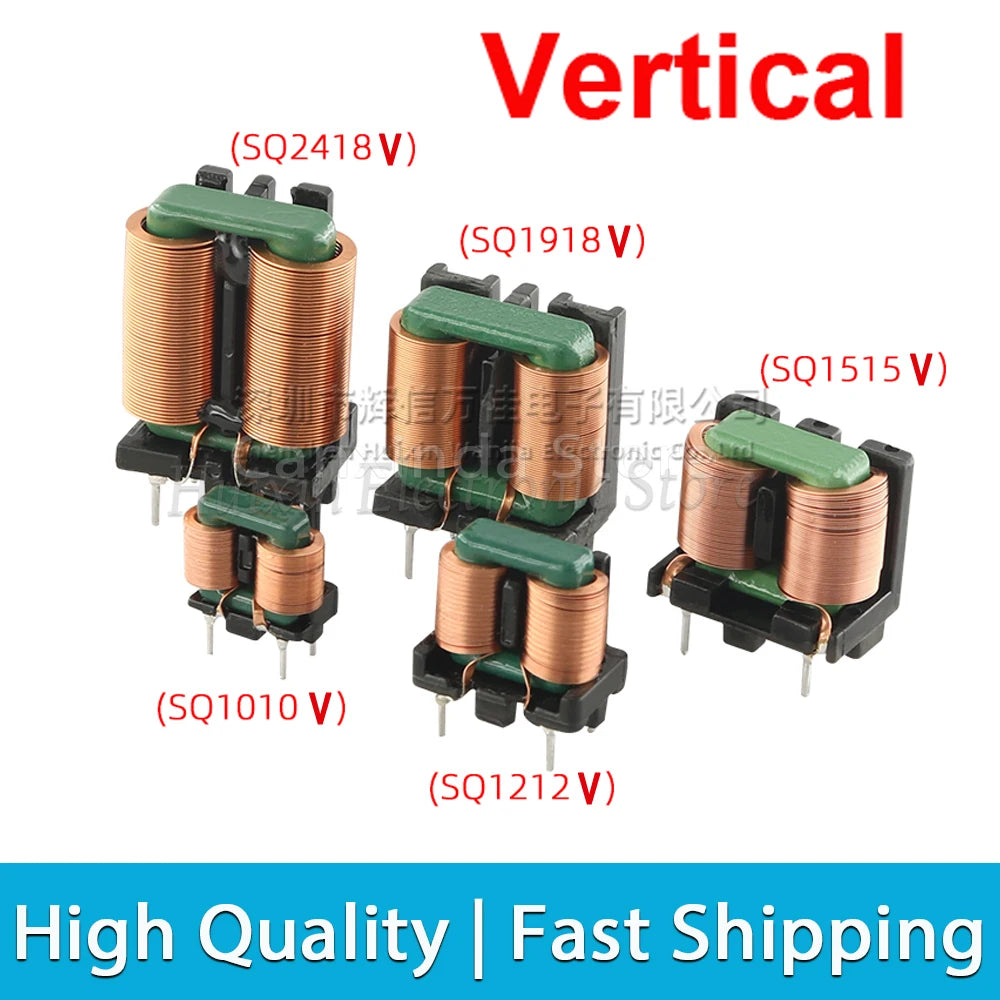

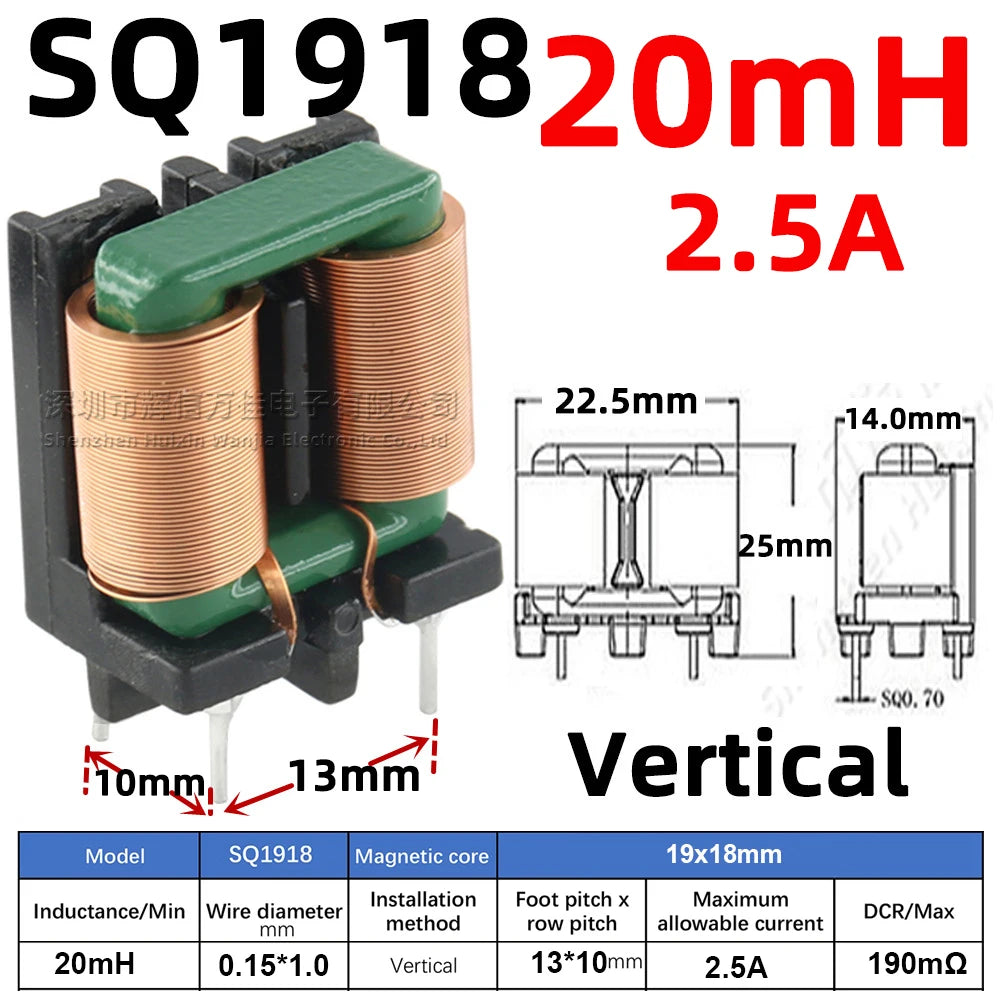

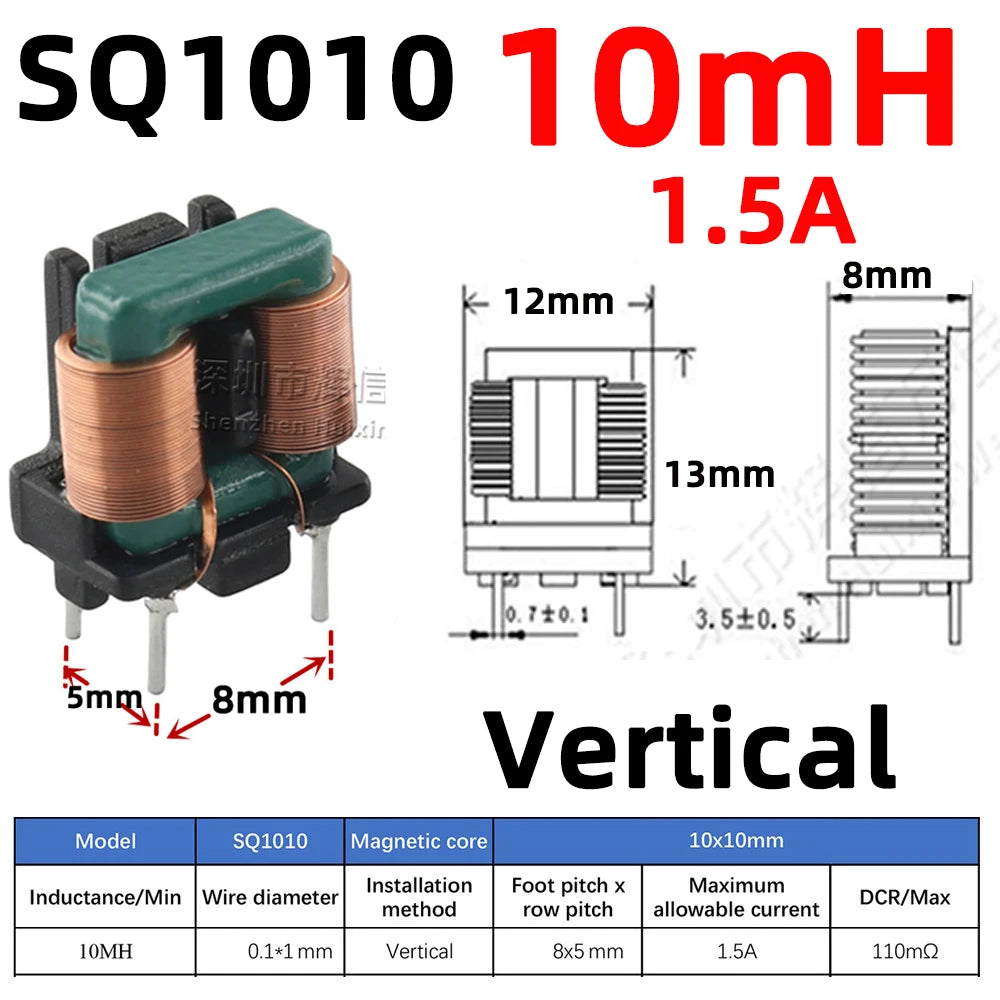

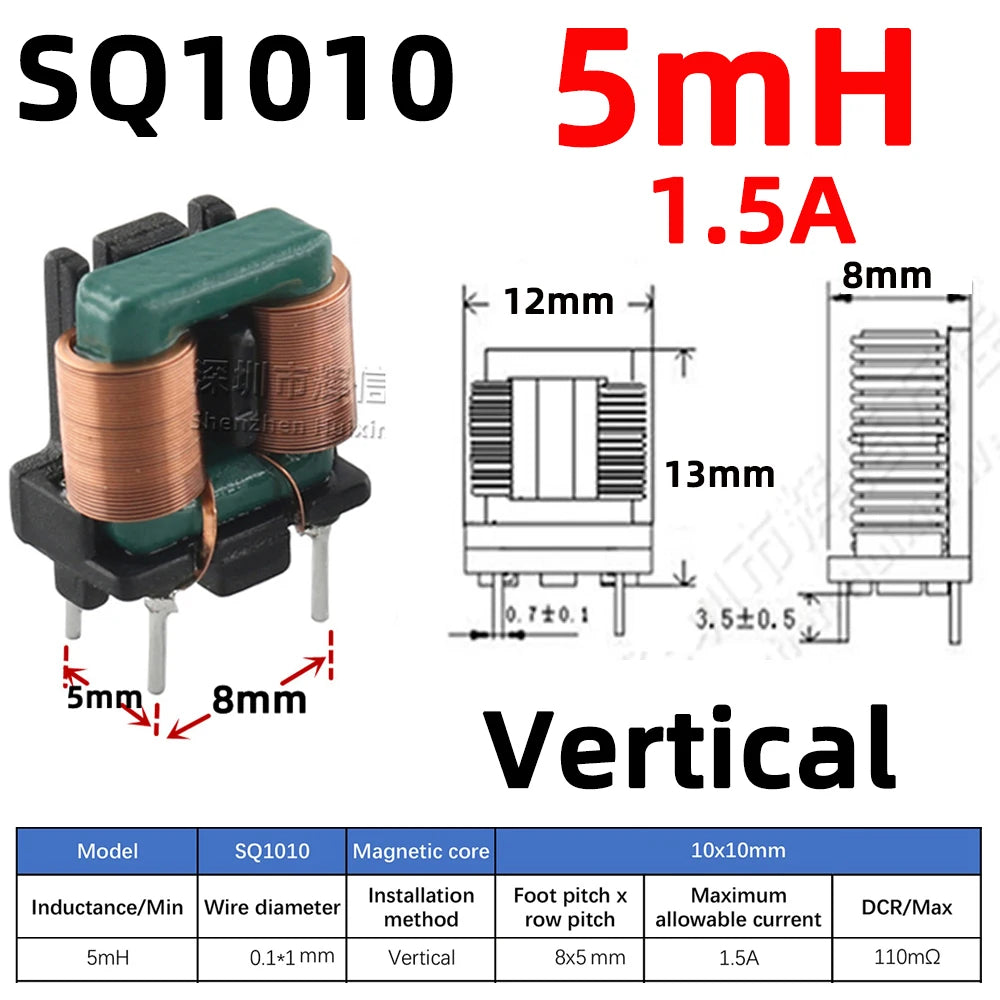

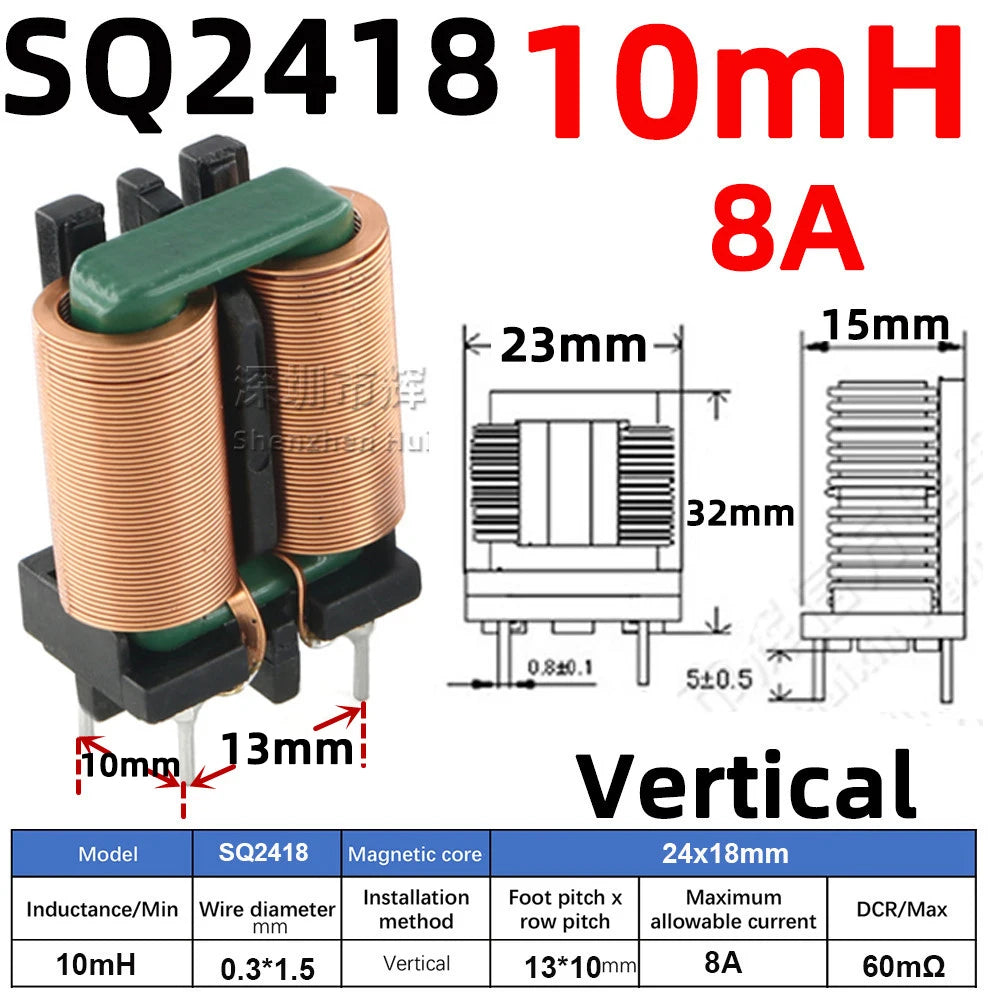

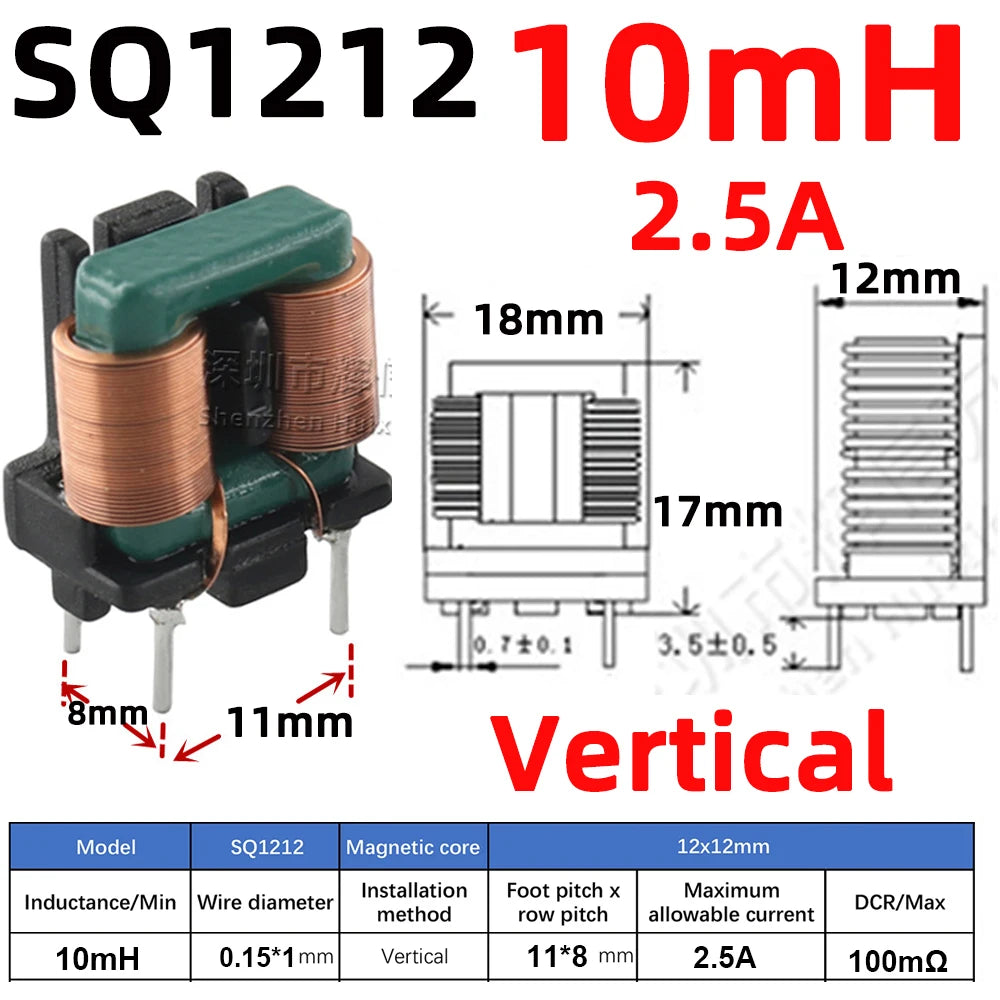

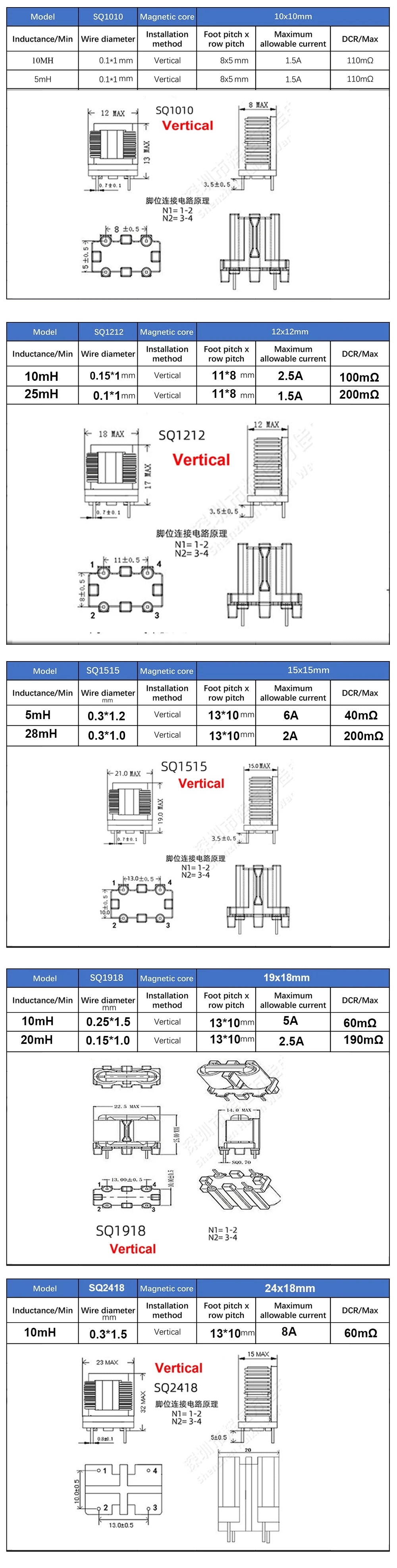

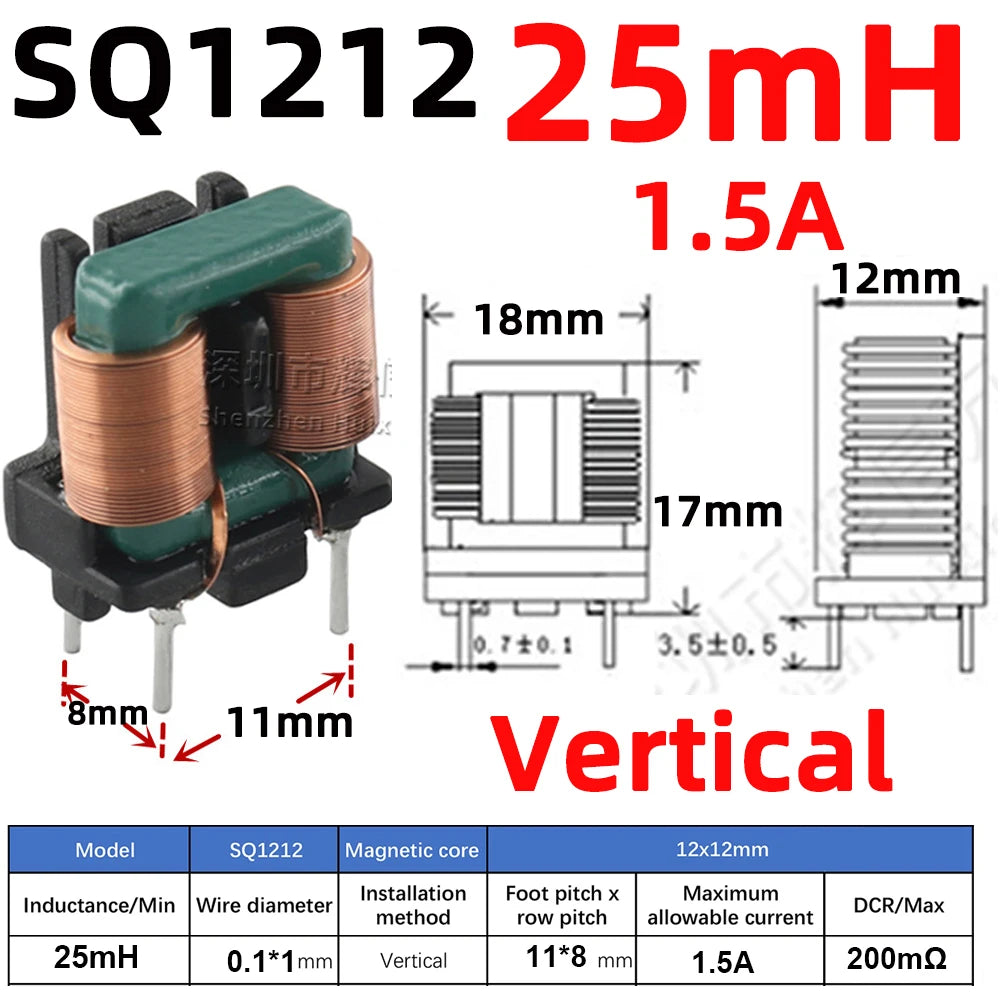

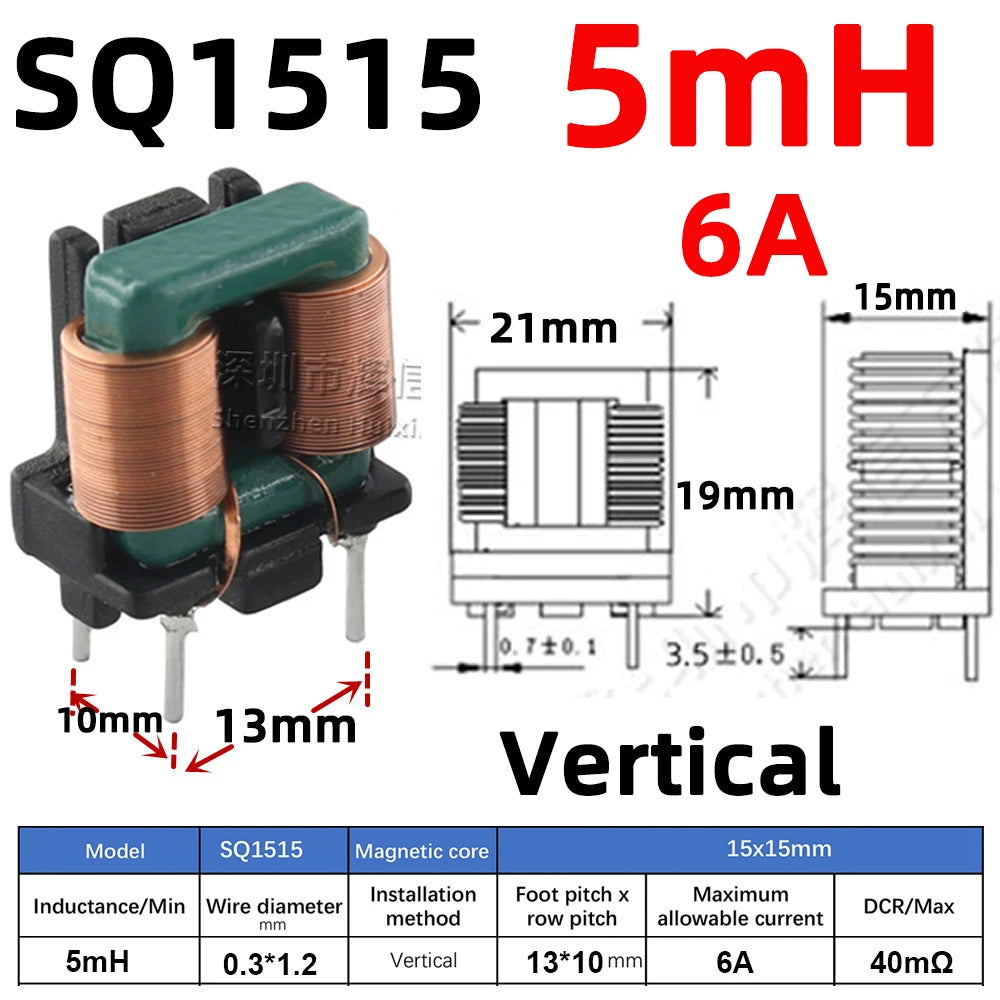

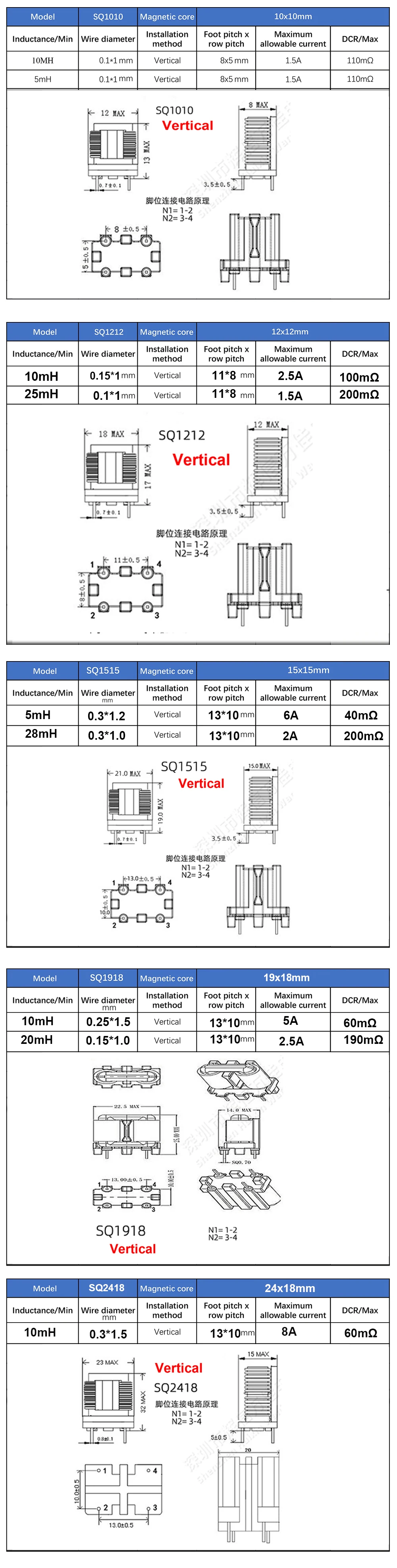

Rated voltage: AC/DC250V

Insulation withstand voltage: AC2.0KV 60sec

Working temperature range: -25℃~+125℃

Power Range:20W-60W

Packgae Include:

2Pcs Common Mode Inductance
