SPECIFICATIONS

Description:

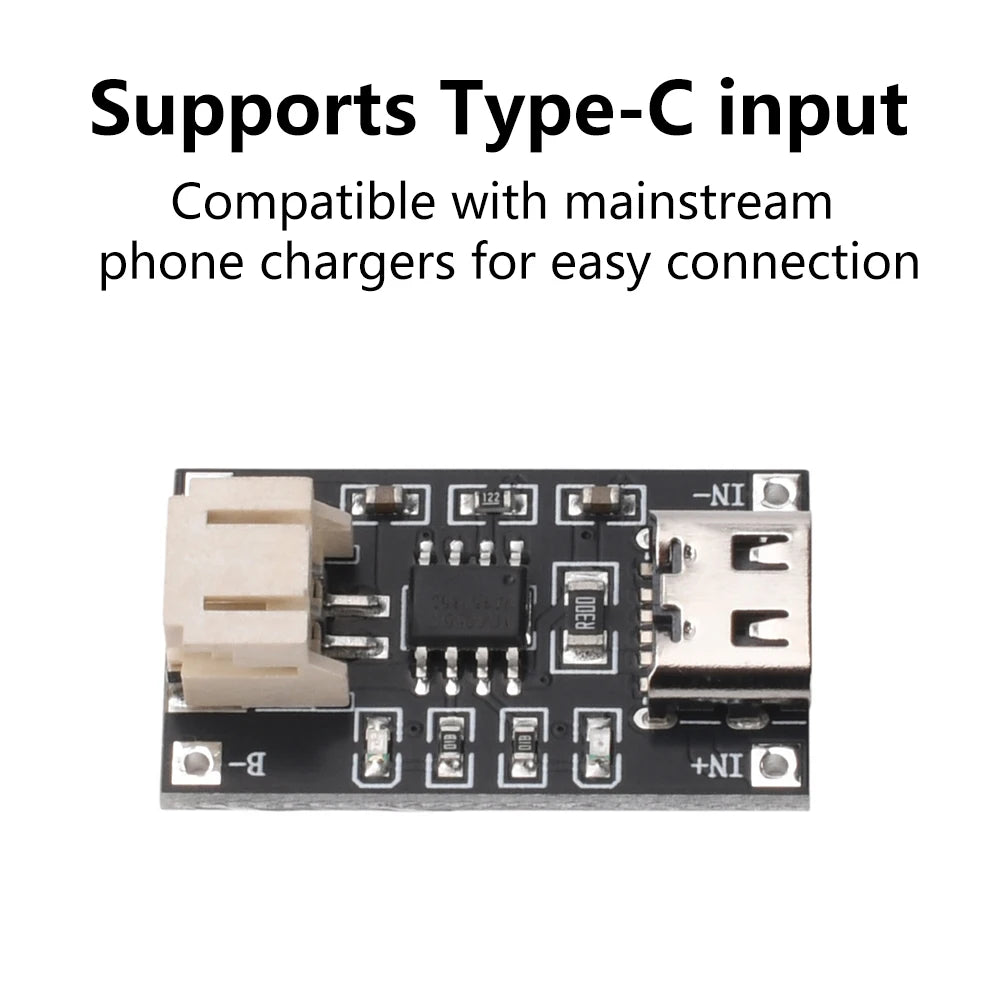

1. Supports Type-C input, compatible with mainstream mobile phone chargers, and easy to connect.

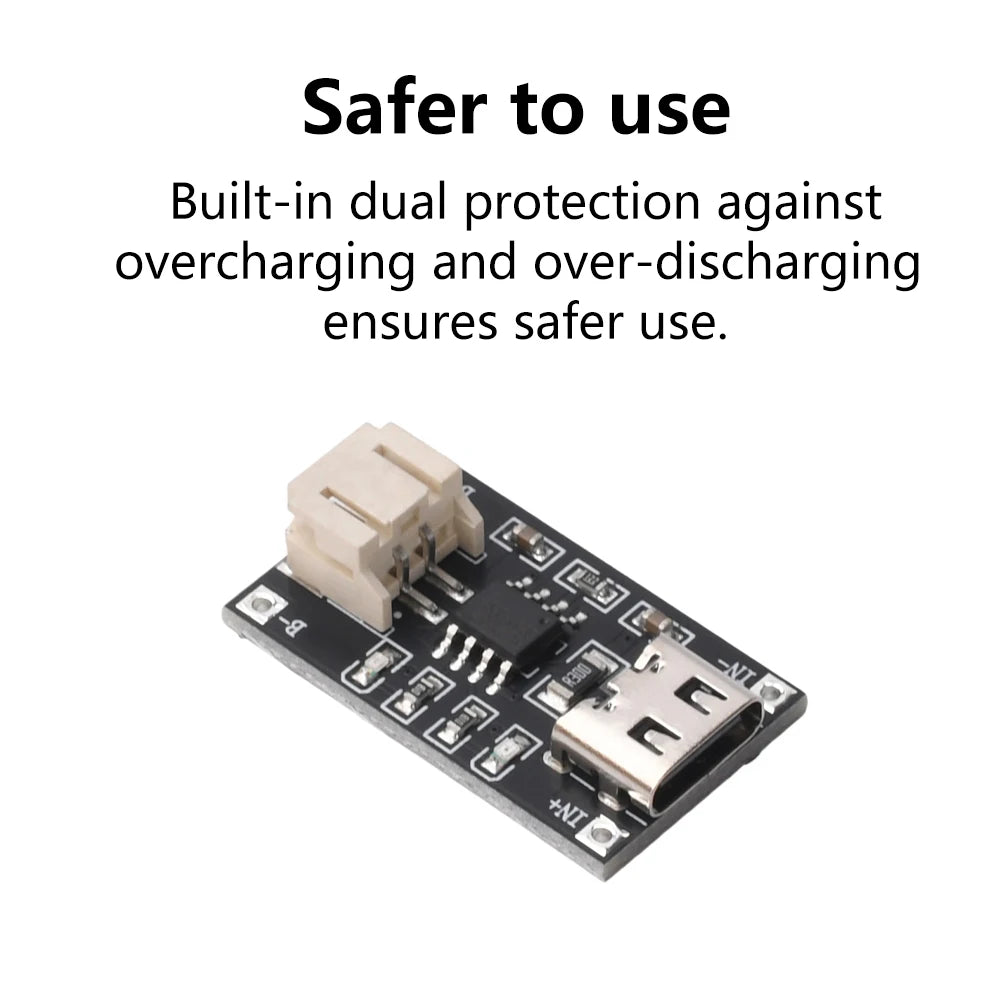

2. Equipped with built-in dual protection against overcharge and overdischarge, ensuring safer use.

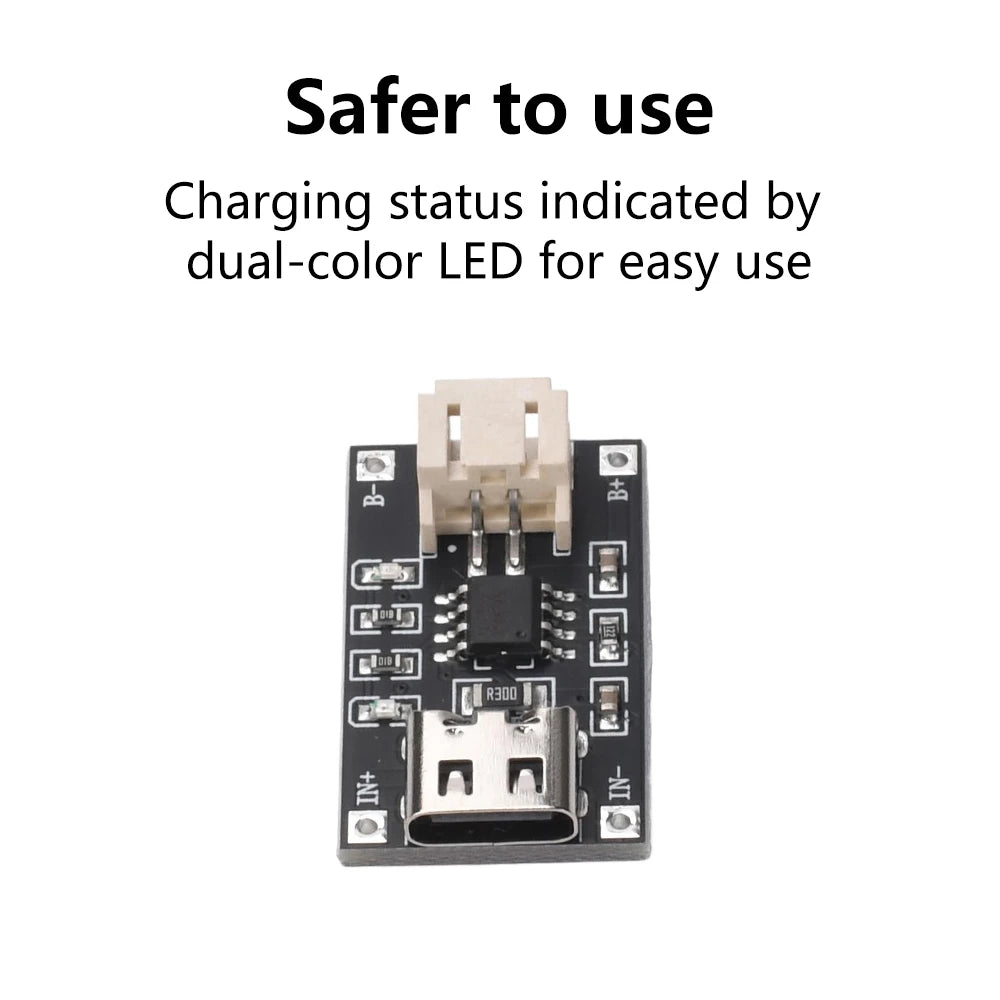

3. The charging status is indicated by a dual-color LED, making it easy to use

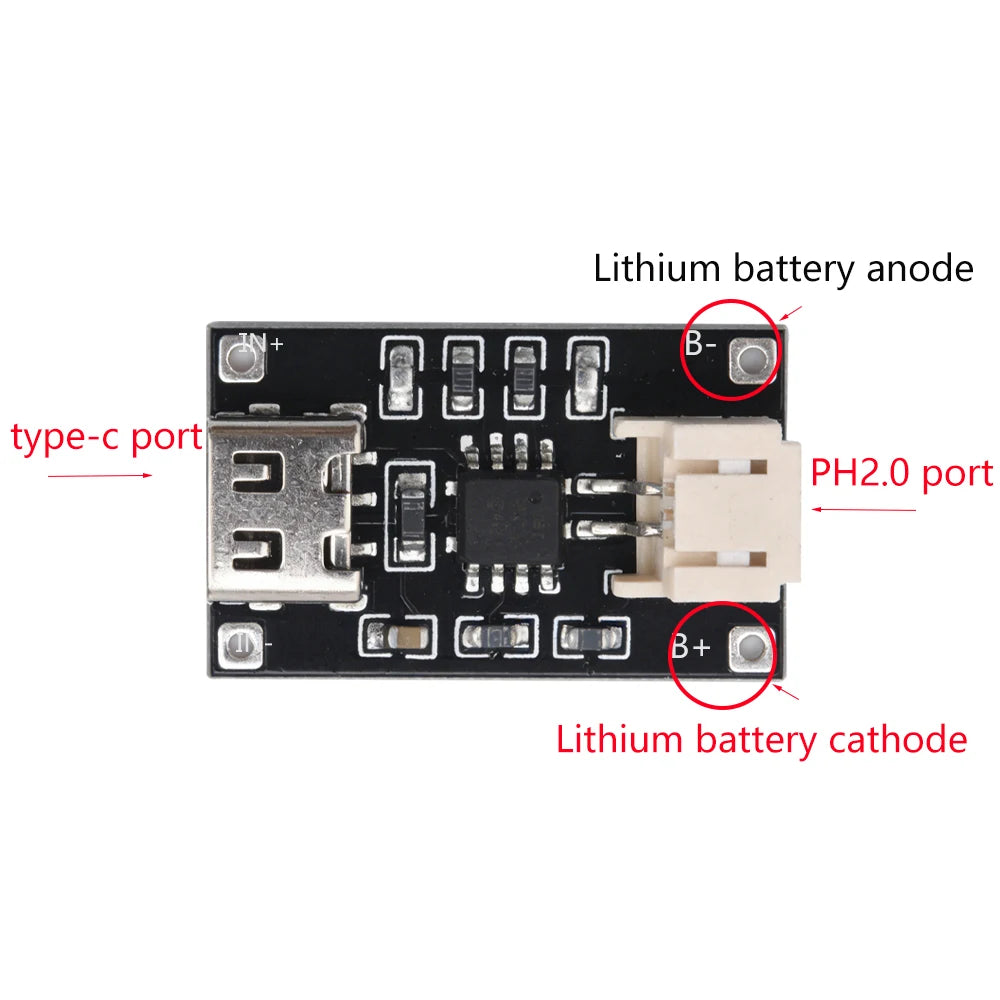

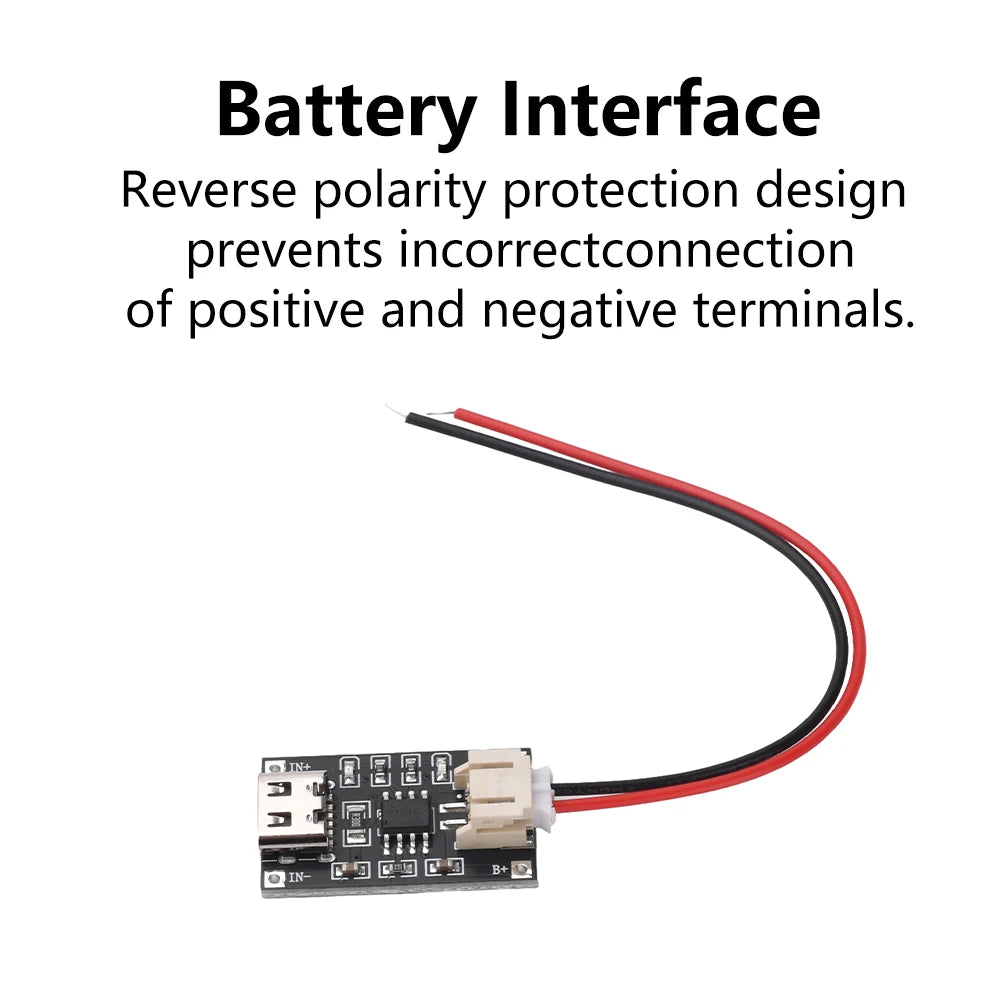

4. The PH2.0 battery interface features a reverse polarity protection design, effectively mitigating the risk of incorrect positive and negative polarity connections.

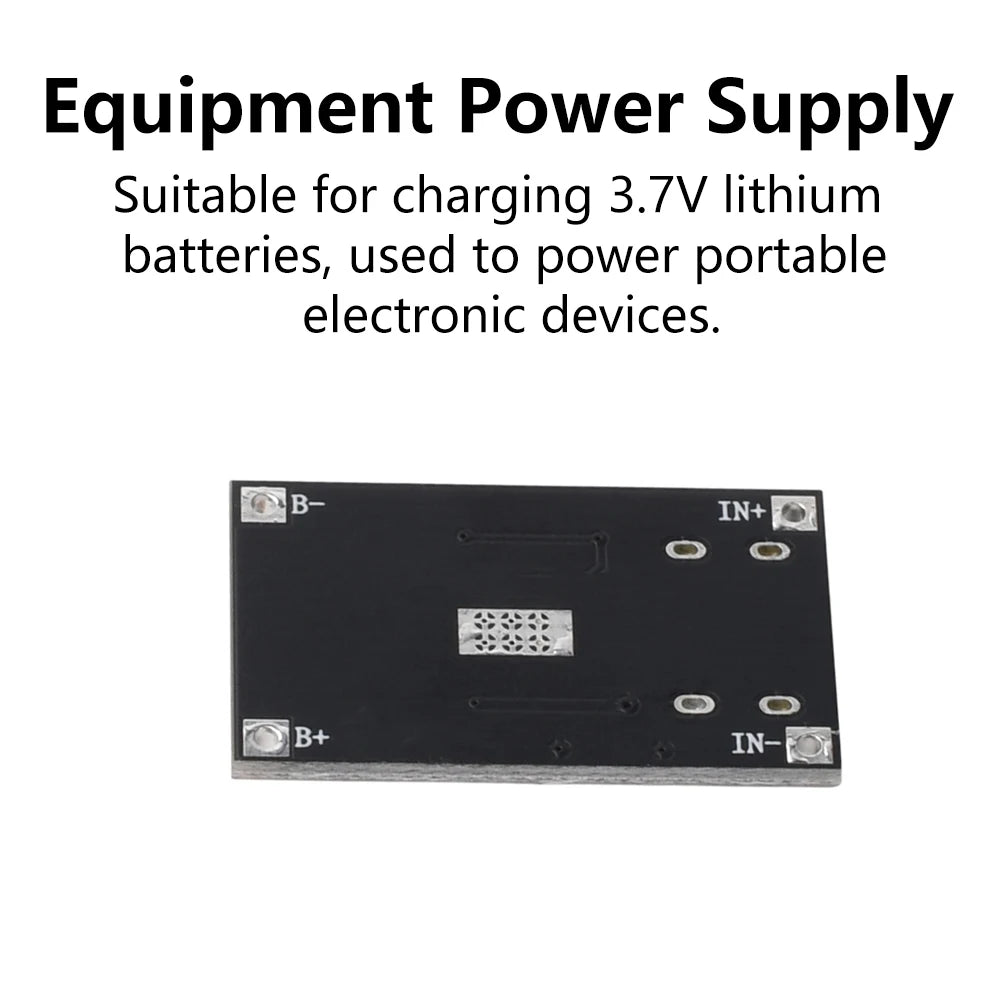

5. Suitable for 3.7V lithium battery charging modules, widely used in power management for portable electronic devices.

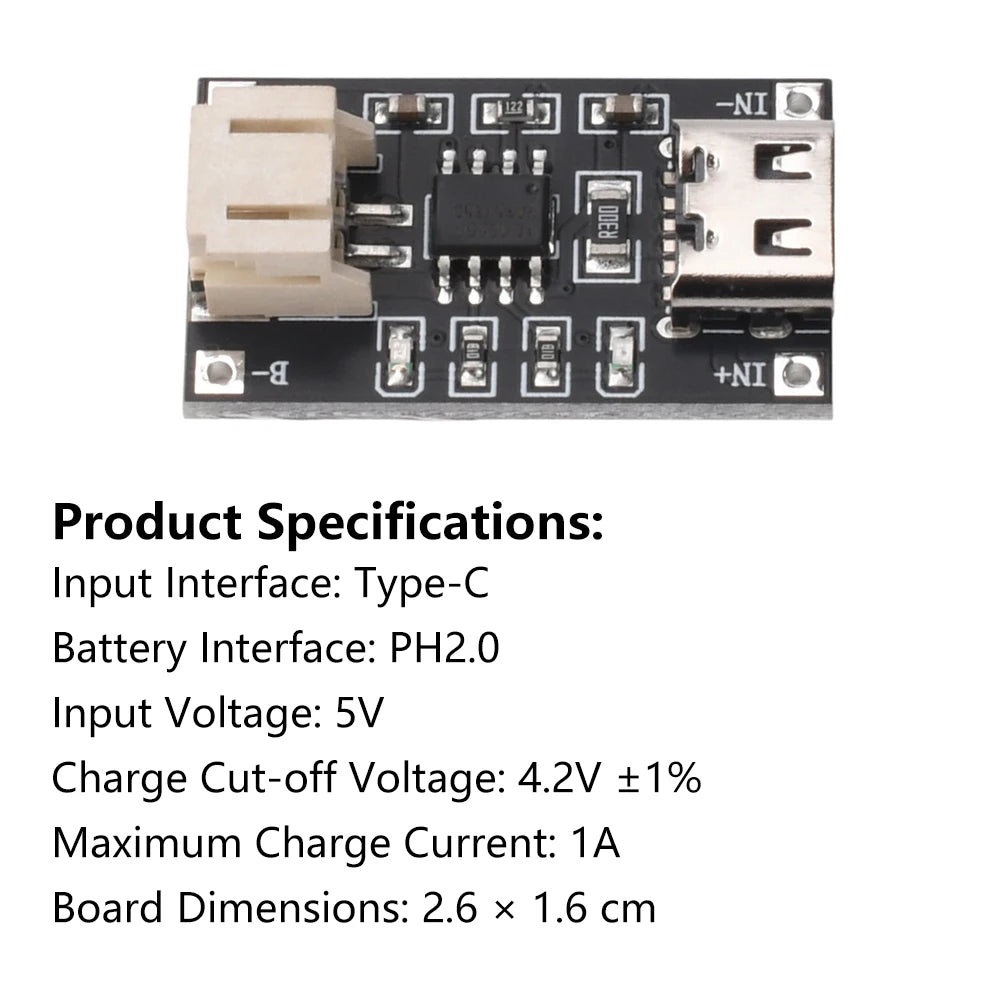

Feature:

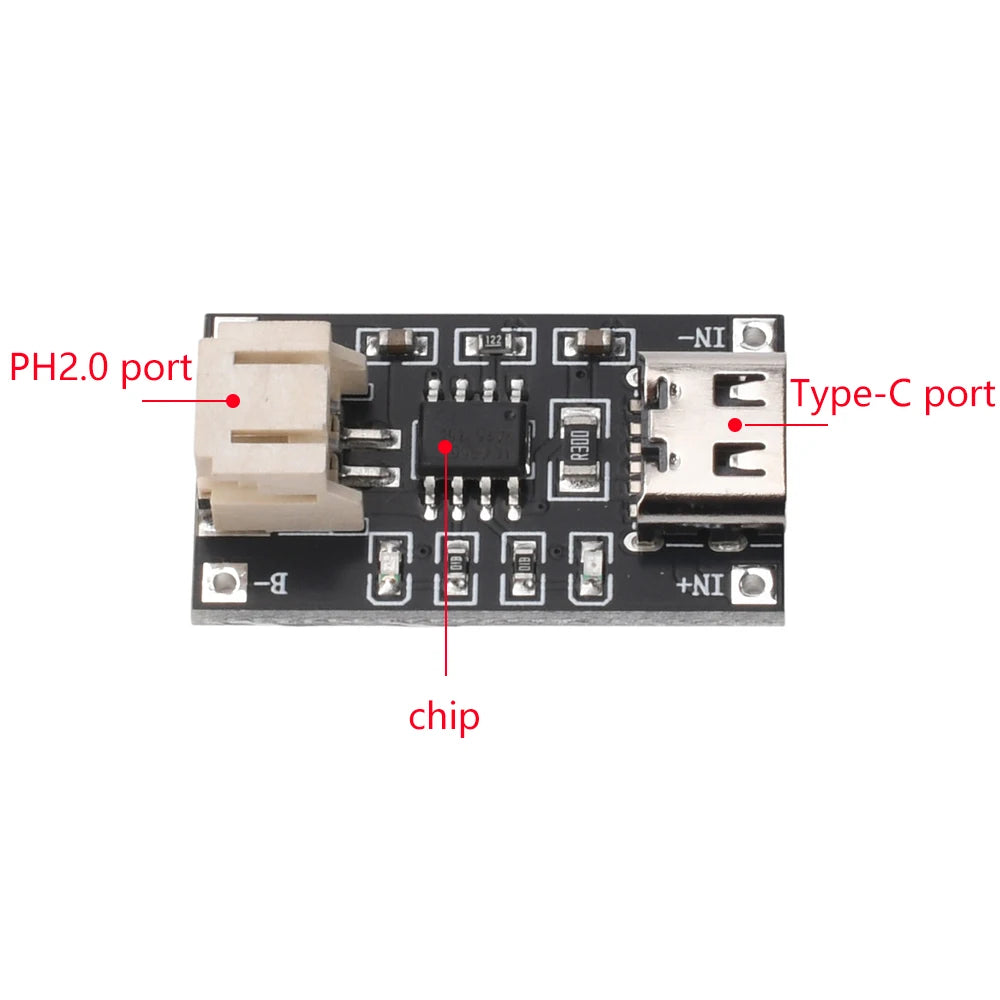

Input interface: Type-C
Battery terminal interface: PH2.0
Input voltage: 5V
Charging cut-off voltage: 4.2V±1%
Maximum charging current: 1A

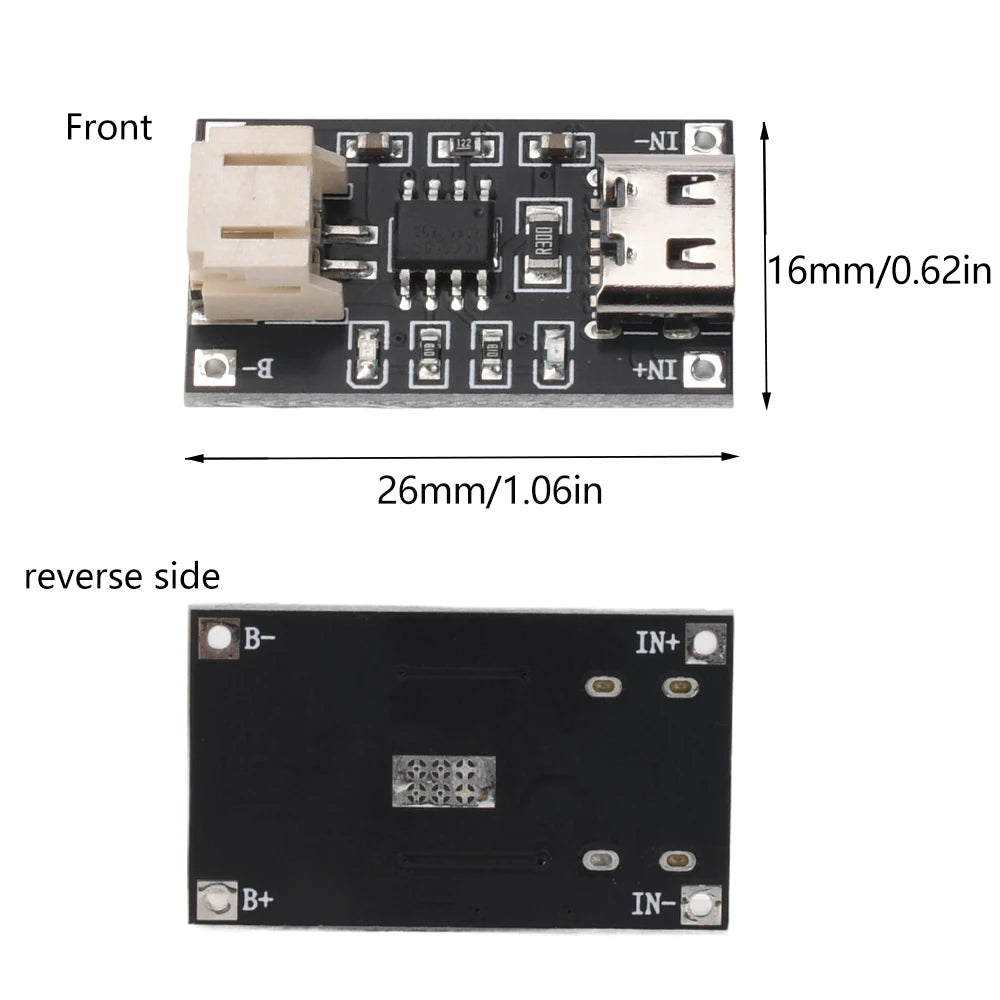

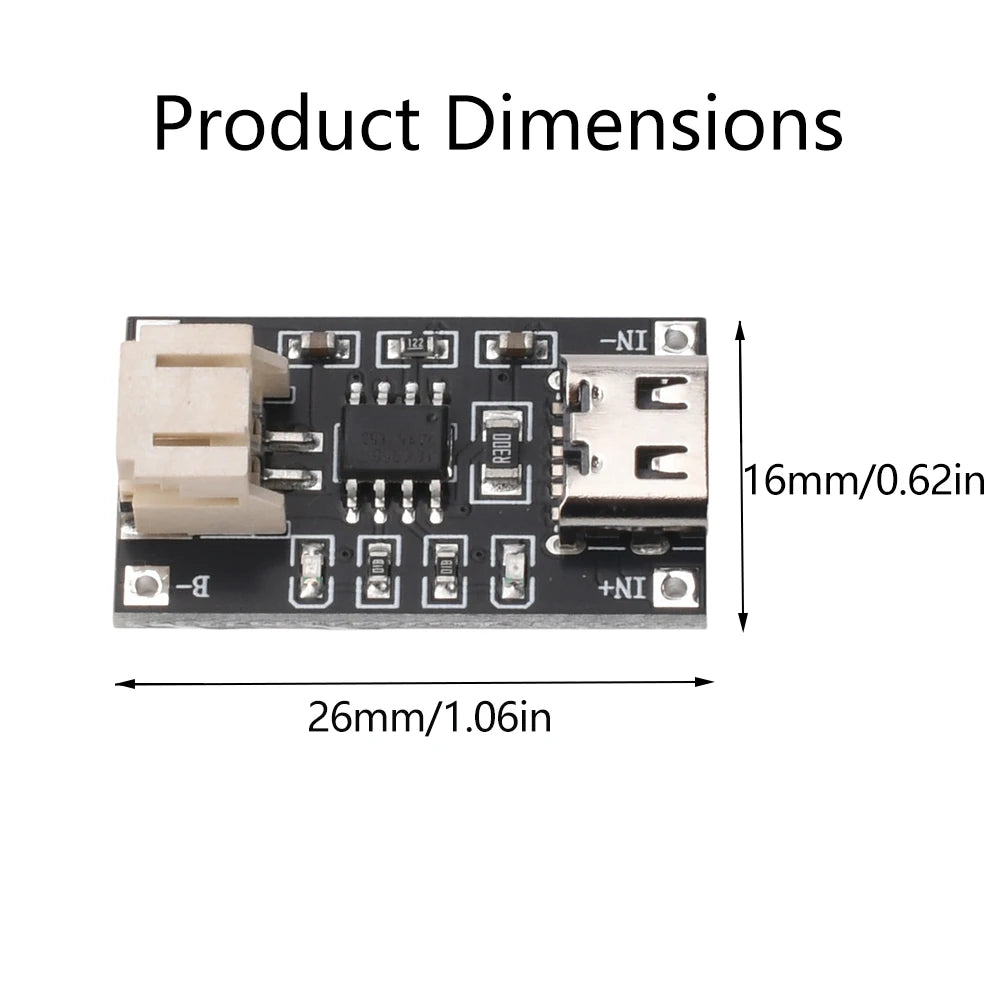

Board size: 2.6*1.6CM

Product Description:
1. This module is used for 3.7v lithium-ion polymer batteries or 3.7v lithium-ion polymer battery packs
2. The charging port can draw power from USB Type-C
3. The red light is on when charging, and the green light is on when fully charged
4. It is normal for the device to generate heat during charging, and the heat may be high enough to feel hot to the touch
5. The recommended charging current is 0.37 times the battery capacity. For example, a charging current of around 400MA is sufficient for a 1000MA battery. Of course, a current of 1A or even 2A can also be used, but the battery voltage may drop significantly after charging.
6.2 The PIN port can effectively prevent the positive and negative poles from being connected reversely.
7. With reserved wiring solder points, DIY is very convenient.

Package List:

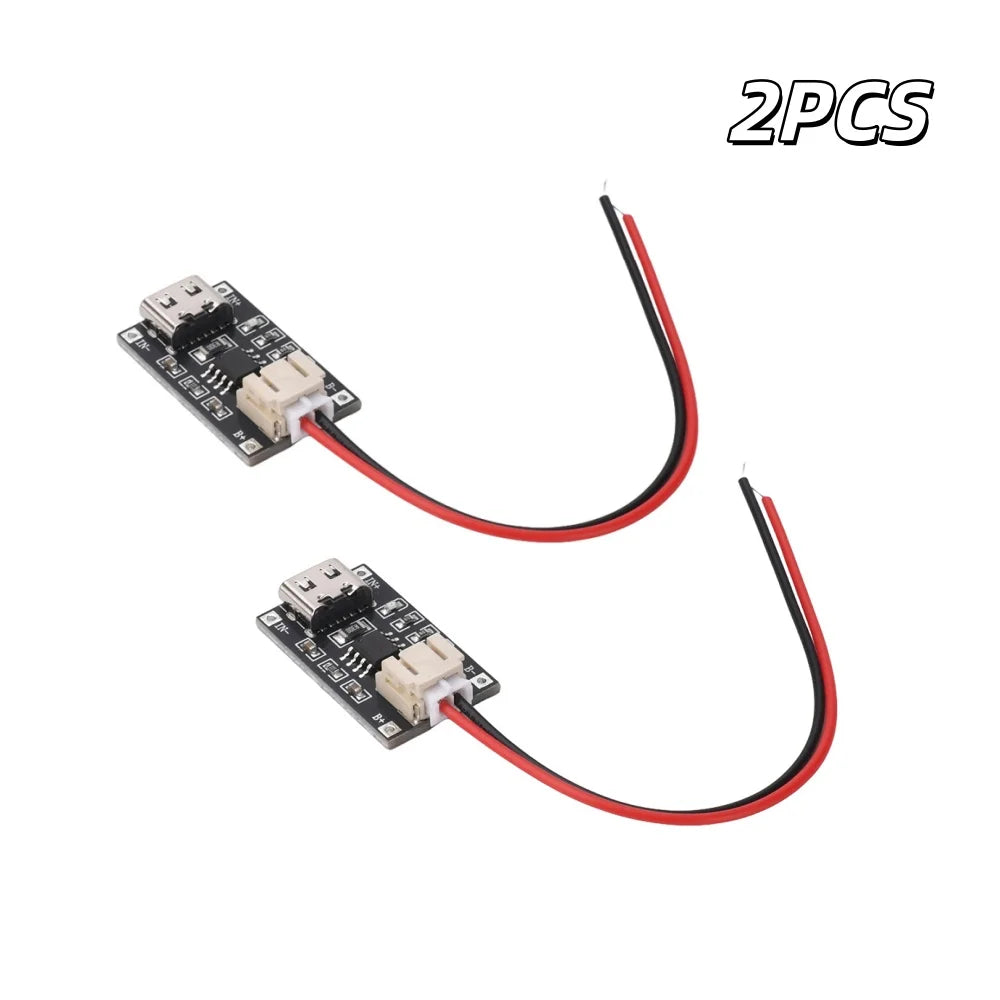

2X module

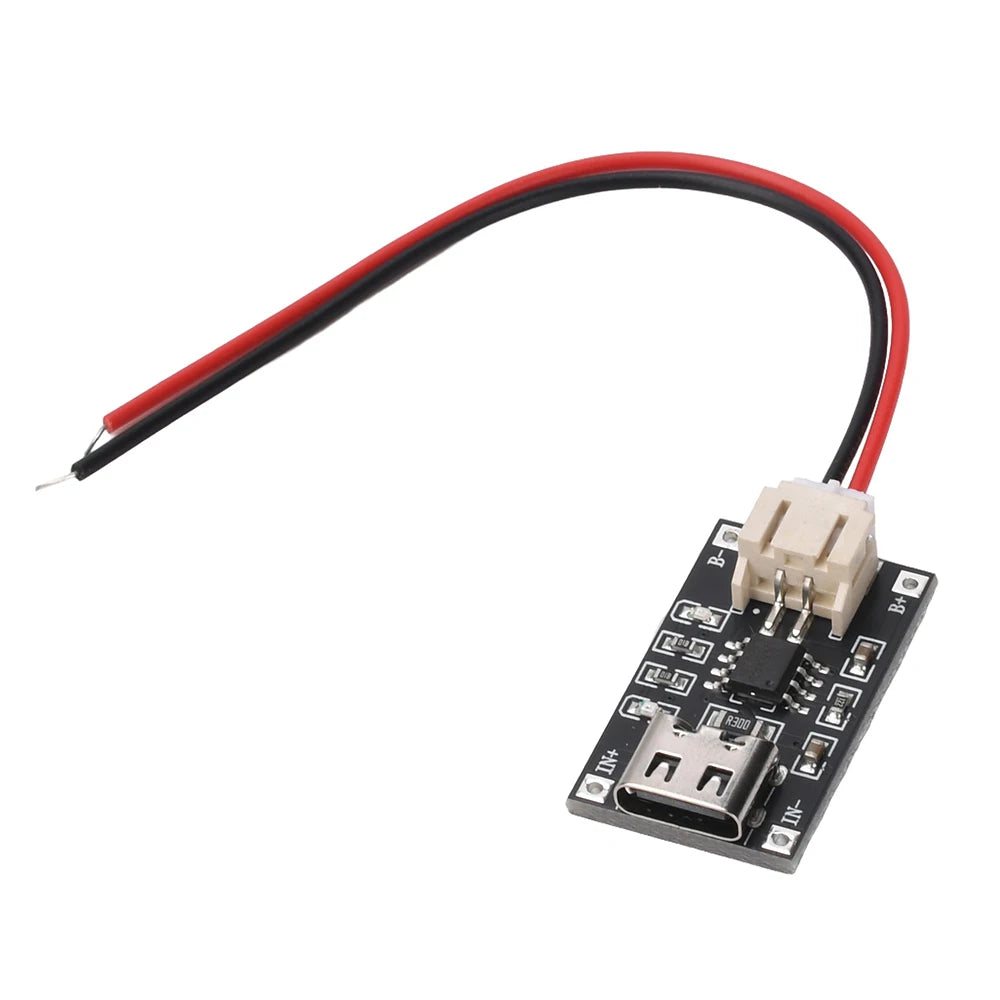

2X terminal wire 2P
