SPECIFICATIONS

Features:

100% high quality and brand new

1. High temperature resistance, good quality, not easy to oxidize, not easy to deform, widely used, easy to use

2. Easy to weld, real material.

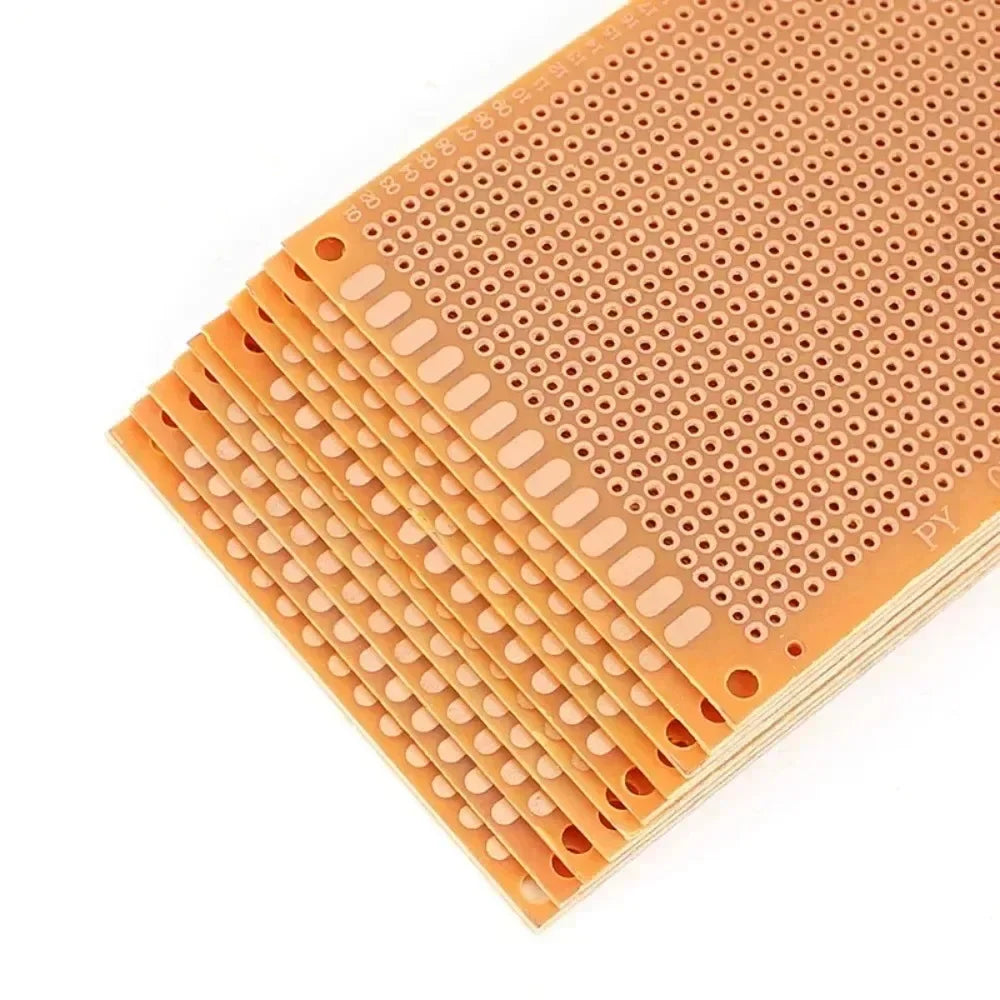

Name: Single-sided PCB board

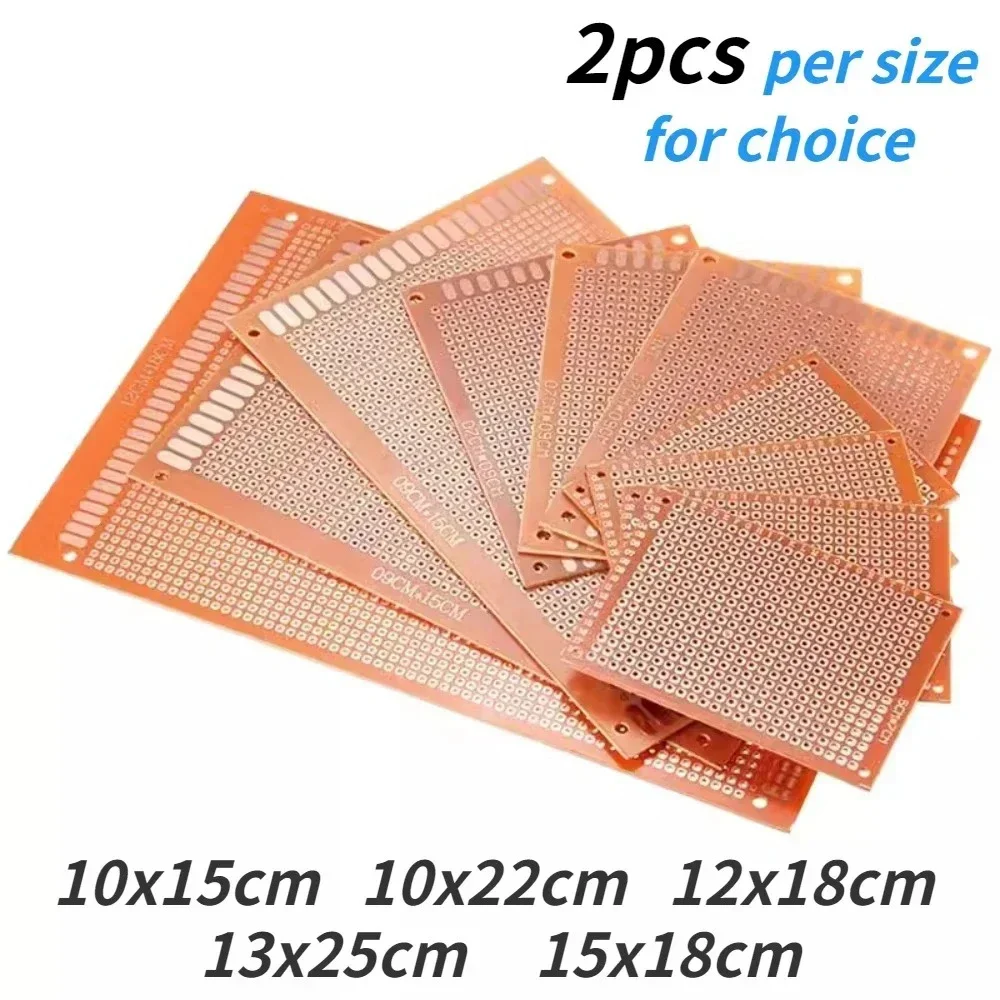

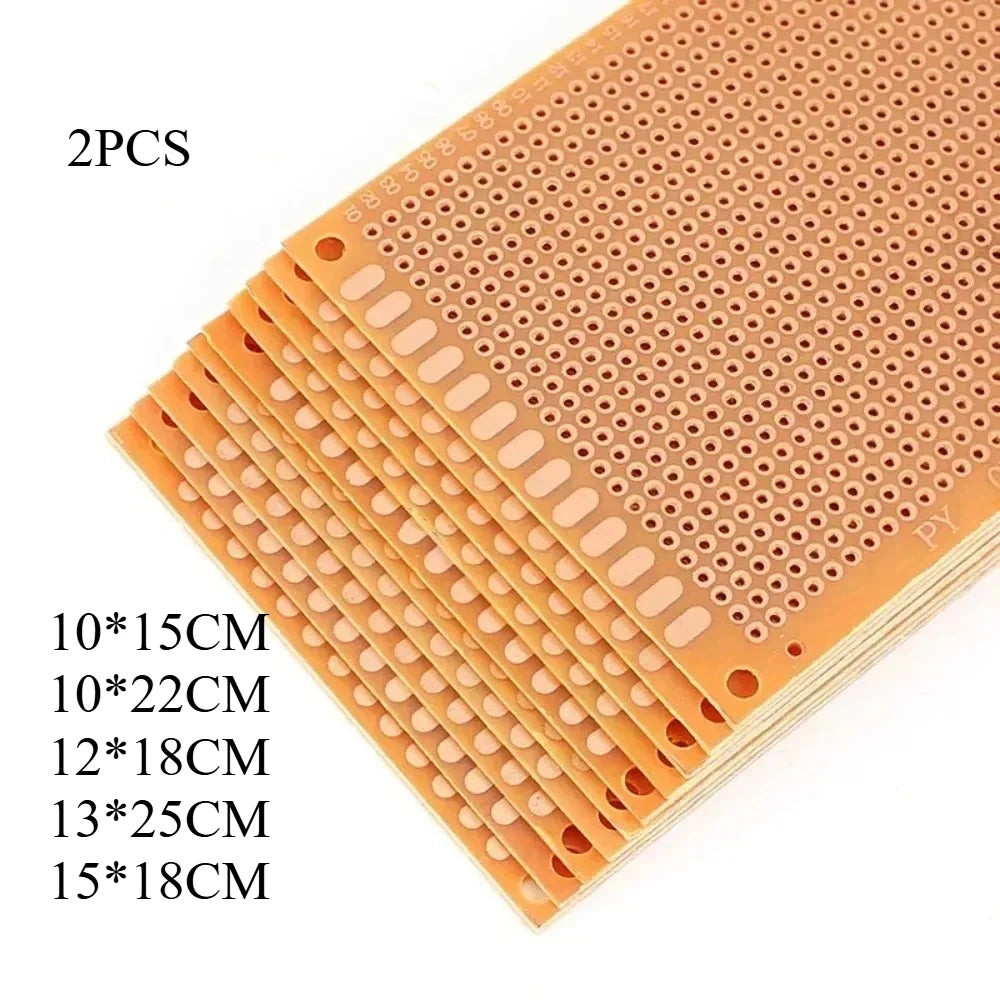

Size: 10x15cm 10x22cm 12x18cm 13x25cm 15x18cm

Color: yellow

Hole pitch: 2.54mm

Aperture: 1.0mm

Thickness: 1.6mm

Material: FR-4 fiberglass board

Product description:

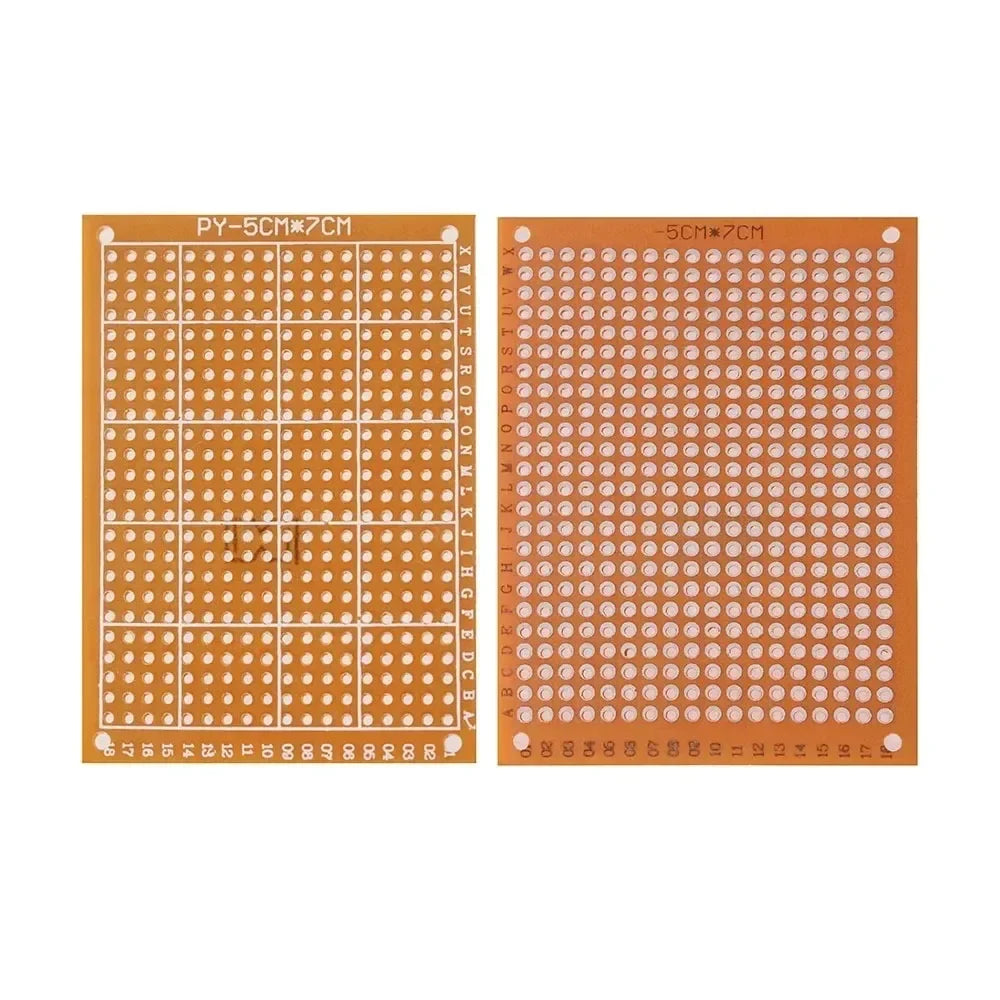

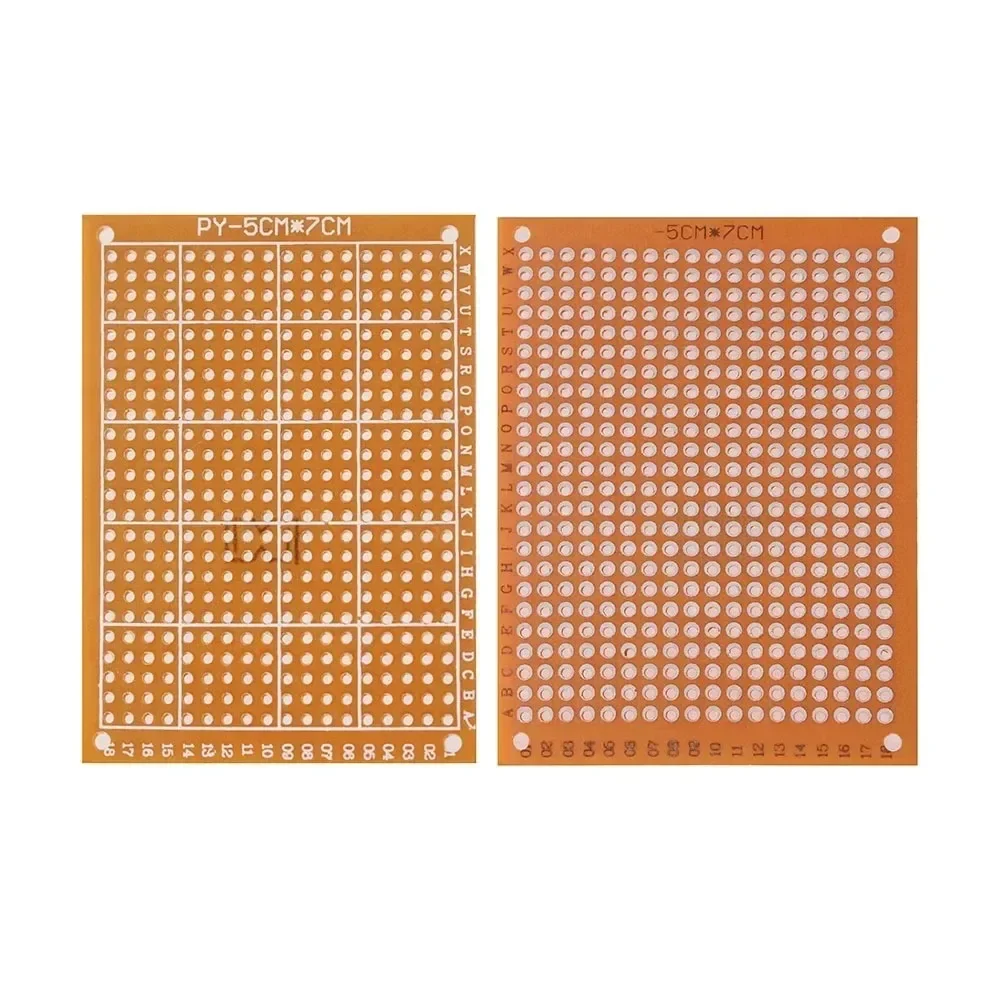

This is the general design of the board, and usually its board. It covers the standard IC pitch

(2.54MM) round independent pad, it seems that the whole board is full of holes,

So it is also called "hole plate". Compared with professional PCB printed circuit boards, hole plate

It has the characteristics of low cost, convenient use, and flexible expansion.

Alias: multi-purpose board, experimental board, learning board, orifice board, lattice board.

Product Features:

1. The development board is for learning, and the development board is for learners to design commonly used circuits. Learners do not need it . Make your own board without buying components and soldering transfers.

2. The development board is mostly related to the microprocessor, and the development board will be designed for various typical applications . Some typical programs that utilize learners for testing and learning.

3. The development board can effectively improve the learning efficiency and shorten the research and development progress.

Soldering skills:

1. Determine the preliminary layout of the power supply and ground wire.

2. Be good at using component pins.

3. Good at setting up the jump shot gun.

4. Be good at using pin row.

5. Cut off the copper foil when needed.

6. Utilize double panels.

packing list:

2 PCS PCB board
