SPECIFICATIONS

Brand Name: ALLiSHOP

Choice: yes

Color: Green

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Environmental temperature: -40 ℃ ..+105℃

Feature1: PCB Connector 3.81mm

Feature2: 3.81mm PCB Screw Terminal Block

Feature3: 3.81mm Screw Terminal Block

High-concerned chemical: none

Insulation shell: PA66 nylon

Model Number: JM15EDGWC-3.81

Origin: Mainland China

Pins: 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 Pin 12 Pin

Pitch: 3.81mm

Quantity: 2Sets

Rated Current: 8A

Rated Voltage: 300V

Screw: M2.5

Type: PCB Terminal Block Connector

Voltage: none

semi_Choice: yes

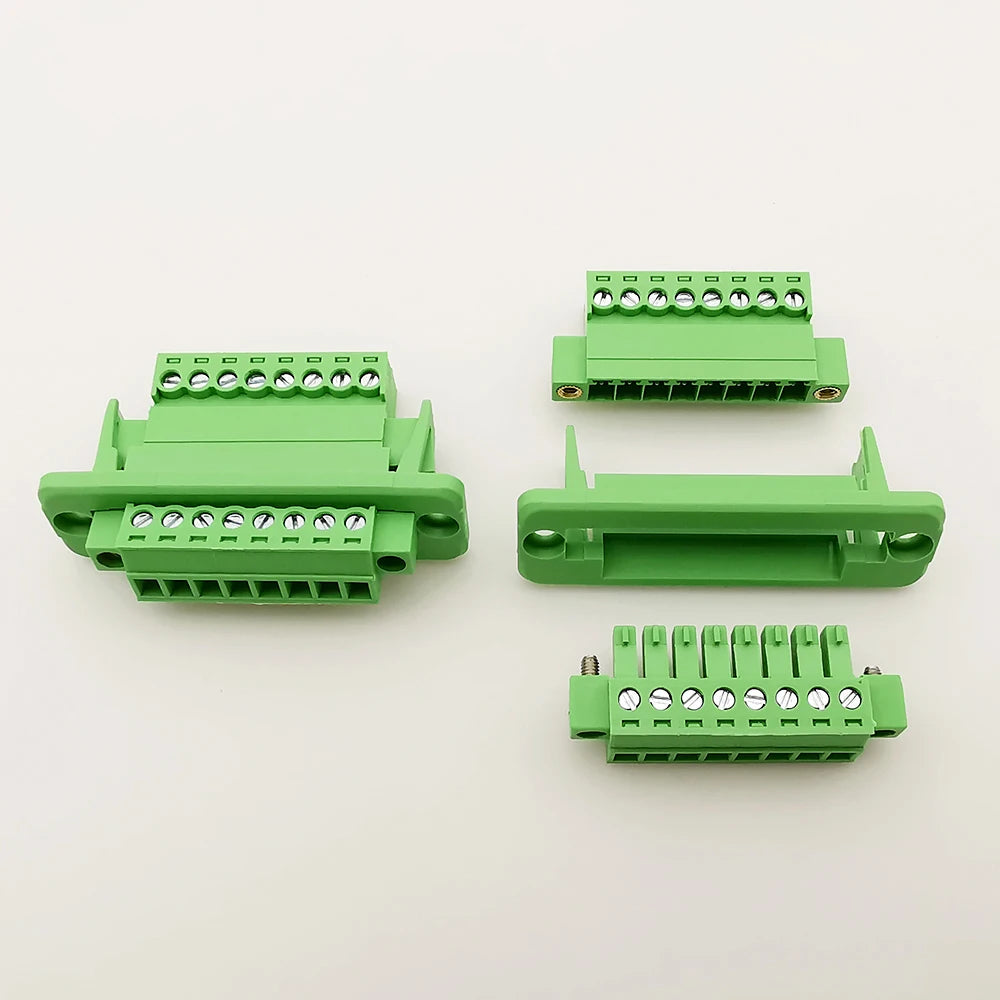

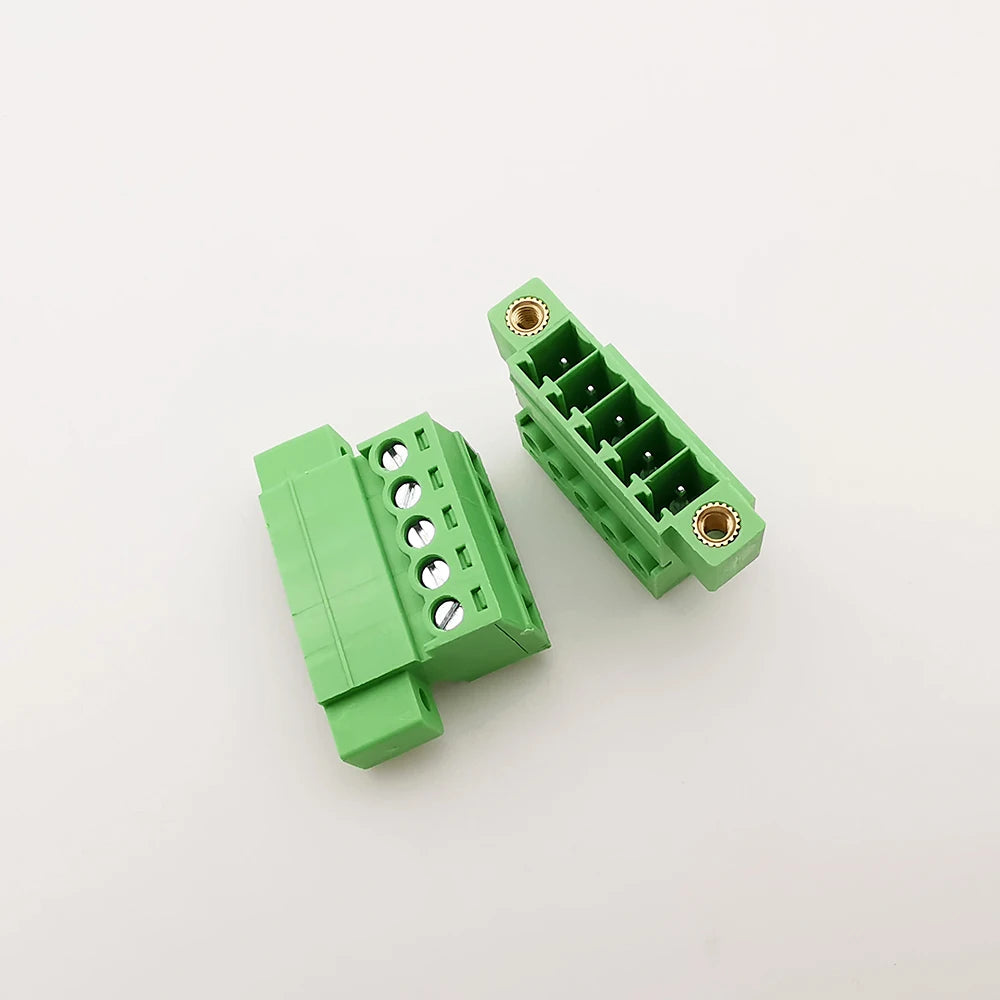

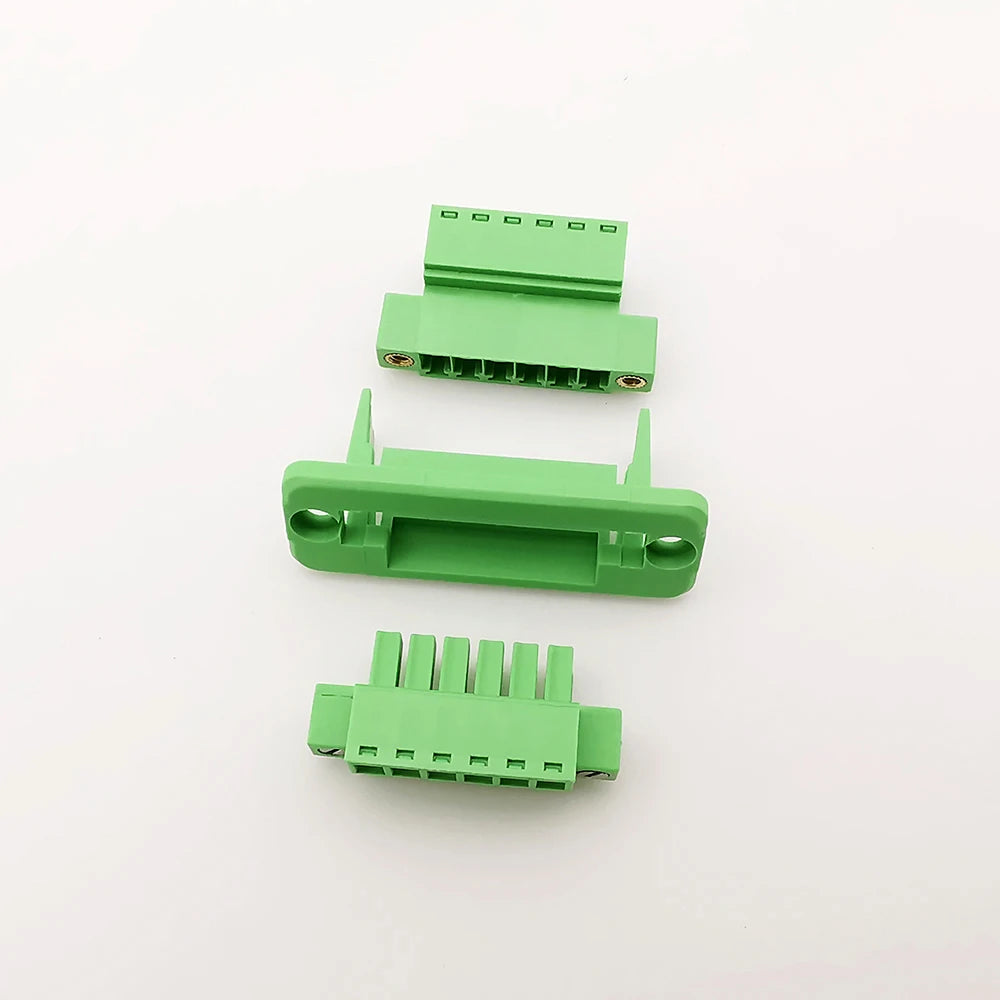

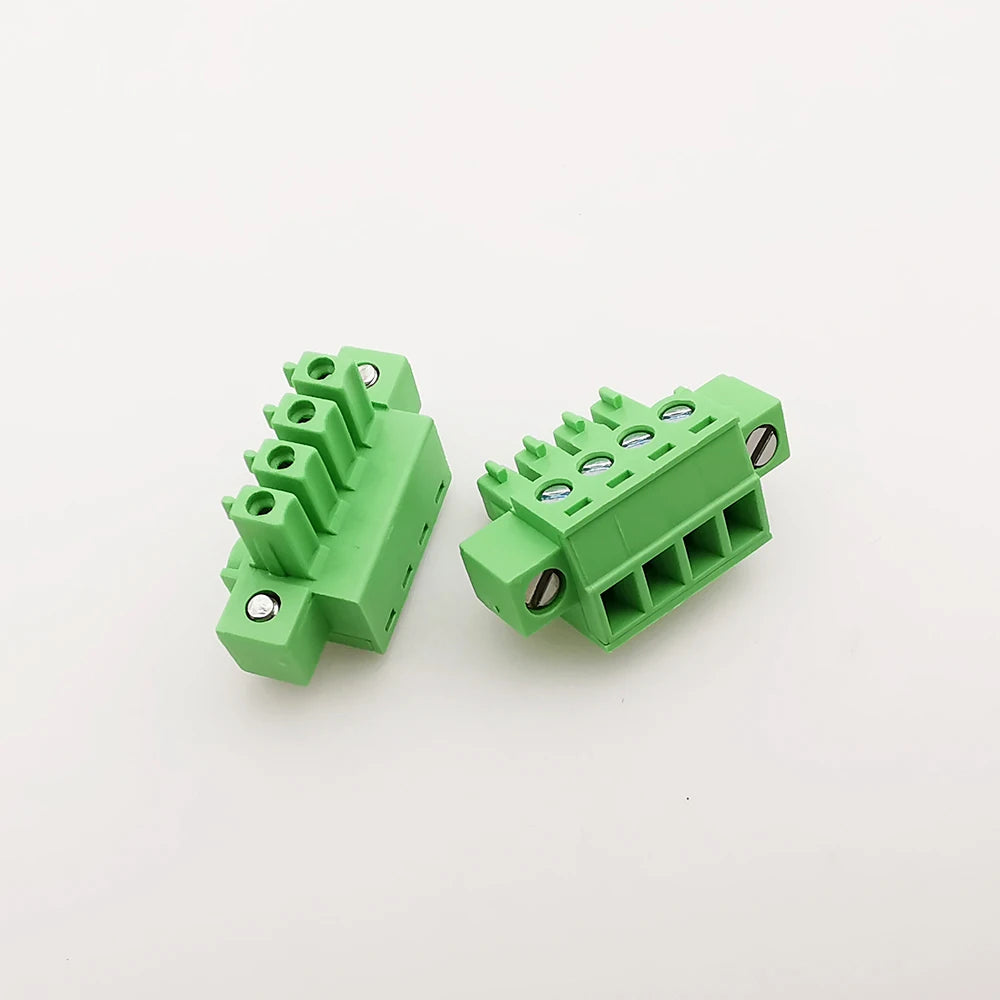

2Sets 3.81mm Pitch 2/3/4/5/6/7/8/9/10/12Pin Pluggable PCB Screw Terminal Block Connector with Fixed Panel JM15EDGWC-3.81

Features:

Name: Pitch 3.81mm 2P/3P/4P/5P/6P/8P/9P/10P/11P/12P Pluggable Terminal Block Connector

Rated Voltage: 300V

Rated Current: 8A

Color: Green

Pitch: 3.81MM

Temperature range: -40 ℃ -+105 ℃

Operating wire diameter: 28-16AWG

Pins: 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 10Pin 12Pin

Quantity: 2Sets

Note:
1. Please confirm whether it is the product you need before payment.
2. Please allow ±0-2mm difference due to manual measurement.(1 inch=2.54cm)
3. The picture may not reflect the actual color of the product, subject to the actual product.
Please make sure you do not mind before you bid. Thank you!
