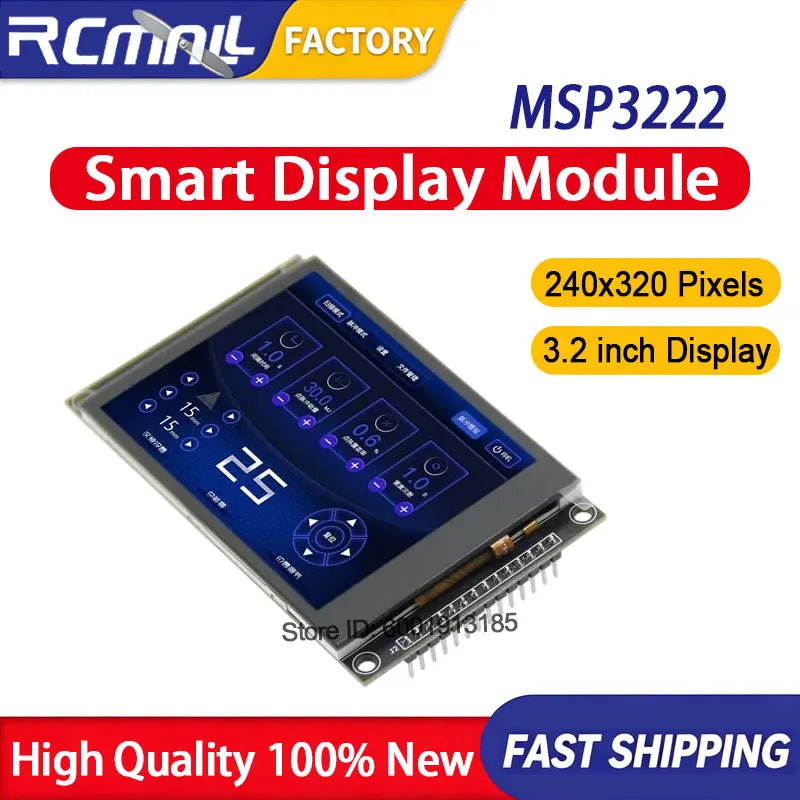

SPECIFICATIONS

Brand Name: RCmall

High-concerned chemical: none

Origin: Mainland China

Type: ESP Series

LCD Screen Specifications
Screen Size: 3.2 inches
Screen Type: IPS
Resolution: 240xRGBx320 pixels
Active Display Area: 48.60 (W) x 64.80 (H) mm
Driver IC: ILI9341V
Display Interface: 4-Line SPI
Pixel Size: 0.2025 (H) x 0.2025 (V) mm
Viewing Angle: ALL 0-CLOCK
Backlight Brightness (Typical): 280 cd/m²
Backlight Type: White LED*6
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Touch Screen Specifications
Active Area: 3.2 inches
Touch Screen Type: Capacitive Touch Screen
Touch Screen Resolution: 240 x 320 pixels
Driver IC: FT6336U
Viewable Window Size 49.20±0.15(W) x 65.40±0.15(H) (mm)
Communication Interface IIC
Construction Material G+F
Operating Temperature -20~70(°C)
Storage Temperature -30~80(°C)
Dimensions
LCD Screen Dimensions: 55.04±0.2(W) x 77.70±0.2(H) x 2.40±0.1(D) (mm) (excluding cable and adhesive tape)
Touch Screen Dimensions: 55.24±0.1(W) x 77.90±0.1(H) x 1.35±0.1(D) (mm) (excluding cable and adhesive tape)
Module Dimensions: Without Touch Screen: 55.04(W) x 90.5(H) x 12.88(D) (mm) (including pin headers)
With Touch Screen: 55.24 (W) x 90.5 (H) x 14.73 (D) mm (including pin headers)

Electrical Parameters
Operating Voltage: 5.0 V
Backlight Current: 95 mA
Power Consumption: 0.5 W
Other Parameters
SKU: No touchscreen: MSP3222
With capacitive touchscreen: MSP3223

External Interface: 14-pin 2.54 mm pin headers and 0.5 mm FPC connector
Weight (including packaging): MSP3222: 46 g
MSP3223: 60 g
