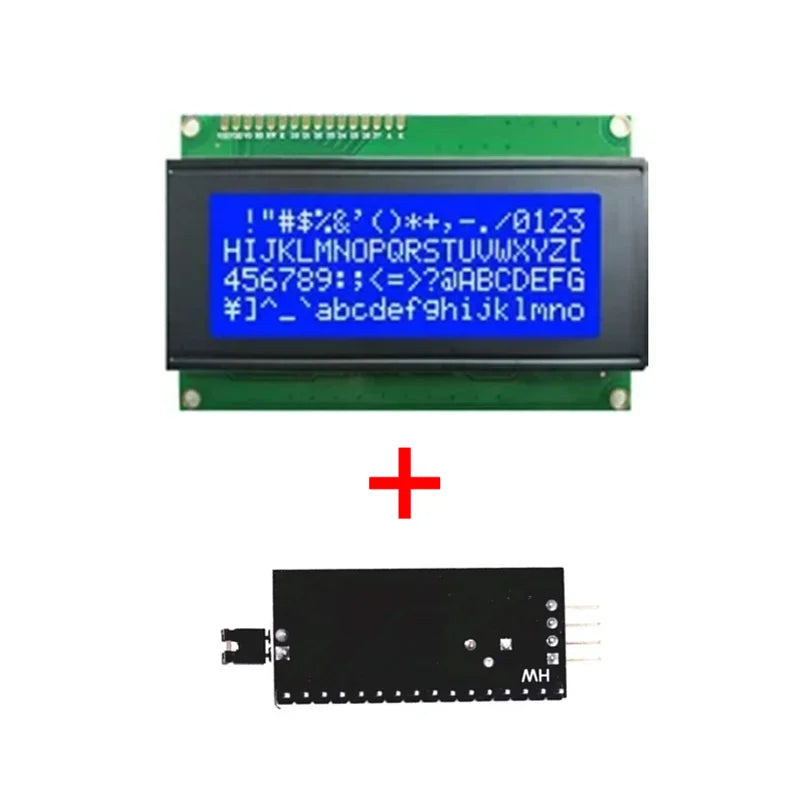

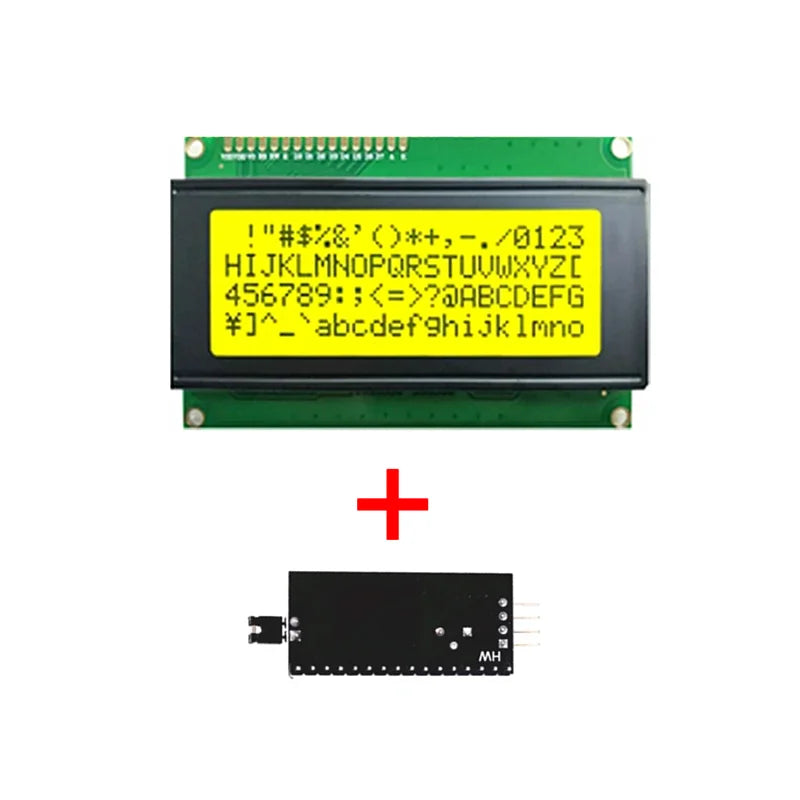

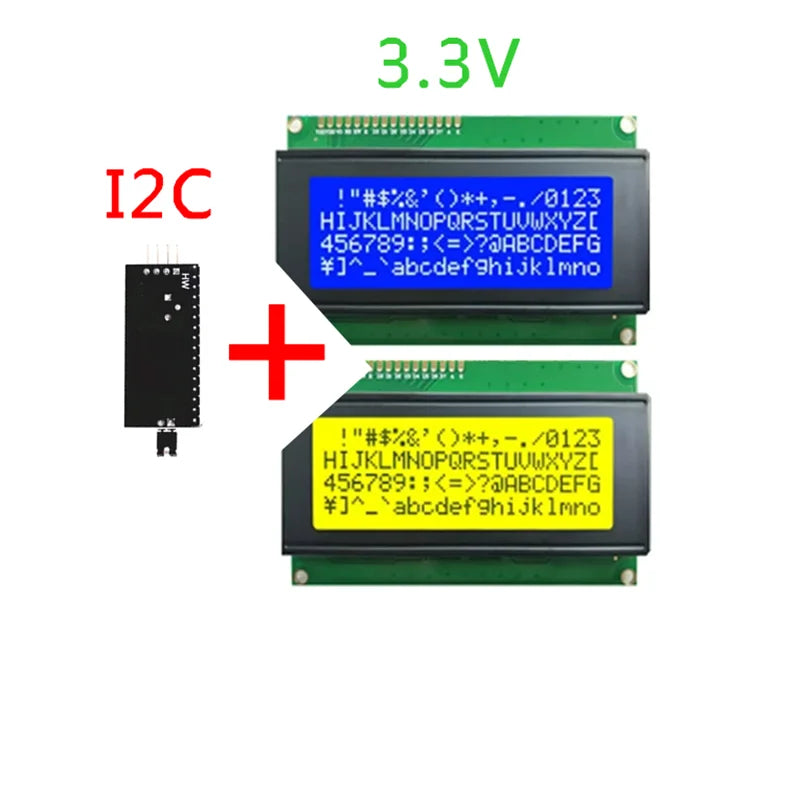

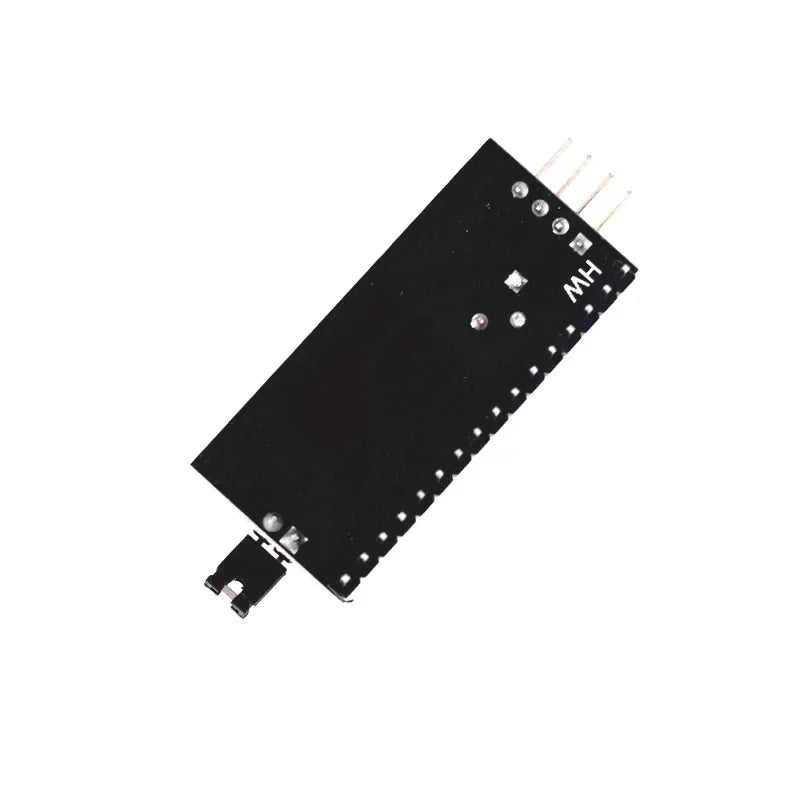

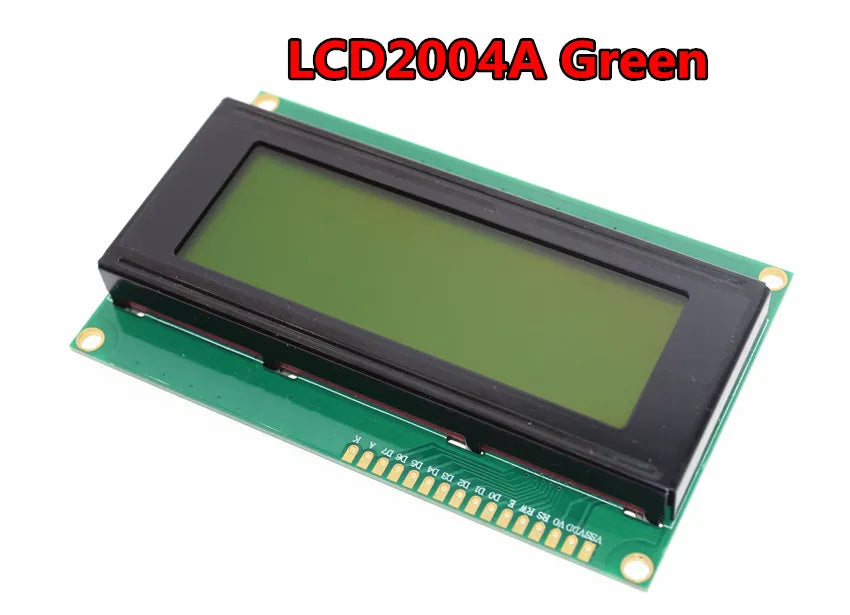

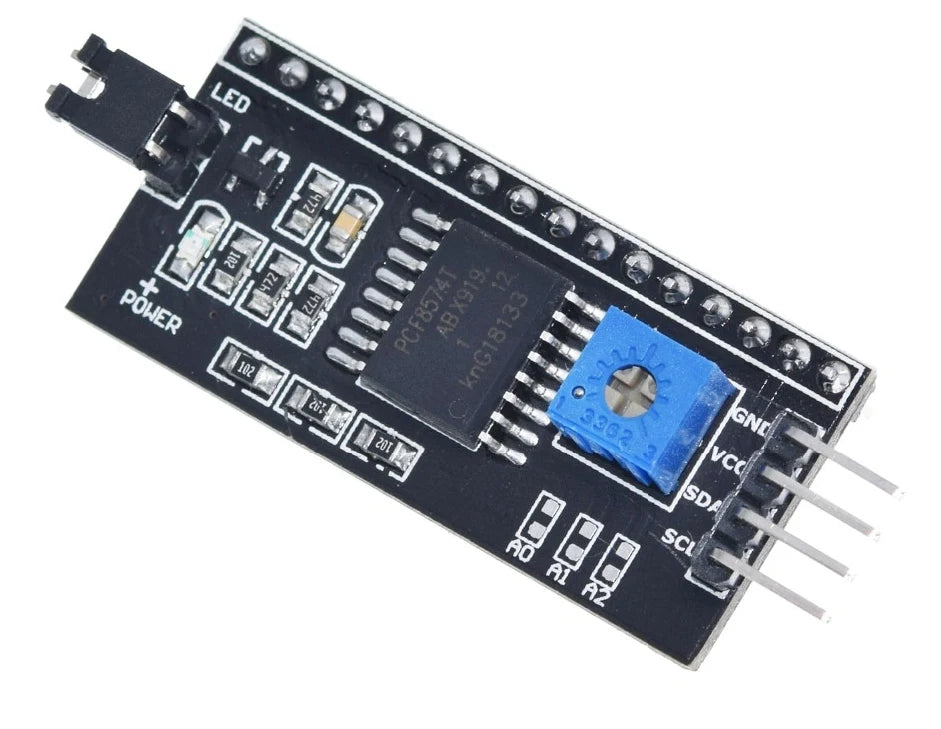

3.3V LCD Board 2004 20X4 2004A 20X4 Blue Or Yellow Screen LCD2004+IIC I2C Adpater Display LCM Module For 3D STM32 ARD DIY Board
3.3V Yellow And IIC
$24.89
Sale price
$24.89
Regular price
$0.00
Skip to product information
3.3V LCD Board 2004 20X4 2004A 20X4 Blue Or Yellow Screen LCD2004+IIC I2C Adpater Display LCM Module For 3D STM32 ARD DIY Board
$24.89
Sale price
$24.89
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Display Mode: I2C
High-concerned chemical: none
Origin: Mainland China
Resolution: 20*4
Type: Character

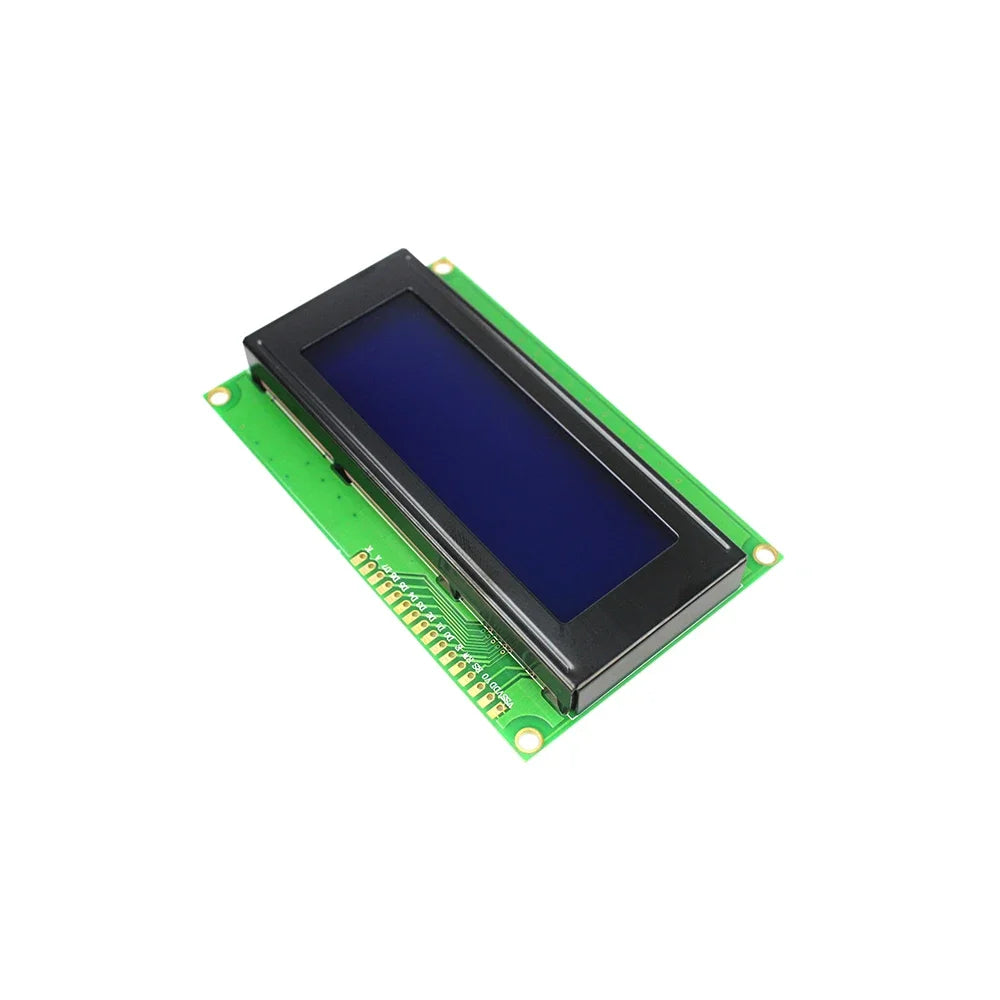

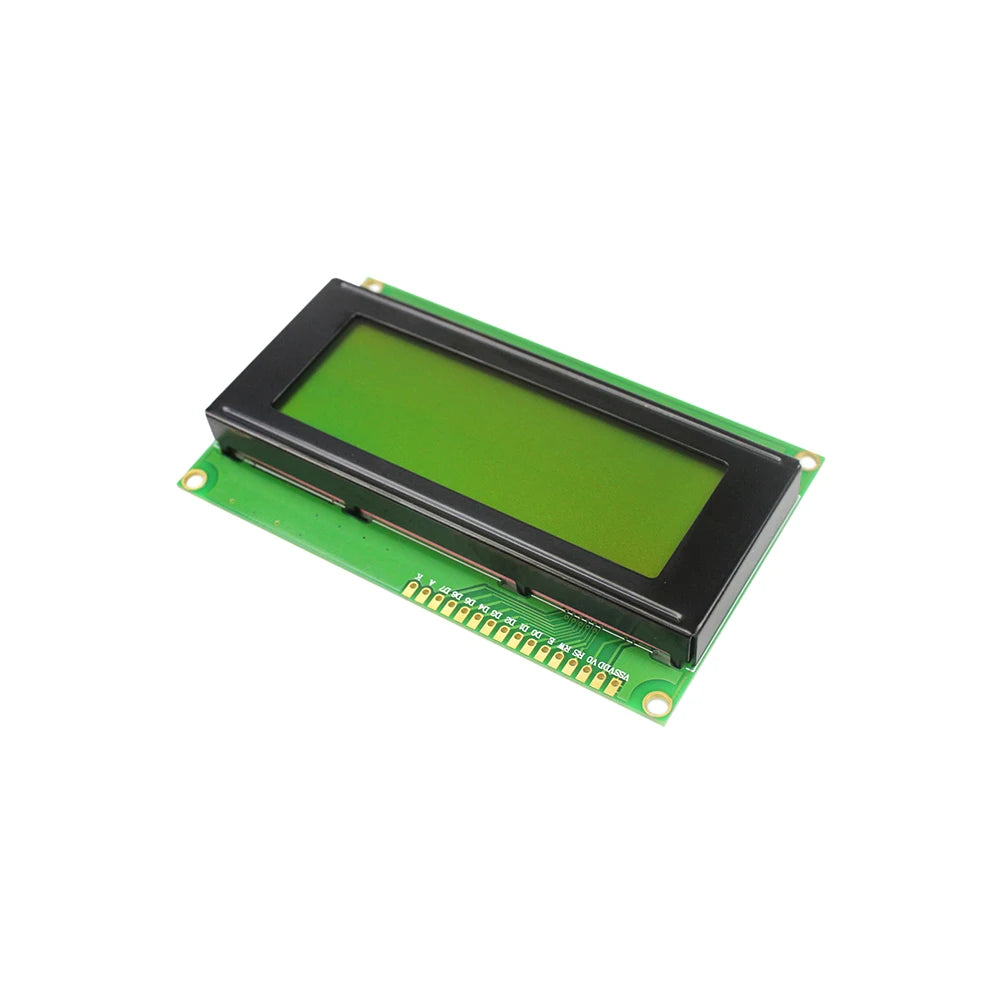

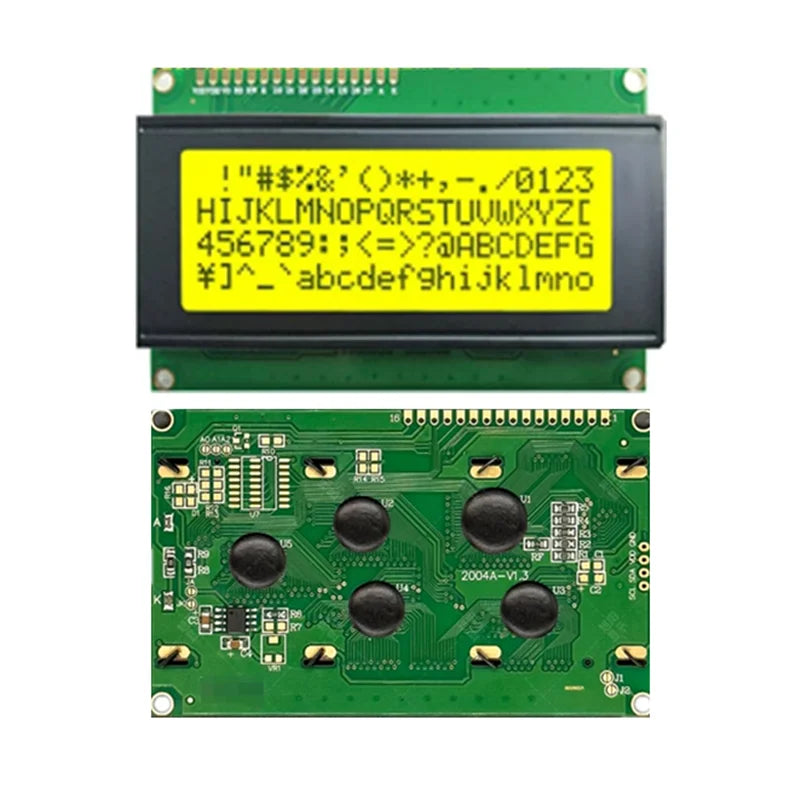

1PCS 3.3V LCD Board 2004 20X4 2004A 20X4 Blue Or Yellow Screen LCD2004 Display LCM Module For 3D Printer IIC I2C Adpater
Resolution: 20x4 dots

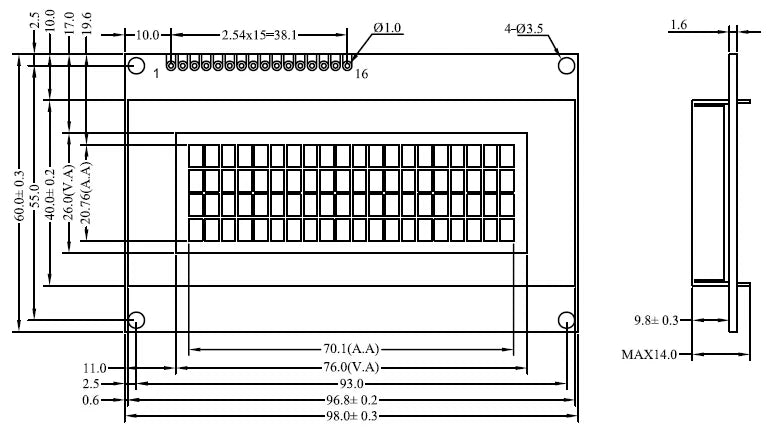

Dimensions: 98(W)x60(H)x14(T)mm
Viewing window: 76×26mm
Display area: 70.1 (W) x 20.76 (H) mm
Character size: 2.94x4.74mm
Display Inch: 3.16"
Dot (pixel) size: 0.54X0.0.54mm
Product process: COB

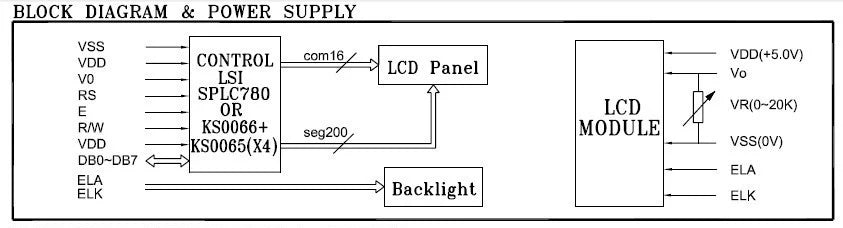

Control chip: SPLC780C/HS44780/KS0066 or Equivalent
Communication: 6800 8-bit/4-bit Parallel

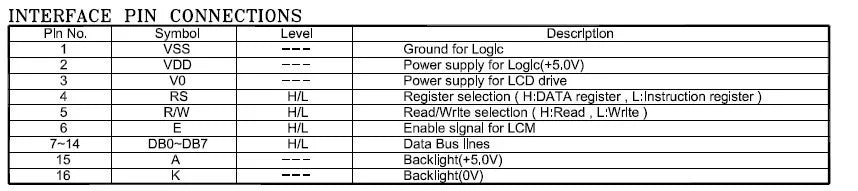

Interface Type: parallel
Display mode: STN/FSTN
Sunlight Visible: Yes
Optional touch screen: No
Contrast Yes
Best Viewing Direction: 6:00

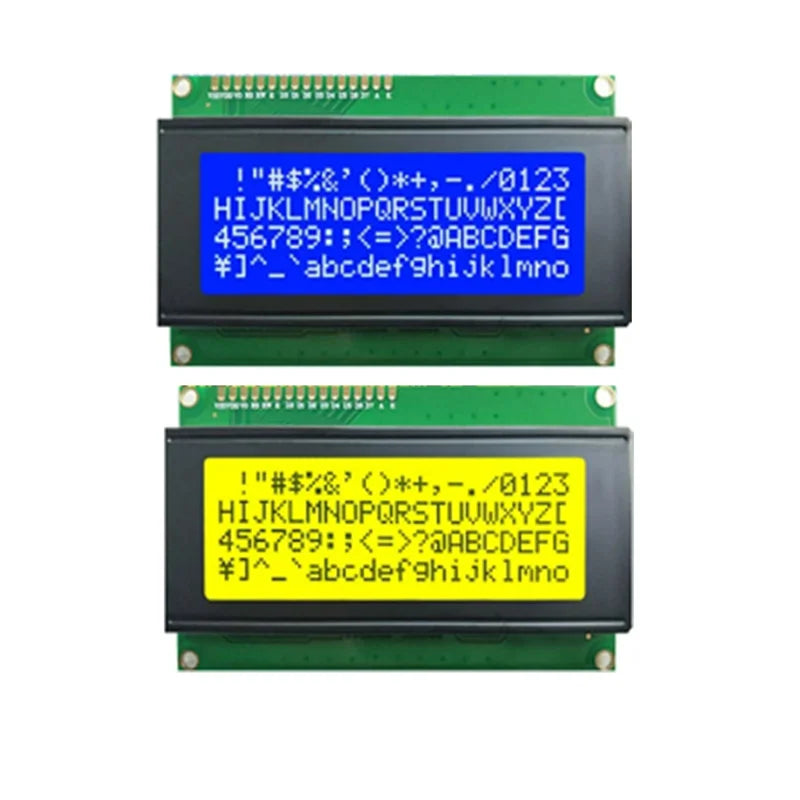

LED backlight color: Blue /Yellow Green /Gray
Display Effect: White on Blue/Black on Yellow Green/White on Gray
Operating voltage: 3.3V
Product power consumption: 40mA
Operating temperature: -20°C~70°C
Storage temperature: -30°C~80°C
