SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

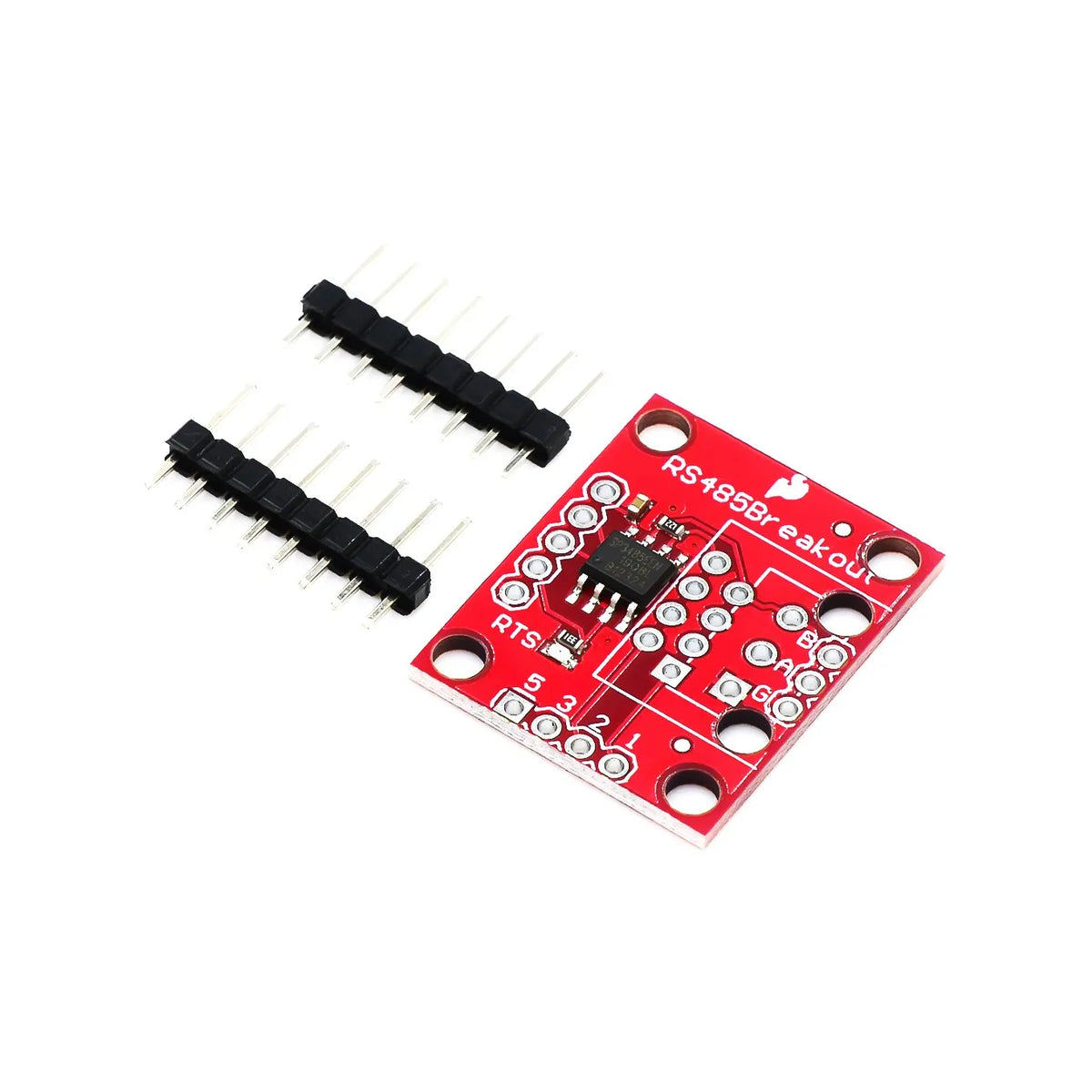

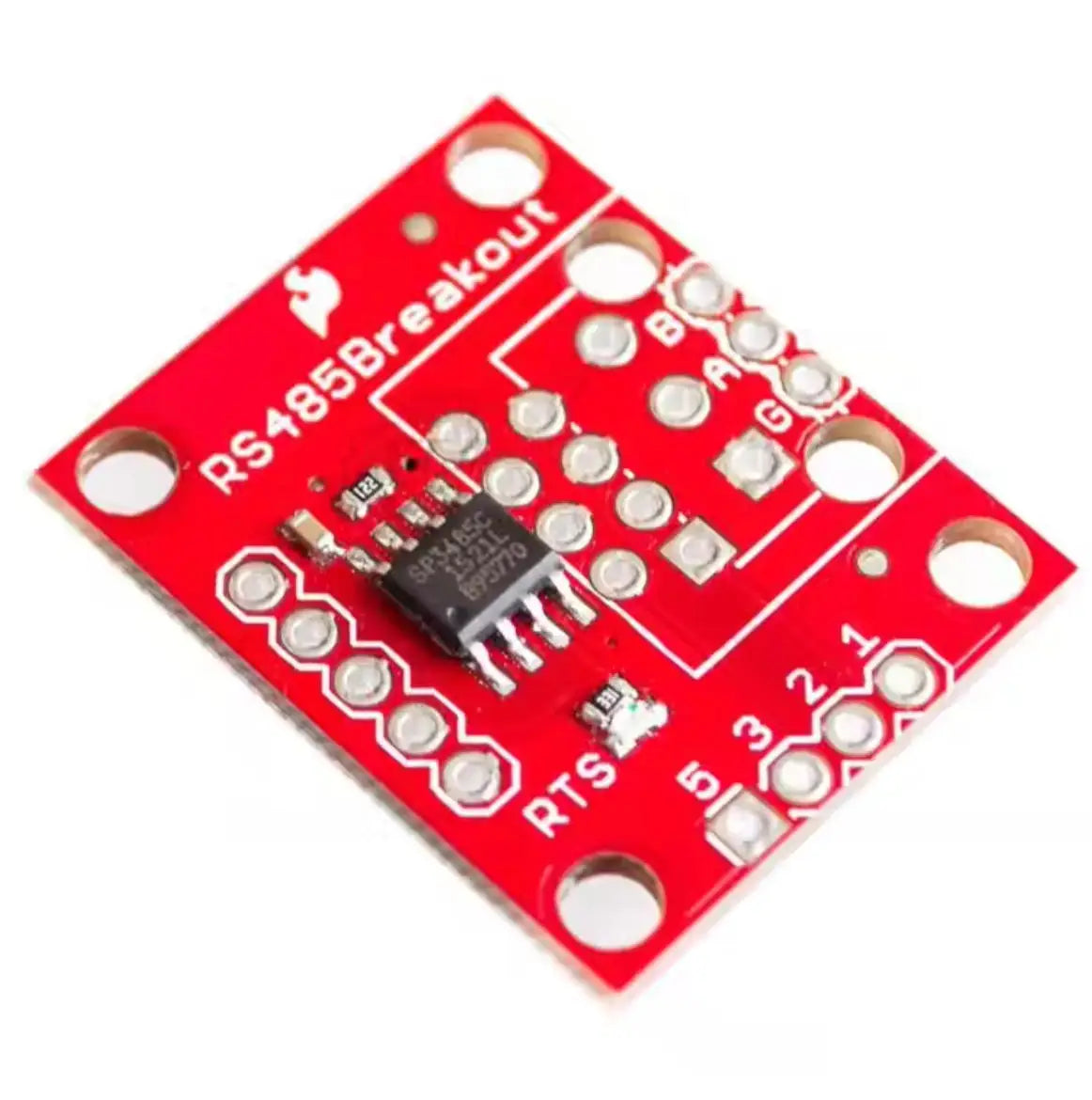

This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply.

Fully equipped with SP3485 RS-485 transceiver and supporting components
Operates from a single +3.3V supply
Interoperable with +5.0V logic
RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header
Driver/Receiver Enable connected to RTS line
-7V to +12V Common-Mode Input Voltage Range
Allows up to 32 transceivers on the serial bus
Driver Output Short-Circuit Protection
