3.3V UART serial to RS485 SP3485 Transceiver-Converter Communication Module
CN
$6.24
Sale price
$6.24
Regular price
$0.00
Skip to product information
3.3V UART serial to RS485 SP3485 Transceiver-Converter Communication Module
$6.24
Sale price
$6.24
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: STJF
Condition: New
Dissipation Power: ...
Functions: Electronic Module
High-concerned chemical: none
Origin: Mainland China
Package: DIY Module
Range of application: Switch And Sensor For Arduino STM
Supply Voltage: +3.3VDC
Type: Voltage Regulator
is_customized: Yes

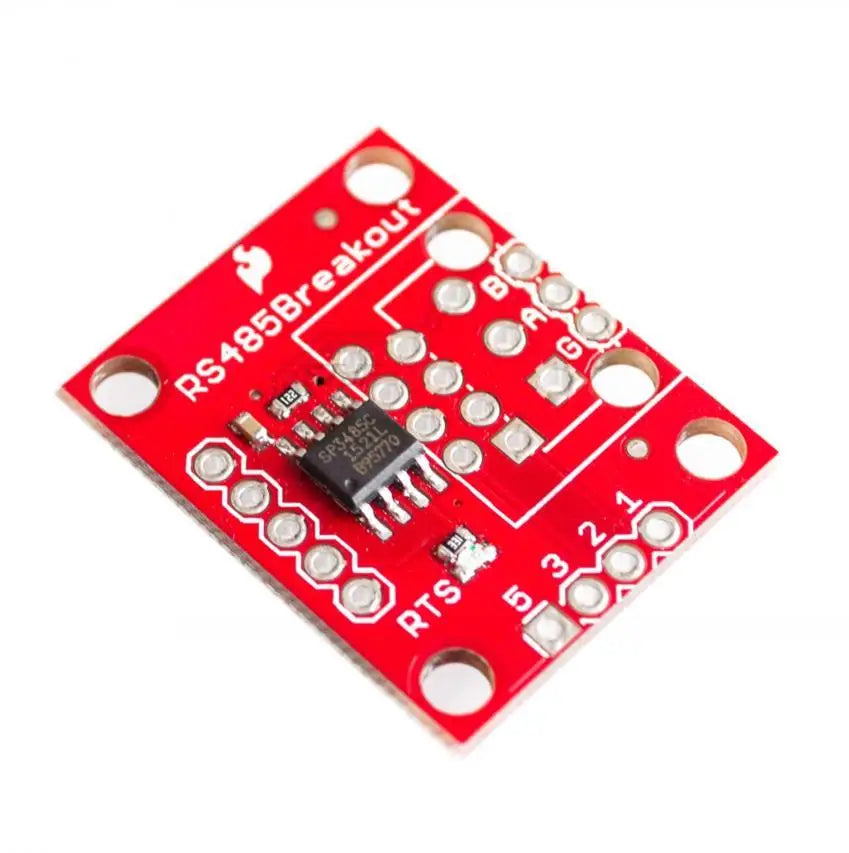

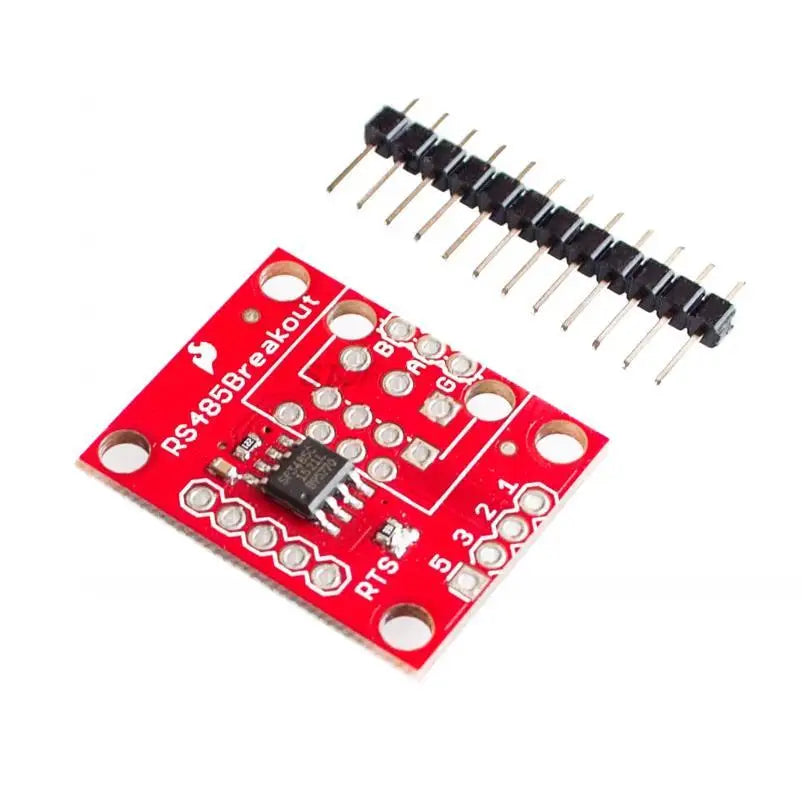

This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply.
- Fully equipped with SP3485 RS-485 transceiver and supporting components
- Operates from a single +3.3V supply
- Interoperable with +5.0V logic
- RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header
- Driver/Receiver Enable connected to RTS line
- -7V to +12V Common-Mode Input Voltage Range
- Allows up to 32 transceivers on the serial bus
- Driver Output Short-Circuit Protection
Dimensions:0.9x1.0"
