Description

SPECIFICATIONS

Applicable temperature: -25℃ ~ +80℃

Brand Name: STA

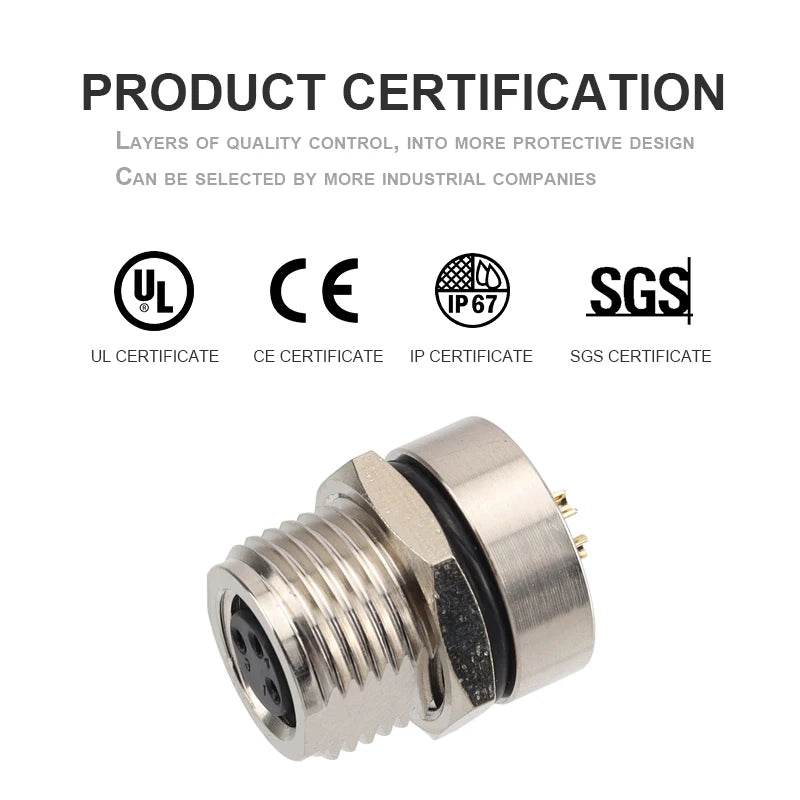

Certification: CE,UL

Contact impedance: ≤5mΩ

Contact material: Brass/Phosphorus copper gold-plated

Does it include a Battery?: No

Durability: ≥500(Cycles)

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Insulation impedance: ≥100MΩ

Insulator material: PA66

Molding material: TPU/PVC

Origin: Mainland China

Sealing material: Epoxy resin/Rubber

Shell material: Brass nickel-plated/Zinc alloy nickel-plated

Voltage: none

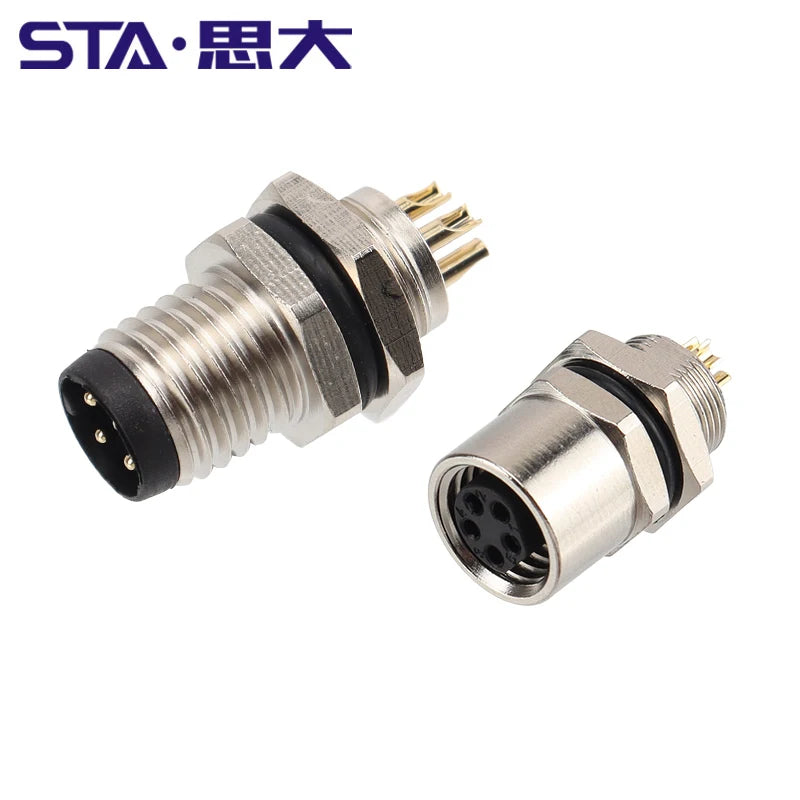

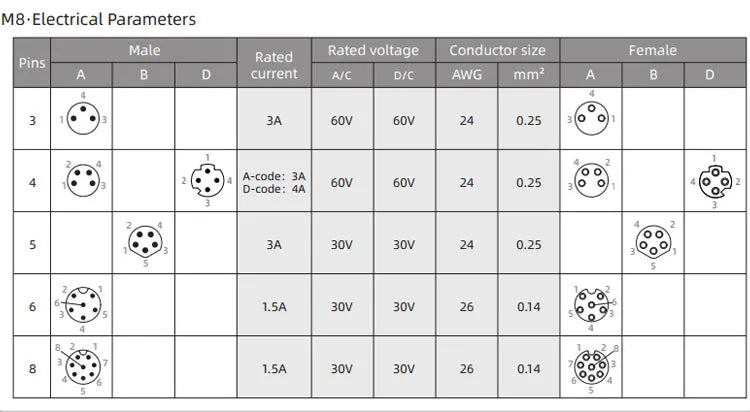

M8 SERIE

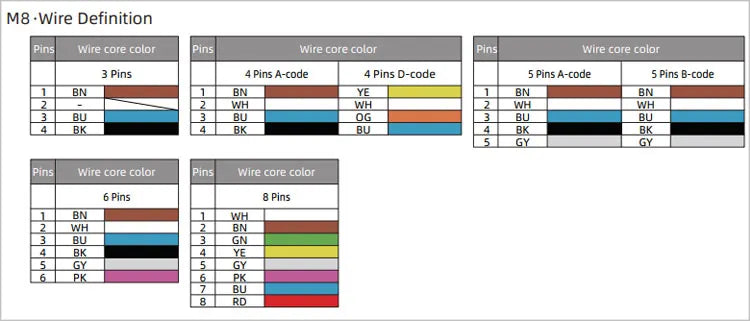

Pins Number: 3 4 5 6 8 pins
Plug: assembly, overmolded cable type (length can be customized at will)
Most connectors are excellent for full shielding at 360 degrees

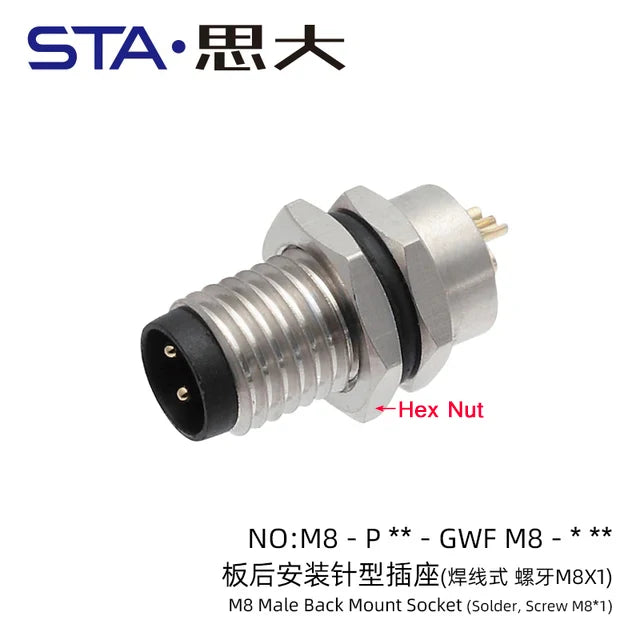

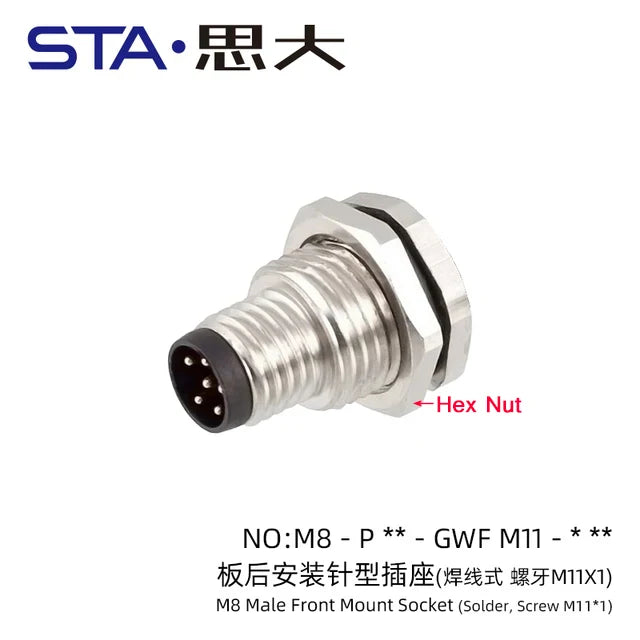

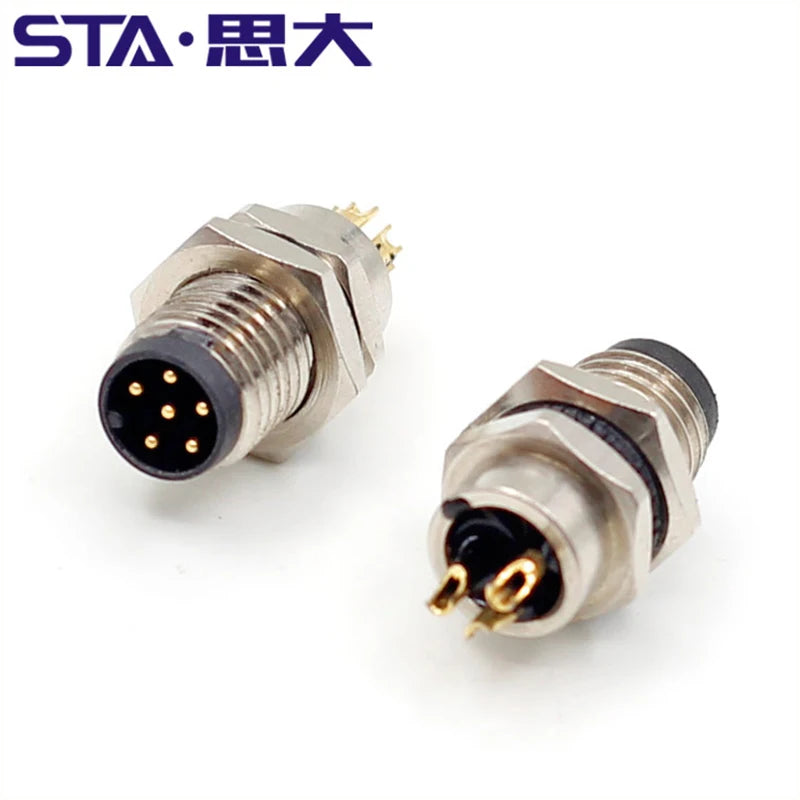

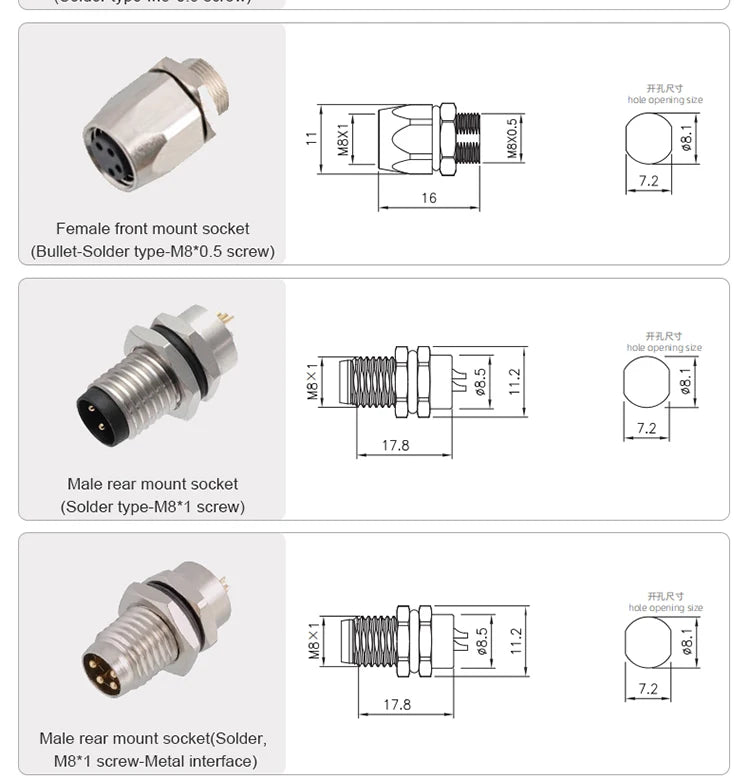

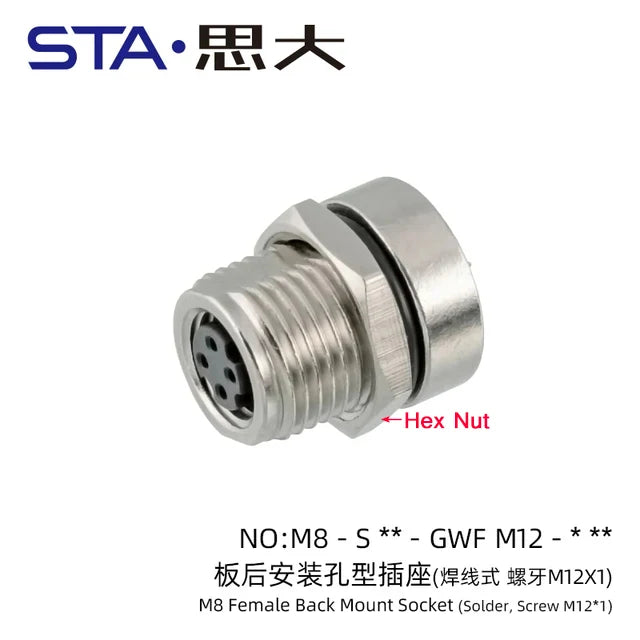

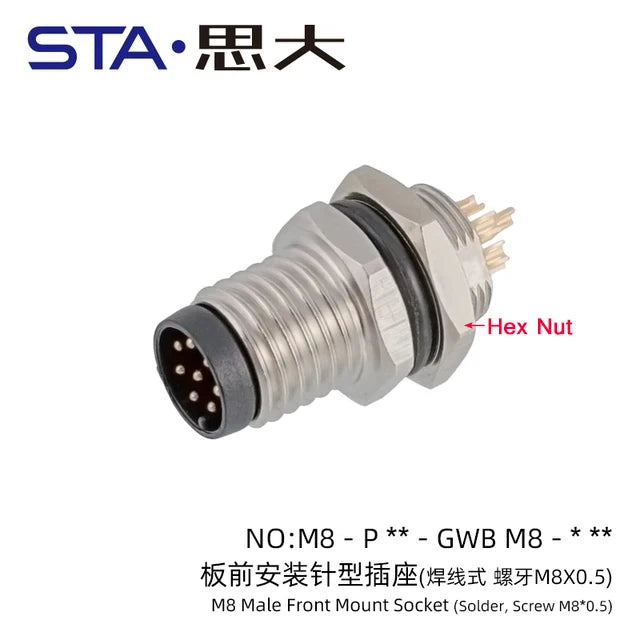

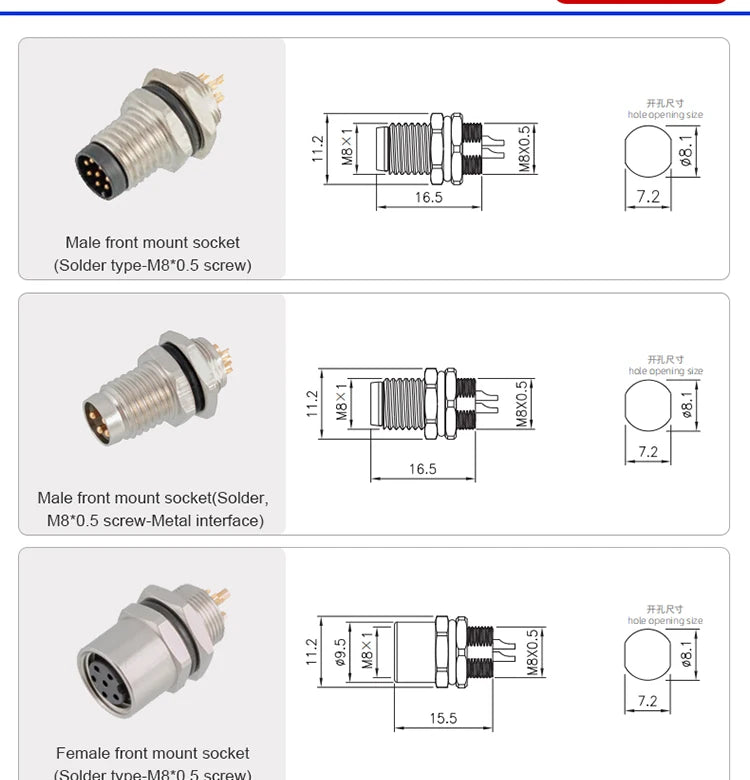

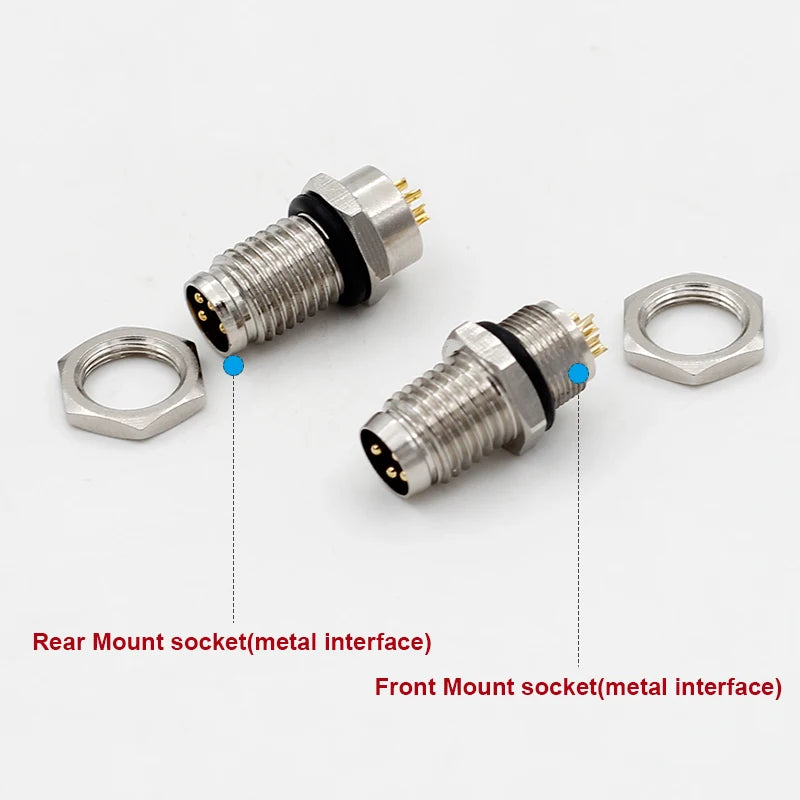

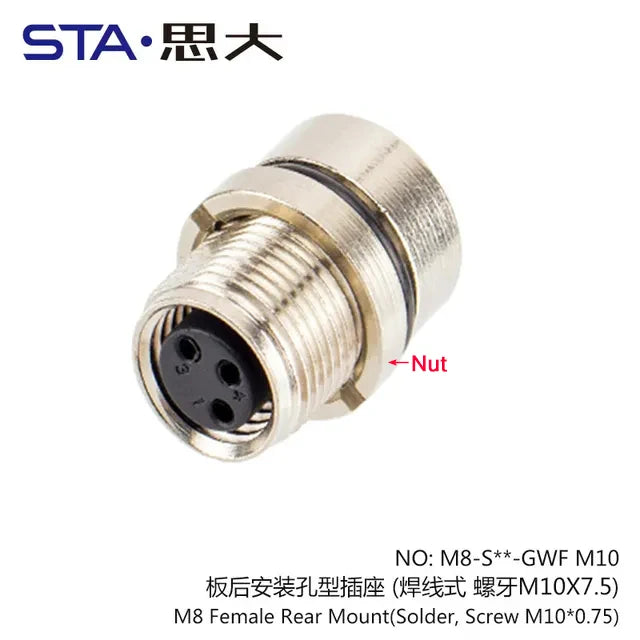

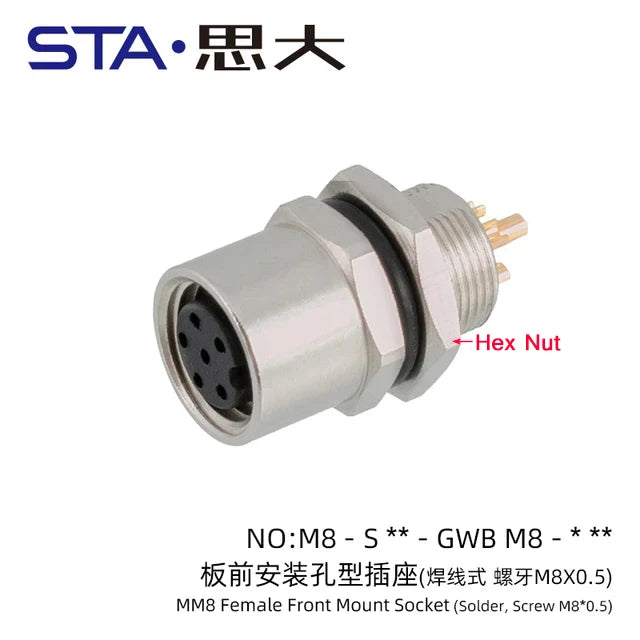

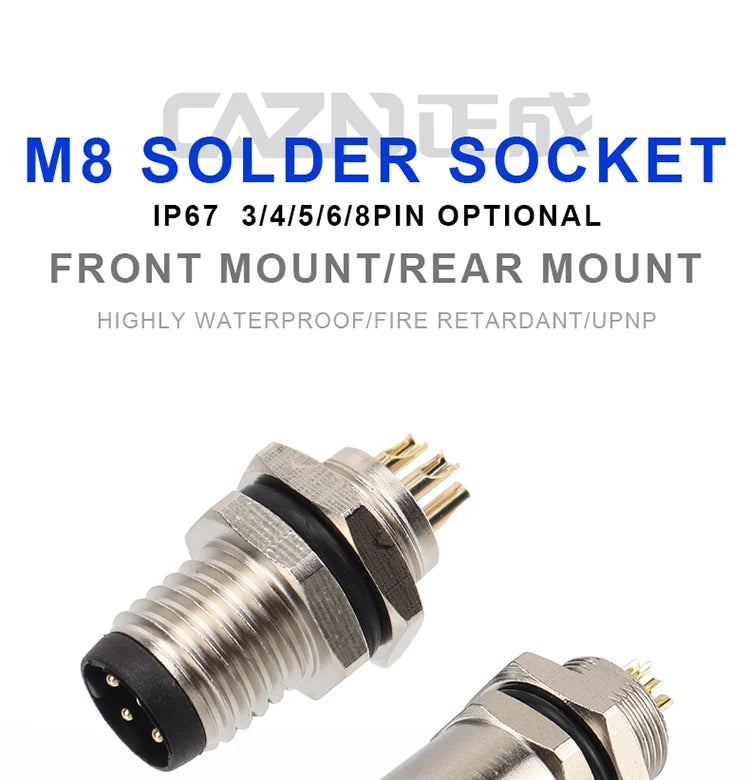

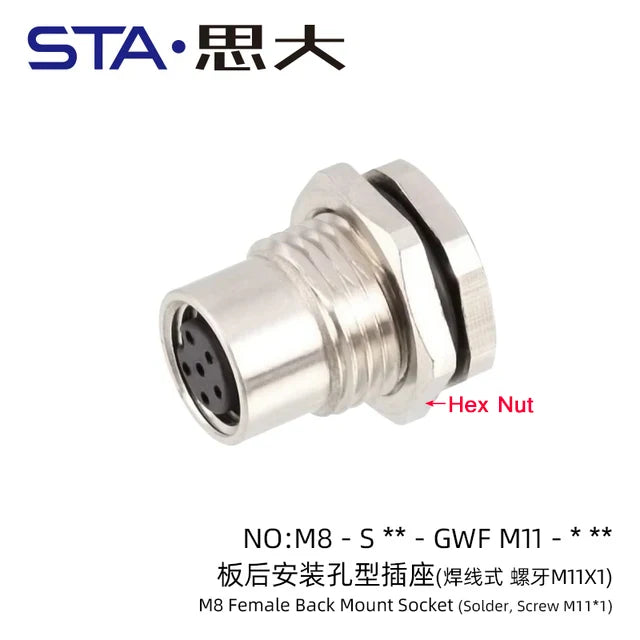

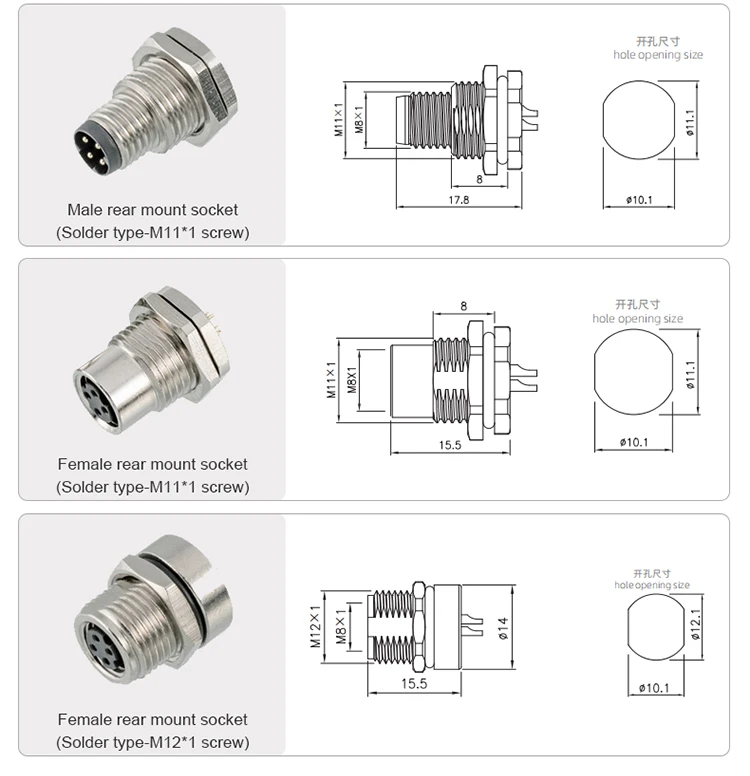

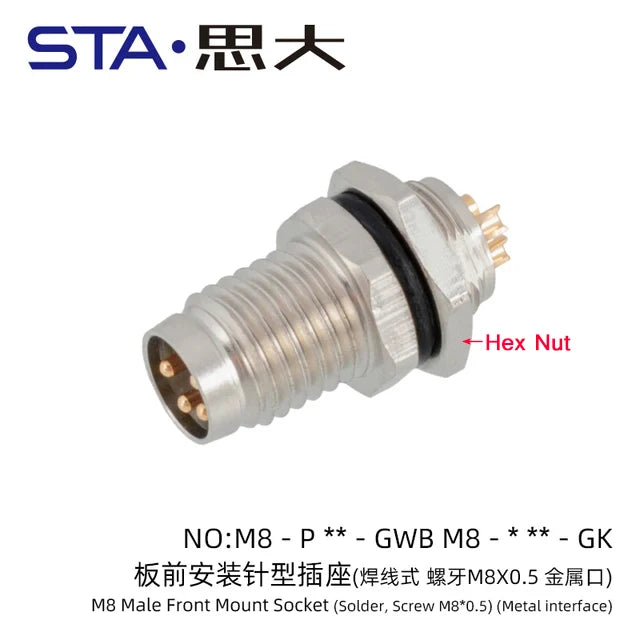

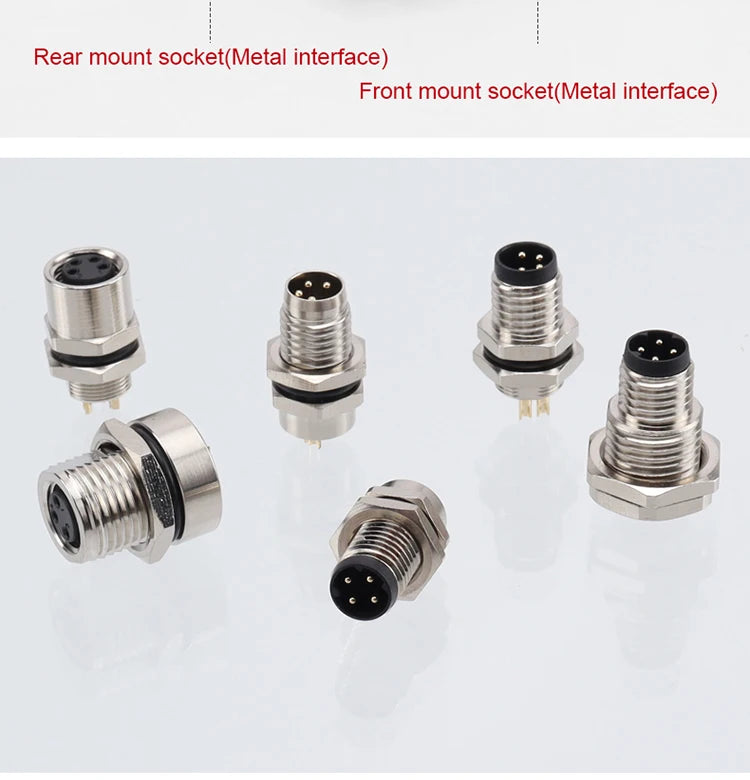

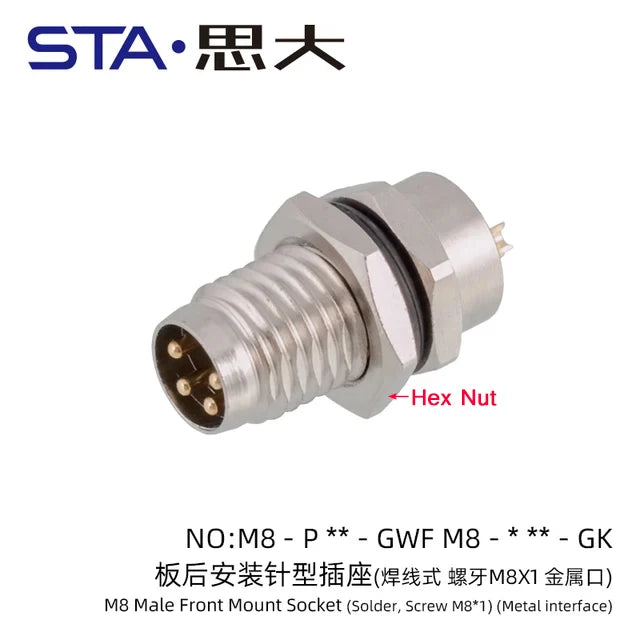

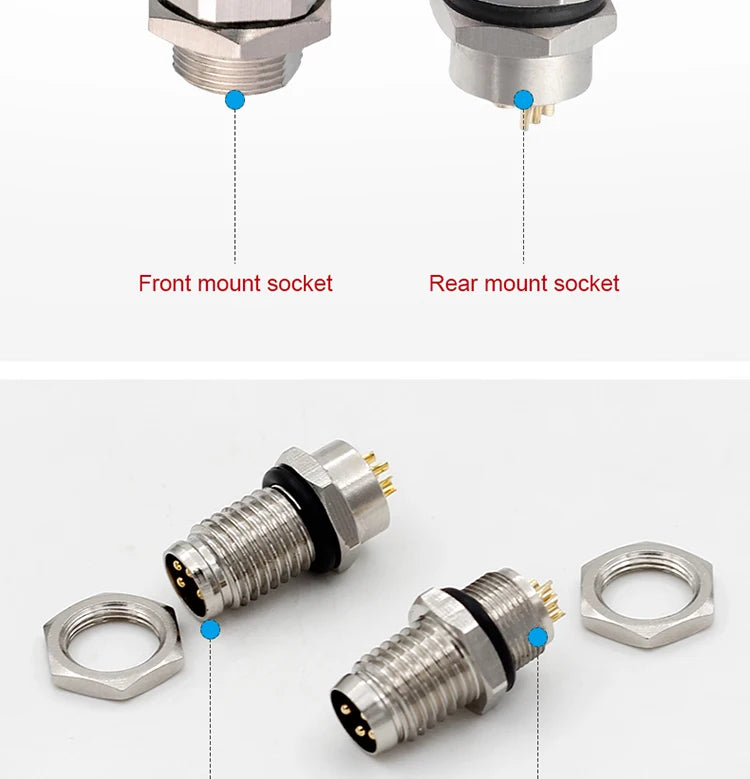

Socket: Front Mount Solder Type, Back Mount Solder Type and PCB board type
Waterproof grade: Ip65 IP67
Products comply with IEC 61076-2-104 standard

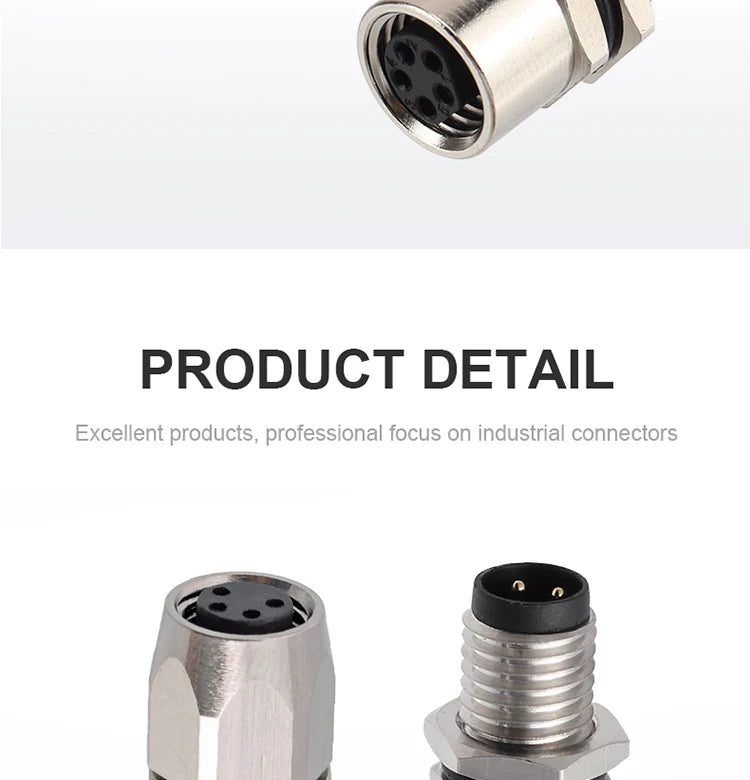

Products Description

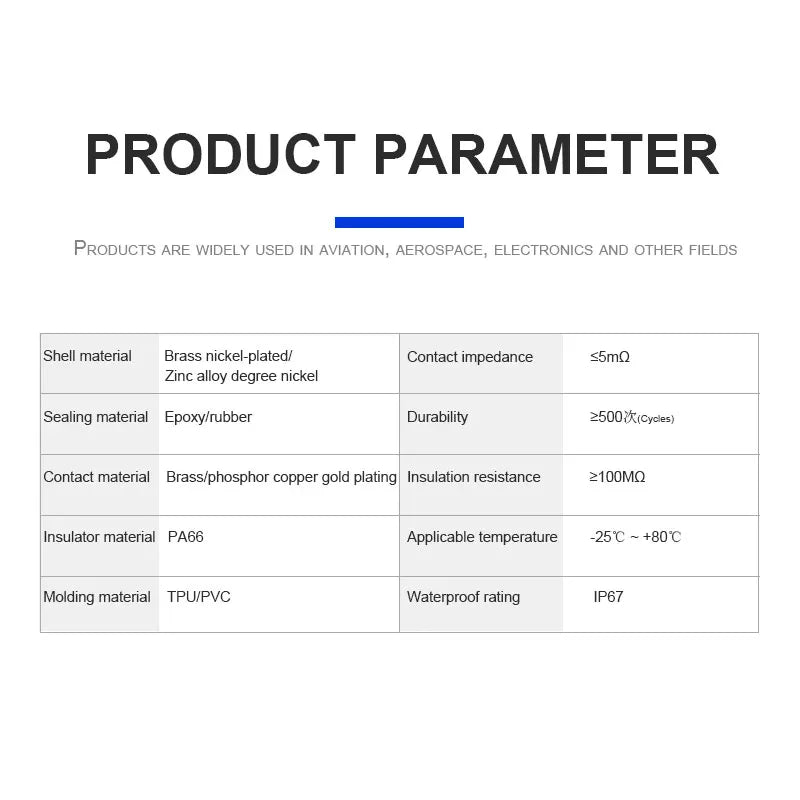

Technical parameter

Shell Material:	Copper/Zinc Nickel-plated	Insulation Resistance:	≥100mΩ
Insert Material:	PA66+30%GF	Contact Resistance:	≤5mΩ
Molding Material:	PVC/TPU	IP Level:	IP67/IP68
Contact Material:	Brass/Phosphorus copper gold-plated	Standard:	IEC61076-2-104
Applicable Temp.:	-25℃~+80℃	Agreement:	Ethernet
Sealing Material:	Epoxy resin/Rubber

Packaging & Delivery

Packing details:

1, Our standard packing: 1~5pcs connectors put into a transparent polybag, every big polybag with a label, then put into a carton.
2, Packing as buyer's option.

Delivery details:

1, the lead time for samples is 1~7 days, 7~15 days for the batch production.
2, for the shipping, the goods can be shipped by customer's international express account such as DHL,TNT,UPS,Fedex, or by our forwarder.

Application

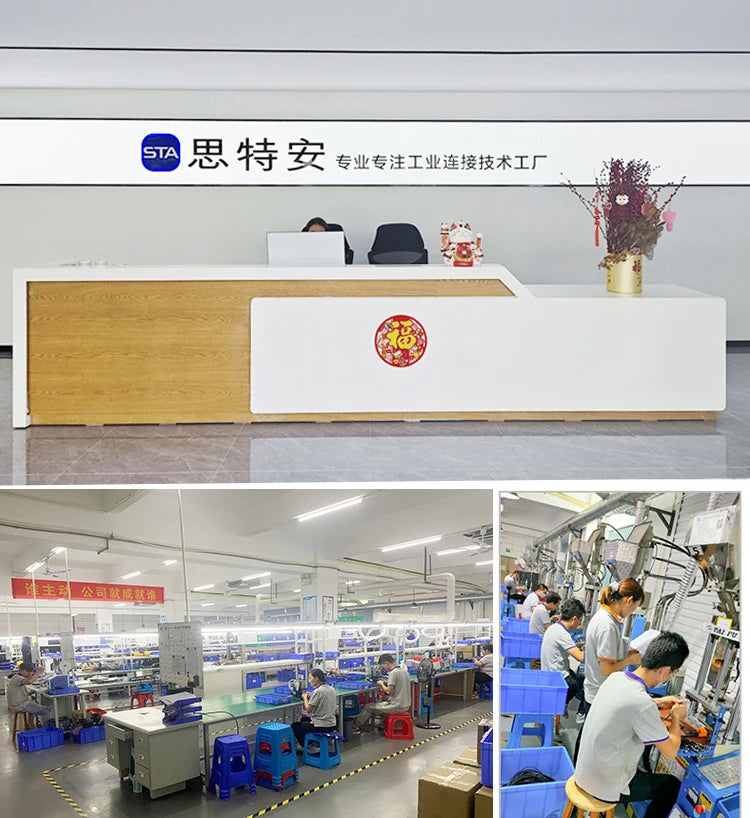

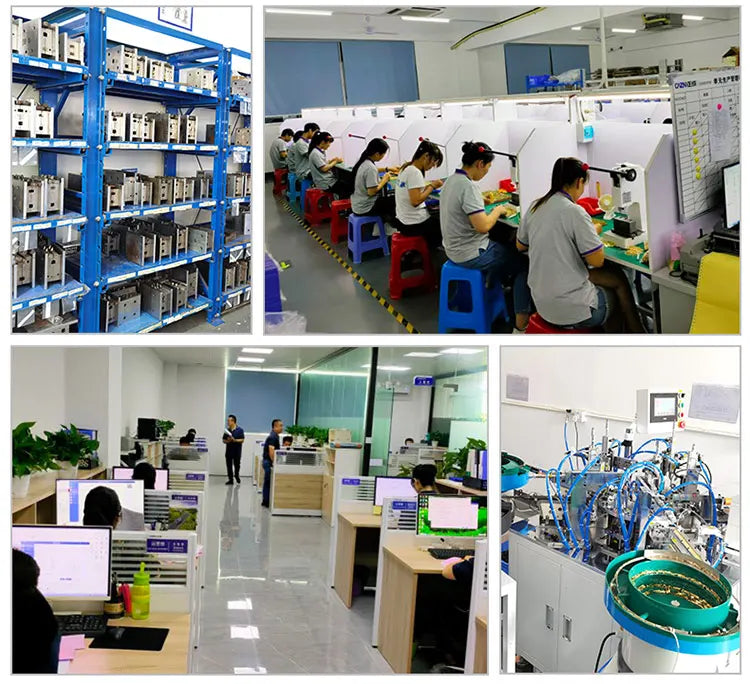

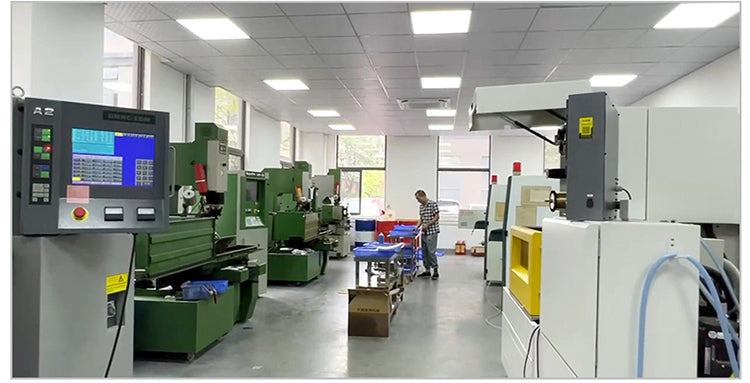

Company Profile

FAQ

Q1: Are you a manufacturer?
A1: We are Trade-Manufacturer, owning factories (Factory Brand"CAZN" "STARF"), Shenzhen CAZN Electrics co.,ltd had passed ISO9001 at 2018. we can provide one-stop station service for connectors and cables with factory price.


Q2:How about your quality?
A2: We guarantee 100% in good quality and cost-effective.

Q3: After-sales service
A3: All the inquiry will be responsed within 24 hours, our communication will be effective.

Q4: Is it customizable?
A4: We offer customization service and have our own mold room, can provide mold business.

Q5: What is your lead time?
A5: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, and about 7~10 days for large quantity.
