SPECIFICATIONS

Brand Name: NONE

Certification: NONE,NONE

Choice: yes

Current / Phase: /

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Holding Torque: 28BYJ-48

Model Number: 28BYJ-48 + ULN2003

Origin: Mainland China

Phase: 2

Step Angle(degrees): as the picture show

Type: /

semi_Choice: yes

Features:

*100% Brand new and high quality

*Made of high quality material, more durable.

*Low noise, reliable use

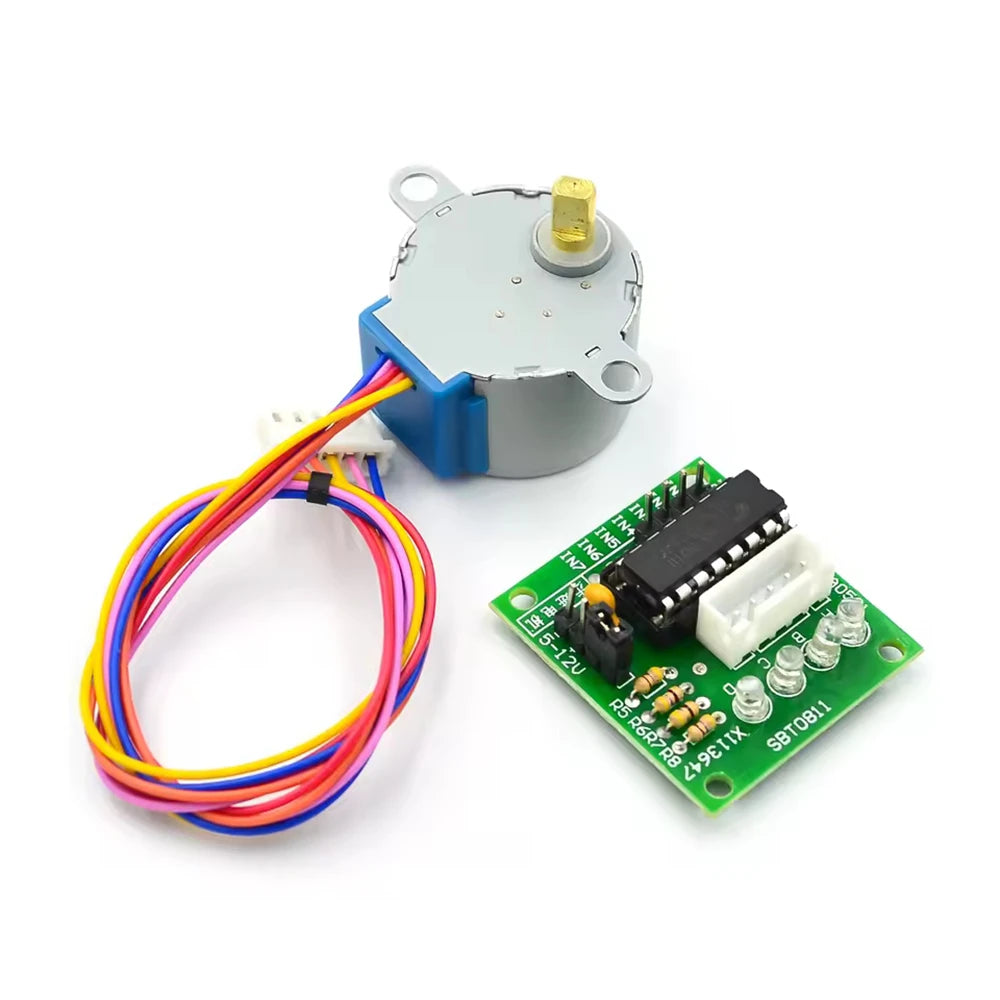

*DC 5V 4-phase stepper motor + for Arduino driver test module board

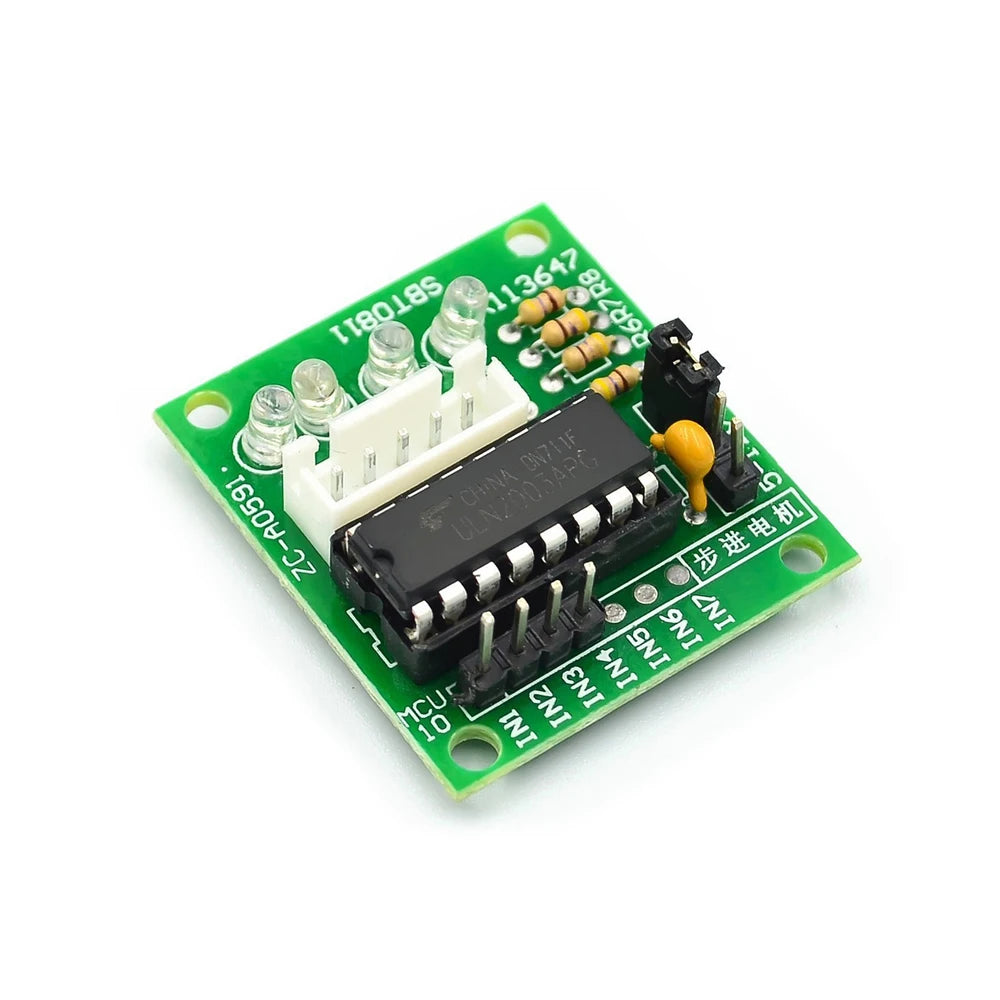

*A, B, C, D four-phase LEDs indicate the working state of the stepper motor

*Stepper motor with standard interface for direct insertion

Specifications:

*Color: As Pictures Show

*Rated voltage: DC5V 4 phase

*Step angle: 5.625 x 1/64

*No load absorption frequency: >600Hz

*No-load extraction frequency: >1000Hz

*Pulling torque: >34.3mN.m (120Hz)

*stop torque: >34.3MN.m

*DC resistance: 200Ω±7% (25C)

*Insulation resistance: >10MΩ (500V)

*Dielectric strength: 600V AC / 1mA / 1s

*Edge rating: A

*Temperature rise: <40K (120Hz)

*Noise: <40dB (120Hz, no load, 10cm)

Package Content:

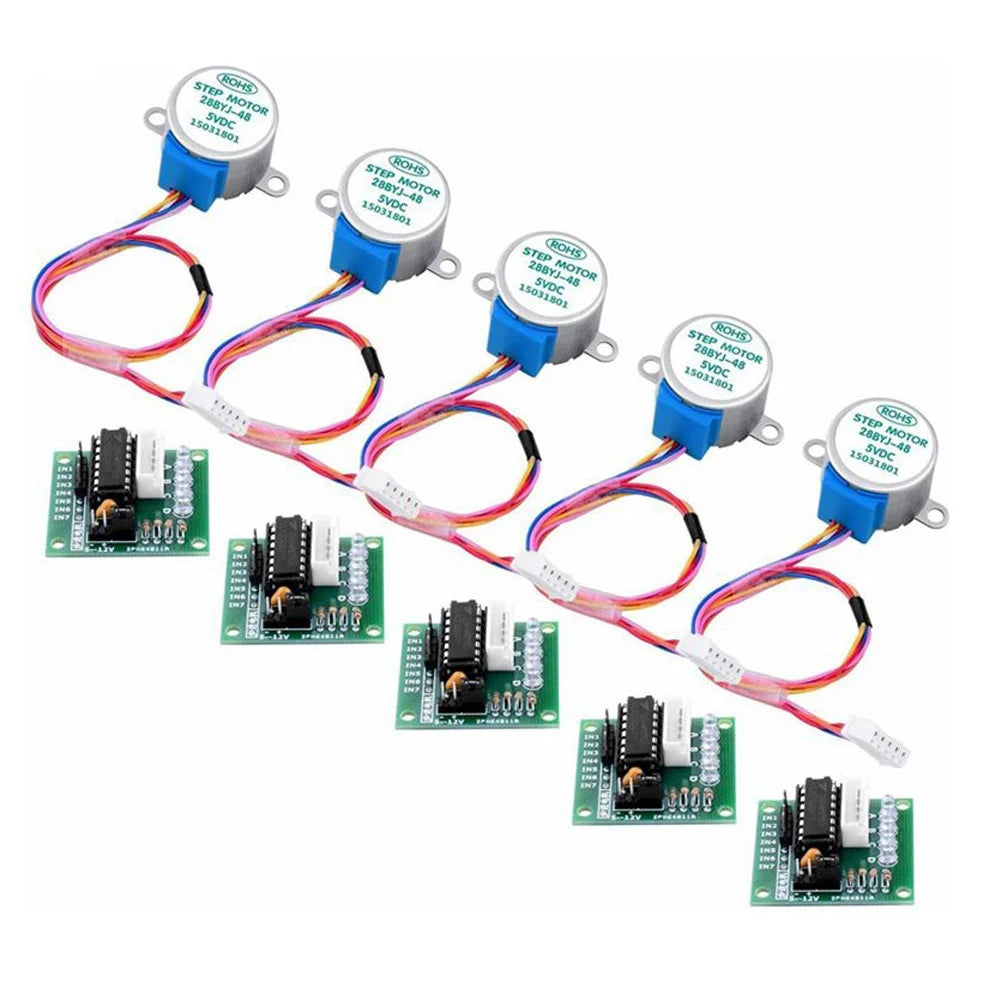

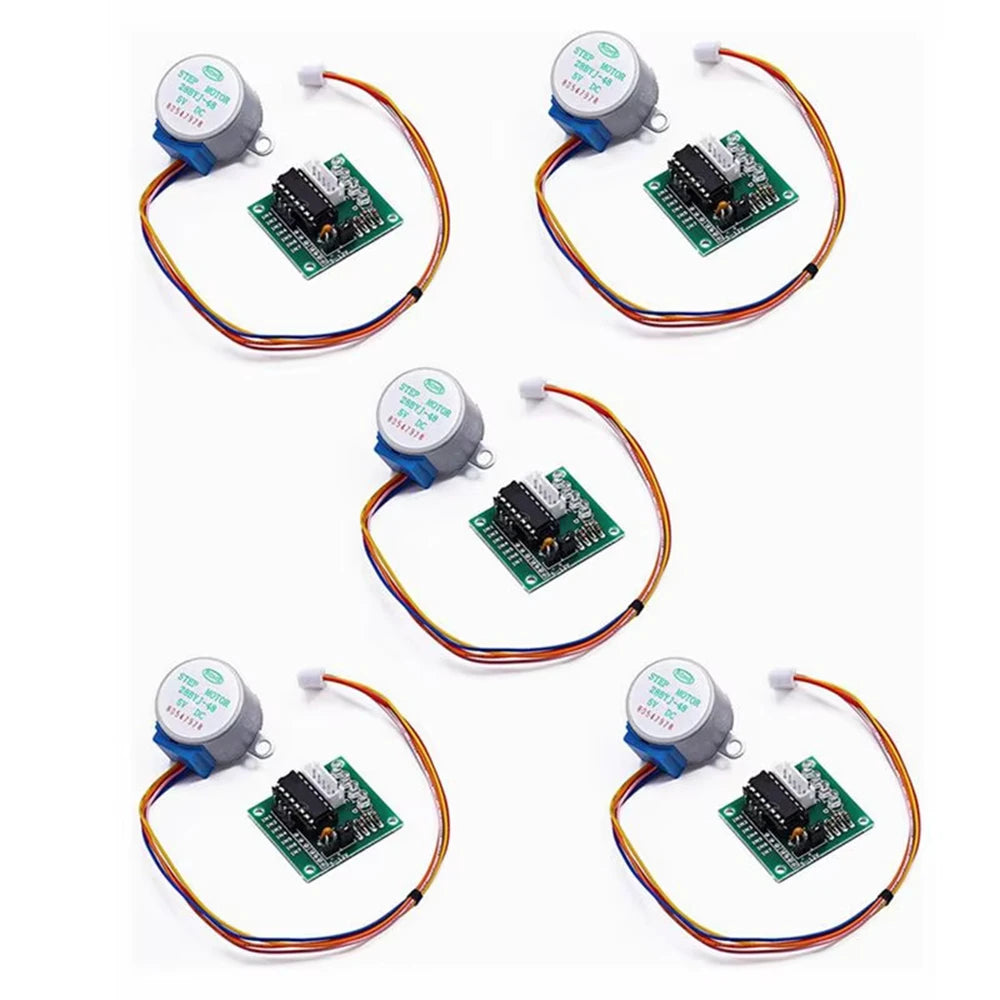

5*28BYJ-48 stepper motor

5*ULN2003 motor driver board

Note:

The
real color of the item may be slightly different from the pictures
shown on website caused by many factors such as brightness of your
monitor and light brightness.
