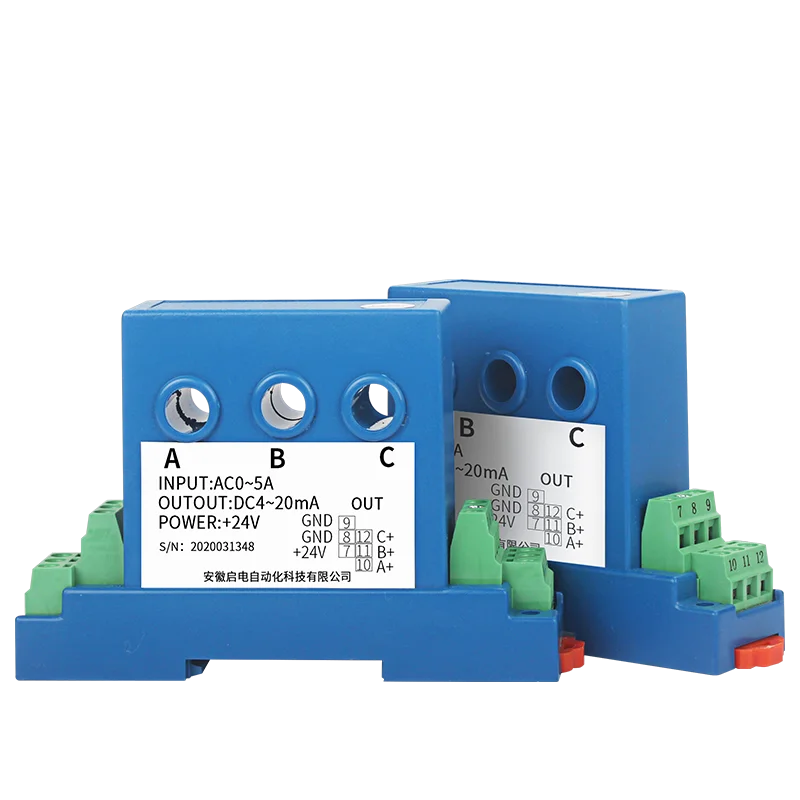

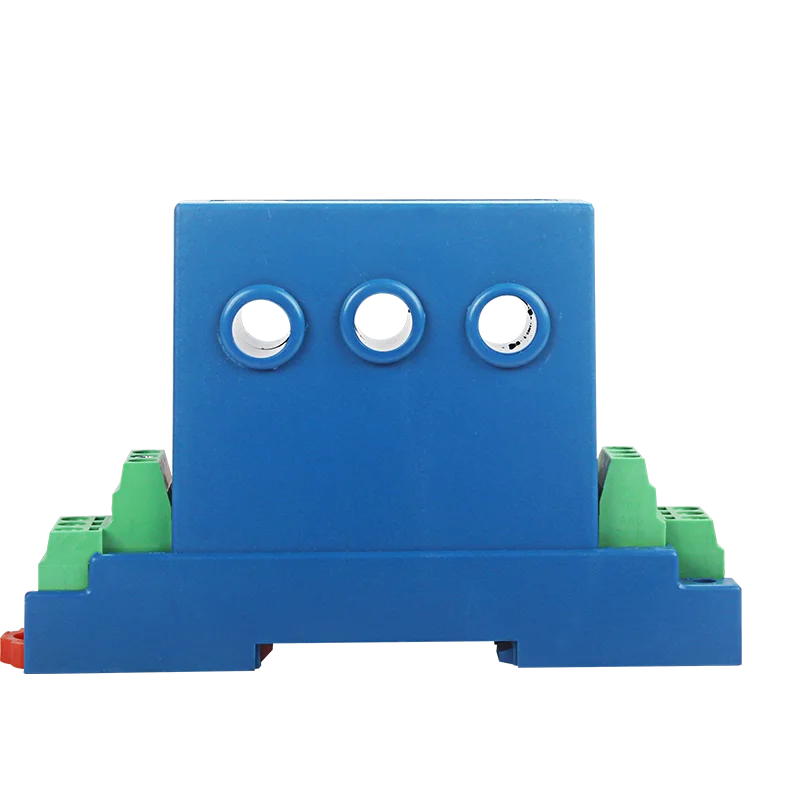

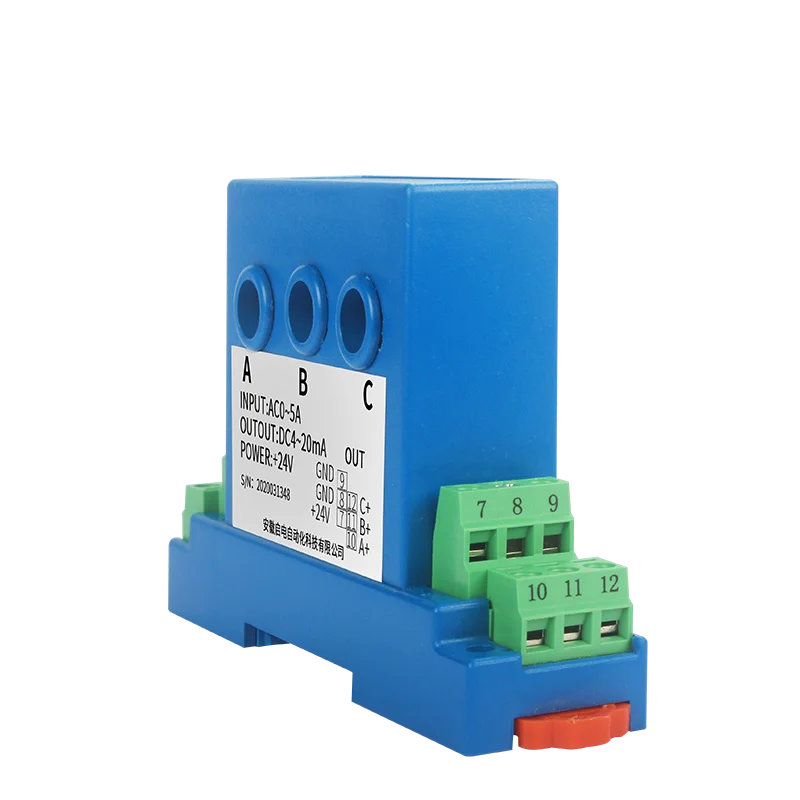

3 Phase AC 5A 10A 50A Current sensor Transmitter 4-20ma 0-5V 0-10V RS485 output Perforated Ampere current voltage Transducer
4-20mA output / 8mm hole size / DC24V power supply|3xAC 0-50A
$159.84
Sale price
$159.84
Regular price
$0.00
Skip to product information
3 Phase AC 5A 10A 50A Current sensor Transmitter 4-20ma 0-5V 0-10V RS485 output Perforated Ampere current voltage Transducer
$159.84
Sale price
$159.84
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy Class: 0.5%FS
Battery Included: no
Brand Name: NONE
Certification: CE,FCC,RoHS
DIY Supplies: Electrical

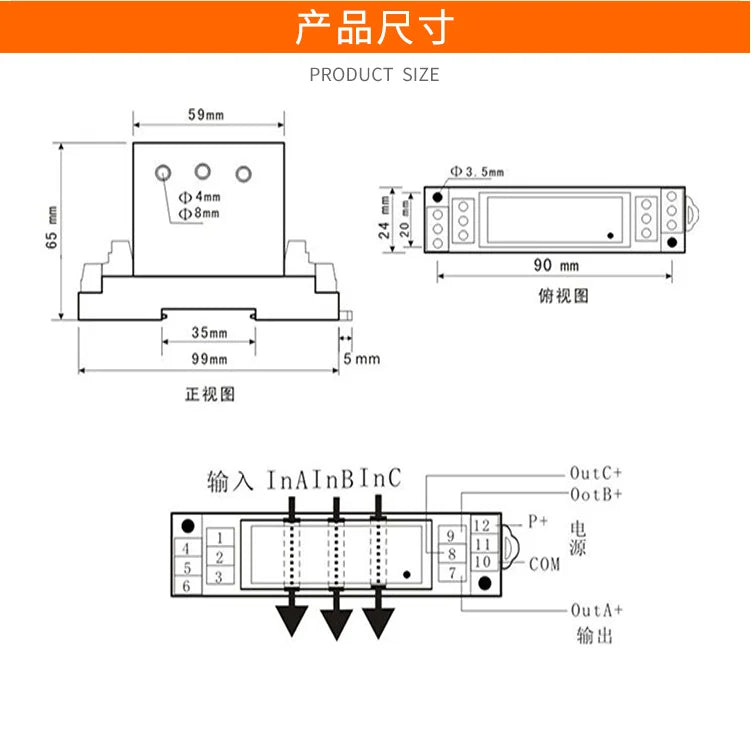

Dimensions: 99*65*24mm
Display Type: Analog Only
Frequency range: 40-60HZ
High-concerned chemical: none
Hole size: 8mm
Input current range: AC 0-50A
Installation method: DIN 35mm rail+ plane screw fixation
Model Number: JXK-3PI
Operating Temperature: -30℃~+85℃
Origin: Mainland China
Output signal: 4-20mA,0-5V,0-10V,1-5V

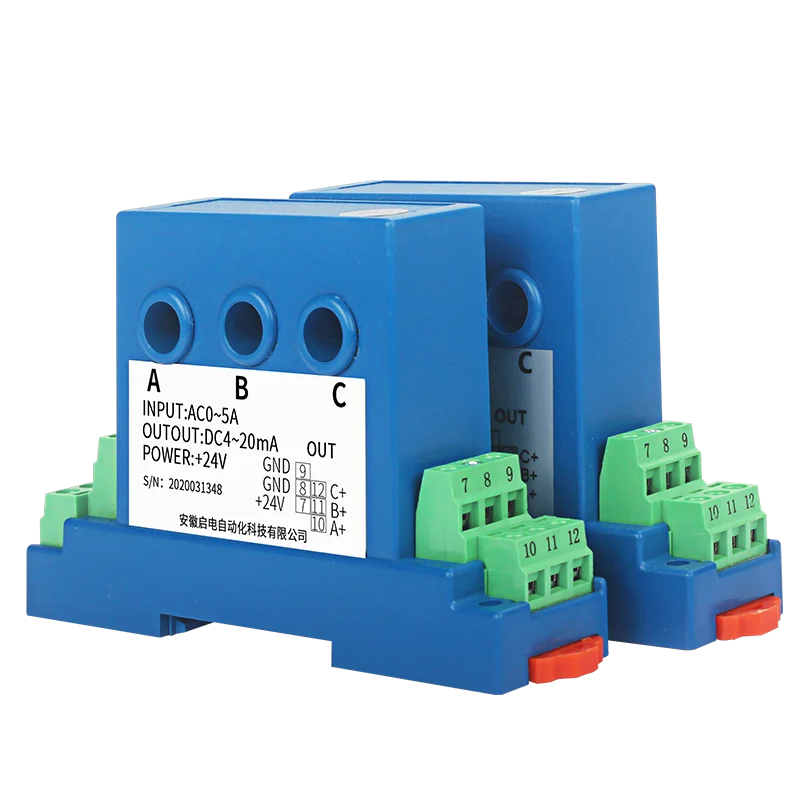

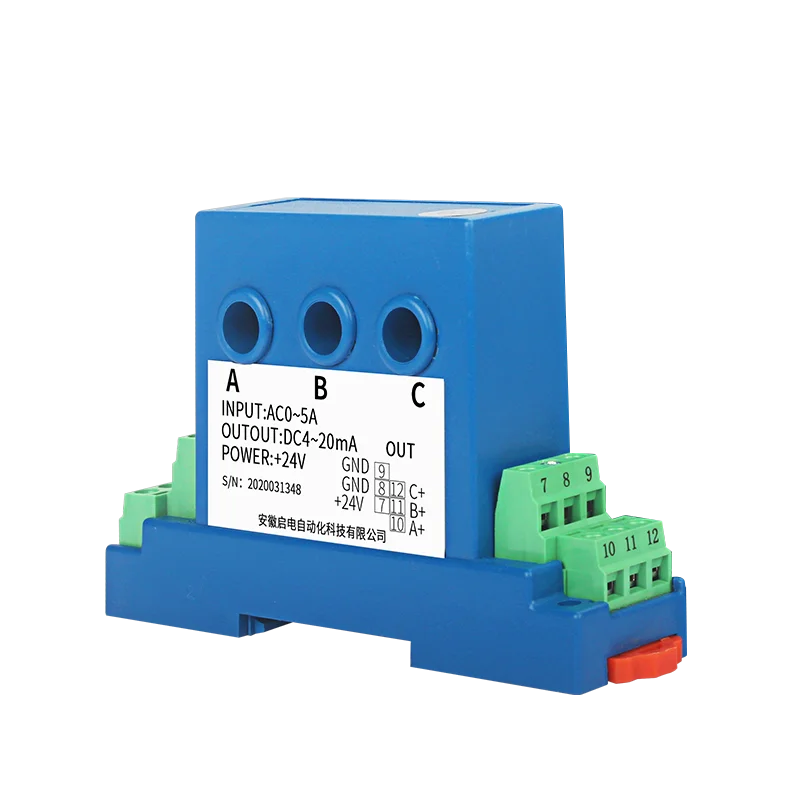

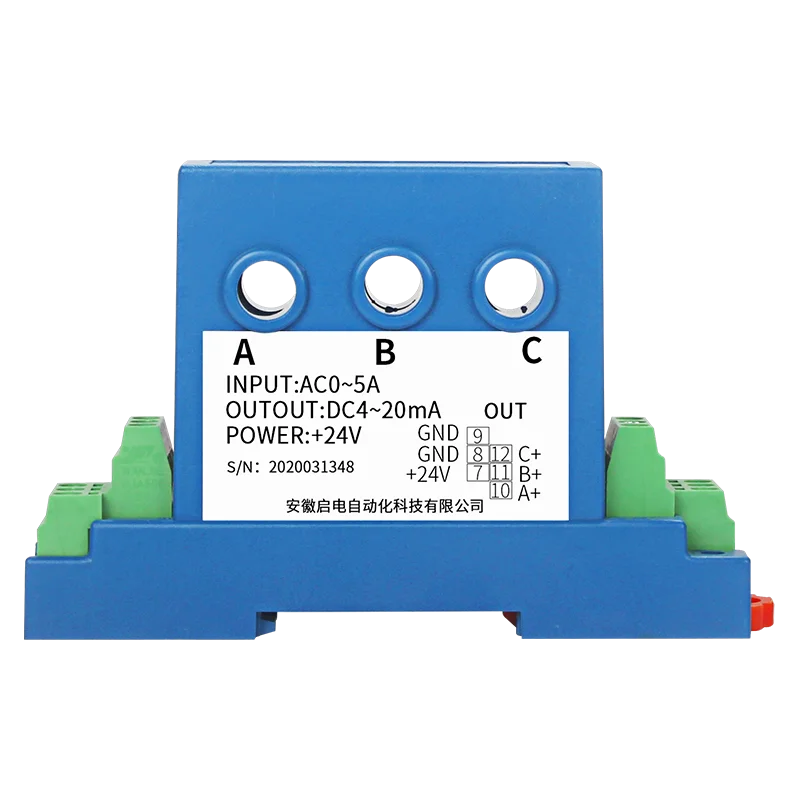

Product name: 3 phase current transducer
Response time: <200ms
Semi-finishedproduct: No

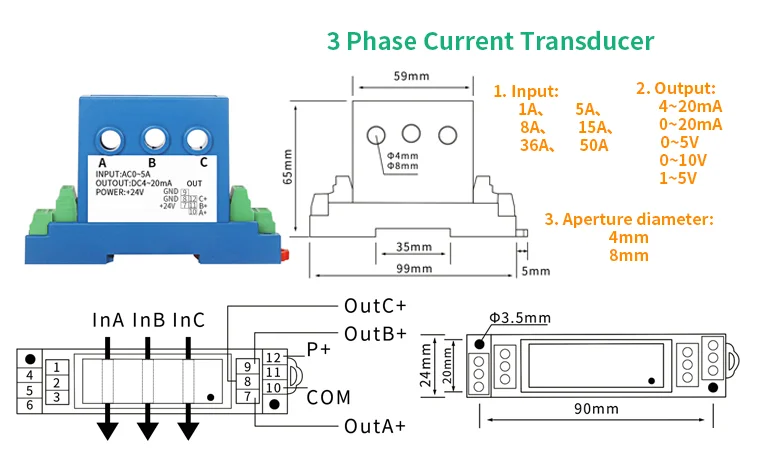

3 Phase Current Transmitter 4-20ma 0-5v 0-10v Analog output Perforated Three Phase Ampere Signal Transducer
NOTES:
The 3 phase current transducer can make any range within AC0~50A.
If you need other current range, please contact me.
We can make special customization for you.
Product Description
1>>. Working principle: Open loop direct measurement.
2>>. Usage: Used for measuring 3 phase AC current.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.
5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>. Full channel configuration,parameters customized.

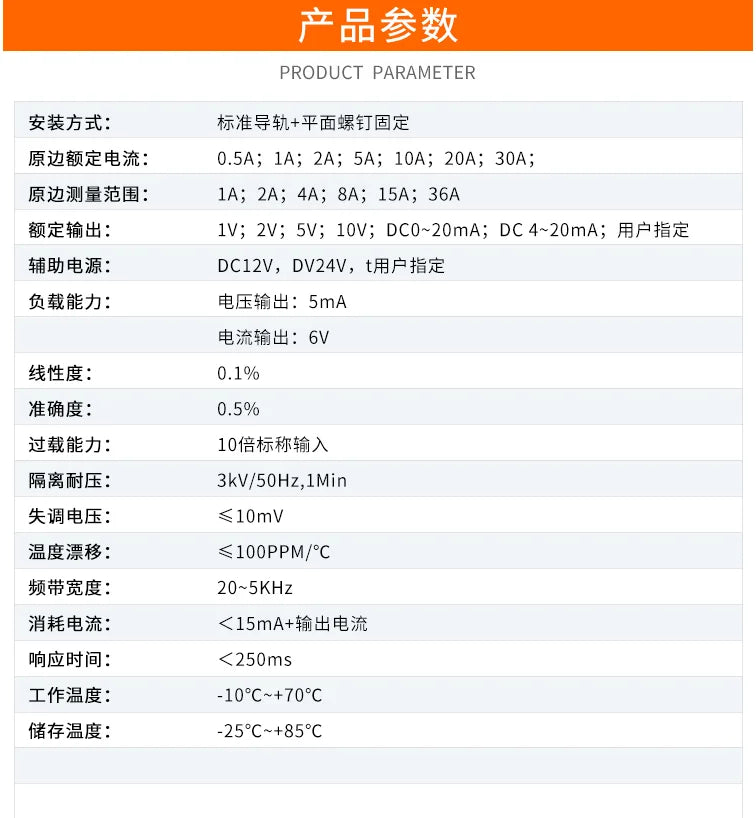

Product Paraments
* Installation mode: standard guide rail + plane screw fixed
* Rated current 0.5A; 1A; 2A; 5A; 10A; 20A; 30A;
* Original side measurement range 1A; 2A; 4A; 8A; 15A; 36A;
* Rated output 1V; 2V; 5V; 10V; DCO~20mA; DC4~20mA; User-specified auxiliary
* power supply DC12V, DC24V, user-specified
* load capacity voltage output: 5mA; Current output: 6V
* linearity :0.1%
* accuracy 0.5%
* overload capacity 10 times nominal input
* isolation voltage withstand 3kV/50Hz, 1Min
* imbalance voltage: 10mV
* temperature drift < 100PPM/℃
* band width 20~5KHz
* consumption current < 15mA+ output current response time ;
* The operating temperature of 250Ms is -10℃~+70℃.
* The storage temperature is -25℃~+85℃
