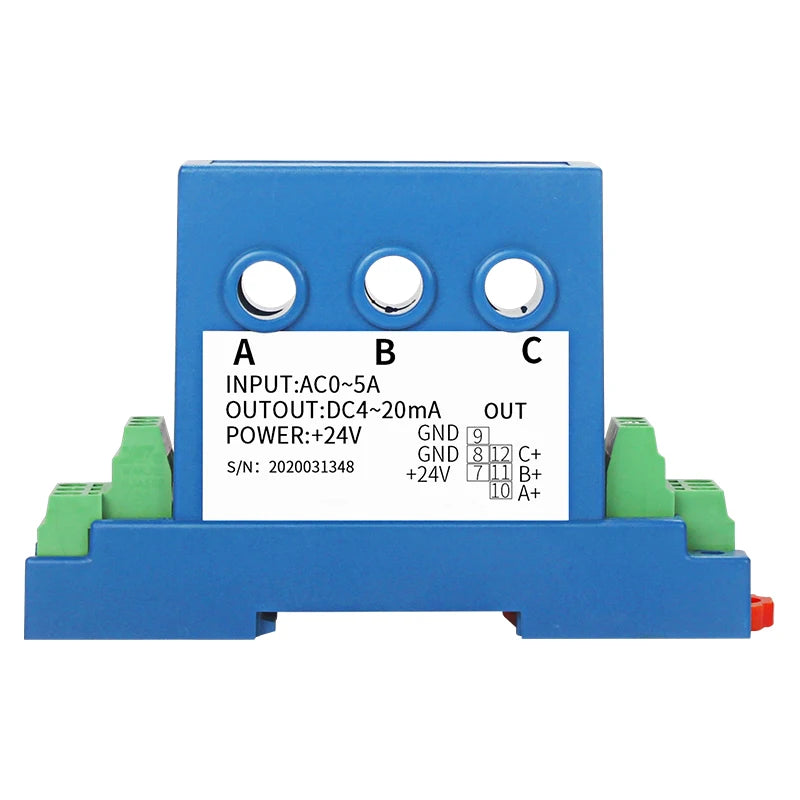

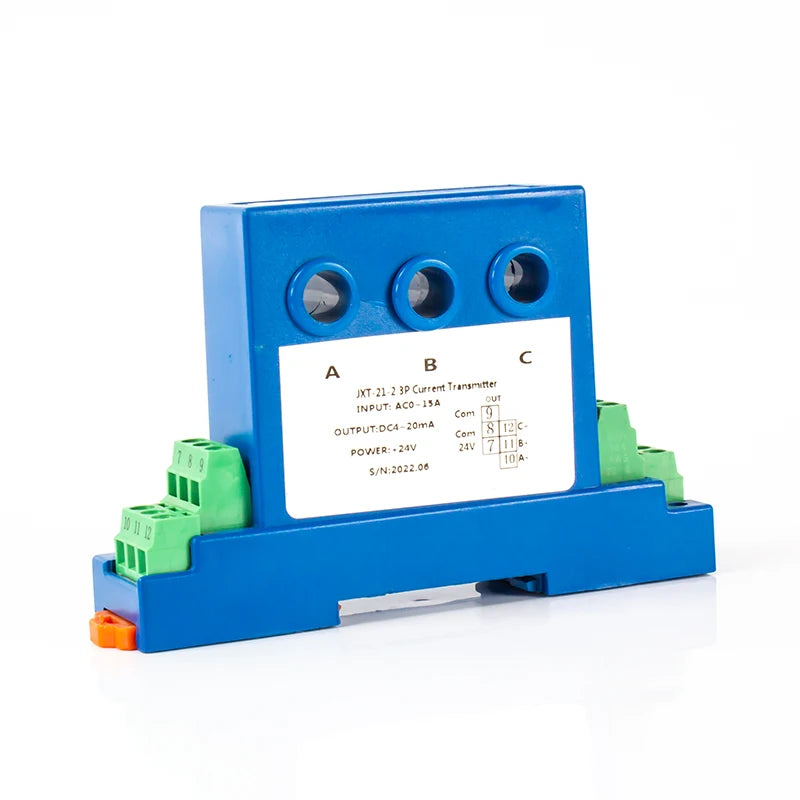

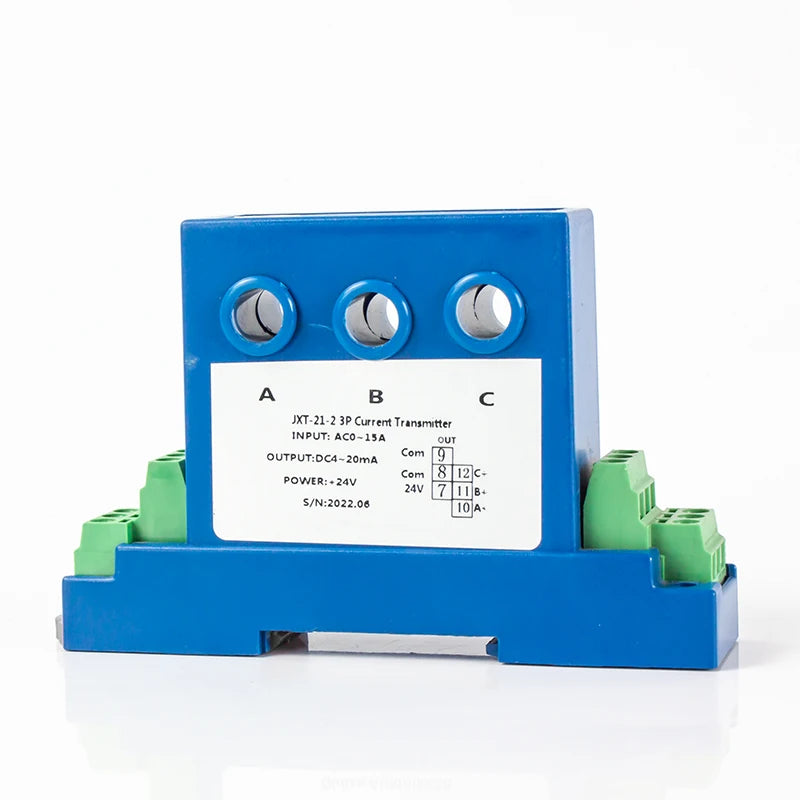

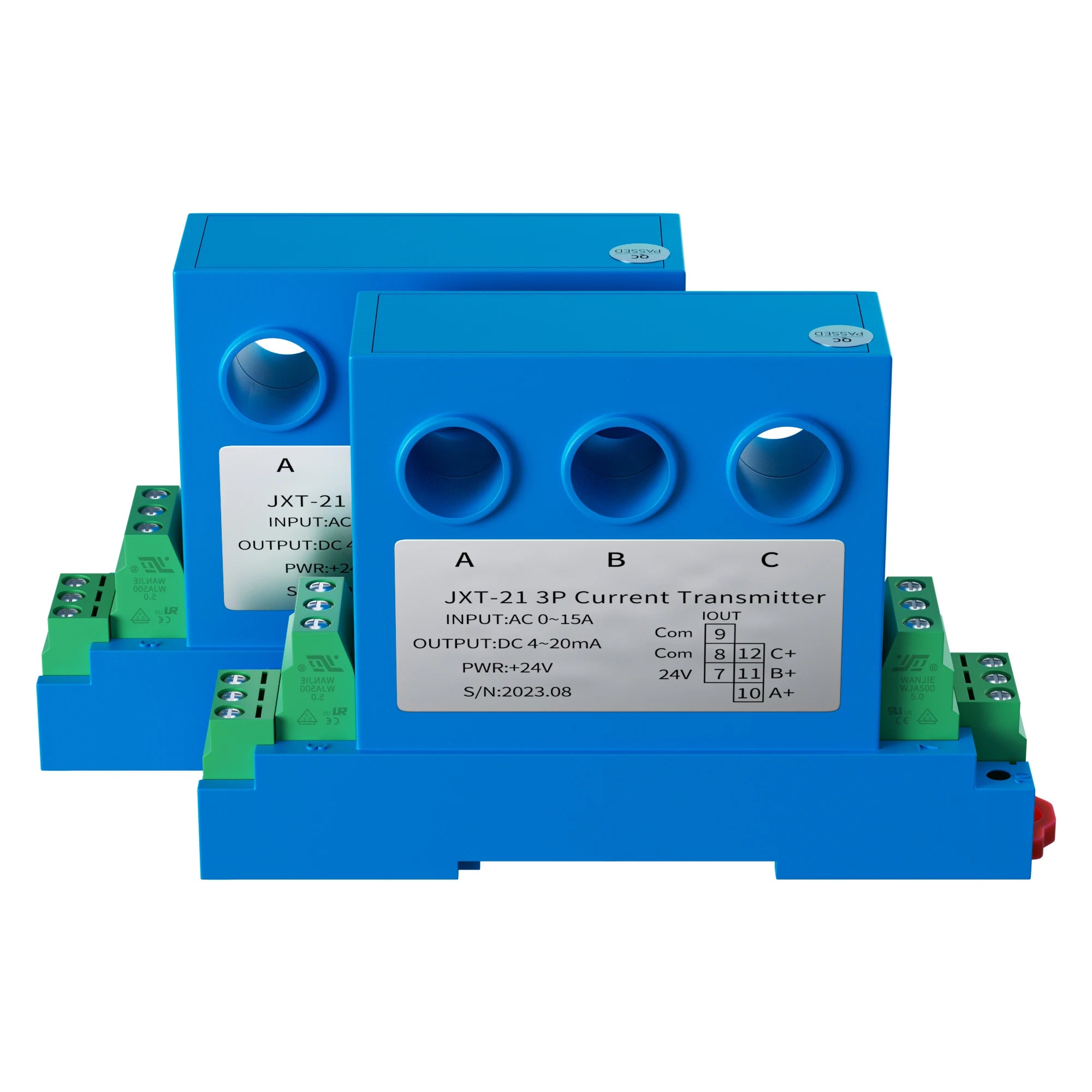

SPECIFICATIONS

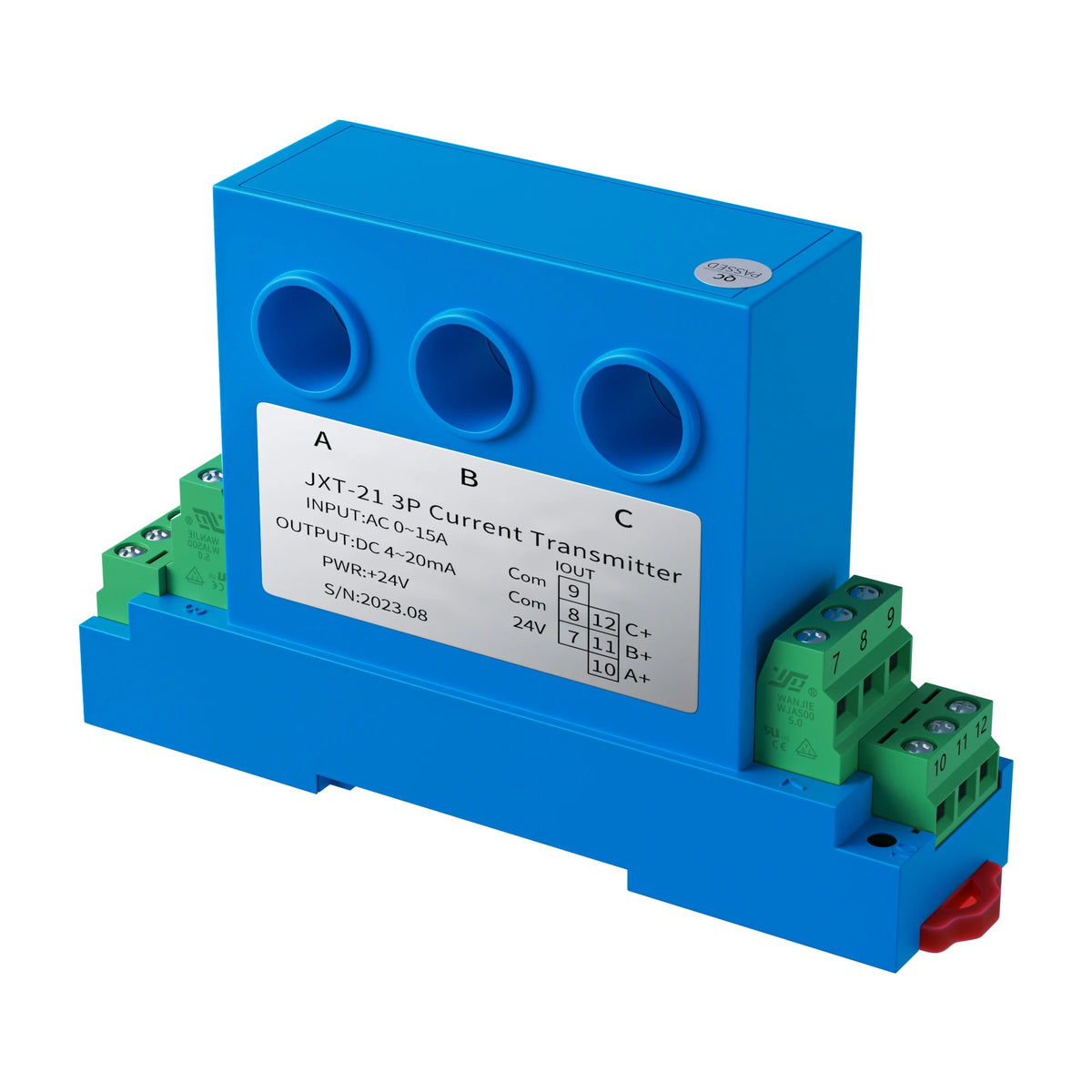

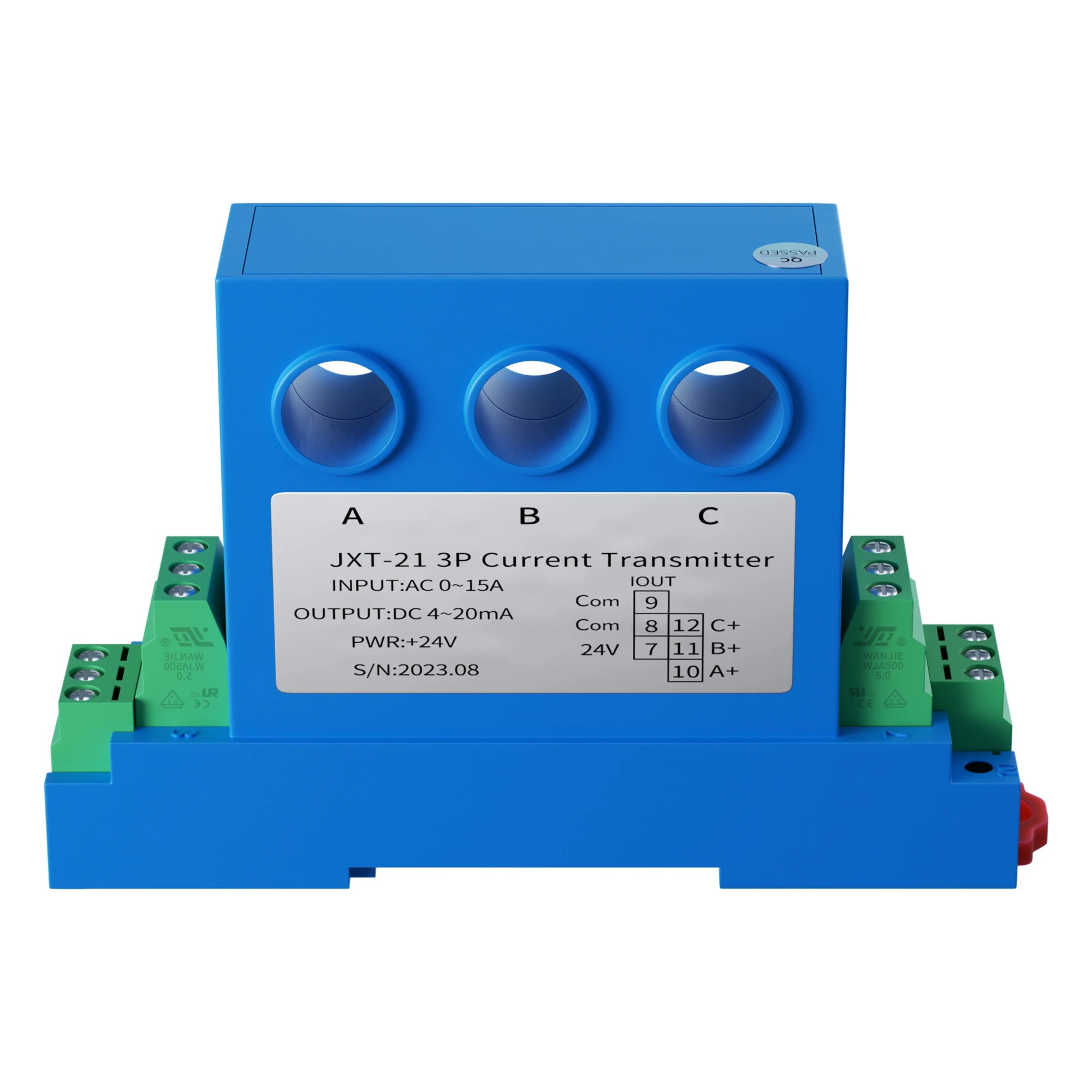

Three-phase AC current transmitter is a device for measuring and converting three-phase AC current signals. It converts high current signals into standard low current or voltage signals for easy monitoring, control and transmission.

Main Functions:

Current measurement: real-time monitoring of three-phase current.

Signal Conversion: Converts high current signals to standard signals such as 4-20mA, 0-10V, etc.

Isolation protection: Provide electrical isolation to protect subsequent equipment.

High accuracy: ensure the accuracy of measurement and conversion.

Application Scenario:

Industrial automation

Power monitoring

Energy management

Motor control

Technical Parameters:

Input range: usually 0-5A or 0-10A.

Output signal: 4-20mA, 0-10V, etc.

Accuracy: usually 0.2%-0.5%.

Operating power supply: AC/DC 85-265V or DC 24V.

Isolation voltage: usually 2-3kV.

Selection points:

Input range: select according to the actual current.

Output Signal: Match the demand of control system.

Installation: Select rail or panel mounting.

Environmental adaptability: Consider temperature, humidity and other conditions.

Installation and wiring:

Installation: Ensure good ventilation and avoid high temperature and humidity.

Wiring: Connect the input, output and power supply according to the instruction manual, and ensure correct grounding.
