3 Phase DC-AC 10A 25A 40A DA 60A 80A 100A 200A Three Phase SSR 3-32V DC Control 24-480V AC Solid State Relay SSR JGX-3 D4840

3 Phase DC-AC 10A 25A 40A DA 60A 80A 100A 200A Three Phase SSR 3-32V DC Control 24-480V AC Solid State Relay SSR JGX-3 D4840

$25.43

$25.43 $0.00

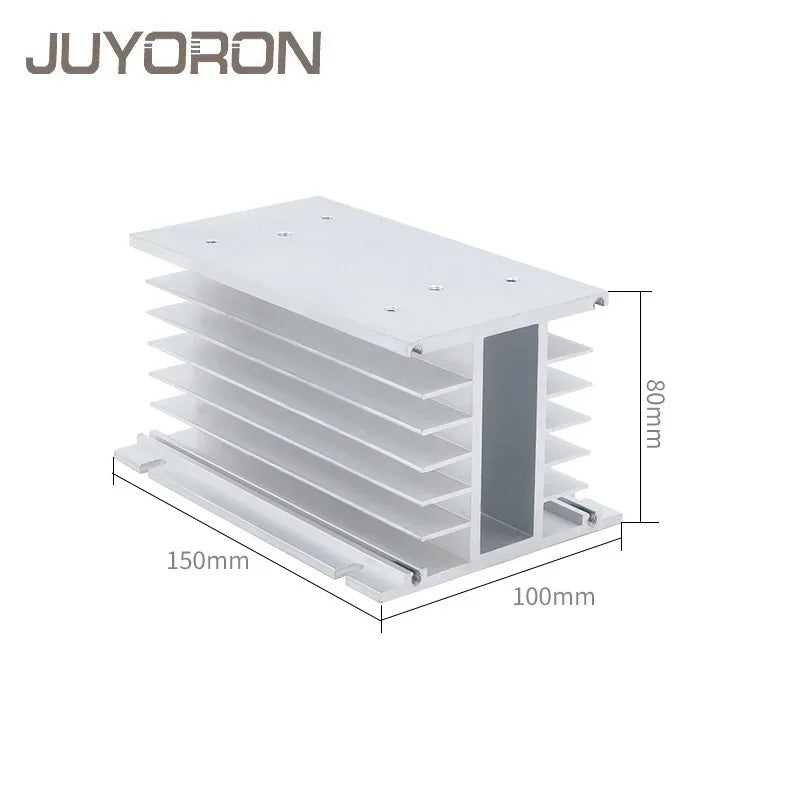

Size Heat Sink 3-M 100DA Heat Sink 3-L Heat Sink 3-S 40DA 25DA 80DA 60DA 10DA

Description

SPECIFICATIONS

Brand Name: JUYORON

Contact Load: Low Power

High-concerned chemical: none

Model Number: JGX-3

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

STEP 1: Choose a correct control Mode

AA- AC Control AC
DA- DC Control AC
DD- DC Control DC
VA-Control and Adjust

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

NOTICE:

The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).

According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
