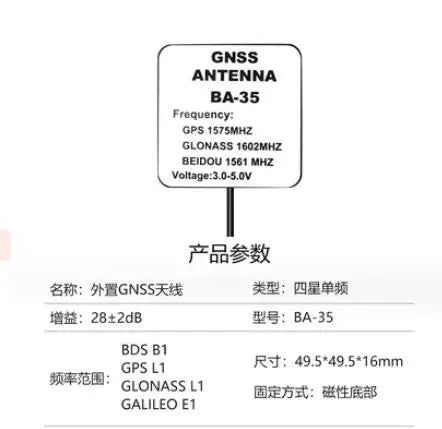

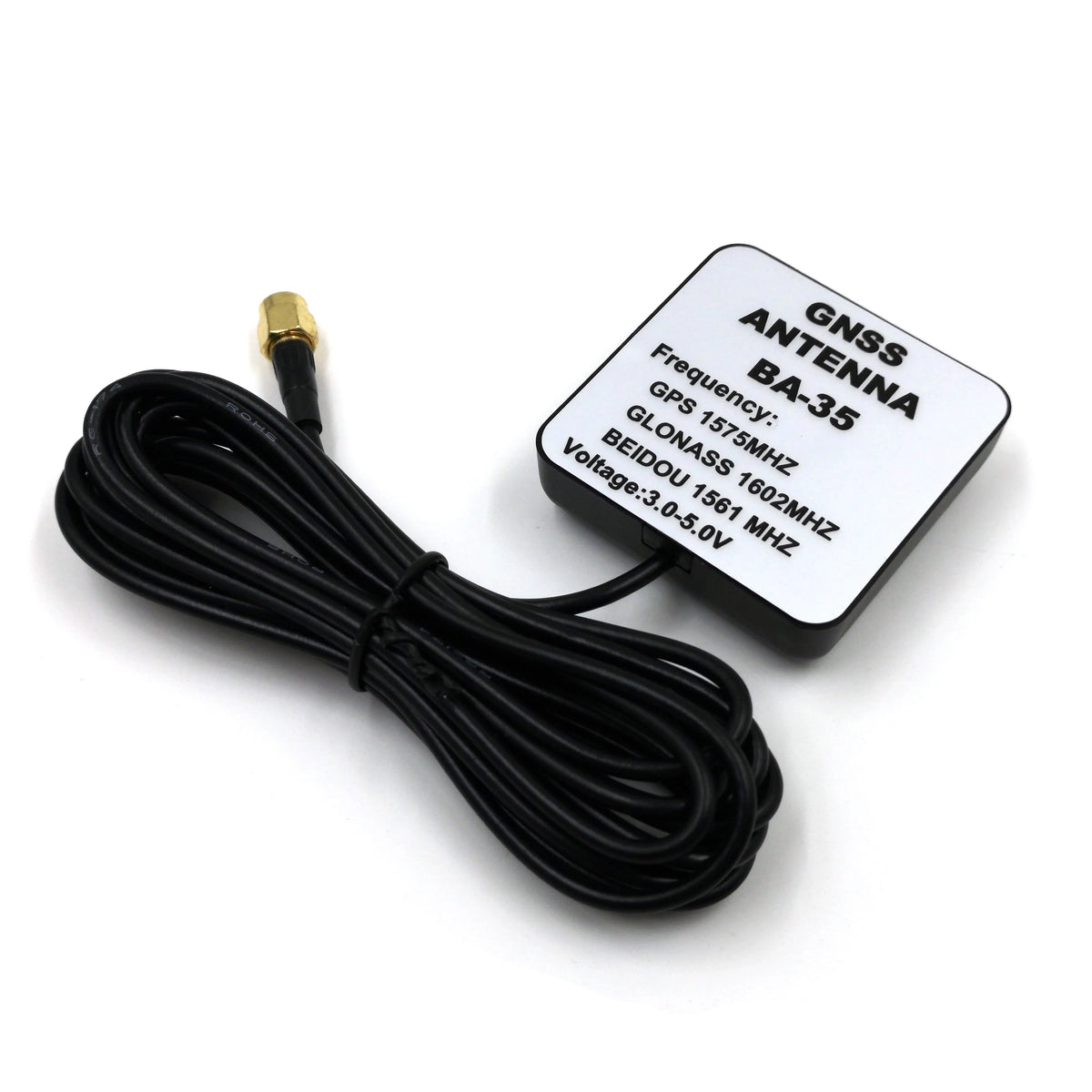

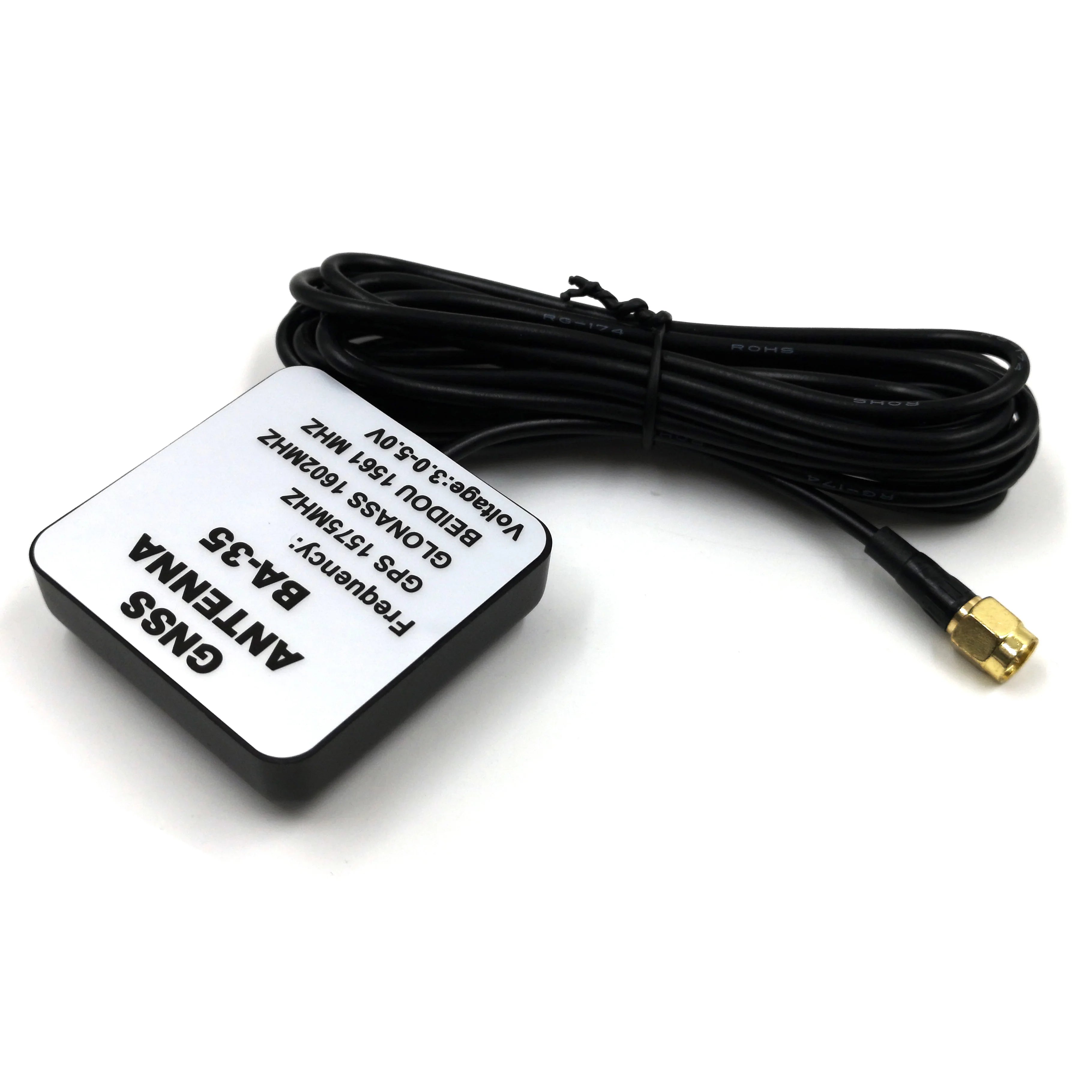

3 Star 35*4 Ceramic Chip 38db NEO-M8N 8P Beidou GPS GLONASS Extraposition GNSS Antenna BA-35

3 Star 35*4 Ceramic Chip 38db NEO-M8N 8P Beidou GPS GLONASS Extraposition GNSS Antenna BA-35

$155.44

$155.44 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

DIY Supplies: Electrical

Origin: Mainland China

modname=ckeditor

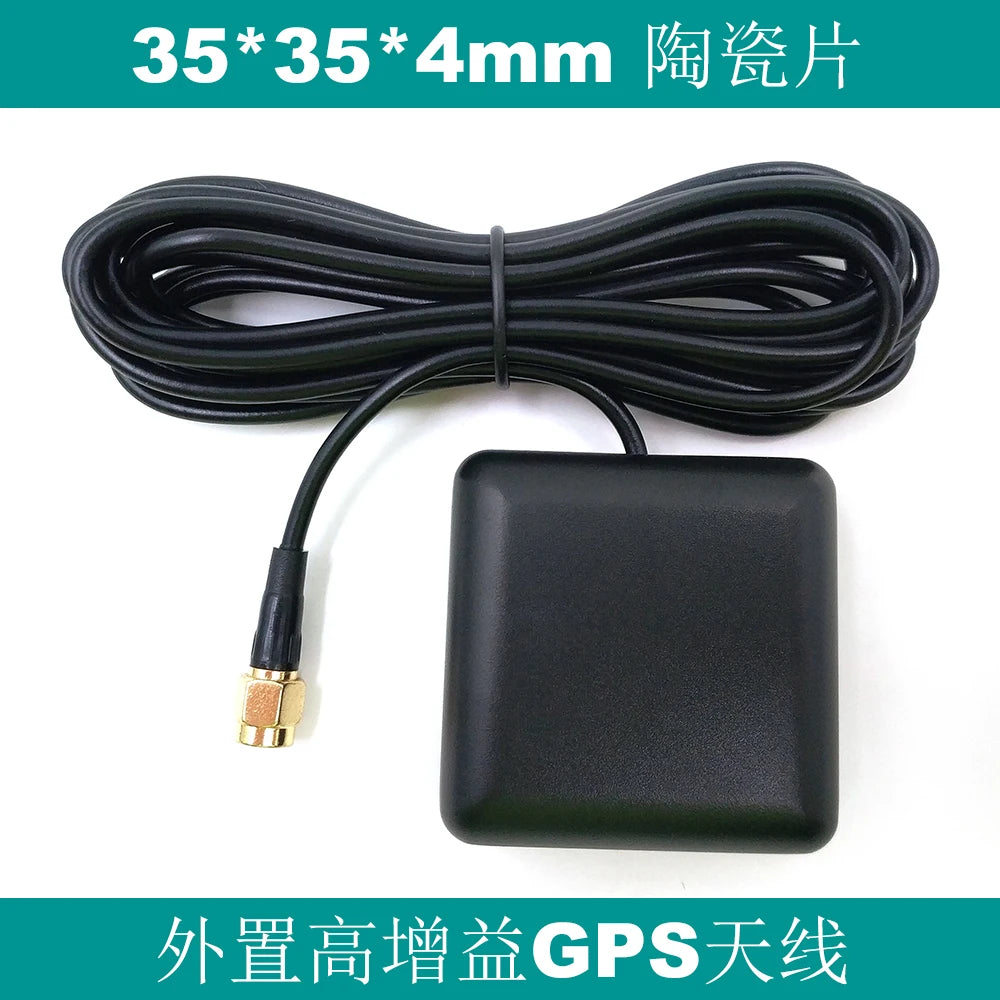

The internal use of the 35mm*35mm*4mm large receiving surface ceramic antenna, equipped with 38db two-stage amplifier LNA, the signal is very strong. Worth buying!!

Although the price is expensive, expensive reason is expensive! Welcome to the antenna! thank you

1. Specially for car GPS antenna, car terminal and other vehicle equipment, GPS signal low friends, specially tailored!

2. It is specially used for supporting the GPS module, and the antenna can simultaneously receive the GPS beidou GLONASS satellite signals.

3. Specially used for 3-star mapping system, high-precision instruments and equipment

\\

The bottom is fixed by high strength magnetic magnet:

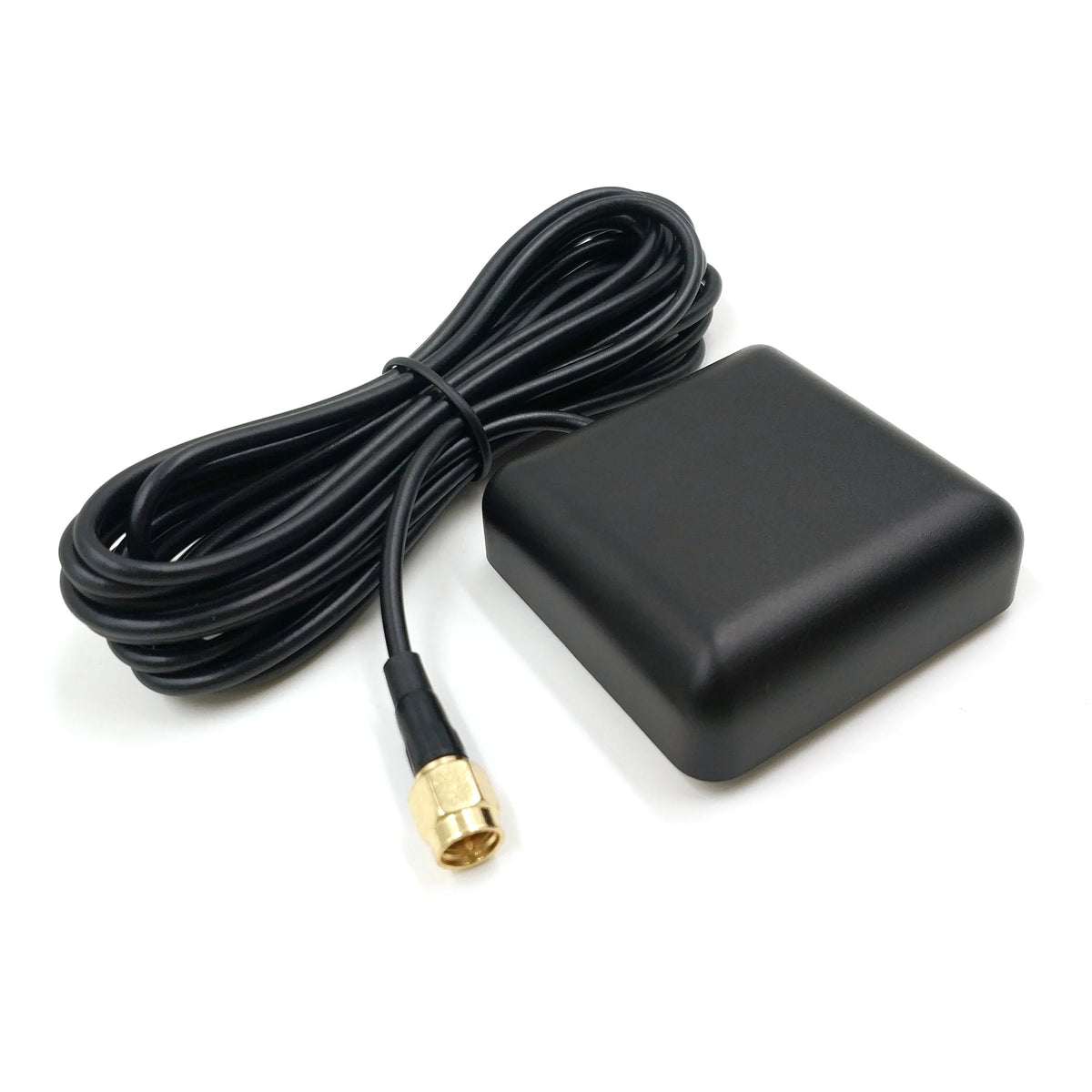

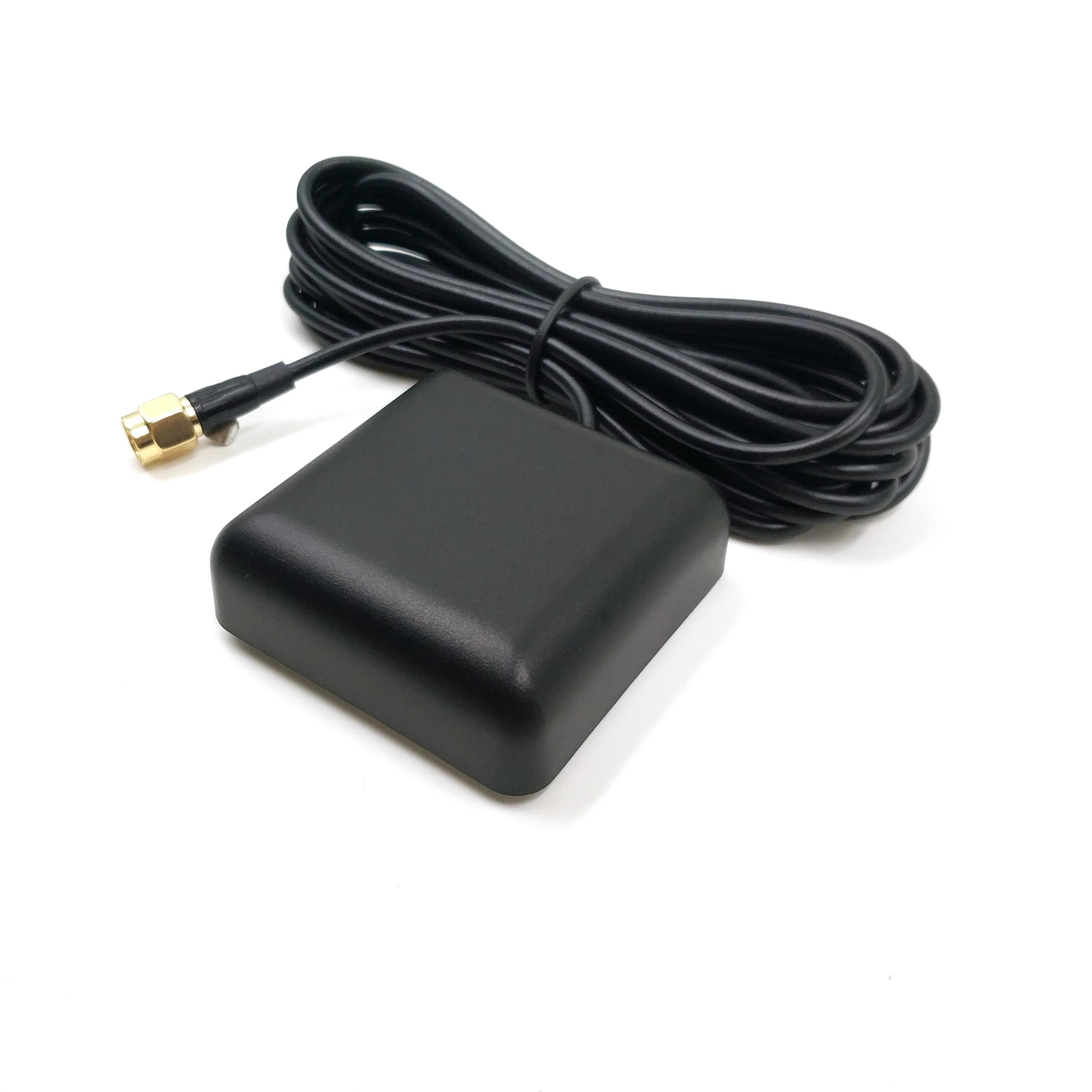

The antenna adopts high-quality and high-quality SMA joint as shown in the figure:

Inside, Taiwan taimeng original 35 * 35 high-gain active antenna is used, as shown in the figure:

The actual star search of the antenna in the open sky above, the antenna has been tested for 50 ohm impedance, passed the frequency point test, and the performance is in front of us.

Signal reception diagram
