Description

SPECIFICATIONS

Blue: Awg 16-14 (1.5-2.5Mm)

Brand Name: CHANZON

Certificate: Iso9001/Iatf 16946/Ce/Reach/Rohs

Certification: CE,RoHS

Choice: yes

Complete Shrinkage Temperature: 150Deg.C

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Material: PE,Tinned

Minimum Shrink Temperature: 70Deg.C

Model Number: 10 12 14 16 18 22 Awg Blue Heat Shrink Hot Connection Set For Car Boat

Origin: Mainland China

Rated Voltage: 600V

Red: Awg 22-18 (0.5-1.0Mm)

Shrinkage Ratio: 2:1

Starting Temperature Of Solder Melt: 138℃

Temperature Resistance: -40Deg.C ~ +125Deg.C

Type: 26-24 Awg White Red Yellow Wirefy Solder Sleeve Cable Wiring Connector

White: Awg 26-24 (0.25-0.35Mm)

Yellow: Awg 12-10 (4-6Mm)

is_customized: Yes

semi_Choice: yes

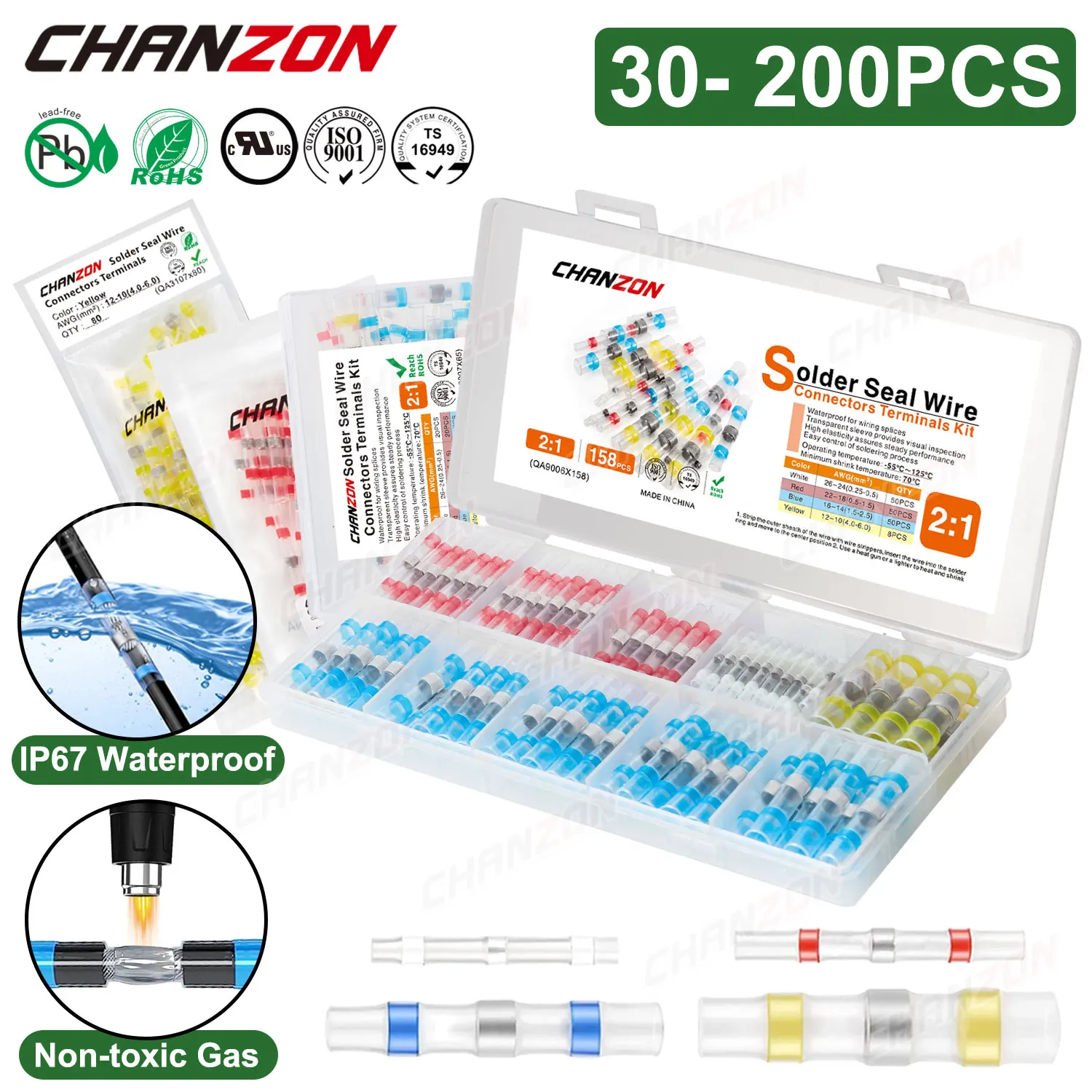

30-200Pcs Solder Seal Wire Connectors Kit Waterproof Marine Grade Automotive Tinned Electrical Insulated Splice Joint Terminals

Description:

Product Name:Solder Seal Wire Connectors
Material:Pe,Tinned

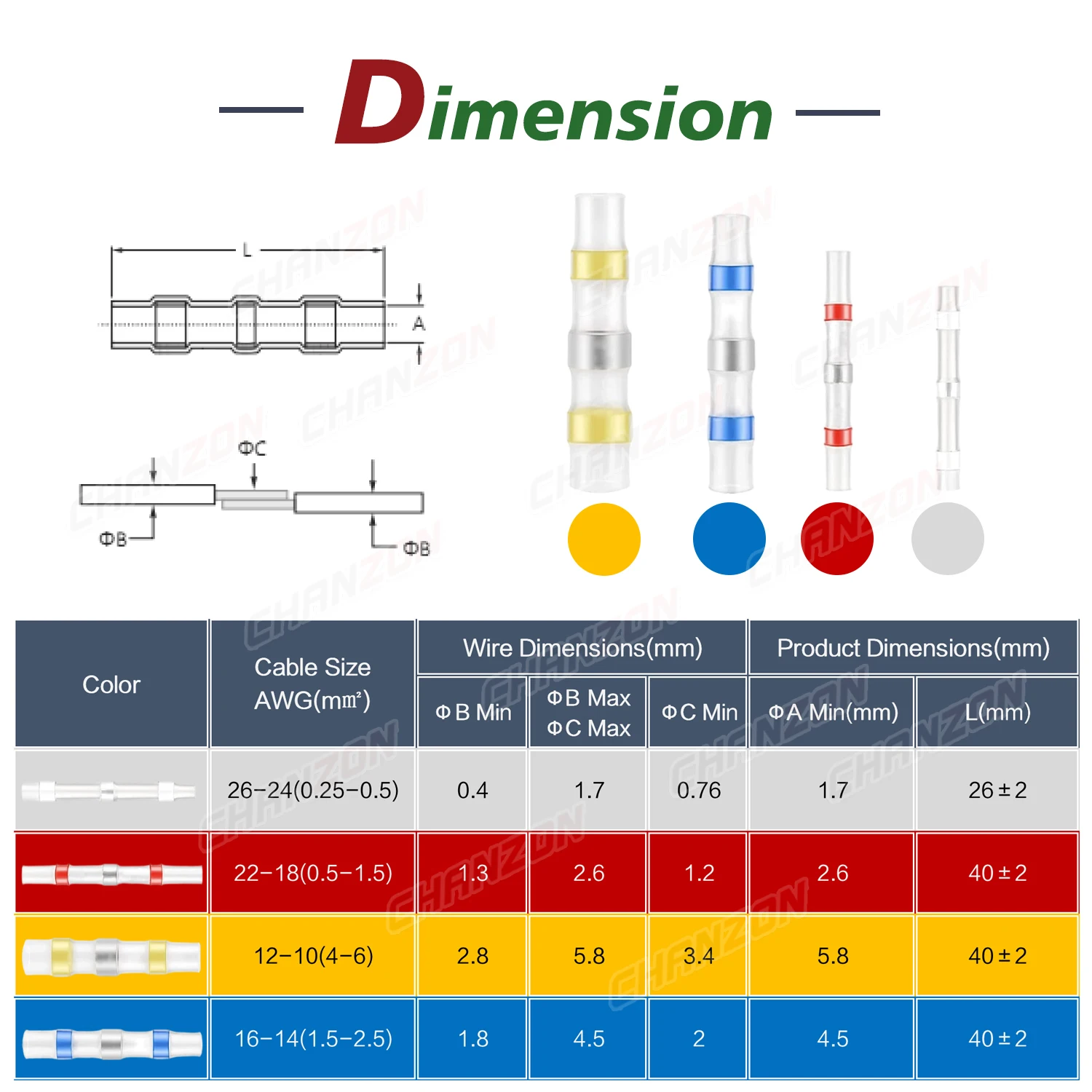

White=Awg 26-24 (0.25-0.35Mm⊃2;)
Red=Awg 22-16 (0.5-1.5Mm⊃2;)
Blue=Awg 16-14 (1.5-2.5Mm⊃2;)
Yellow=Awg 12-10(4-6Mm⊃2;)
Rated Voltage:600V
Temperature Resistance: -40Deg.C ~ +125Deg.C
Minimum Shrink Temperature:70Deg.C
Complete Shrinkage Temperature:150Deg.C
Starting Temperature Of Solder Melt:138Deg.C

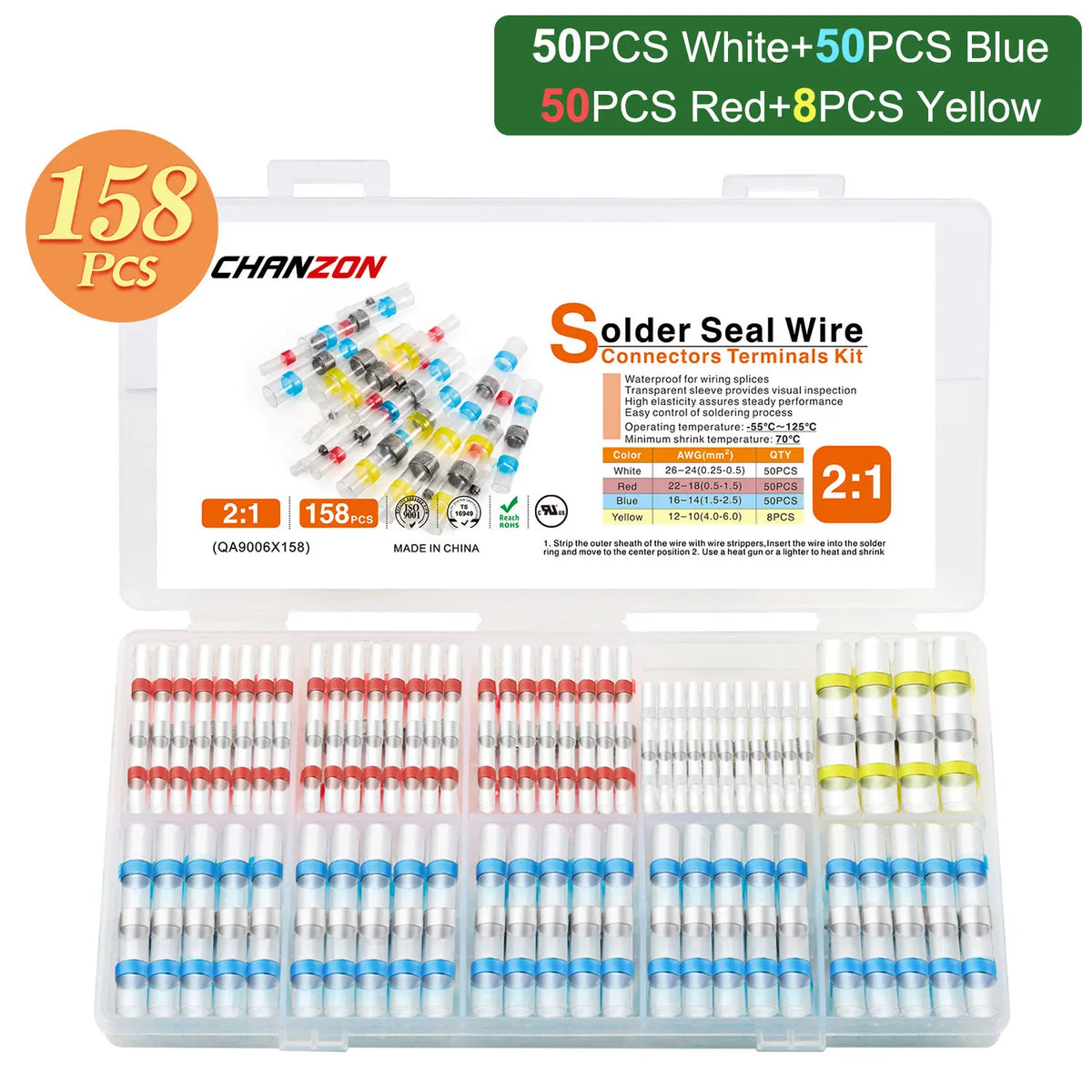

158Pcs Kit Package Included:
50Pcs X White
50Pcs X Blue
50Pcs X Red
8Pcs X Yellow

65Pcs Kit Package Included:
20Pcs X White
20Pcs X Blue
20Pcs X Red
5Pcs X Yellow

Feature:
-100% Brand New And High Quality

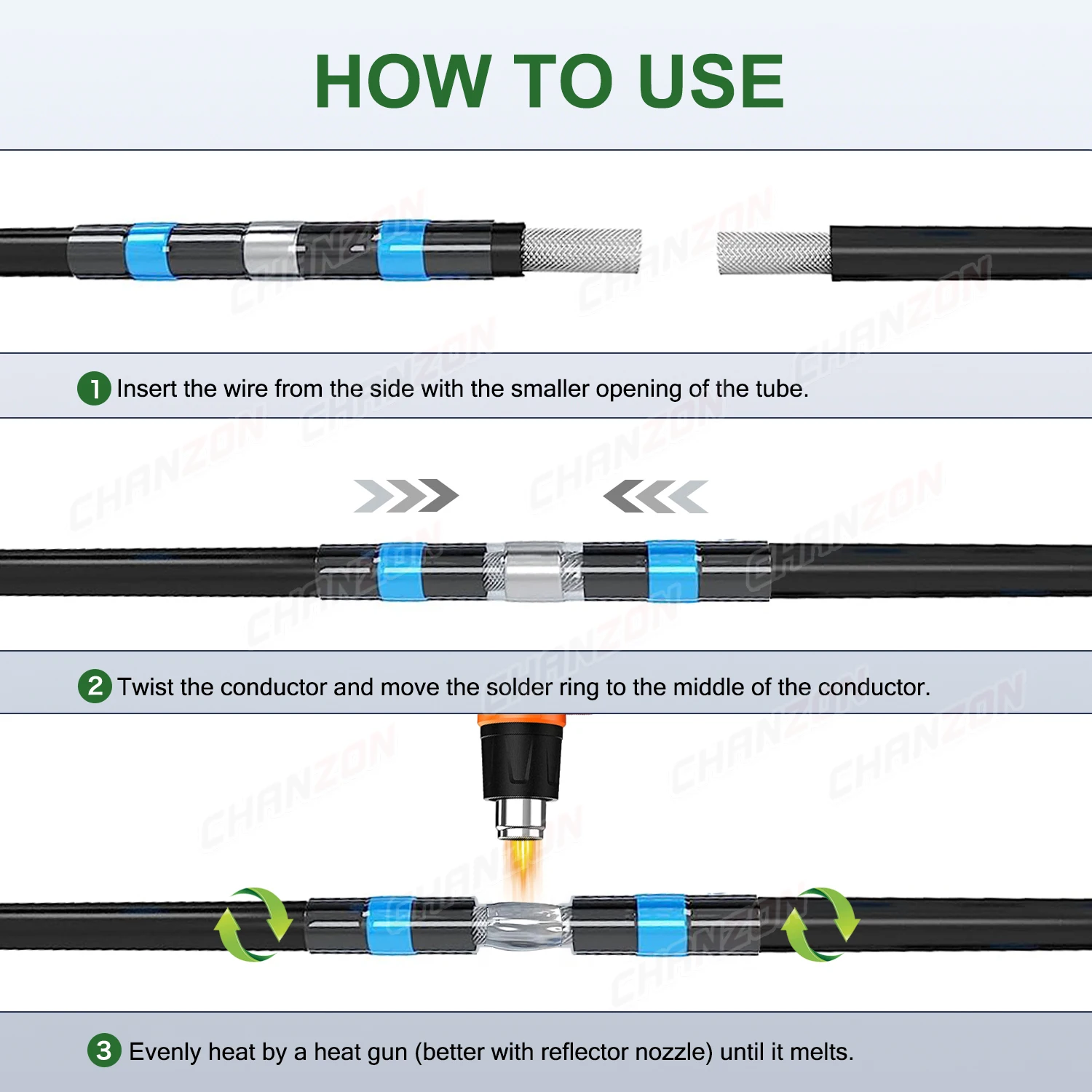

-An Easy One Step Connection Of Wires, Soldered, Insulated And Sealed
-Can Be Ideal Use In Marine And Automobile Applications

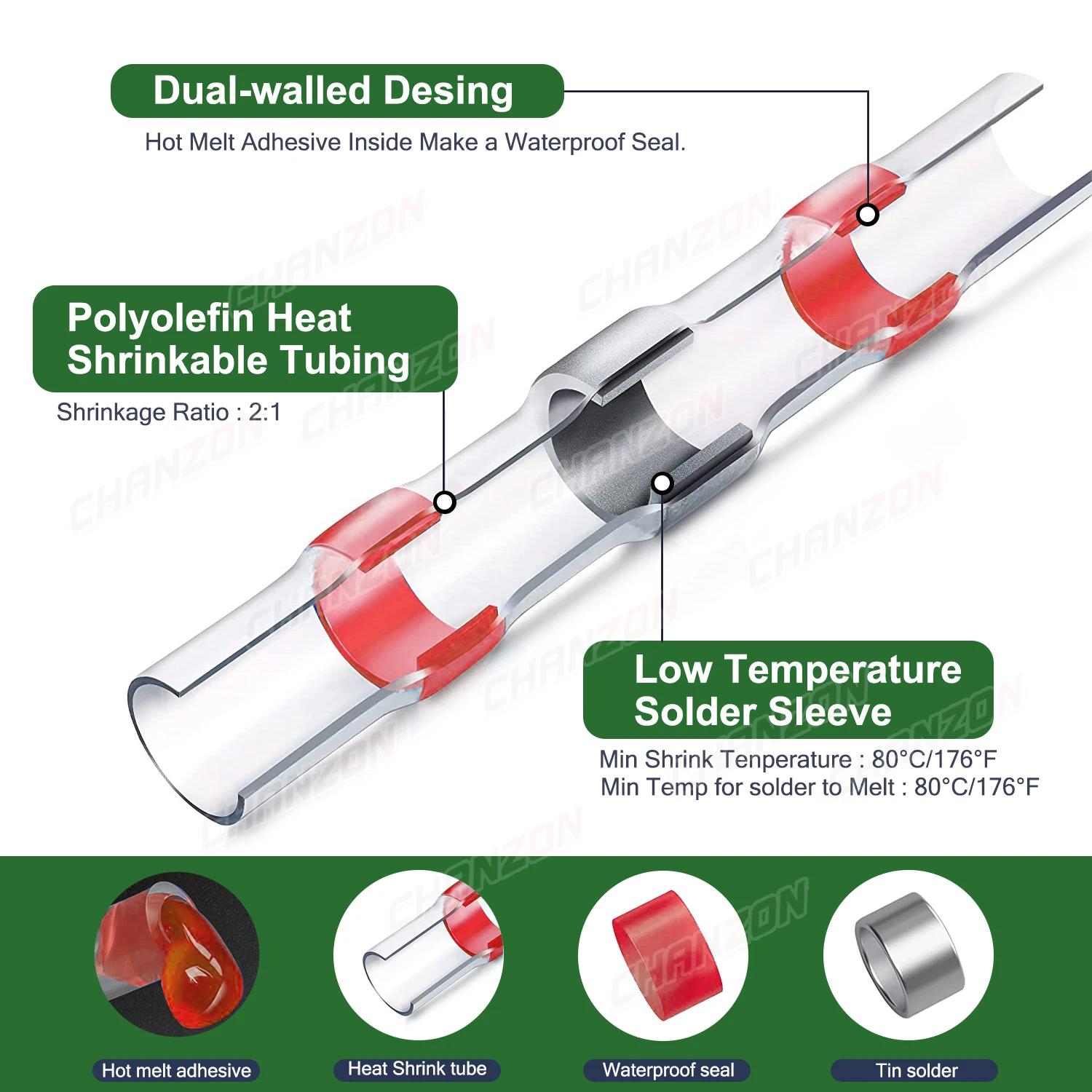

-Polyolefin Tubing In Outside And Hot Melt Adhesive In Inside
-Solder And Seal And With Advanced Waterproof Function
-Polyolefin Heat Shrink Butt Connectors Improved Pullout Strength,
-Provides Seal, Strain Relief, Cable Check, And Insulation
