300mm/12"stroke electric linear actuator, 225LBS/100KGS/1000N load Max 1500N/150kg 12V/24V small linear actuator dc China-1PC
1500N 5.7mm s / 12V Silvery 300mm / 8
$111.60
Sale price
$111.60
Regular price
$0.00
Skip to product information
If you need mounting bracket for this product, pls check below link:
mounting bracket
300mm/12"stroke electric linear actuator, 225LBS/100KGS/1000N load Max 1500N/150kg 12V/24V small linear actuator dc China-1PC
$111.60
Sale price
$111.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Bahung
Certification: ce,ROHS
Color: Silver
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 4A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: none
Load: Max 1500N
Model Number: 03-200
Origin: Mainland China
Output Power: 18.65-37.5（include18.65and37.5）
Output Voltage: 30W
Protect Feature: Waterproof
Torque: 200N-1000n225lbs
Type: Gear Motor
Usage: Car
stroke: 300mm12
300mm/12"stroke electric linear actuator, 225LBS/100KGS/1000N load DC 12V/24V small linear actuator dc China-1PC
We can make any stroke linear actuator (stroke 25mm---1000mm)
If you need other models please contact us thank you!
Hot spots
1. Quiet, low noise
2 Can be designed as your request
3. Short delivery time.
4. Easy to control,can be controlled by wire or wireless
Specification:
Product Name |
Linear Actuator |
Condition |
100% new |
Input Voltage |
12VDC / 24v DC |
Stroke Length |
50mm/2inch~ 1000mm/39.37 inch |
Load capacity |
1500N/330lbs(max) |
Speed |
5-40 mm/s |
Duty cycle |
25% |
House material |
Aluminum Alloy |
Inner tube material |
Aluminum Alloy |
Color |
Silver grey |
Operation temperature |
-26 ° C ~ +65 ° C |
Protection Class |
IP54 |
Certification |
CE/ROHS |

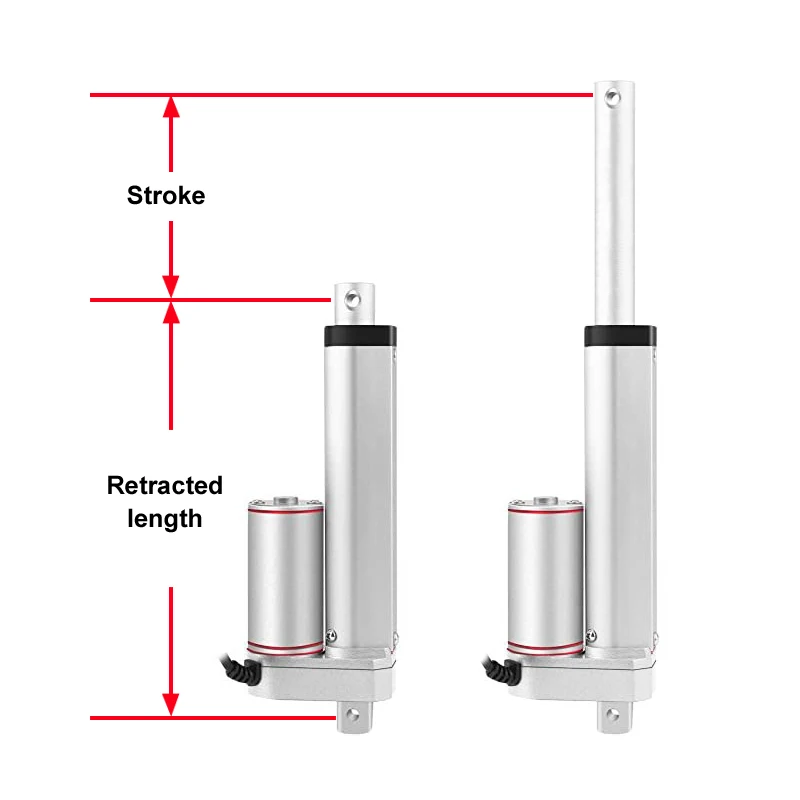

Drawing
1. L=retracted length=105mm+Stroke=105mm+100mm=205mm
L means the length when linear actuator 100% fully retracts
2. Stroke means the movement length of linear actuator.
Test sheet
If you need mounting bracket for this product, pls check below link:
mounting bracket
Stroke length (25mm -1000mm)
