SPECIFICATIONS

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Model Number: 32DI

Operating Temperature: -10 to +60℃

Origin: Mainland China

Supply Voltage: 12V to 30V

Type: Voltage Regulator

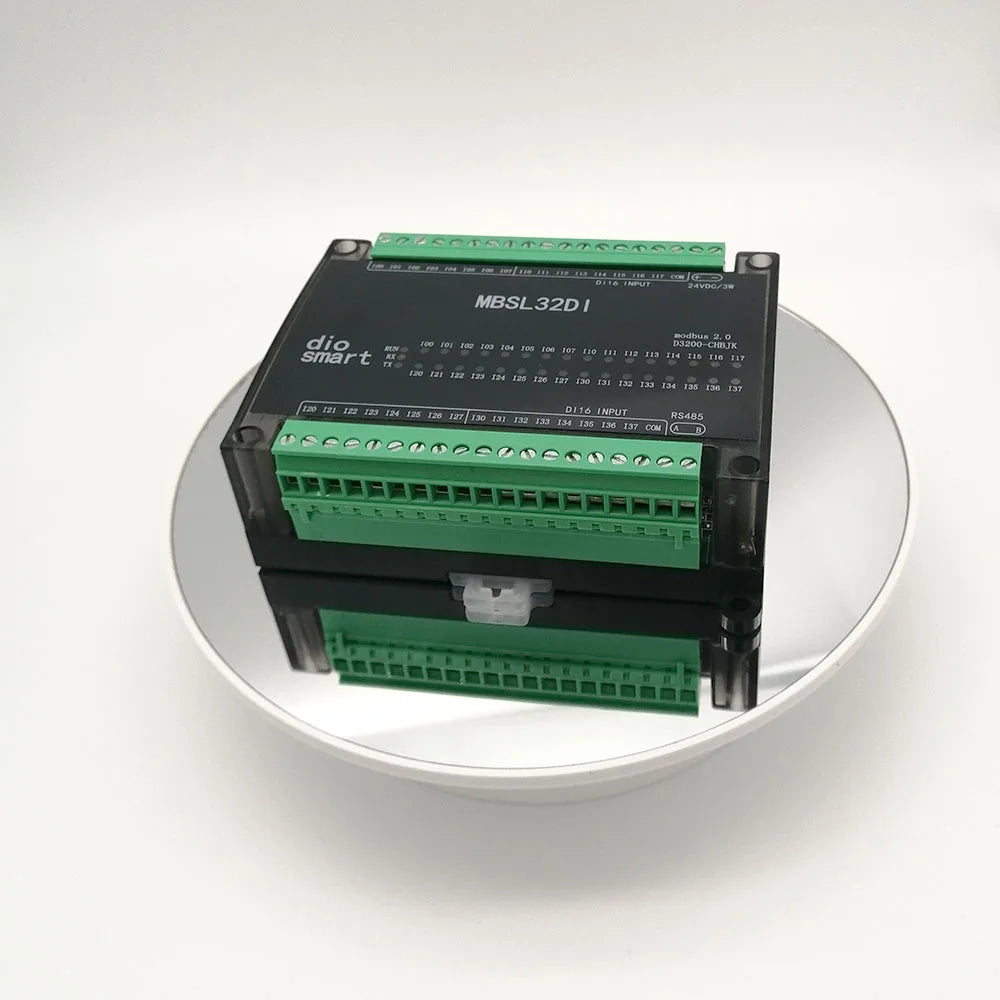

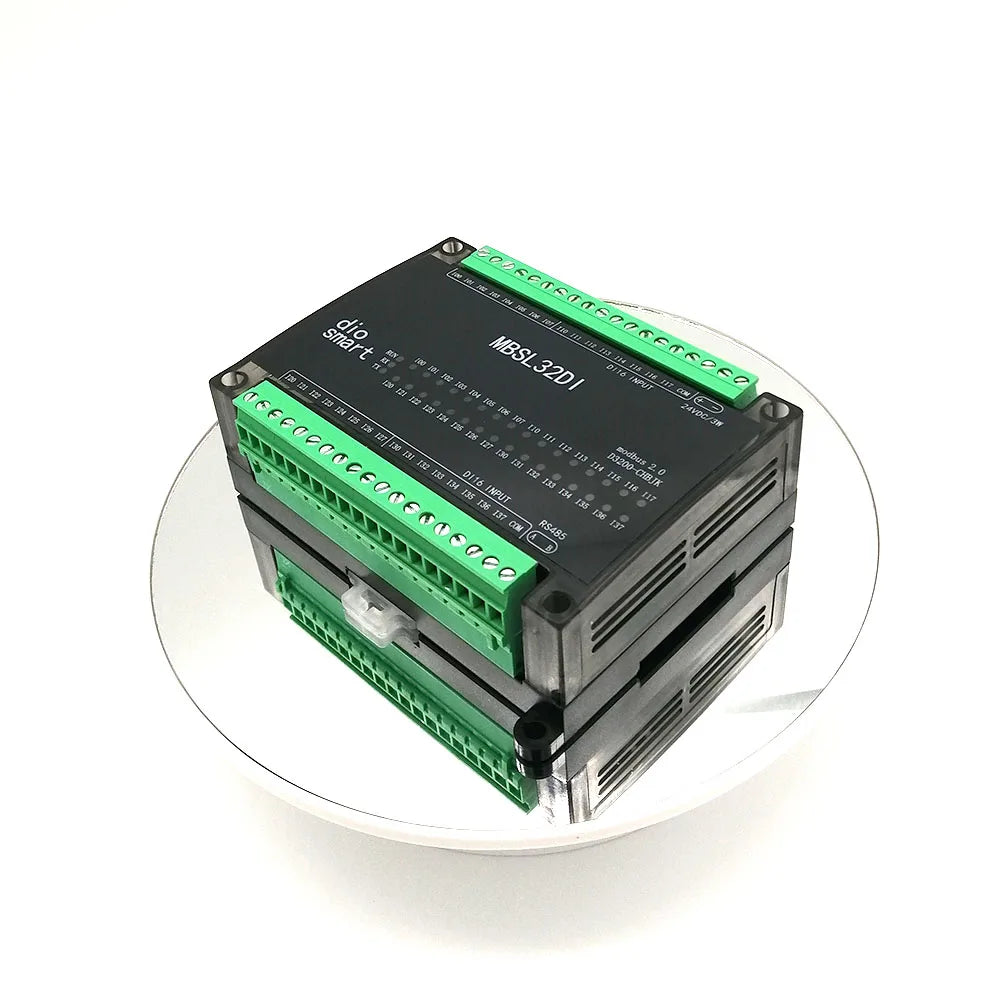

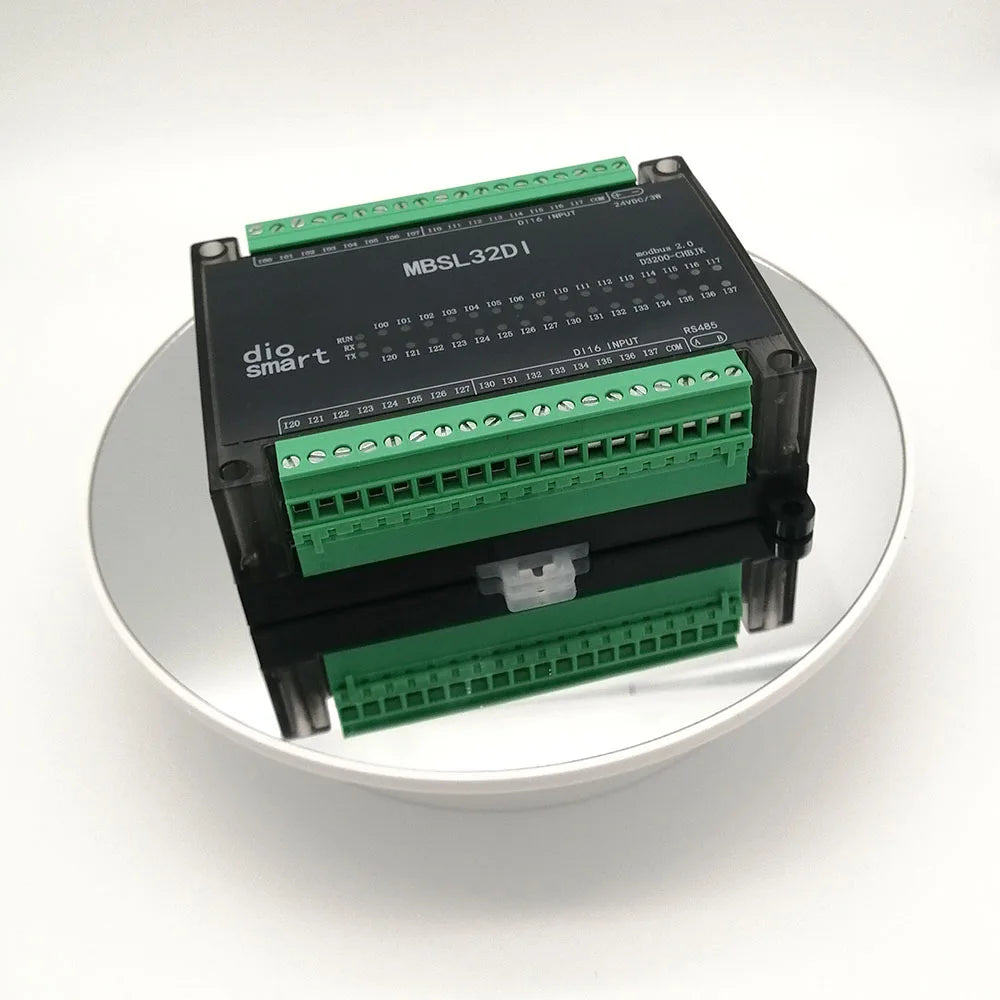

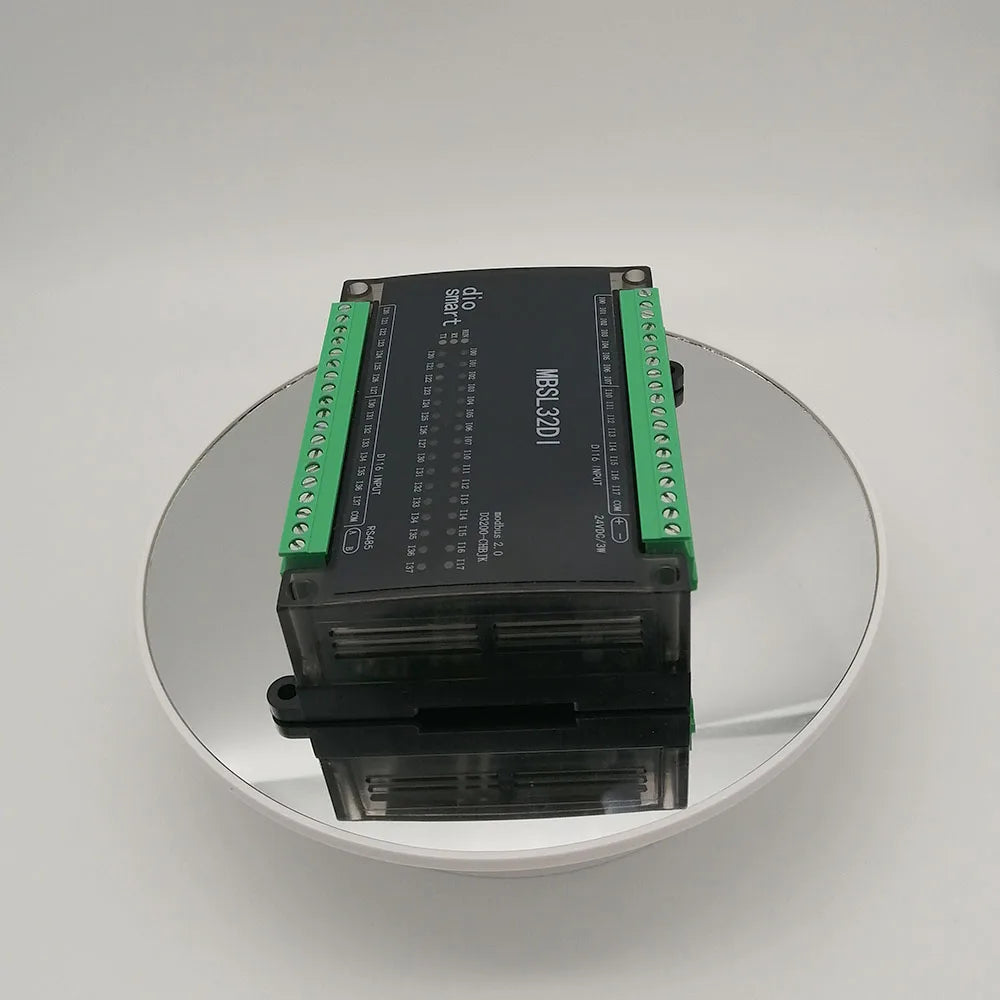

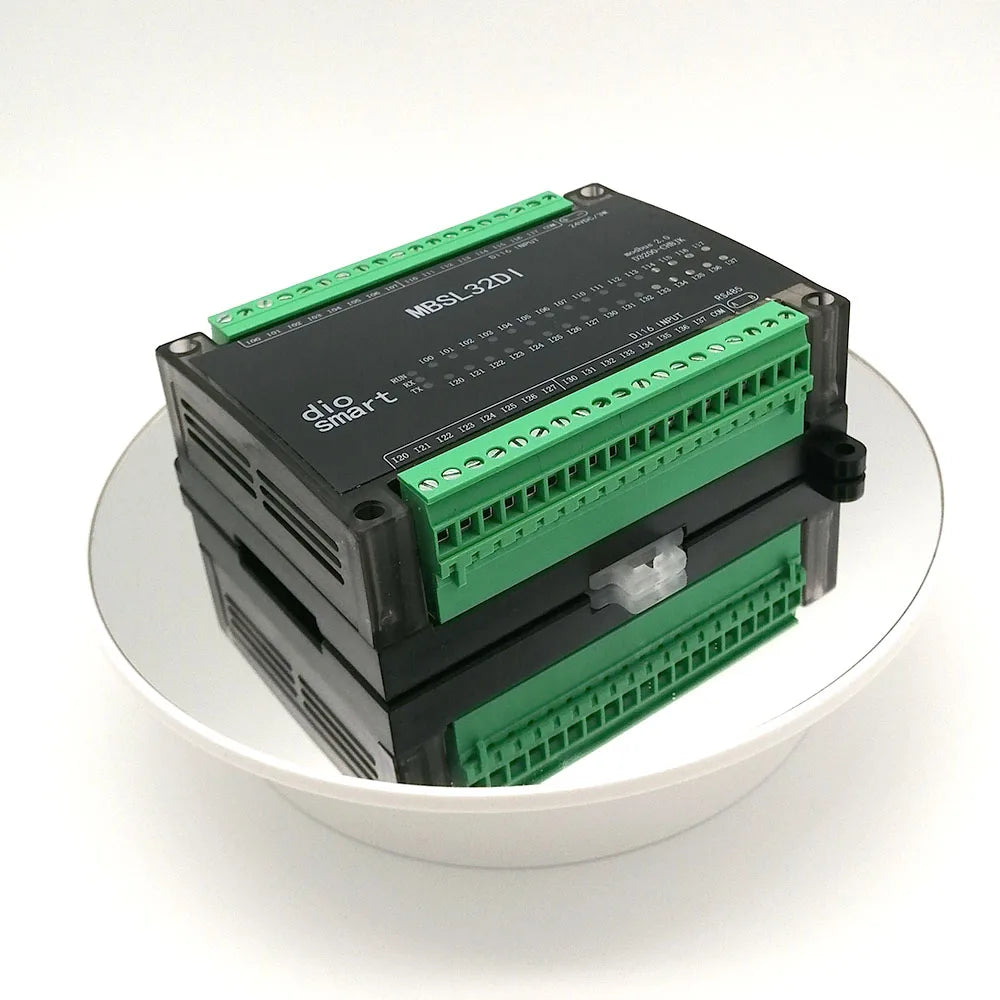

32-channelDigital Input Isolated Acquisition Module RS485Modbus RTUControl 32DI Module

The MBSL32DI module
is a 32-channel digital isolation input module, which is output through the
RS485 interface. The module adopts standard Modbus RTU communication, which can
be directly adapted to various host computer configuration software, PLC, DCS,
etc. The module power supply adopts industrial-grade design standards, which
effectively suppresses various serial mode and common mode interference, while
also ensuring the stable and reliable operation of the module.

1) The module uses RS485 MODBUS RTU standard communication, can be
networked with the host computer configuration software, PLC, industrial touch
screen, etc., with communication status indicators.

2) The module complies with
industrial standards. Signal control, power supply, and RS485 communication
electrical signals are isolated from each other.

3) The communication circuit
has lightning protection, anti-interference design and power polarity protection.

4) RS485 communication
signal output interface has dual protection of overvoltage and overcurrent.

5) The module has automotive-standard hardware and software dual
watchdog timers to ensure that the module will never crash and work stably and
reliably.

6) Output disconnection protection. When there is a 485 network
interruption and the machine does not receive the data sent by the master
station within the set time, the module will automatically disconnect the
output, thereby automatically protecting the safety of the field equipment.

7) The communication format can be set by software.

Specifications:

Item	Technical Specifications
Signal input/output	1) Input channel: 32 digital inputs
Communication output	1) Communication protocol: MODBUS-RTU 2) Interface type: isolated RS485 communication, output interface adopts double protection of overvoltage and overcurrent 3) Baud rate: 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200 bps 4) Parity bit: no parity, even parity, odd parity 5) Setting method: module address, baud rate, parity bit can be set by software 6) Communication distance: @9600bps 1200 meters
Module size and installation method	1.1) Installation method: standard DIN rail installation or screw installation 2) Dimensions: 125×90×43mm
Working environment	Temperature: -10～+60℃ Humidity: 35～85% (no condensation)
Power supply	1) Power supply voltage: 12V～30V wide range power supply, with power polarity protection 2) Power consumption: less than 5W

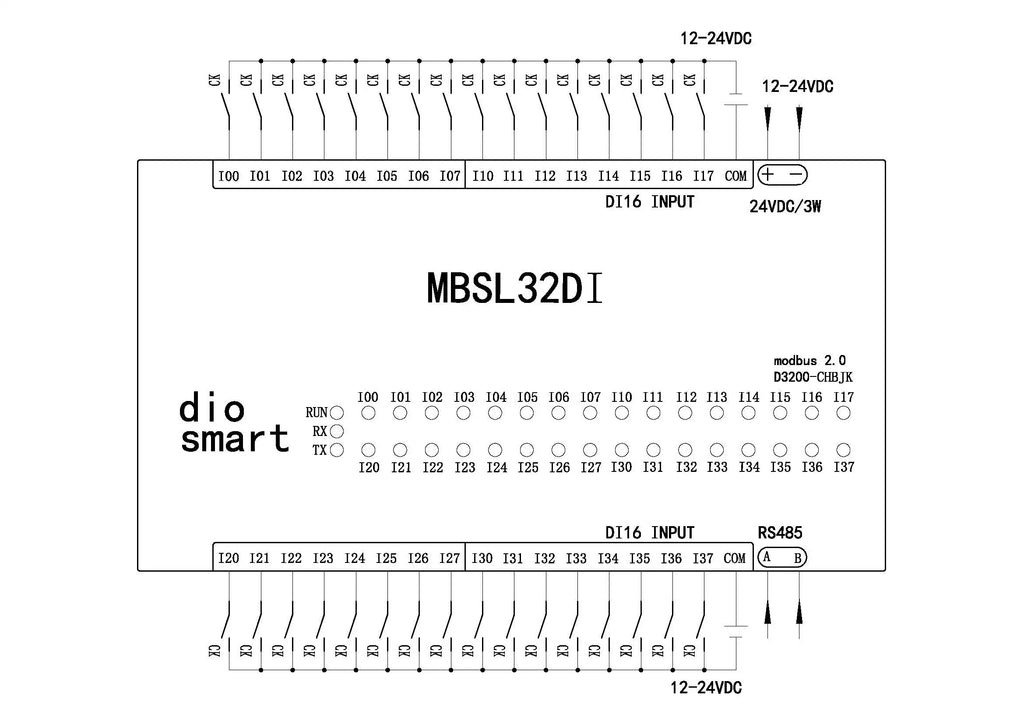

Interface definition:

Terminal name	Description	Terminal name	Description
PW+	External power input positive terminal	485A	RS485 signal A+
PW-	External power input negative terminal	485B	RS485 signal B-
I00	Digital input channel 1	I20	Digital input channel 17
I01	Digital input channel 2	I21	Digital input channel 18
I02	Digital input channel 3	I22	Digital input channel 19
I03	Digital input channel 4	I23	Digital input channel 20
I04	Digital input channel 5	I24	Digital input channel 21
I05	Digital input channel 6	I25	Digital input channel 22
I06	Digital input channel 7	I26	Digital input channel 23
I07	Digital input channel 8	I27	Digital input channel 24
I10	Digital input channel 9	I30	Digital input channel 25
I11	Digital input channel 10	I31	Digital input channel 26
I12	Digital input channel 11	I32	Digital input channel 27
I13	Digital input channel 12	I33	Digital input channel 28
I14	Digital input channel 13	I34	Digital input channel 29
I15	Digital input channel 14	I35	Digital input channel 30
I16	Digital input channel 15	I36	Digital input channel 31
I17	Digital input channel 16	I37	Digital input channel 32
COM	Common terminal +	COM	Common terminal +
