SPECIFICATIONS

Brand Name: CHANZON

Choice: yes

Condition: New

High-concerned chemical: none

Max. Forward Current: 1N4002 1N4003 1N4003 1N4005 1N5399 RL207 1N5400 1N5401 1N5402 1N5404

Max. Forward Voltage: FR207 1N5406 UF4004 UF4005 UF5402 UF5404 UF5408 FR107 FR157 FR307 Set

Max. Reverse Current: FR607 1N4937 1N914 BAV21 UF 5817 5819 5822 4148 High Frequency 2A 3A

Max. Reverse Voltage: 1N 4001 4002 4003 4004 4005 4007 5399 5400 5401 5402 5404 5408 4937 1A

Model Number: 50V 200V 300V 400V 600V 1000V 15mA 12A dc Silicon Ultra Assorted Kit

Origin: Mainland China

Package Type: Through Hole

Type: Rectifier Diode

Voltage: 110V

is_customized: Yes

semi_Choice: yes

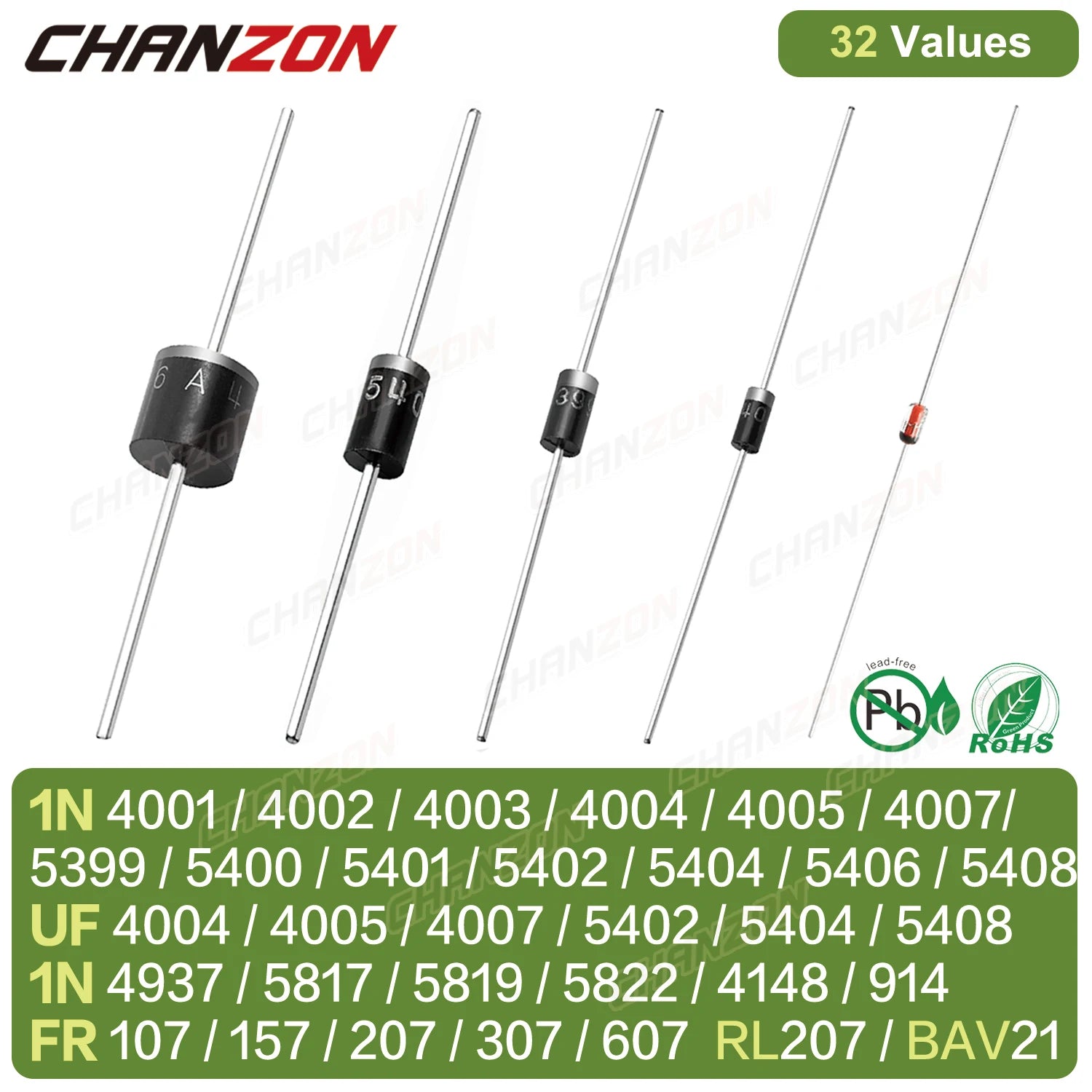

32Values Fast Recovery Switching Schottky Barrier Rectifier Diode 1N4001 1N4004 1N4007 1N5408 UF4007 1N5817 1N5819 1N5822 1N4148

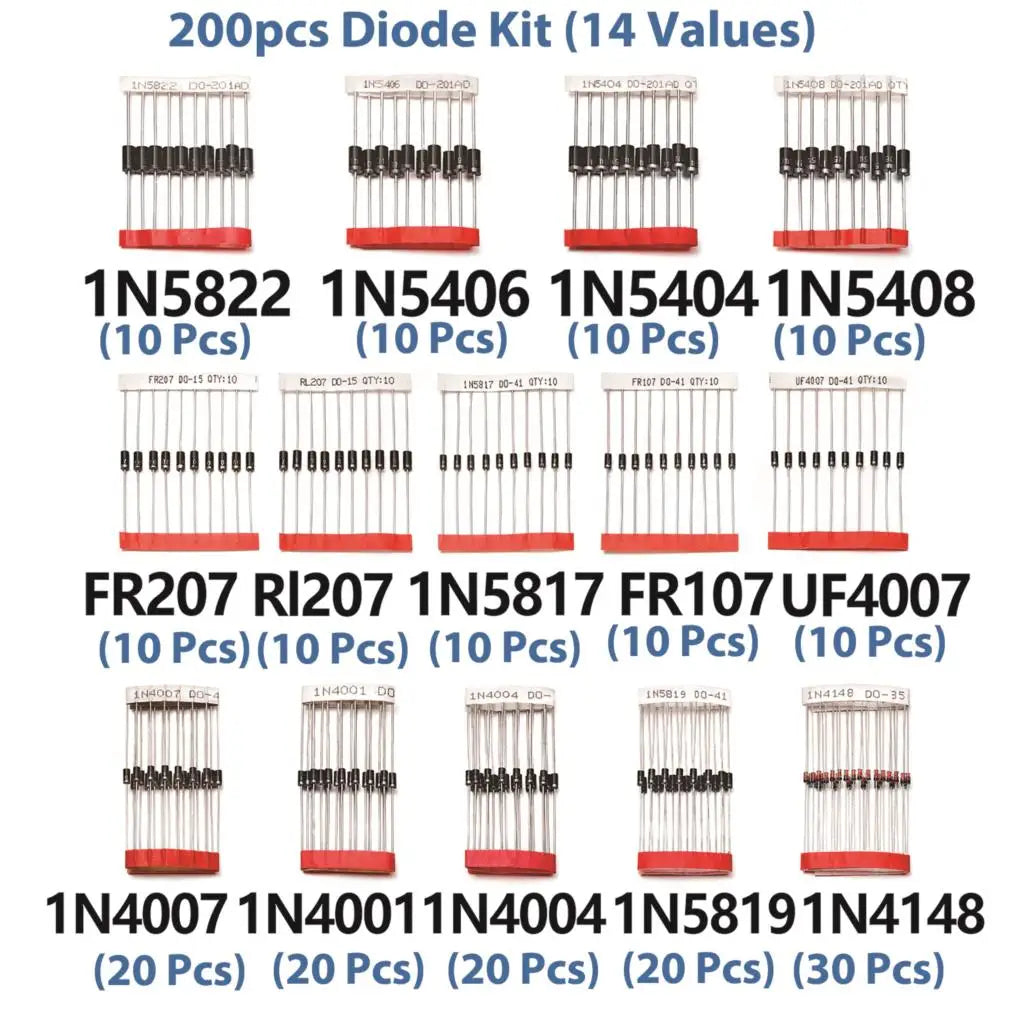

200pcs Diode Kit (14 Part numbers, Total 200 pcs):

Rectifier Diode

20 * 1N4001 (1A 50V)

20 * 1N4004 (1A 400V)

20 * 1N4007 (1A 1000V)

10 * RL207 (2A 1000V)

10 * 1N5404 (3A 400V)

10 * 1N5406 (3A 600V)

10 * 1N5408 (3A 1000V)

Fast Recovery Diode

10 * UF4007 (1A 1000V)

10 * FR107 (1A 1000V)

10 * FR207 (2A 1000V)

Switching Diodes

30 * 1N4148 (200mA 100V)

Schottky Diodes

10 * 1N5817 (1A 20V)

20 * 1N5819 (1A 40V)

10 * 1N5822 (3A 40V)

If you need datasheet of diode,pls feel free to contact us.
