SPECIFICATIONS

Used for external power source and on-board transformer, it is Universal Laptop NoteBook connectors.

Compatible Models: Lenovo, 4-hole Toshiba, 3-hole Dell and most Laptops, Notebooks.

Plug male diameter outside/inside(or pin). Note: NOT COMPATIBLE with Mac, 2017 ASUS Q504UA.

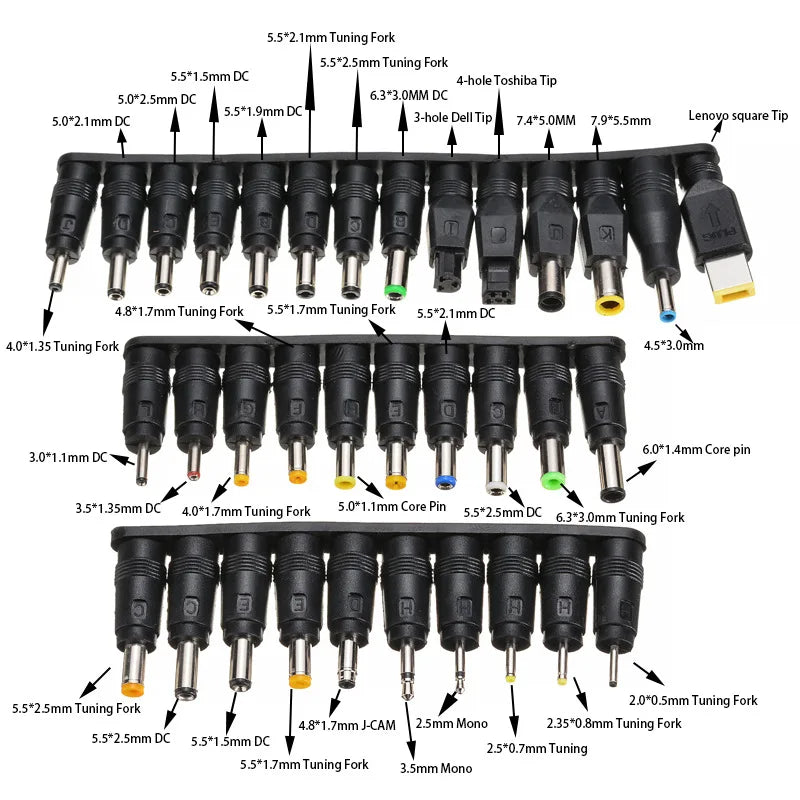

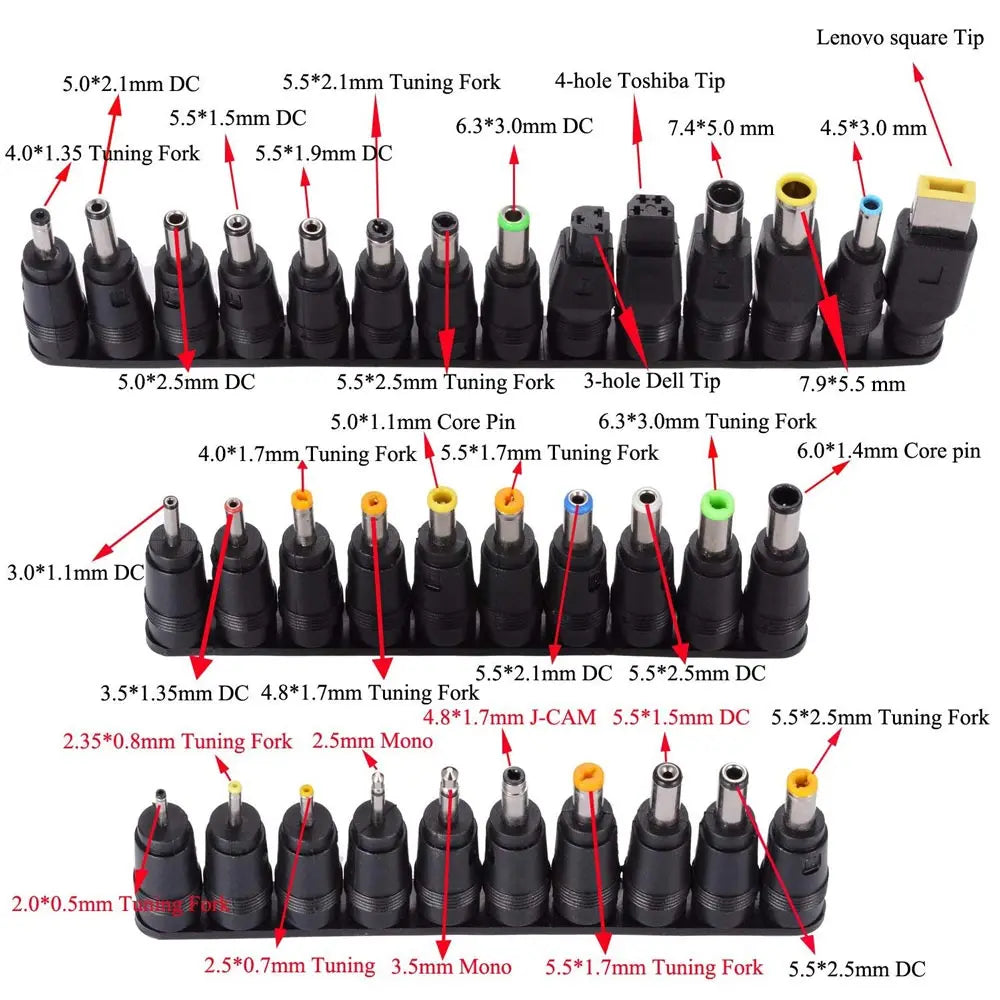

All the order is referenced to picture attached above, following the order from right to the left.

Lenovo square Tip - Yellow - for Lenovo

4.5*3.0 mm - Blue - center pin inside, for HP

7.9*5.5 mm - Yellow - for Lenovo IBM Thinkpad

7.4*5.0 mm - Black - for Dell, HP Compaq Pavilion

4-hole Toshiba Tip - Black- for Toshiba

3-hole Dell Tip - Black - for Dell

6.3*3.0mm DC - Green - for Toshiba Satellite, Lenovo IdeaCentre

5.5*2.5mm Tuning Fork - Black - for ASUS, Toshiba, HP, MSI, IBM, Panasonic, Lenovo

5.5*2.1mm Tuning Fork - Black - for HP, Sega

5.5*1.9mm DC - Black - for Asus

5.5*1.5mm DC - Black

5.0*2.5mm DC - Black

5.0*2.1mm DC - Black

4.0*1.35 Tuning Fork - for Asus Zenbook

6.0*1.4mm Core pin - Black - for Samsung, Fujitsu, Sony

6.3*3.0mm Tuning Fork - Green - for Toshiba, Lenovo

5.5*2.5mm DC - White - for Lenovo, Asus, Acer, MSI, BenQ, Toshiba, IBM, Gateway, Haier

5.5*2.1mm DC - Blue - for Acer, Toshiba, HP

5.5*1.7mm Tuning Fork - Yellow - for Hasee, Acer, Lenovo, Asus, BenQ, Toshiba

5.0*1.1mm Core Pin - Yellow

4.8*1.7mm Tuning Fork - Yellow - for HP Pavilion, Sony, Asus Eee, NEC, Delta, Compaq

4.0*1.7mm Tuning Fork - Yellow - for Asus, BenQ, acer, SonyPSP, HP(mini), GPS Navigator

3.5*1.35mm DC - Red - for Fujitsu, Dell, Sharp

3.0*1.1mm DC – Black - for Samsung

5.5*2.5mm Tuning Fork - Yellow - for Lenovo, Asus, Acer, MSI, Toshiba, IBM

5.5*2.5mm DC - Black - for Lenovo, Asus, Acer, MSI, BenQ, HEDY, Toshiba, IBM, Gateway, Haier

5.5*1.5mm DC - Black

5.5*1.7mm Tuning Fork - Yellow - for Gateway, Acer, Delta

4.8*1.7mm J-CAM - Black - for HP, Asus, lenovo, NEC, Delta, Compaq

3.5mm Mono - for Classic Radio

2.5mm Mono - for Audio

2.5*0.7mm Tuning Fork - Yellow - for Dell, Samsung, Sharp, Power Supply, Android Tablet

2.35*0.8mm Tuning Fork - Yellow

2.0*0.5mm Tuning Fork – Black
