Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

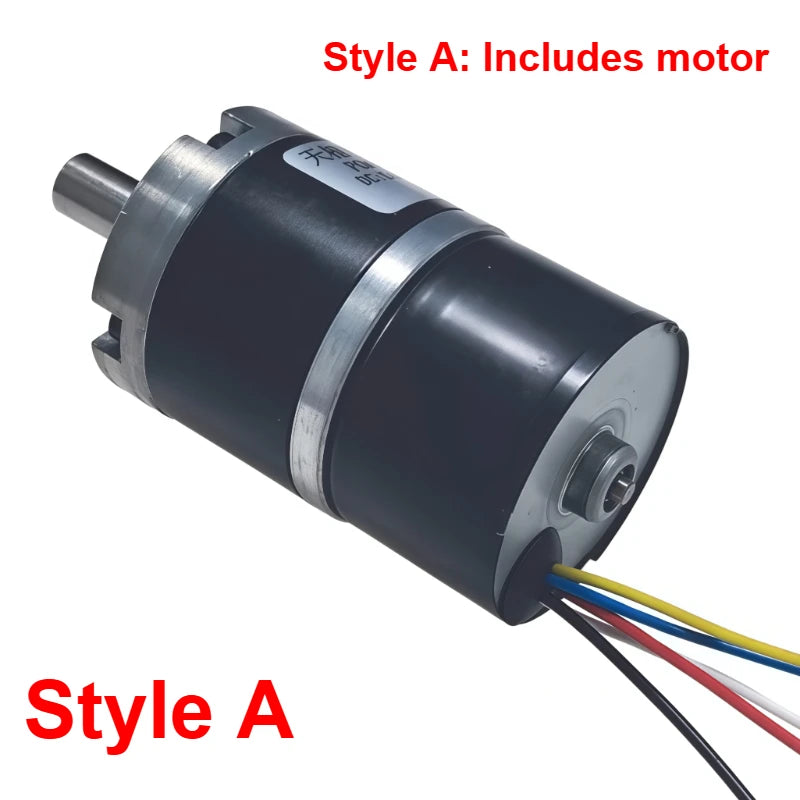

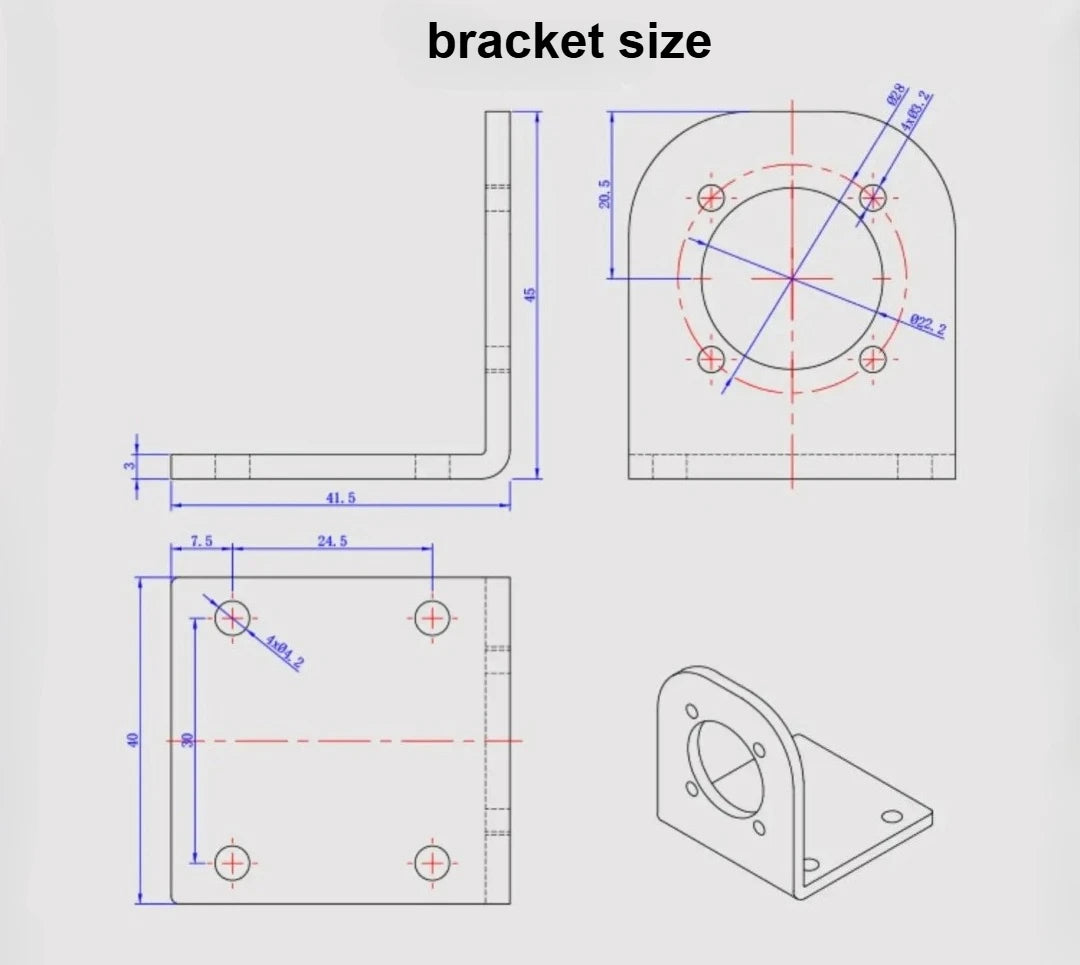

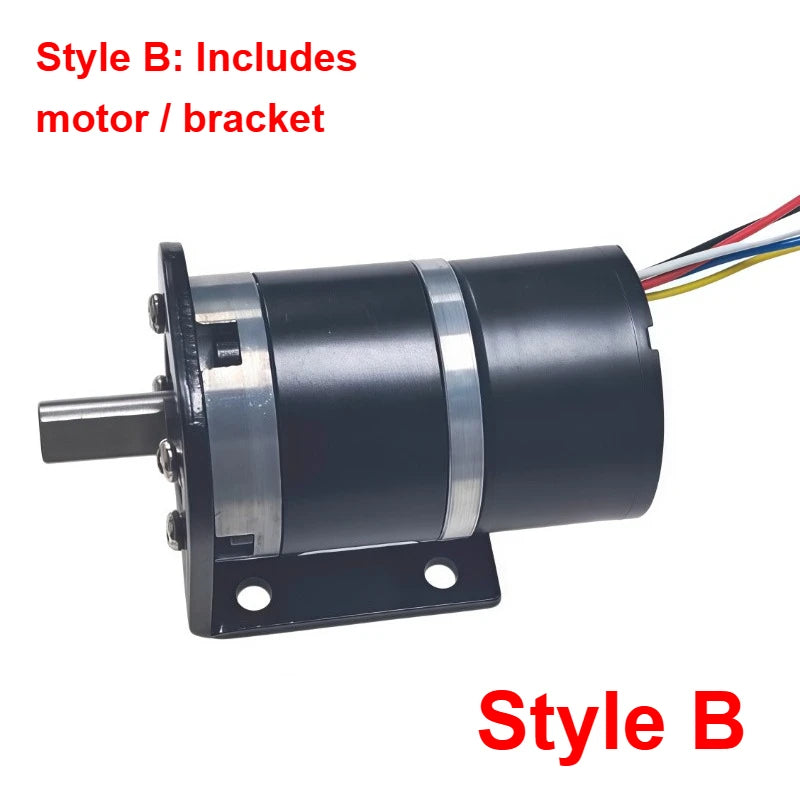

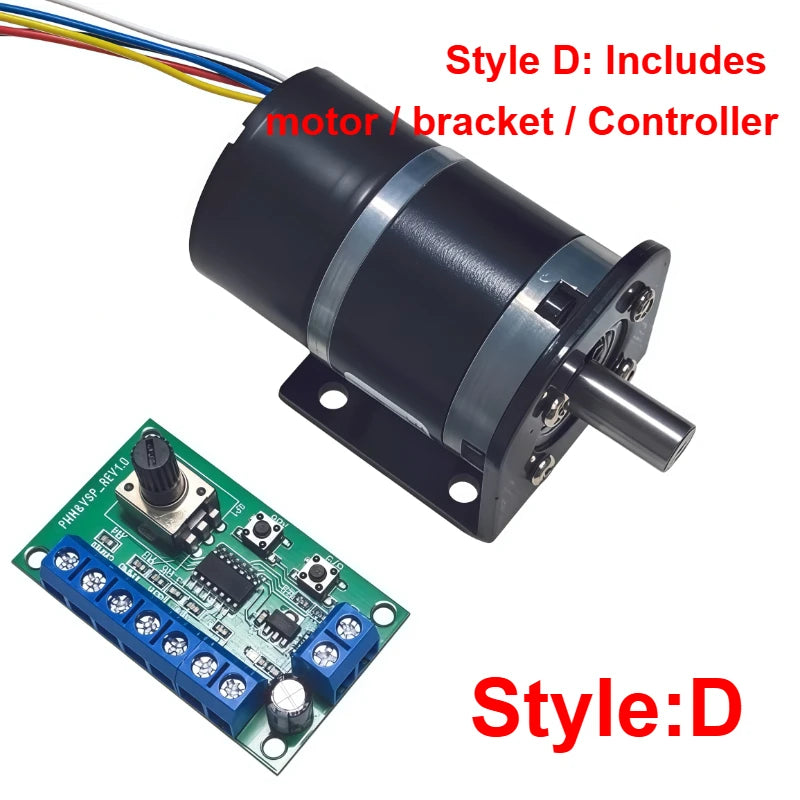

Color classification: Single gear motor, gear motor + bracket, gear motor + power supply, ge

Commutation: Brushless

Construction: Permanent Magnet

Continuous Current(A): 0.4A-06A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

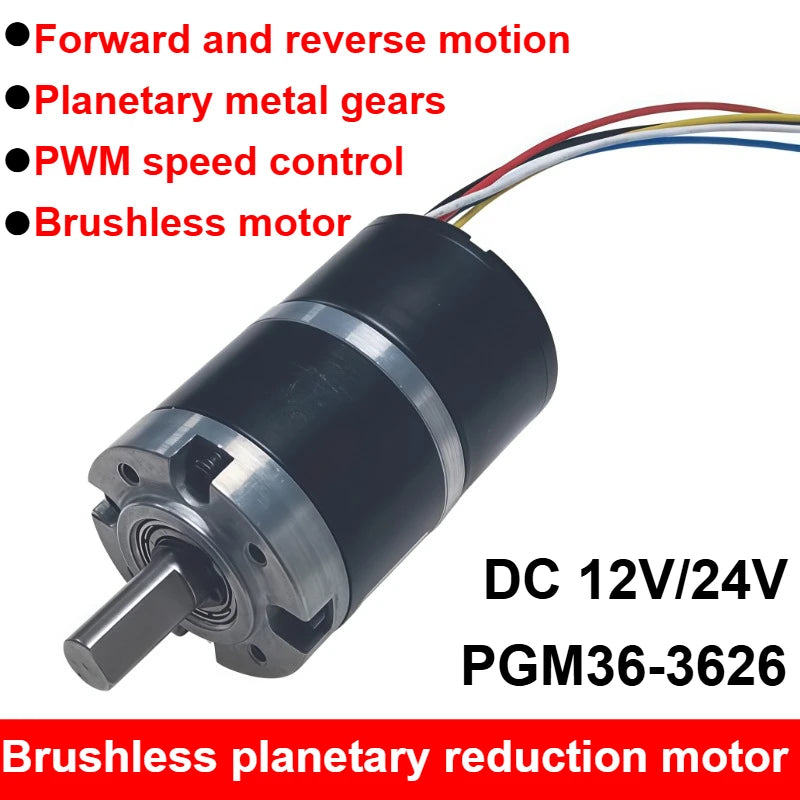

Model Number: PGM36-3626

Model number: PGM36-3626

Origin: Mainland China

Output Power: ＜18.65

Power supply mode: Direct current

Protect Feature: Explosion-proof

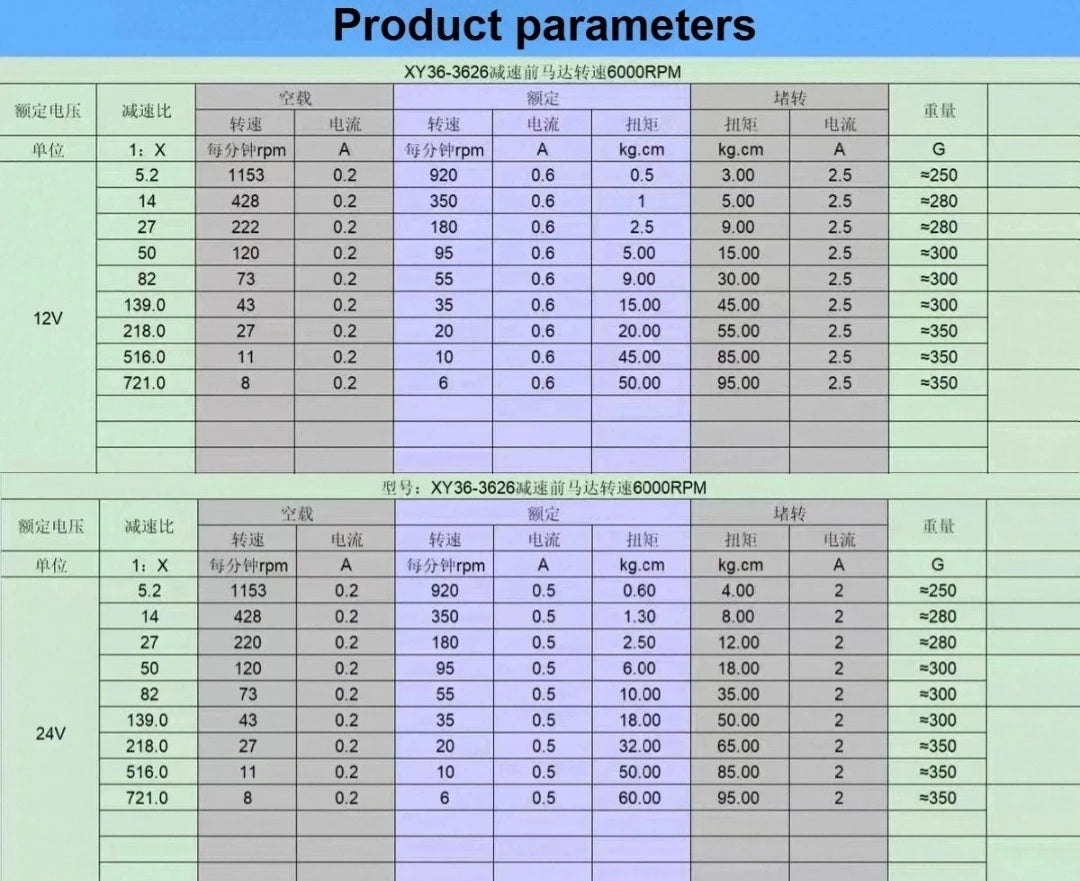

Torque: 0.5-60Kg

Type: Micro Motor

place of origin: Chinese mainland

voltage: 12V/24V

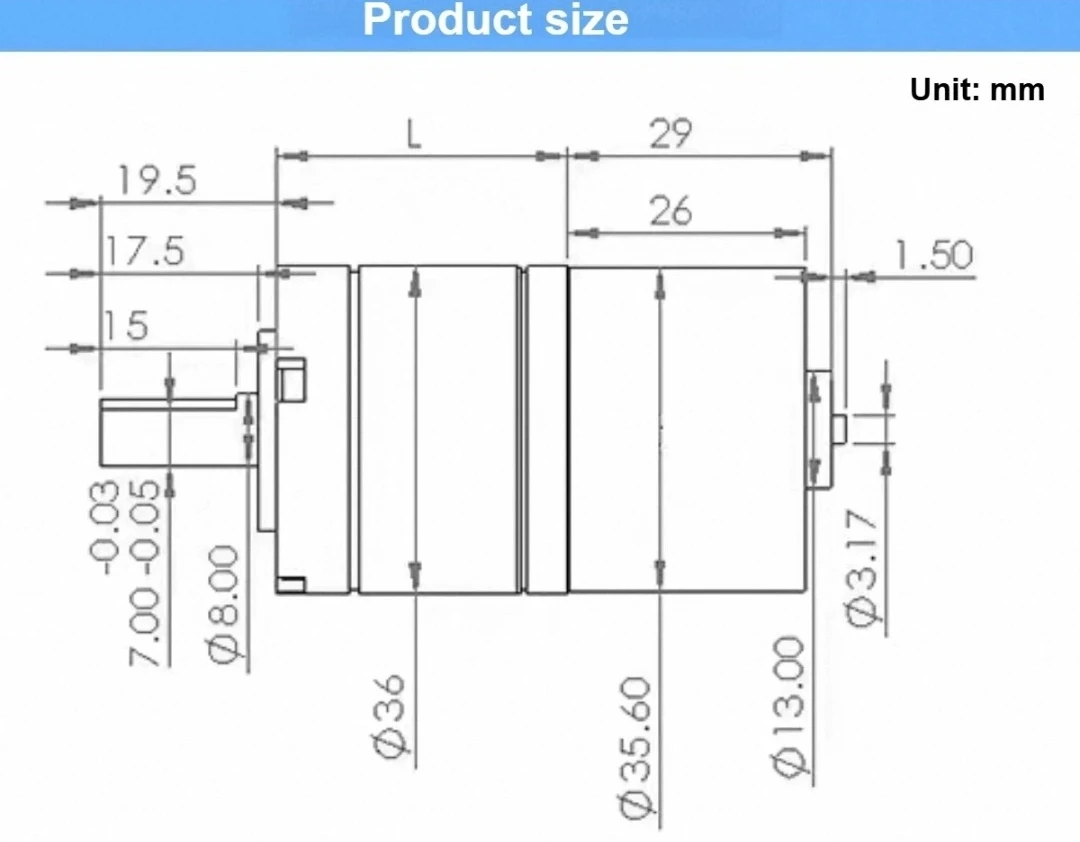

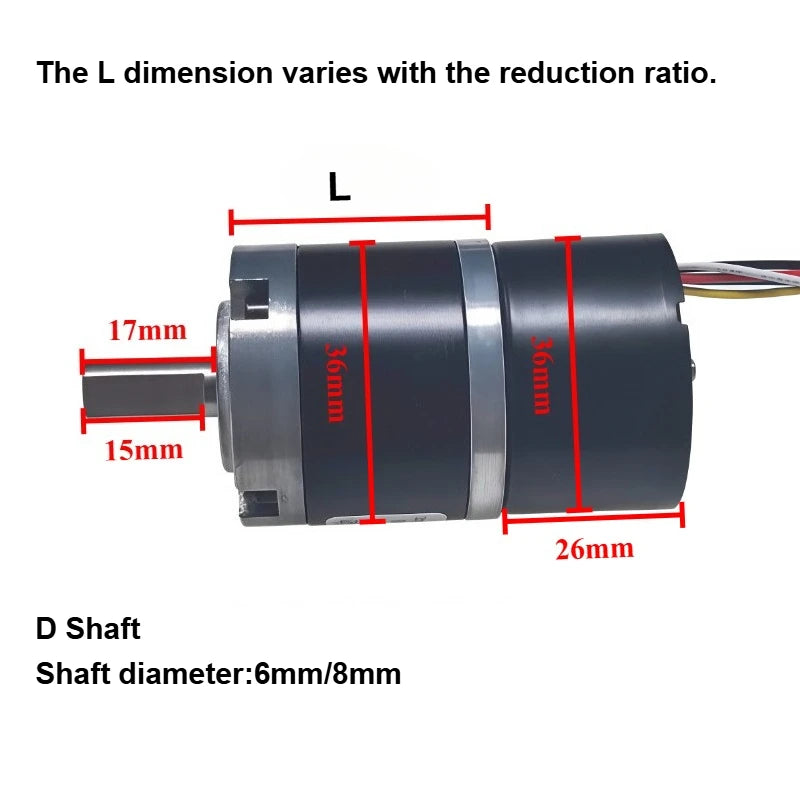

Product size manual measurement, please allow ± 0.1mm error, The product is brand new, a small part will have slight scratches during transportation,if you mind, please do not order, if you need to buy in bulk, please contact customer service, thank you!

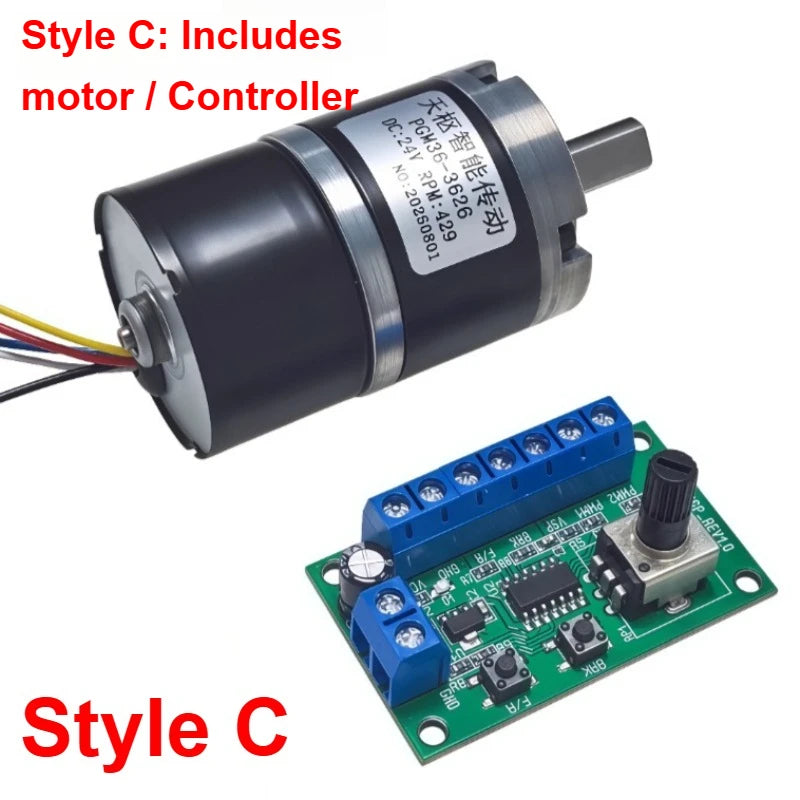

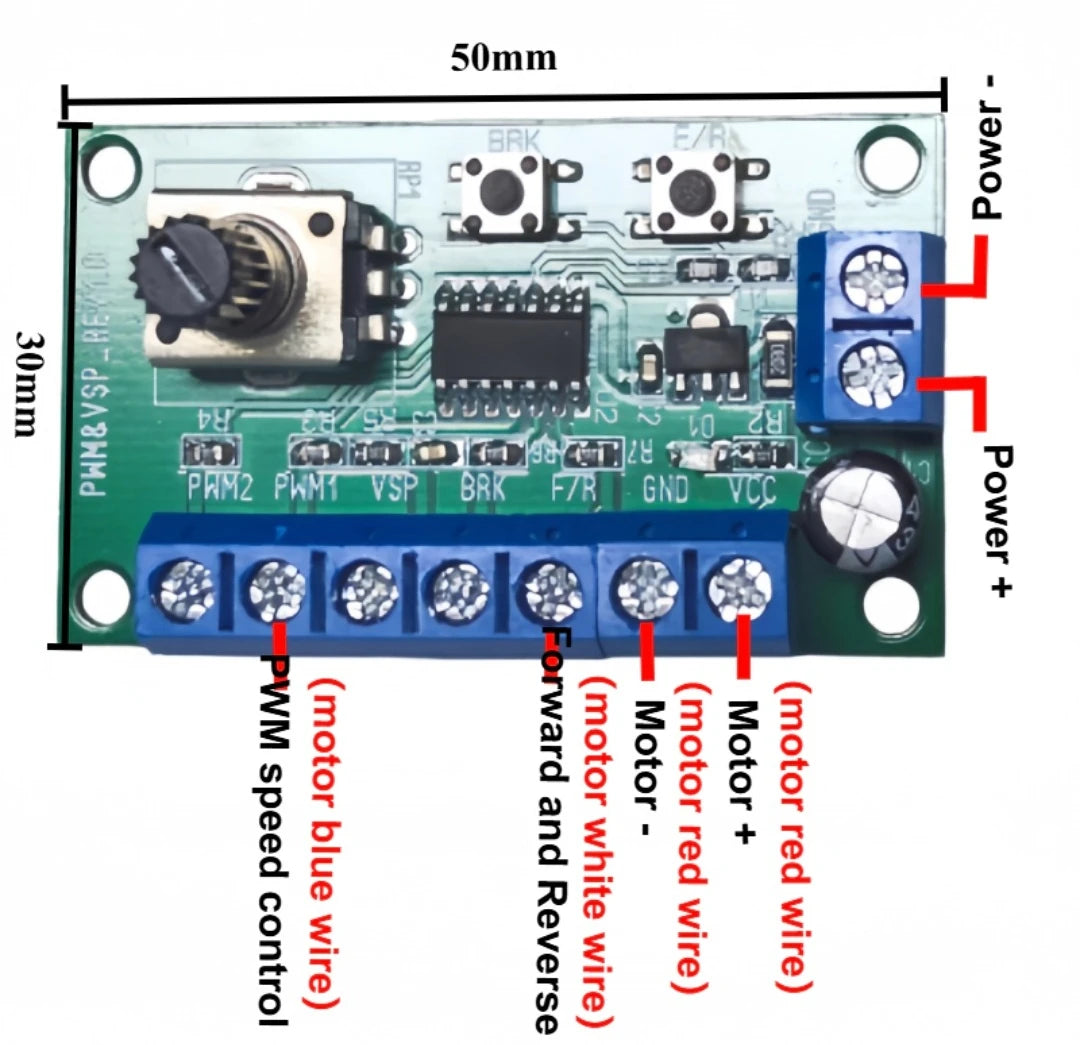

1. Voltage range: DC5V~28V.
2.Rated current: ax 2A, to control the motor with greater current, themotor power line directly connected to the power supply, not throughthe governor transfer that is.
3.PWM output frequency: 10~15Hz.
4.analog voltage output: 0~5V.
5.two independent manual control of high and low voltage output.
6.working temperature:-10℃~70℃,storage temperature:-30℃~125℃
7.Drive size: 30mm long*50mm wide

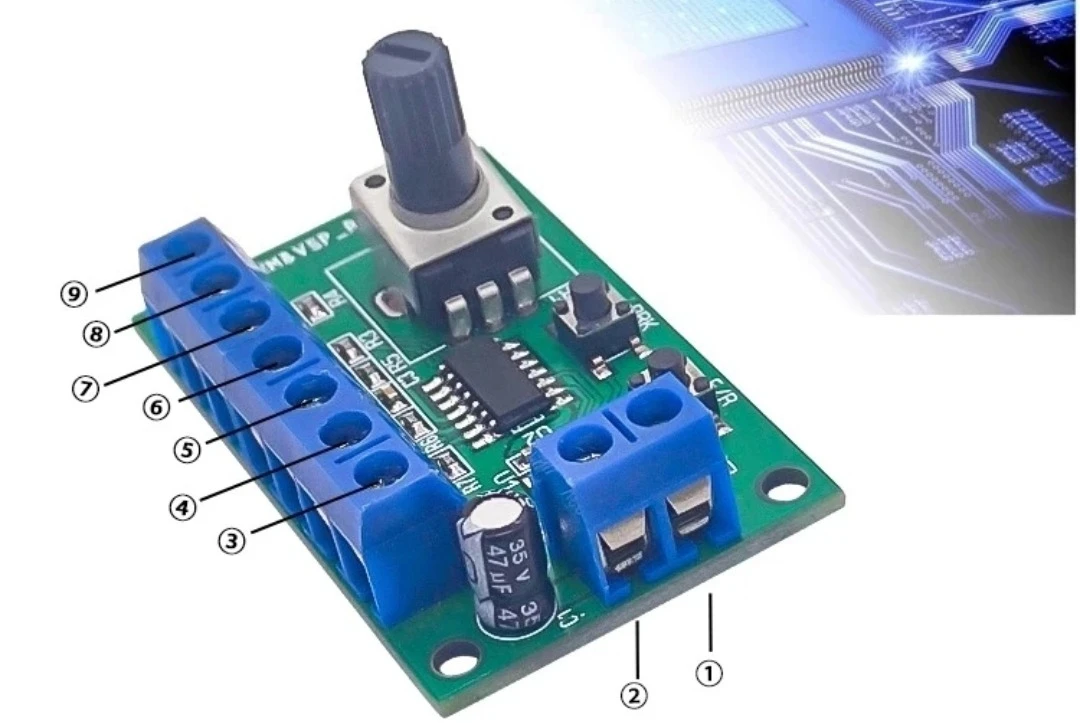

① Negative terminal input of the power supply for the speed regulator and motor.
② Positive input of power for the speed regulator and motor.
③ The positive output of the motor's power supply.
④ The negative terminal output of the motor's power supply.
⑤ The high and low level outputs for forward and reverse control are 5V for the high level and 0V for the low level, which are controlled by the F/R tare switch. By default, the high level is set upon power-on.
⑥ The high and low level outputs of the brake control are 5V for the high level and 0V for the low level, which are controlled by the BRA touch switch. By default, the high level is set when powered on.
⑦) Analog voltage output: This interface is suitable for motors that accept analog voltage speed regulation.
⑧PWM reverse output. This interface is suitable for motors that receive PWM speed regulation, where the rotational speed is inversely proportional to the duty cycle
⑨PWM forward output. This interface is suitable for motors that receive PWM speed regulation, and the speed is proportional to the duty cycle.
