3650 Small Massage Table Vibration Motor 12V 24V Double Eccentric Brush DC Vibration Motor/Motor and Power Supply 3800rpm Alarm

3650 Small Massage Table Vibration Motor 12V 24V Double Eccentric Brush DC Vibration Motor/Motor and Power Supply 3800rpm Alarm

$104.76

$104.76 $0.00

Voltage 24V 12V

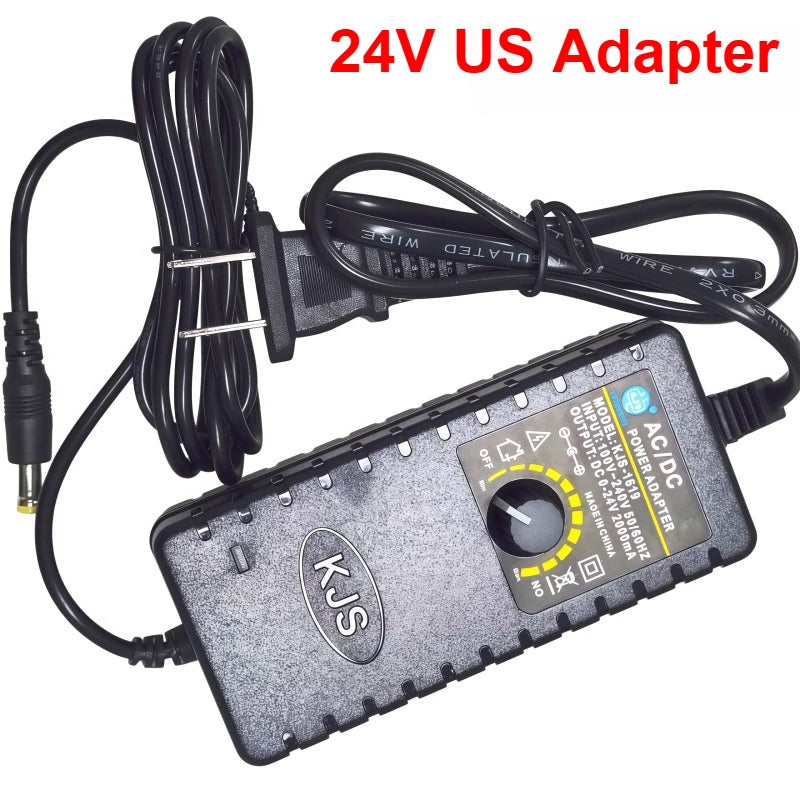

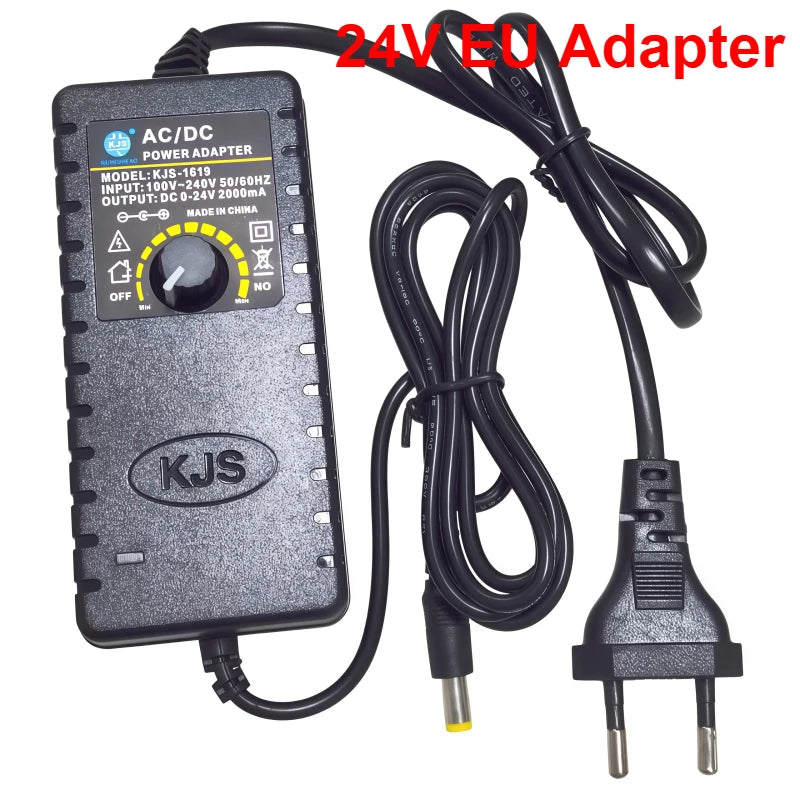

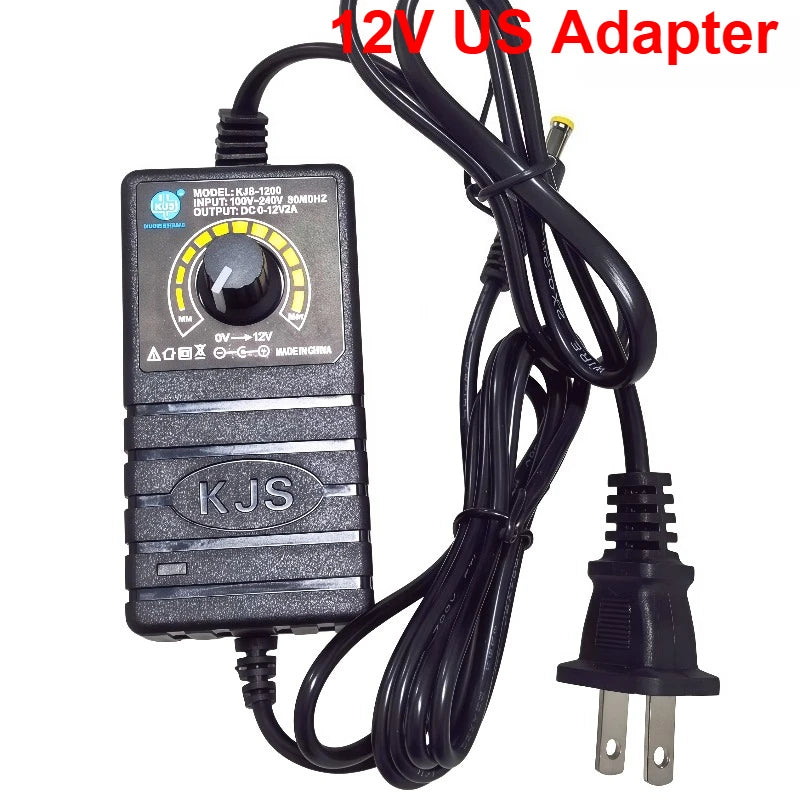

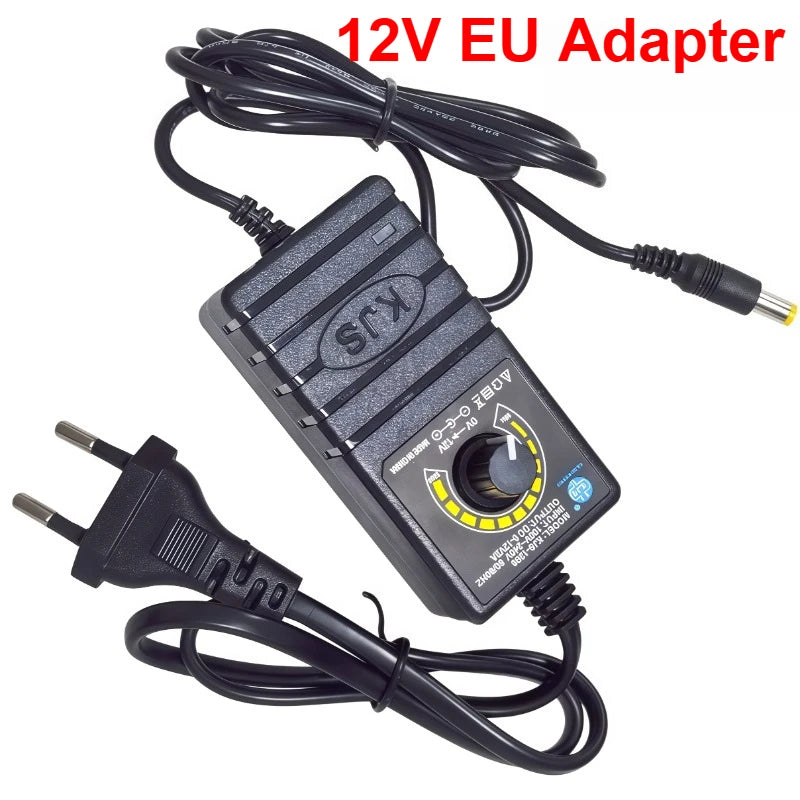

Gear Count Motor x US Adapter Motor Motor x EU Adapter

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 0.5A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: 3650

Origin: Mainland China

Output Power: ＜18.65,10W

Protect Feature: Totally Enclosed

Type: Micro Motor

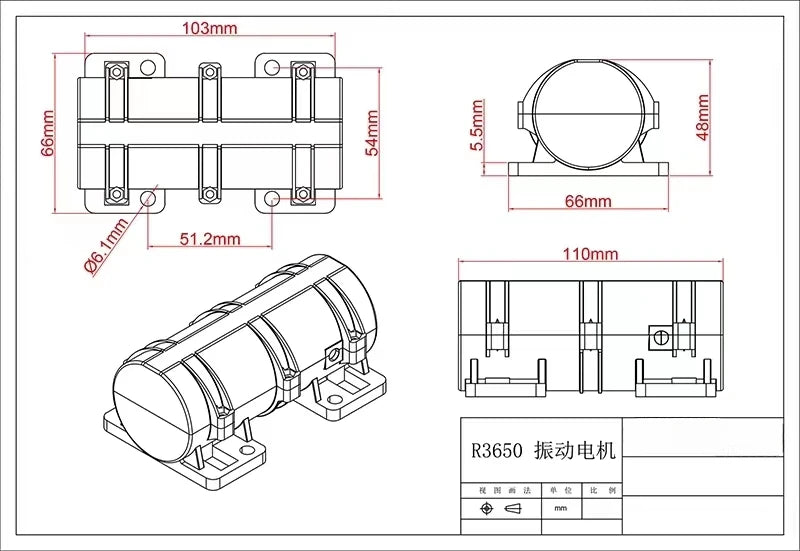

Please allow 1-2mm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.

Pre-purchase notice

1. Nylon containing fiber shell, shell is a gap, not a tight seam, high requirements, please buy carefully.

2. In the dust environment, 704 glue can be used to seal the gap around the motor.

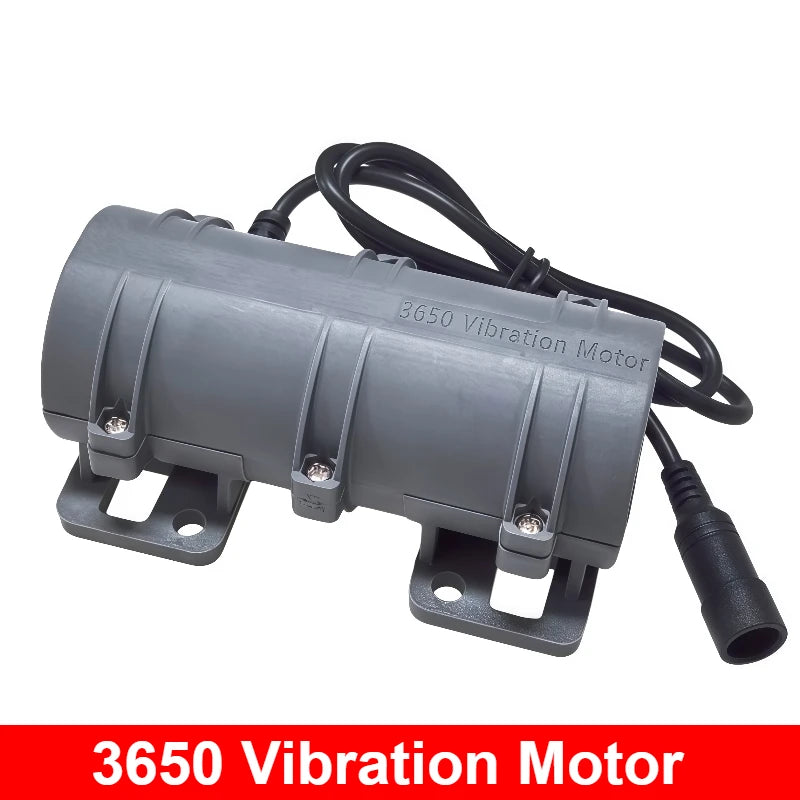

Product name: R3650 vibration motor

Double eccentric motor

Voltage: DC 12V

Load current: 0.5A Peak 1.2A

Load speed: 3200 RPM

Load power: about 10 watts

Voltage: DC 24V

Load current: 0.2A Peak value 0.6A

Load speed: 3200 RPM

Load power: about 10 watts

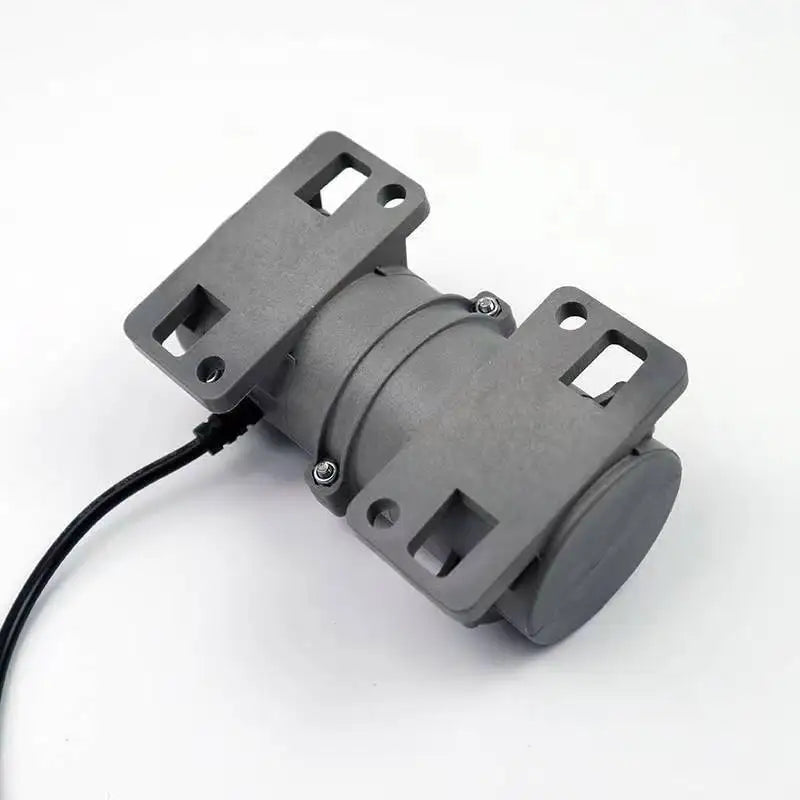

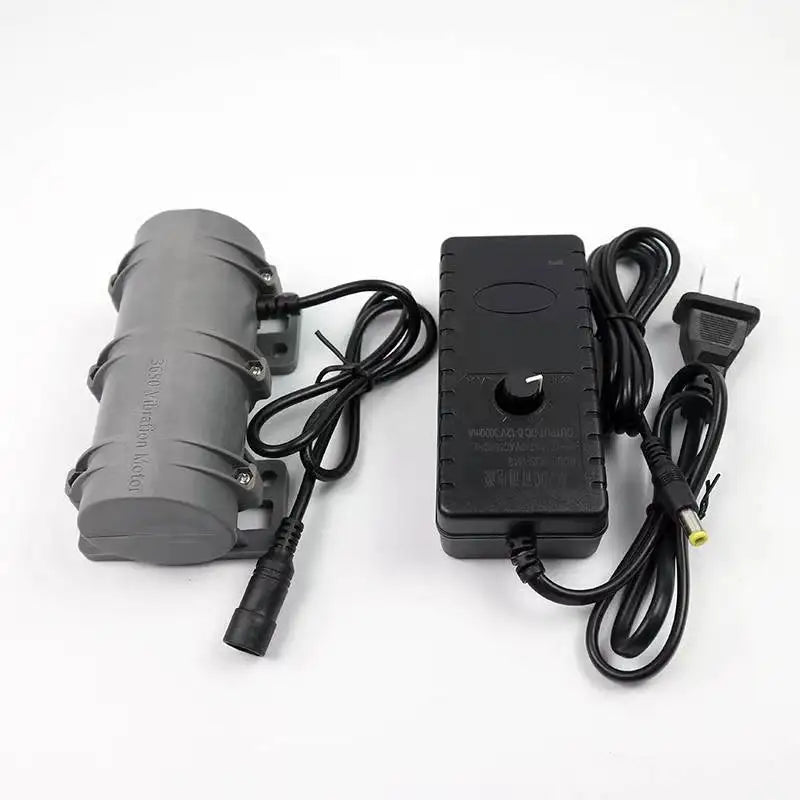

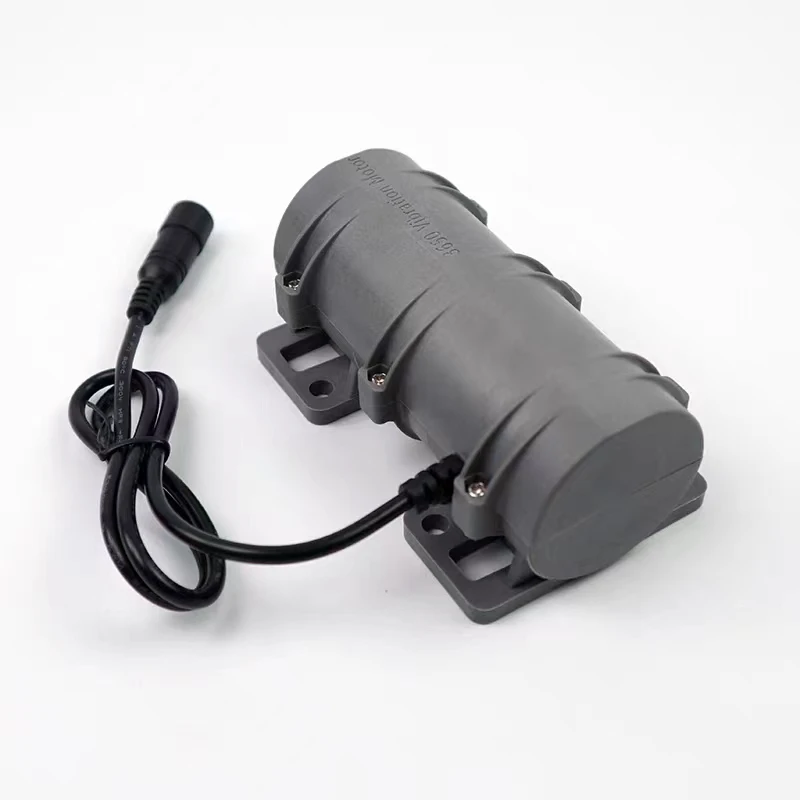

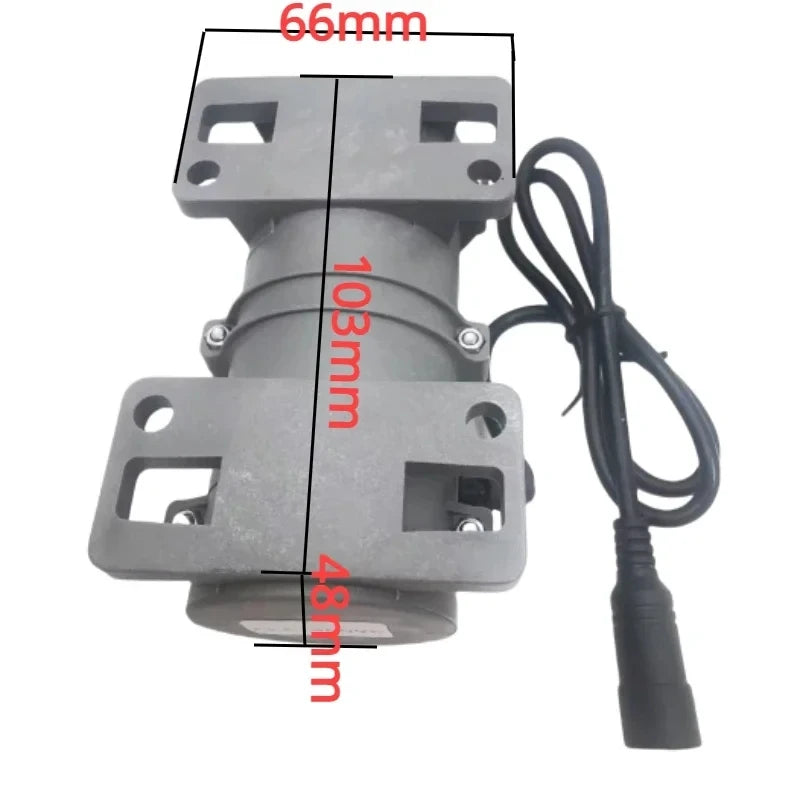

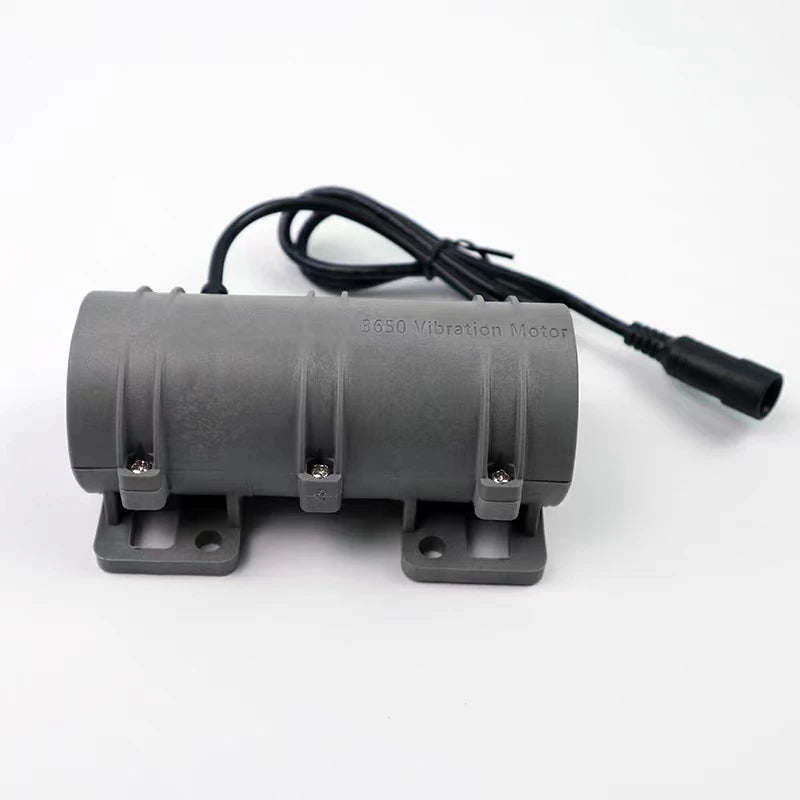

Product picture:
