371MHz dedicated band LC bandpass filter, 1dB bandwidth 25MHz,SMA interface
$319.91
Sale price
$319.91
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
Type: LC Filter
Features:
Low insertion loss, small volume, high out-of-band suppression
Application:
Dedicated band receiving equipment
Laboratory Applications
---------------------------------------------

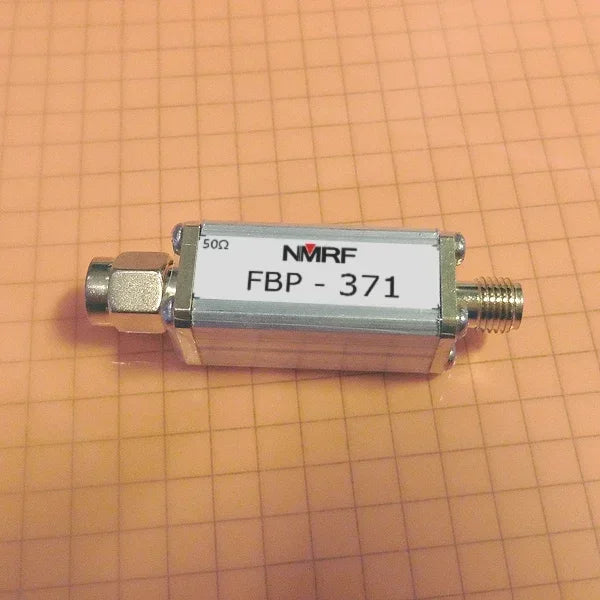

Model: FBP-371
Impedance: 50 Ohms
Center Frequency/1 dB Bandwidth: 371 MHz / 25 MHz
With interpolation loss:<= 4.0 dB
3dB passband: 345~390 MHz
Maximum carrying power: 500 mW(27 dBm)
Interface: SMA-M, SMA-F

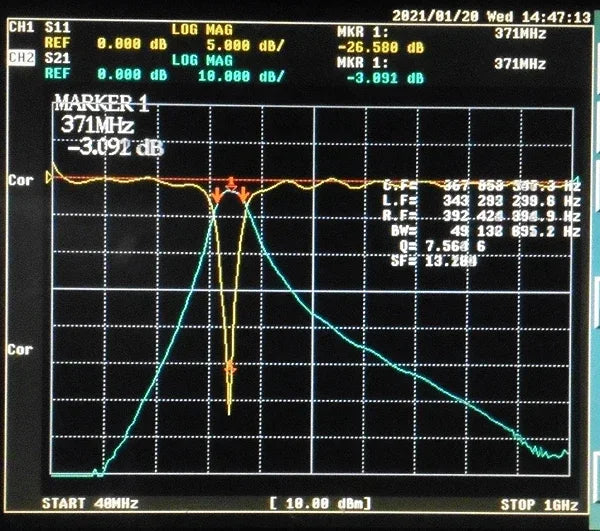

Frequency response diagram (scanning range: 40-1000MHz. The blue line is transmission loss, the vertical scale is 10dB per grid, and the graph shows 3dB bandwidth. The yellow line is reflection loss, the vertical scale is 5dB per grid):

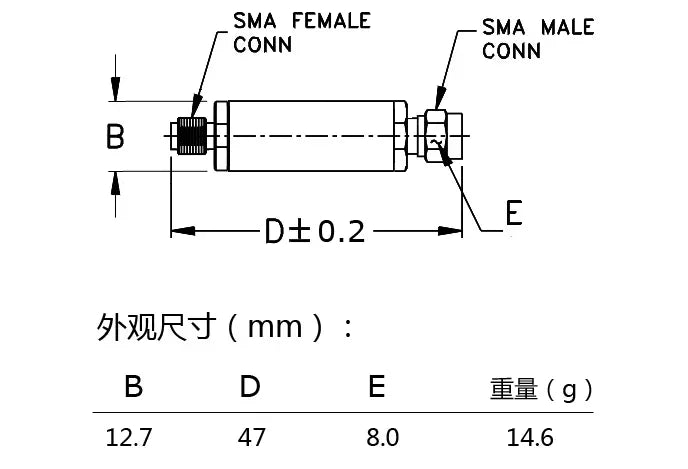

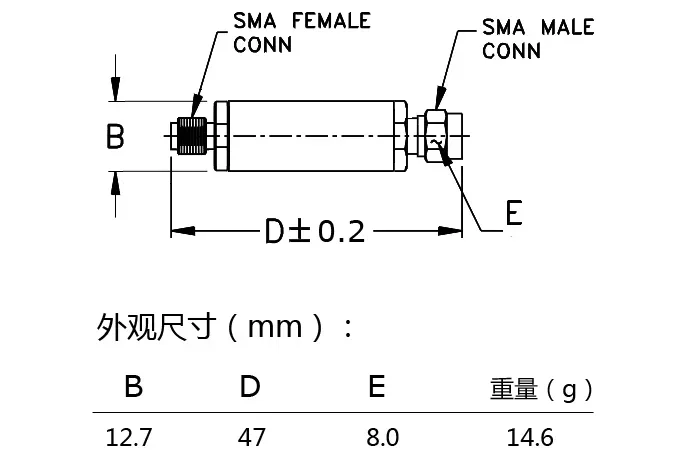

Exterior dimensions:
