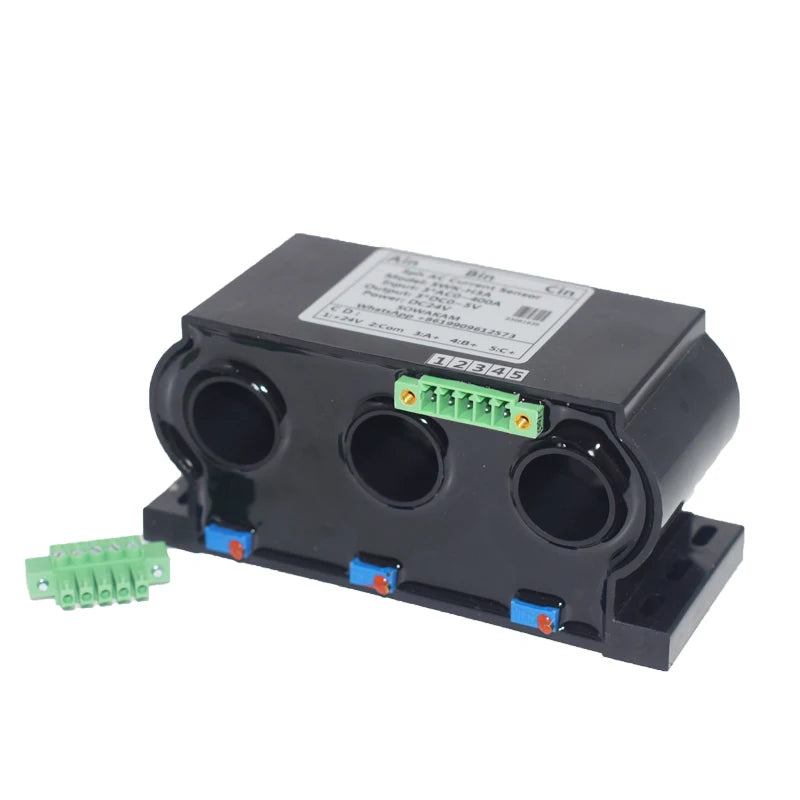

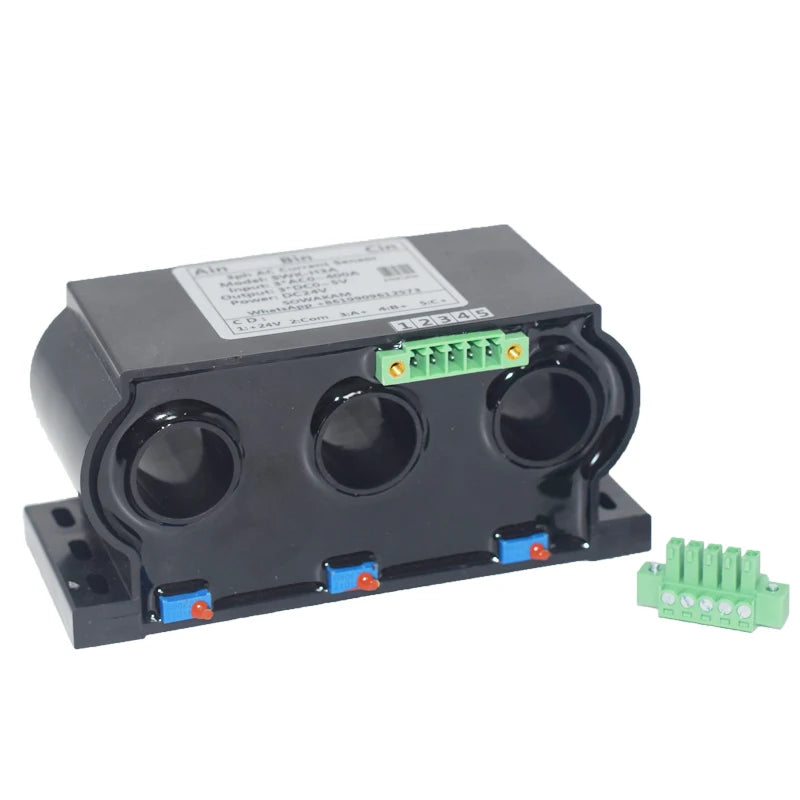

3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer

3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer

Output 0-5V / Hole 20mm / DC24V|China Mainland|AC0-90A
$247.73
$247.73 $0.00
Skip to product information
3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
  • 3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
3ph AC Current Transmitter 4-20mA 0-20mA 0-5V 10V RS485 Output 3-phase Current Mutual Sensor Perforated Hall Current Transducer
$247.73
$247.73 $0.00
Color
SizeHole 20mm
Voltage|Ships From|Measuring Range
Description

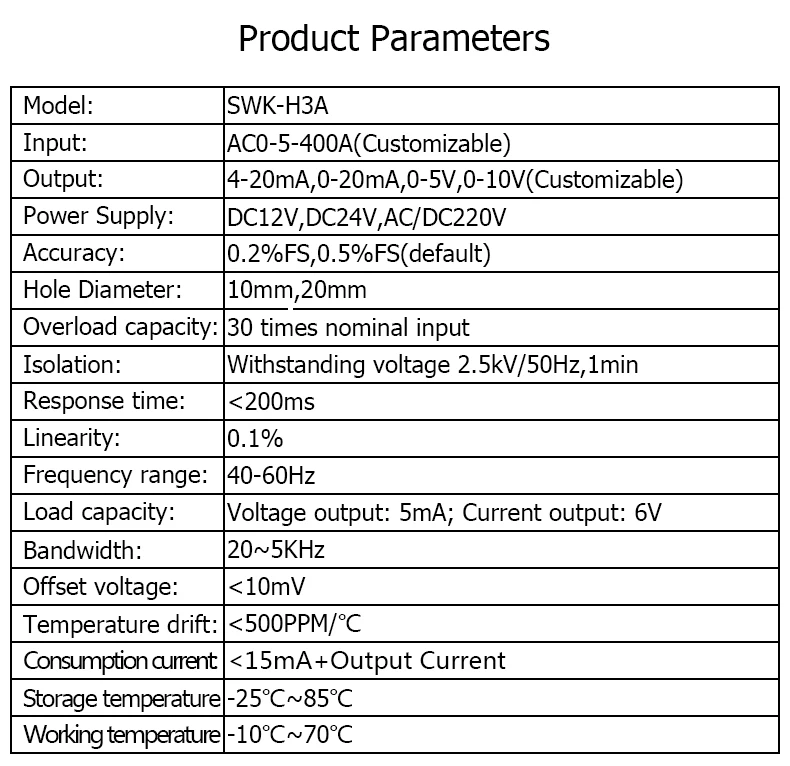

SPECIFICATIONS

Accuracy Class: 0.2%F.S.,0.5%F.S.

Battery Included: no

Brand Name: SOWAKAM

DIY Supplies: Electrical

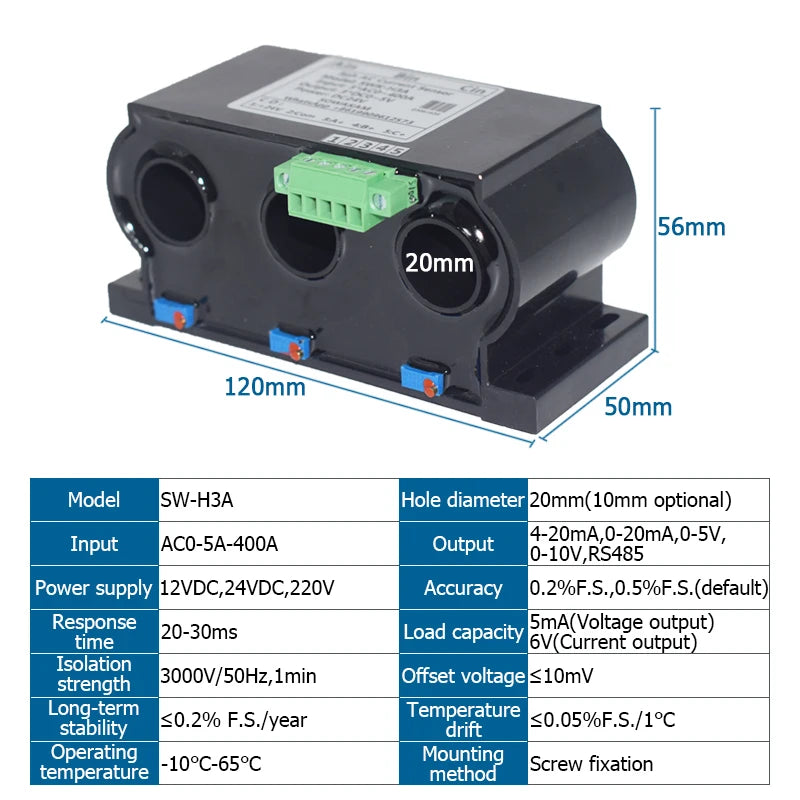

Dimensions: See size chart

High-concerned chemical: none

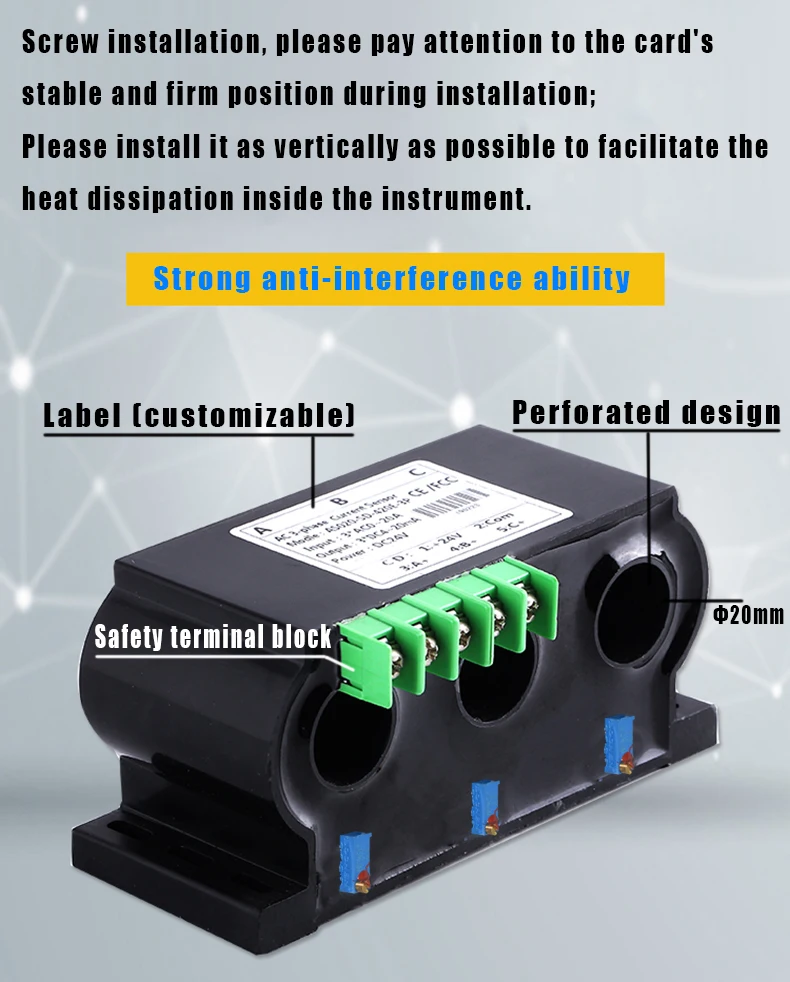

Hole Diameter: 20mm

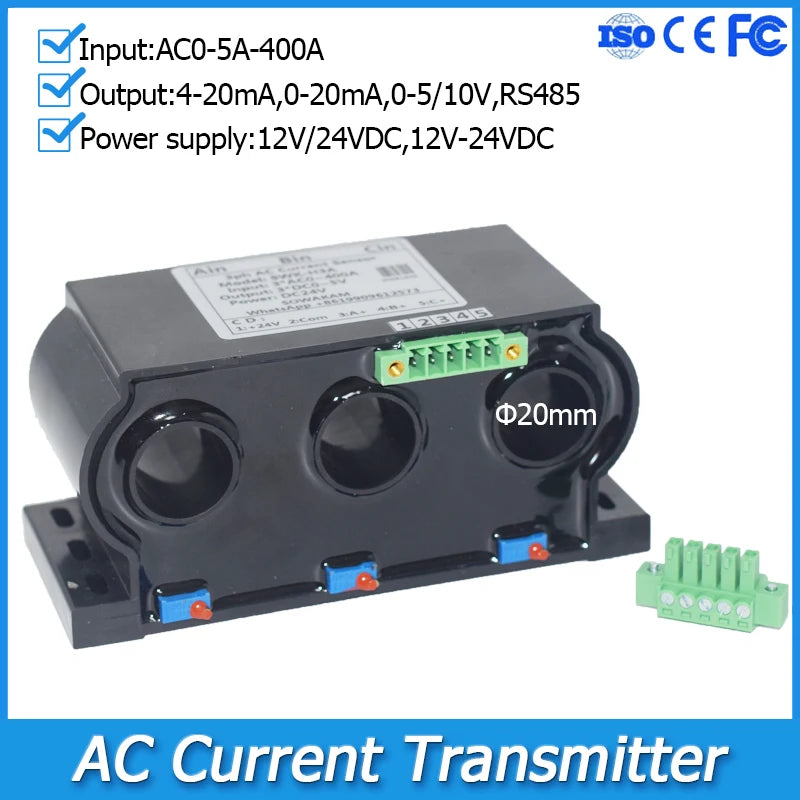

Input range: AC0-5A-400A

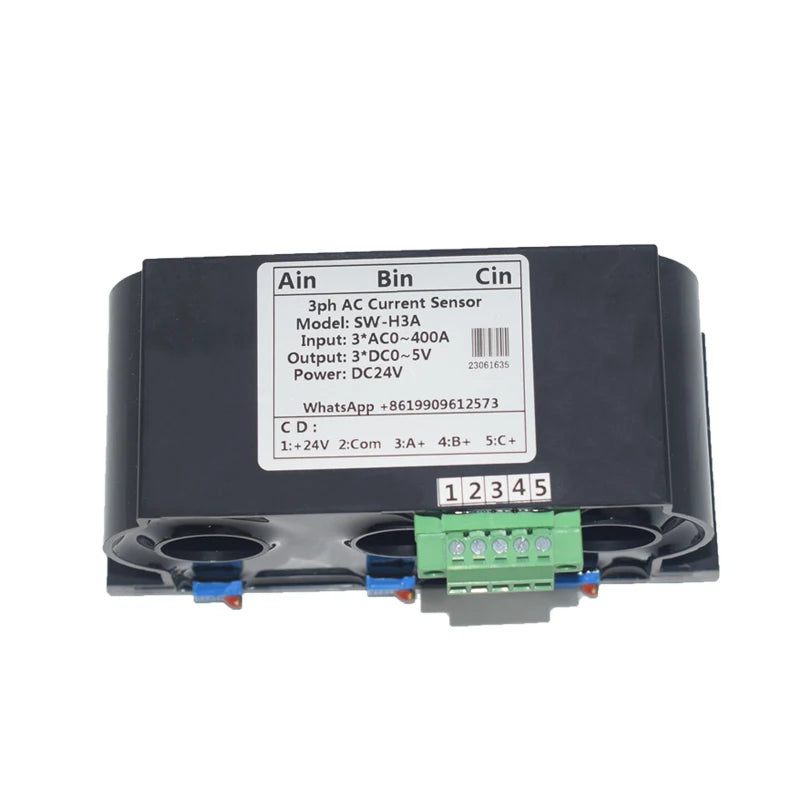

Model Number: SW-H3A

Operating Temperature: -10℃-65℃

Origin: Mainland China

Output: 4-20mA,0-20mA,0-5V,0-10V,RS485

Power supply: 12V,15V,24V,12V-28VDC

Response time: 20-30ms

Semi-finishedproduct: No

Supply Voltage: 12V/24VDC,220V

Notes:

We can make AC0-5A-400A

Please let me know the measuring range, input signal, output signal, hole diameter when ordering.

If you need other special parameters,please contact me,and you can leave a massge when placing an order.


Our Default:
Hole diameter:20mm

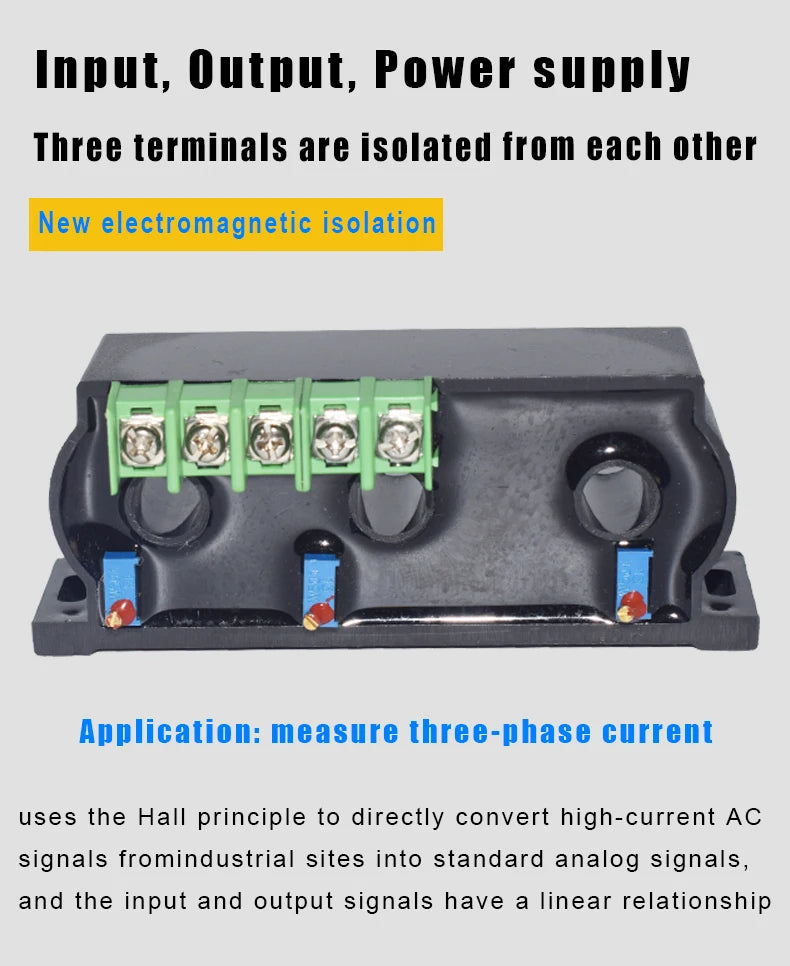

Technical characteristics:

★High measurement accuracy

★Stable and durable structure

★Strong anti-interference ability

★ Lightweight and easy to install
