3S/4S/5S Li-ion BMS Protection Board - 100A, 3.7V/12V/16.8V/21V for Lmo Ternary Lithium/Li-polymer, Balance Charging

3S/4S/5S Li-ion BMS Protection Board - 100A, 3.7V/12V/16.8V/21V for Lmo Ternary Lithium/Li-polymer, Balance Charging

$12.92

$12.92 $0.00

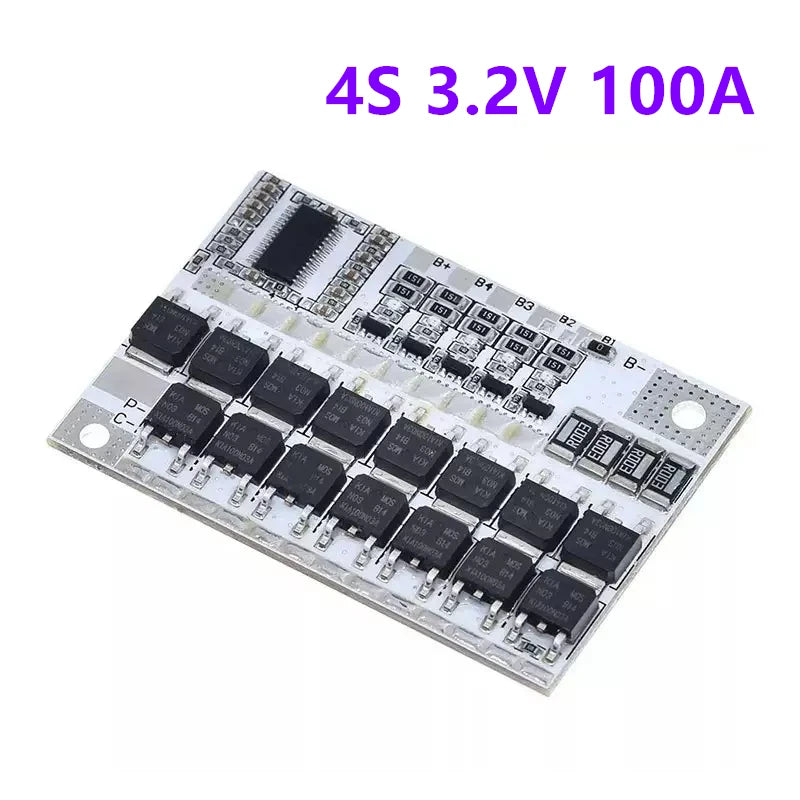

Color 4S 3.2V 100A 3S 3.2V 100A 3S 3.7V 100A 5S 3.2V 100A 5S 3.7V 100A 4S 3.7V 100A

Description

SPECIFICATIONS

Application: Electric Toy

Brand Name: NONE

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Operating Temperature: -45+85

Origin: Mainland China

Quantity: 1

Supply Voltage: 3.2v 3.7v

Type: Voltage Regulator

is_customized: Yes

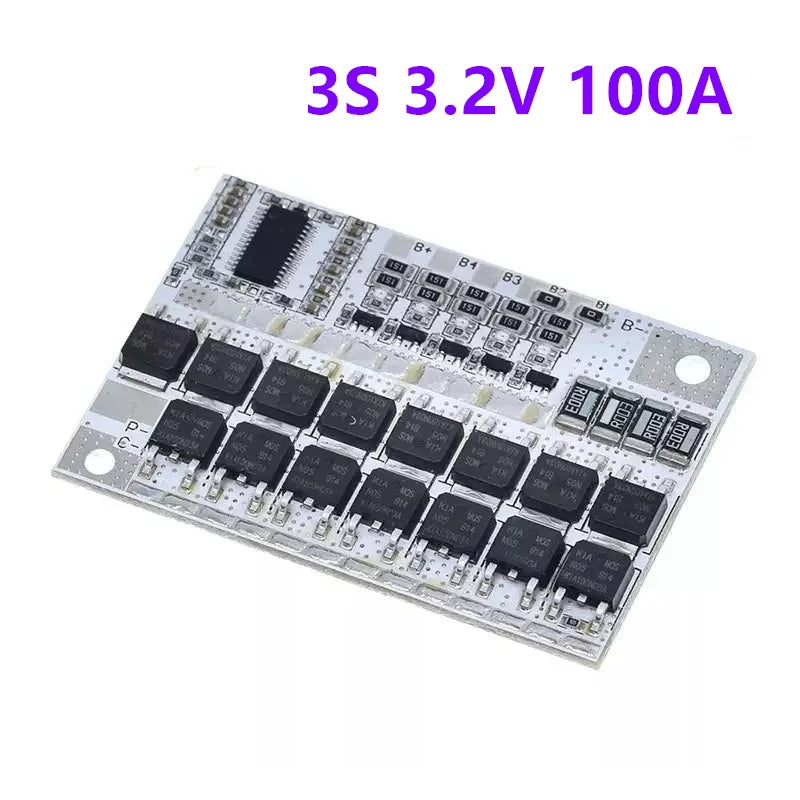

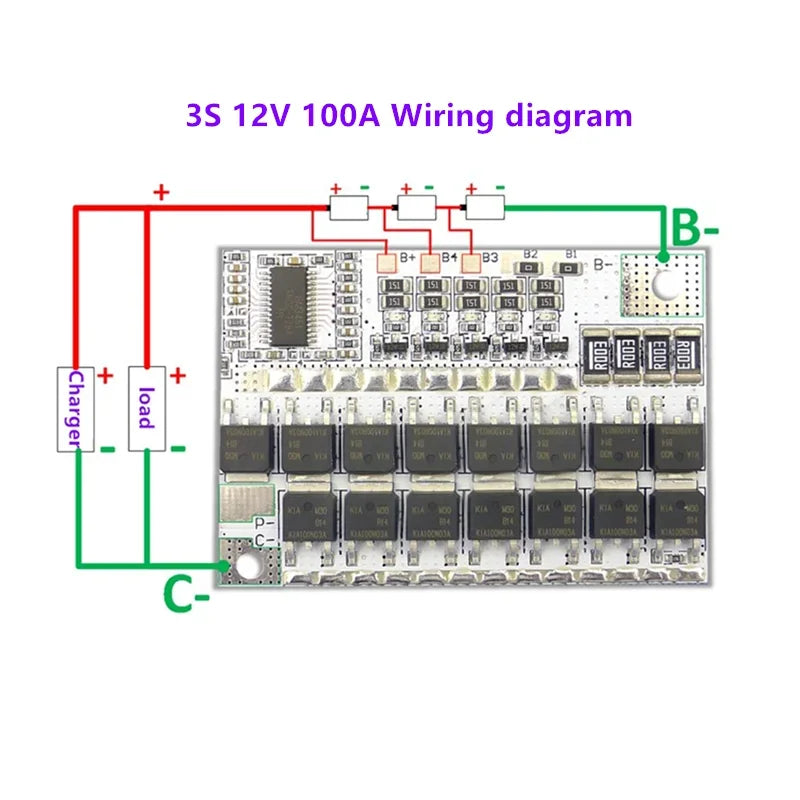

3S Description:
100% new and high quality battery charging module 18650
For lithium polymer protection plate (3.7 V)
Single cell overcharge battery protect voltage:4.21-4.29 V
Single cell overcharge battery protect recover
voltage:4.14-4.24 V
Overload protection delay: 1.5-2.5 S
Single over-discharge battery protect voltage: 2.72-2.88 V
Overload protect: 100A
Protection current against over discharge: 100A
Delay of protection against over discharge: 0.5-1.5 S
Temperature protect: Yes
Disconnect protect: Yes
The shortage of protecting: Yes
Delay in shortage: 100-600 EE. UU
Protection against shortage recovery: Yes
Charging current: 60A
The current balance: Yes
Ampere balance (current): 60 mA
Accuracy tension tension: 4.14-4.24v

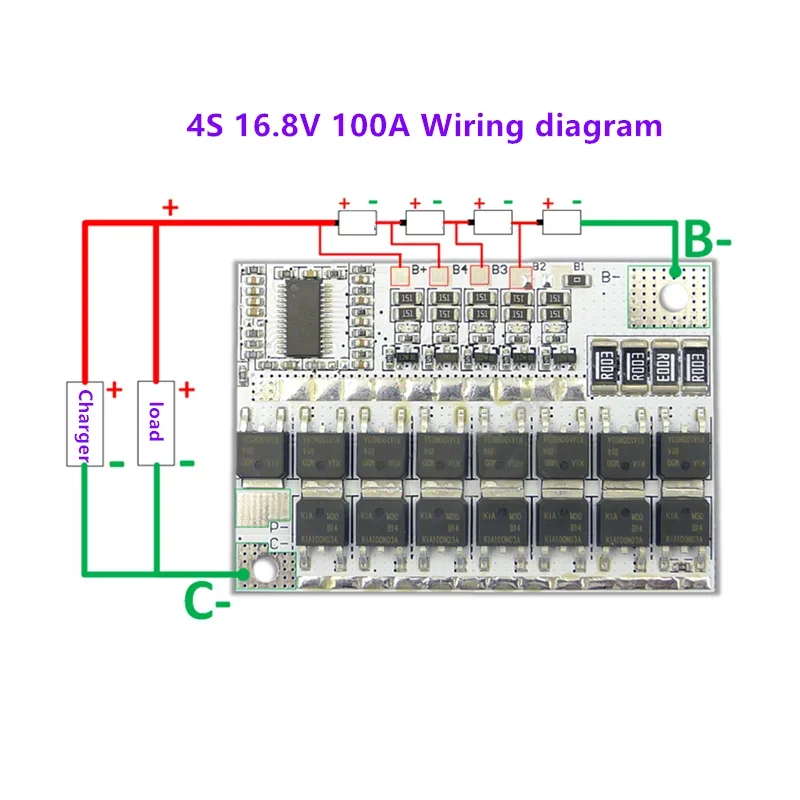

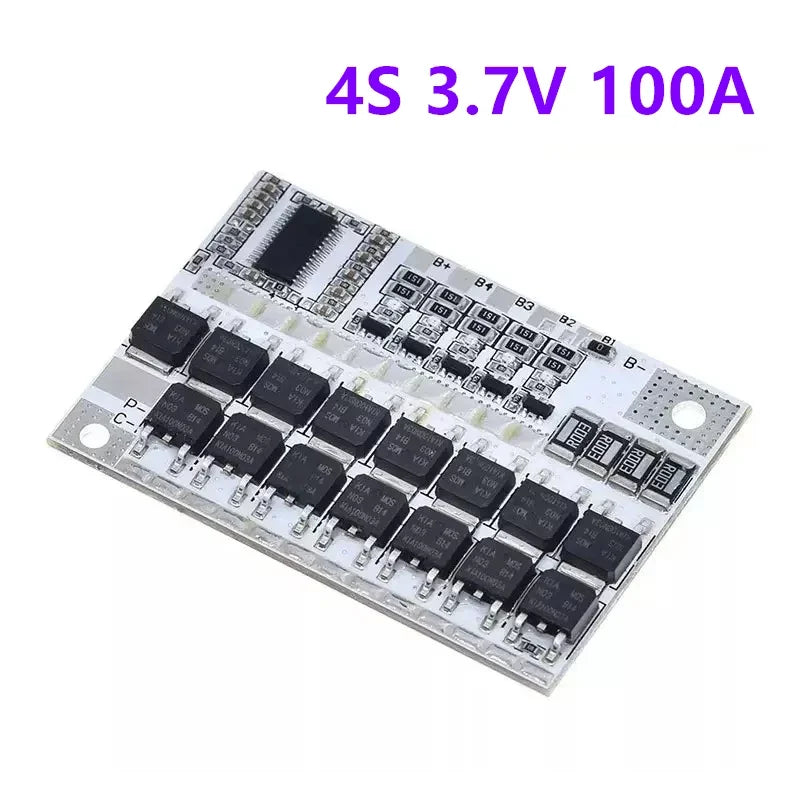

4S Description:

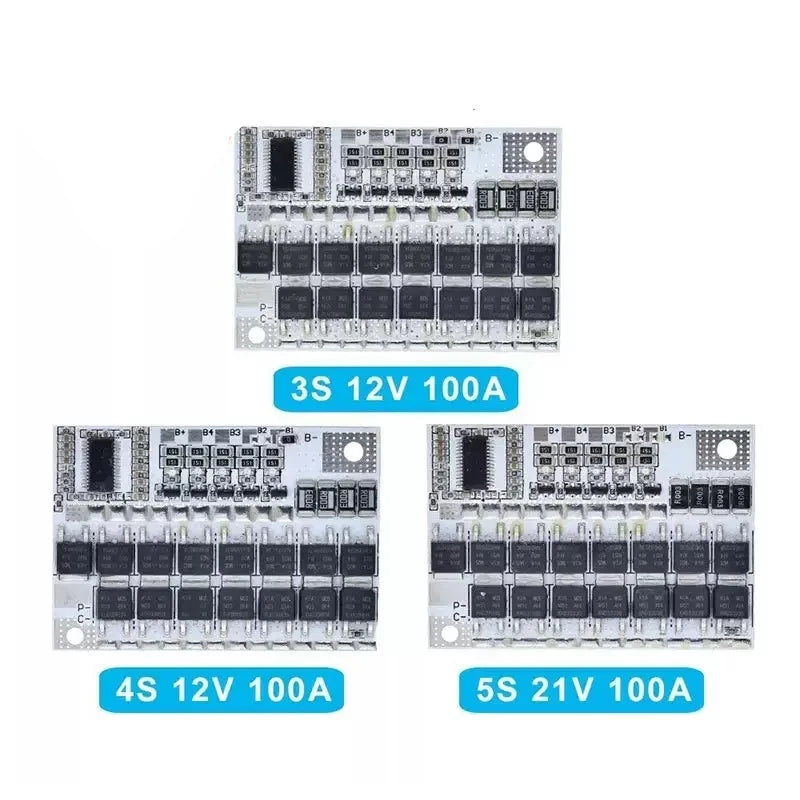

1.This protection plate is 3s 4S 5S in the commonly used
lithium battery protection table (you can adjust how many
ropes are used), the default delivery is lithium 4S ternary.
2. Specified chip, stable performance, disconnect protection,
overcurrent protection, over-discharge protection, overload
protection, with balance, etc.
3 common use for the same port and different port, the
protective plate uses 15 MOS high-strength ultra-low
resistance tubes (discharge of 8, load of 7), in the same port
mode can withstand the discharge current 60A, charging
current 60A; different port mode discharge current 80A, load
current 60A.
4.Can be used for LMO lithium batteries.ternary. LCO battery
packs (3.7 V), etc.
Parameter:
For polymer Li-polymer battery LiMnO protect parameter
(3.6 V / 3.7 V)
Single cell overcharge battery protect voltage:4.21-4.29 V
Single cell overcharge battery protect recover
voltage: 4.14-4.24 V
Overload protection delay: 1.5-2.5 S
Single over-discharge battery protect voltage: 2.72-2.88 V
Only over-discharge battery protect
recover voltage: 2.9-3.1 V
Over current protection load: 100A
About current protection discharge: 100A
Delayofprotectionagainstoverdischarge:0.5-1.5S
Temperature protection: Yes, it has temperature control
interface.
Disconnect protect: Yes
The shortage of protecting: Yes
Delay in shortage:100-600 EE.UU
Recovery mode of protection against shortage: release of
the load.
Contact discharge current: 80A
Discharge current sinopline: 60A
Charging current: 60A
Balance function: Yes
Ampere balance (current): 60 mA
The current balance of precision: 4.14-4.24V

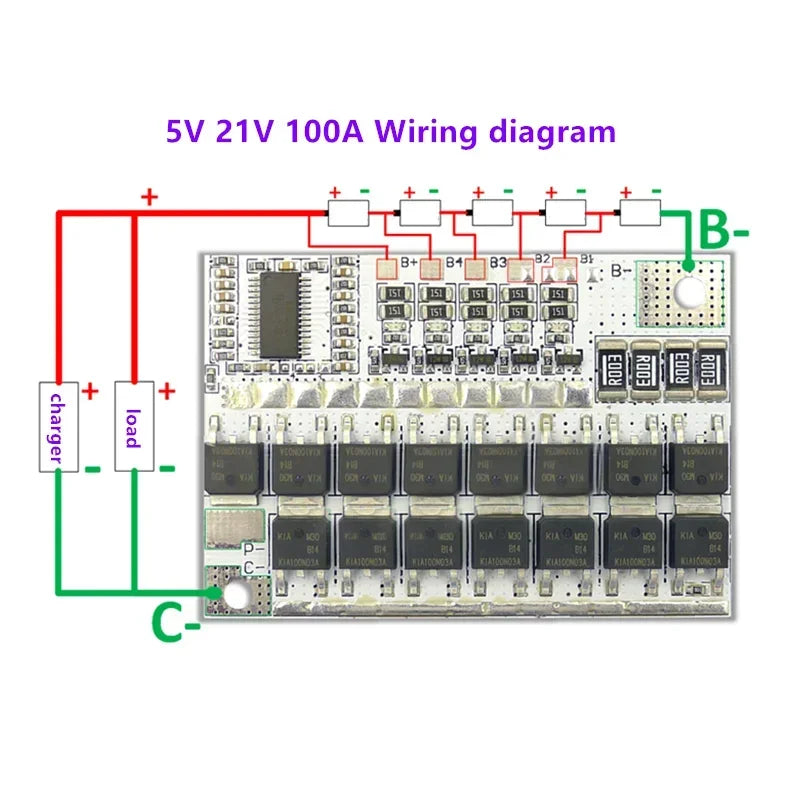

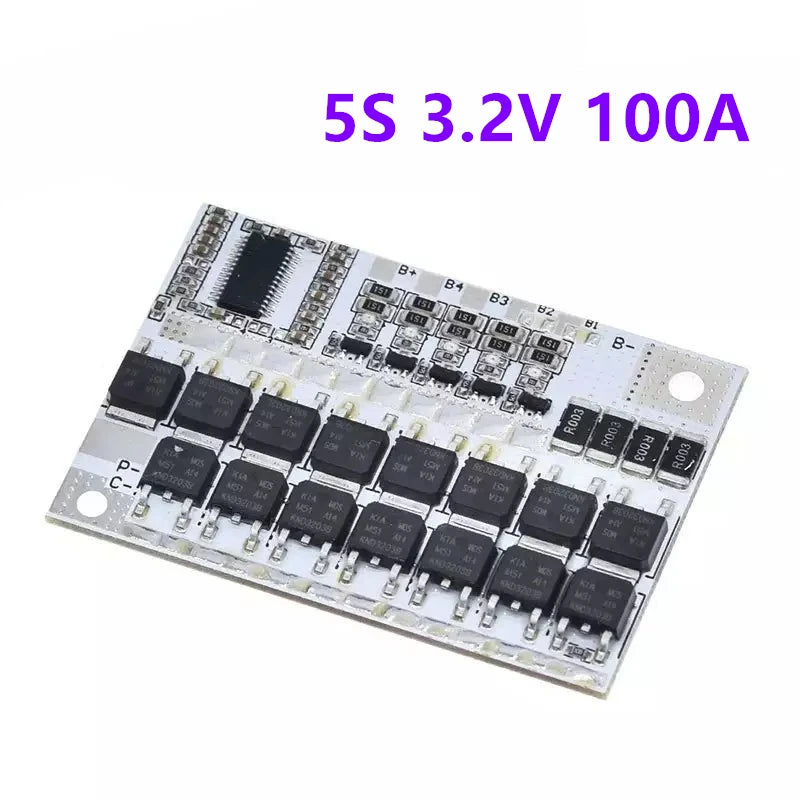

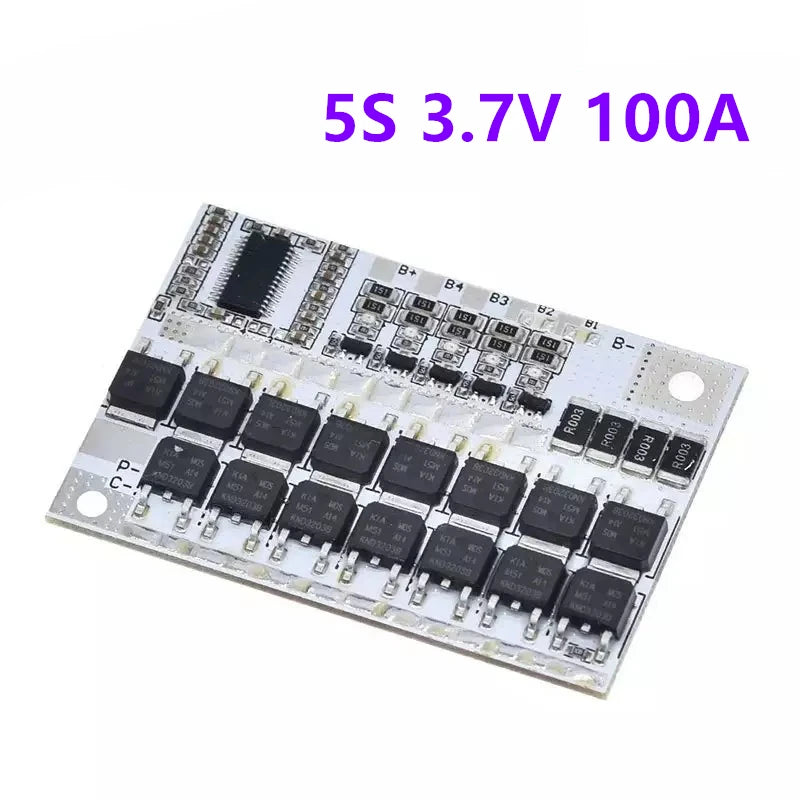

5S Description:
1. This protection plate is 3 s 5S 5S in the commonly used
lithium battery protection table (you can adjust how many
ropes are used), the default delivery is lithium 4S ternary.
2. Specified chip, stable performance, disconnect protection,
overcurrent protection, over-discharge protection, overload
protection, with balance, etc.
3 common use for the same port and different port, the
protective plate uses 15 MOS high-strength ultra-low
resistance tubes (discharge of 8, load of 7), in the same port
mode can withstand the discharge current 60A, charging
current 60A; different port mode discharge current 80A, load
current 60A.
4. Can be used for LMO lithium batteries. ternary. LCO battery
packs (3.7 V), etc.
Parameter:
For polymer Li-polymer battery LiMnO protect parameter
(3.6 V /3.7 V)
Singlecell overchargebatteryprotectvoltage:4.21-4.29V
Singlecellovechargebatteryprotectrecovervoltage:
4.14-4.24 V
Overload protection delay: 1.5-2.5 S
Single over-discharge batteryprotect voltage:2.72-2.88 V
Only over-discharge battery protect recover voltage: 2.9-3.1V
Over current protection load: 100A
About current protection discharge: 100A
Delay of protection against over discharge: 0,5-1,5 S
Temperature protection: Yes, it has temperature control
interface.
Disconnect protect: Yes
The shortage of protecting: Yes
Delay in shortage: 100-600 EE.UU
Recovery mode of protection against shortage: release of
the load.
Contact discharge current: 80A
Discharge current sinopline: 60 A
Charging current: 60A
Balance function: Yes
Ampere balance (current): 60 mA
The current balance of precision: 4.14-4.24 V
